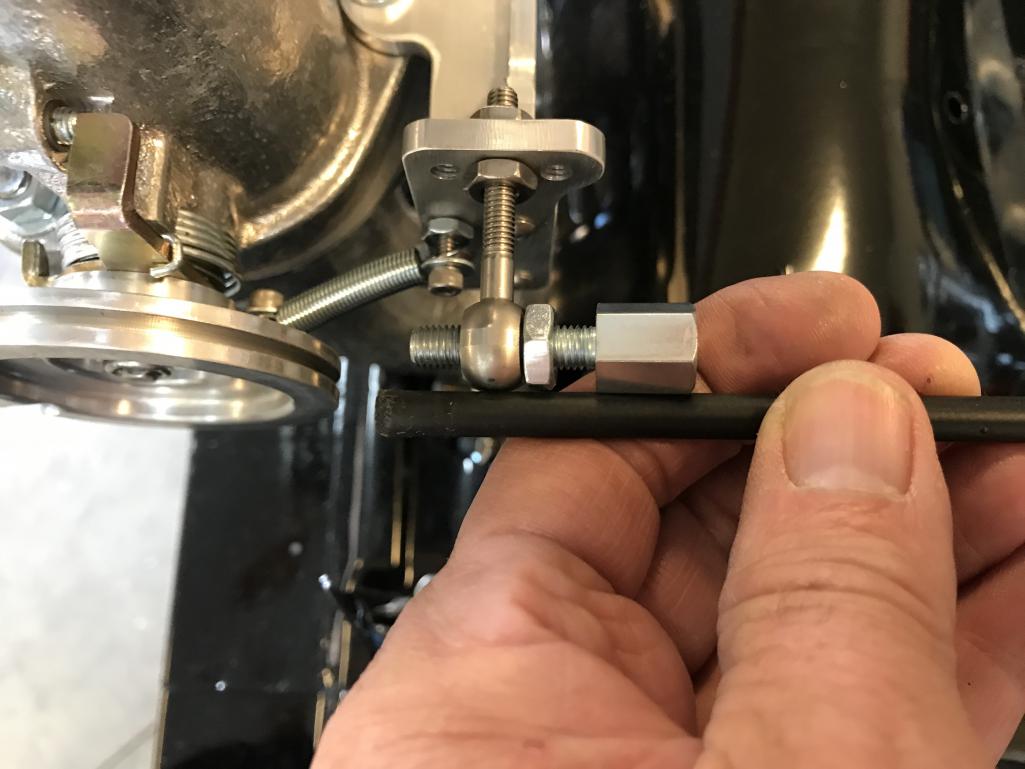

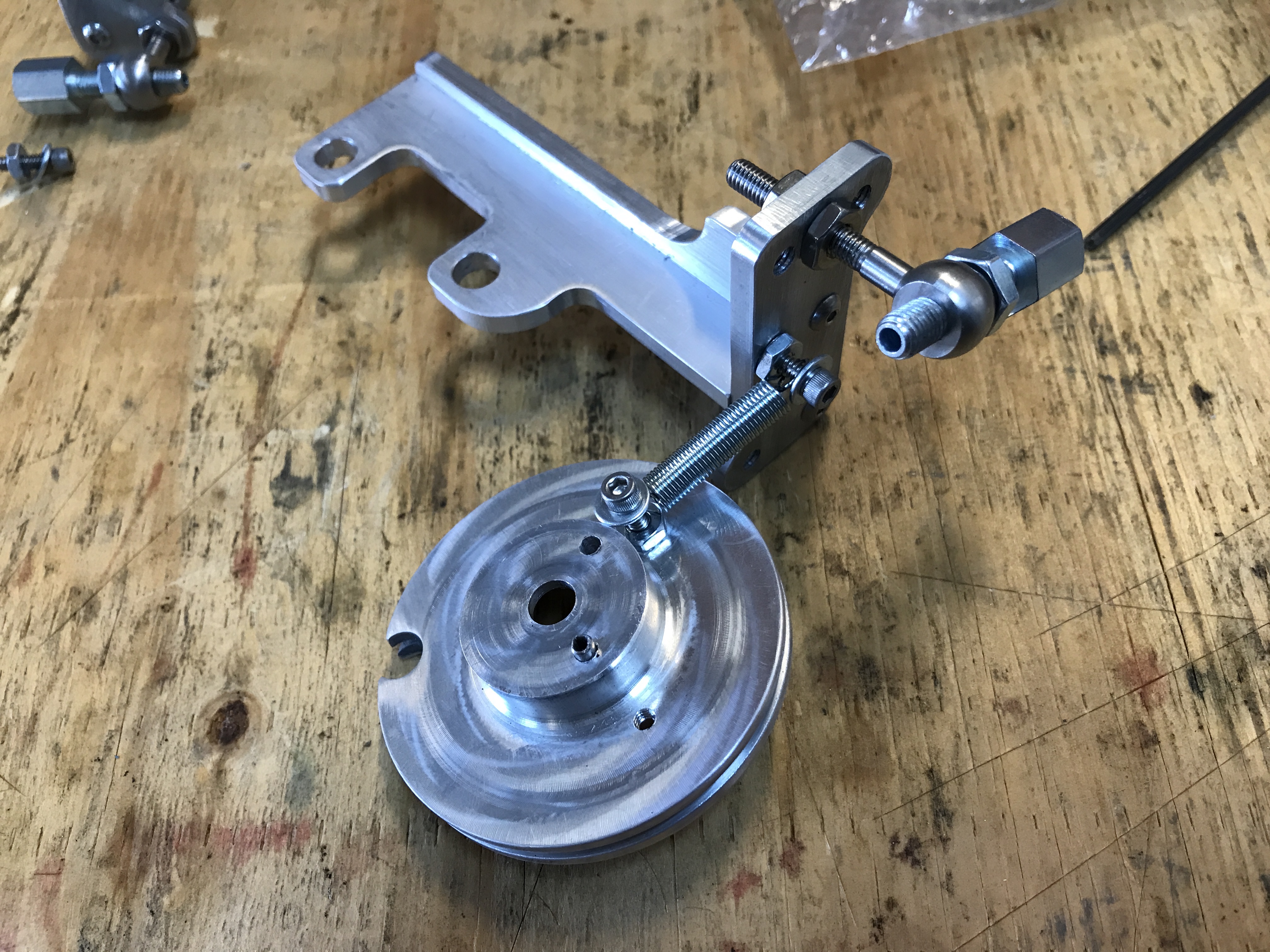

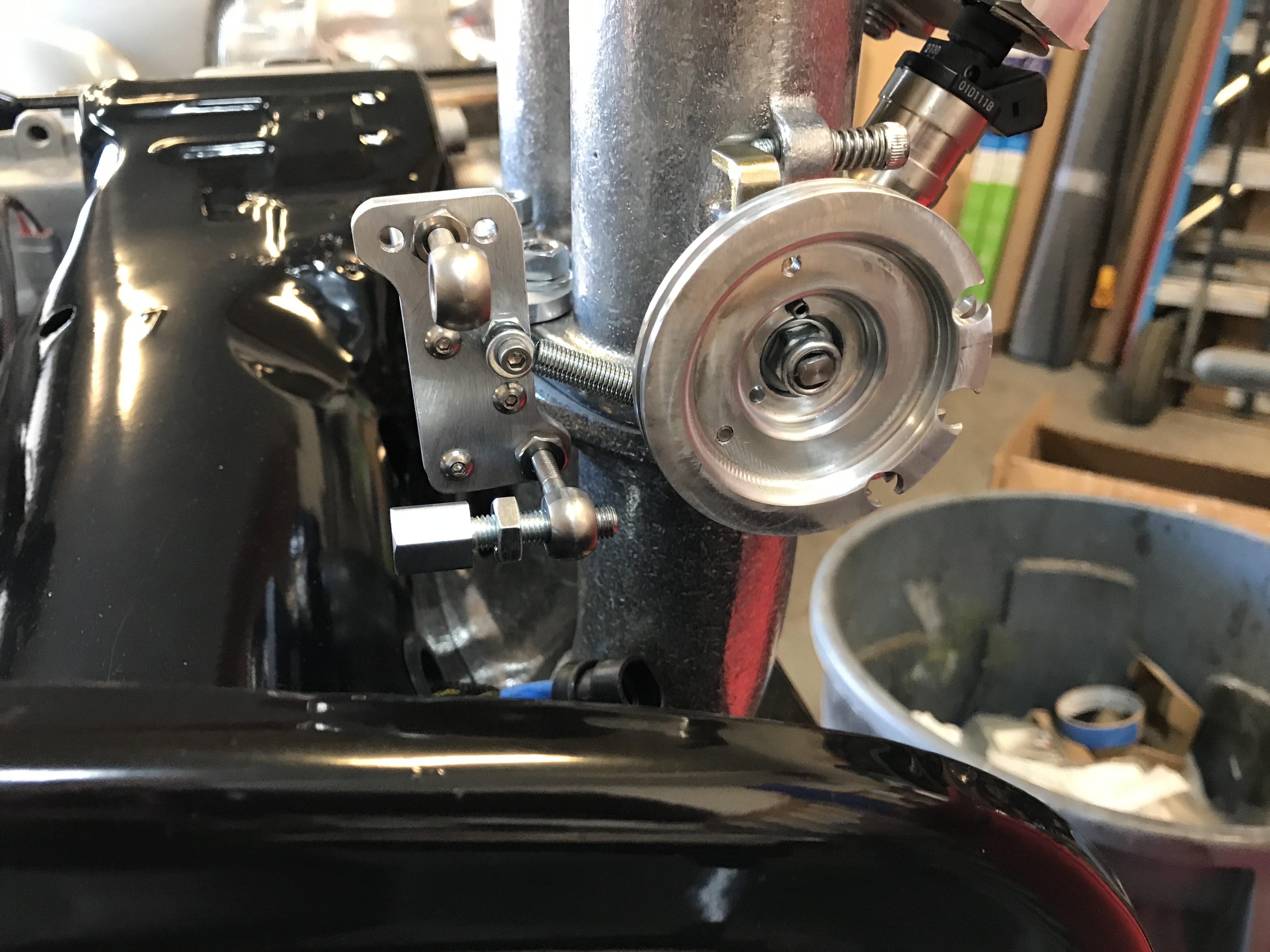

Here's the slave pulley, set up with the mounting bracket and return spring.
Attached thumbnail(s)
|
   |

|
| bkrantz |
Nov 17 2021, 08:02 PM
Post
#4162
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

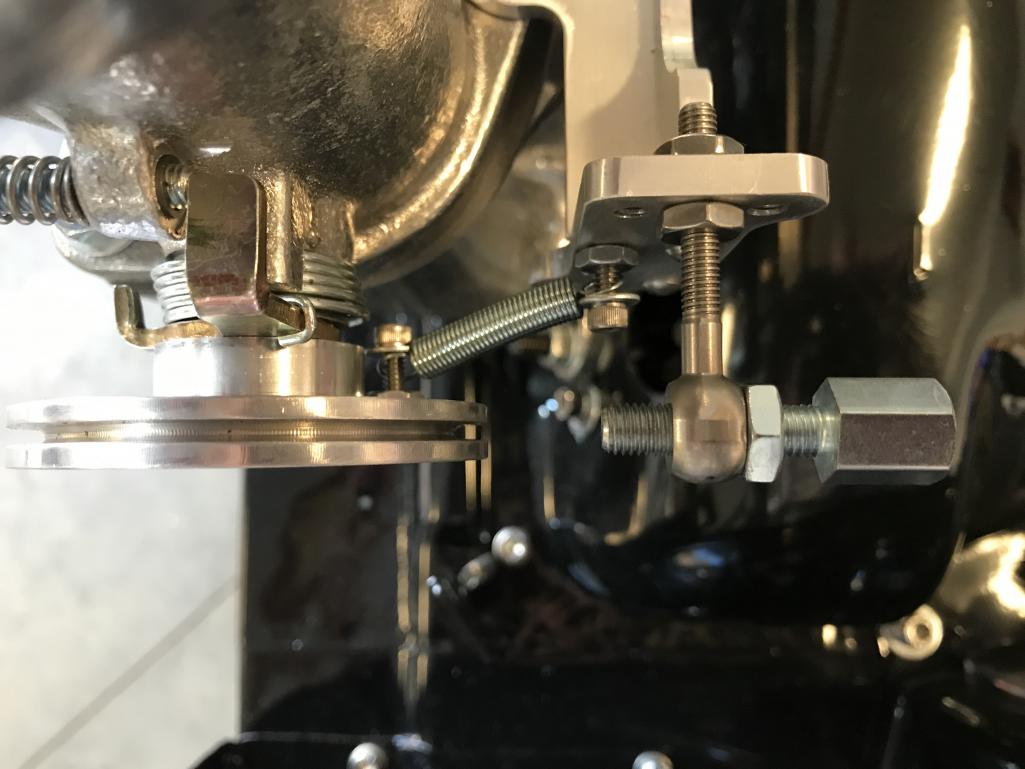

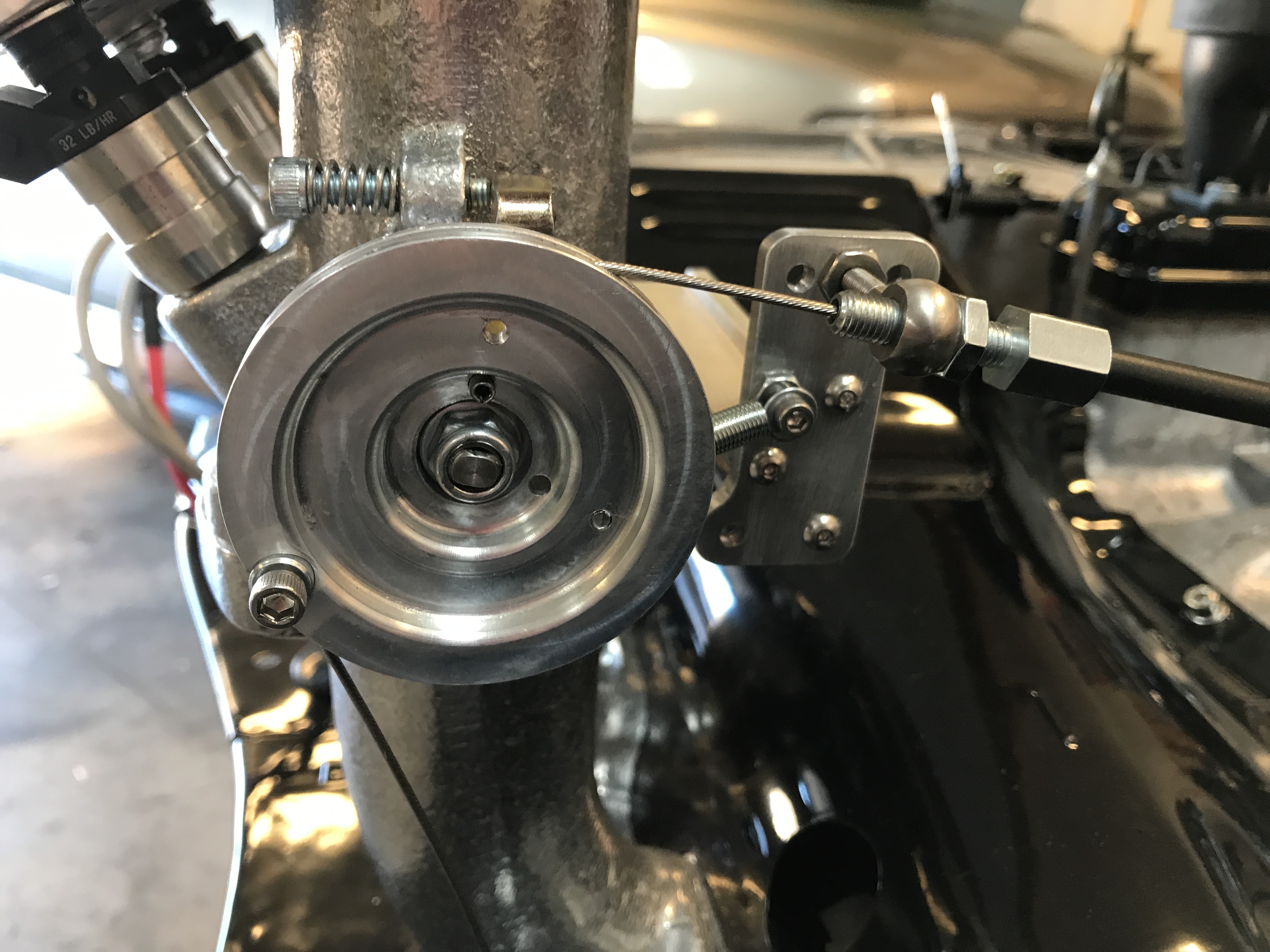

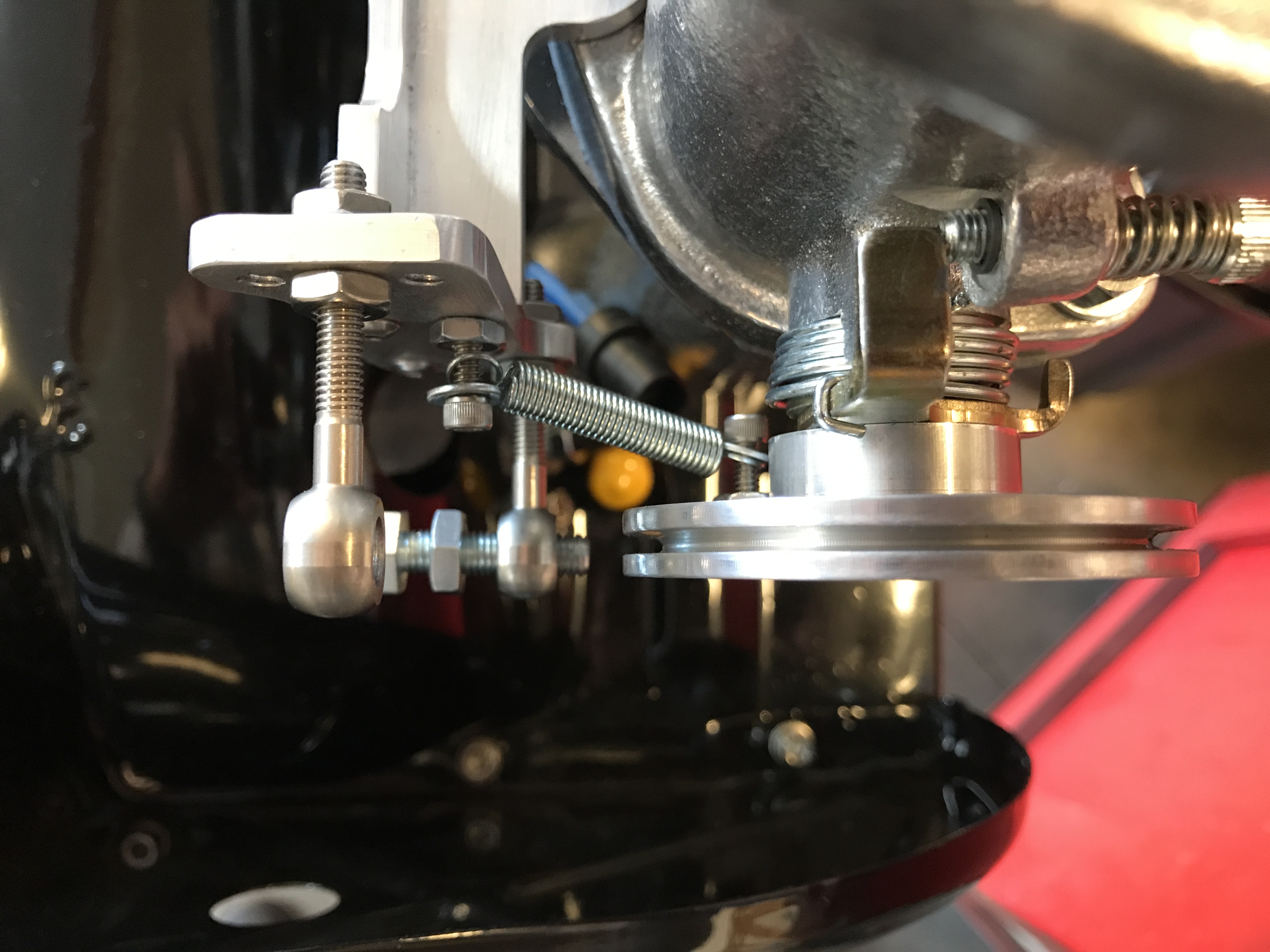

All together on the left throttle body.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:04 PM
Post
#4163
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|
Then I got the cable stop aligned with the pulley.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:08 PM
Post
#4164
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

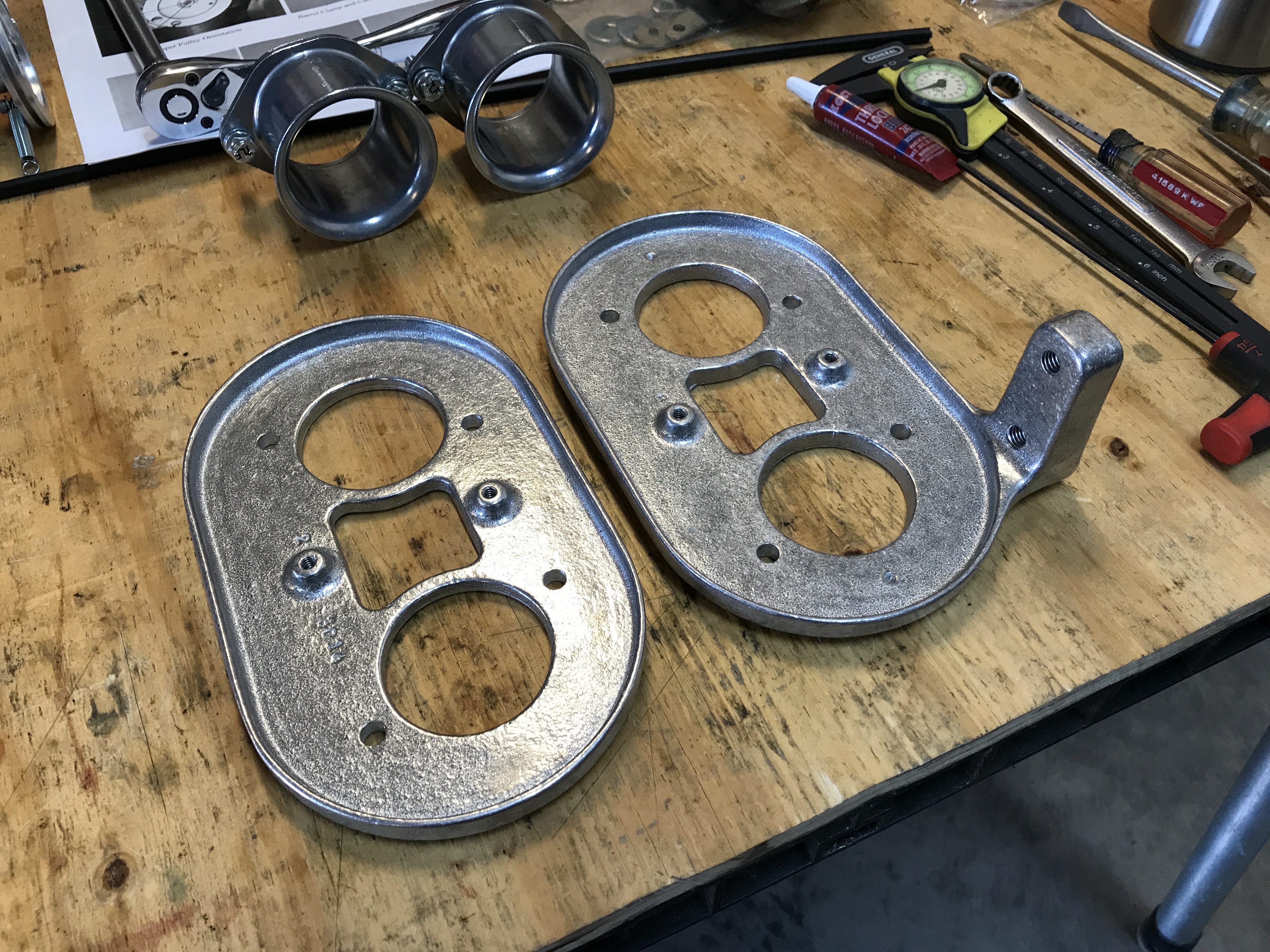

I also swapped out the bottom plates for the air filters, since I will not need the mounting posts for the cross-bar.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:10 PM
Post
#4165
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

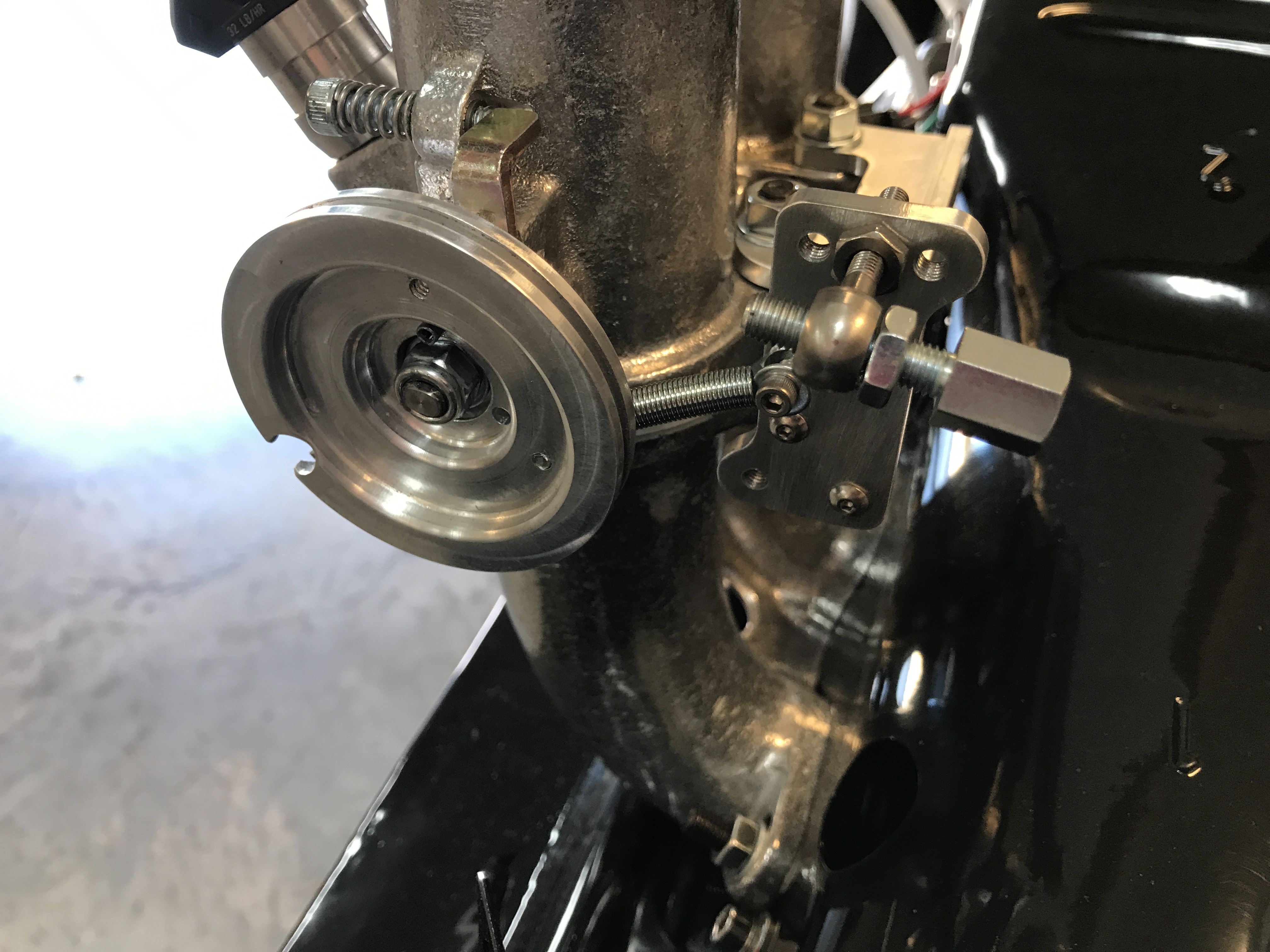

Right side with the master pulley.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:11 PM
Post
#4166
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|
Again, I lined up the cable stops with the pulley.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:12 PM
Post
#4167
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|
Now its time for the auxiliary cable that connects the two sides.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:13 PM
Post
#4168
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

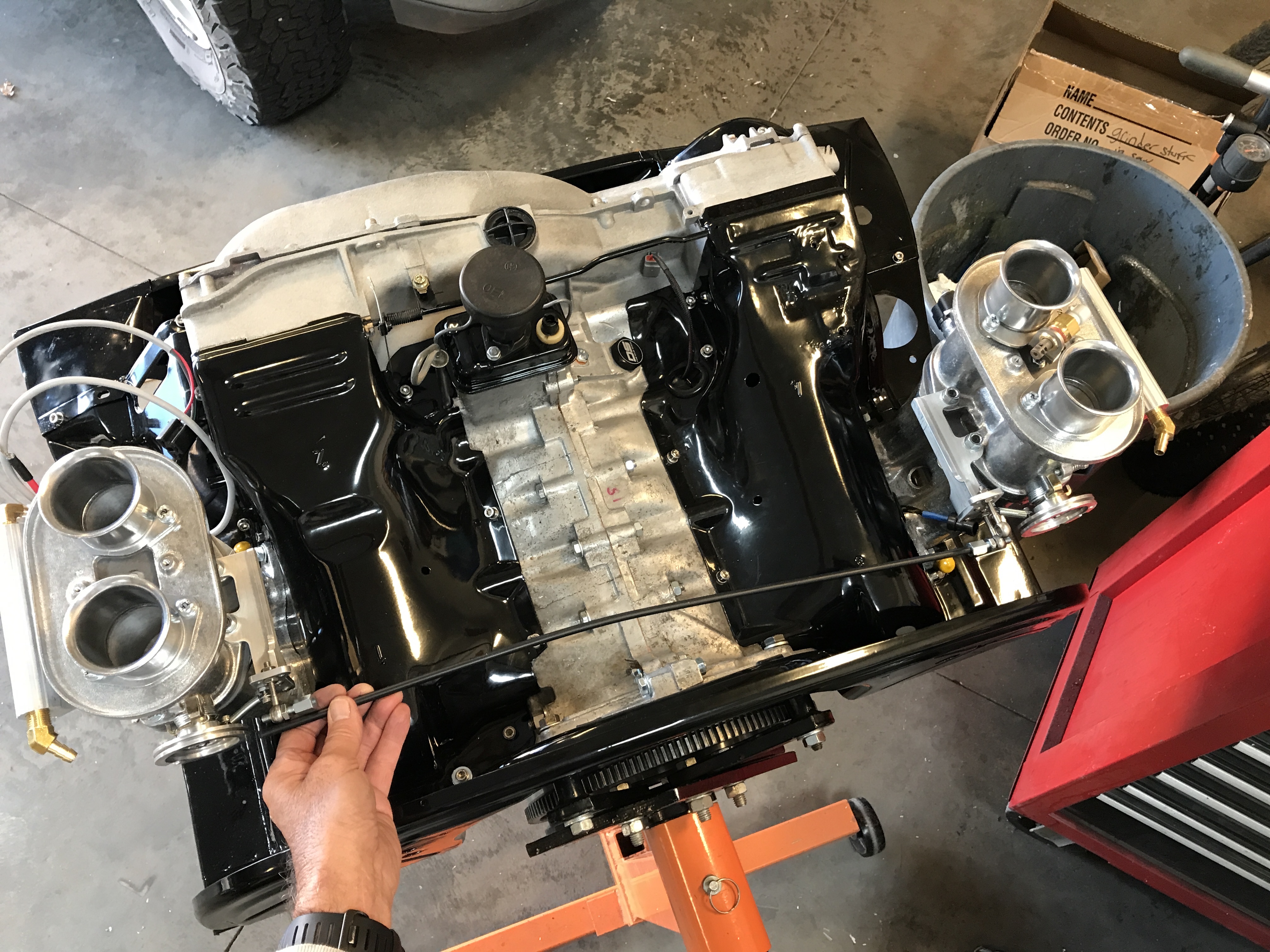

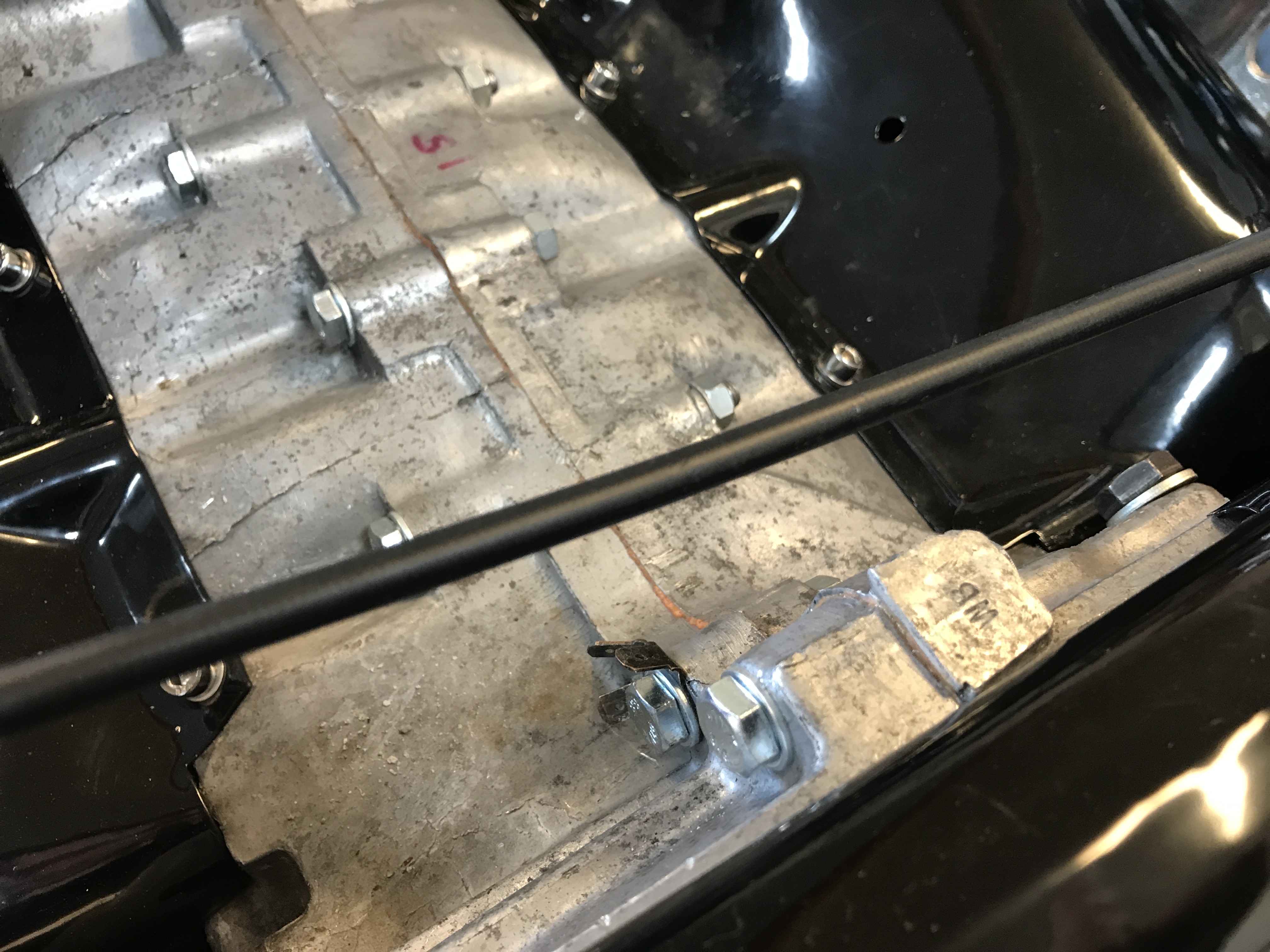

Obvious route for the cable, from right to left.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:16 PM
Post
#4169
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|
But this leaves the middle hanging unsupported, which could make the ends twist downward and mess up the cable tension.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:17 PM
Post
#4170
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

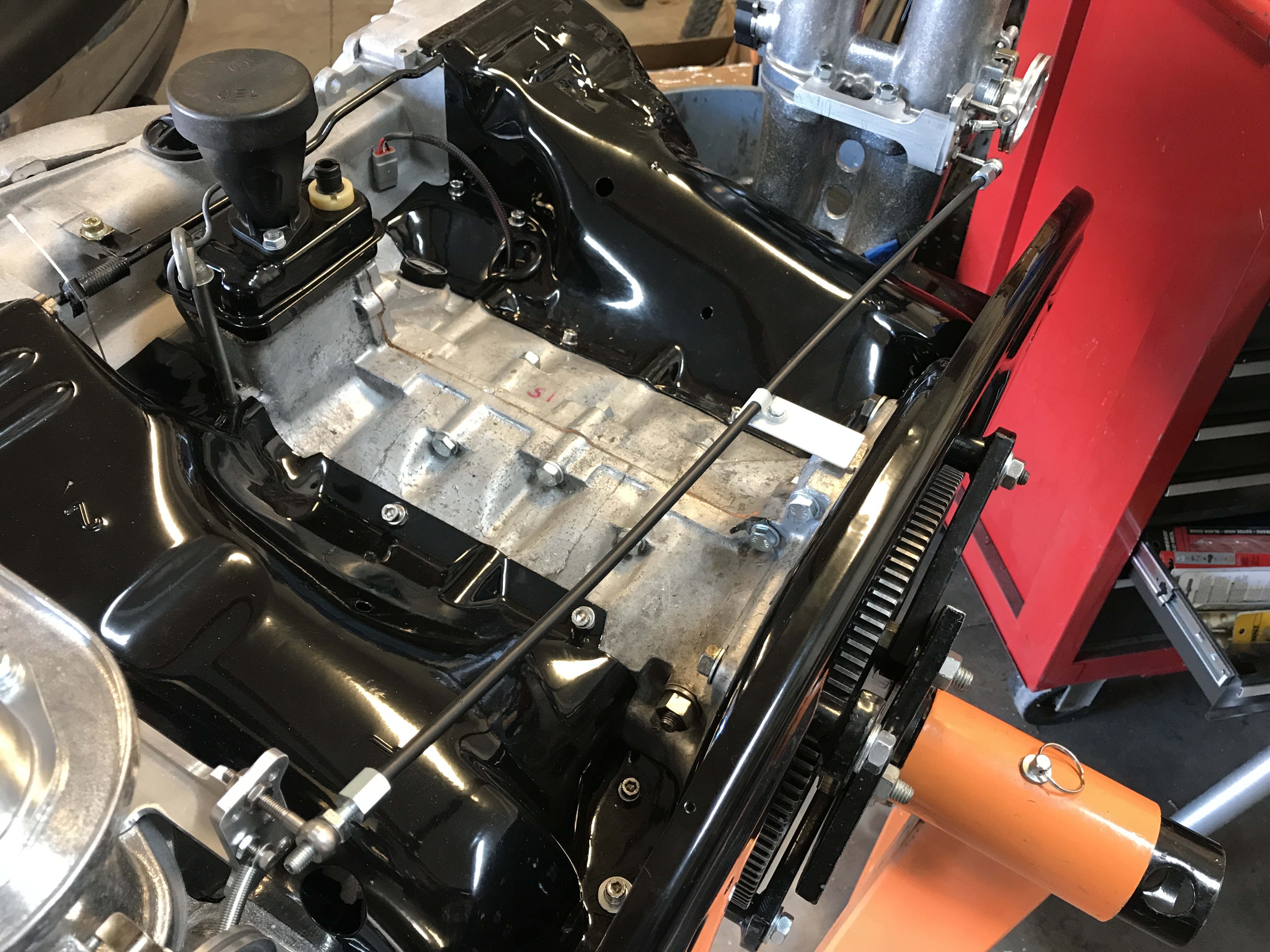

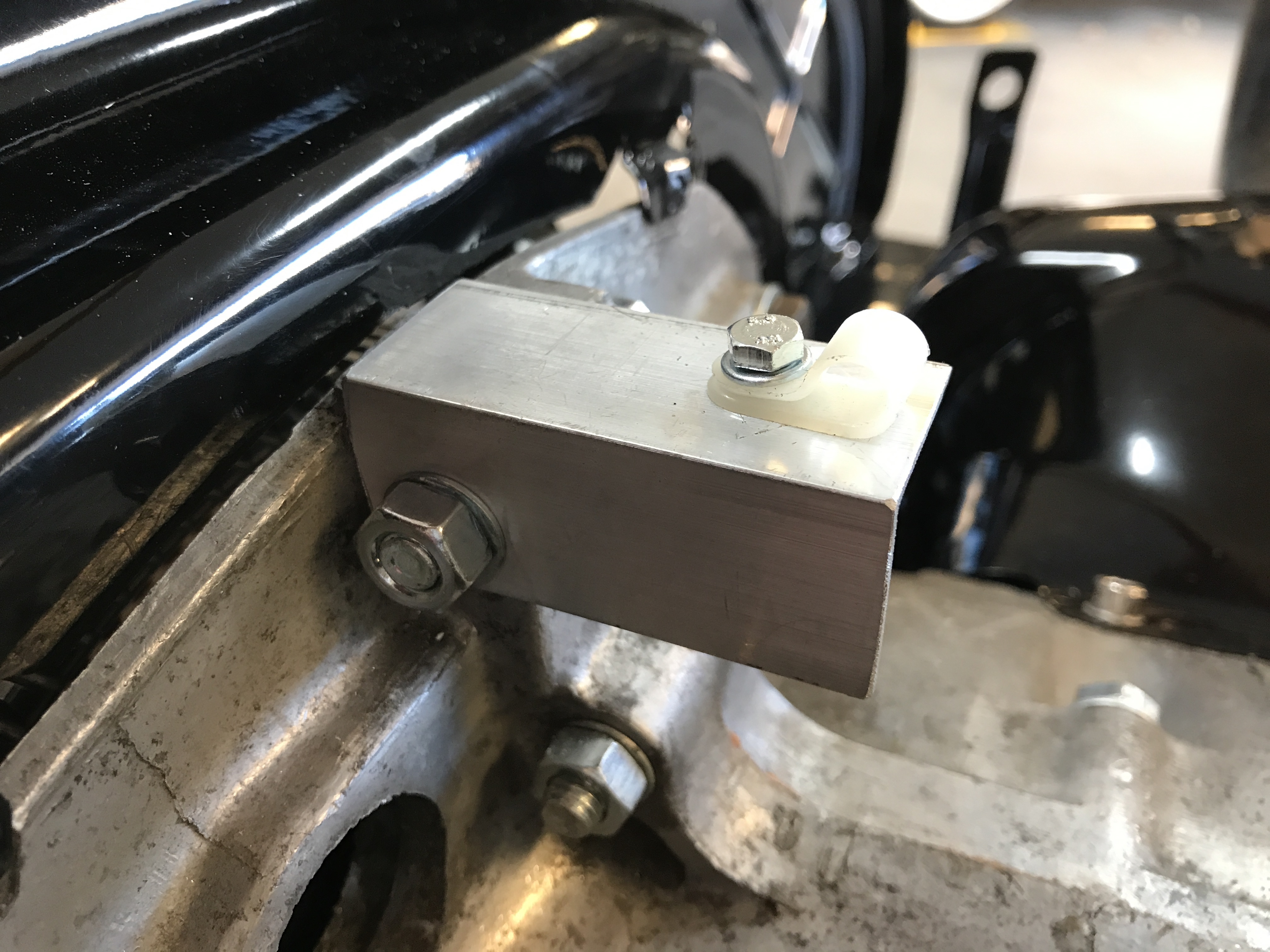

So I made a small bracket to support the middle of the cable.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:19 PM
Post
#4171
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

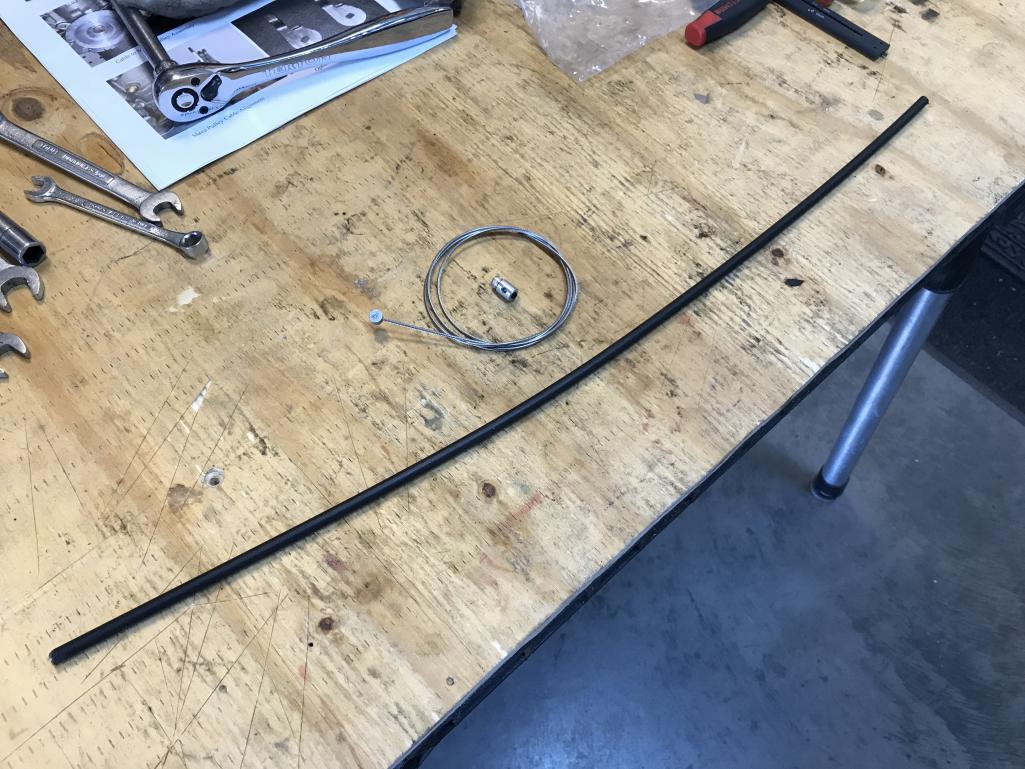

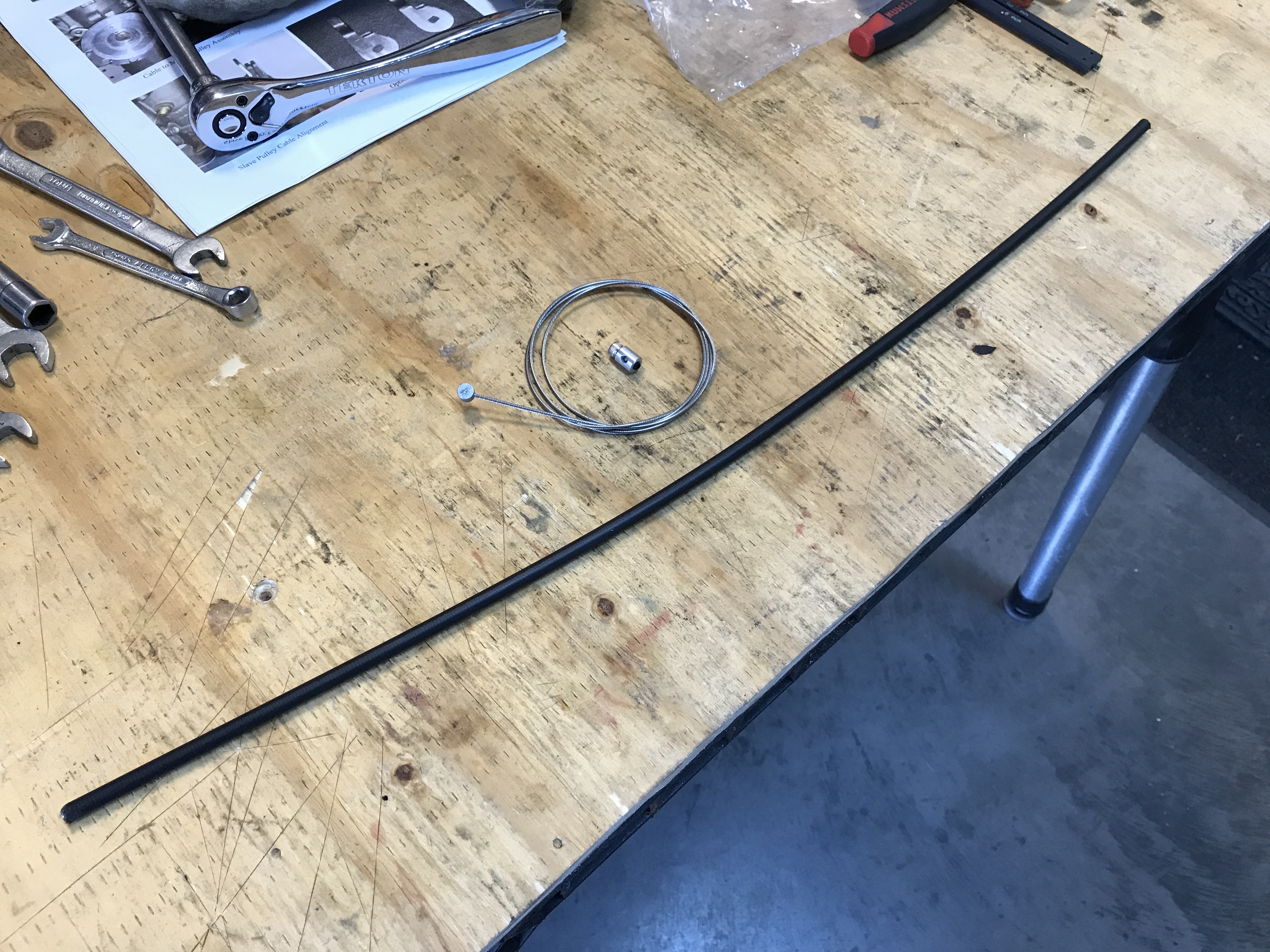

As a straight line, the cable housing is about an inch too long.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:20 PM
Post
#4172
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

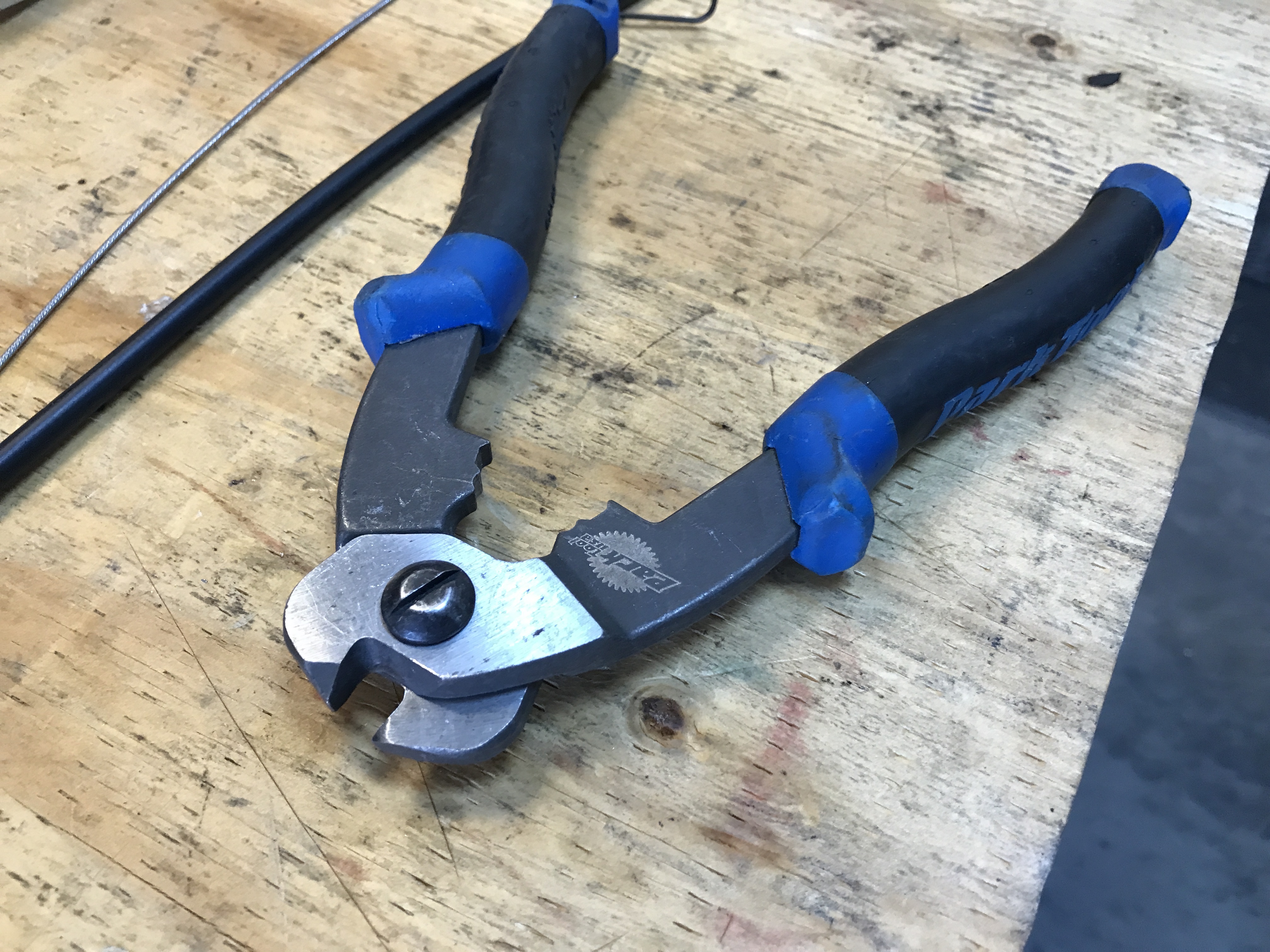

Time to get out the bike tools again, this time a cable housing shear.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:21 PM
Post
#4173
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

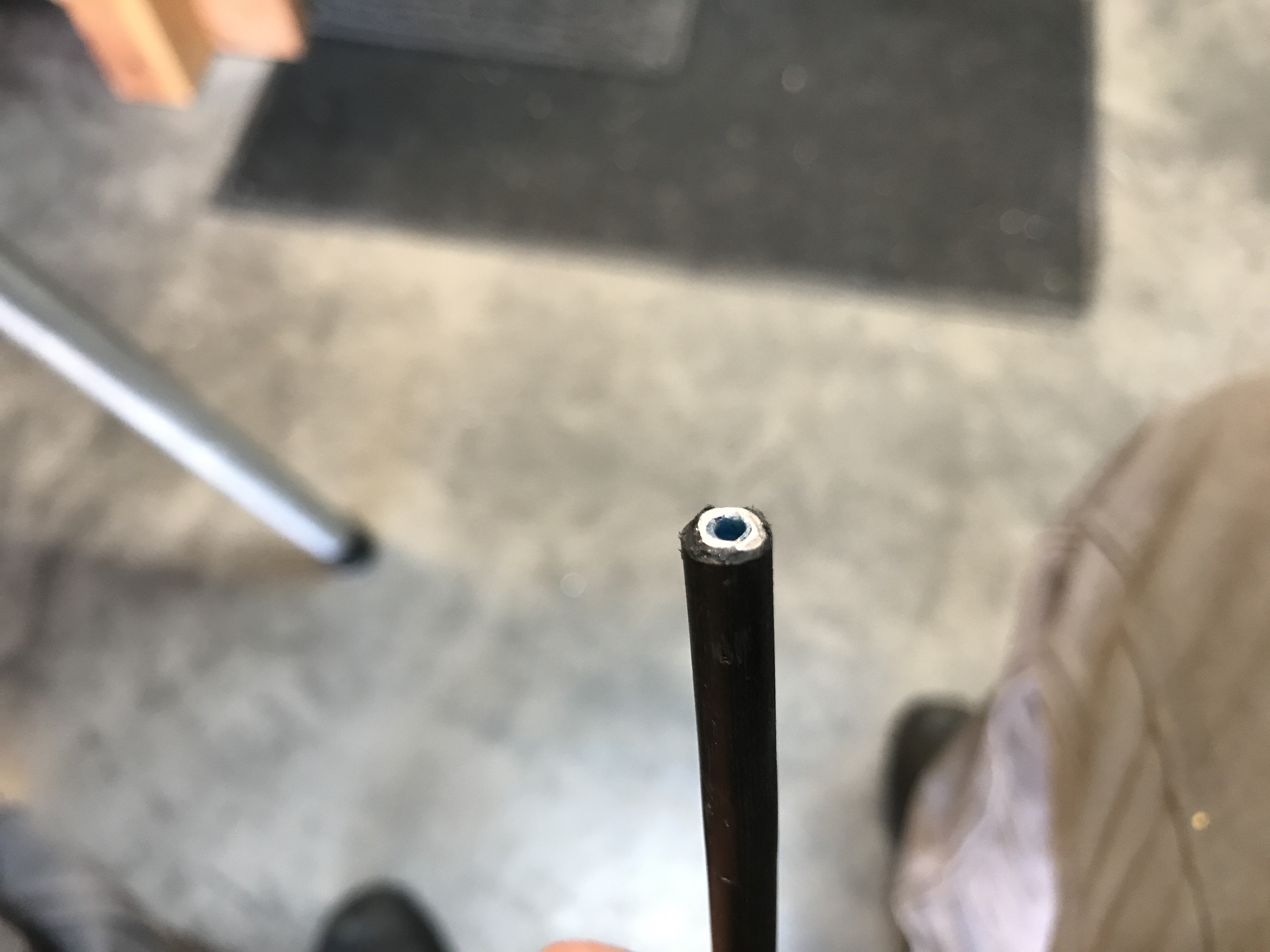

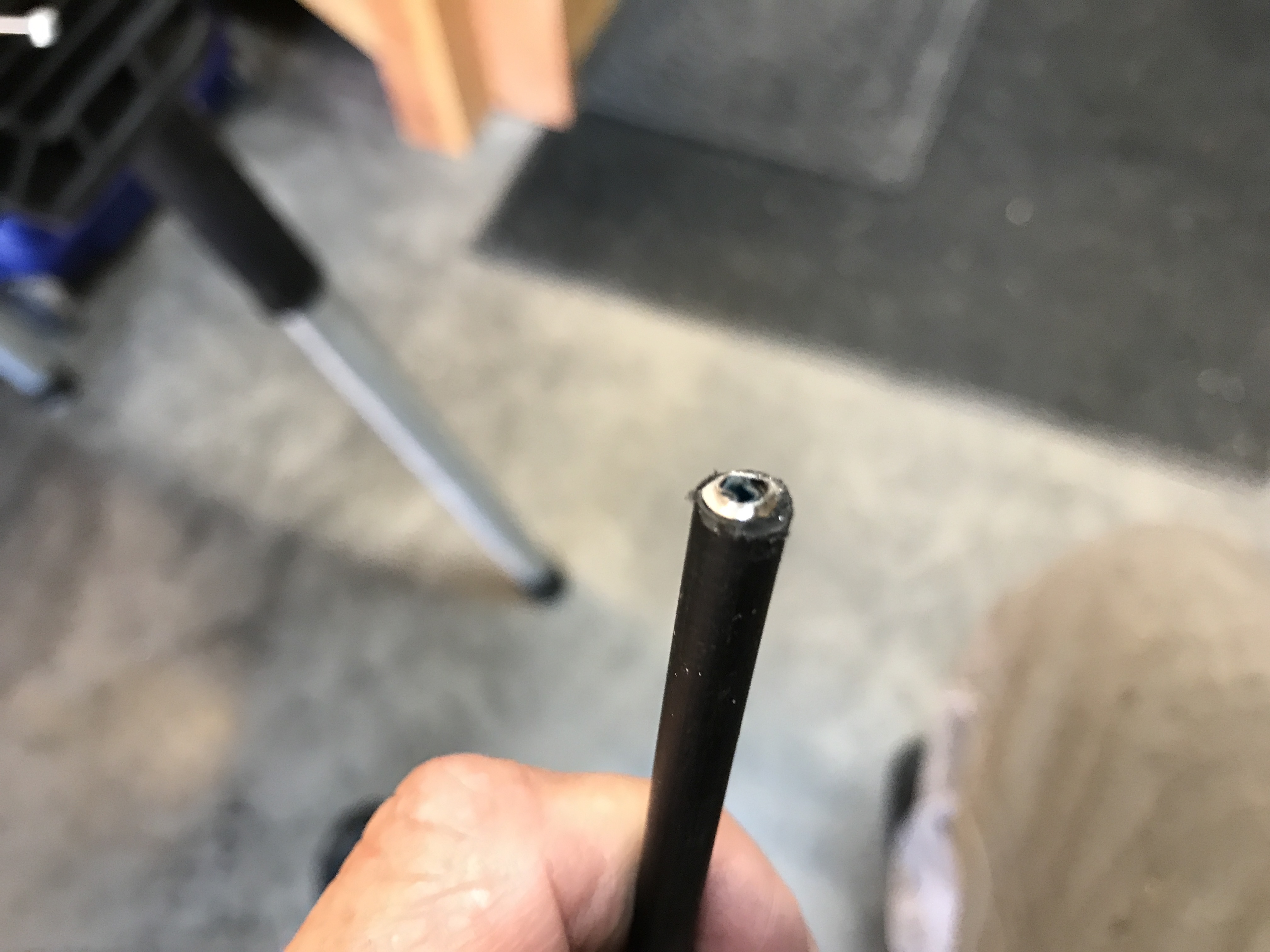

That leaves the housing end a bit jagged.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:22 PM
Post
#4174
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|
Filed flat, so the cable housing sits even in the stop.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:23 PM
Post
#4175
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|
Cable housing installed.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:24 PM
Post
#4176
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

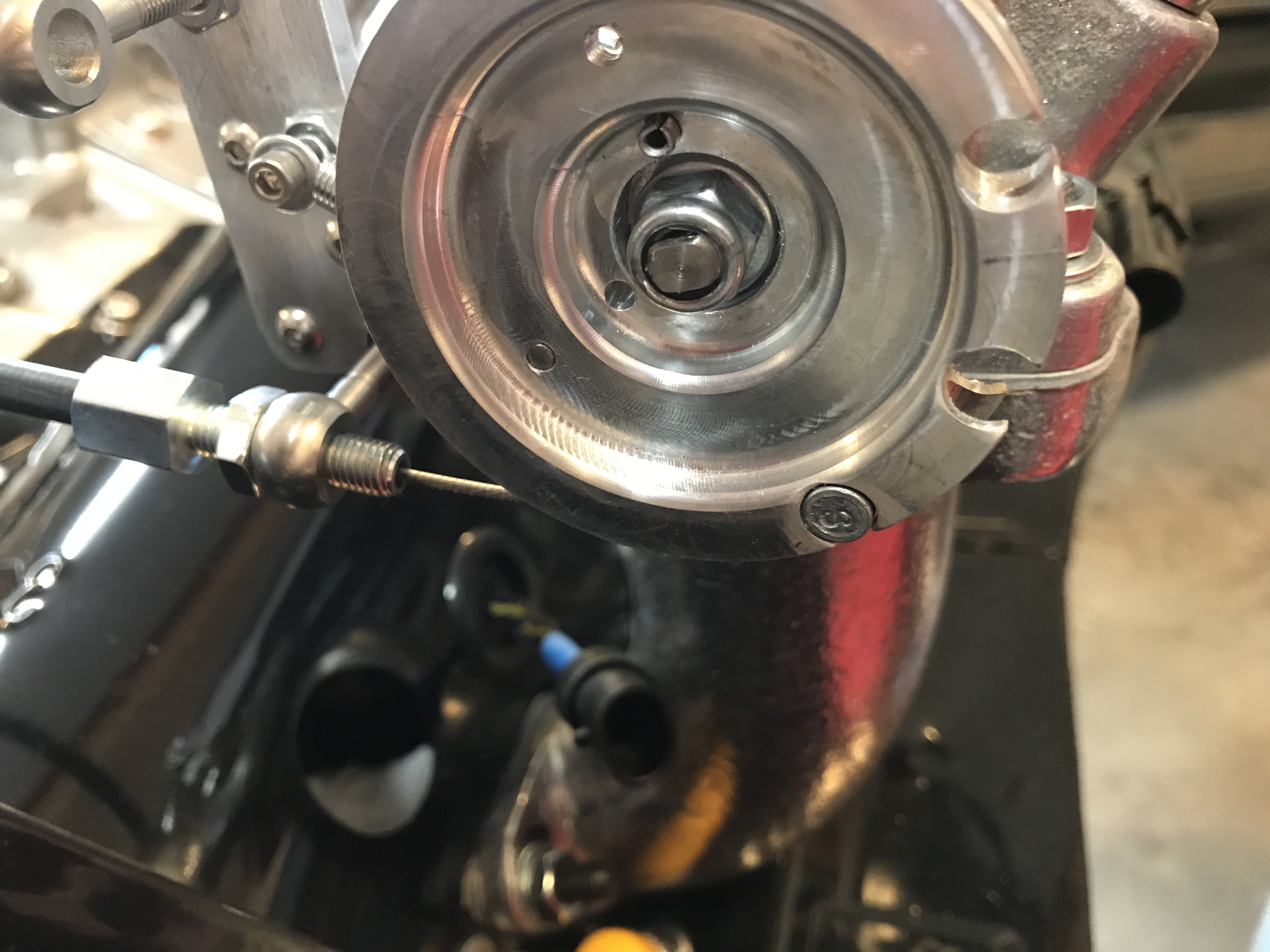

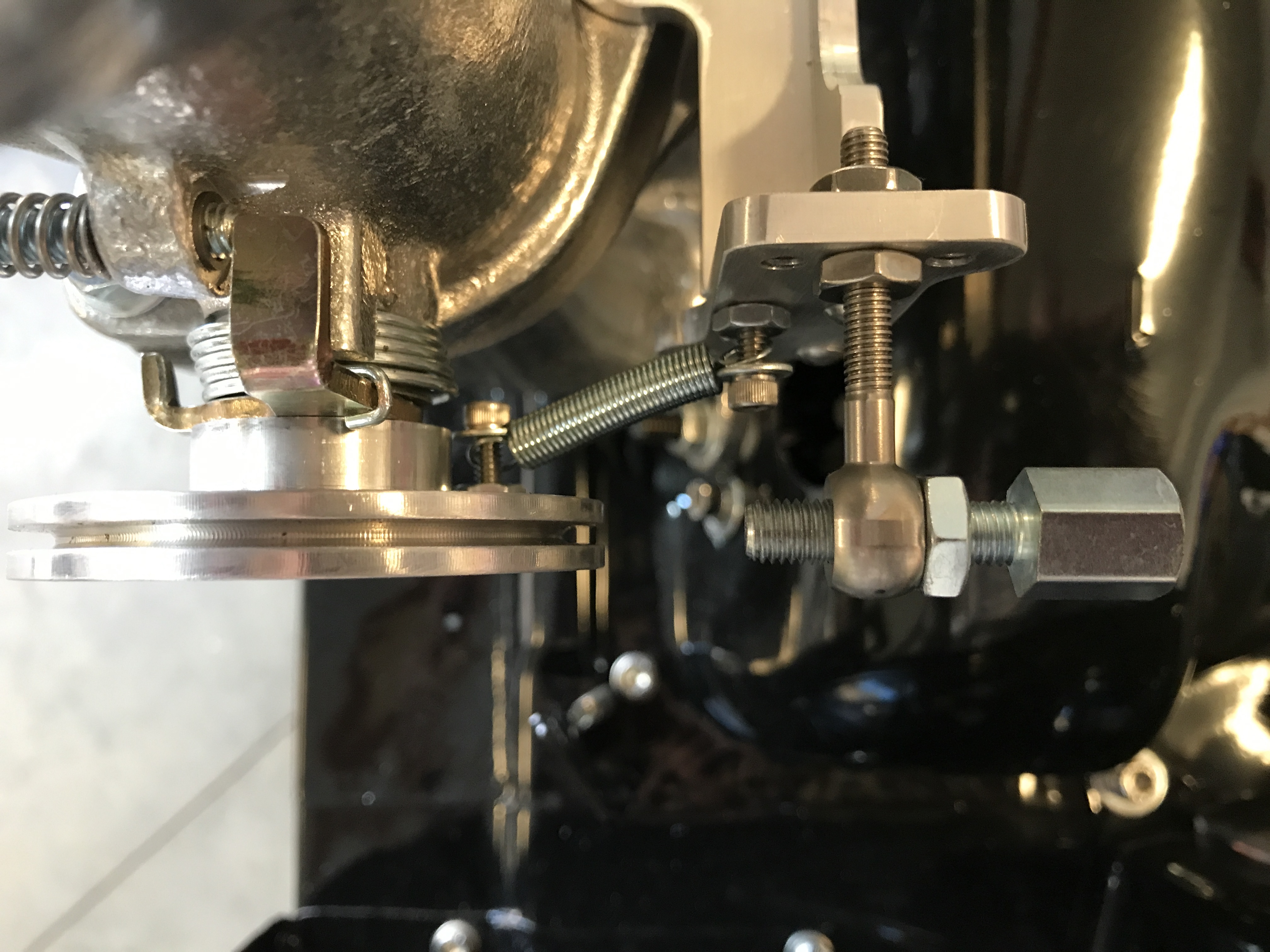

Cross cable end on the master pulley.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:25 PM
Post
#4177
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

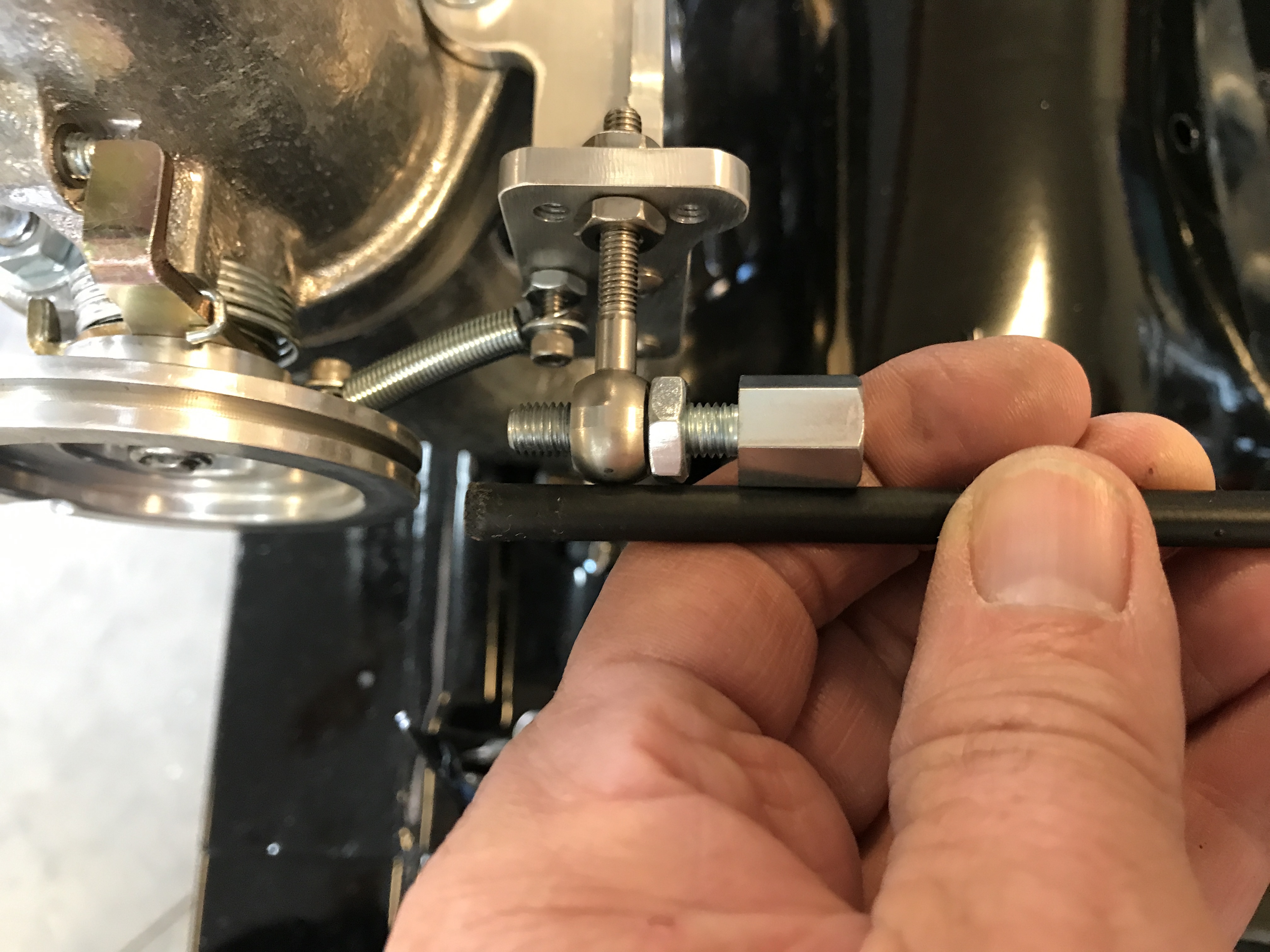

And on the slave side. I made a preliminary tension adjustment.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:43 PM
Post
#4178
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

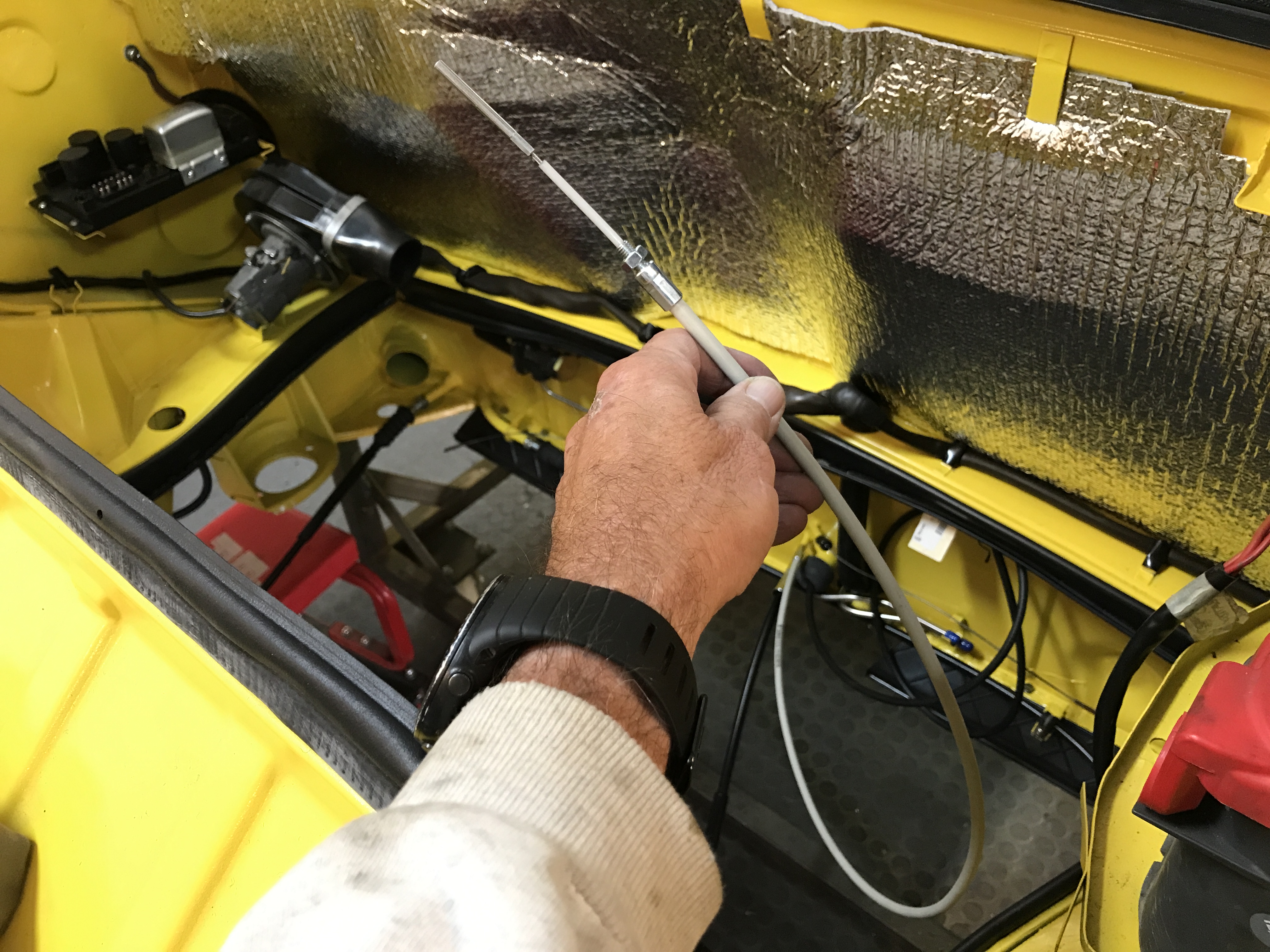

Once the engine is installed, I will connect the throttle cable to the master pulley, and it should be good to go.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:47 PM
Post
#4179
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

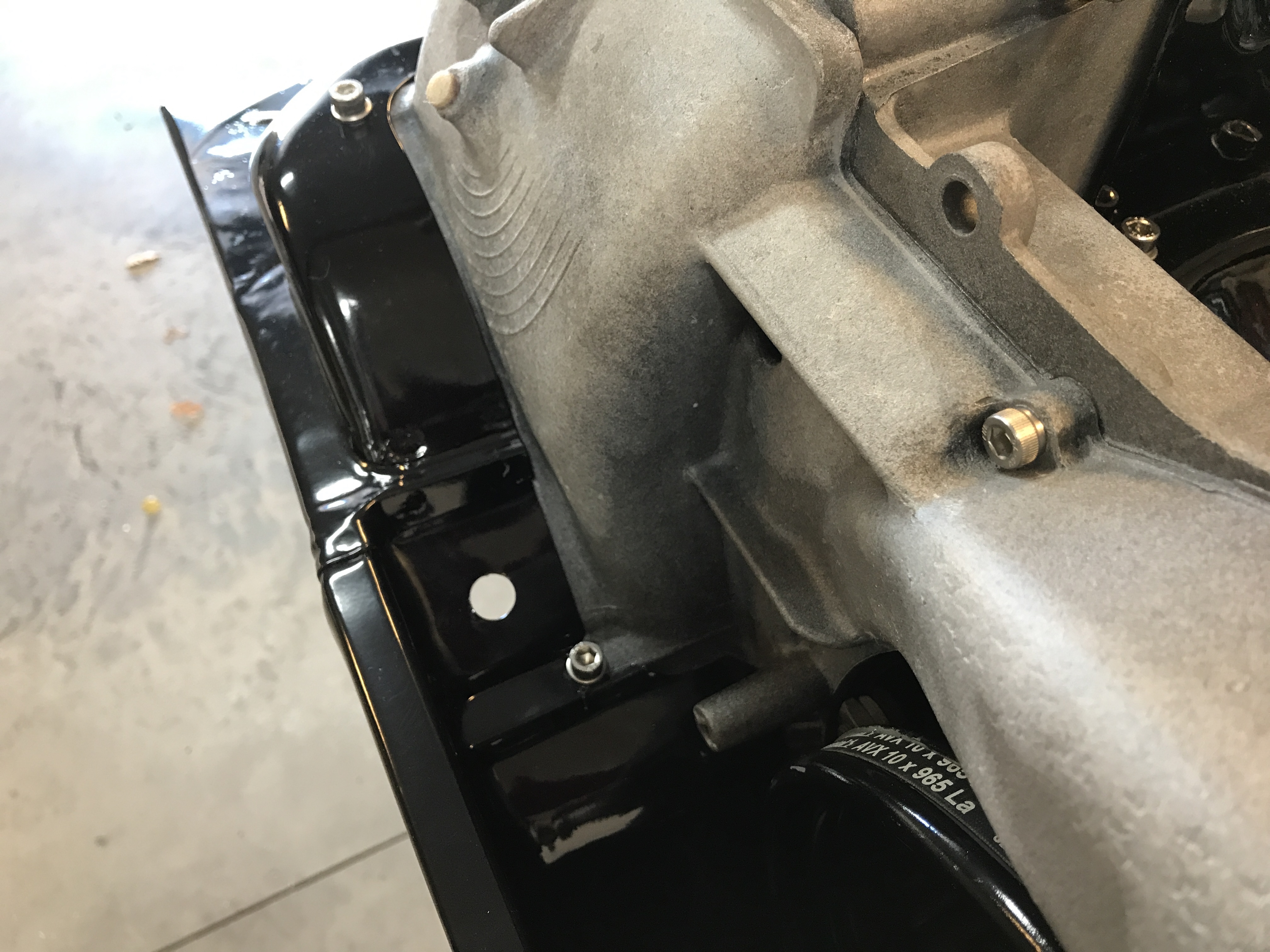

In order to reach the right rear, the accelerator cable will need to come up through the sheet metal near the front, so I made a new 1/2 inch hole.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Nov 17 2021, 08:47 PM
Post
#4180
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

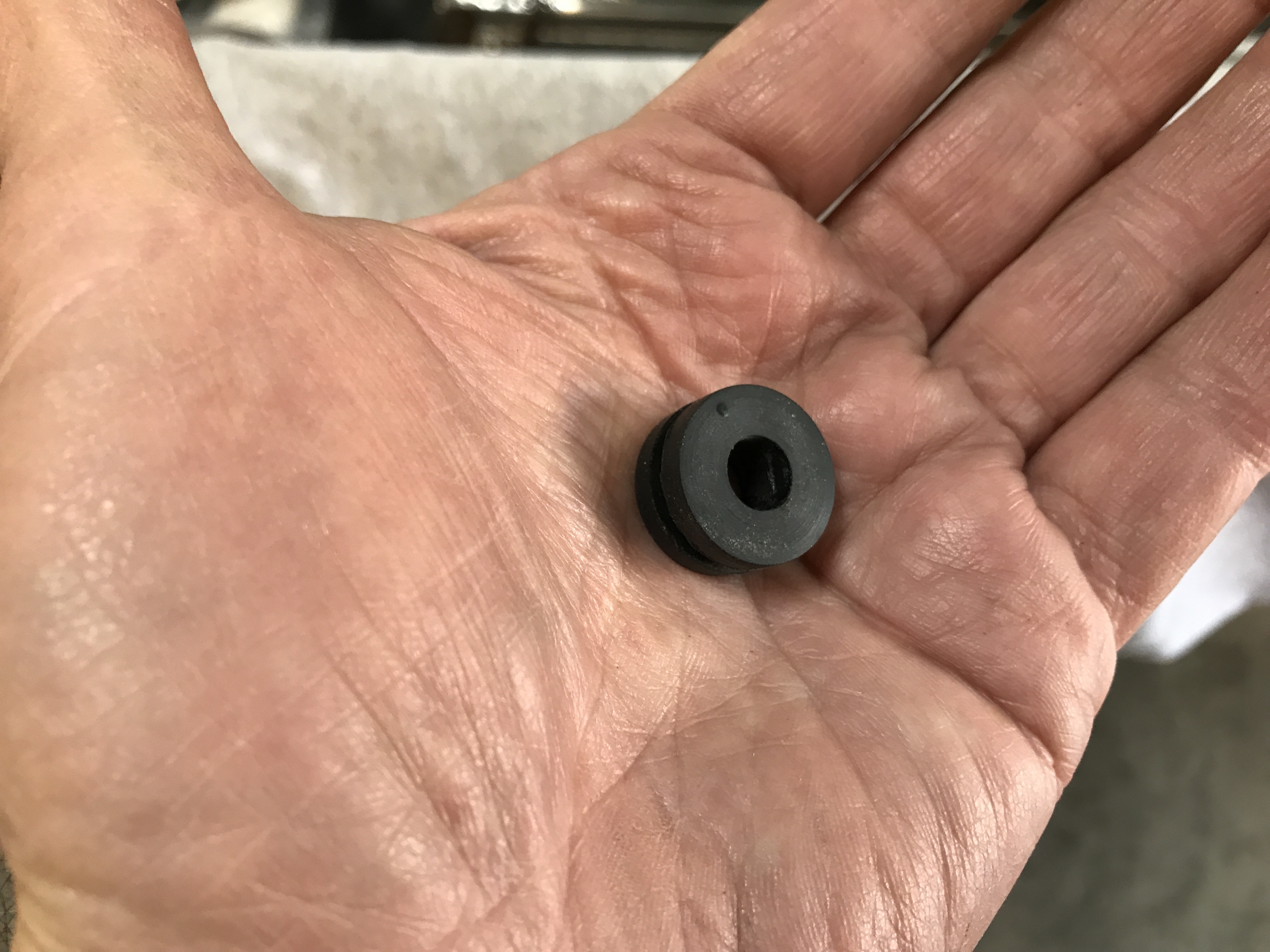

Rubber grommet.
Attached thumbnail(s)
|
|
|
|
|
