| bkrantz |
 Dec 14 2021, 08:23 PM
Post
#4321
|
|
914 Guru  Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
 |

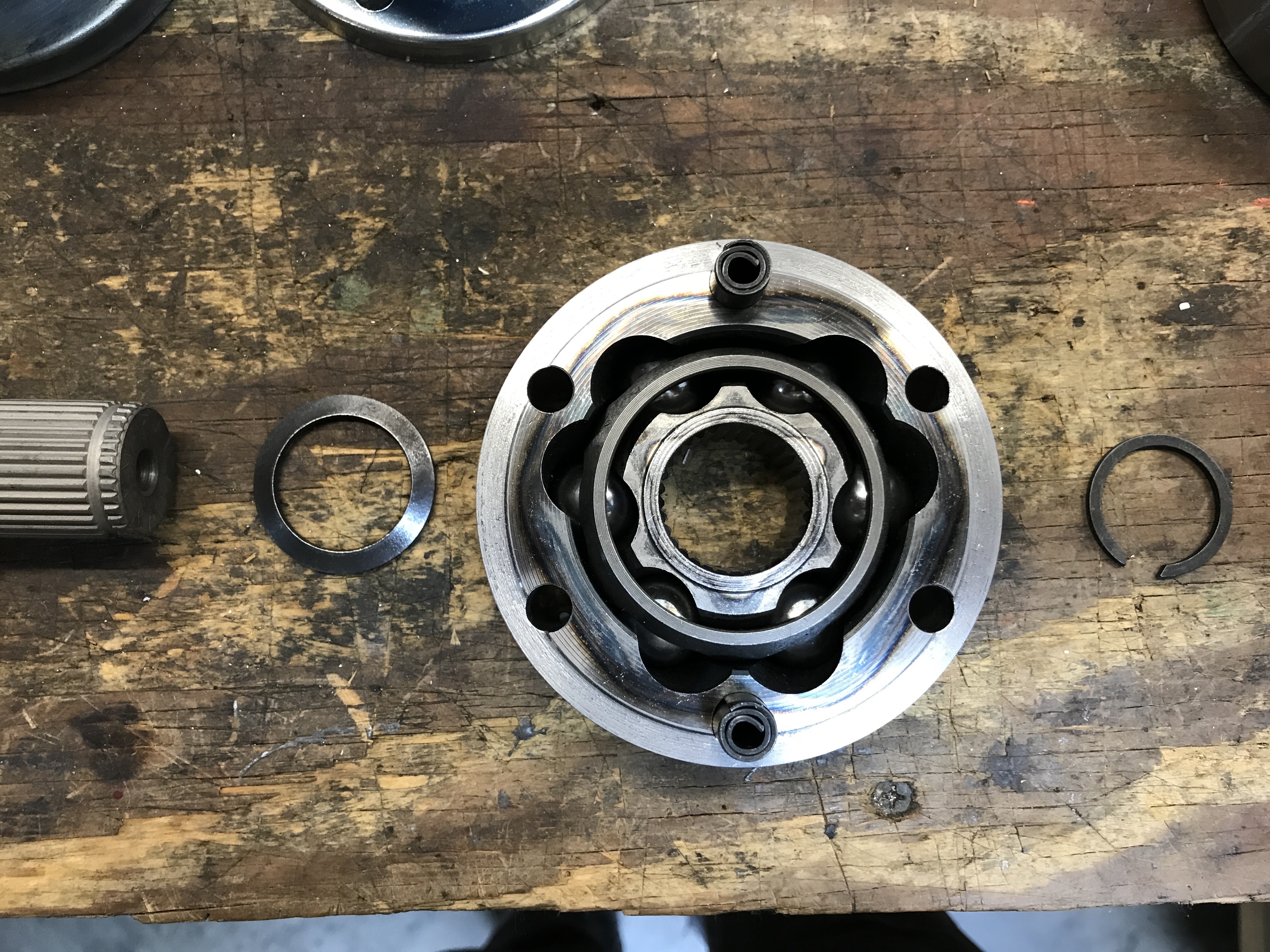

I then explored the options for spacers, washers, and retaining clips. This would be the stock set-up.
Attached thumbnail(s)
|
   |

|
| bkrantz |
Dec 14 2021, 08:23 PM
Post
#4322
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

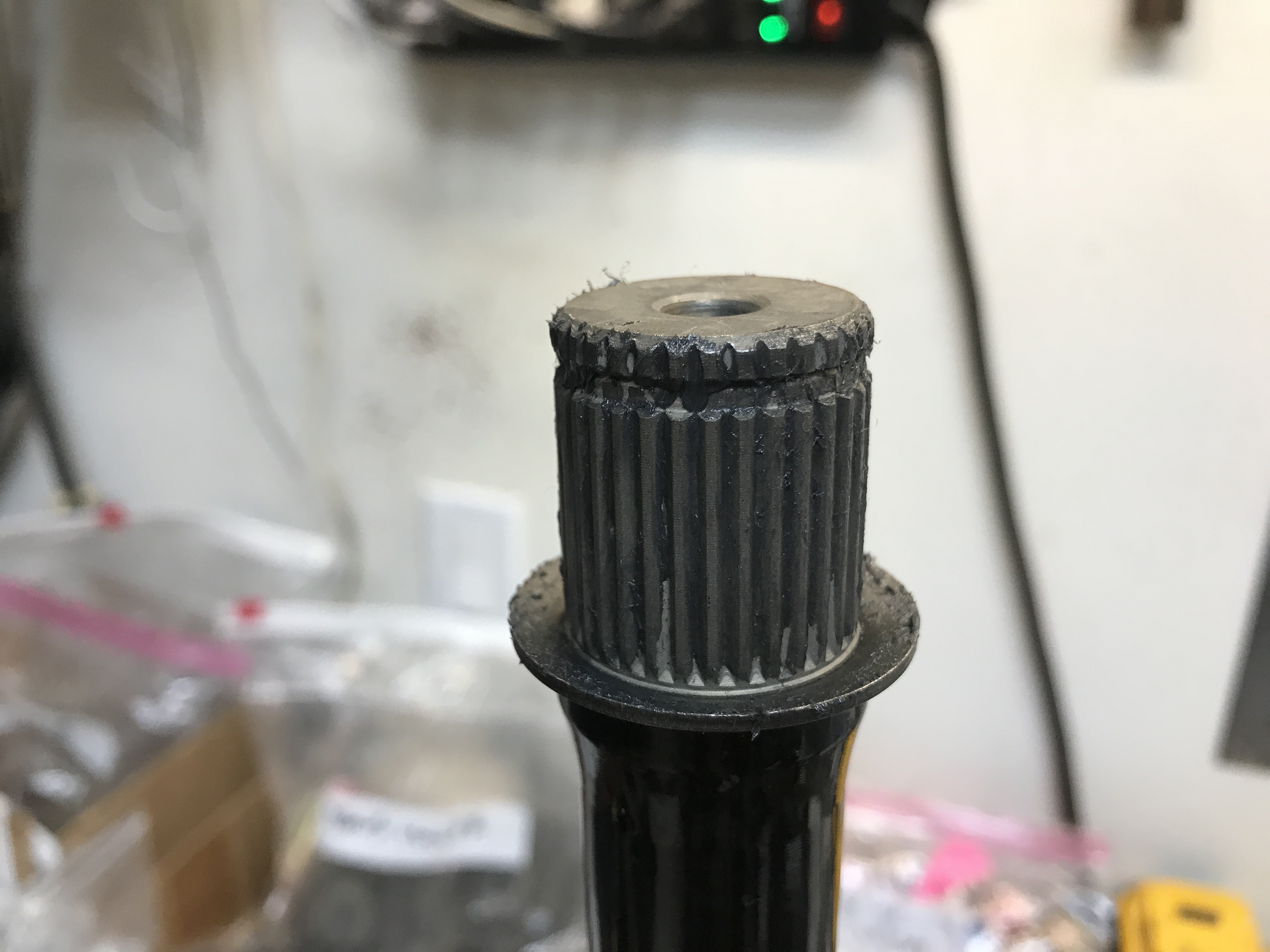

New conical washer on the shaft, and some grease on the splines.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 08:26 PM
Post
#4323
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

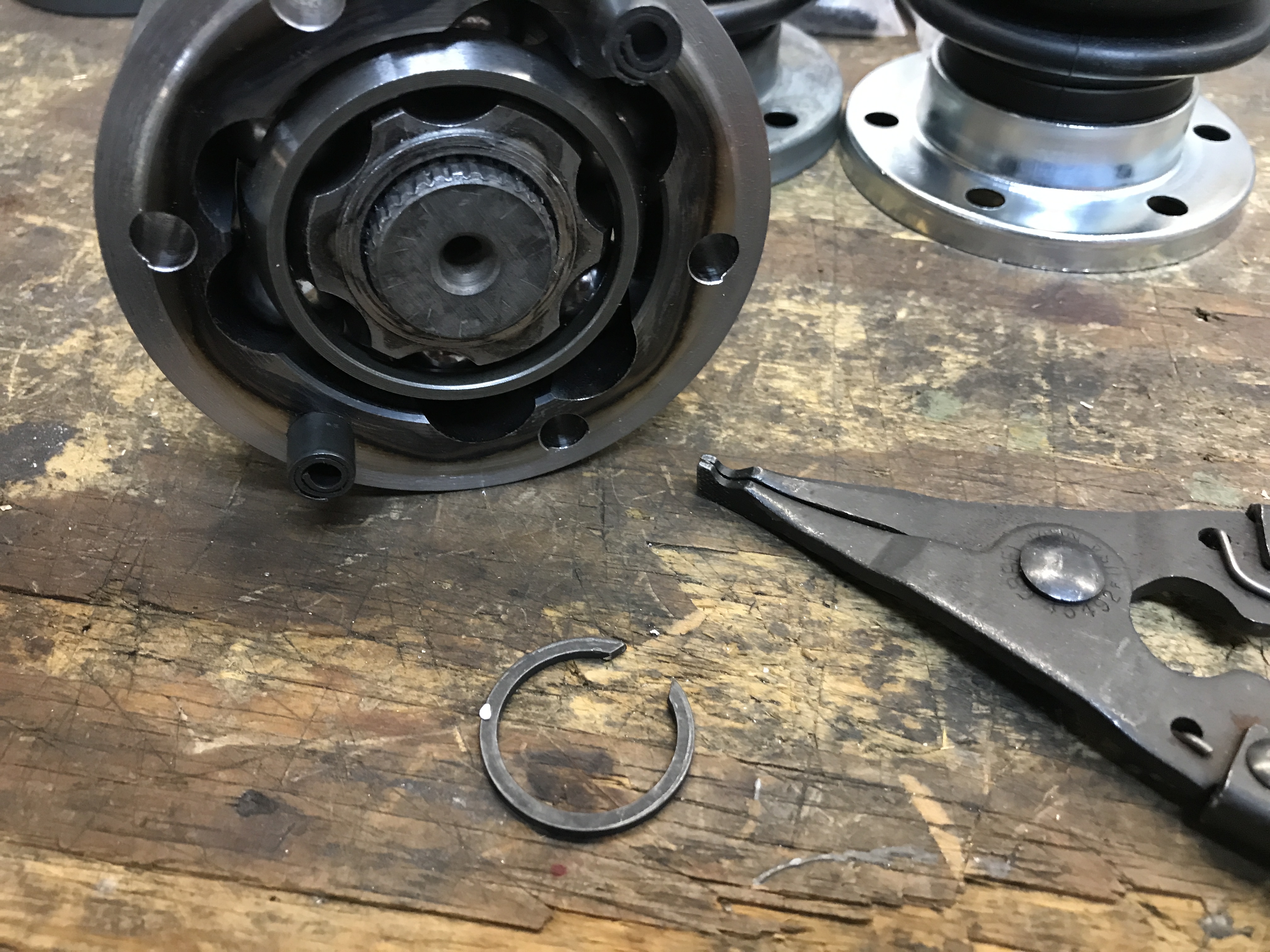

I pressed the CV onto the shaft, and then used split ring pilers on the stock type circlip.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 08:28 PM
Post
#4324
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

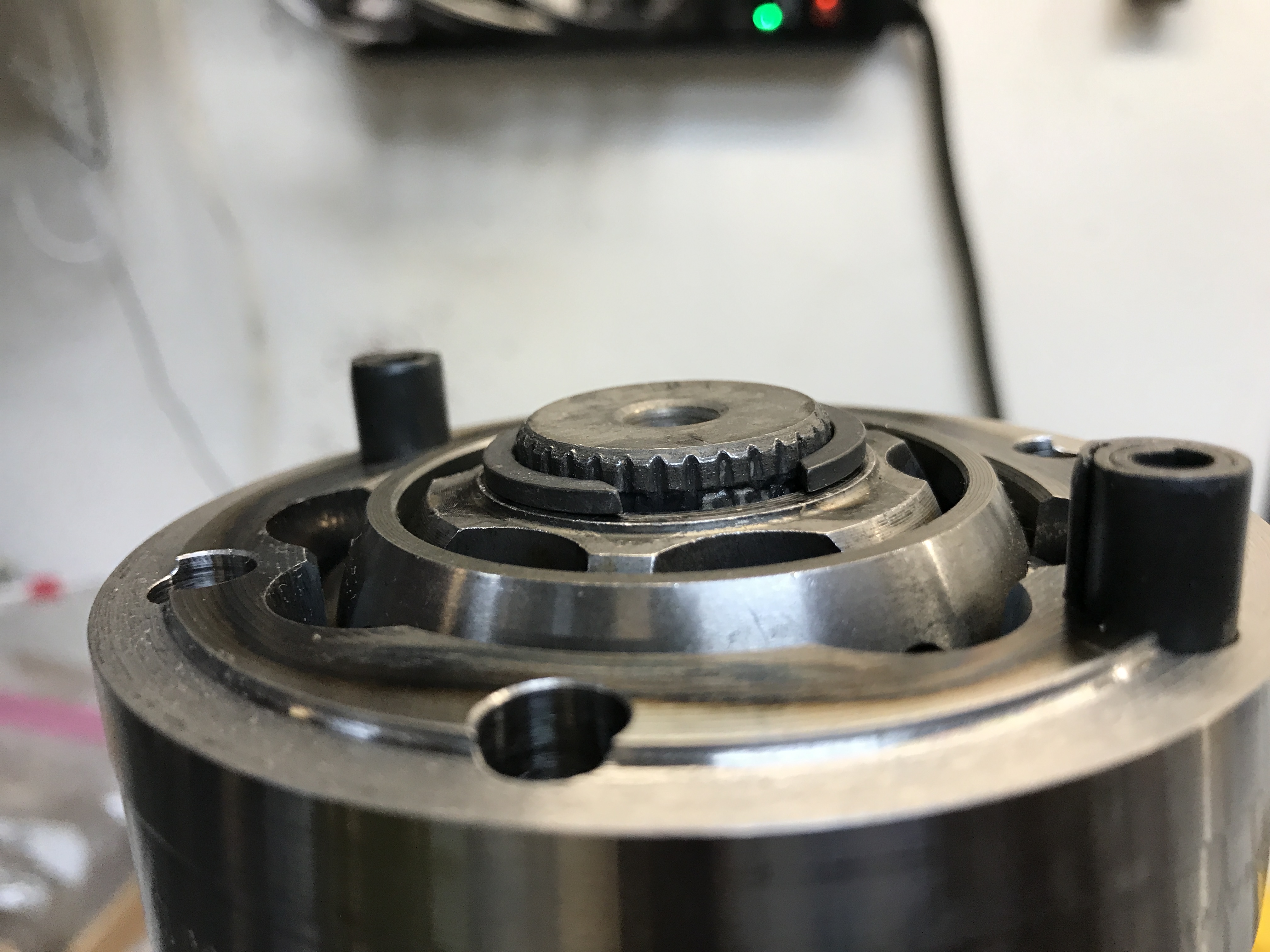

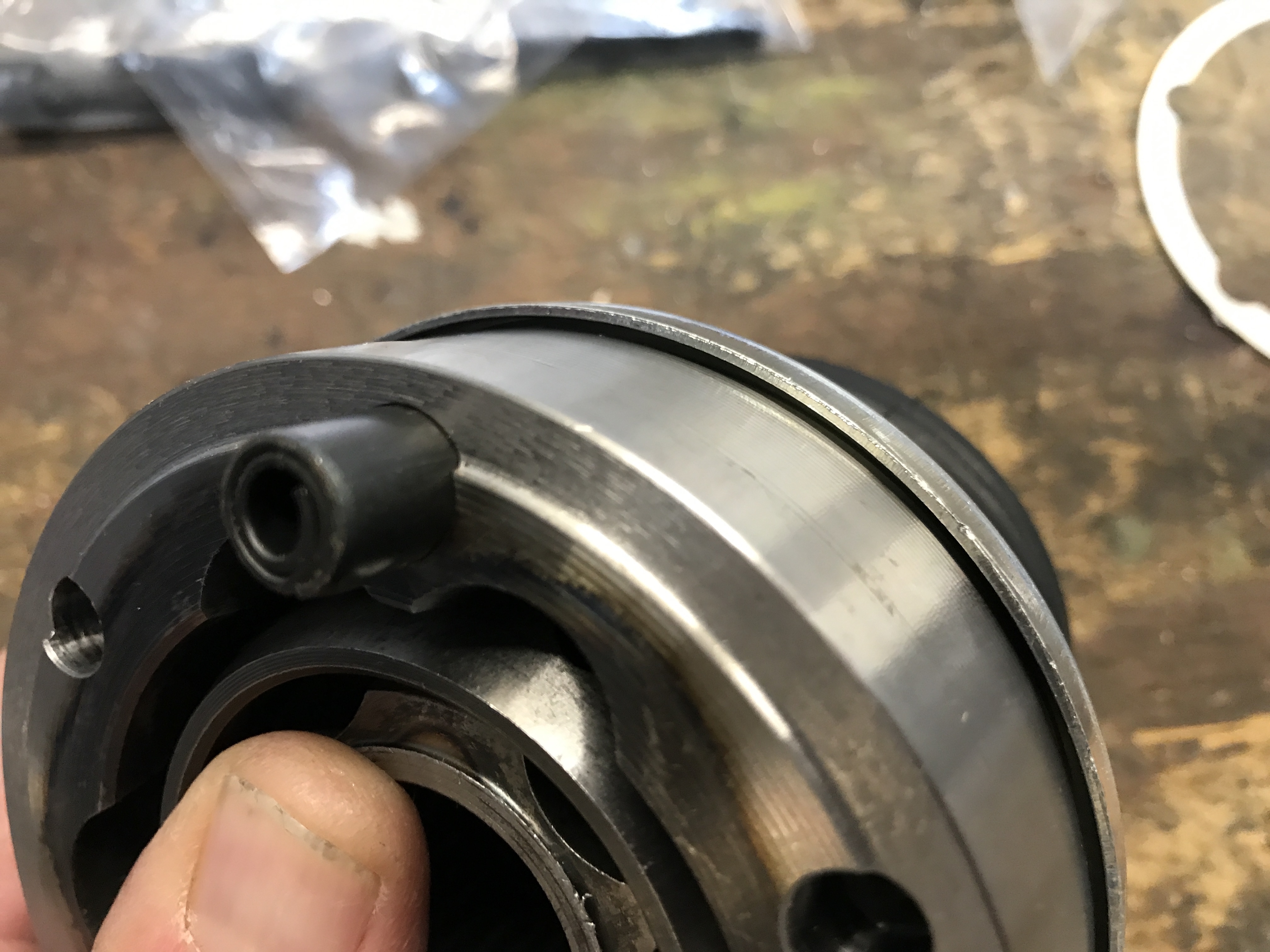

But the CV center partially blocks the groove for the clip. I tried using my press to squeeze the conical washer down but that did not work.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 08:30 PM
Post
#4325
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

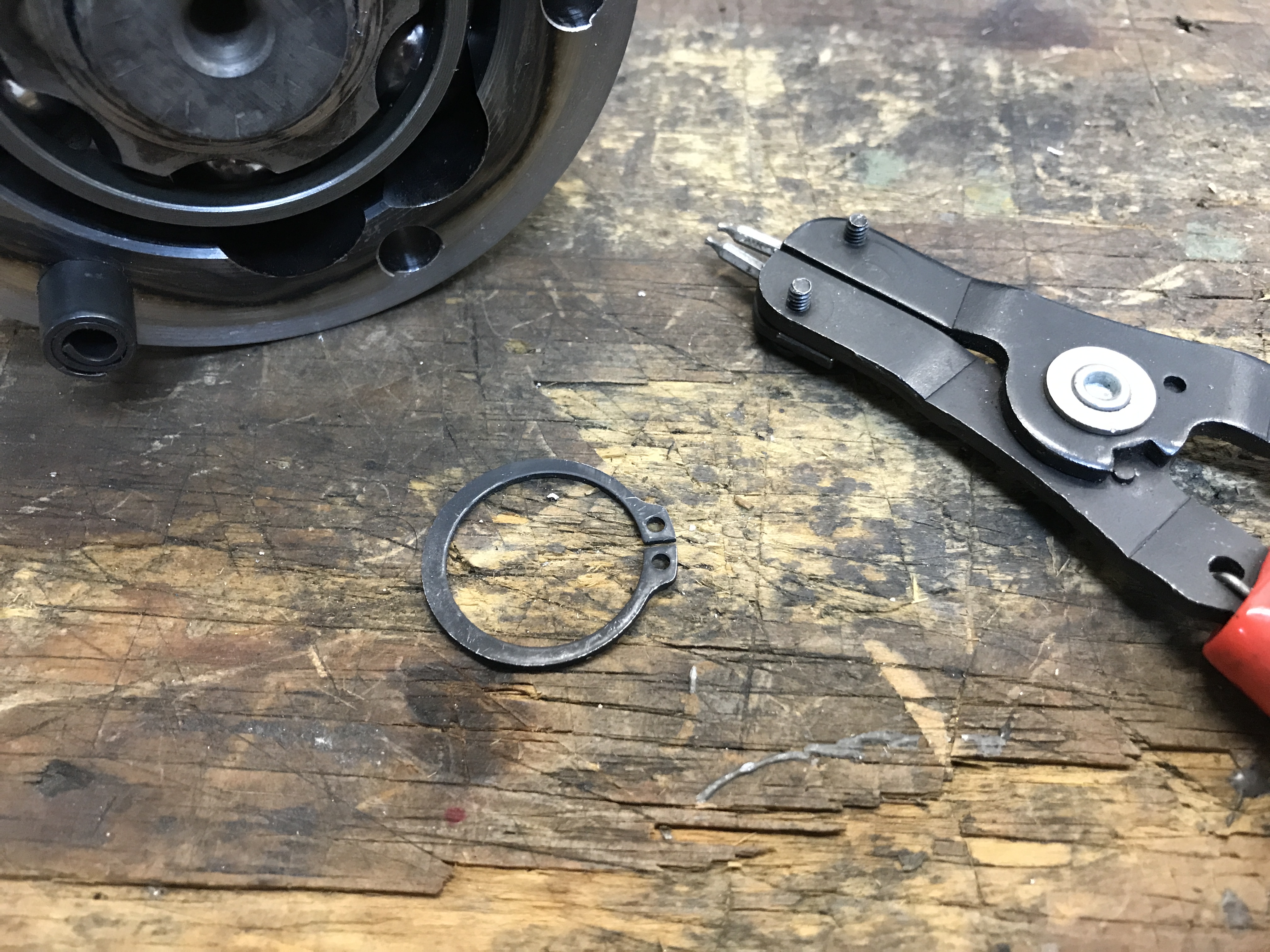

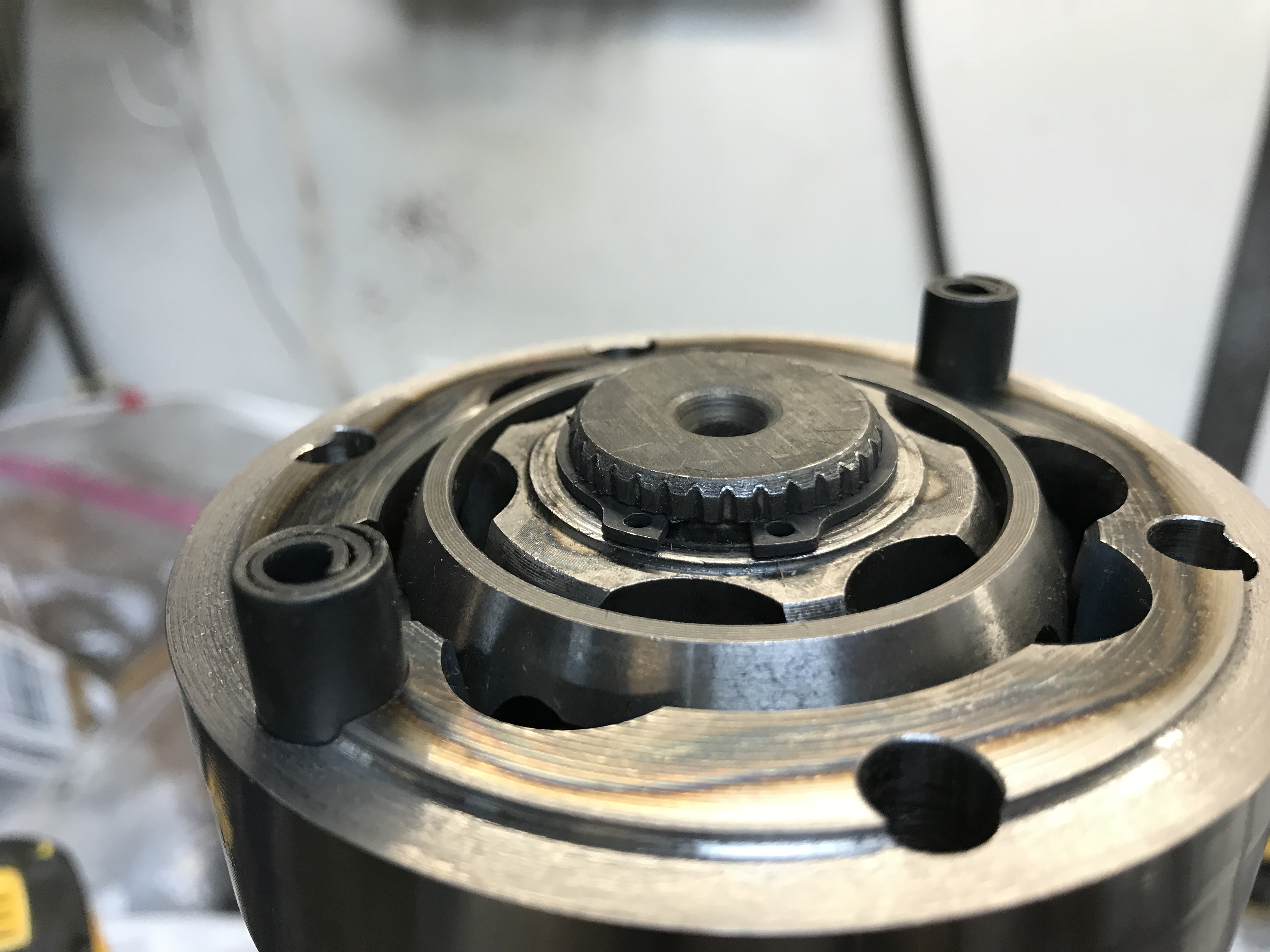

The CV kits also include a thinner snap ring.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 08:31 PM
Post
#4326
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|
That fits nicely, but could be weaker.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 08:33 PM
Post
#4327
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

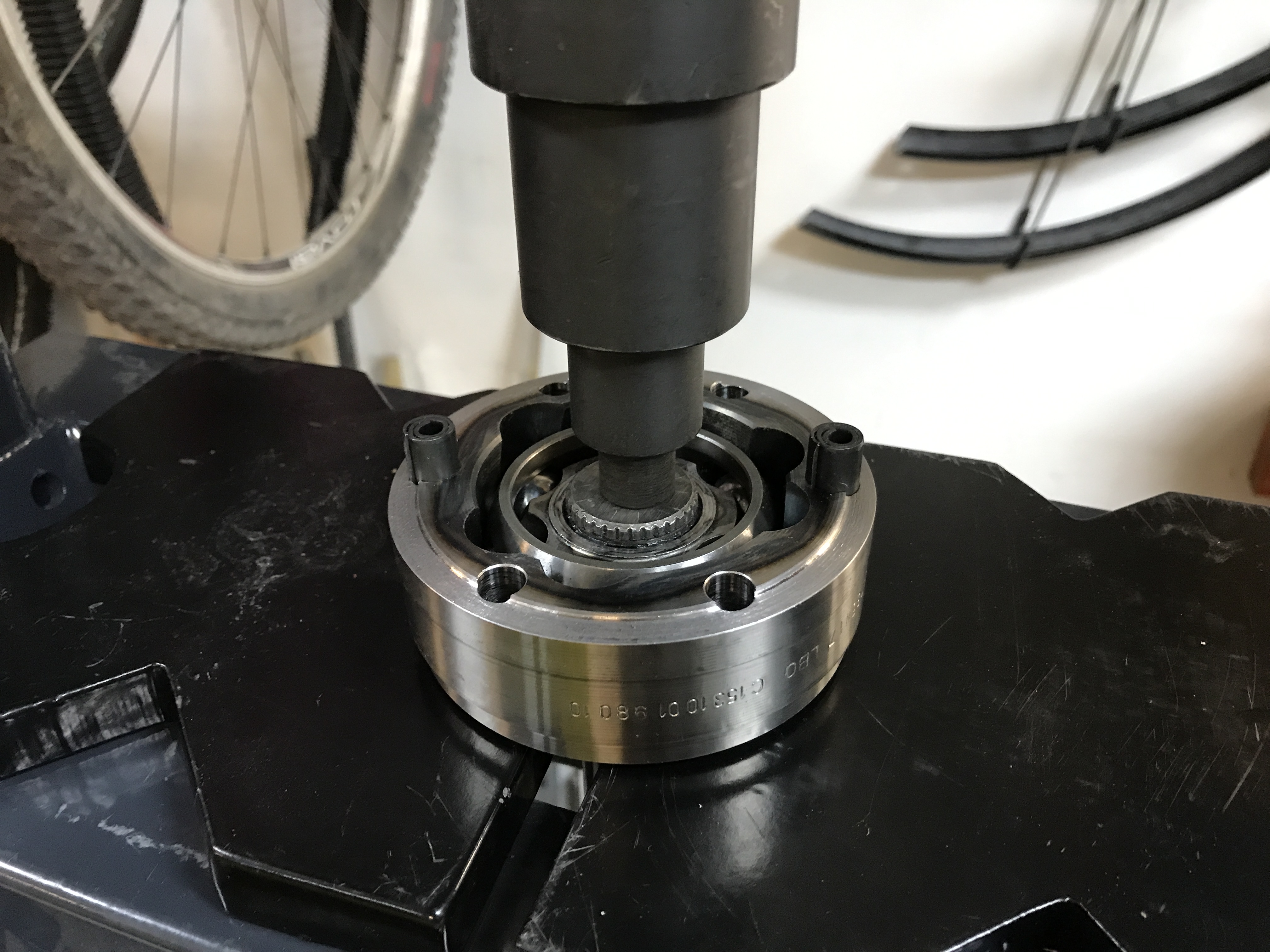

I pressed the CV off the shaft.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 08:34 PM
Post
#4328
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|
I pressed the CV off the shaft.
|
|
|
|
| bkrantz |
Dec 14 2021, 08:35 PM
Post
#4329
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|
I pressed the CV off the shaft.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 08:36 PM
Post
#4330
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

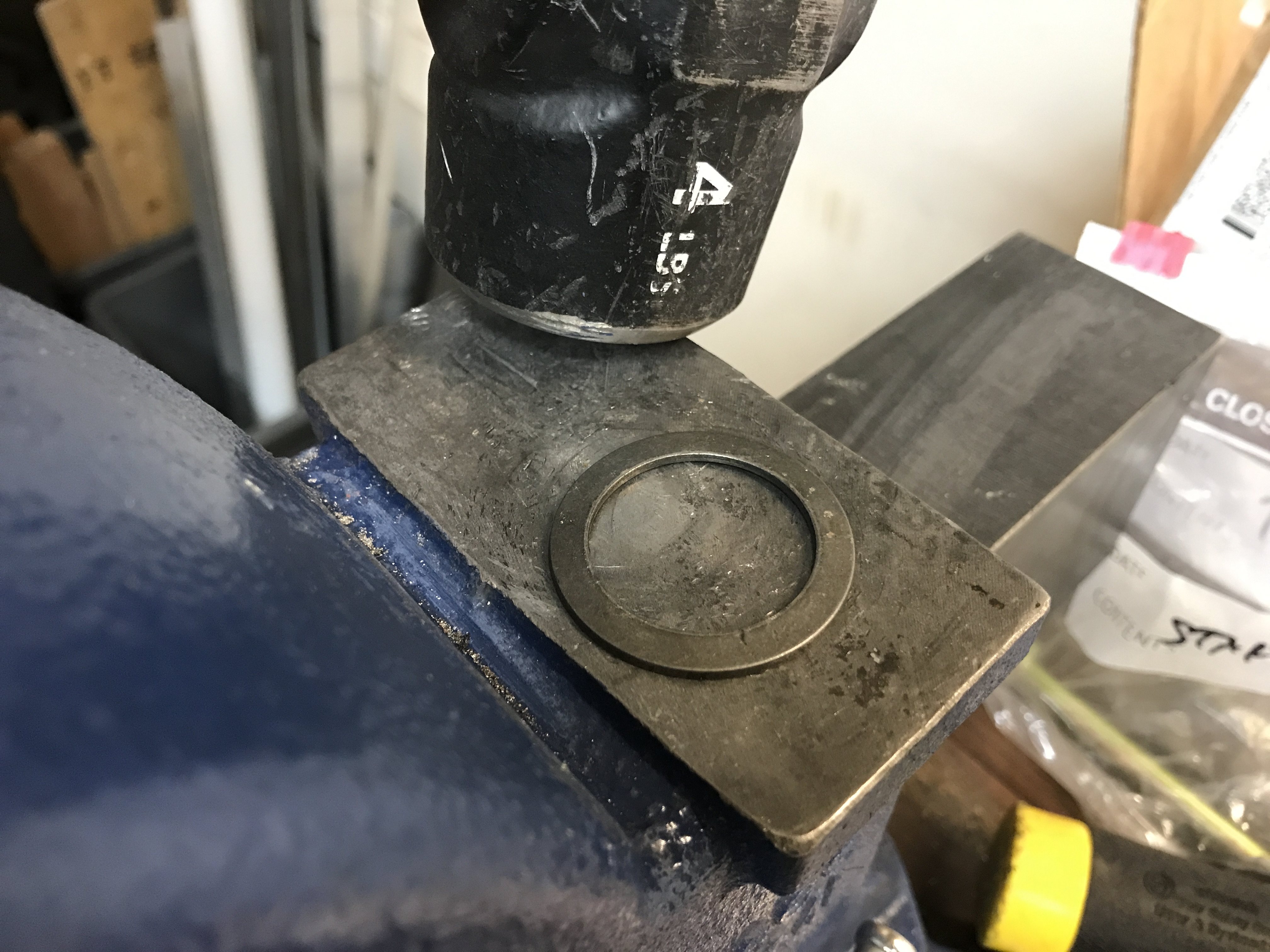

And then I dug out the conical washers from the original CVs. These were already a bit flatter than the new ones, and I encouraged them to be even flatter.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 08:39 PM
Post
#4331
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

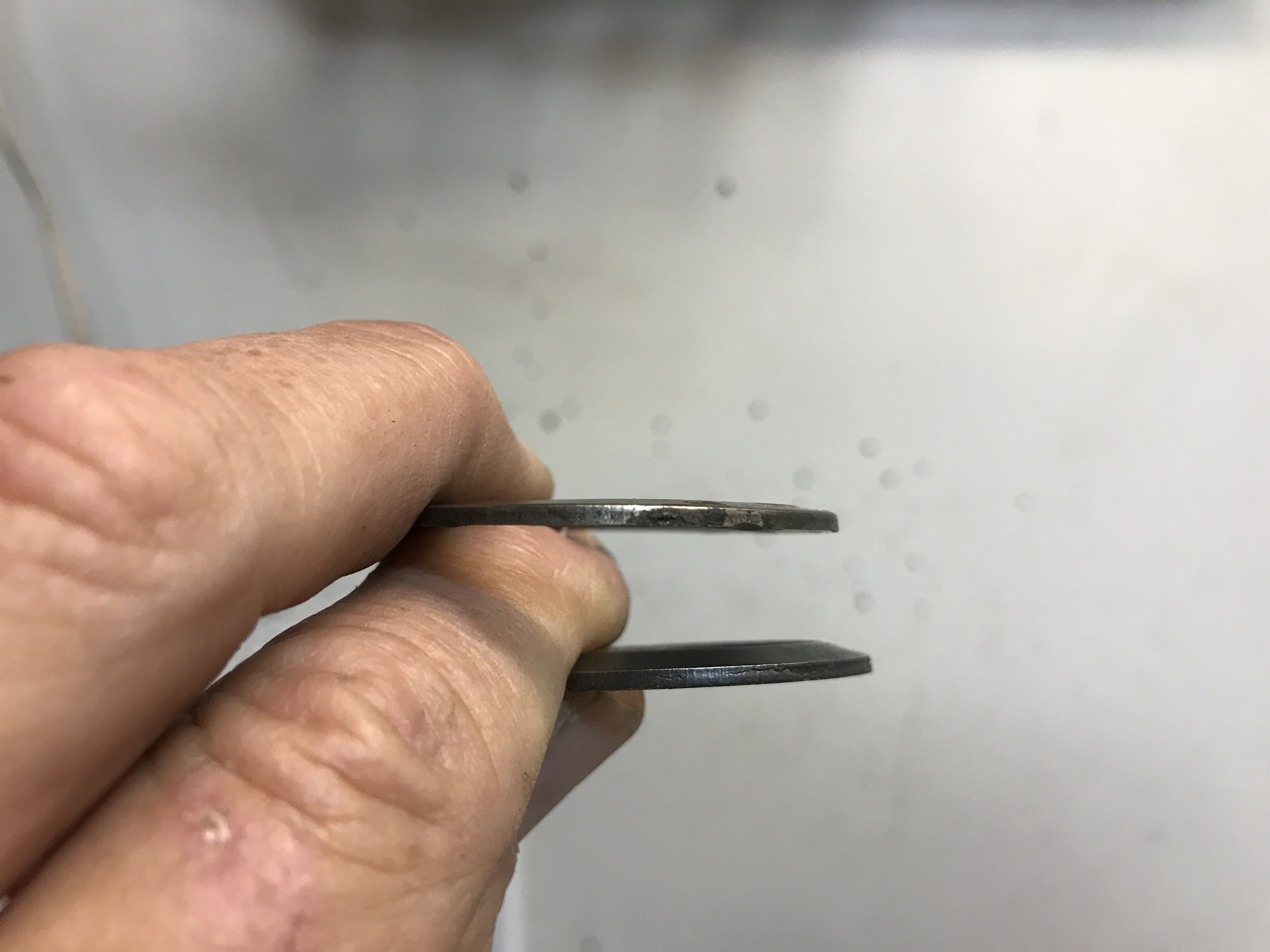

Comparison of the flattened washer (top) and the high-relief new washer (bottom). My measurements are close to fitting with the thicker circlip.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 08:41 PM
Post
#4332
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

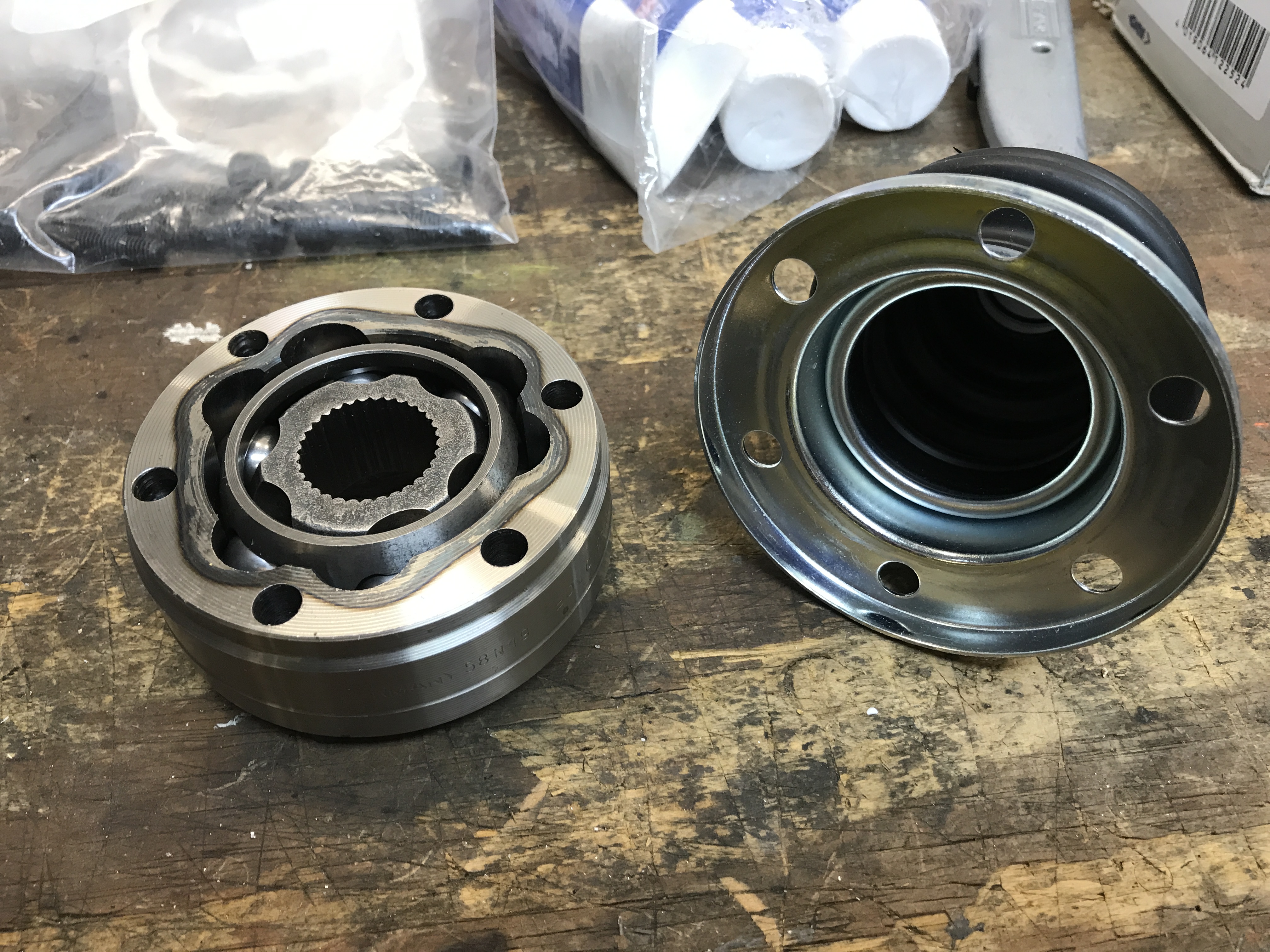

I then took a look at the new boot and flange. These are also essentially type 1, with 6 bolt holes.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 08:44 PM
Post
#4333
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

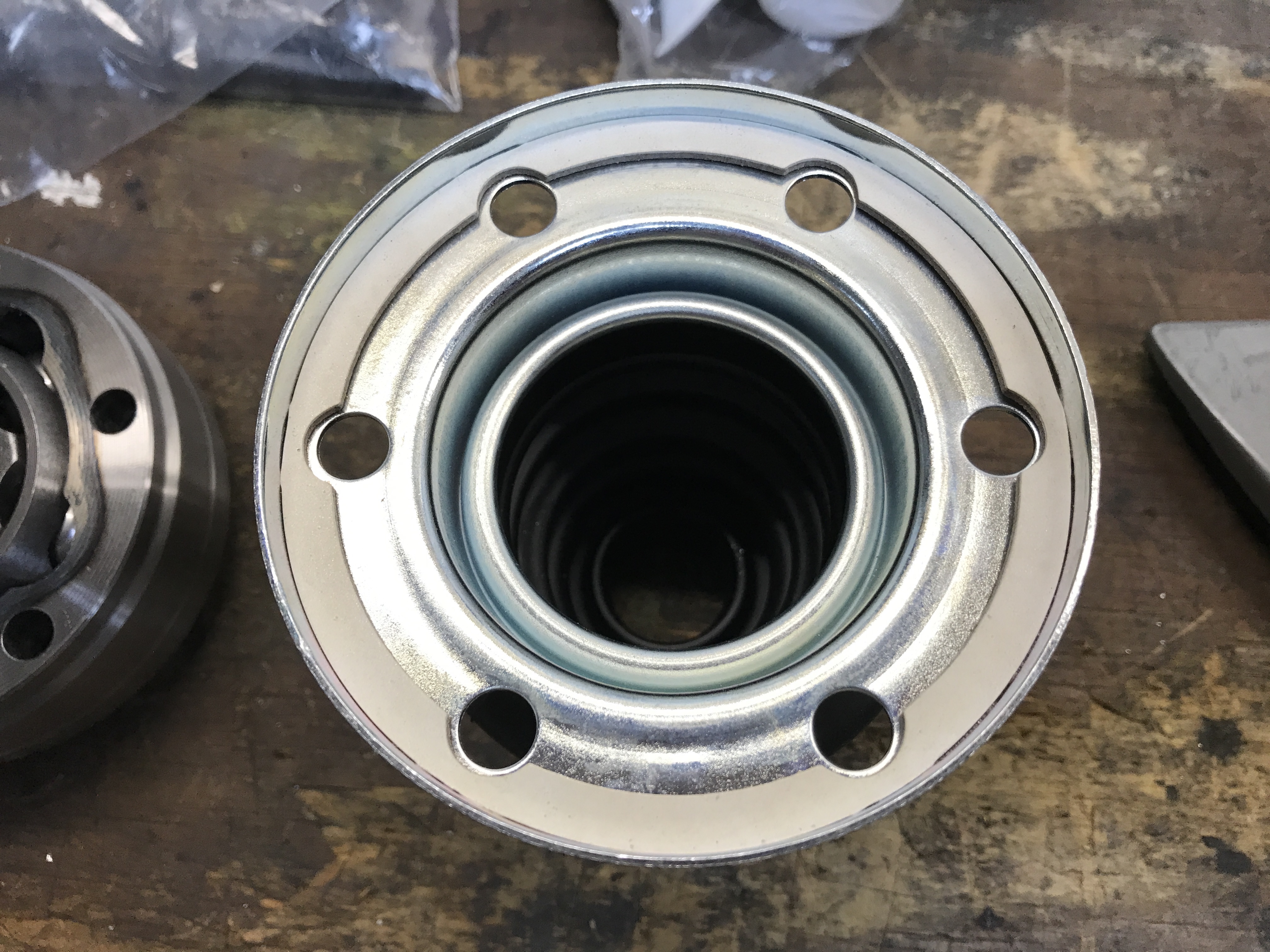

But what I don't like is the sloppy fit. The OD of the outer part of the CV is 90 mm, but the ID of the flange is about 94 mm.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 08:48 PM
Post
#4334
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|
I thought about a stock paper gasket on the inside of the flange, but this would prevent metal-to metal contact of the boot flange and leave some compressibility in the stack.
I ordered some 90/94 mm O-rings to try another way. Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 08:52 PM
Post
#4335
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

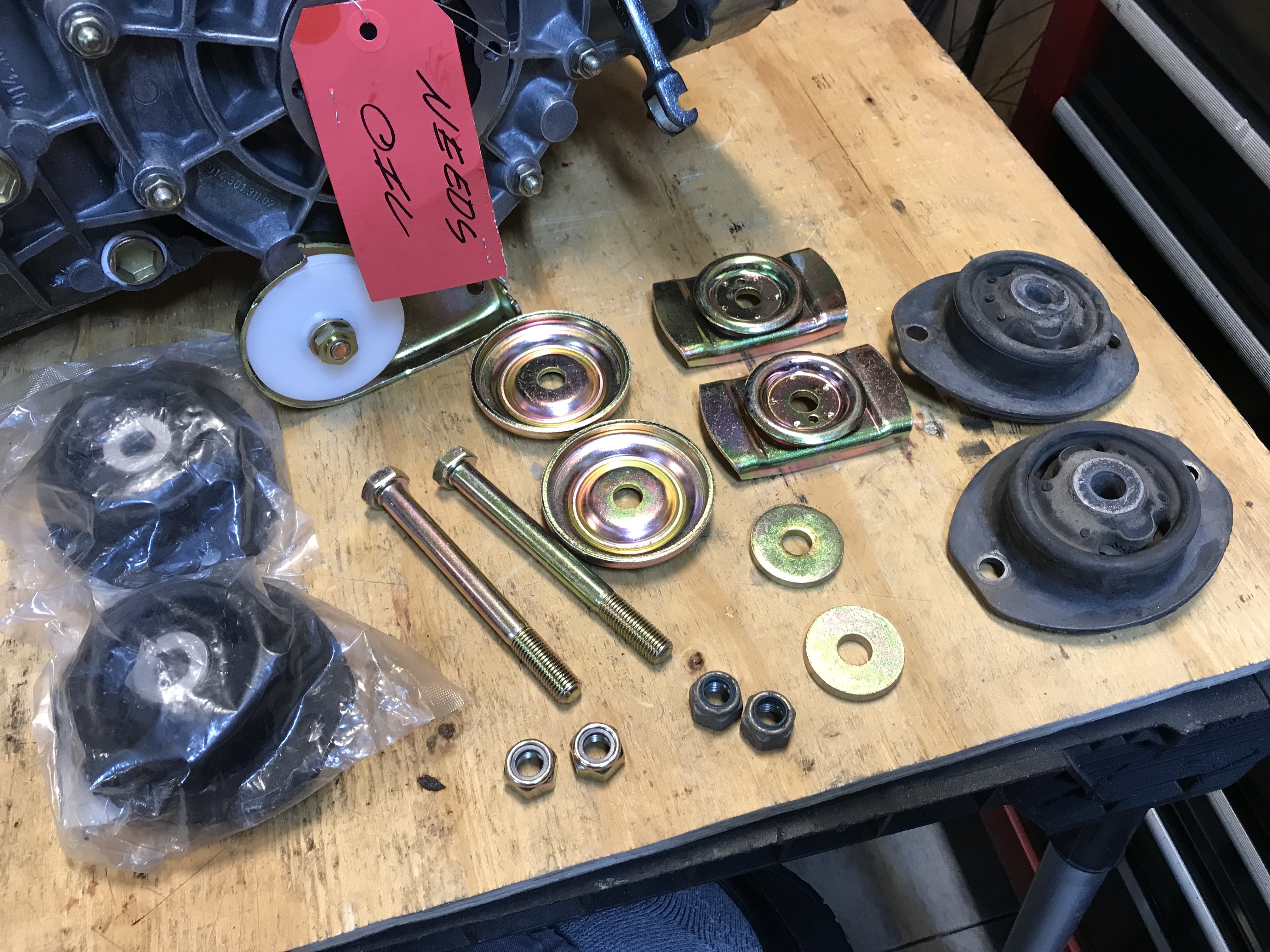

Then I got out the trans mounts. More re-plated stuff and new rubber mounts.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 08:54 PM
Post
#4336
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

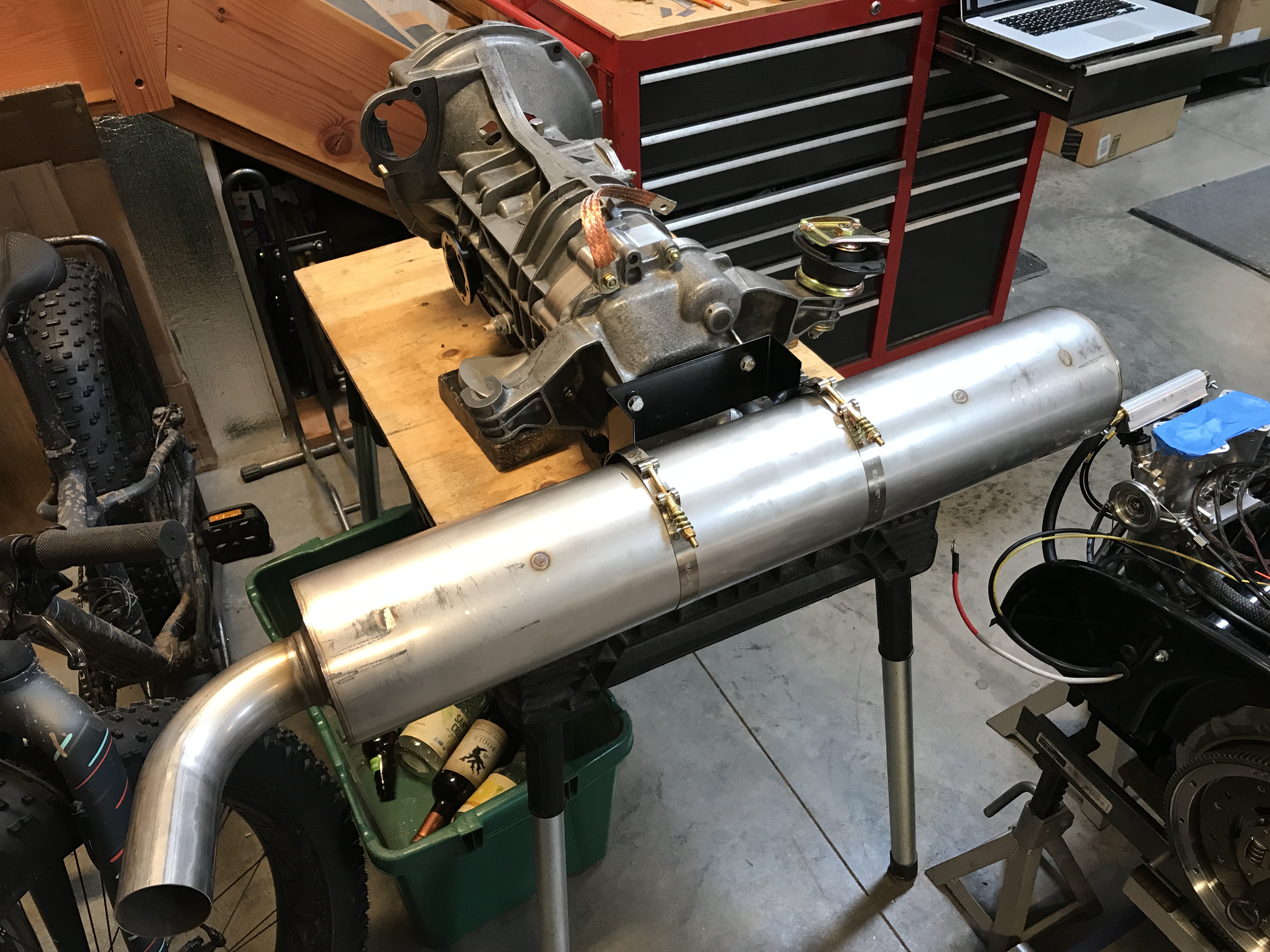

I also took the chance to set up the muffler and bracket on the rear of the trans. (And the trans mount bolts are upside down for now.)
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 08:58 PM
Post
#4337
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

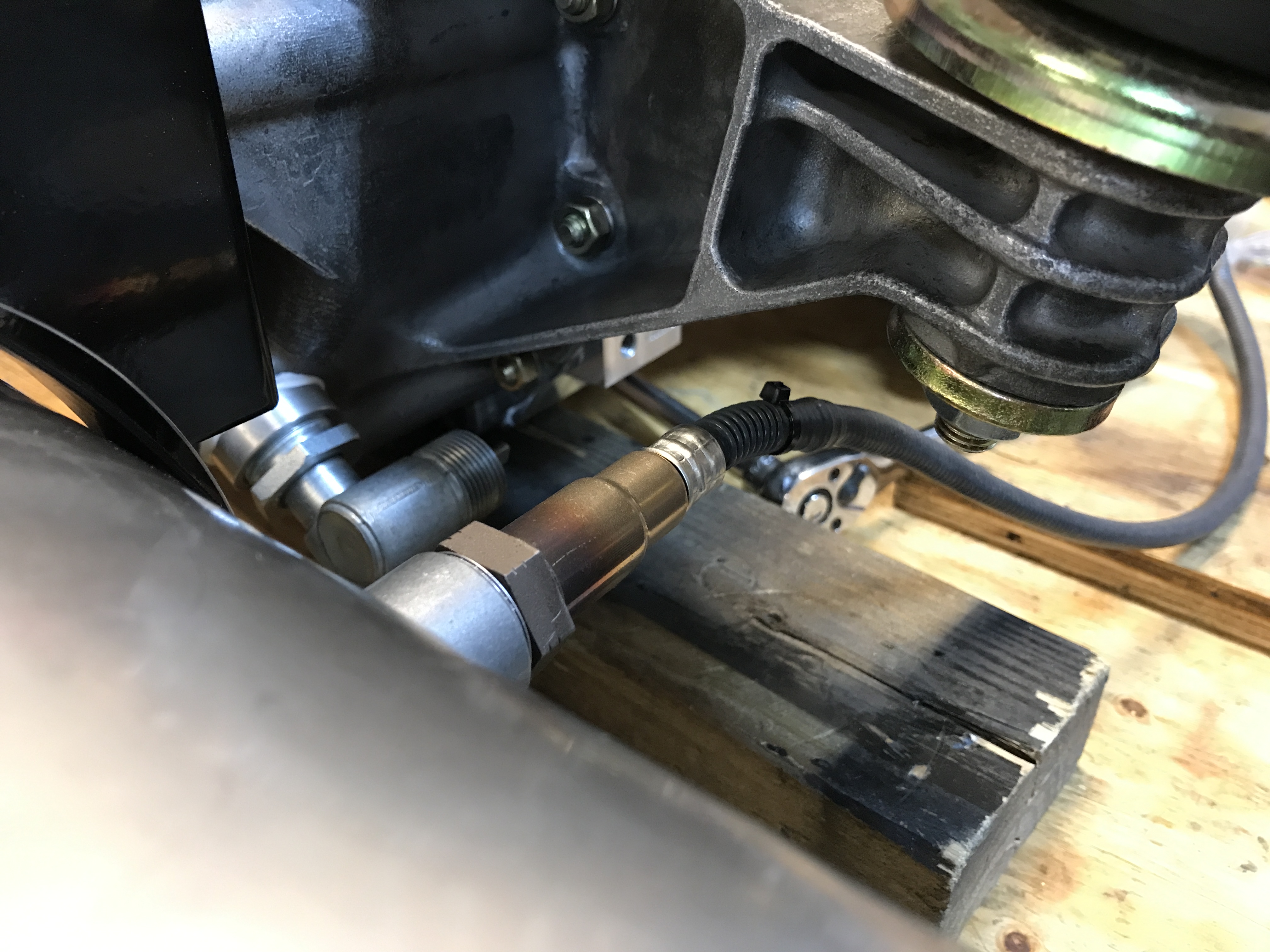

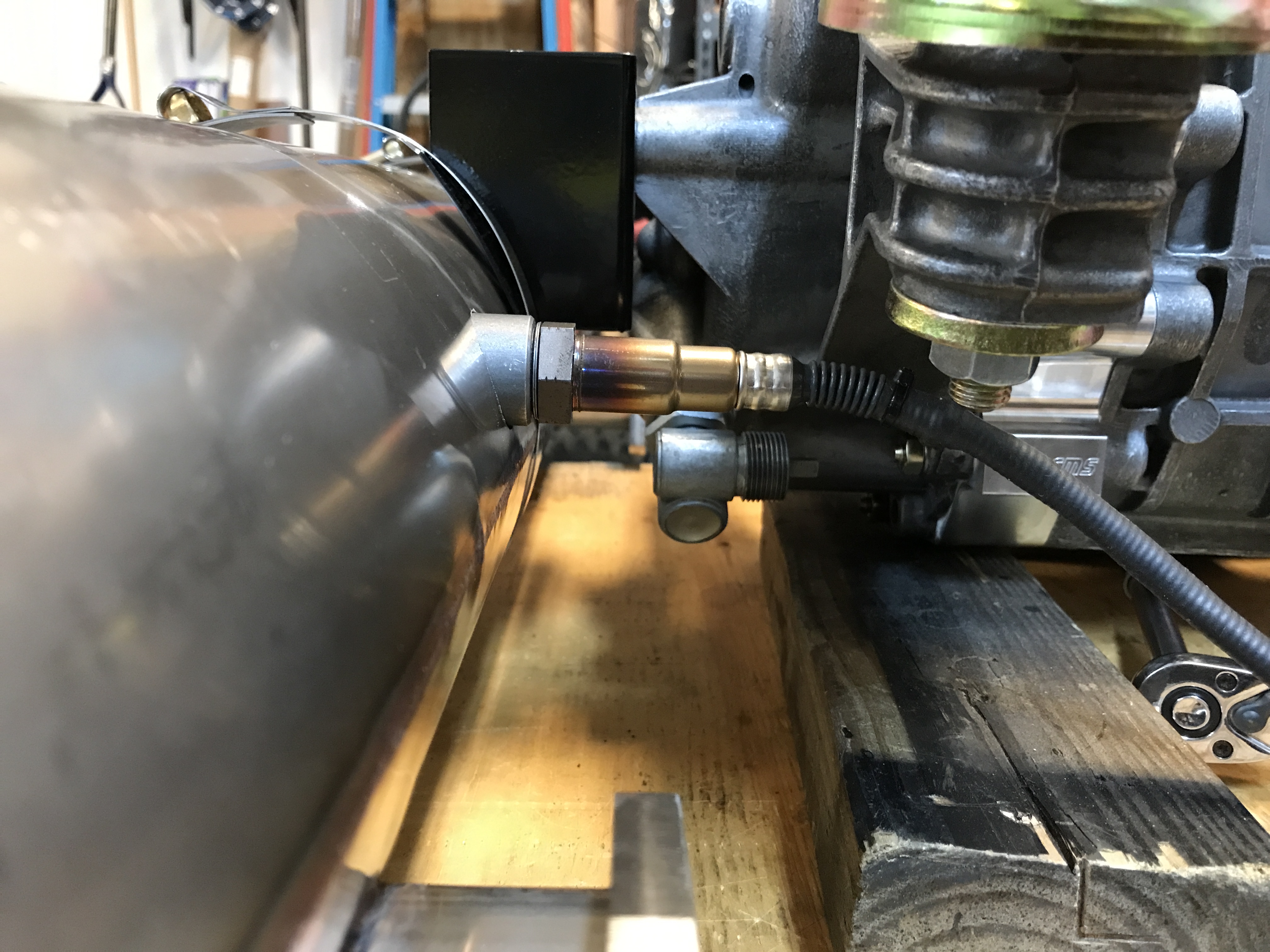

This was also a chance to double-check the O2 sensor bung location. It still looks good, since I am not using the stock muffler hanger. But for good sensor clearance the bung needs to be horizontal.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 08:59 PM
Post
#4338
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|
Looks good, so off to the welder.
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 14 2021, 09:01 PM
Post
#4339
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|

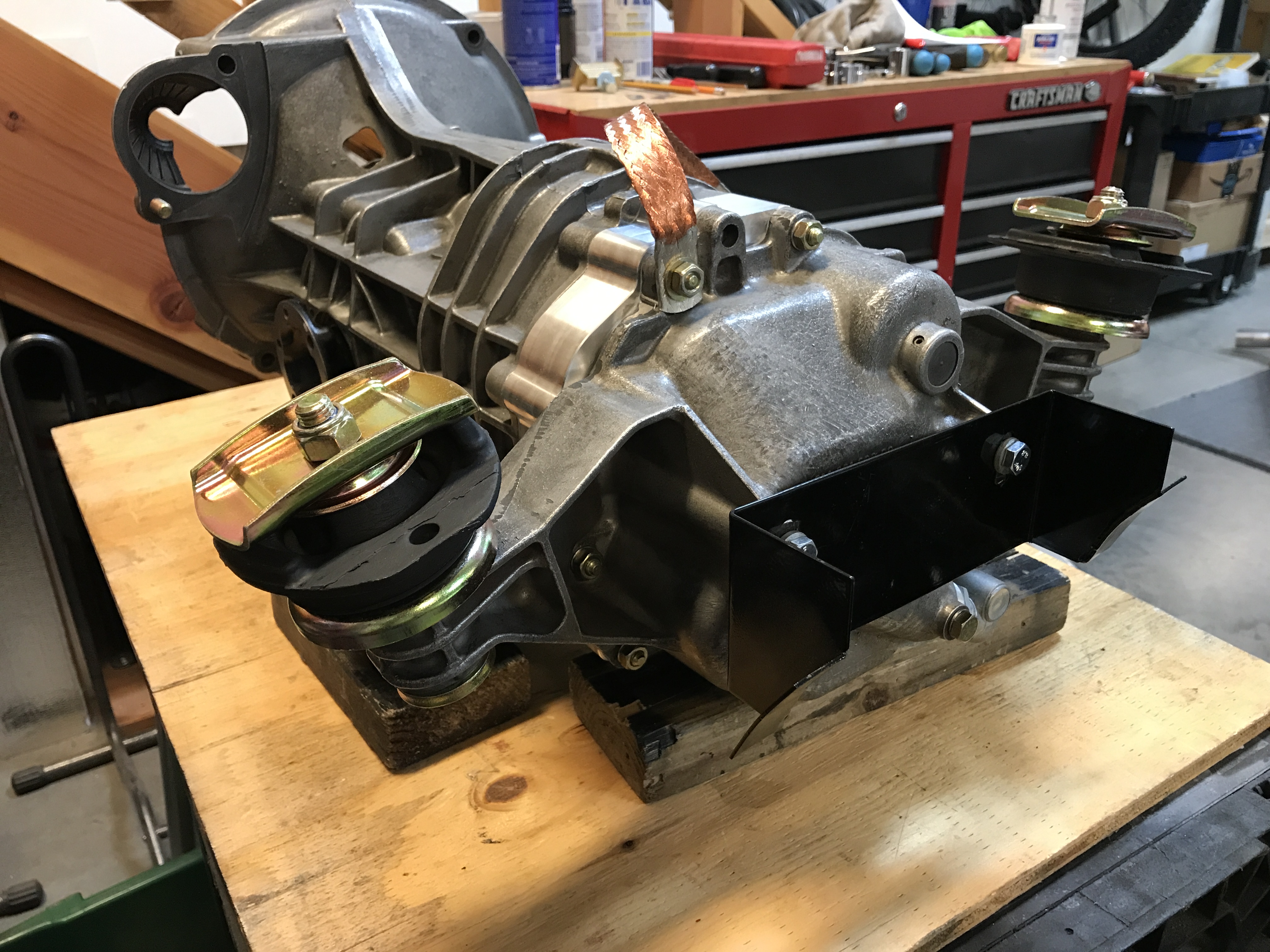

Final bit for today: bolt on the trans mounts, with the bolts correct (inserted from below).
Attached thumbnail(s)
|
|
|
|
| bkrantz |
Dec 15 2021, 08:21 PM
Post
#4340
|
|
914 Guru Group: Members Posts: 8,347 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
|
I got distracted by a few other things today, including shoveling snow.

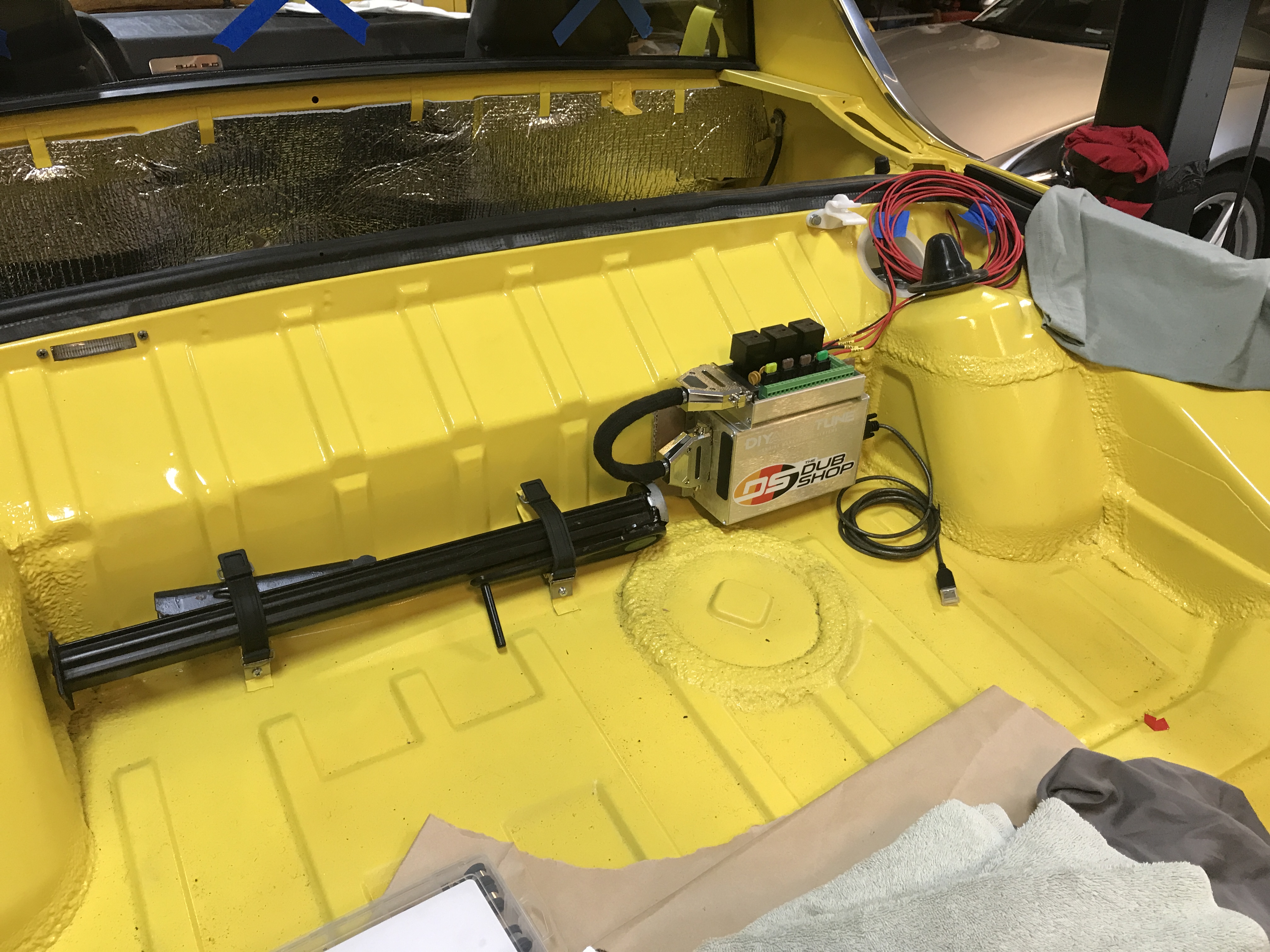

But I think I have decided where and how to mount the ECU and relay box. Attached thumbnail(s)
|
|
|
|
|
