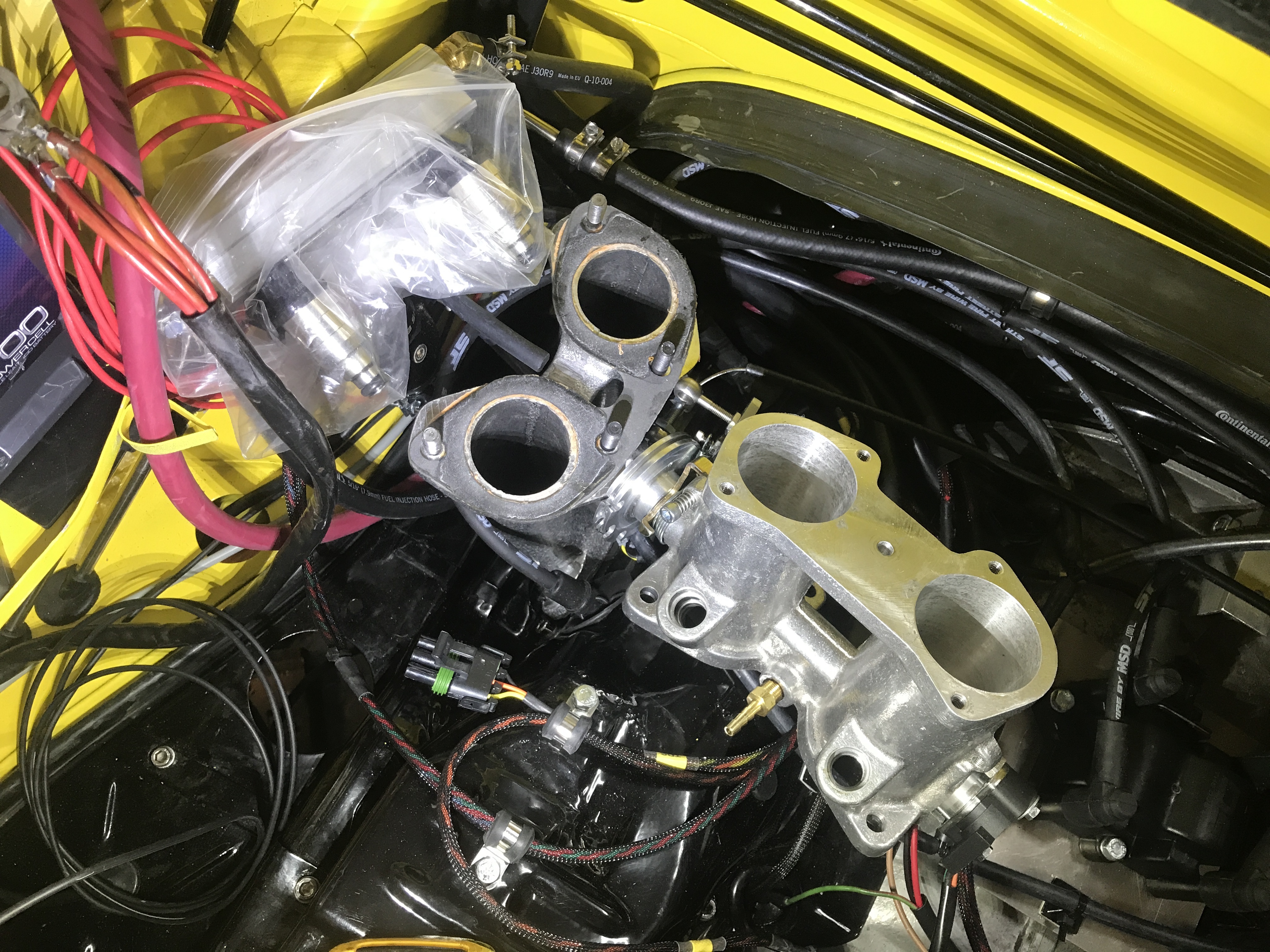

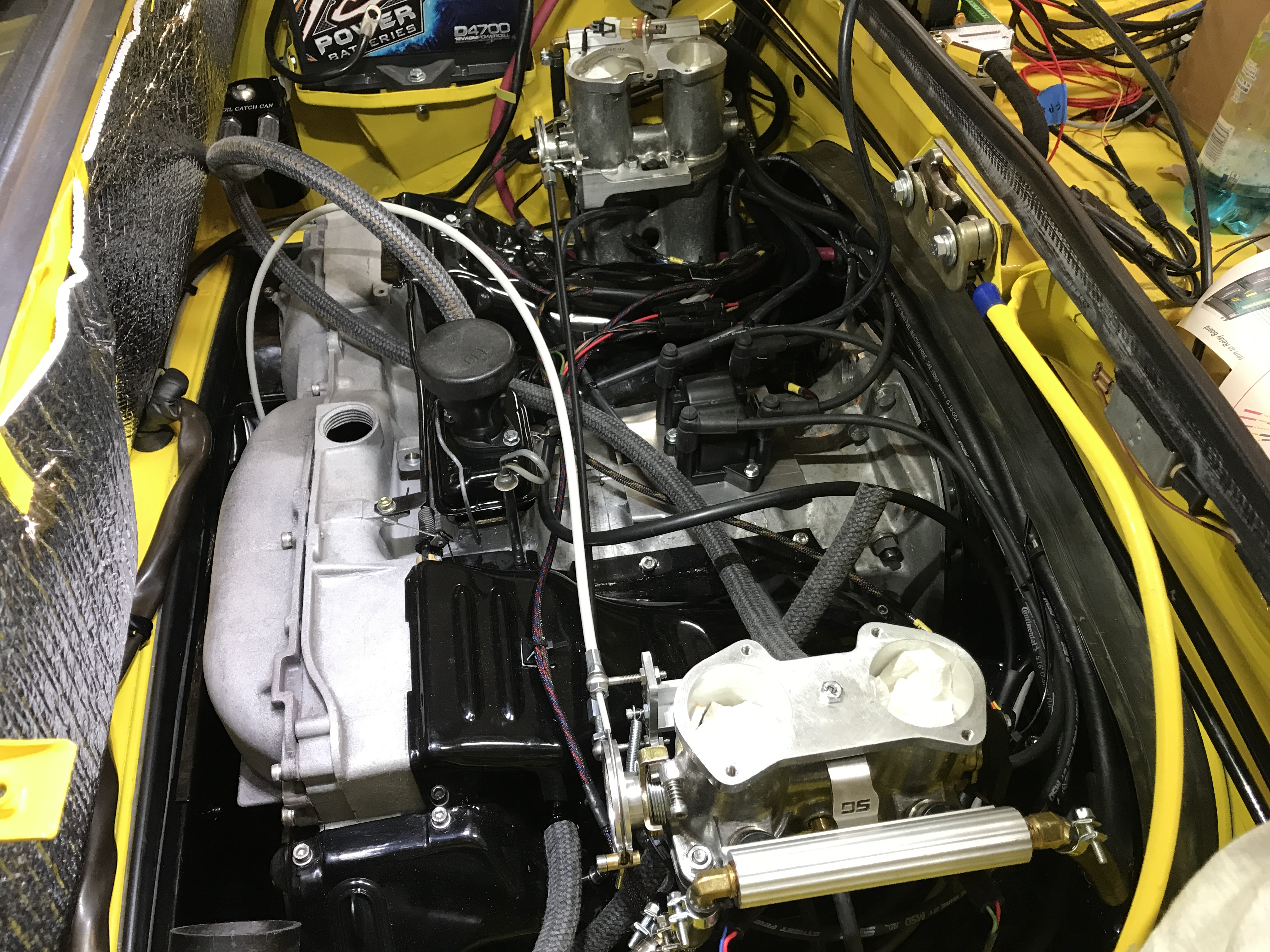

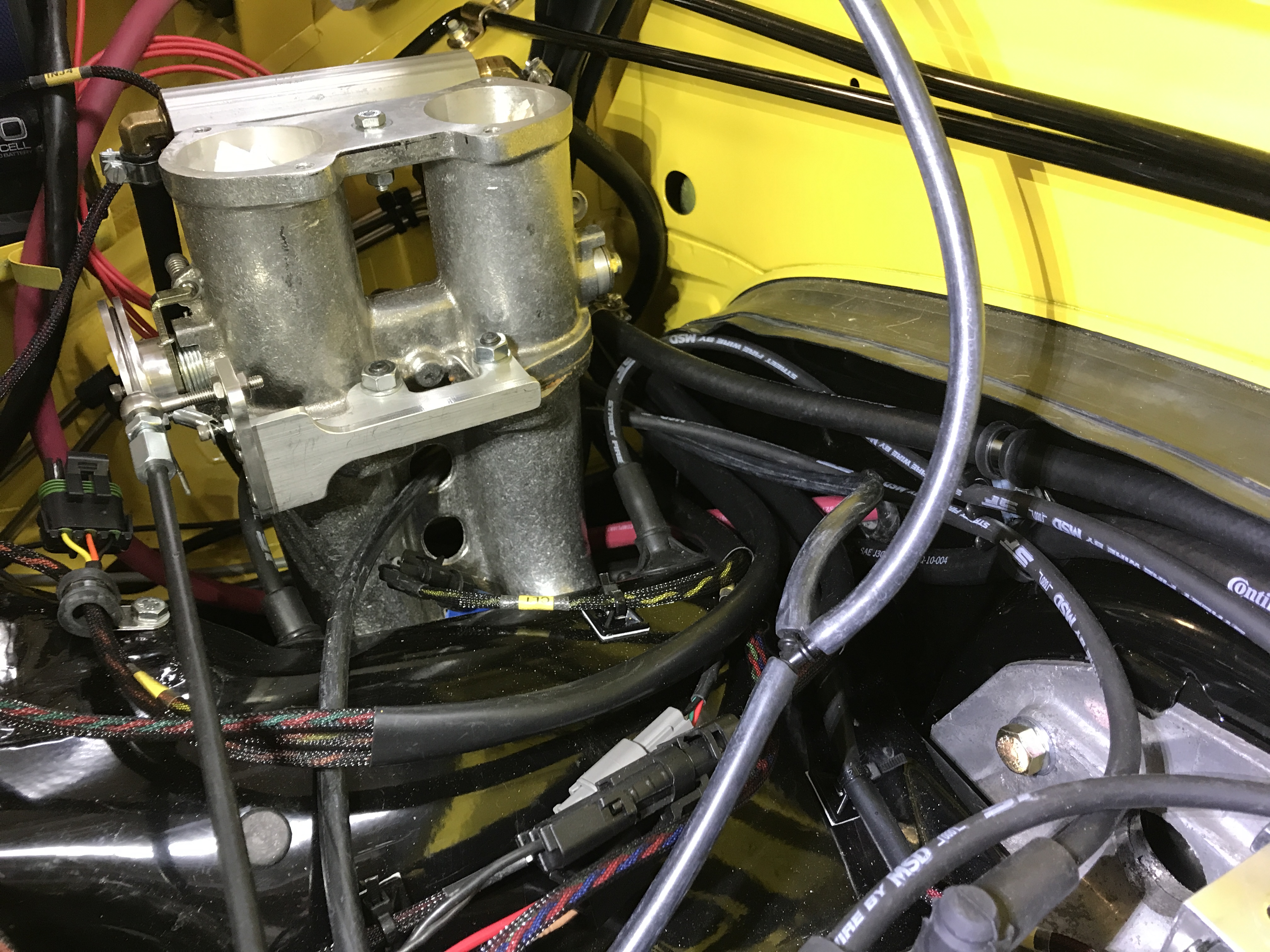

And that means I have to commit to the layout of components in the engine compartment. I have been less than happy with the access to the rear of the right throttle body. The space there is tight enough, and that's where I have all the fuel lines and EFI cables.

So I decided to swap the left and right throttle bodies, so that the accelerator cable pulleys will be on the front side.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 2 2022, 08:28 PM
Post #4582


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

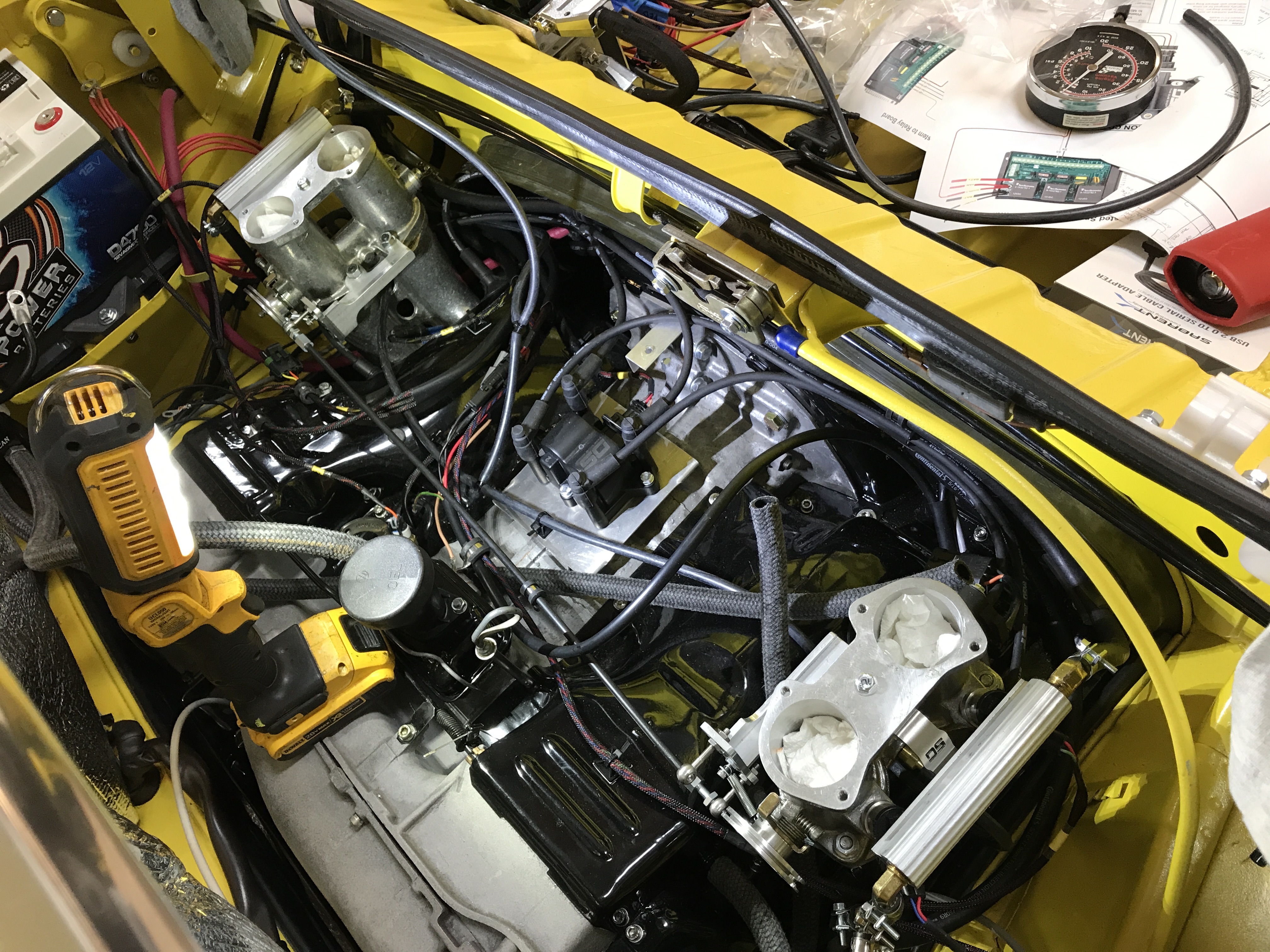

So I don't have to undo the fuel lines, and swap the angle fittings in the injector rails, I decided to swap the throttle bodies but leave the rails in place. This turned out to be a bit fiddly.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 2 2022, 08:29 PM
Post #4583


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
So I got both rails detached, along with other connections, swapped the throttle bodies, and got the rails re-installed. But now dinner calls.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 3 2022, 08:09 PM
Post #4584


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

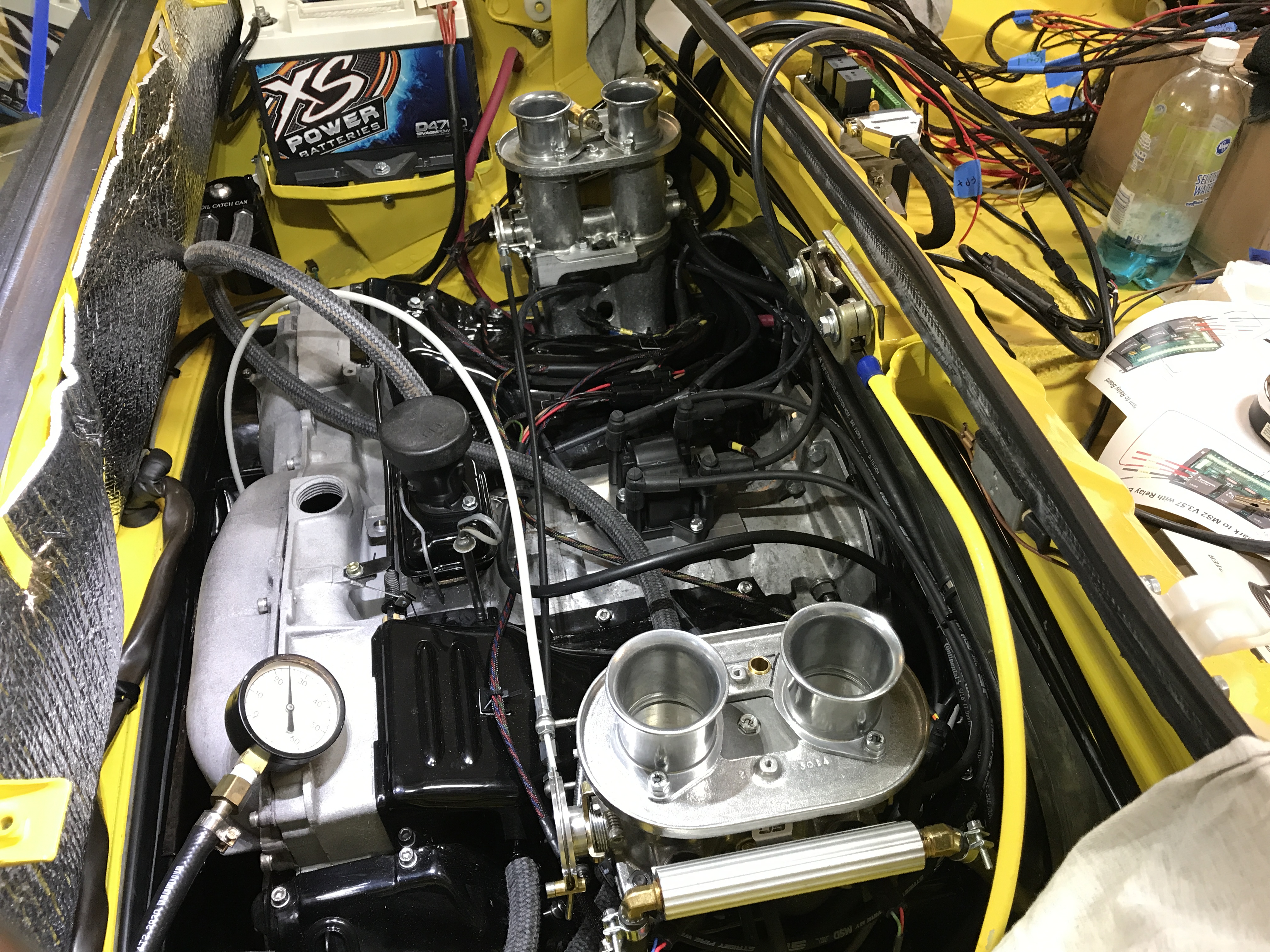

Back on task, getting the swap of the throttle bodies done.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 3 2022, 08:10 PM
Post #4585


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

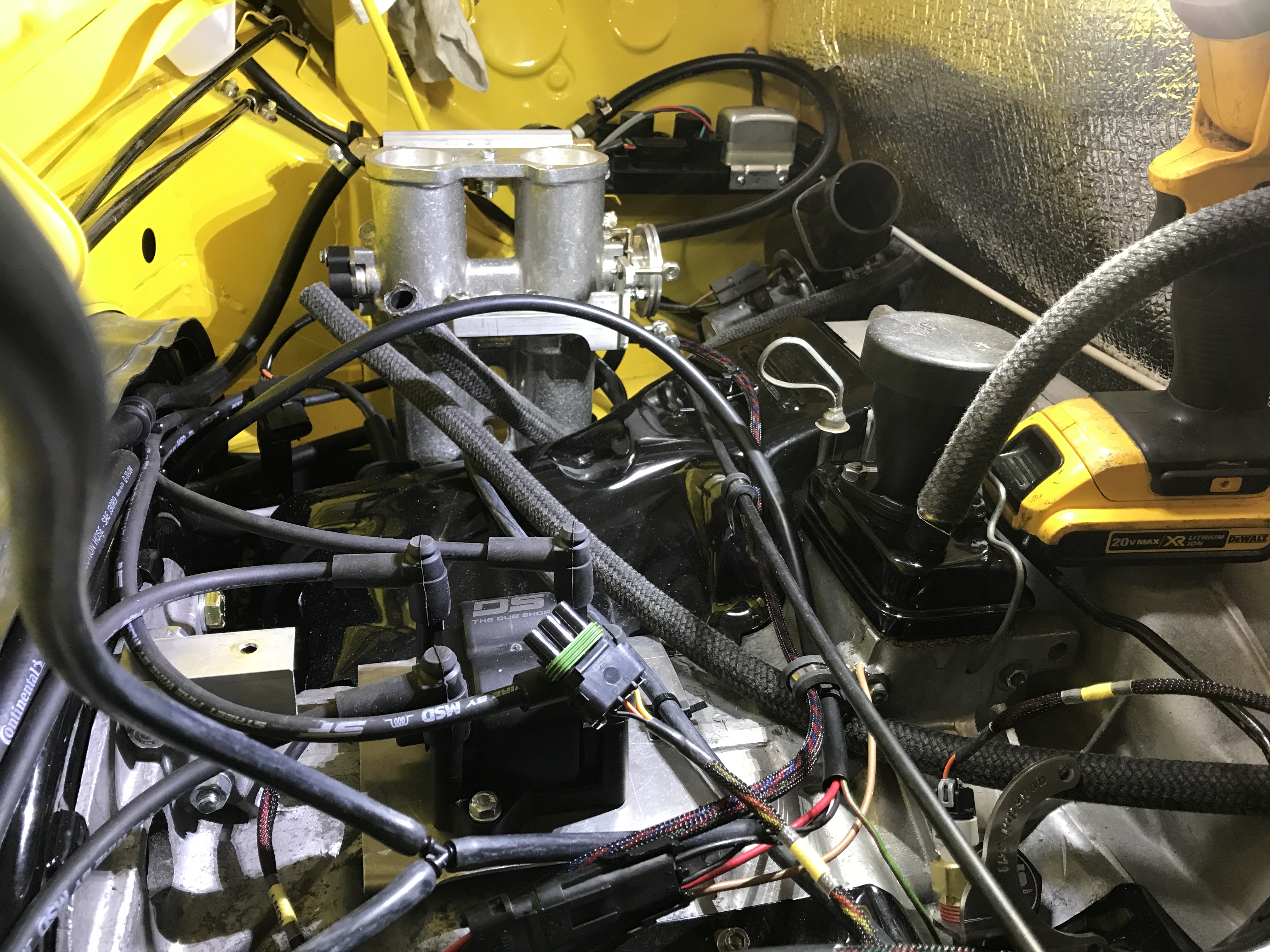

Now the right rear corner is not so crowded.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 3 2022, 08:12 PM
Post #4586


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
But now I have to also switch the throttle position sensor cable (3 prong connector) to the left side, and that will take about 18" more length.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 3 2022, 08:19 PM
Post #4587


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

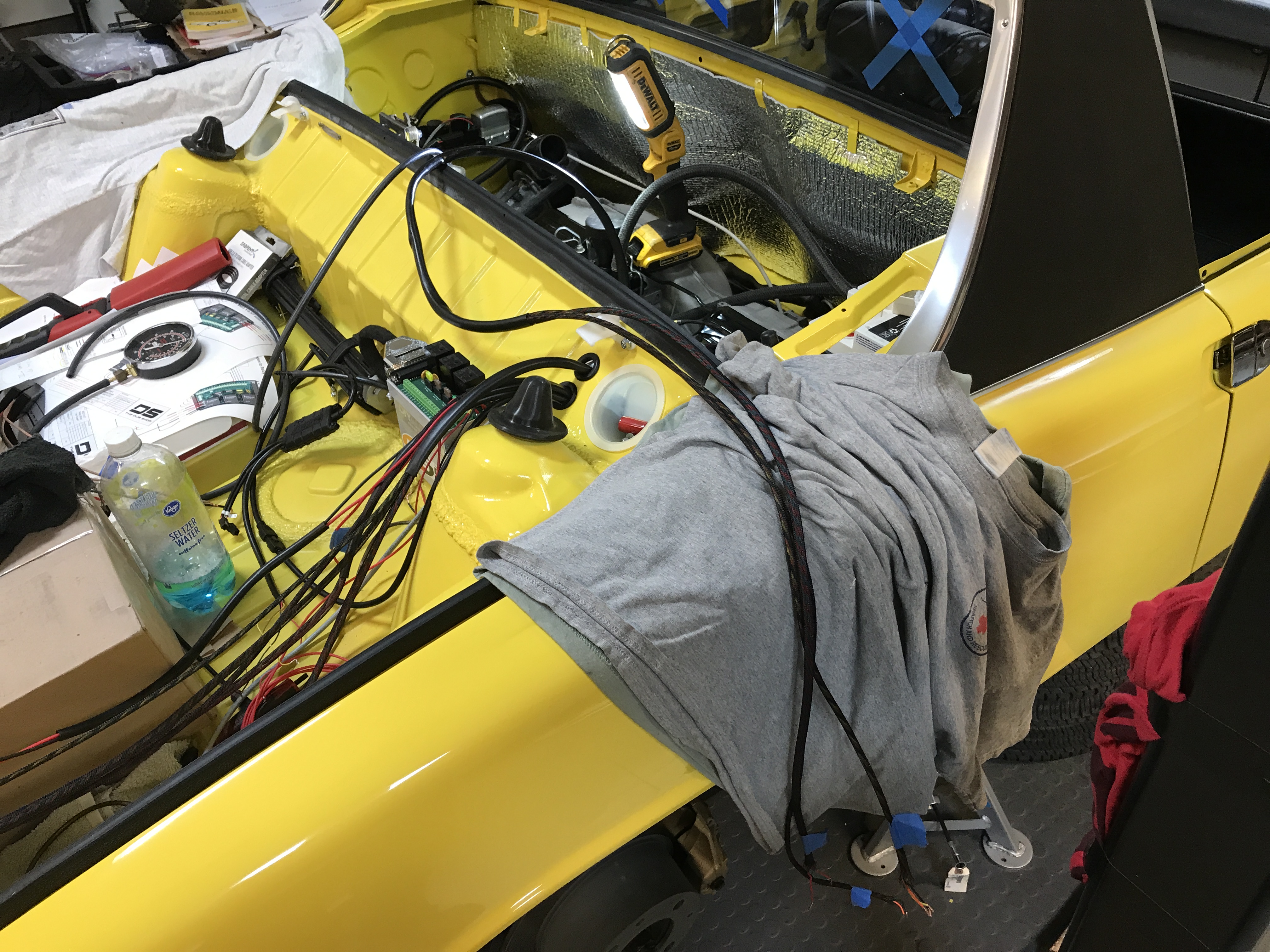

To do that, I have to pull the right bundle back into the engine compartment, and then pull more of the TPS cable out from the end of the bundle. And before that, I undid all the temporary wire connections at the relay box and elsewhere.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 3 2022, 08:22 PM
Post #4588


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

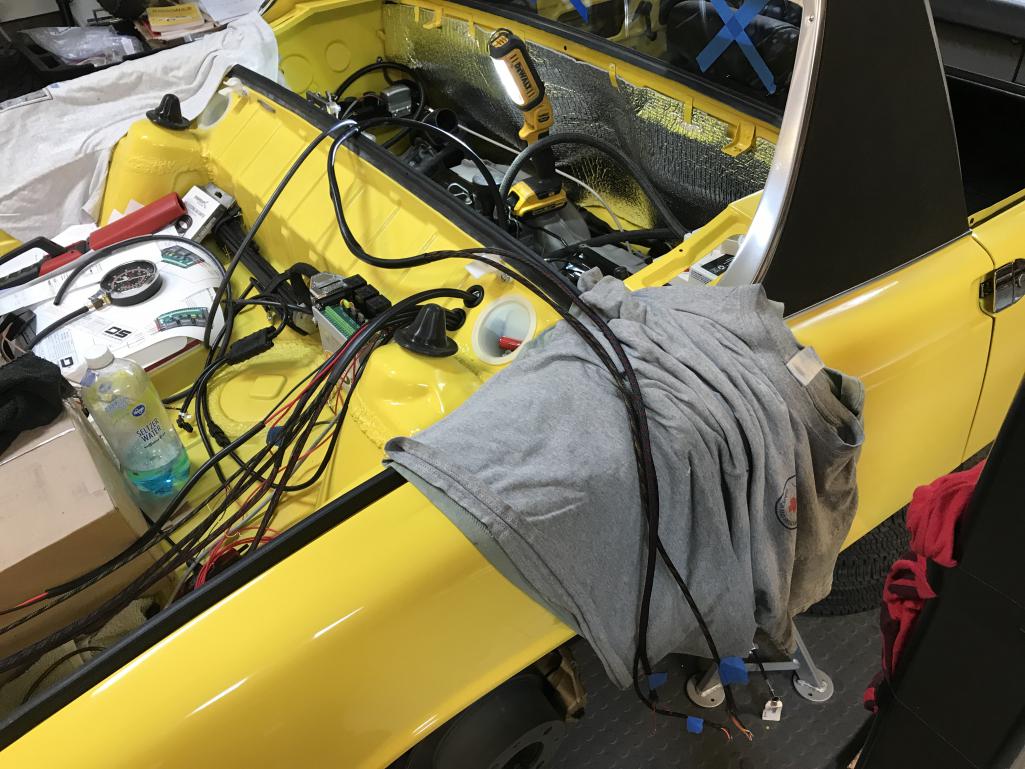

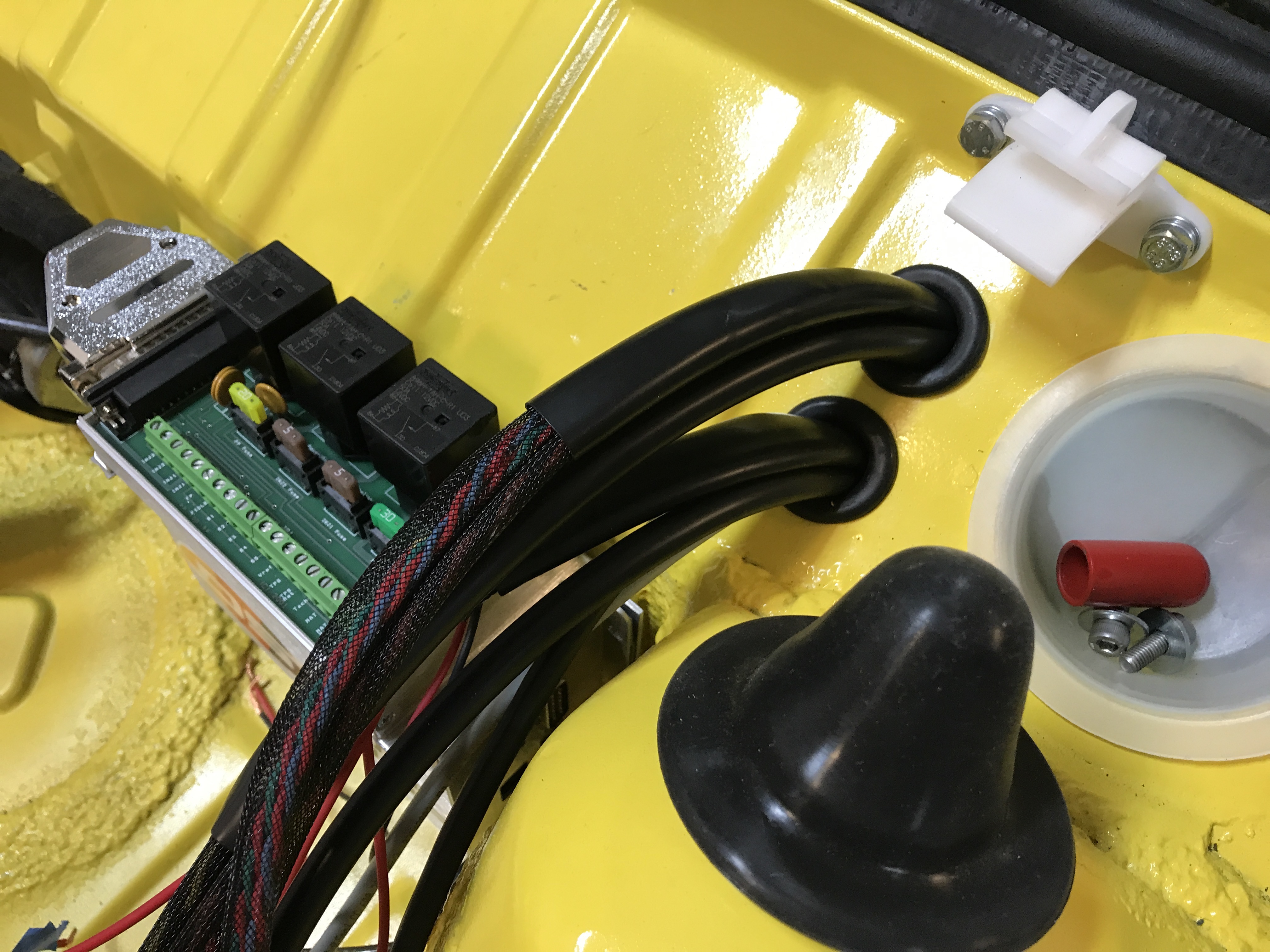

Once all the lengths were adjusted I snaked the bundle back through the hole and grommet. I will trim back the cable covers and route all the individual wires later.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 3 2022, 08:25 PM
Post #4589


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Now for the throttle cable. The modified sheet metal hole position still works well.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 3 2022, 08:28 PM
Post #4590


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

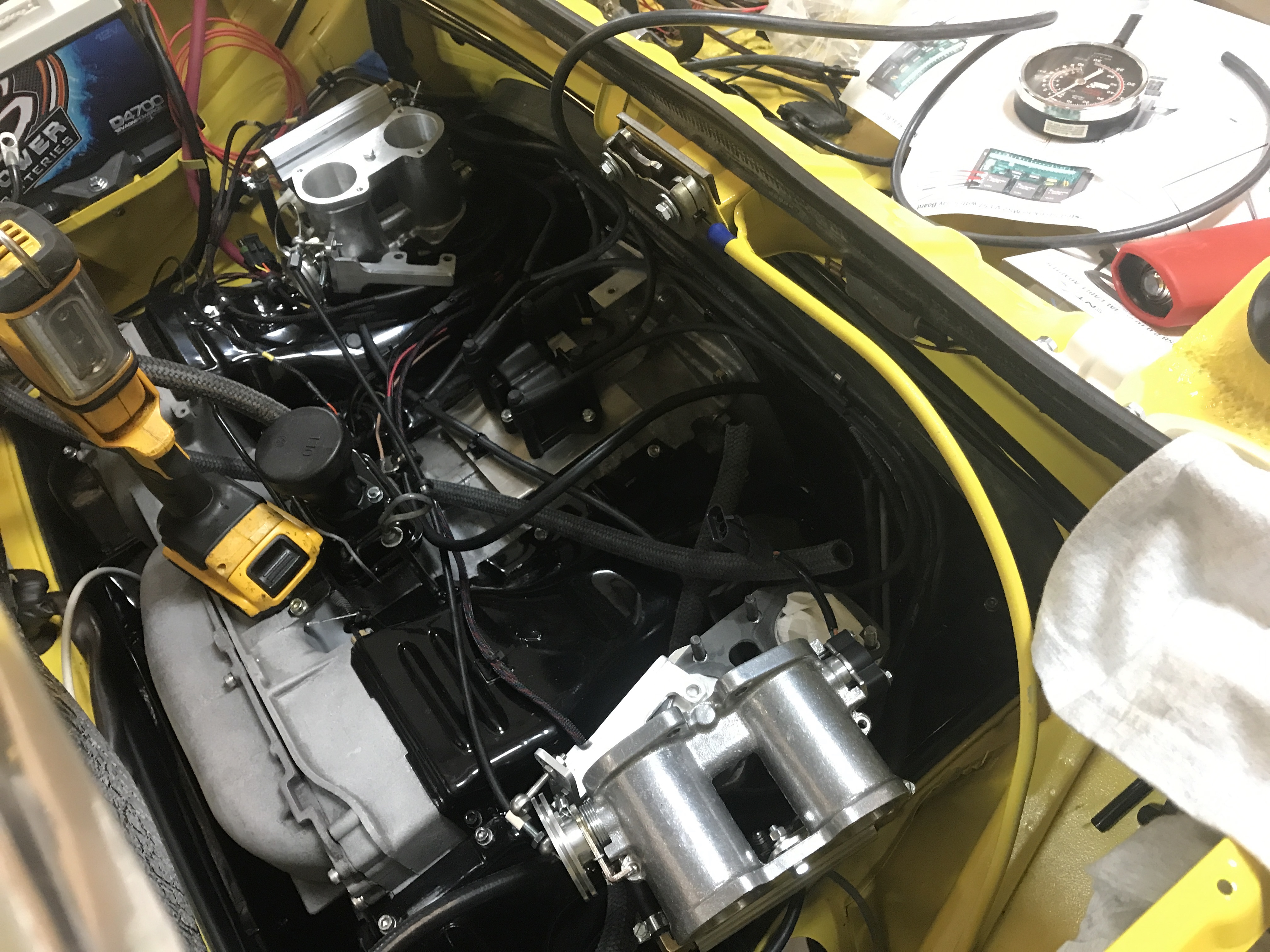

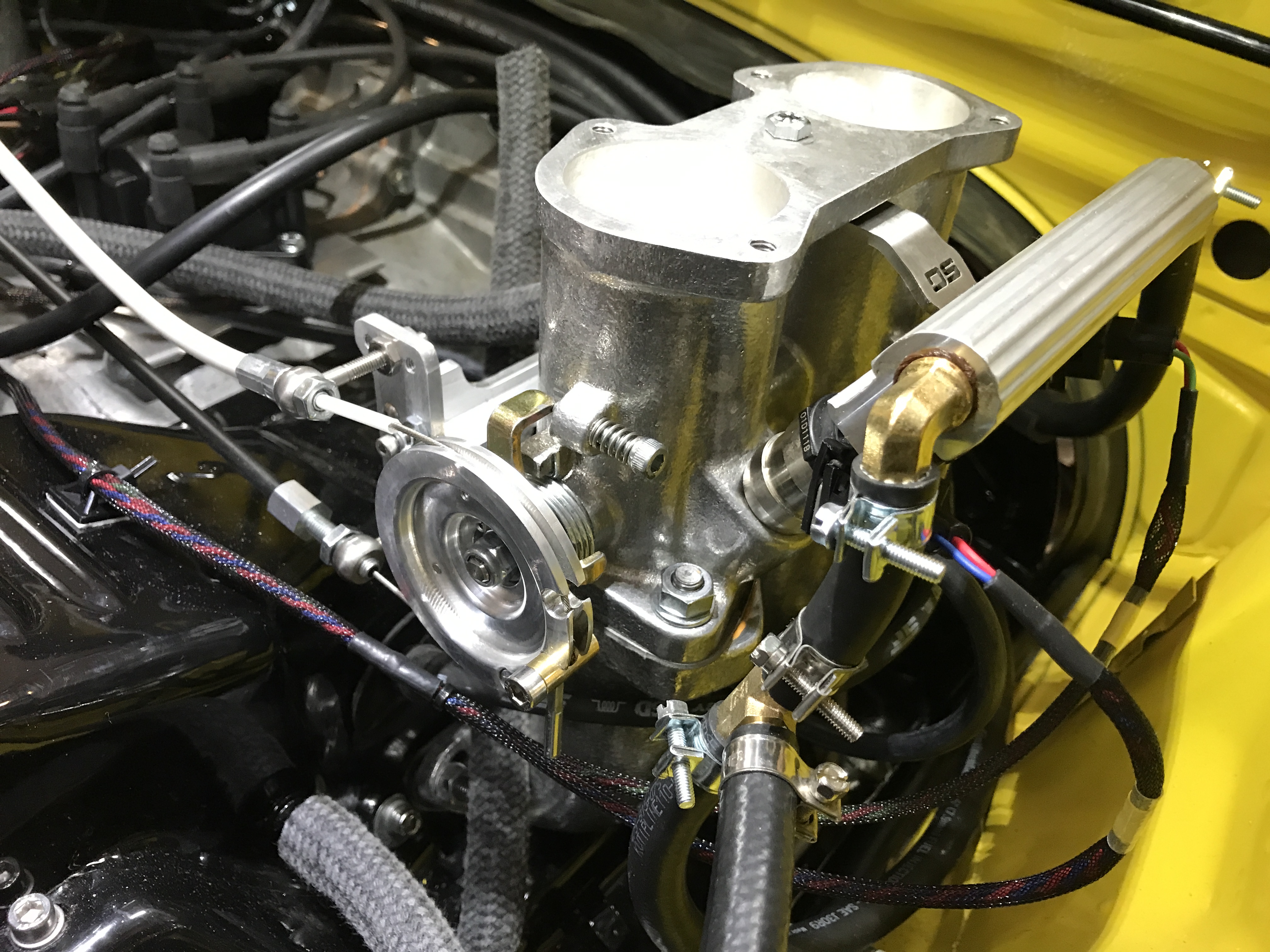

With the throttle stops, adjusters, and pulleys on the front side, I have much better access. Should have done it this way to start.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 3 2022, 08:31 PM
Post #4591


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

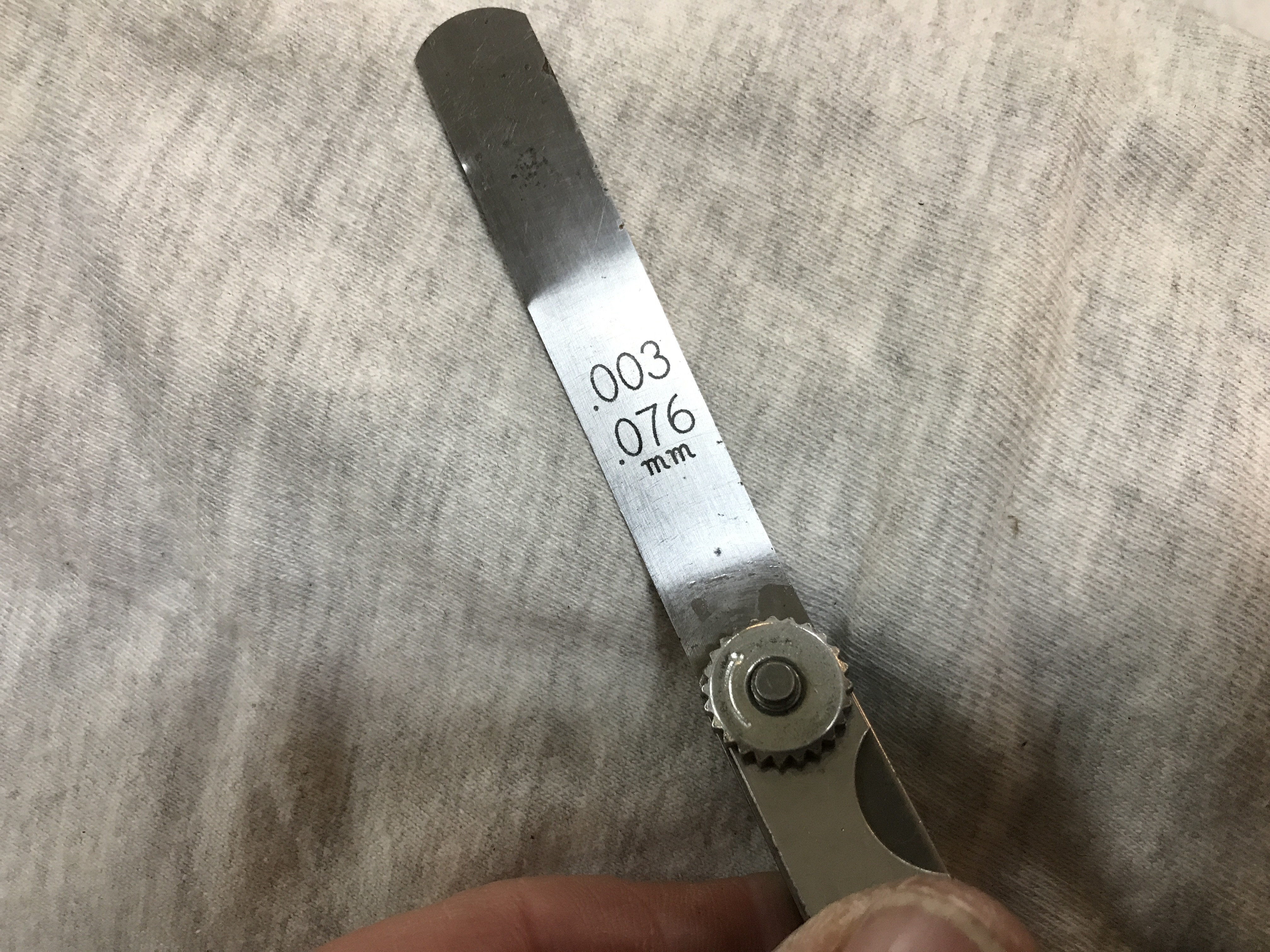

While I had the chance, I did the rough adjustment to set and sync the left and right throttles. I used a .003" feeler gauge.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 3 2022, 08:32 PM
Post #4592


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

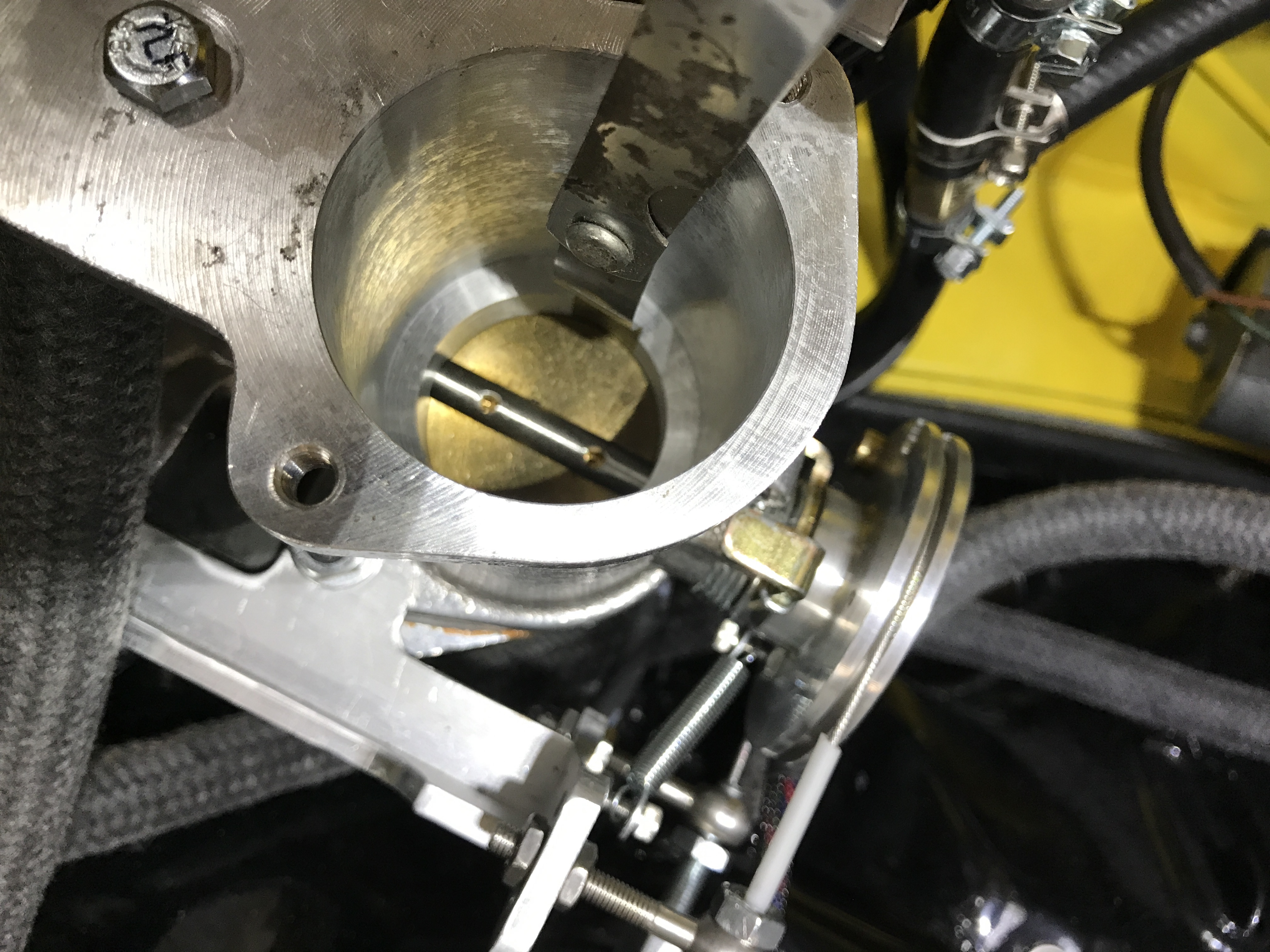

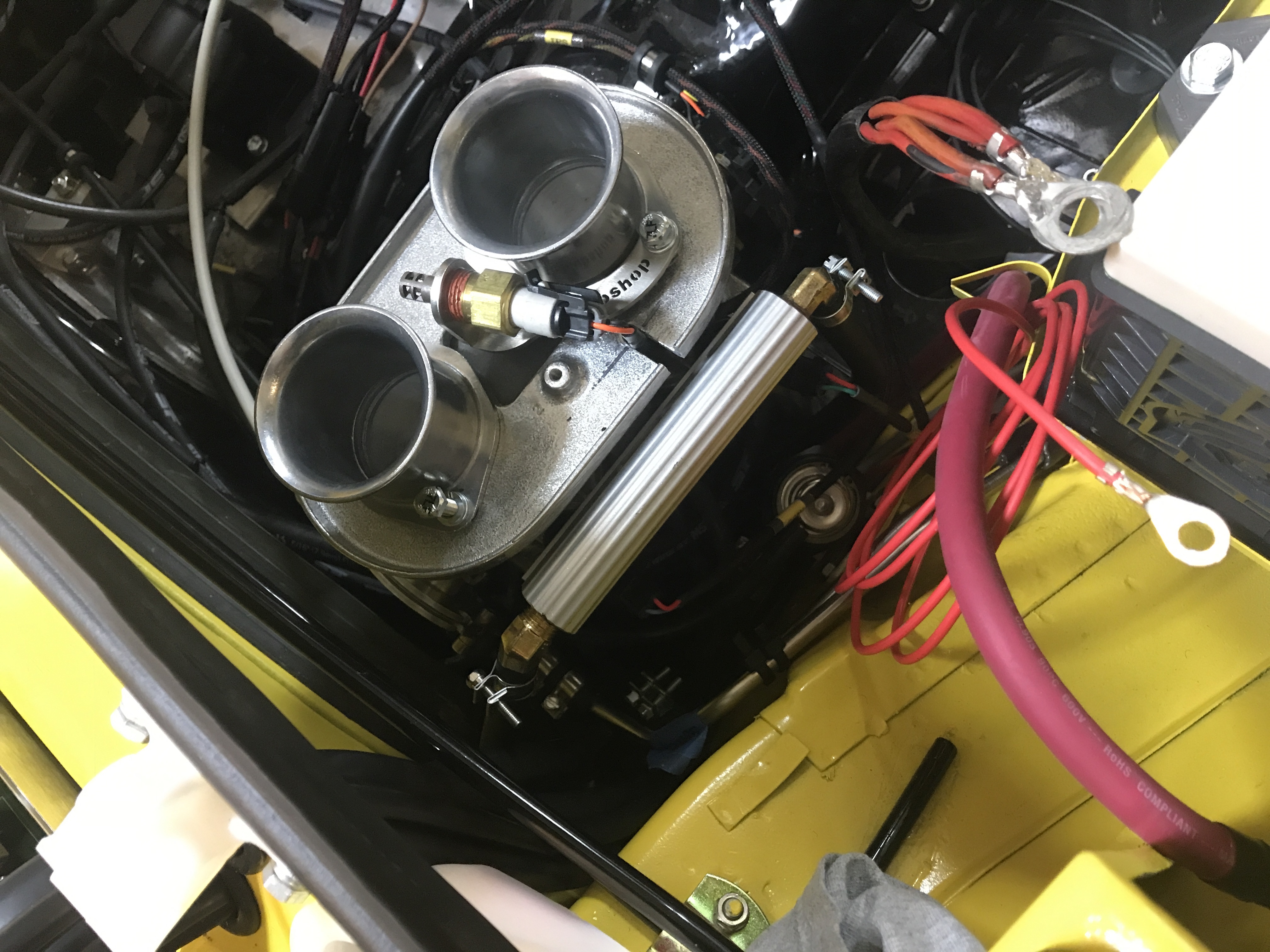

And set the throttle plate gap on both sides. Once the engine is running again, I will balance the airflow.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 3 2022, 08:35 PM
Post #4593


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

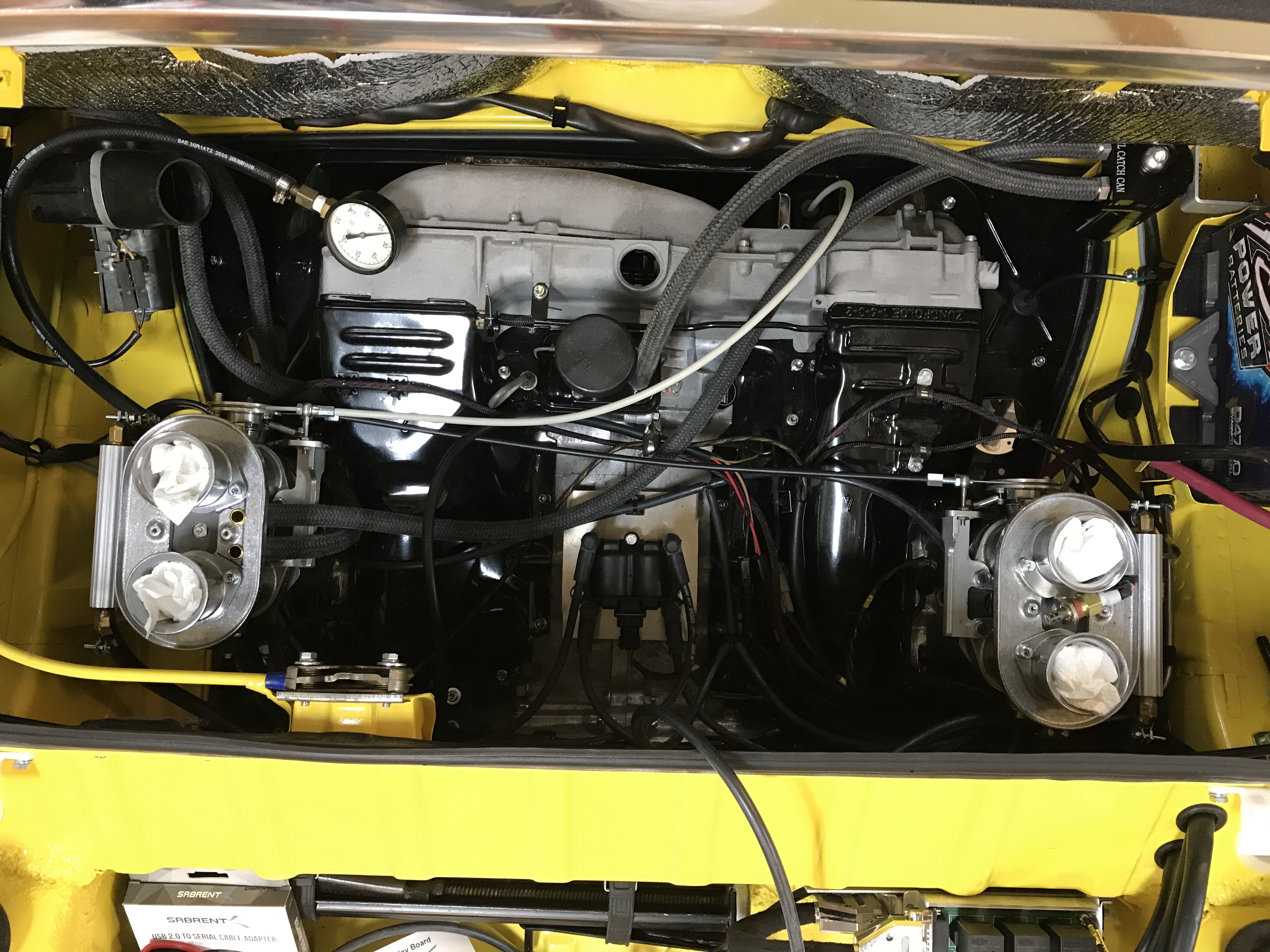

With the lower air filter plates and stacks back on, I am caught up to where I started. The engine compartment looks better--and easier.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 3 2022, 08:36 PM
Post #4594


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Aerial view.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Jan 3 2022, 09:17 PM
Post #4595


Advanced Member
****

Group: Members
Posts: 2,164
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
So "sano" there Bob. Looks like an operating theater at the local hospital. Ha
Super nice!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Jan 4 2022, 08:42 AM
Post #4596


Michael
**********

Group: Members
Posts: 10,099
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
I love this entire build. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 4 2022, 09:03 PM
Post #4597


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(raynekat @ Jan 3 2022, 08:17 PM) *

So "sano" there Bob. Looks like an operating theater at the local hospital. Ha
Super nice!


Hmm, I hope your local hospital OR looks better than this.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 4 2022, 09:05 PM
Post #4598


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
This could be the last white board list. At least when I get all these tasks done the car should be ready for the road.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 4 2022, 09:07 PM
Post #4599


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

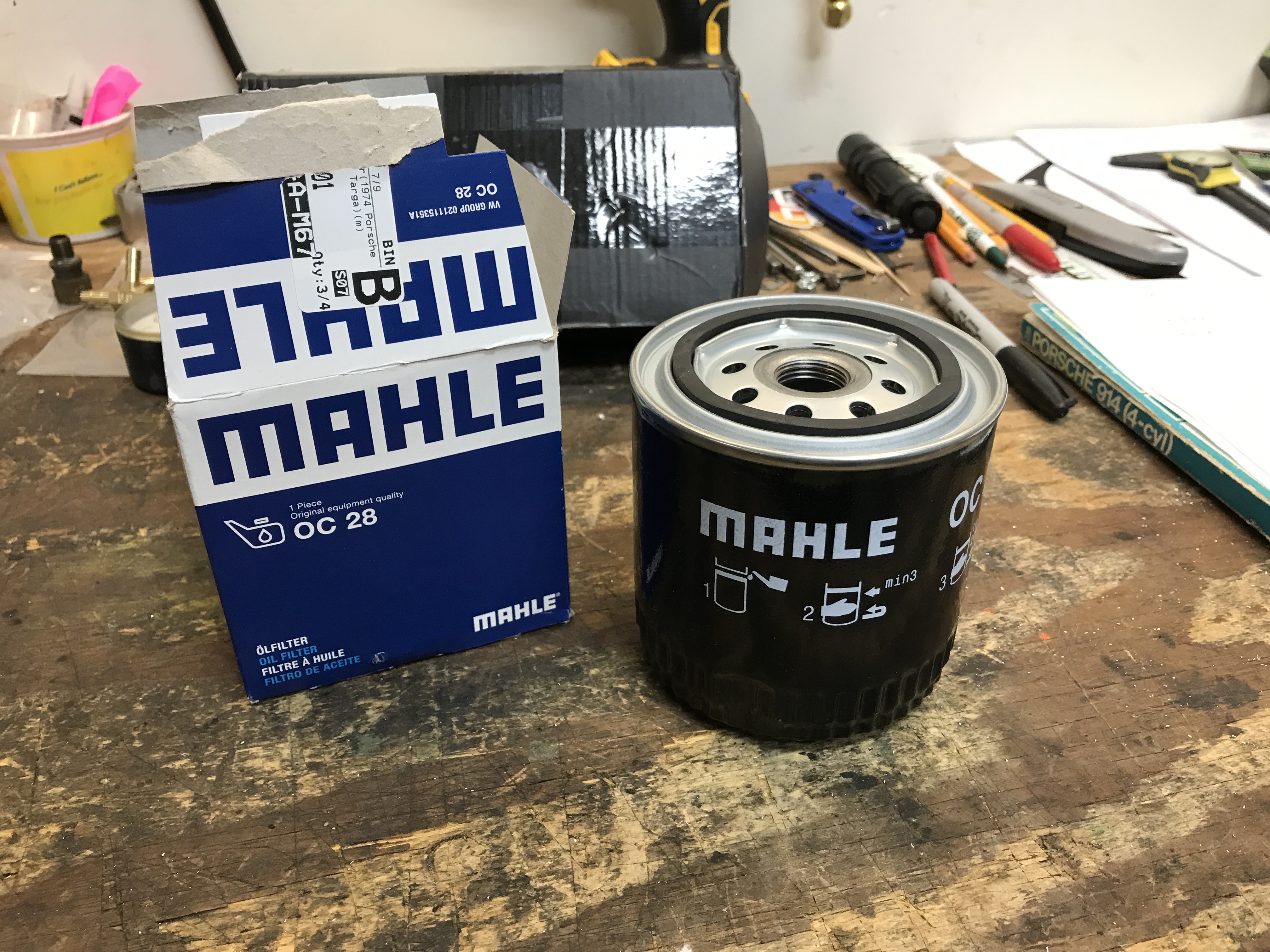

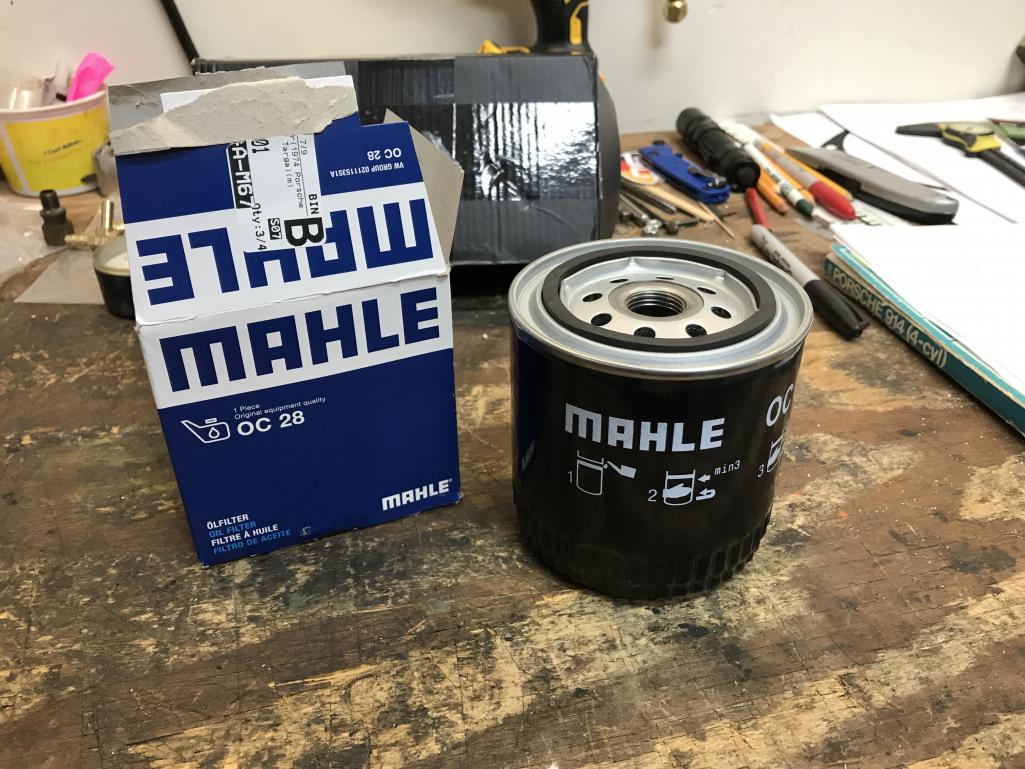

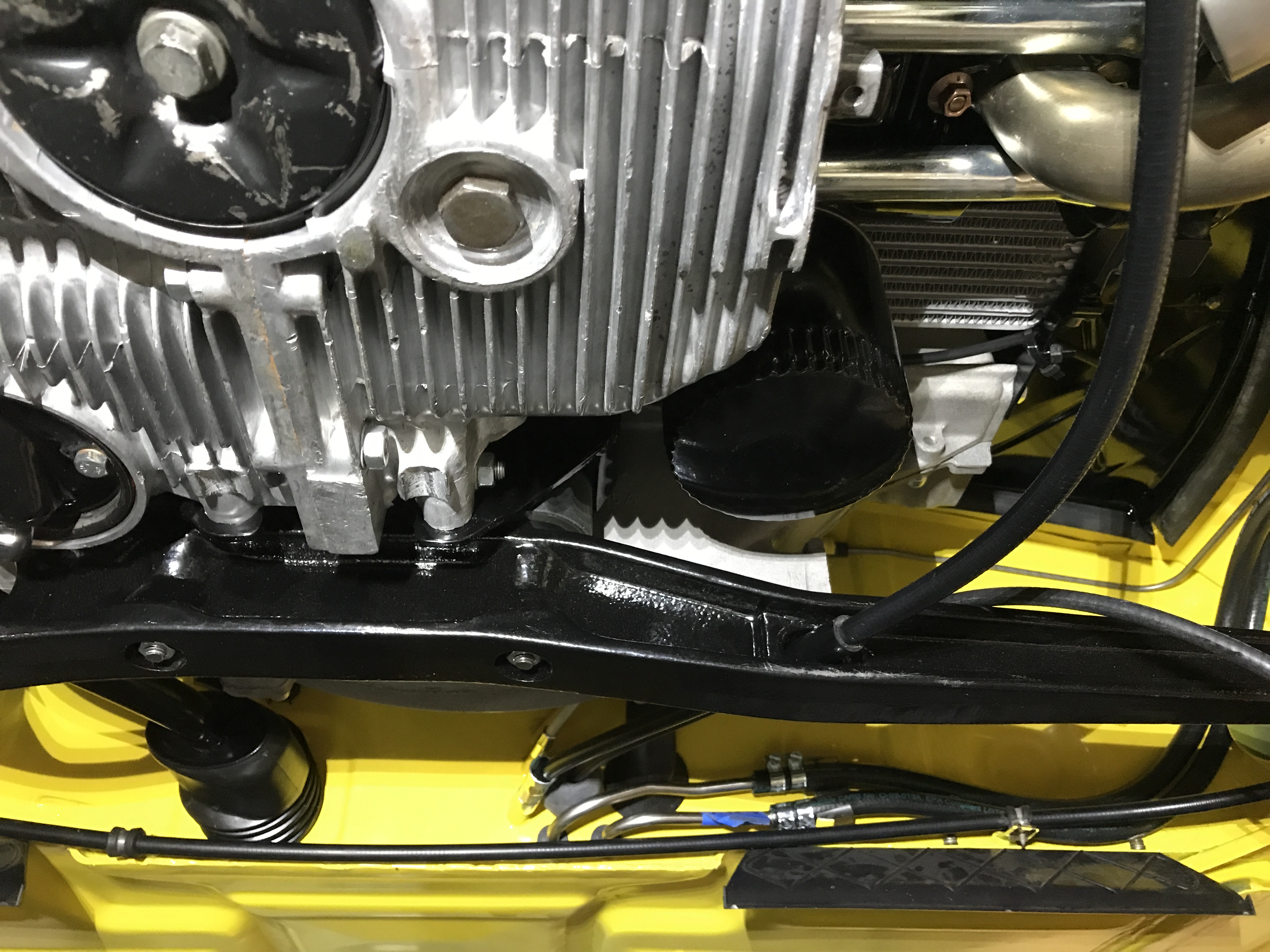

An easy job: new oil filter.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 4 2022, 09:08 PM
Post #4600


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Filter installed, plus a new ring on the drain plug.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
