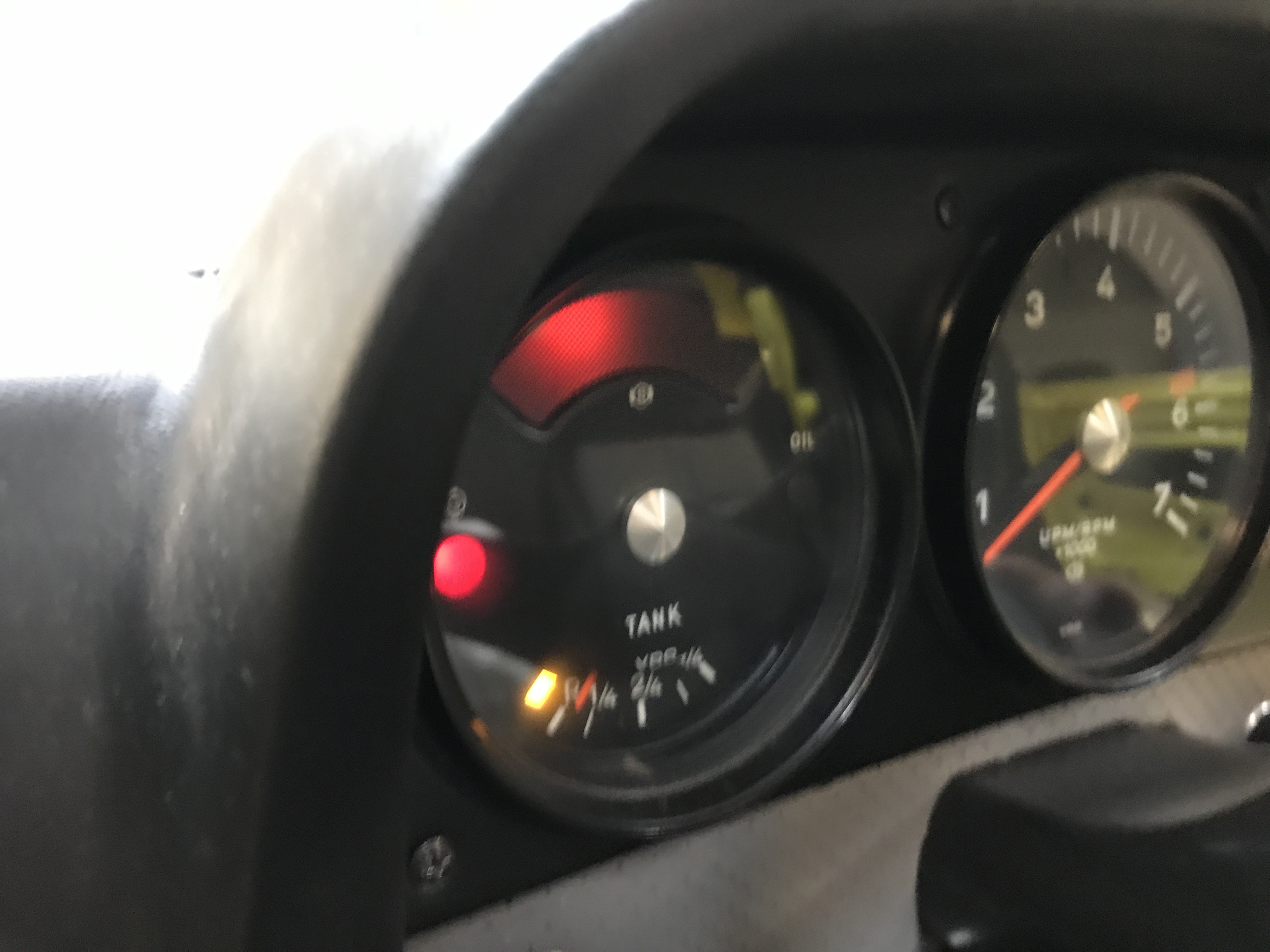

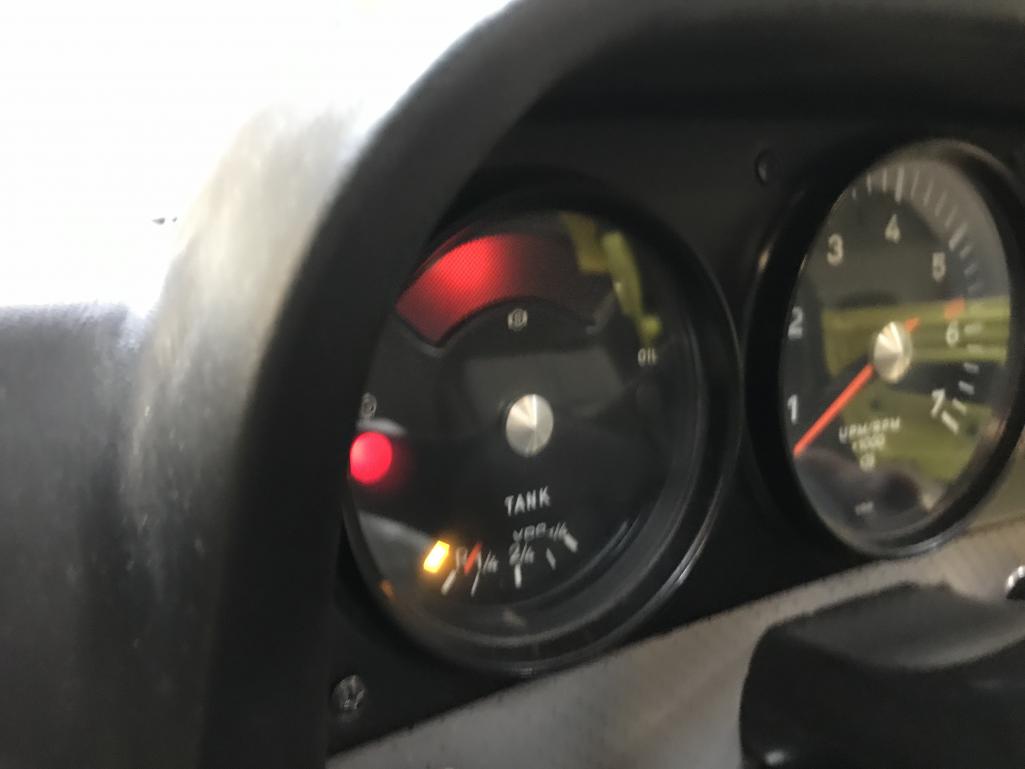

After about 10 spurts of running the starter motor (with the coil disconnected) the oil light went off. That makes me feel better that the engine is ready for start-up again.
Attached thumbnail(s) |
bkrantz |
Jan 10 2022, 08:47 PM
Post
#4642
|
914 Guru Group: Members Posts: 8,154 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

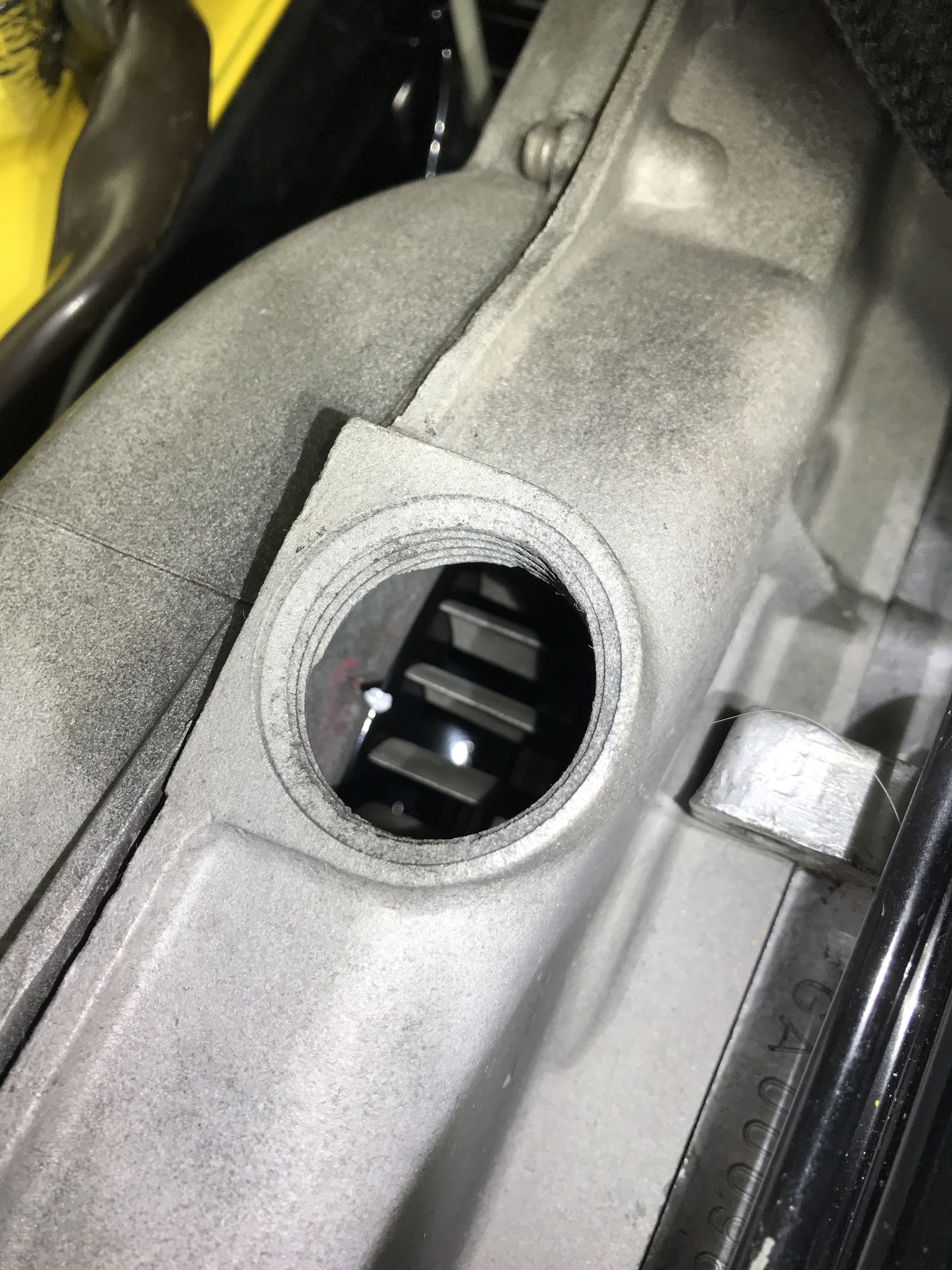

Because of the mix-up with the Hall sensor wires, I want to go through the calibration again. Last time I had a hard time seeing the timing mark on the blower cage, so I added a paint dab to the notch. (Note to self: next time do this during engine assembly.)
Attached thumbnail(s) |
bkrantz |
Jan 10 2022, 08:49 PM
Post
#4643
|
914 Guru Group: Members Posts: 8,154 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

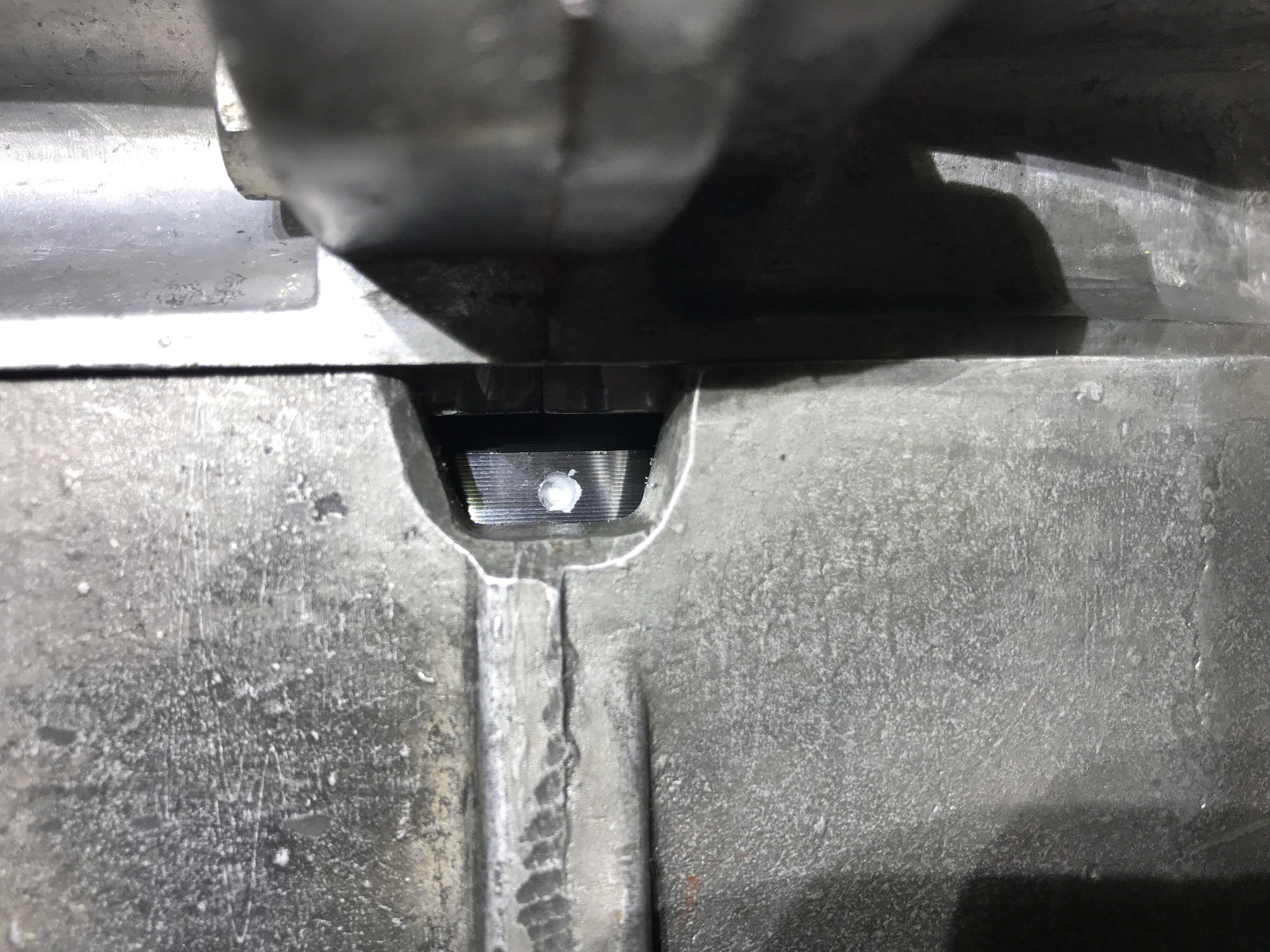

I also added a mark on the flywheel, 180° opposite of the standard mark, with a shallow drill mark and then paint.
Attached thumbnail(s) |
bkrantz |
Jan 10 2022, 09:01 PM
Post
#4644
|
914 Guru Group: Members Posts: 8,154 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

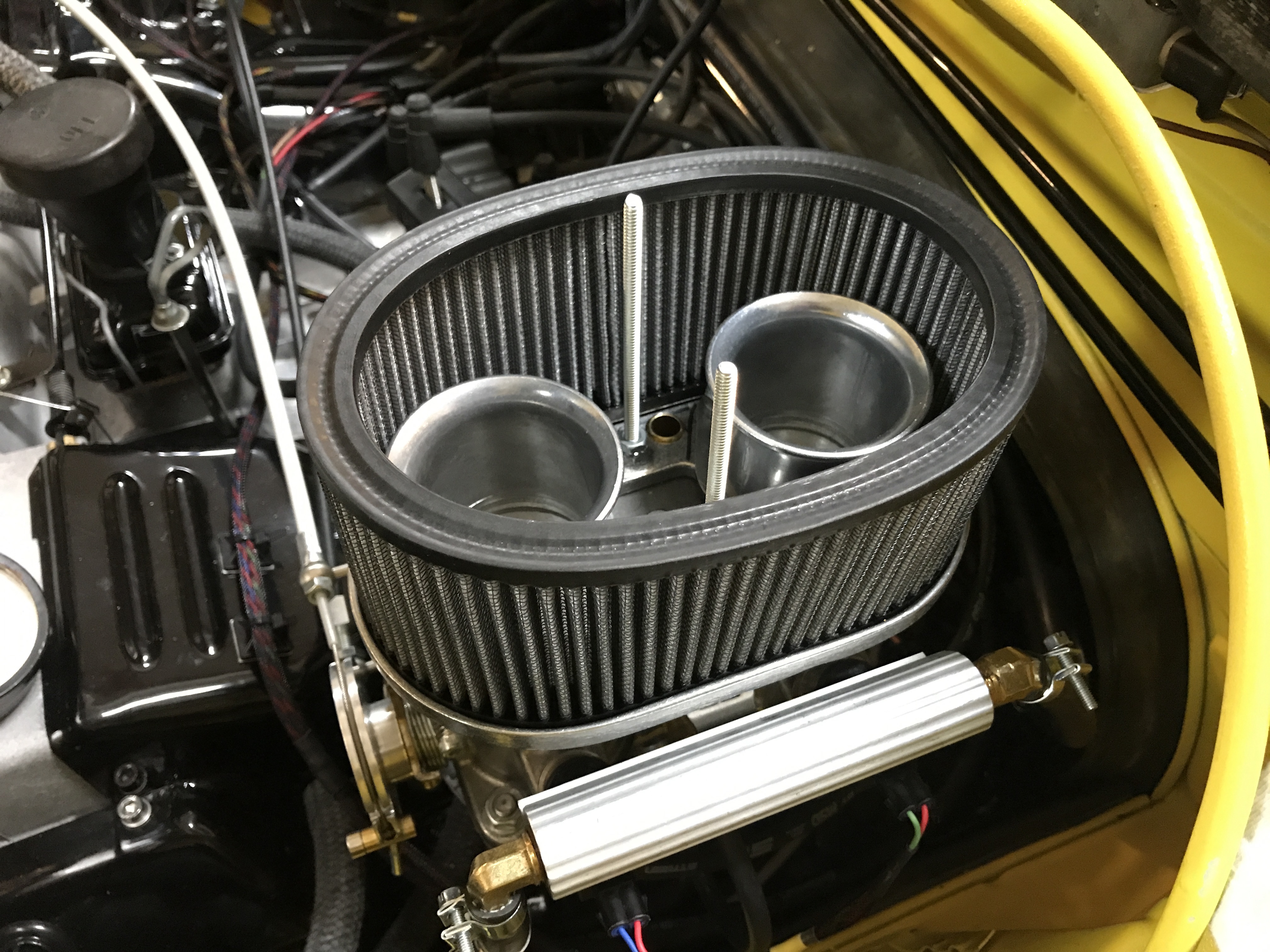

One more thing before starting the engine again: install the air filters (and stop worrying about something falling in the throttle body stacks).
Attached thumbnail(s) |
bkrantz |
Jan 10 2022, 09:02 PM
Post
#4645
|
914 Guru Group: Members Posts: 8,154 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

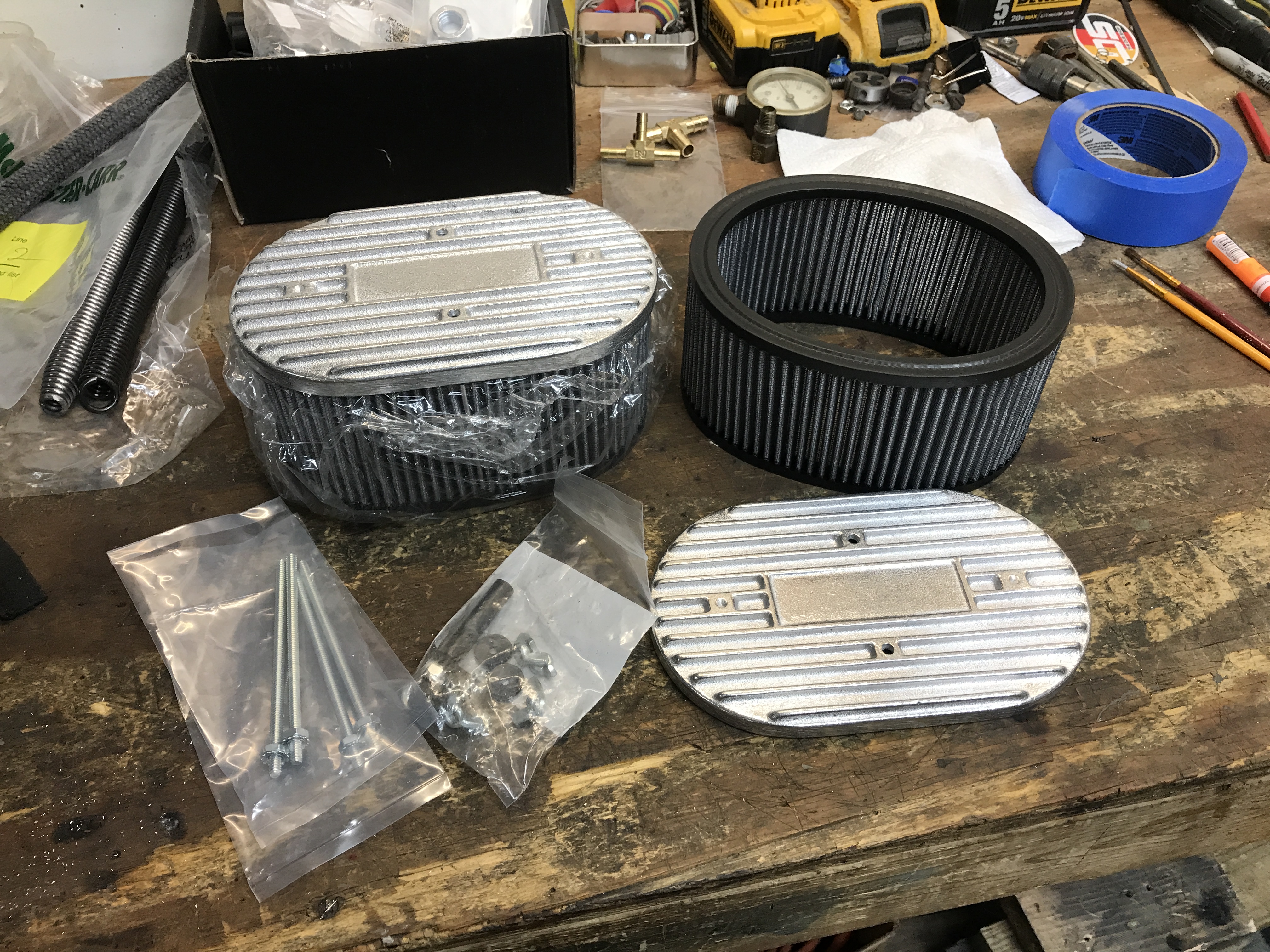

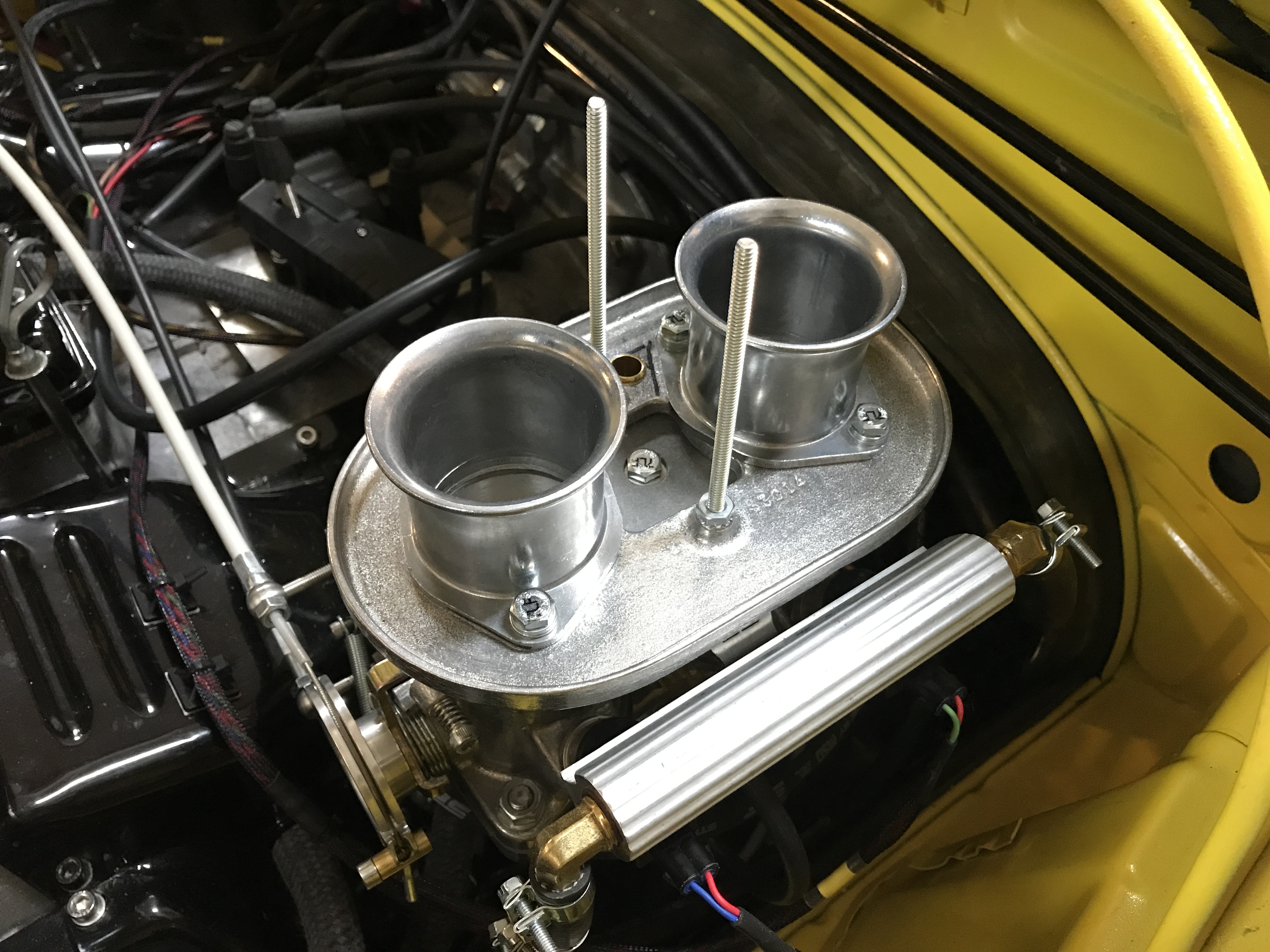

Mounting studs.
Attached thumbnail(s) |
bkrantz |
Jan 10 2022, 09:03 PM
Post
#4646
|
914 Guru Group: Members Posts: 8,154 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

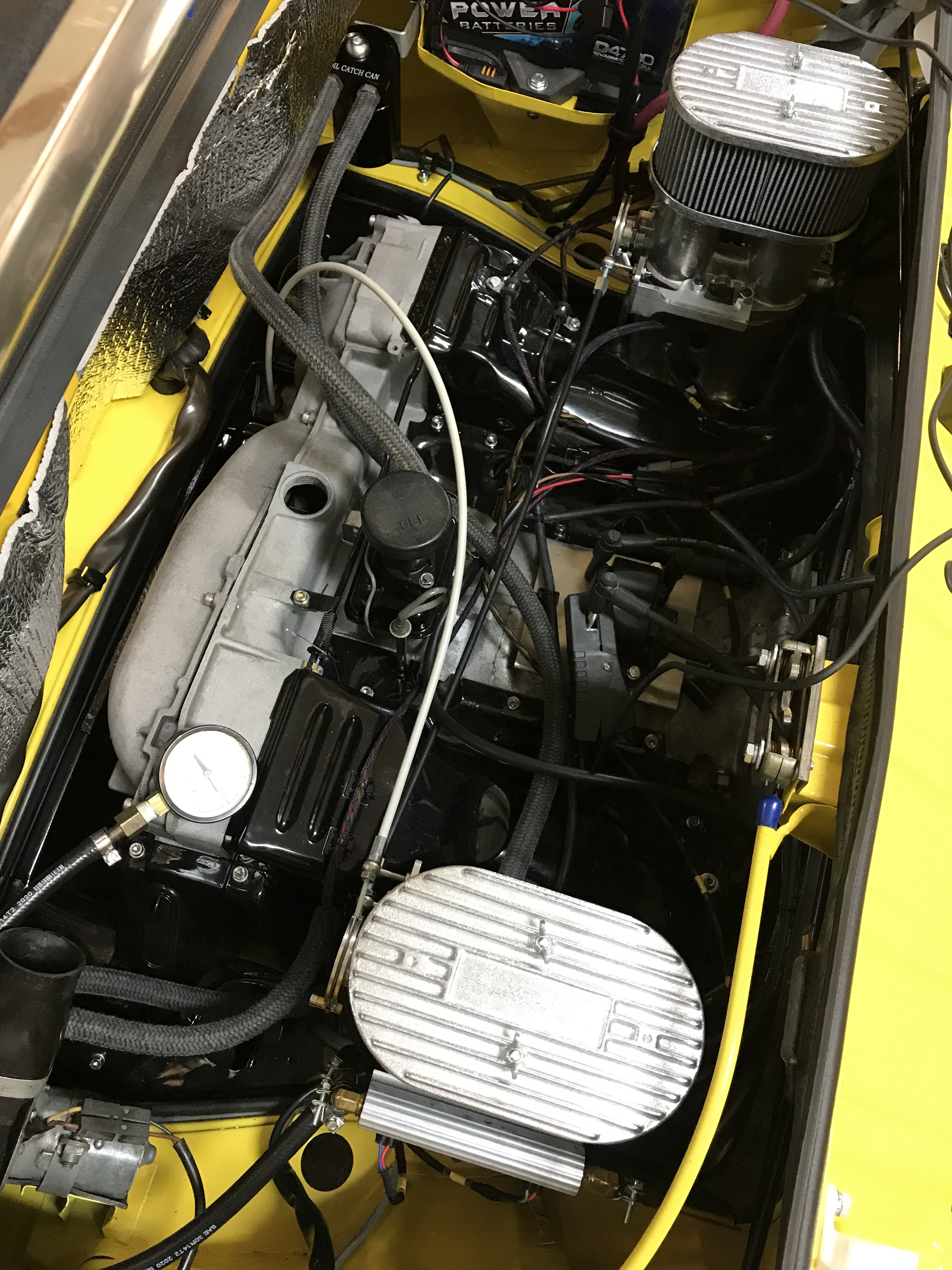

Air filter.
Attached thumbnail(s) |
bkrantz |
Jan 10 2022, 09:04 PM
Post
#4647
|
914 Guru Group: Members Posts: 8,154 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

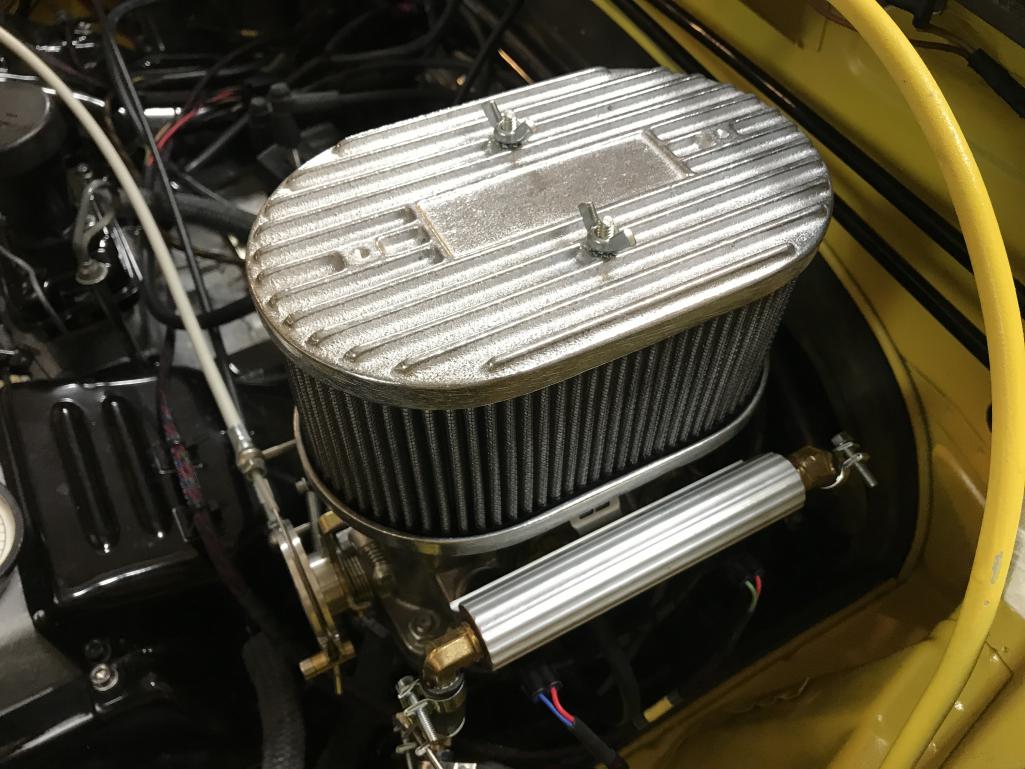

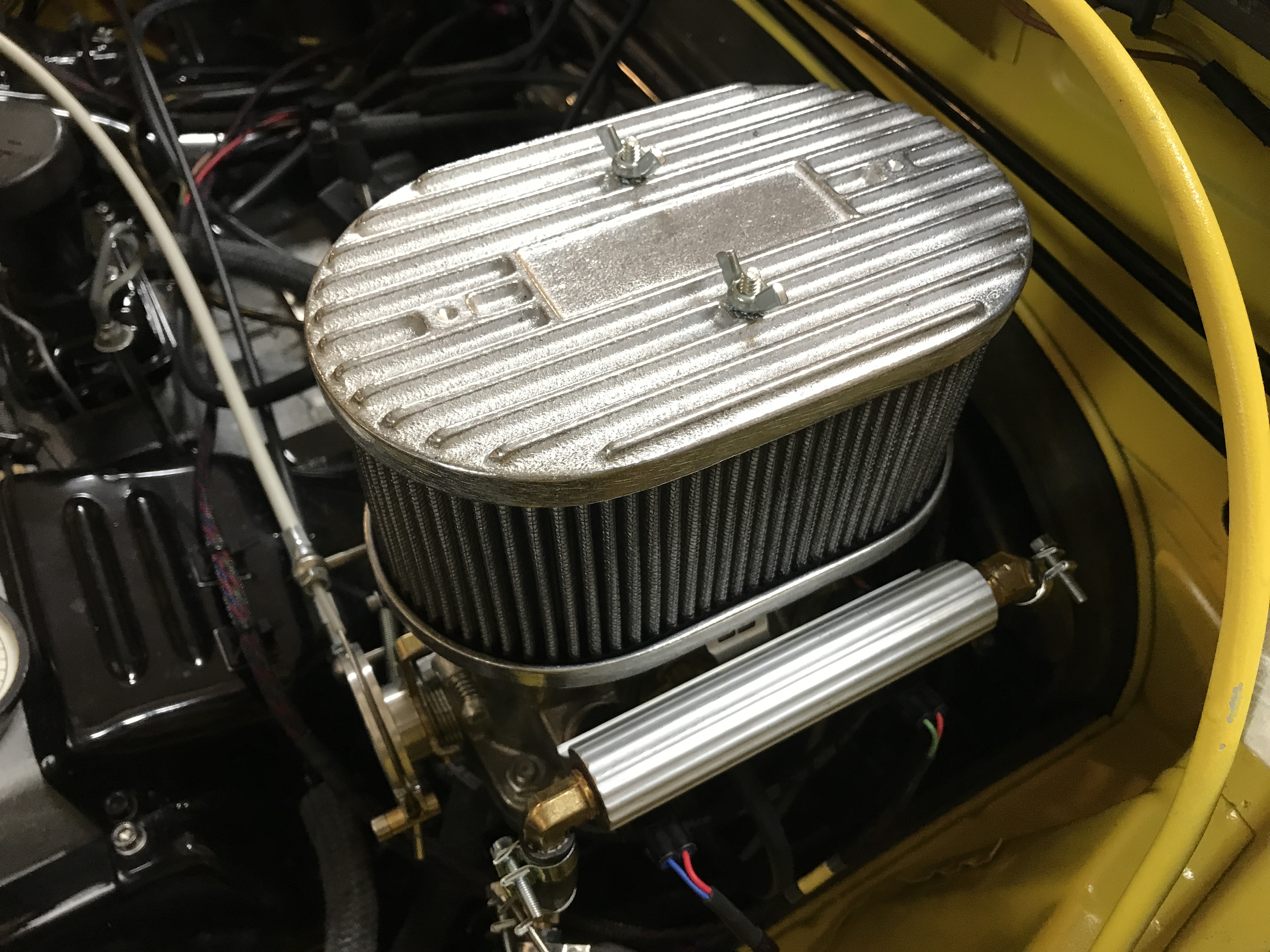

And top cover. I still need to decorate that blank rectangle.
Attached thumbnail(s) |
Puebloswatcop |
Jan 11 2022, 08:24 AM
Post
#4648
|
Senior Member Group: Members Posts: 1,403 Joined: 27-December 14 From: Mineola, Texas Member No.: 18,258 Region Association: Southwest Region |
|
jesse7flying |
Jan 11 2022, 09:39 AM
Post
#4649
|
Member Group: Members Posts: 134 Joined: 9-August 16 From: Burleson,TX Member No.: 20,281 Region Association: None |
Looking great! Would you mind showing a better shot of how you set up your throttle cable system? Thx
Jesse |
bkrantz |
Jan 11 2022, 08:28 PM
Post
#4650
|
914 Guru Group: Members Posts: 8,154 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

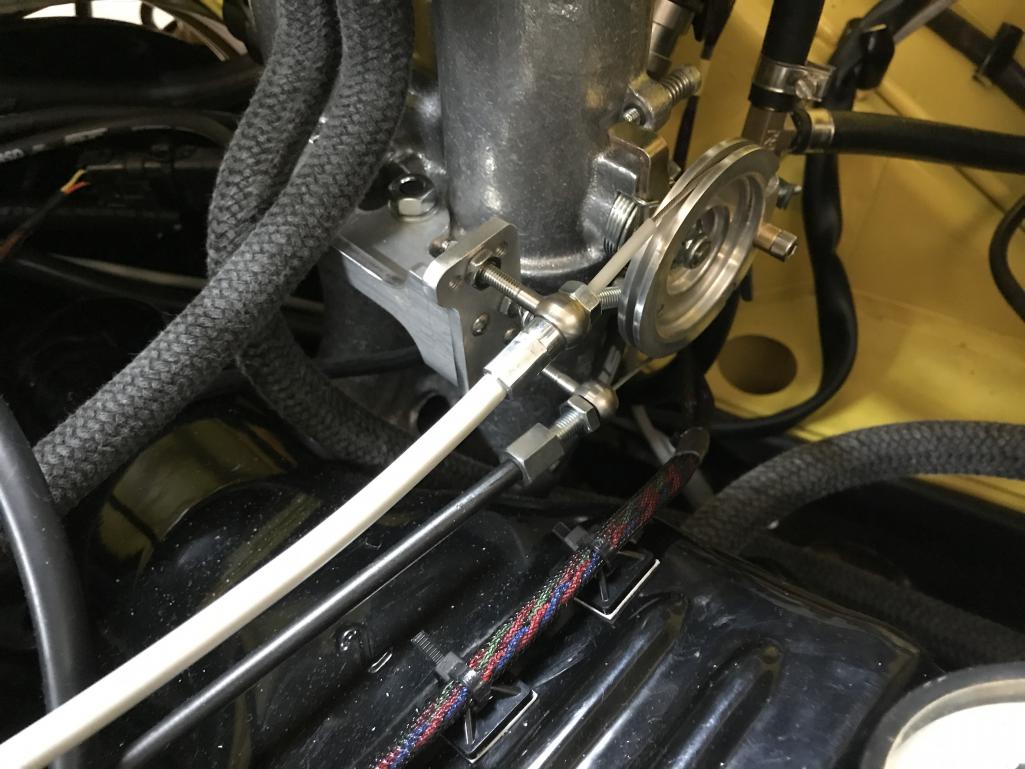

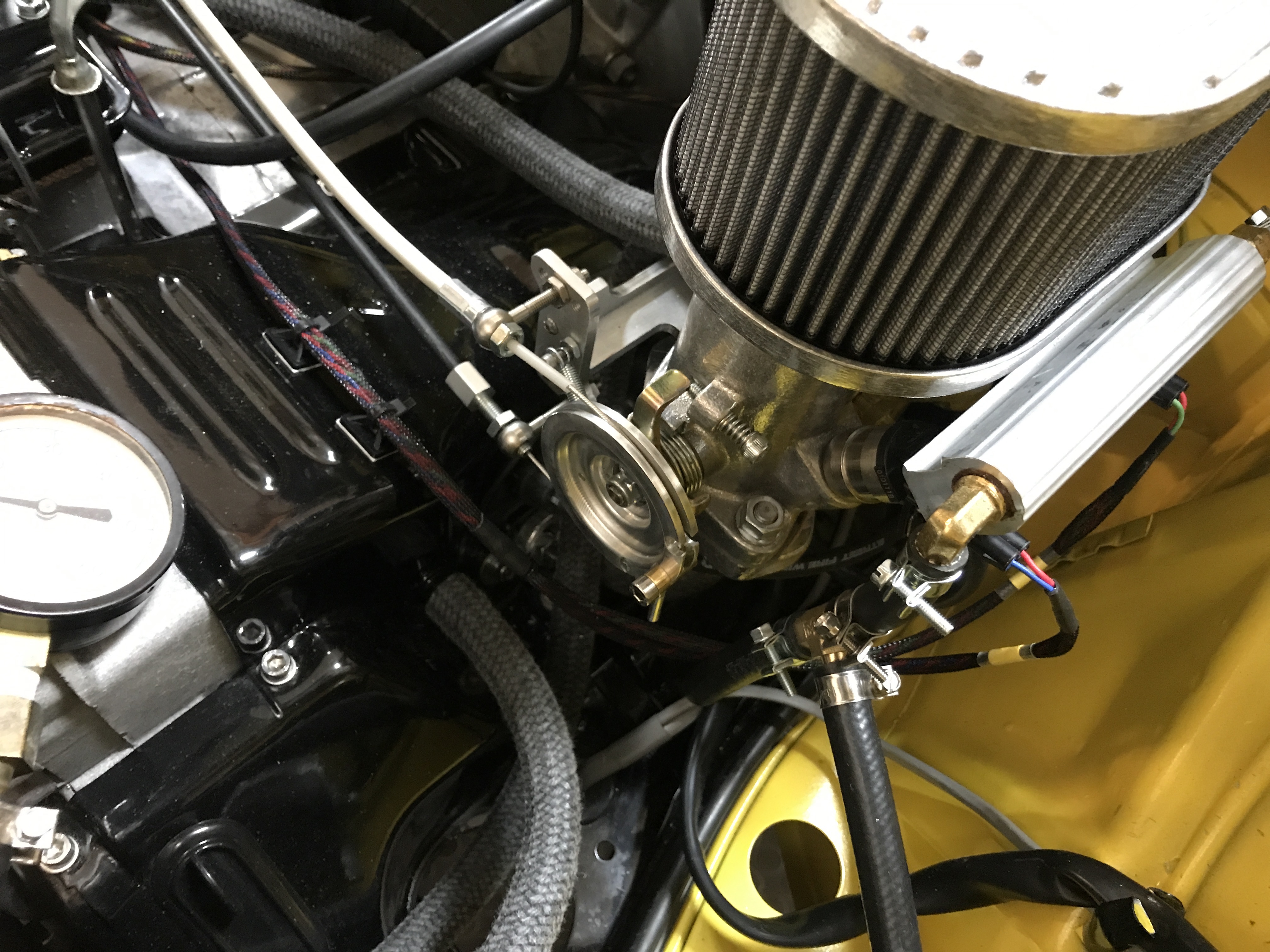

Hi, Jesse. Here is a top view.
Attached thumbnail(s) |
bkrantz |
Jan 11 2022, 08:29 PM
Post
#4651
|
914 Guru Group: Members Posts: 8,154 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
New hole in the front sheet metal for the accelerator cable.
Attached thumbnail(s) |
bkrantz |
Jan 11 2022, 08:30 PM
Post
#4652
|
914 Guru Group: Members Posts: 8,154 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

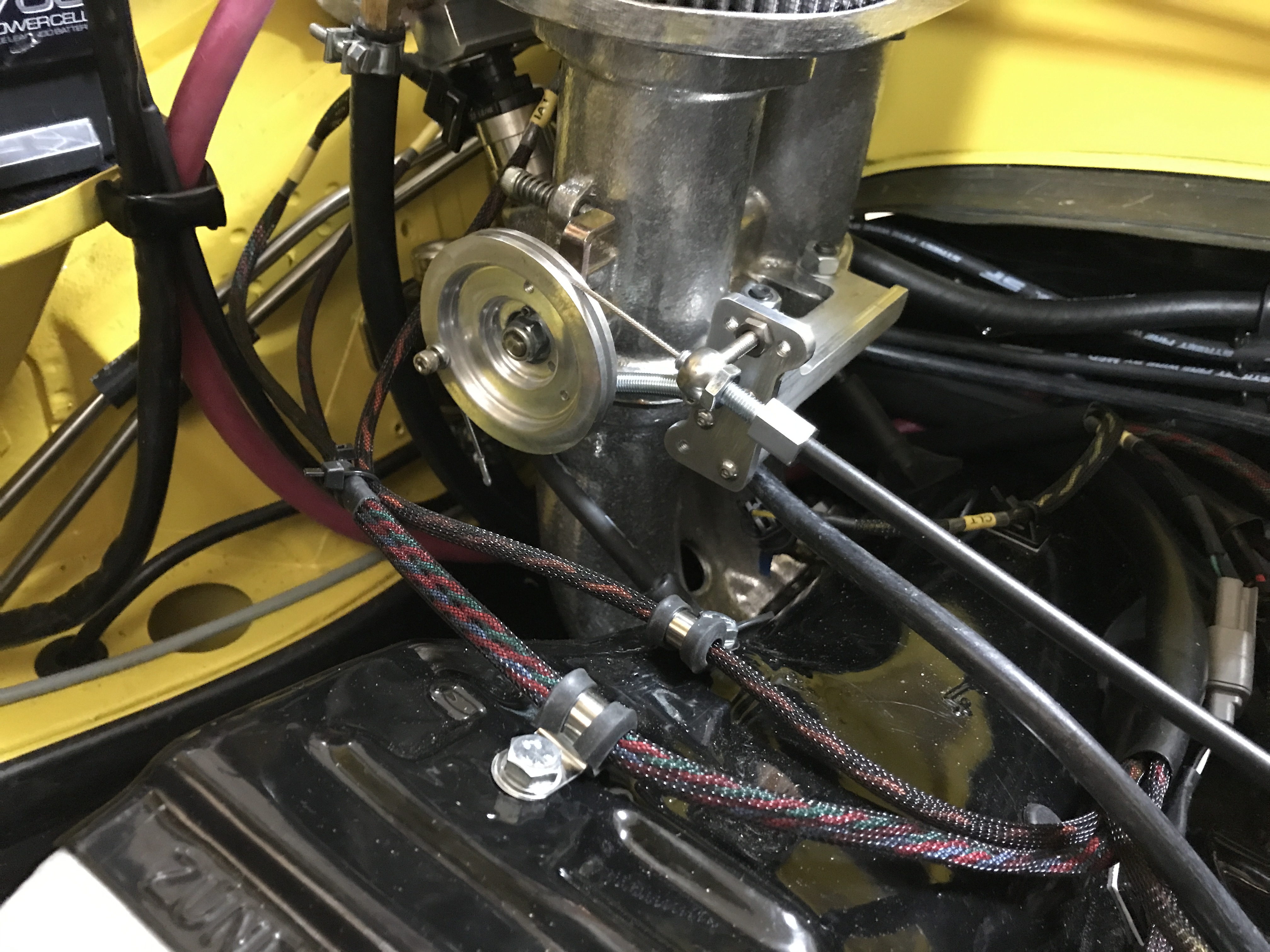

Master pulley on the left.
Attached thumbnail(s) |
bkrantz |
Jan 11 2022, 08:30 PM
Post
#4653
|
914 Guru Group: Members Posts: 8,154 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

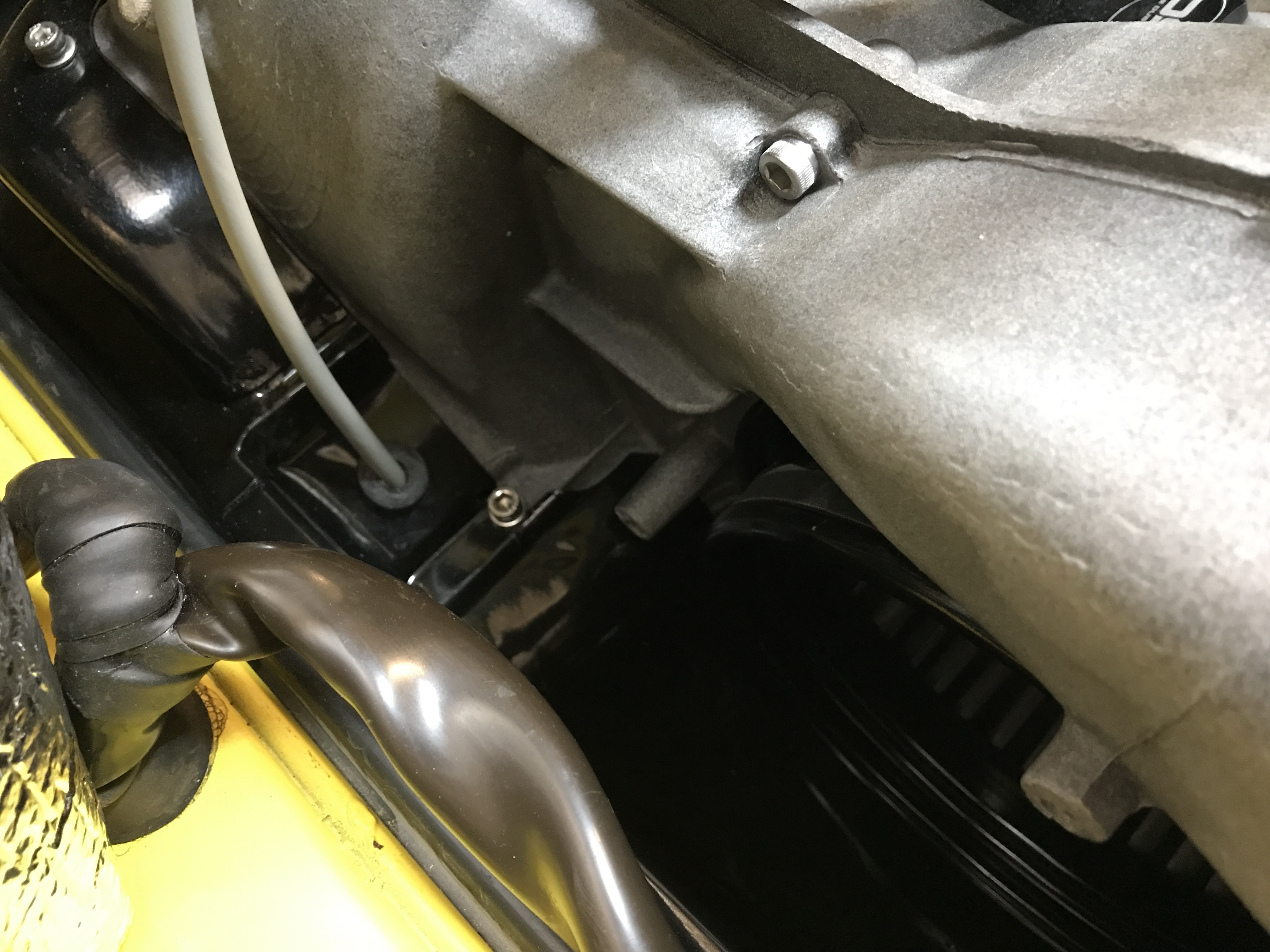

Another view of the left side.
Attached thumbnail(s) |
bkrantz |
Jan 11 2022, 08:31 PM
Post
#4654
|
914 Guru Group: Members Posts: 8,154 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Slave pulley on the right.
Attached thumbnail(s) |
bkrantz |
Jan 11 2022, 08:43 PM
Post
#4655
|
914 Guru Group: Members Posts: 8,154 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Well, today was a kinda 3 steps backwards day. I checked everything and got my laptop connected.
The first problem was a funny reading from the throttle position sensor, initially showing 100% open when it was closed. I fooled around with the cable and plug, and found one wire pulling out of the plug connector. I fixed that, and it looked to read correctly. I then tried to check the engine timing, but could not get the timing light to flash. I tried a number of setups with the light pickup without luck. Eventually I pulled plug #1 and found no spark. Argh. About the same time, I saw some strange throttle position readings again. Now it looks like the position sensor is misbehaving. Argh again. |
jesse7flying |
Jan 12 2022, 09:13 AM
Post
#4656
|
Member Group: Members Posts: 134 Joined: 9-August 16 From: Burleson,TX Member No.: 20,281 Region Association: None |
Perfect on the pics. Much appreciated, thx
Jesse |
iankarr |
Jan 12 2022, 10:24 AM
Post
#4657
|
The wrencher formerly known as Cuddy_K Group: Members Posts: 2,522 Joined: 22-May 15 From: Heber City, UT Member No.: 18,749 Region Association: Intermountain Region |
Well, today was a kinda 3 steps backwards day. I checked everything and got my laptop connected. The first problem was a funny reading from the throttle position sensor, initially showing 100% open when it was closed. I fooled around with the cable and plug, and found one wire pulling out of the plug connector. I fixed that, and it looked to read correctly. I then tried to check the engine timing, but could not get the timing light to flash. I tried a number of setups with the light pickup without luck. Eventually I pulled plug #1 and found no spark. Argh. About the same time, I saw some strange throttle position readings again. Now it looks like the position sensor is misbehaving. Argh again. Solving the problems is half the fun. Enjoy the detective work. It'll be that much more satisfying when it's all sorted. |
bkrantz |
Jan 12 2022, 09:23 PM
Post
#4658
|
914 Guru Group: Members Posts: 8,154 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

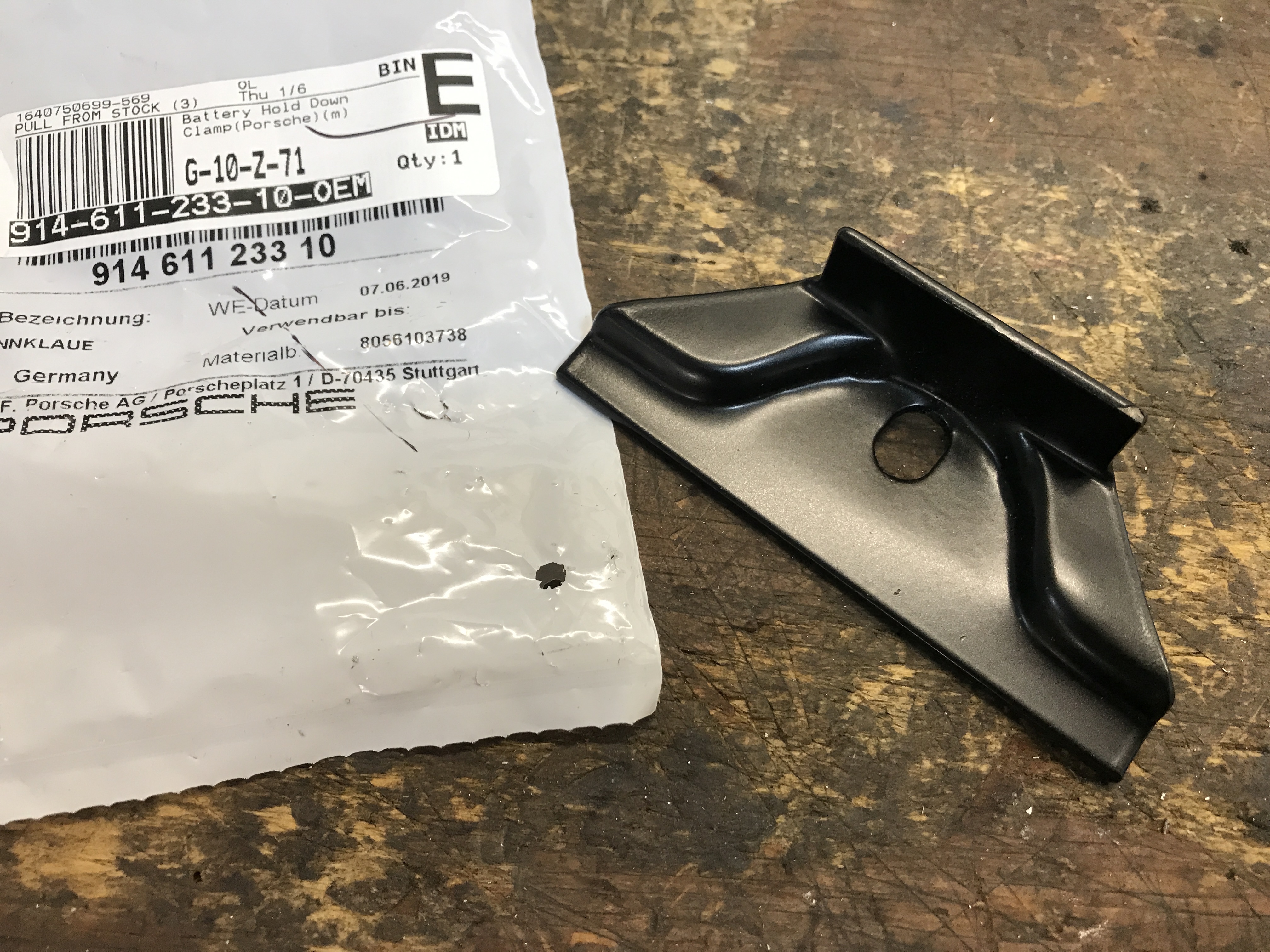

Still sorting out the EFI problems, and then I decided to work on something more tangible. I ordered a factory battery clamp since the only one I had is designed for an Optima batter.
Attached thumbnail(s) |
bkrantz |
Jan 12 2022, 09:25 PM
Post
#4659
|
914 Guru Group: Members Posts: 8,154 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

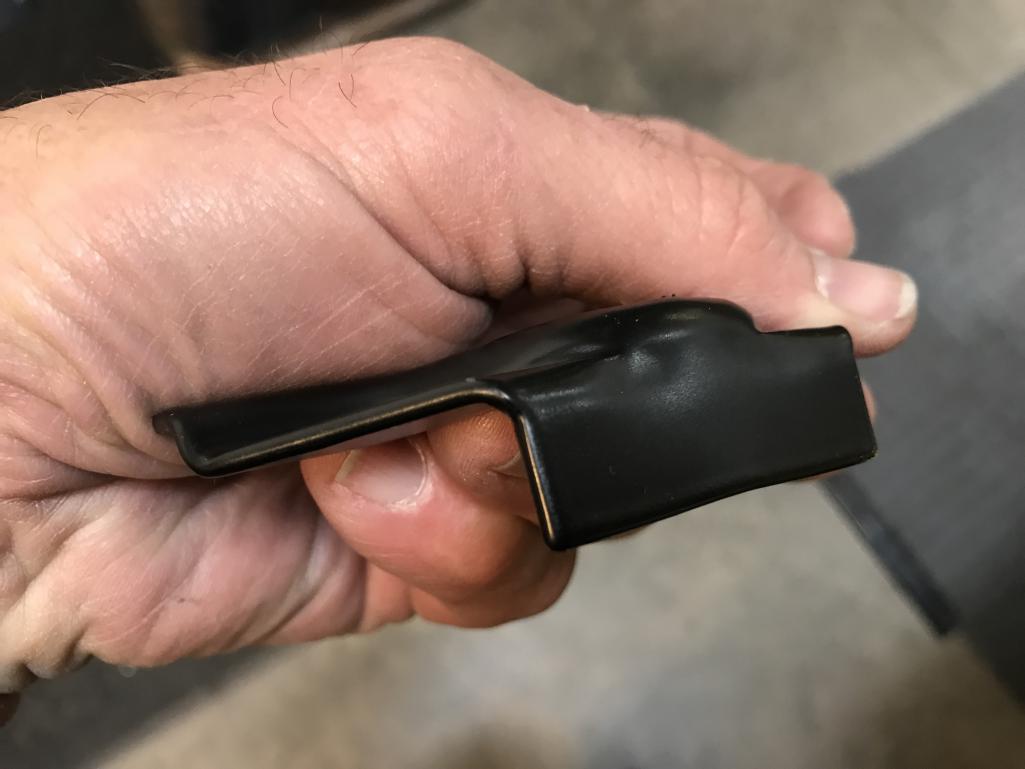

But the vertical side of the clamp is very tall--too tall to get a good grip on the battery flange.
Attached thumbnail(s) |
bkrantz |
Jan 12 2022, 09:26 PM
Post
#4660
|
914 Guru Group: Members Posts: 8,154 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

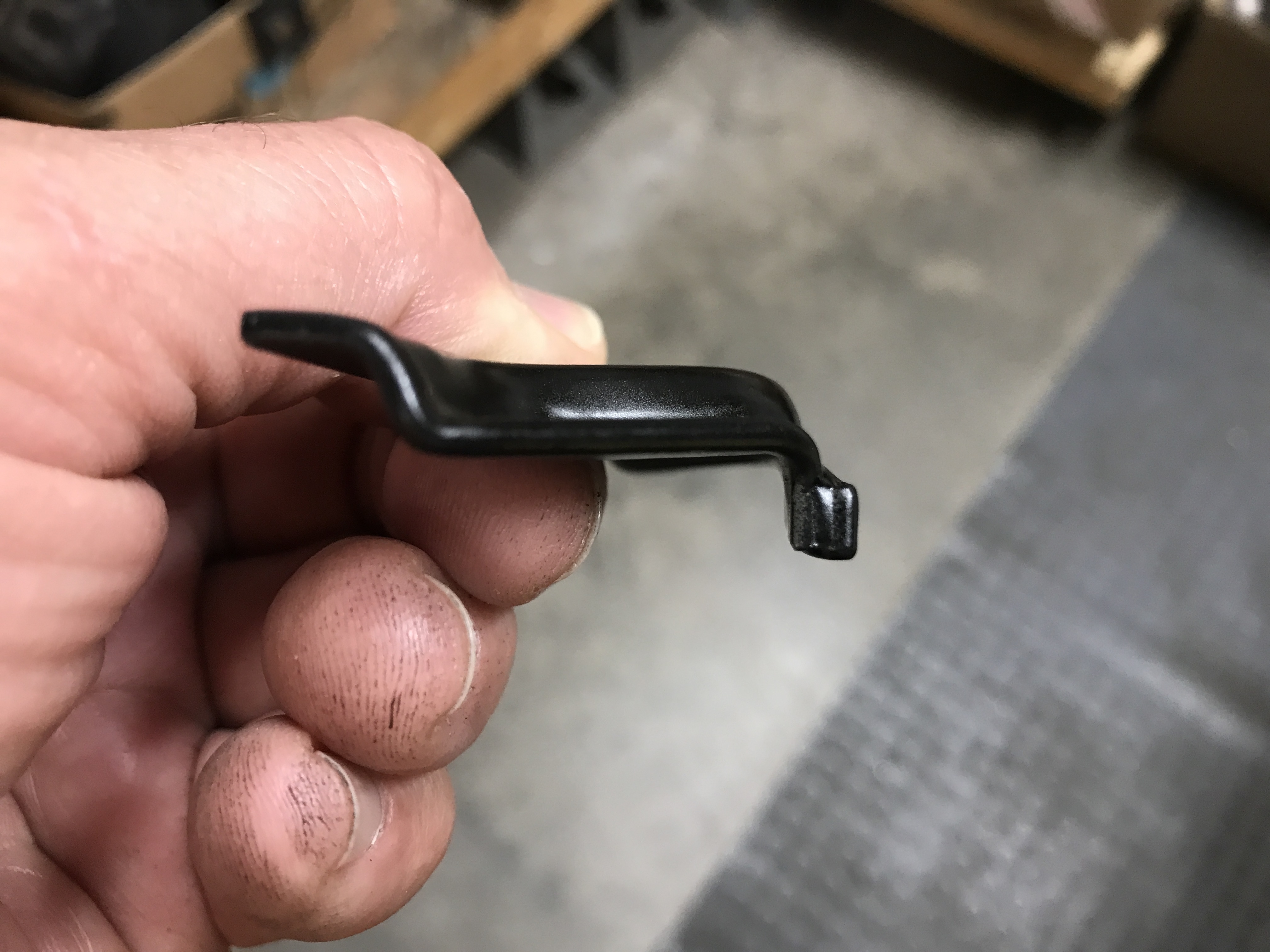

So I trimmed about 3mm from the lower edge, and then added this to the outside. (and repainted the clamp)
Attached thumbnail(s) |
