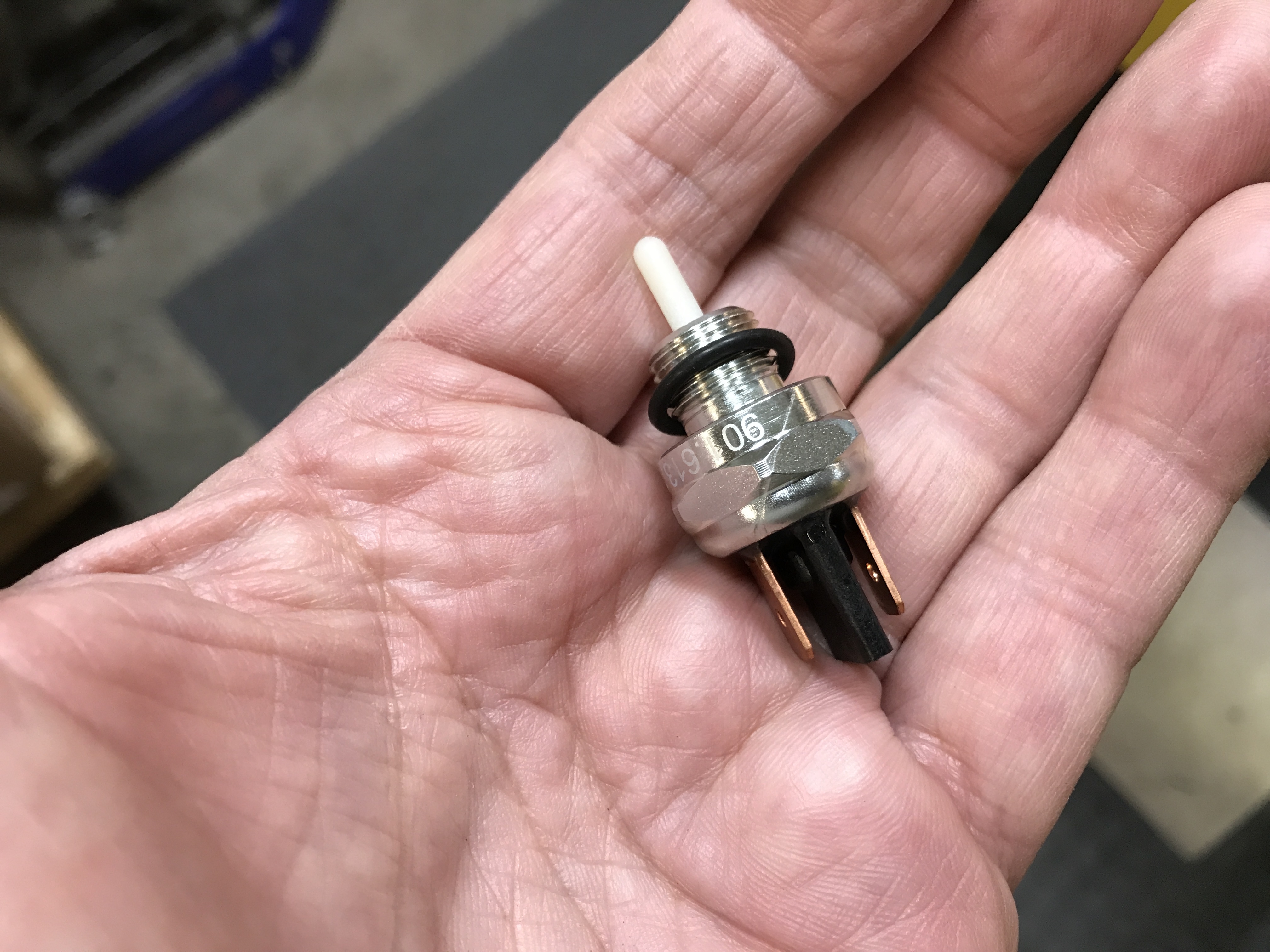

OK, back to work. After confirming that the new MC pressure warning switch works, I decided to install it.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2022, 08:17 PM
Post #4925


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

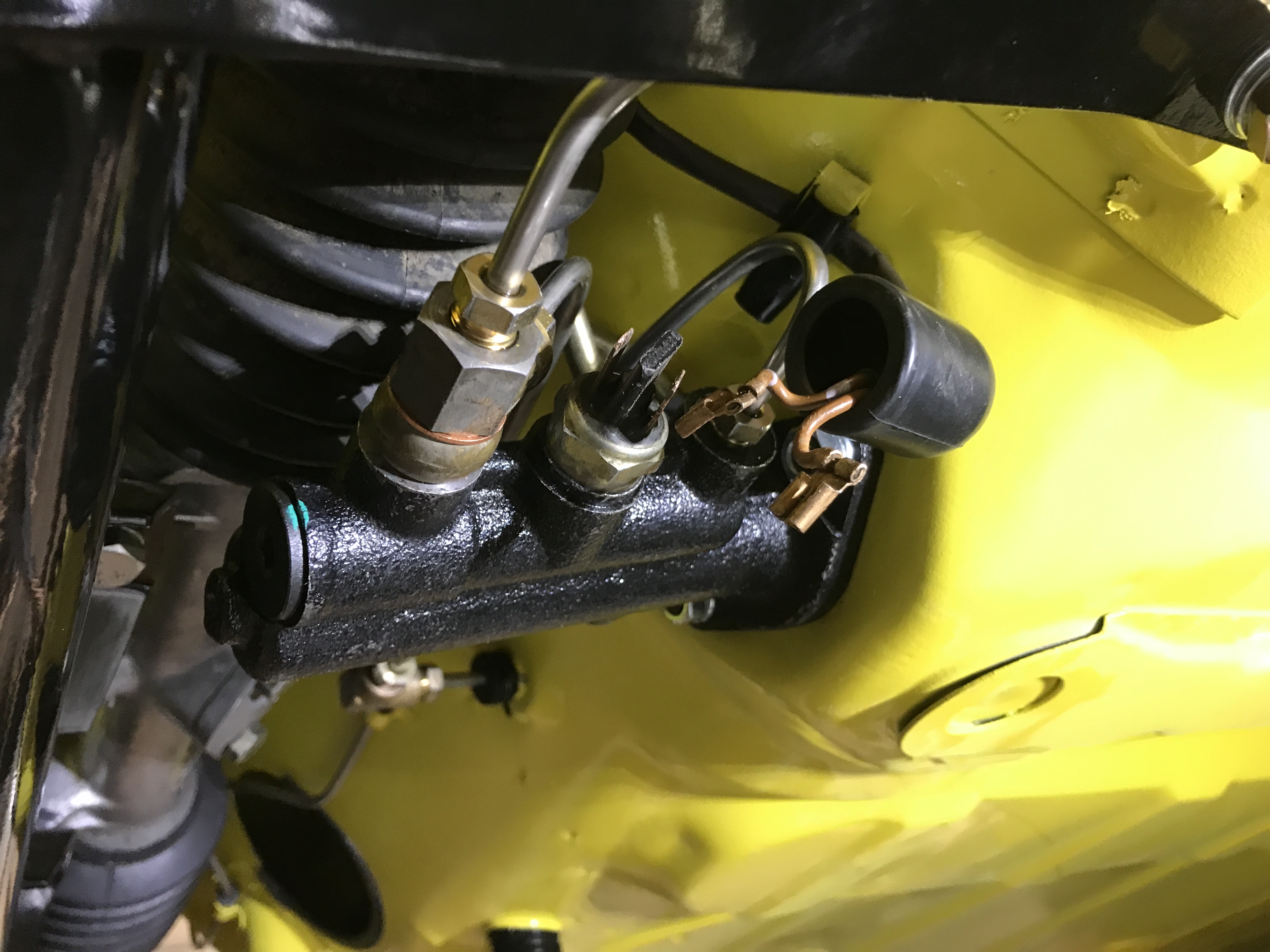

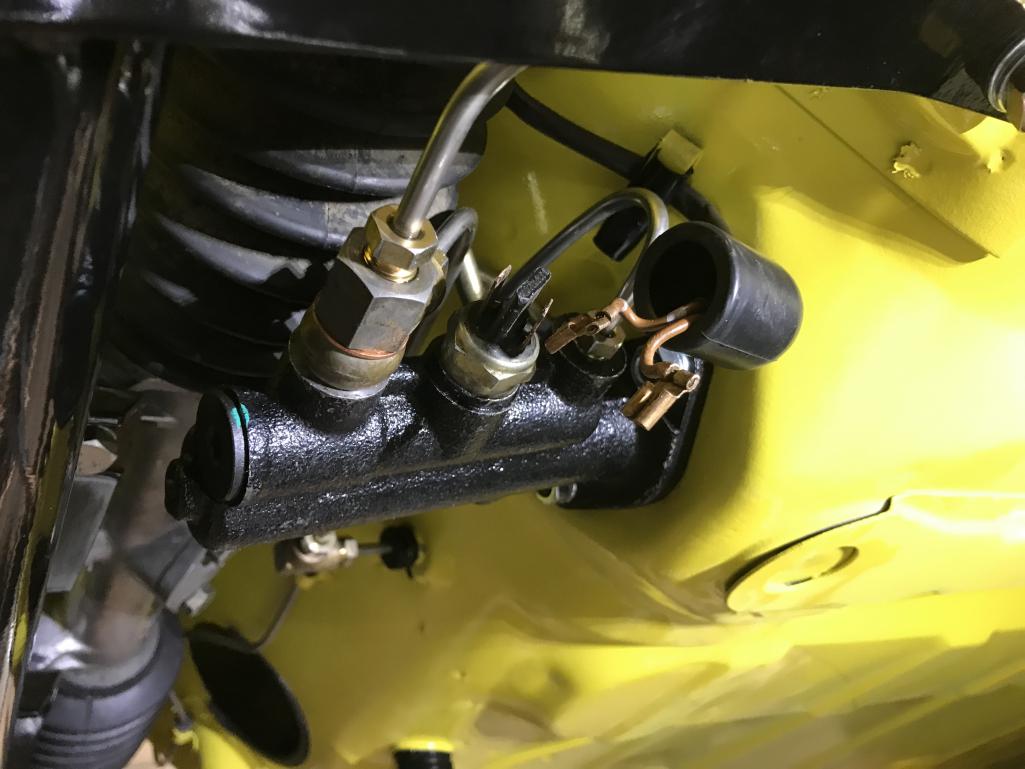

Here's the new MC with the original i.e. 50 year old switch installed.

I did find out that when I removed the old switch, the MC does not leak fluid. Maybe I will not have to bleed the system again! (IMG:style_emoticons/default/cheer.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2022, 08:23 PM
Post #4926


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

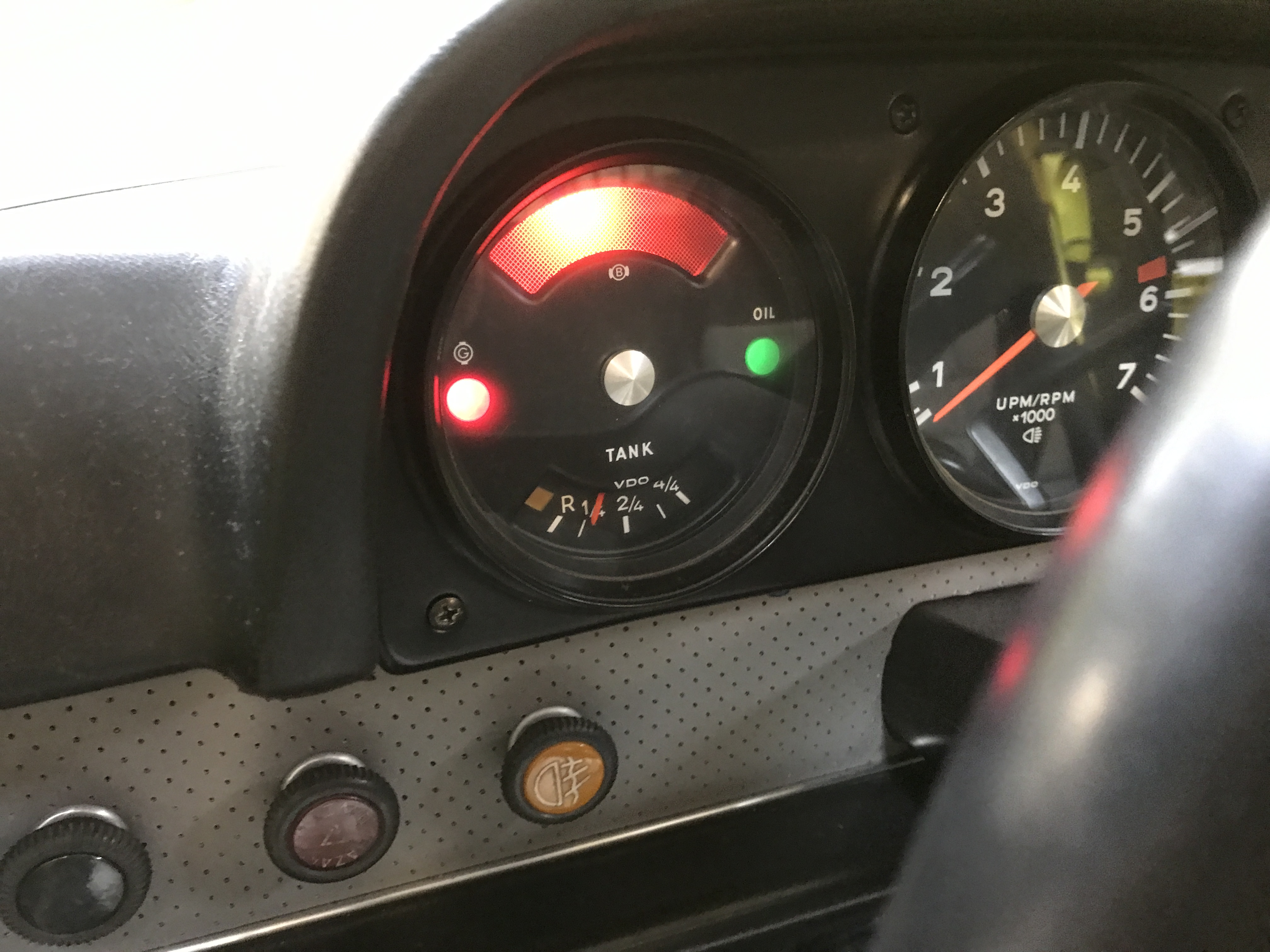

So I swapped the new switch in, after confirming again with my multi-meter that it works. But when I connected the leads and turned on the ignition, the damned warning light was still flashing. ARRRGGGHHH. (IMG:style_emoticons/default/headbang.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2022, 08:26 PM
Post #4927


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
After falling around with the 3 switches (original two connection, new two connection, and new single connection) I decided to get out the original MC and learn more.

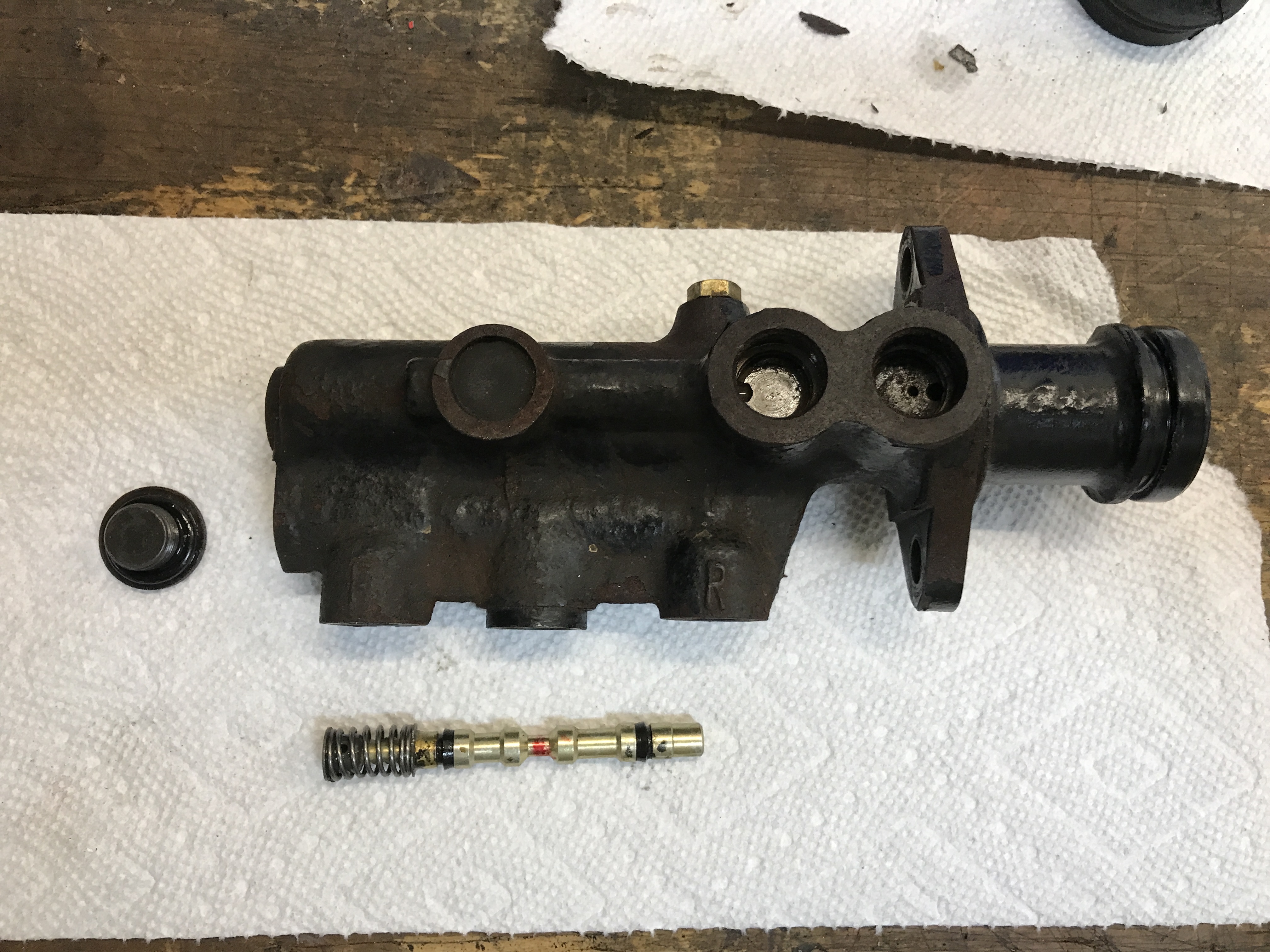

I unscrewed the cap for the warning system bore, and pulled out the piston.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2022, 08:33 PM
Post #4928


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
As I understand the function, as long as pressure for the front and rear circuits is equal, the piston remains centered, and the plunger on the switch can be fully extended, poking into the smallest diameter segment on the piston (with some red marker). If the pressure is unequal, e.g. if the front or rear circuit loses fluid, the piston shifts and forces the plunger into the switch, making the connection.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2022, 08:38 PM
Post #4929


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
With the piston back in the old MC, I installed the new switch and it works.

Back on the car, I confirmed that both front and rear brakes work. But as best as I can tell, the warning piston is not centered, so as soon as I screw the new switch in, it pushes in the plunger and turns on the light.

More figuring to do.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Mar 31 2022, 07:30 PM
Post #4930


Senior Member
***

Group: Members
Posts: 1,403
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region
whew,

Glad you're back. I was turning a very dark shade of blue from holding my breath with anticipation. Welcome home and congrats again on the new grand baby....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 1 2022, 07:19 PM
Post #4931


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(Puebloswatcop @ Mar 31 2022, 07:30 PM) *

whew,

Glad you're back. I was turning a very dark shade of blue from holding my breath with anticipation. Welcome home and congrats again on the new grand baby....


Thanks. Gotta love the next generation. Hope your O2 is recovering.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 1 2022, 07:23 PM
Post #4932


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
I tried again to get the brake MC warning system to reset.

I used a thin, sharp probe to see if I could manually shift the warning piston--no luck.

I opened first a front, and then a rear caliper bleeder, and stomped on the brake pedal--no luck.

Running out of options before I have to replace the (new) MC.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 2 2022, 09:39 PM
Post #4933


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

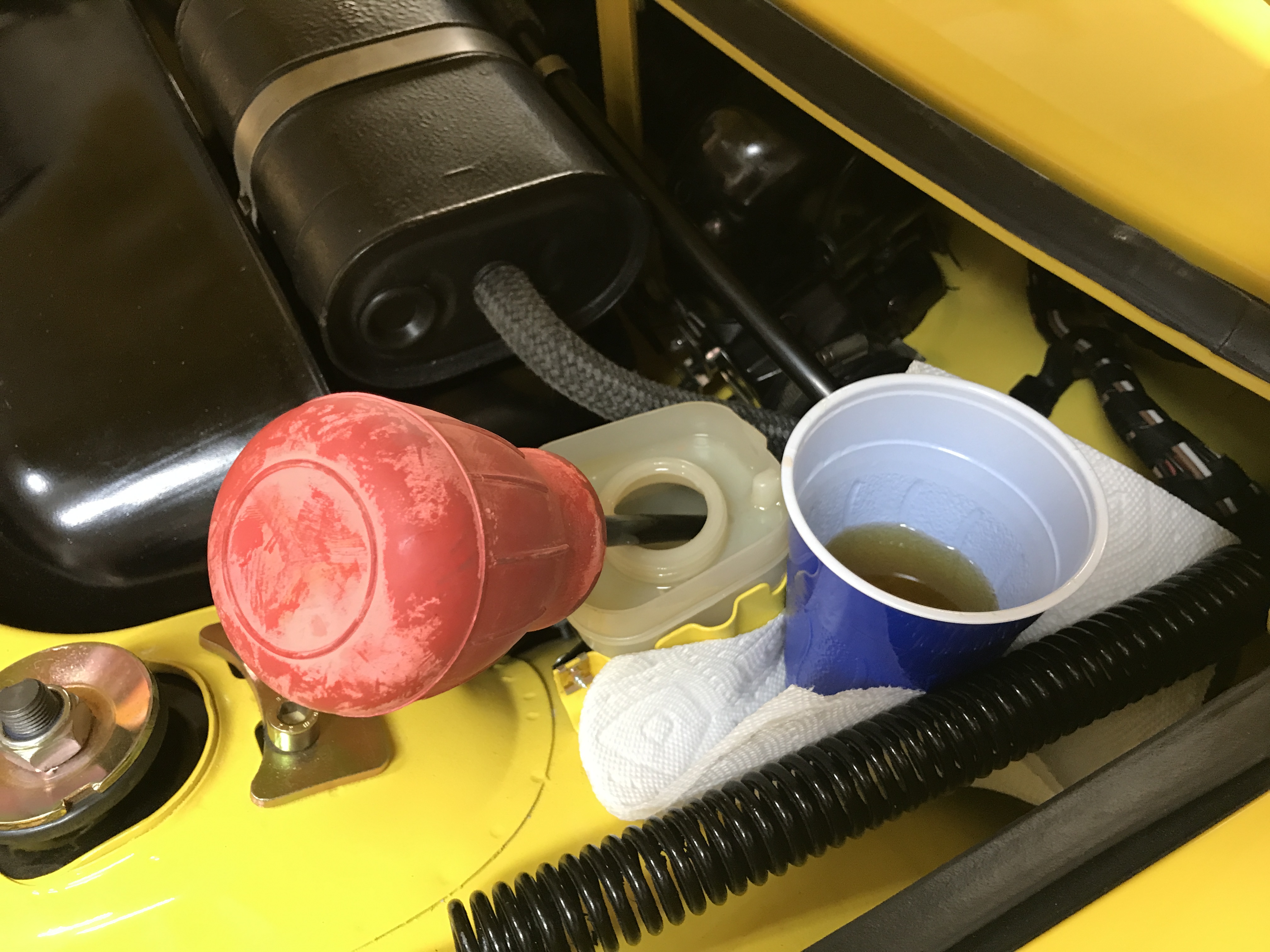

OK, time to dig deeper into the MC (without removing it). First, remove brake fluid from the reservoir.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 2 2022, 09:41 PM
Post #4934


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Next, remove the cap that covers the secondary bore for the pressure warning piston.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 2 2022, 09:42 PM
Post #4935


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Next, remove the warning piston. Note this shows the piston with its end cap removed. But the piston hits the front suspension cross member.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 2 2022, 09:46 PM
Post #4936


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

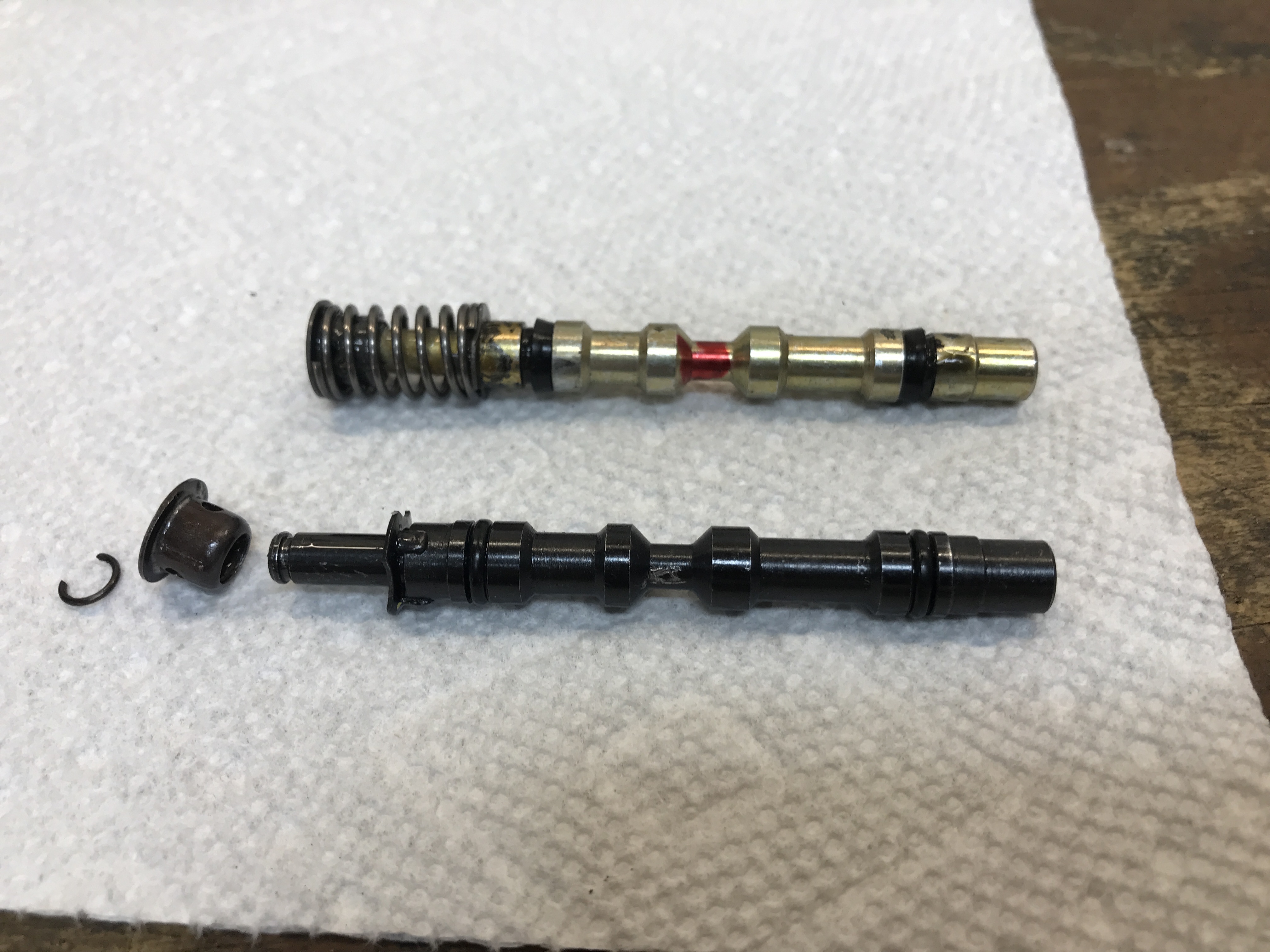

I loosed the MC retaining nuts enough to tilt it down so the piston cleared the cross bar.

Here is (from left to right):
cylinder end cap
tiny retaining C-clip
forward spring perch
rear spring perch
warning piston

Notice something missing?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 2 2022, 09:47 PM
Post #4937


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

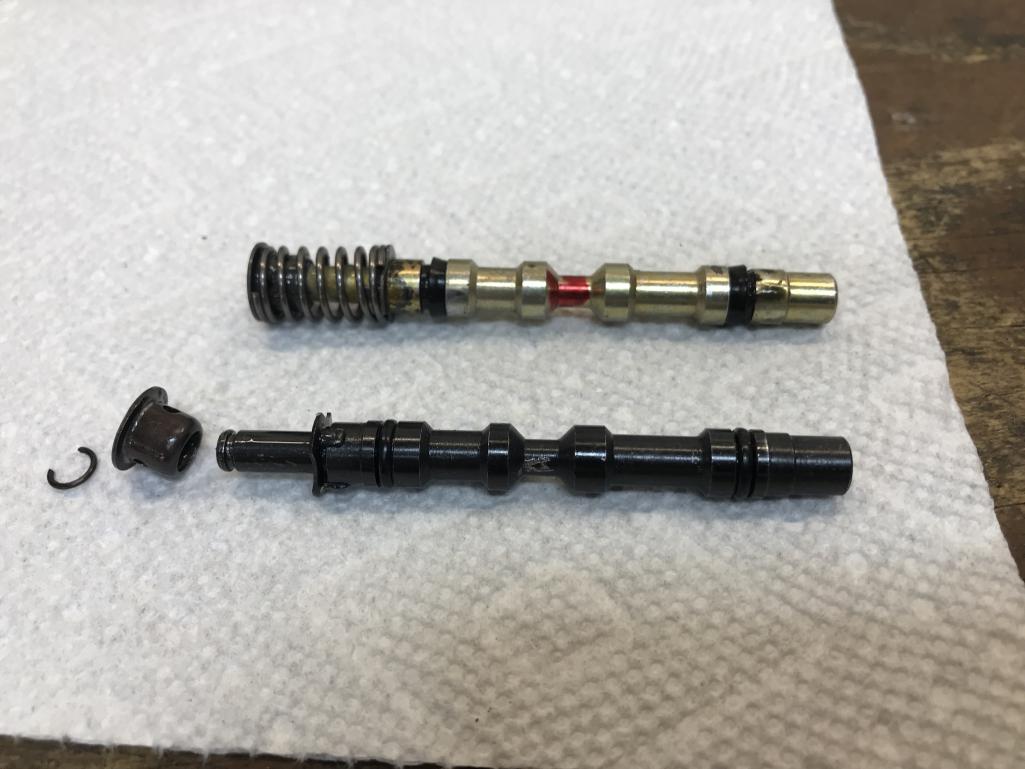

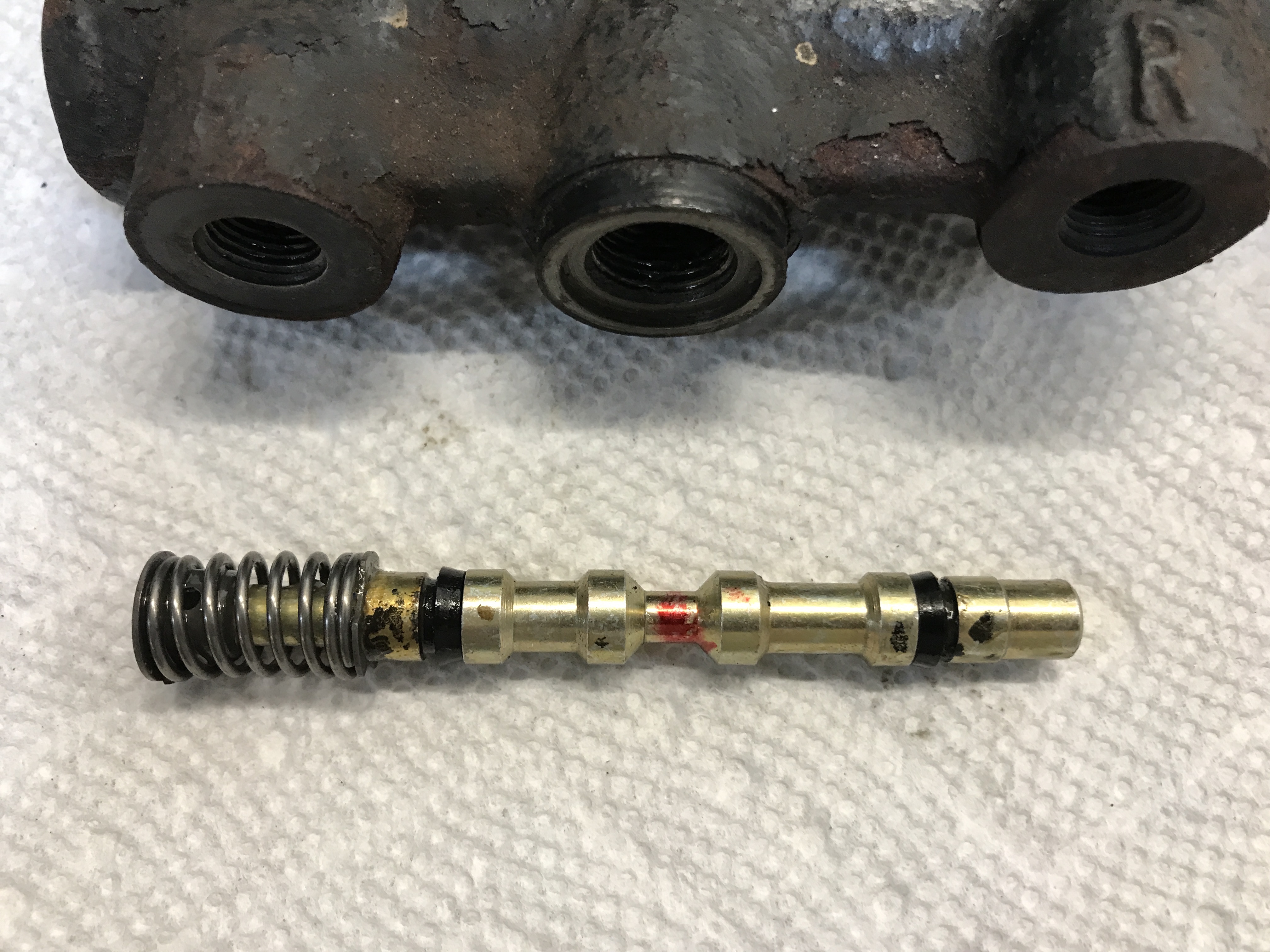

Here's the piston from my old MC (top) compared to the new one, which is missing the spring. Probably not a good thing.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 2 2022, 09:48 PM
Post #4938


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

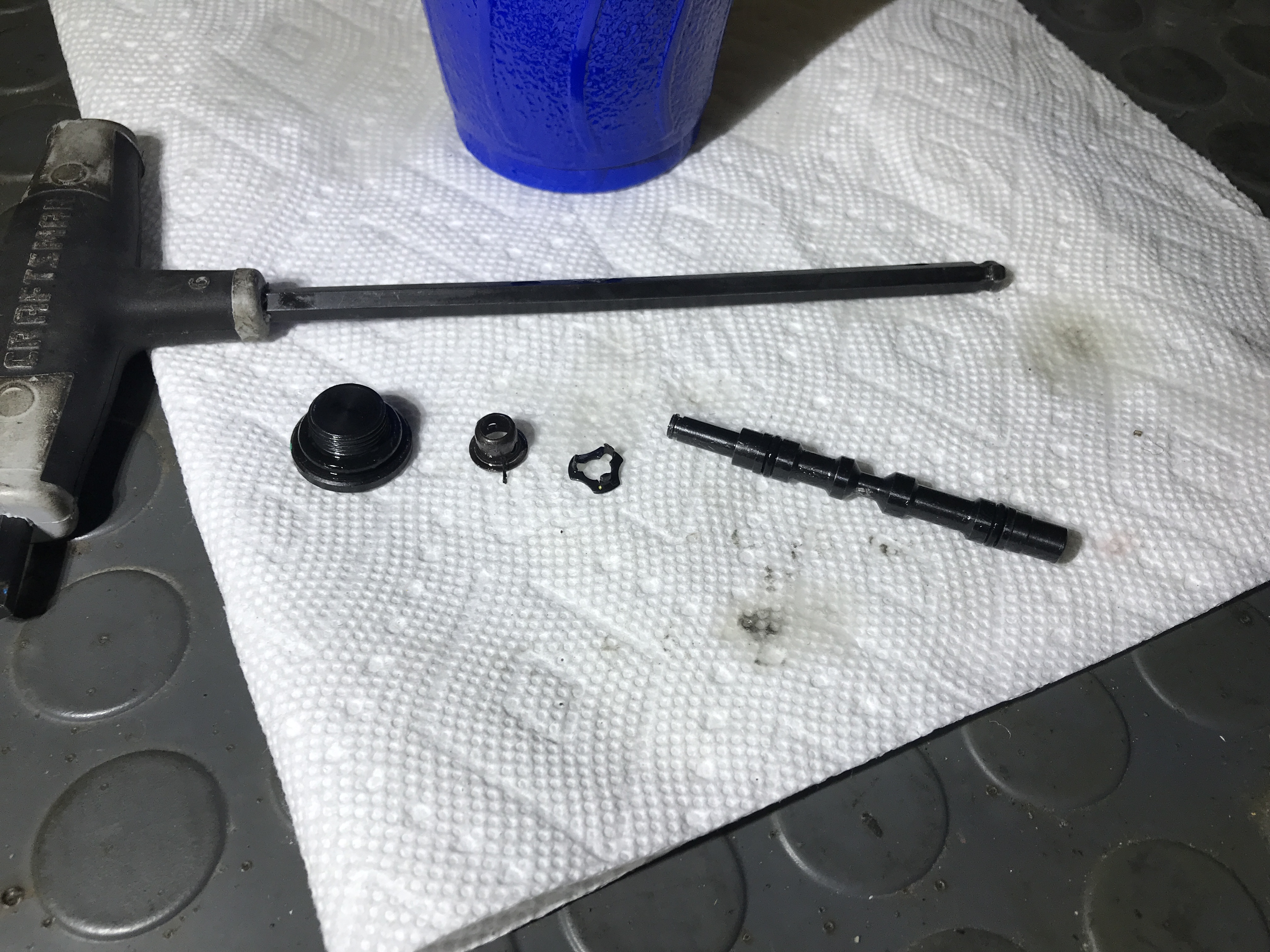

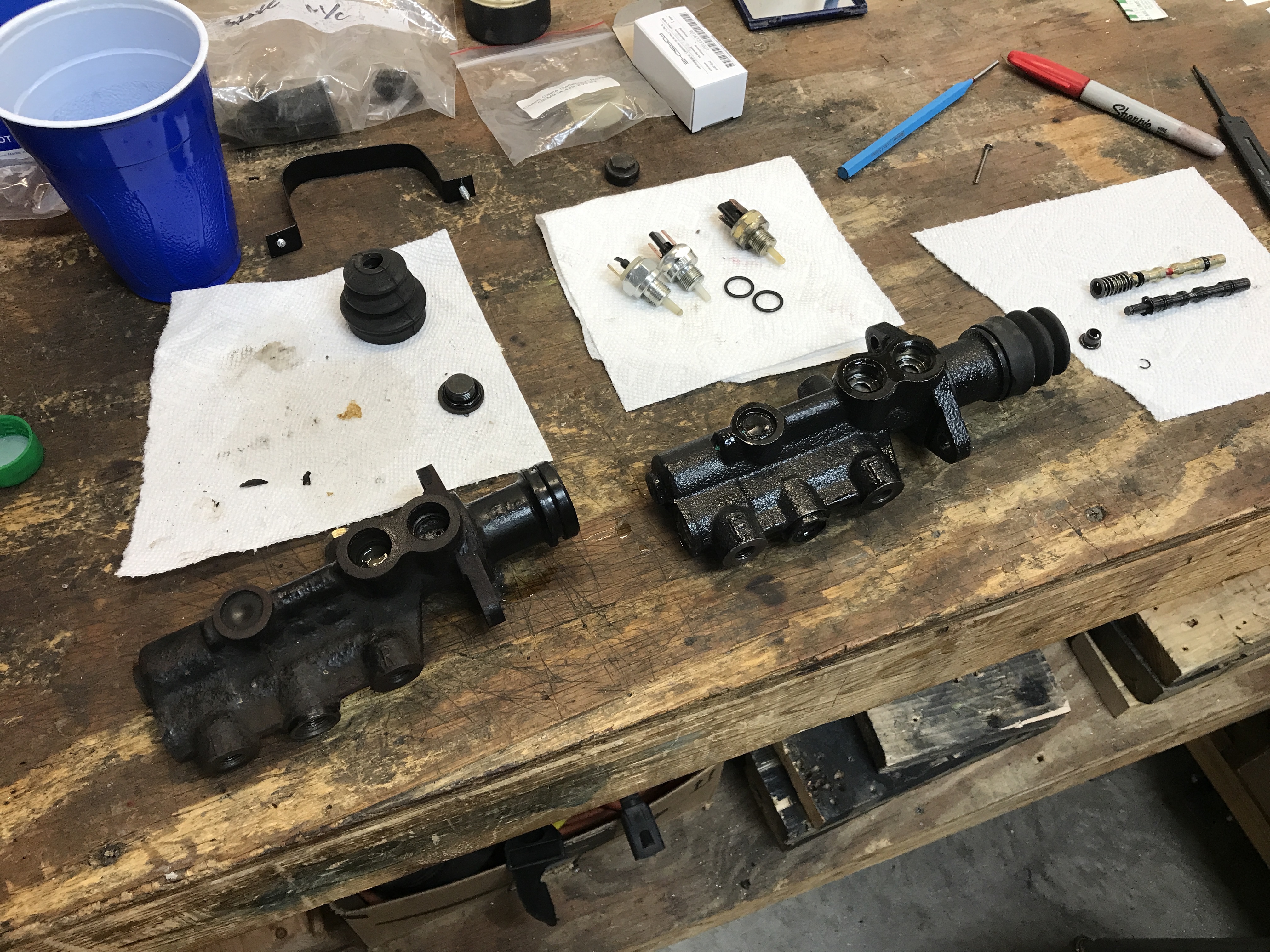

Comparing old and new MC.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 2 2022, 09:50 PM
Post #4939


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

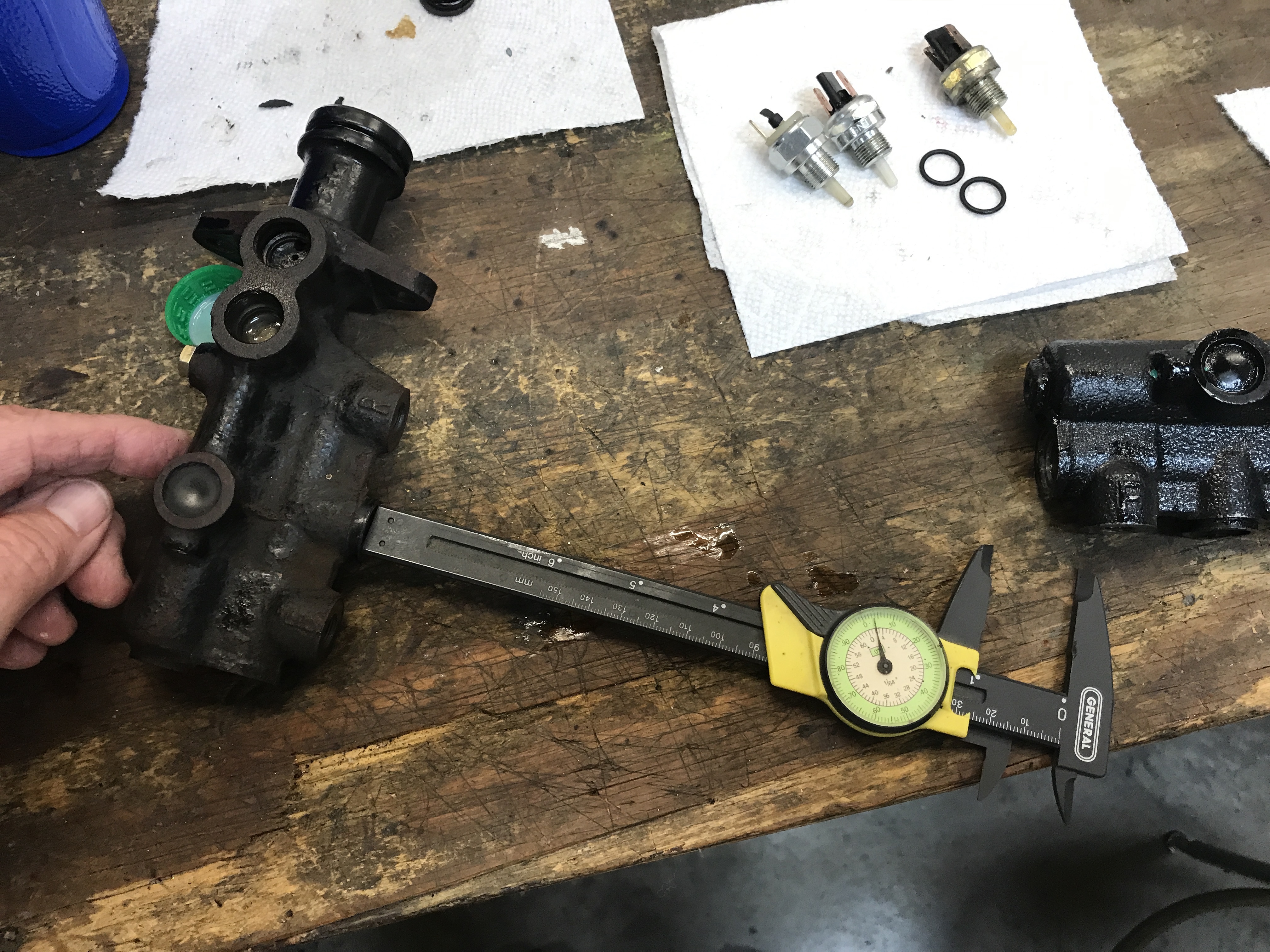

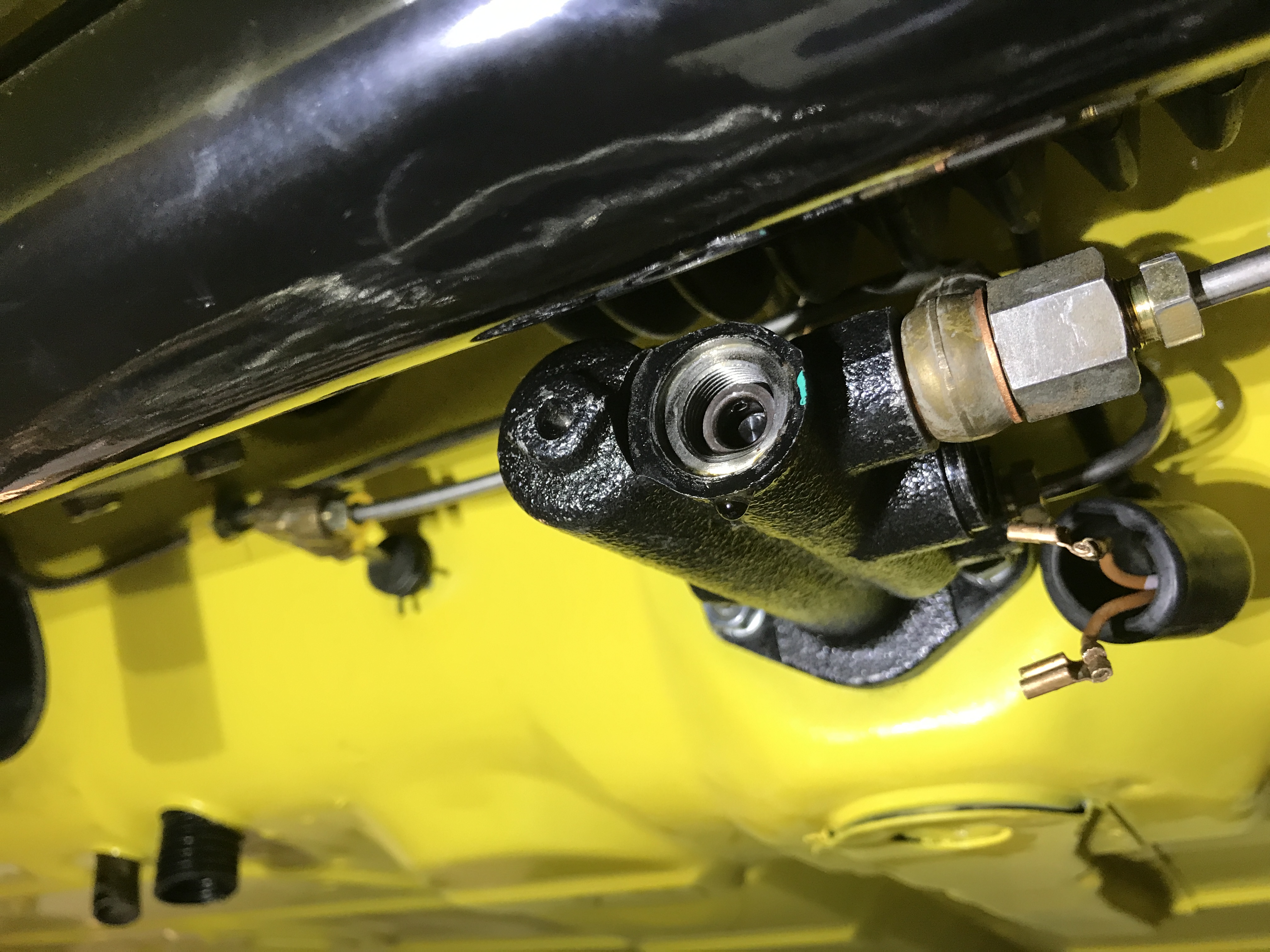

Measuring the depth of the warning switch location, from the mounting face on the outside to the bore wall inside.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 2 2022, 09:50 PM
Post #4940


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

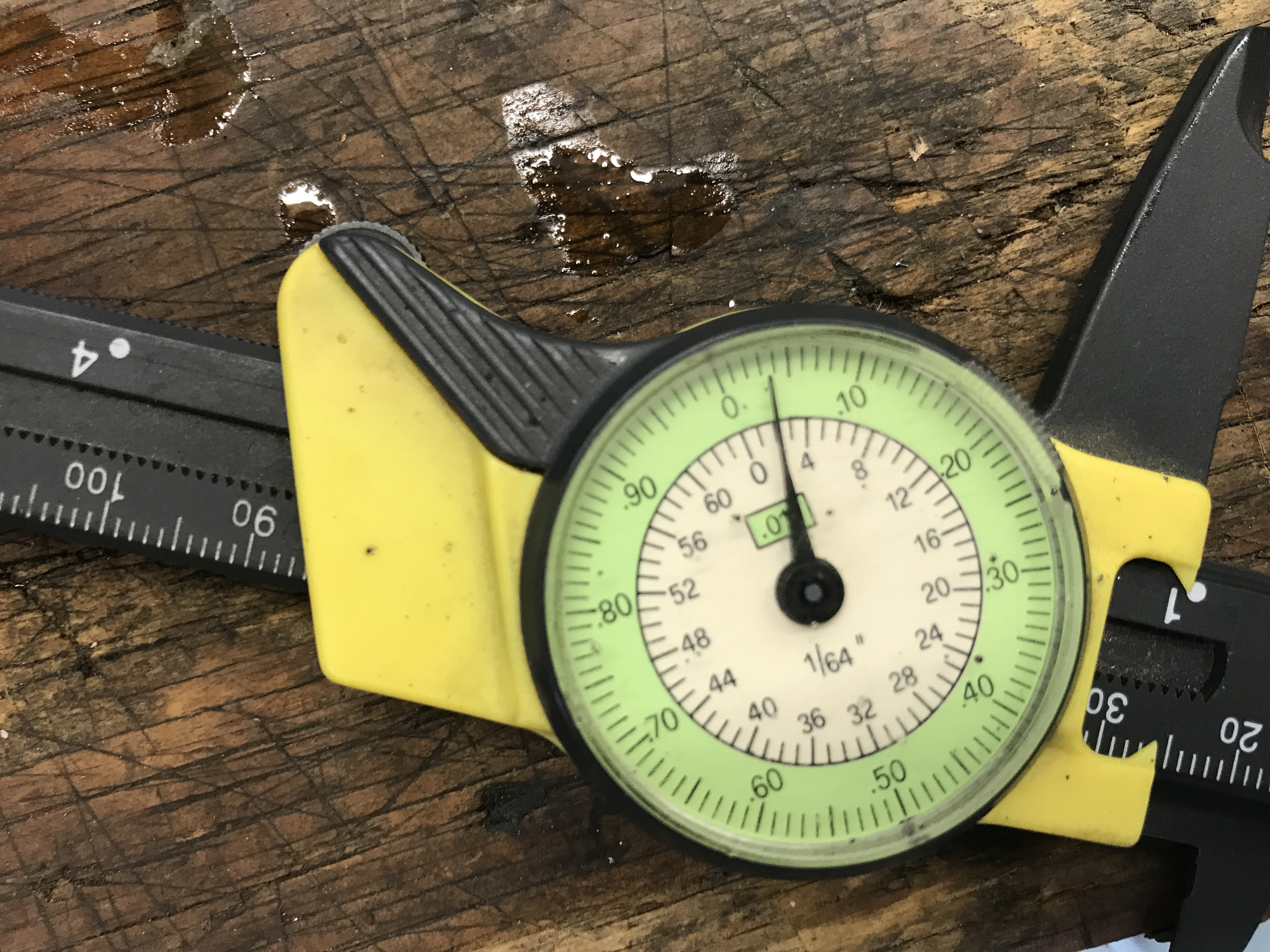

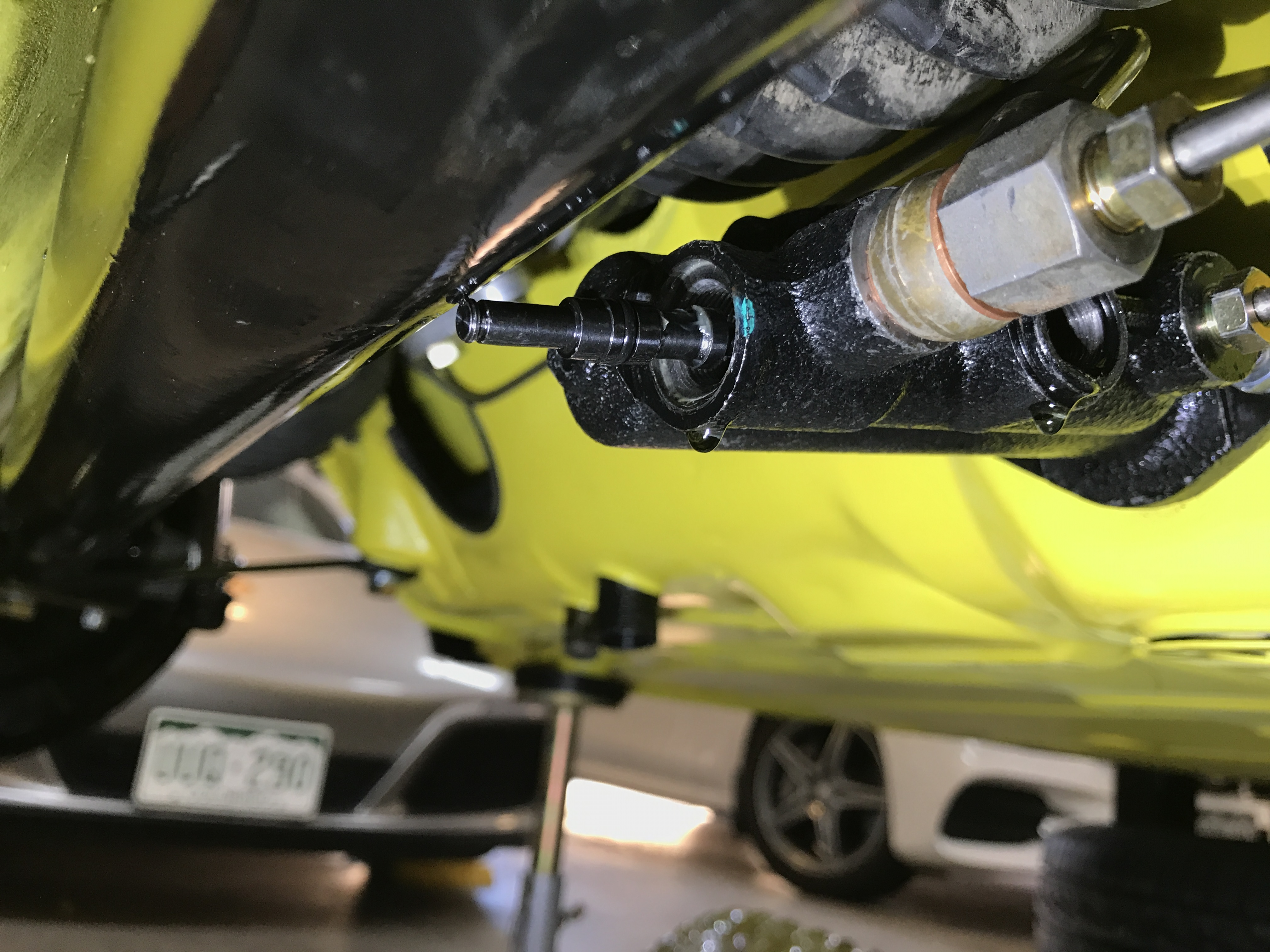

On the old MC it measures about 1.04"


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
