> Rebuiding Inside-out
bkrantz
post Apr 26 2020, 09:07 PM
Post #561


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

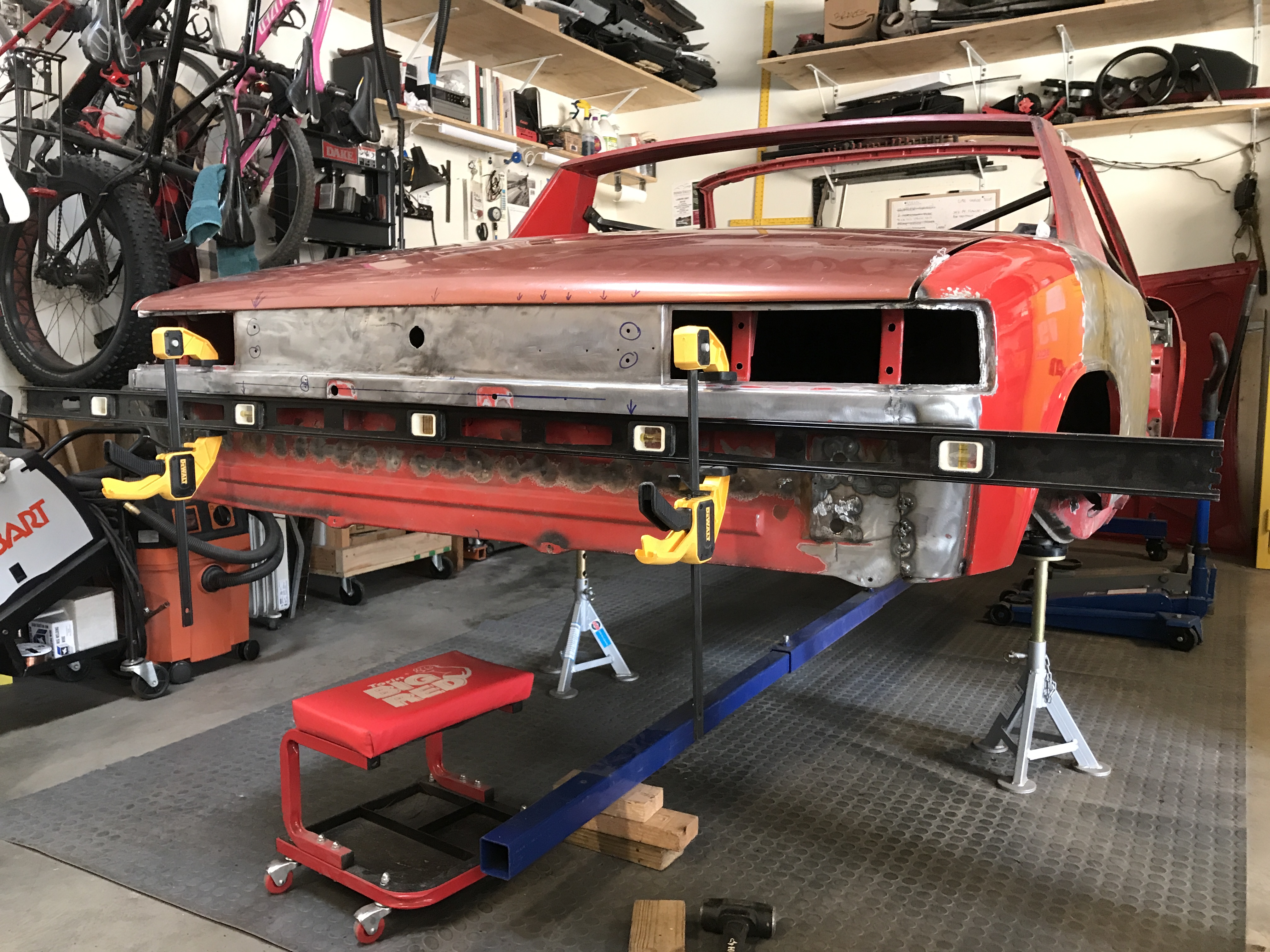

Anyway, I kept working the lid edge and got things a bit better before quitting.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 26 2020, 09:08 PM
Post #562


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

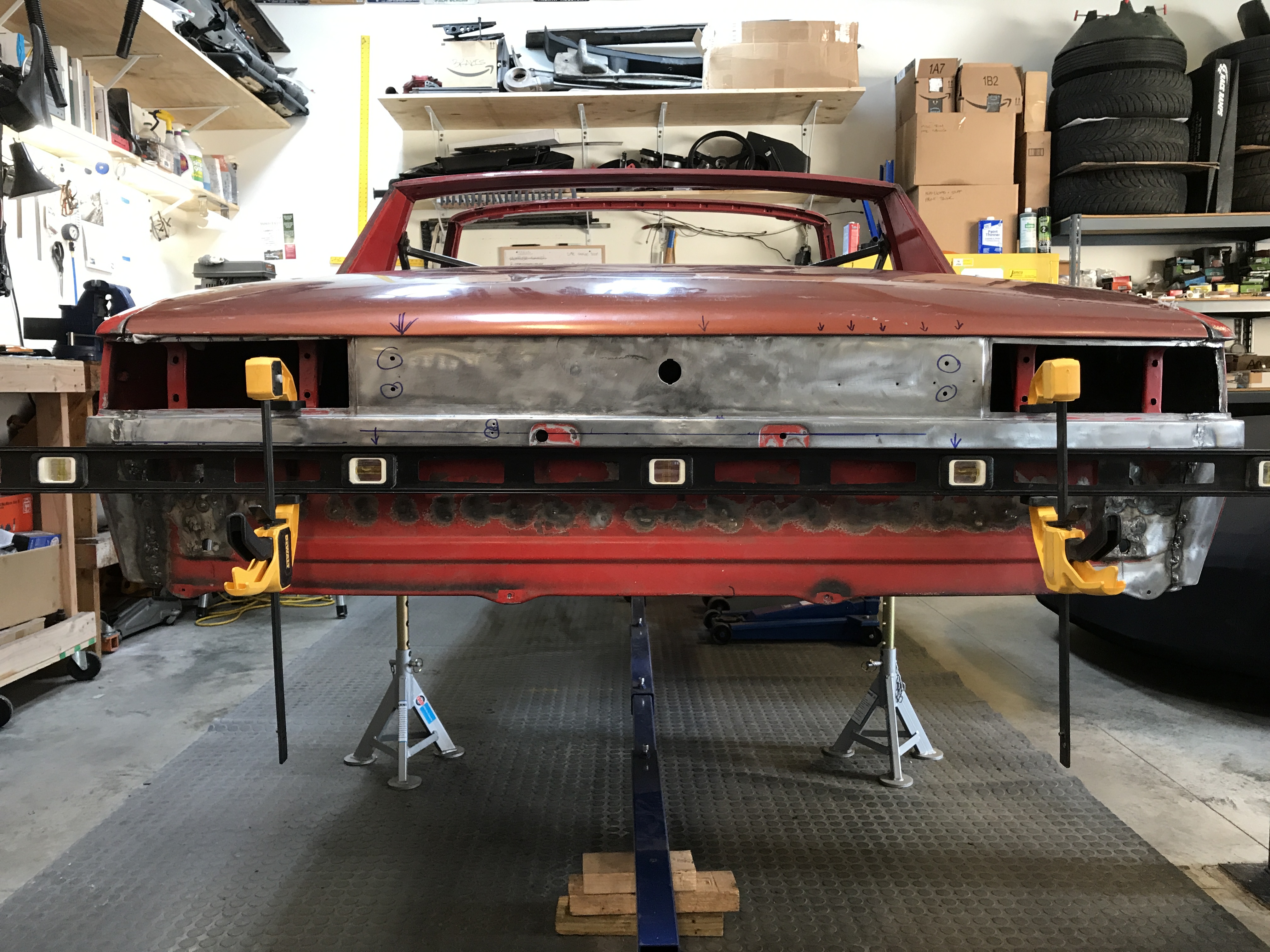

Looks good enough for a 10 foot car, but I want better.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Apr 26 2020, 09:59 PM
Post #563


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
Great pic here Bob.
Well...spend a bit more time tweaking the trailing edge of your rear "bonnet" and I think you'll be very satisfied with the result.

Attached Image

Man....a ton of body work is coming your way, eh Mate?


QUOTE(bkrantz @ Apr 26 2020, 08:07 PM) *

Anyway, I kept working the lid edge and got things a bit better before quitting.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 27 2020, 08:18 PM
Post #564


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(raynekat @ Apr 26 2020, 09:59 PM) *

Great pic here Bob.
Well...spend a bit more time tweaking the trailing edge of your rear "bonnet" and I think you'll be very satisfied with the result.

Attached Image

Man....a ton of body work is coming your way, eh Mate?


QUOTE(bkrantz @ Apr 26 2020, 08:07 PM) *

Anyway, I kept working the lid edge and got things a bit better before quitting.



Yep, I consider bodywork the next phase, or two. First, I want to work the metal to get it as good as I can, and then later need only some thin filler.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 27 2020, 08:22 PM
Post #565


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

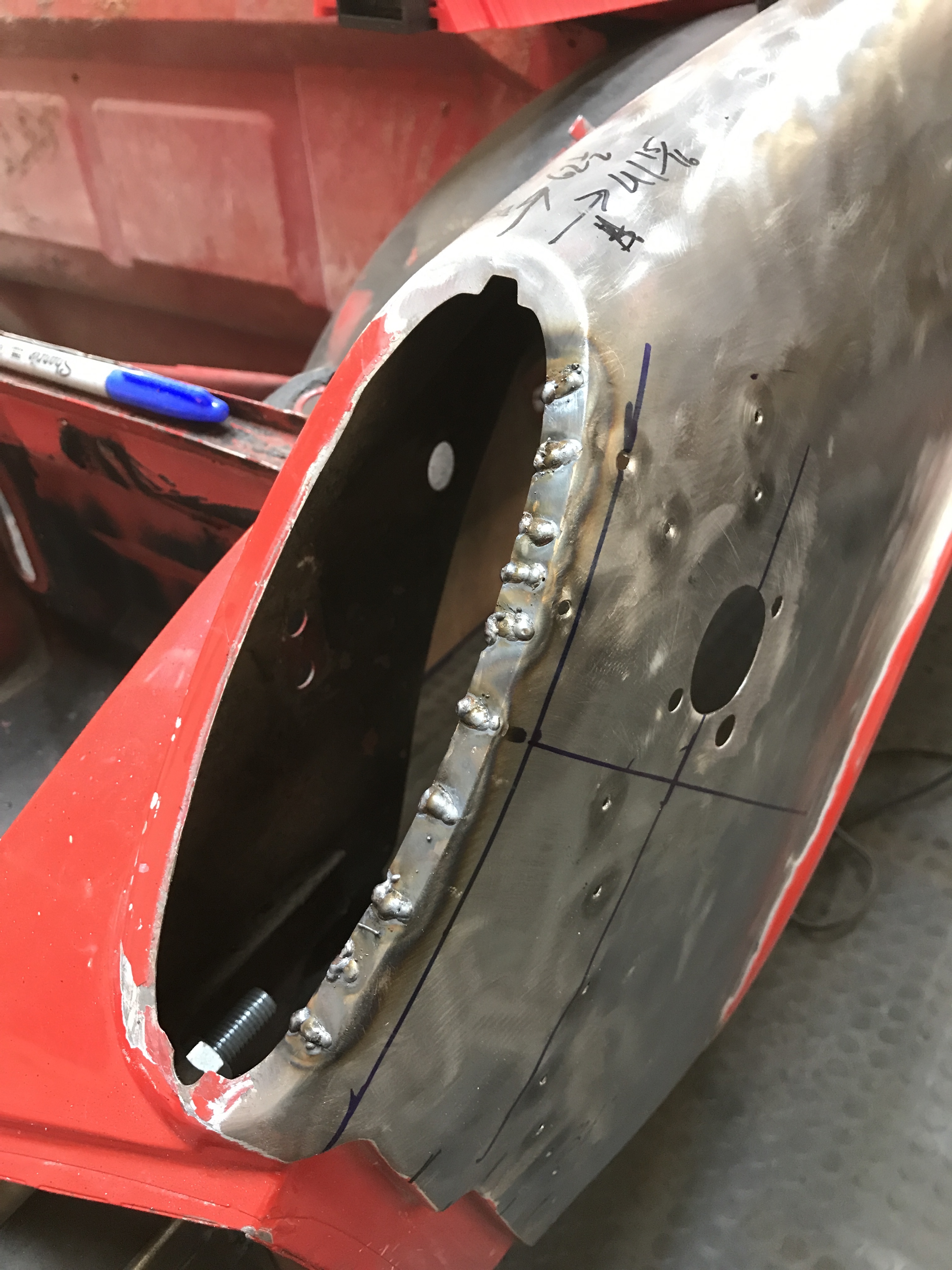

I decided to take a break from the rear, and work on the front left fender. To get enough flex in the outer curve next to the turn signal hole, I had to cut slots in the flange. Once I got the profile correct, I welded the flange. Things got rigid again and held the correct curve.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 27 2020, 08:24 PM
Post #566


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

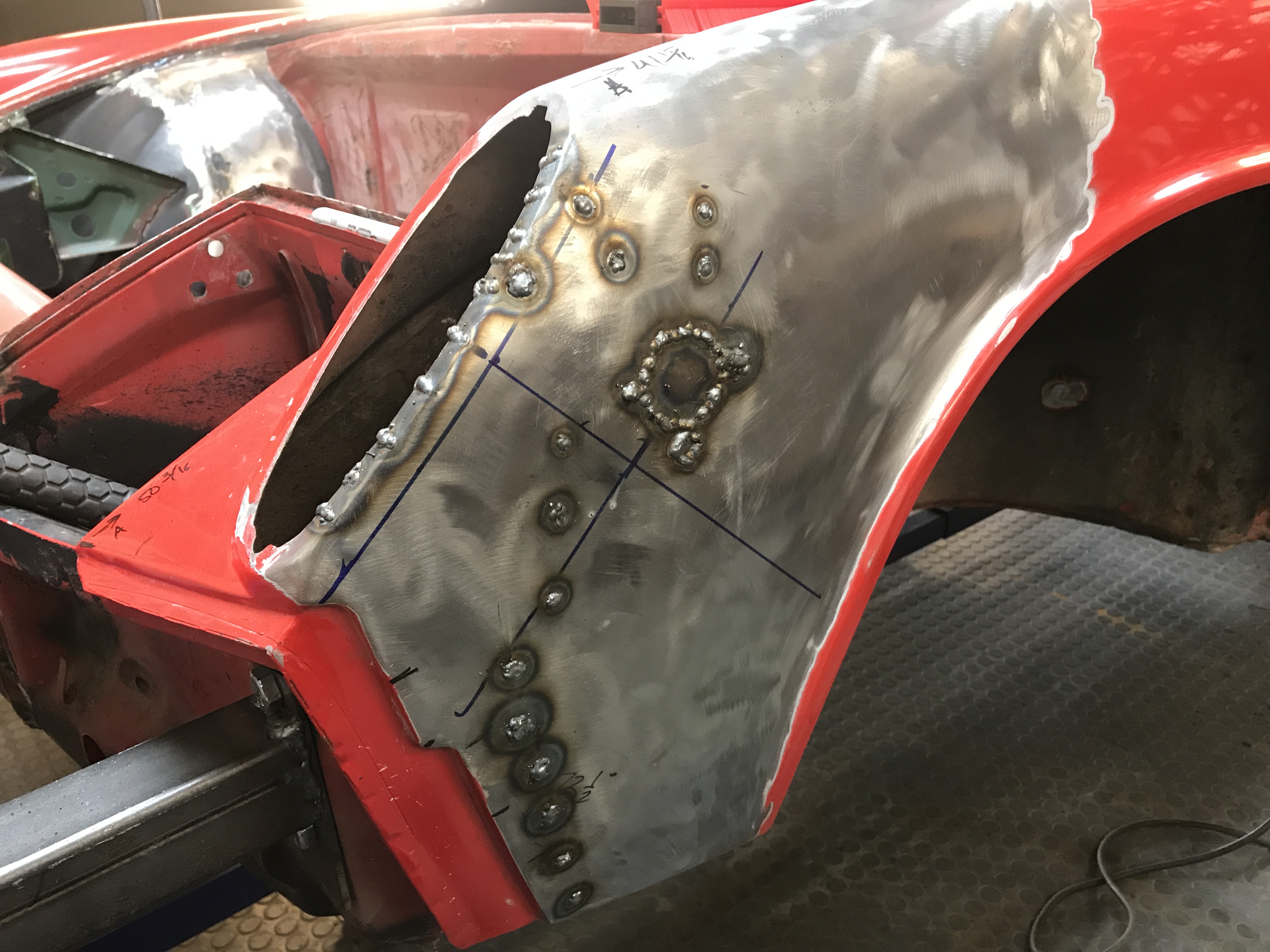

Next, I welded all the puller holes from the PO repair. And, I committed to my first mod: shaving off the warts, and filled those holes as well.

Sorry, I should have told purists to look away. (IMG:style_emoticons/default/biggrin.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Apr 27 2020, 08:29 PM
Post #567


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(bkrantz @ Apr 27 2020, 08:24 PM) *

Next, I welded all the puller holes from the PO repair. And, I committed to my first mod: shaving off the warts, and filled those holes as well.

Sorry, I should have told purists to look away. (IMG:style_emoticons/default/biggrin.gif)


Dude. I've discovered I'm much more of a purist than I thought, but even I couldn't bear to put those ugly warts back on my car. It looks so much nicer without them.

Watching your work is really awe inspiring. I know you said this isn't your first rodeo, but just how many rodeos have you had? Watching your work is inspiring and - a little annoying. (IMG:style_emoticons/default/happy11.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 27 2020, 08:30 PM
Post #568


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

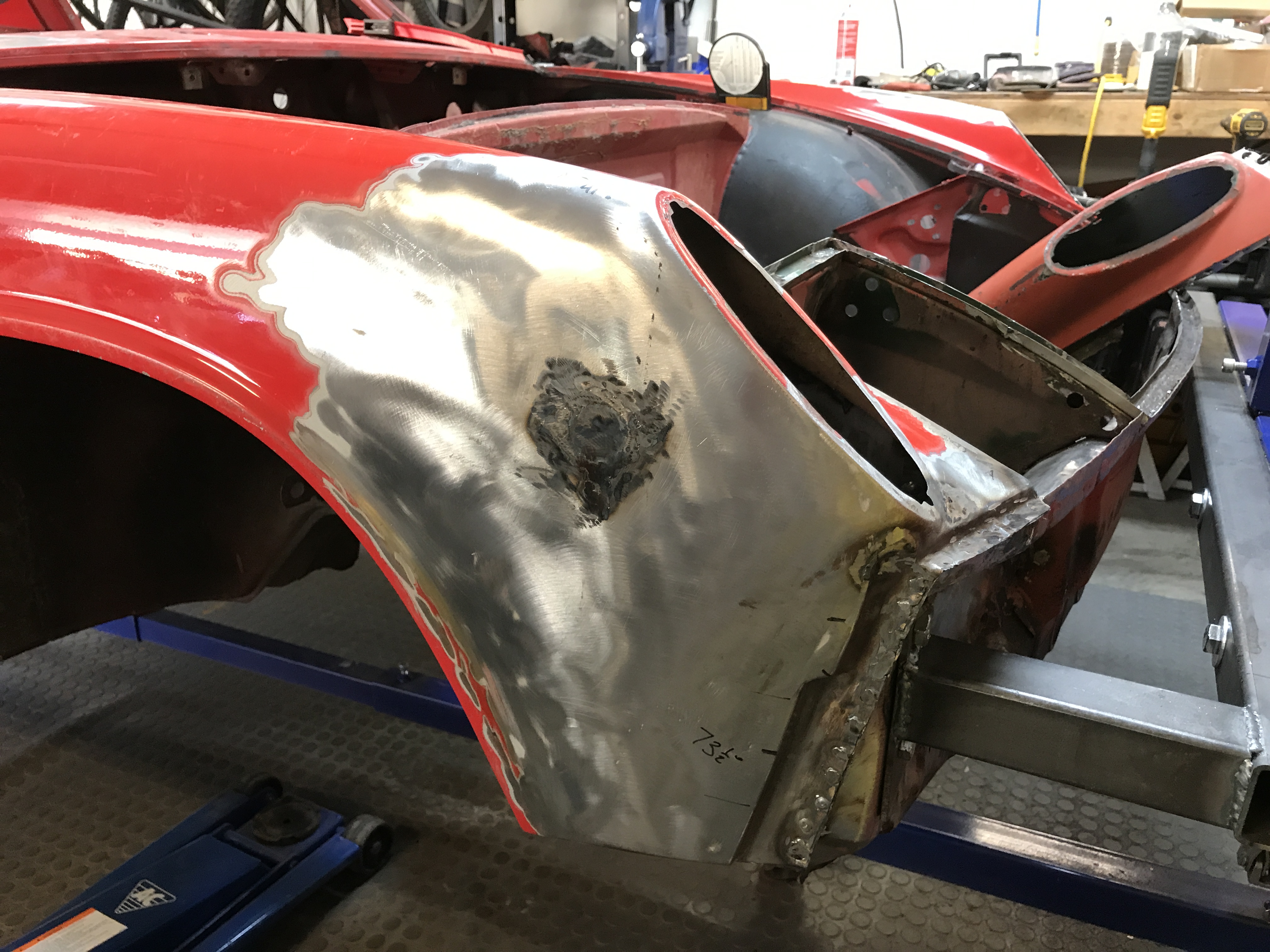

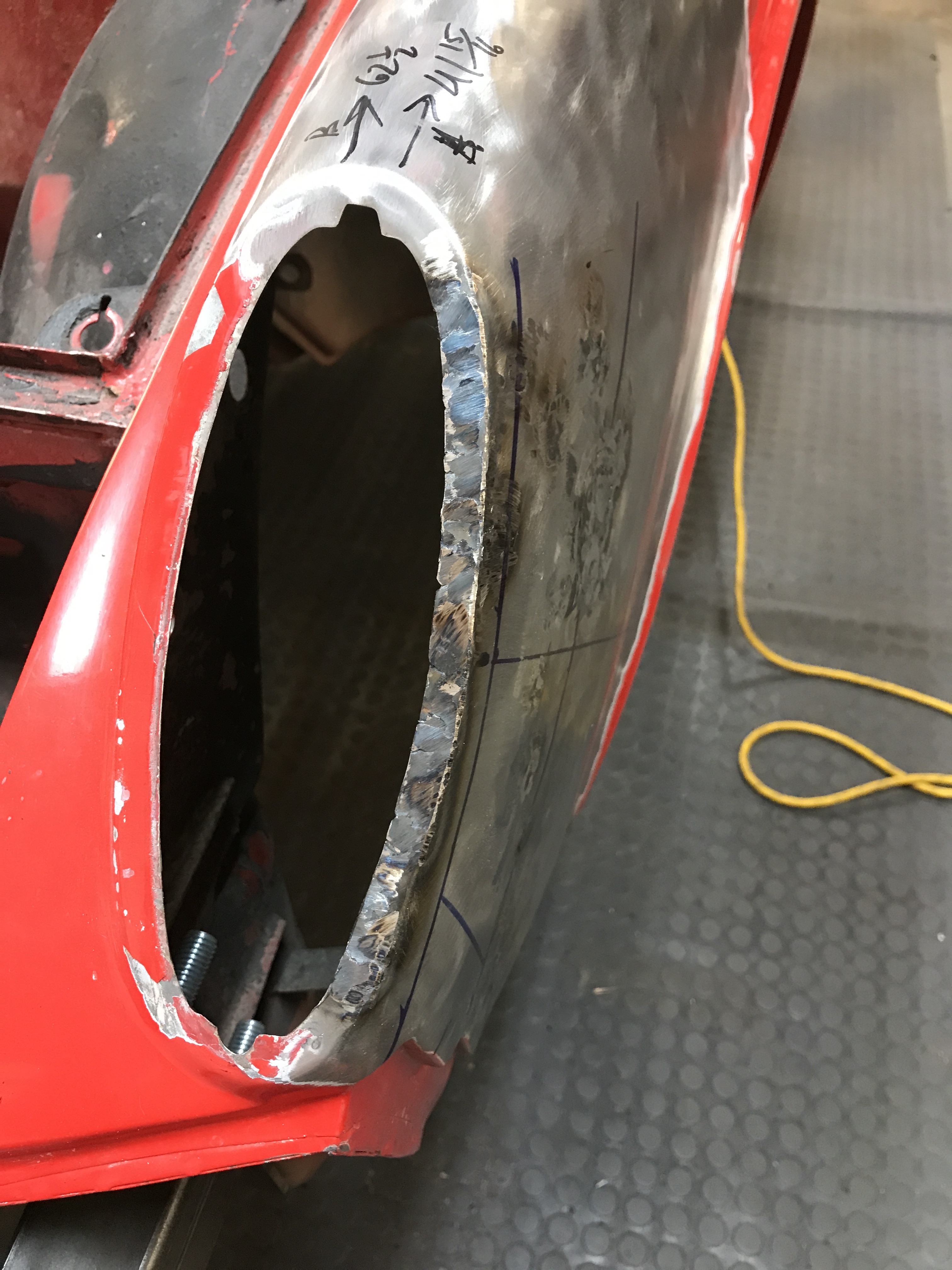

After grinding the welds, I got the fender shape about 90% right.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 28 2020, 08:16 PM
Post #569


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
To get the next 5% I am going beyond where I stopped in the past (and where I would use thicker filler to get the final profile).

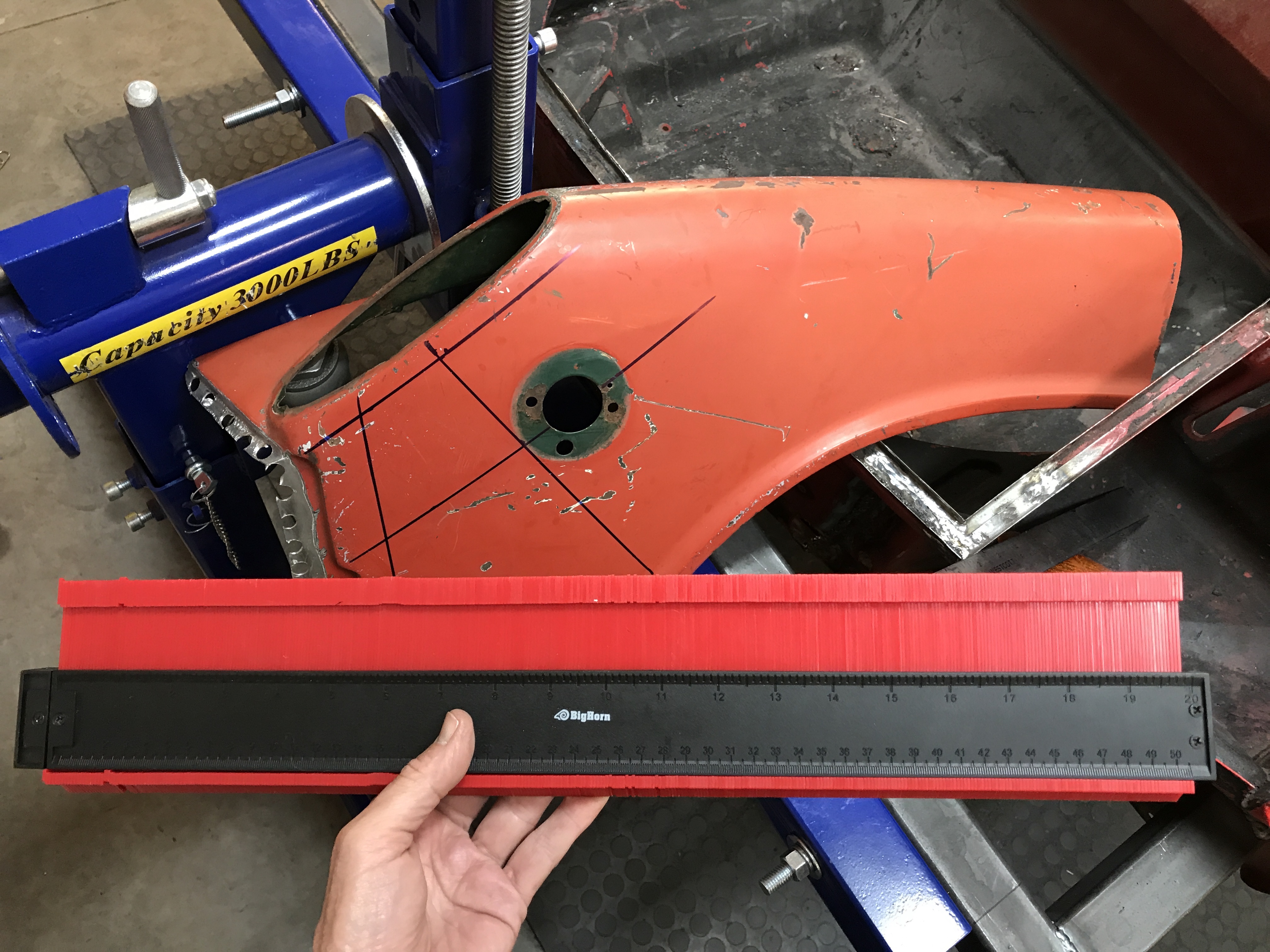

So I am trying to learn new tools and techniques. Like using a template gauge, and taking profiles from an unmolested fender to guide my work on the victim fender.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 28 2020, 08:17 PM
Post #570


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

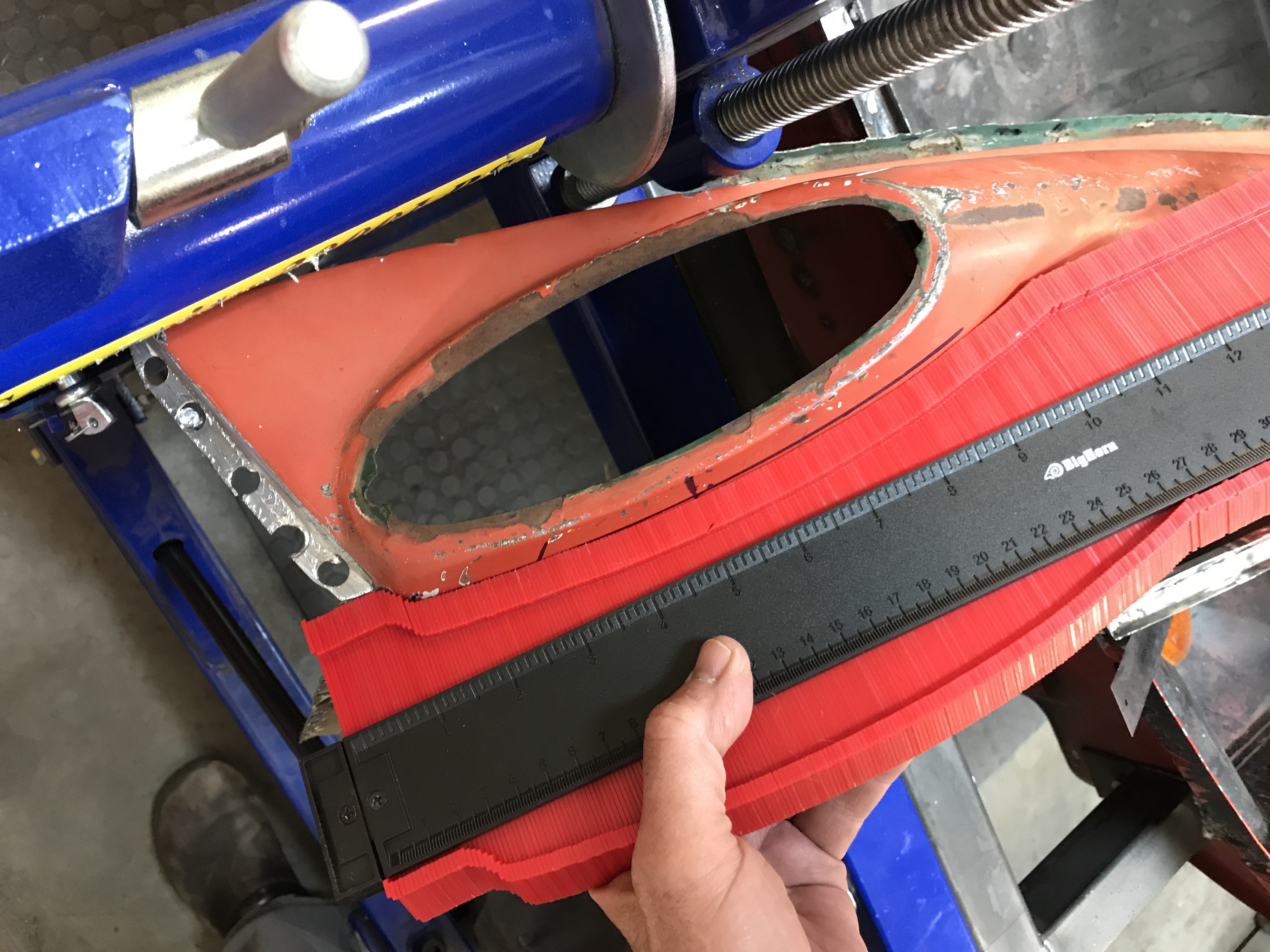

Take the curve from here...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 28 2020, 08:18 PM
Post #571


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

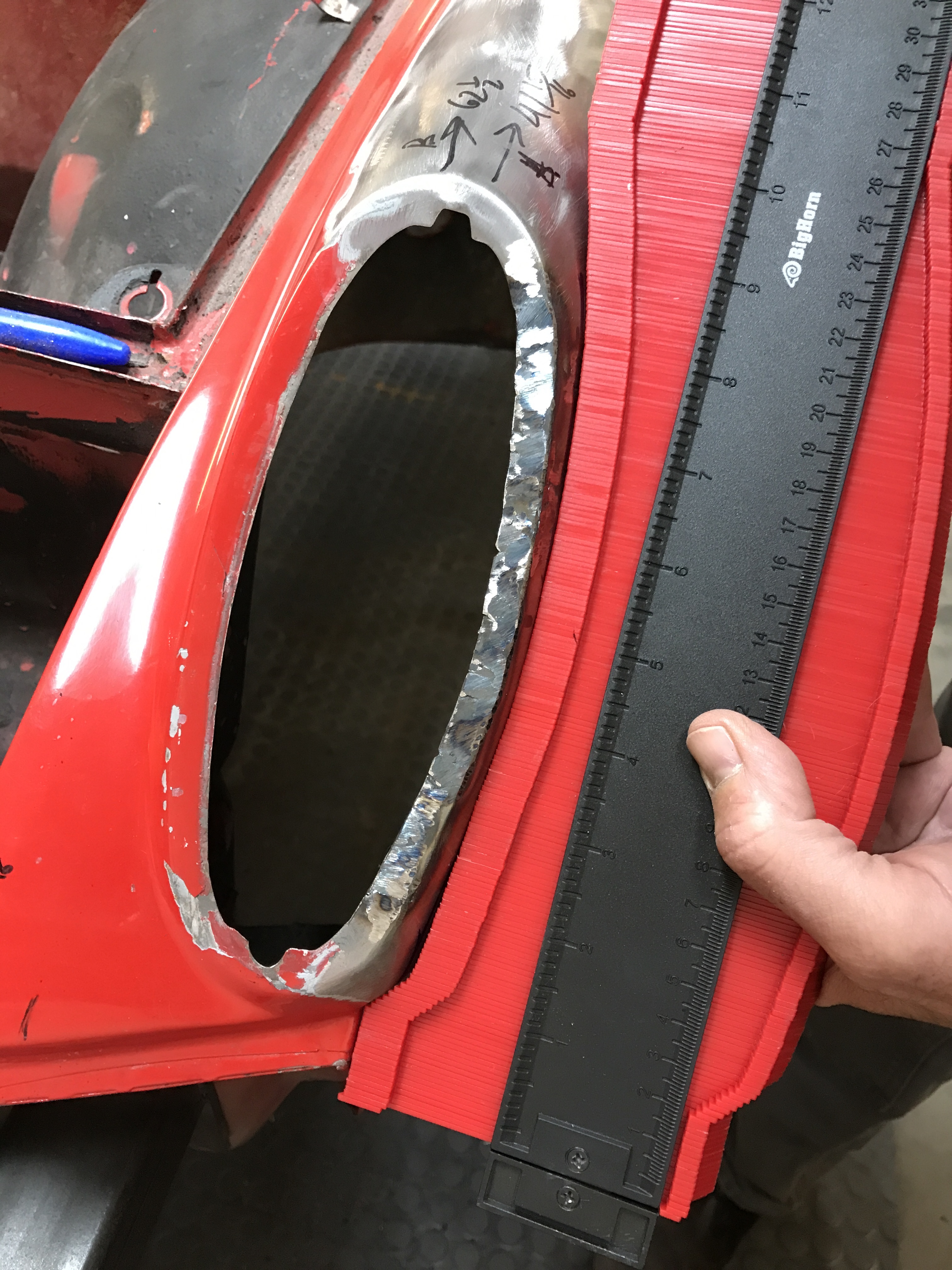

And use it to judge the work here. Gaps still need work.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 28 2020, 08:19 PM
Post #572


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

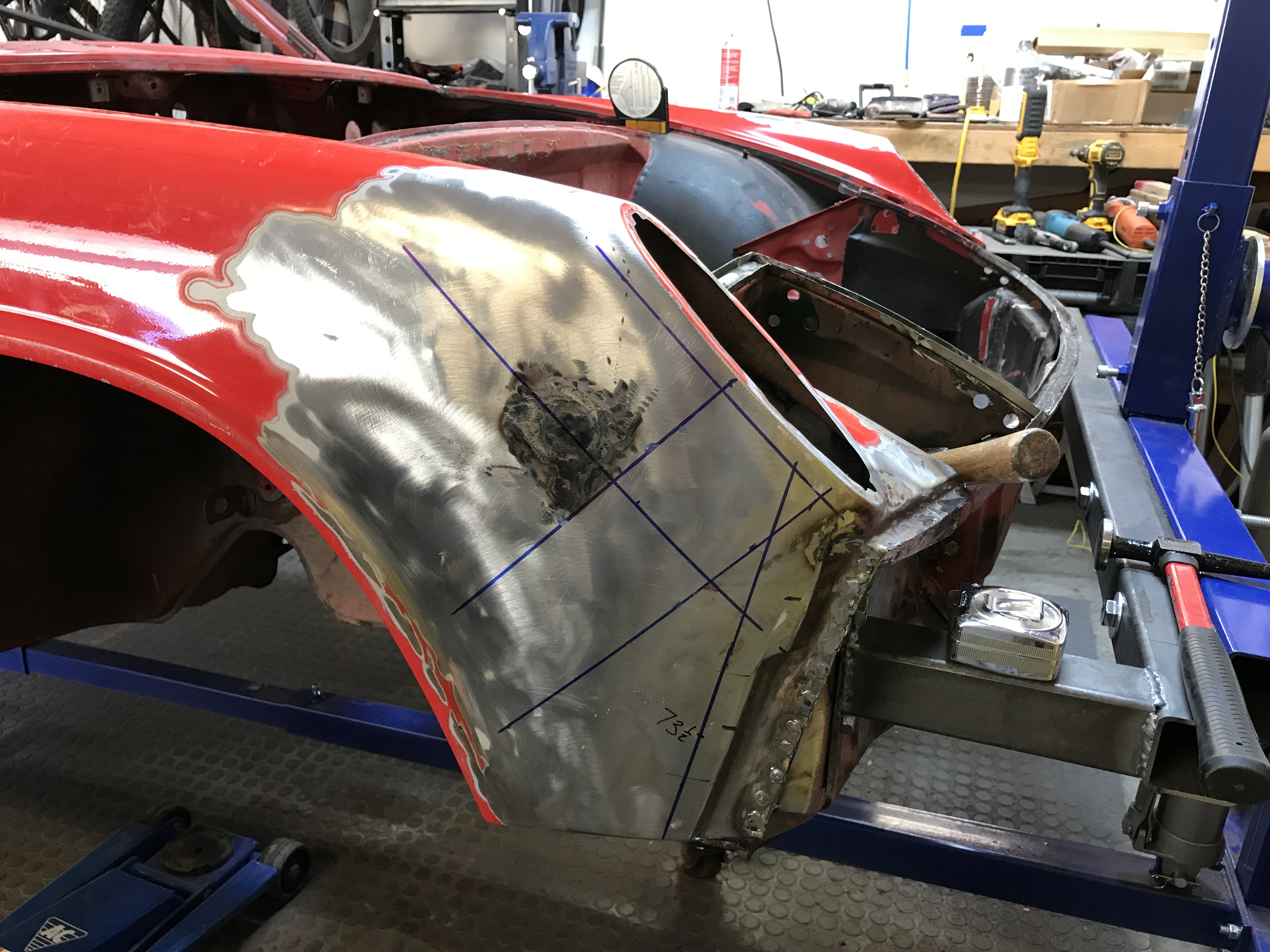

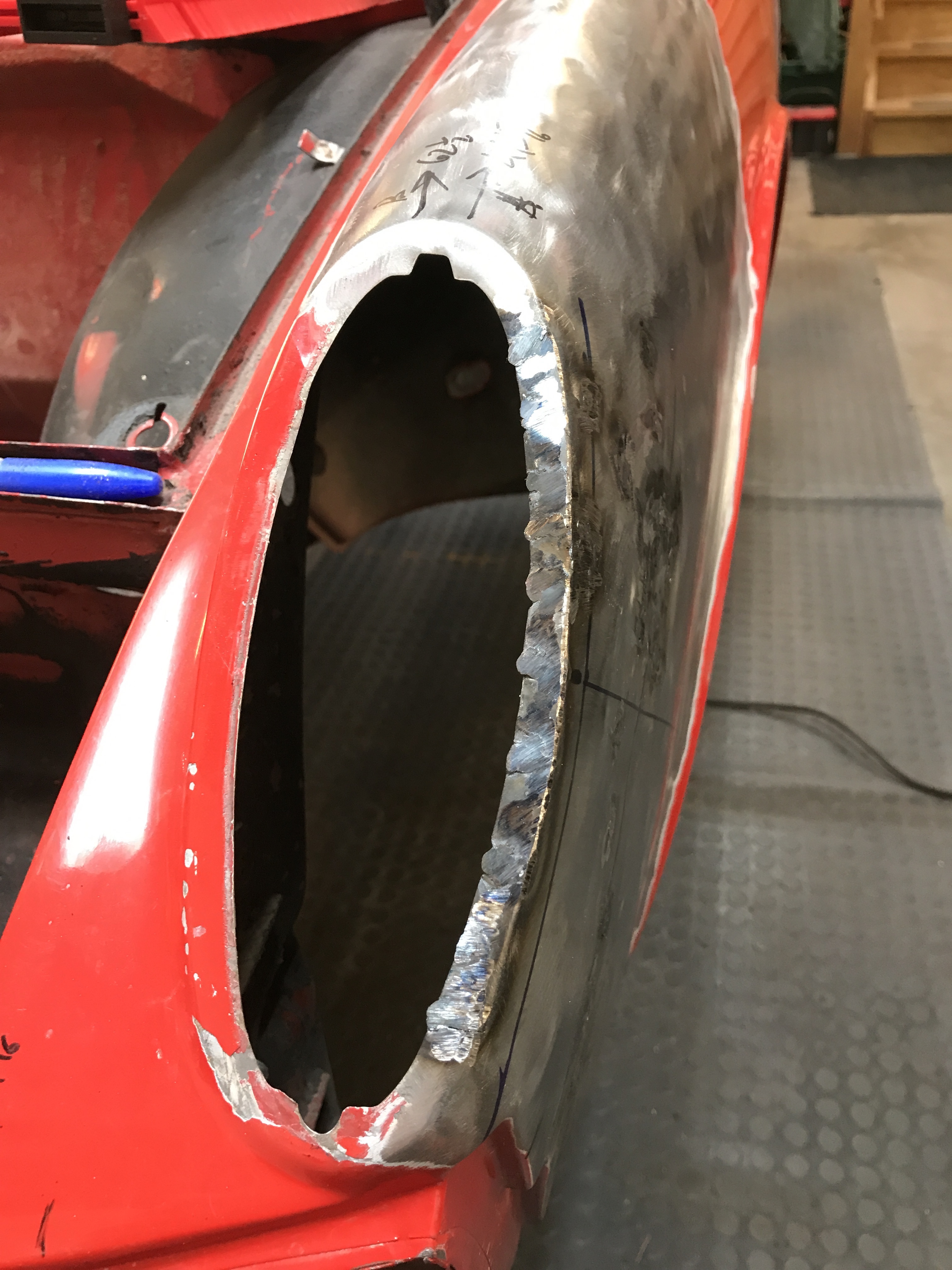

Getting closer to 95%.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 28 2020, 08:20 PM
Post #573


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
And after some additional work by eye and feel. I have another new technique to try for even more refinement.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 28 2020, 08:21 PM
Post #574


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
But meanwhile, plugging the wart holes on the right side.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 28 2020, 08:22 PM
Post #575


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

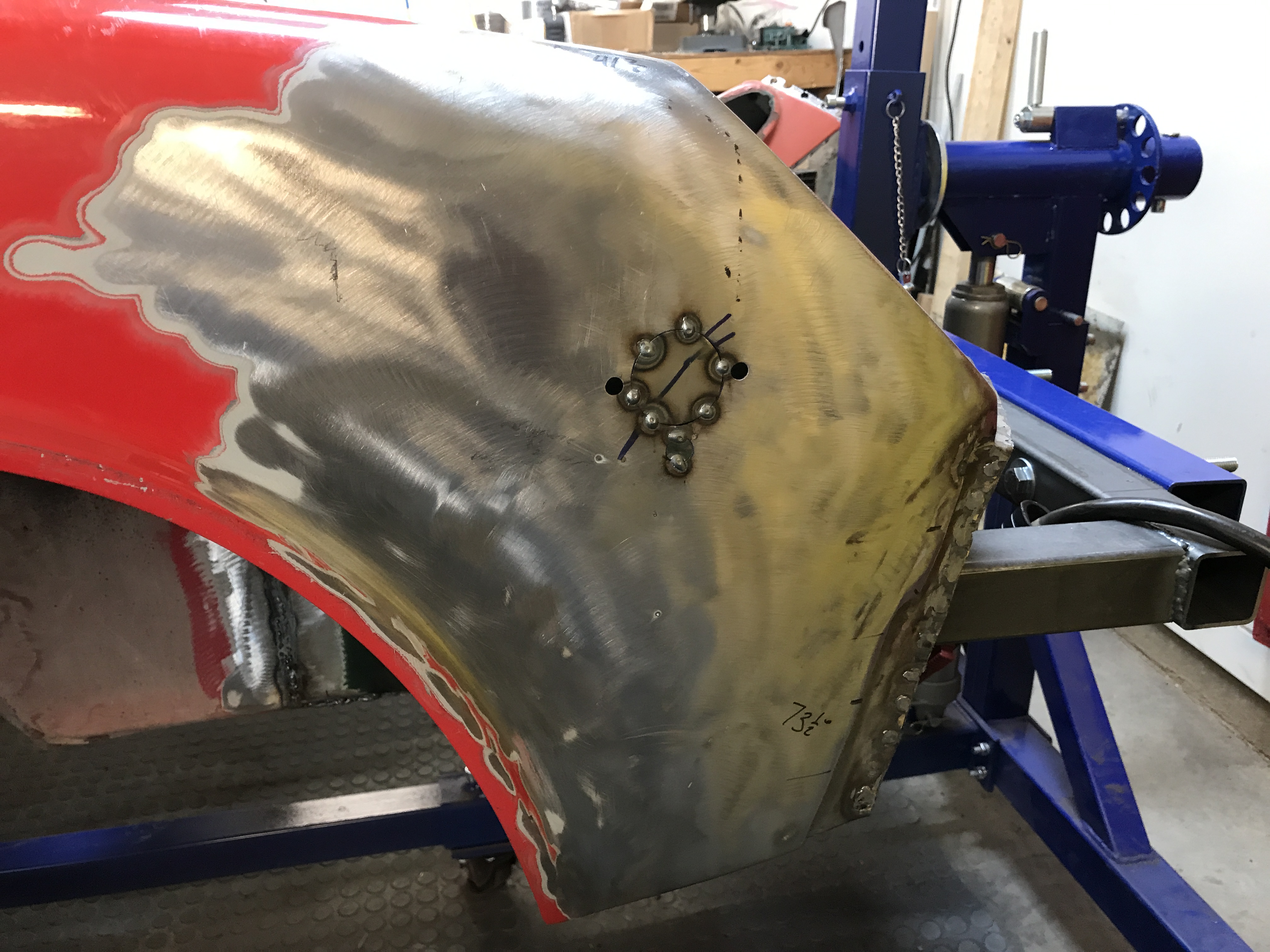

This fender also needs some shaping, especially along the front and lower corner.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 28 2020, 08:23 PM
Post #576


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Working through the welding list.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 28 2020, 08:24 PM
Post #577


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
And getting started on the shaping list.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Apr 28 2020, 08:45 PM
Post #578


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
This man knows no fear.....go get 'em Bob.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 29 2020, 07:44 PM
Post #579


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(raynekat @ Apr 28 2020, 08:45 PM) *

This man knows no fear.....go get 'em Bob.


Maybe too dumb to know any better--but still happy!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 29 2020, 07:47 PM
Post #580


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
I only had about 30 minutes in the garage today. I spend most of the day listening to and grading student presentations (senior thesis projects), and then did a stint of yard work to keep the boss happy.

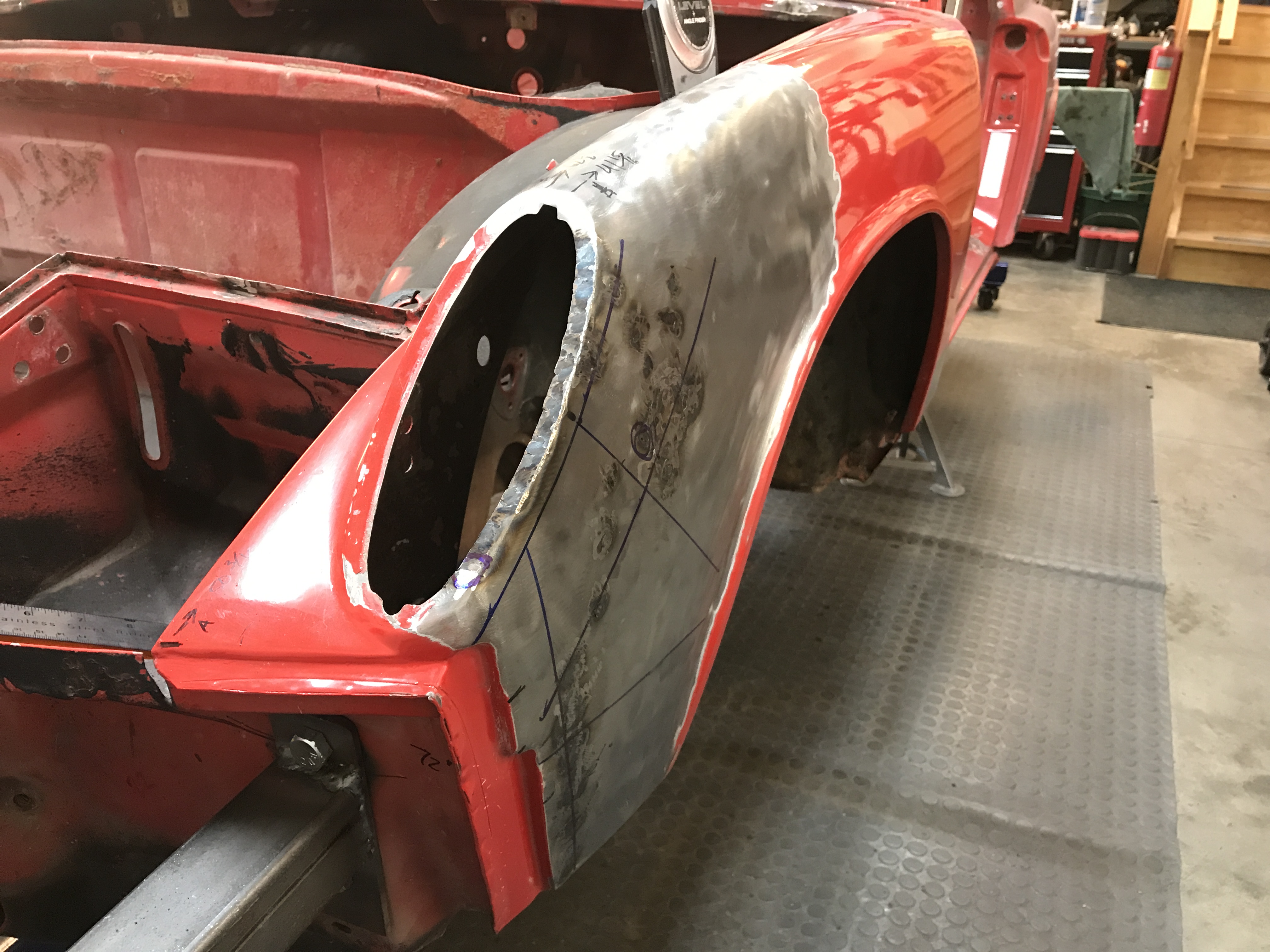

I did have time to mark reference lines on the right front fender, check the profiles, and do a bit of banging.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
