> Rebuiding Inside-out
bkrantz
post Aug 2 2022, 09:46 PM
Post #5781


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

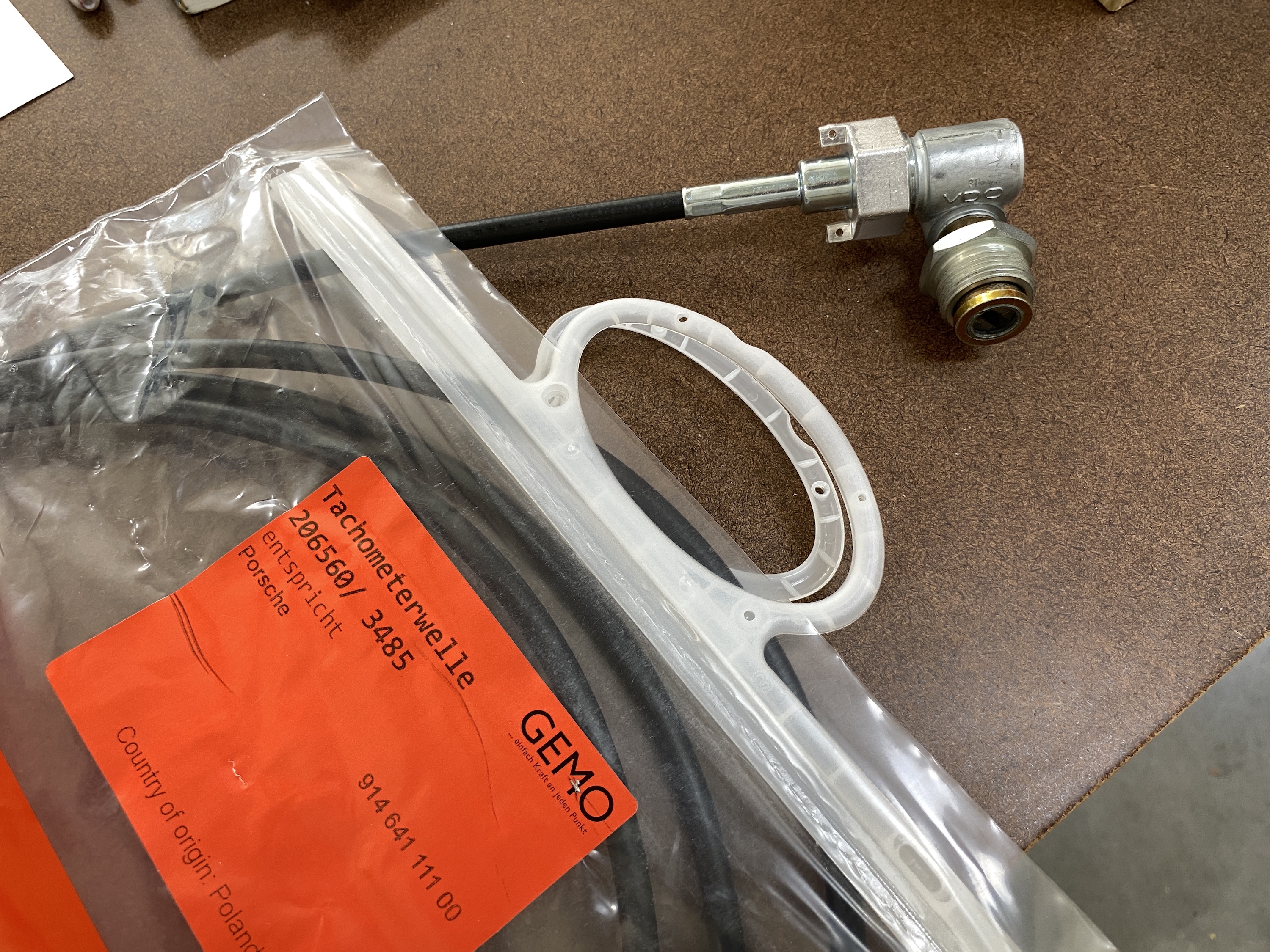

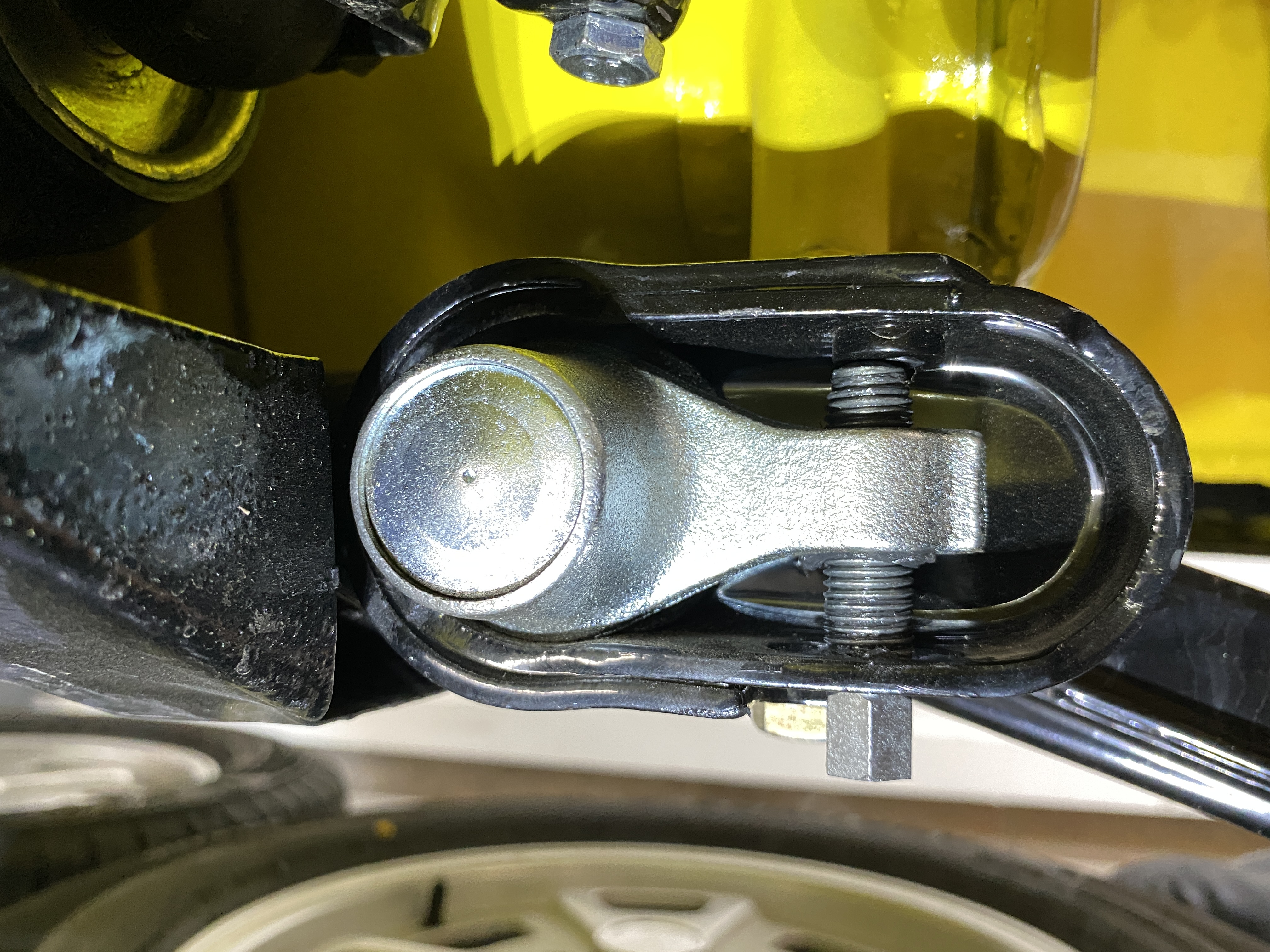

Just for fun, I tried my spare cable. This screws on fine. Once again, stay away from the no-name brands.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 2 2022, 09:47 PM
Post #5782


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

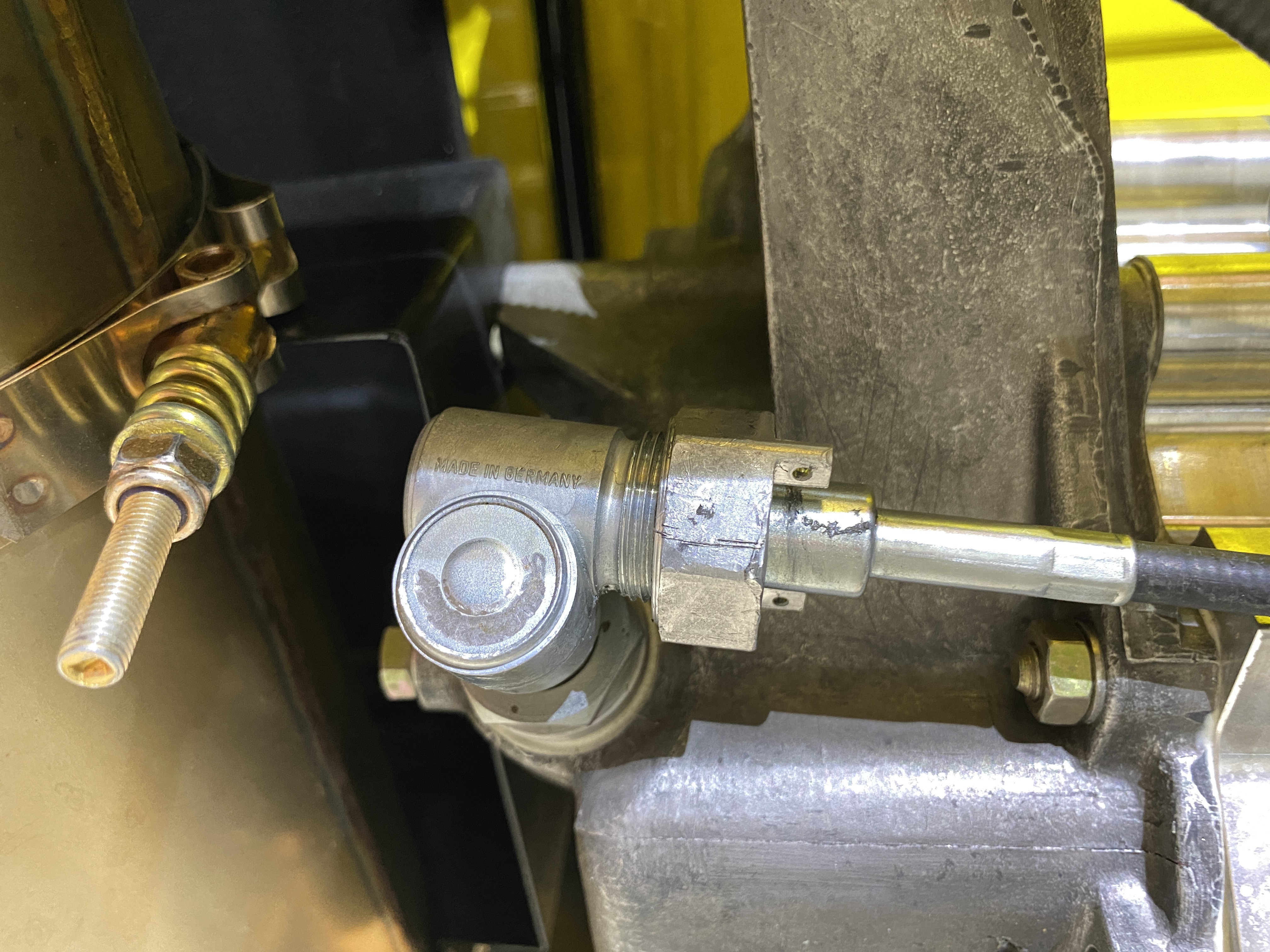

Anyway, here is the new drive installed, with the cable screwed on as best as possible.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 2 2022, 09:48 PM
Post #5783


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

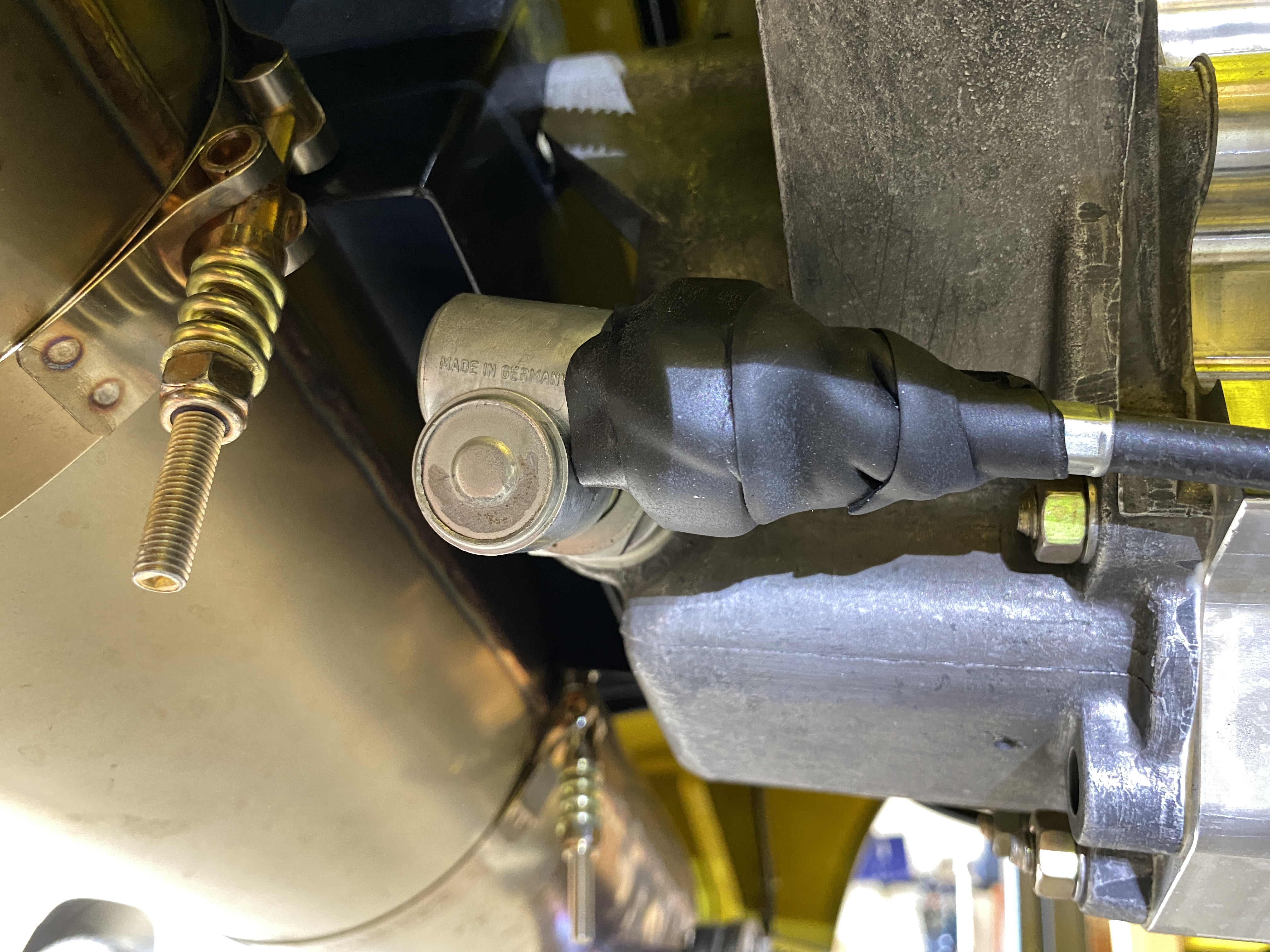

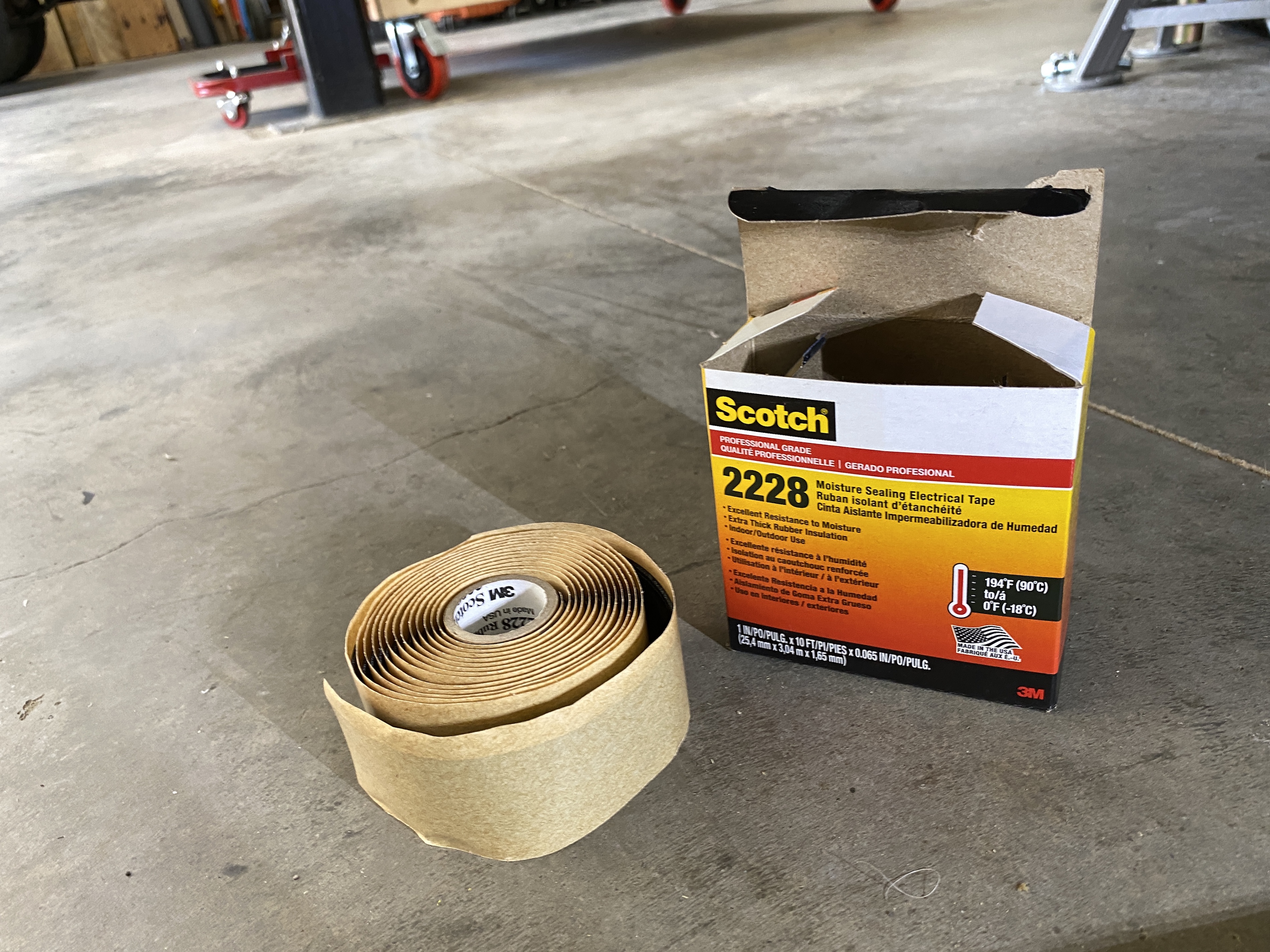

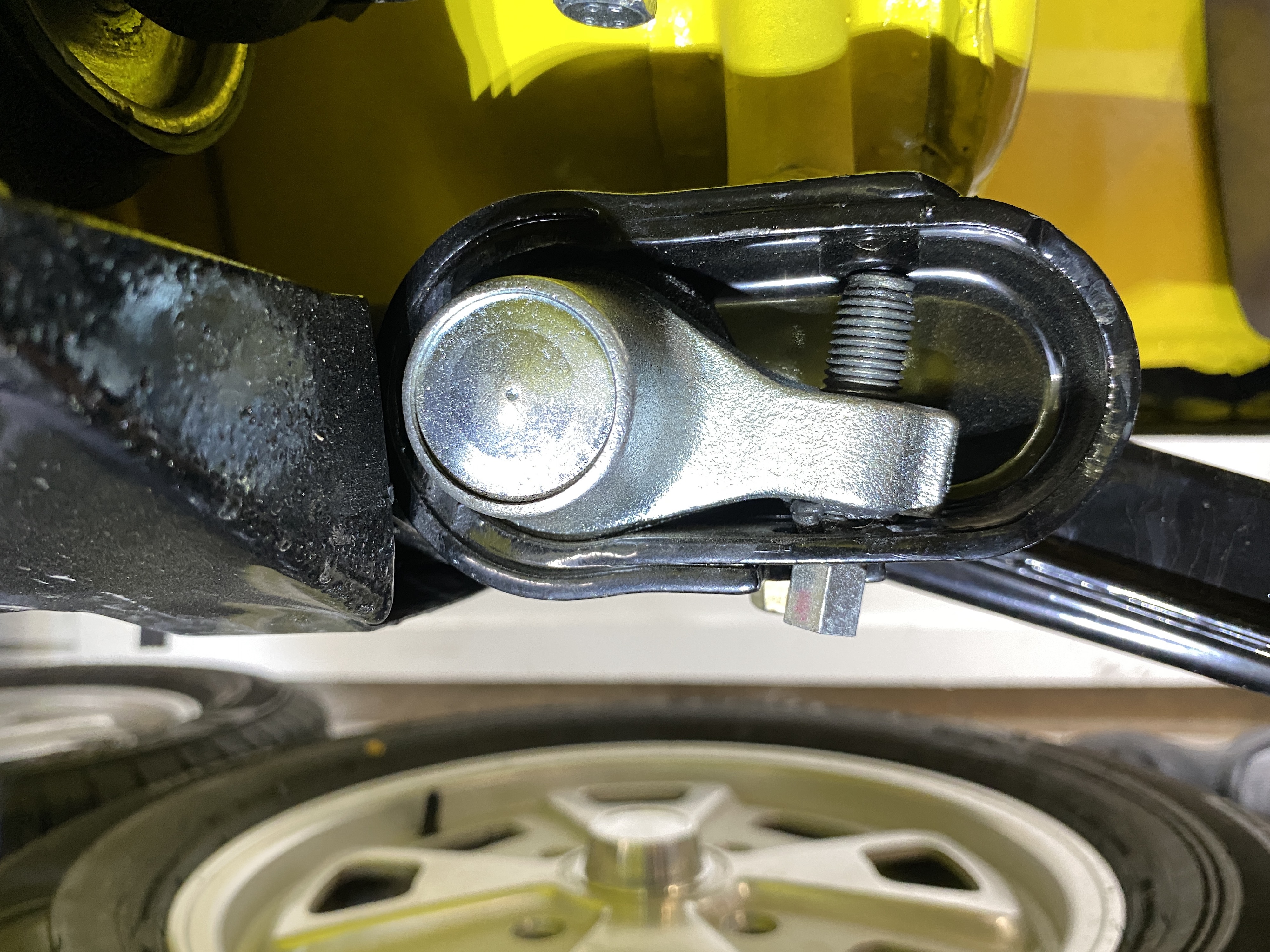

Without a rubber cap, I improvised with rubber tape.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 2 2022, 09:49 PM
Post #5784


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Sealed up--I hope.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 2 2022, 09:50 PM
Post #5785


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
OK, back to suspension work. I need to raise the front slightly, but the torsion bar caps are aready twisted as far as possible.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 2 2022, 09:51 PM
Post #5786


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
So I reset them rotated 1 spine.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 2 2022, 09:53 PM
Post #5787


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

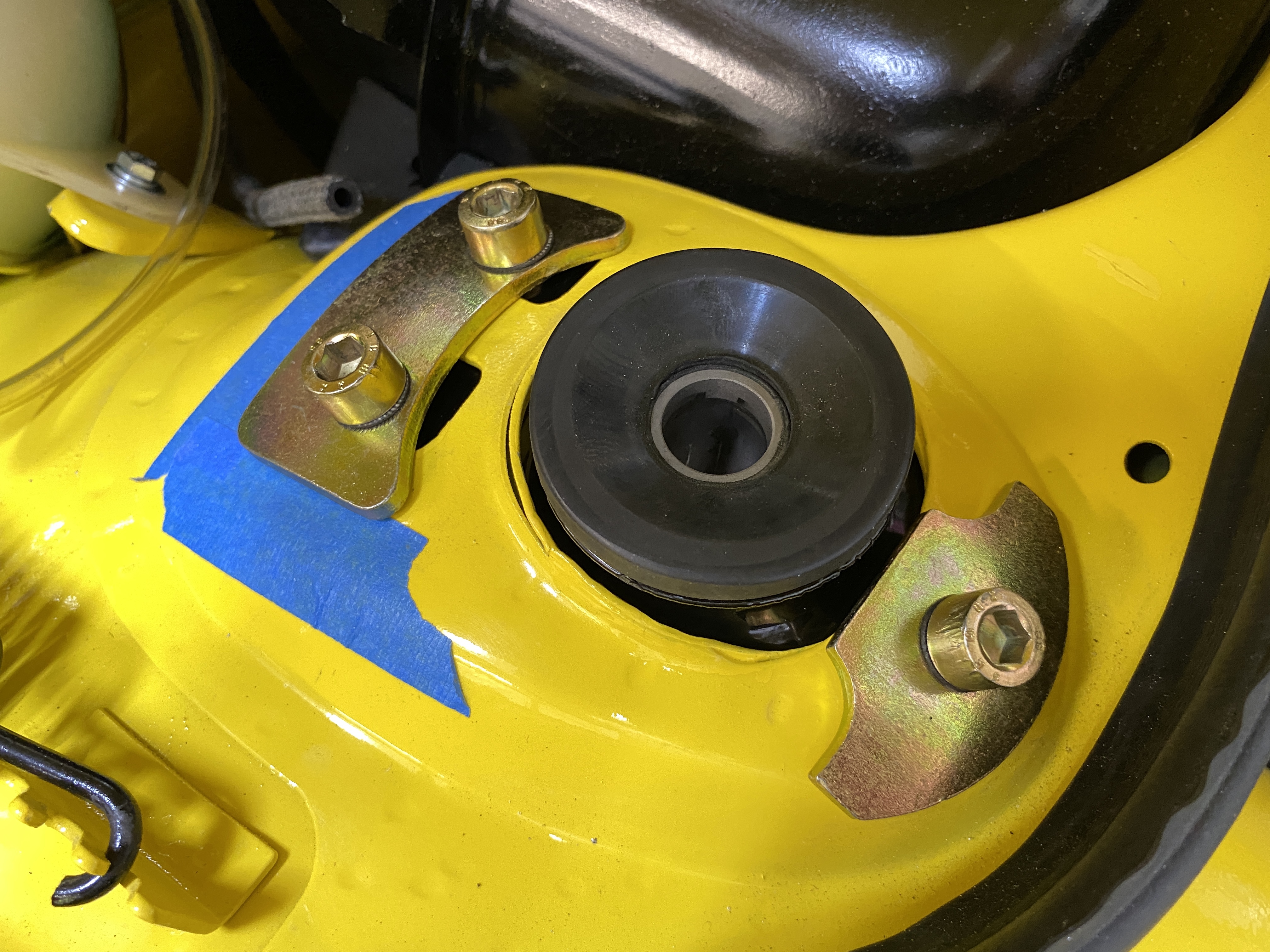

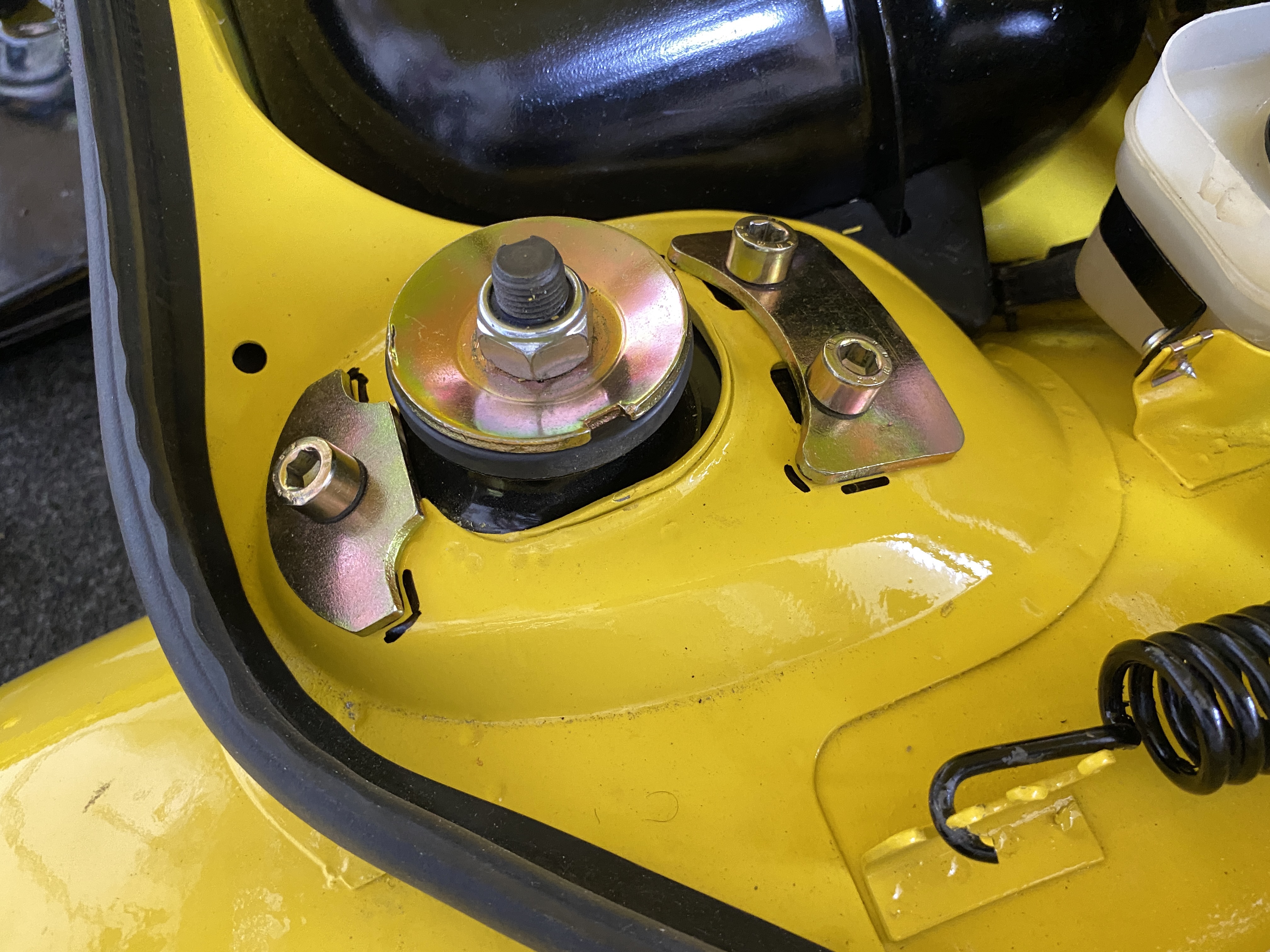

I reinstalled the front strut tops, and got them aligned by eye.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 2 2022, 09:55 PM
Post #5788


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

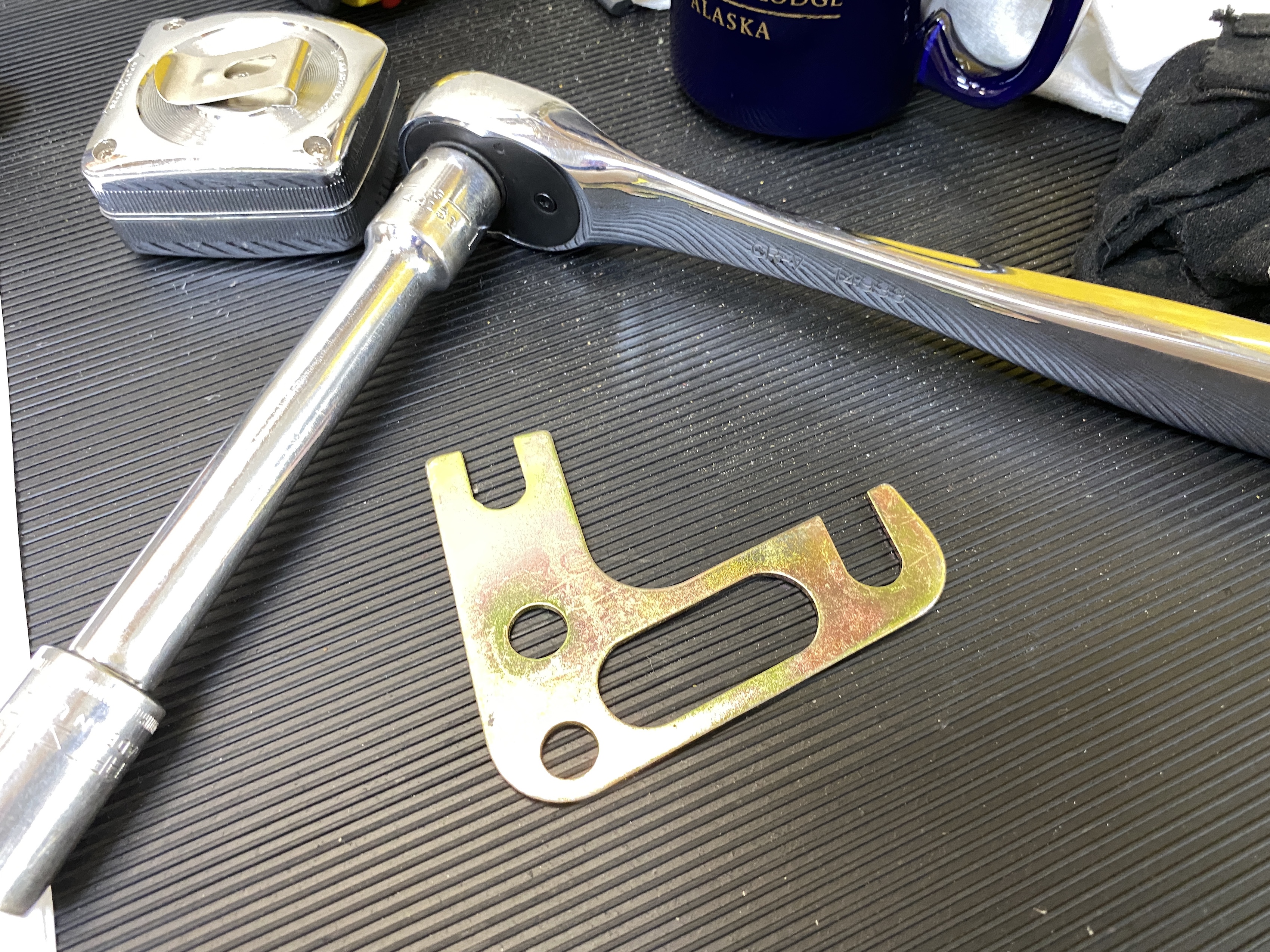

After a first camber check, I removed one 2mm shim from the right rear.

Then I worked on adjusting the front.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 2 2022, 09:58 PM
Post #5789


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

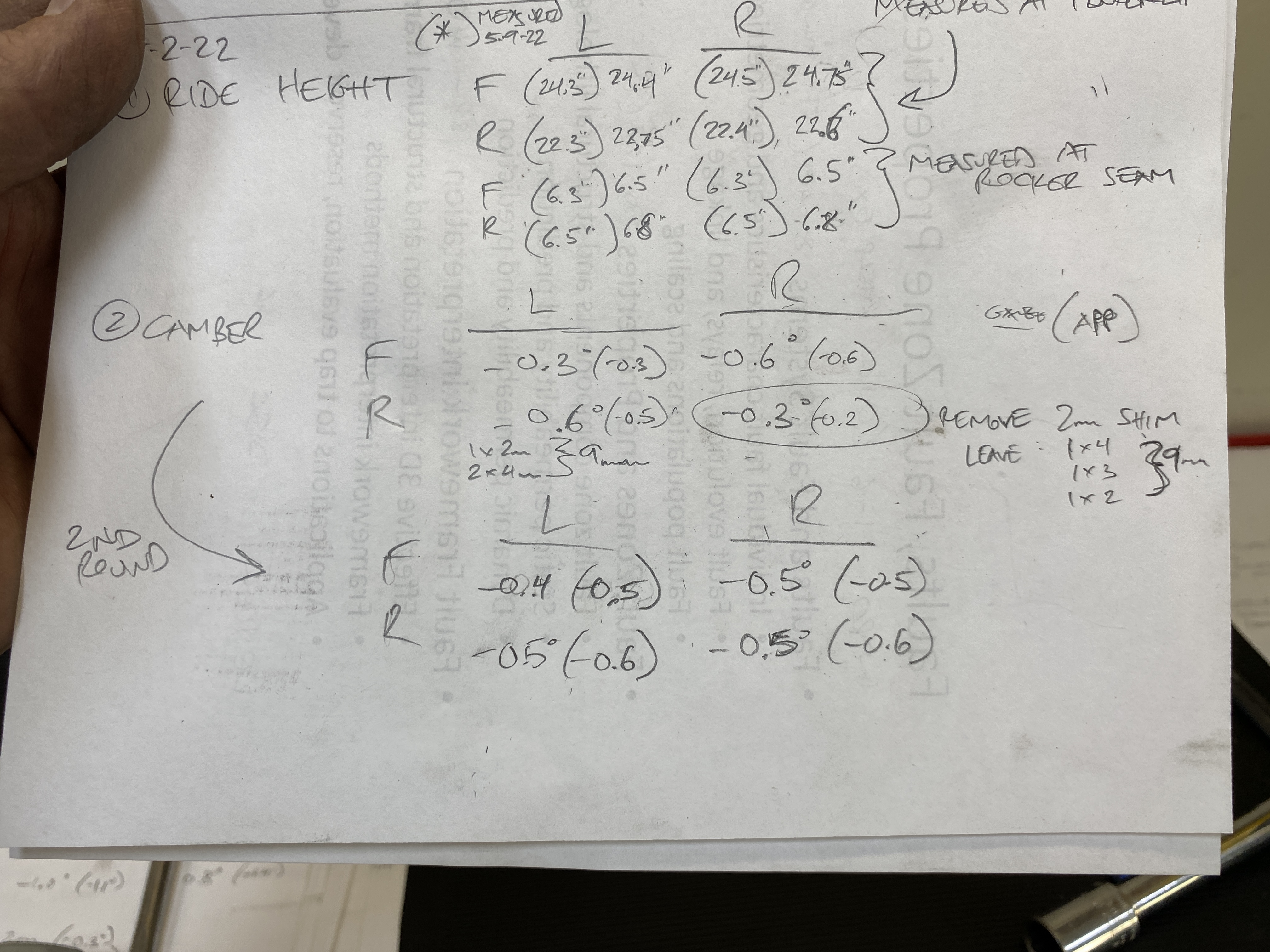

Here's how I ended up with camber, measured with my old analog gauge and my iPhone app and tool. This time, I had no problem getting to -0.5° all around. The ride height is about 0.25" higher, but still where I want it.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 2 2022, 10:00 PM
Post #5790


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

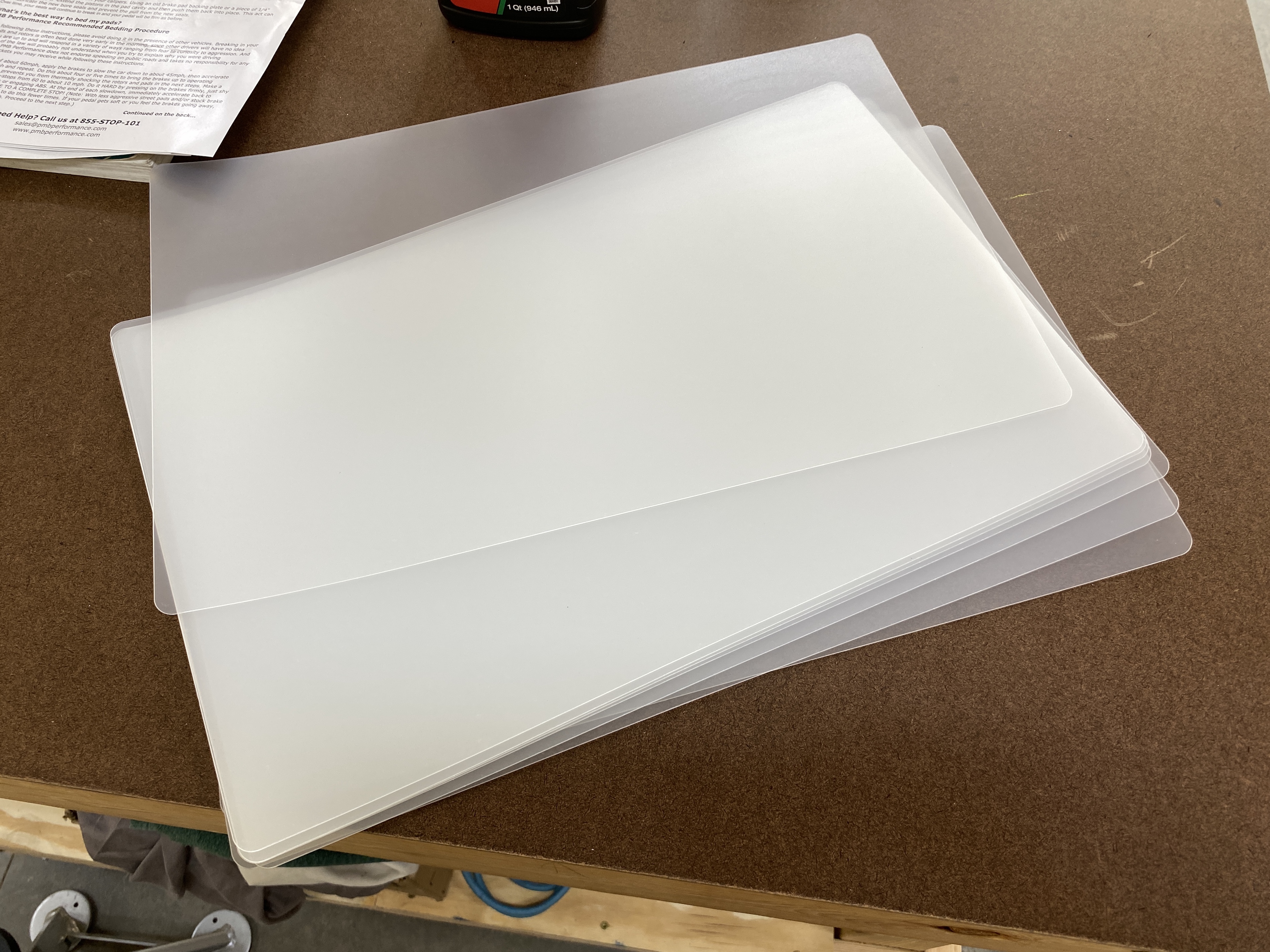

For setting caster and toe, I will use a trick others have suggested: thin poly kitchen sheets to eliminate twisting friction.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 2 2022, 10:01 PM
Post #5791


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

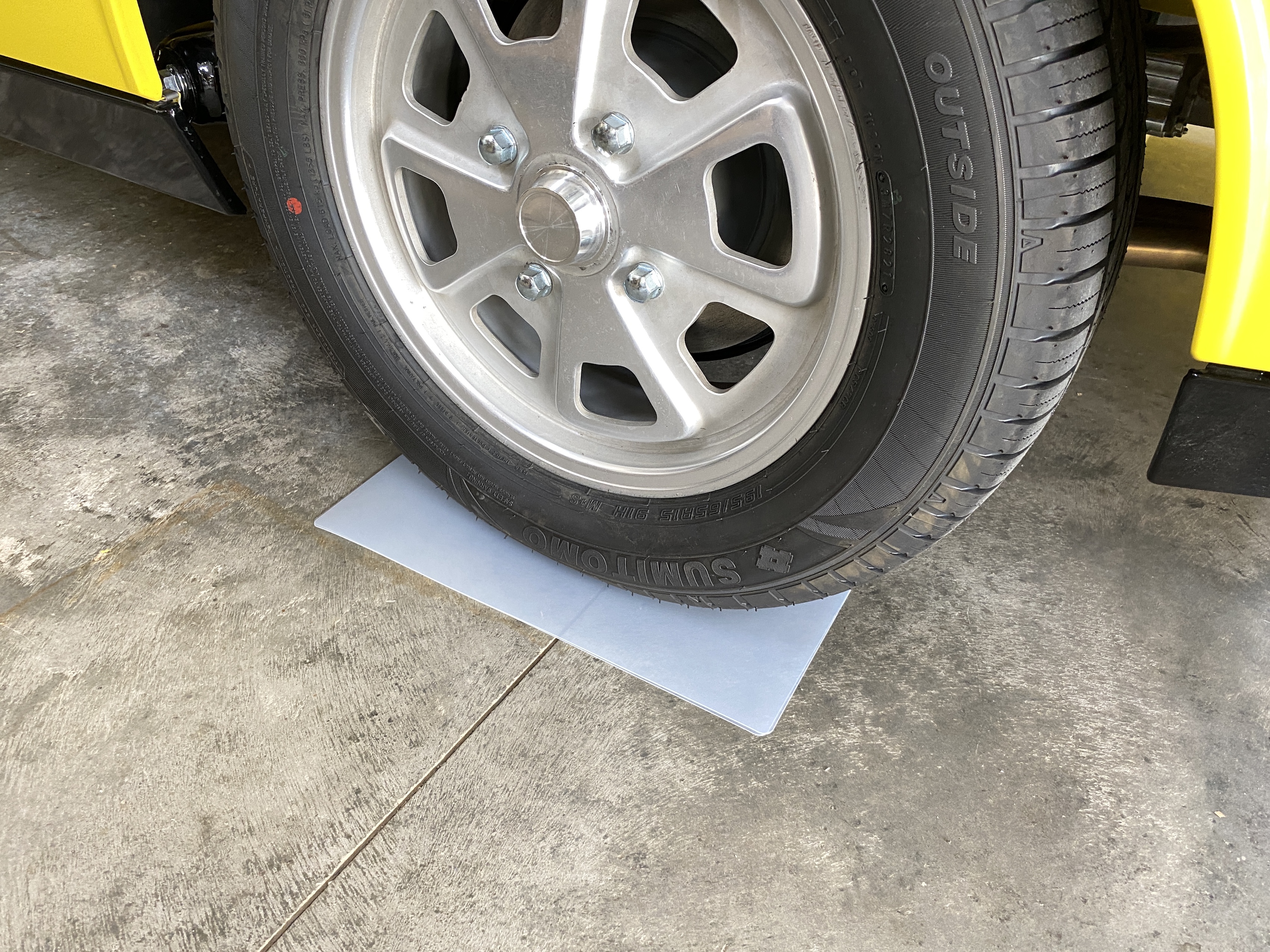

With a pair under each tire, I should be able to twist the wheels more easily.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 3 2022, 07:34 PM
Post #5792


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

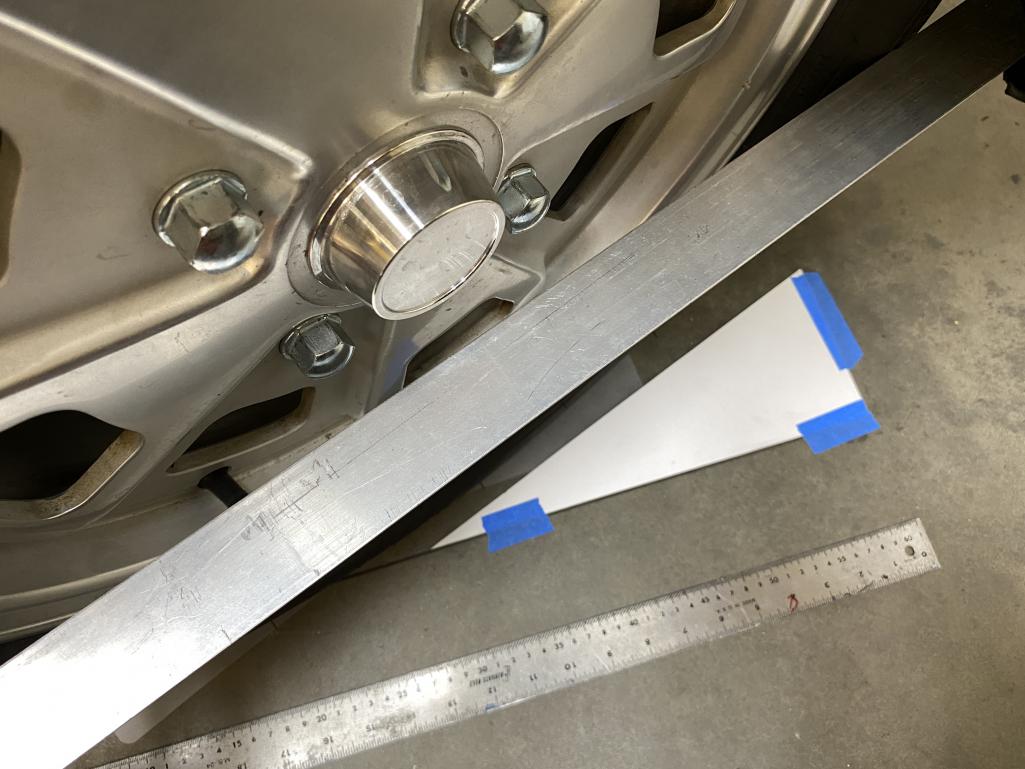

I set the caster (or castor) today. The process is straightforward: turn the front wheels a certain amount to the left, measure the camber, and then turn the wheels the same amount to the right, and measure the camber. For each wheel, the caster is then the difference in camber, multiplied by a factor based on the angle.

Here, the right wheel is turned 20° to the left, lined up with a guide on the floor.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 3 2022, 07:36 PM
Post #5793


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
BTW, in a 914 20° is a little more than one complete turn of the steering wheel.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 3 2022, 07:38 PM
Post #5794


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

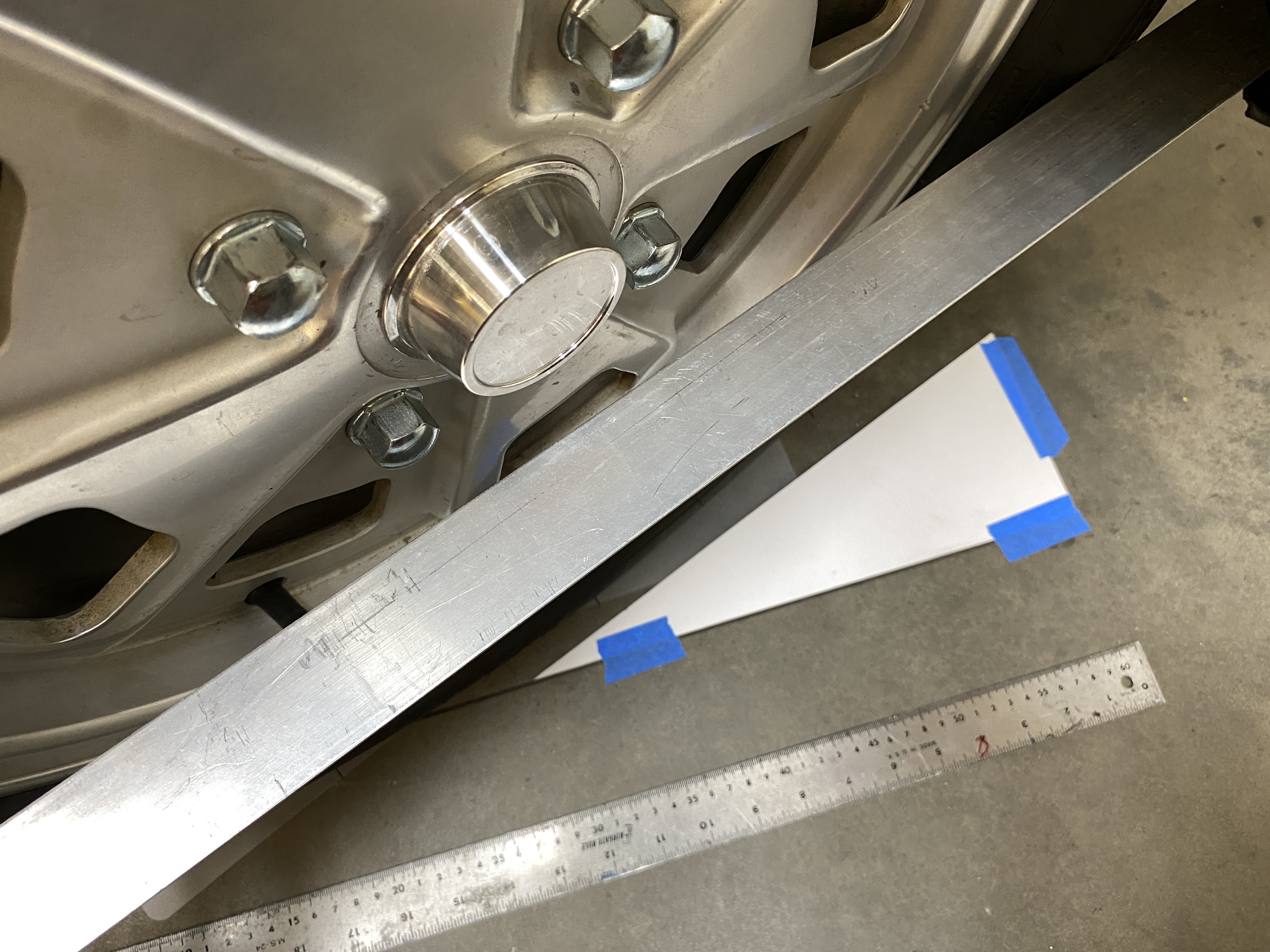

After the first round it was close, and so I had to nudge the strut tops forward while maintaining the actual camber at -0.5°. Don't worry, the marker is dry-erase.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 3 2022, 07:41 PM
Post #5795


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

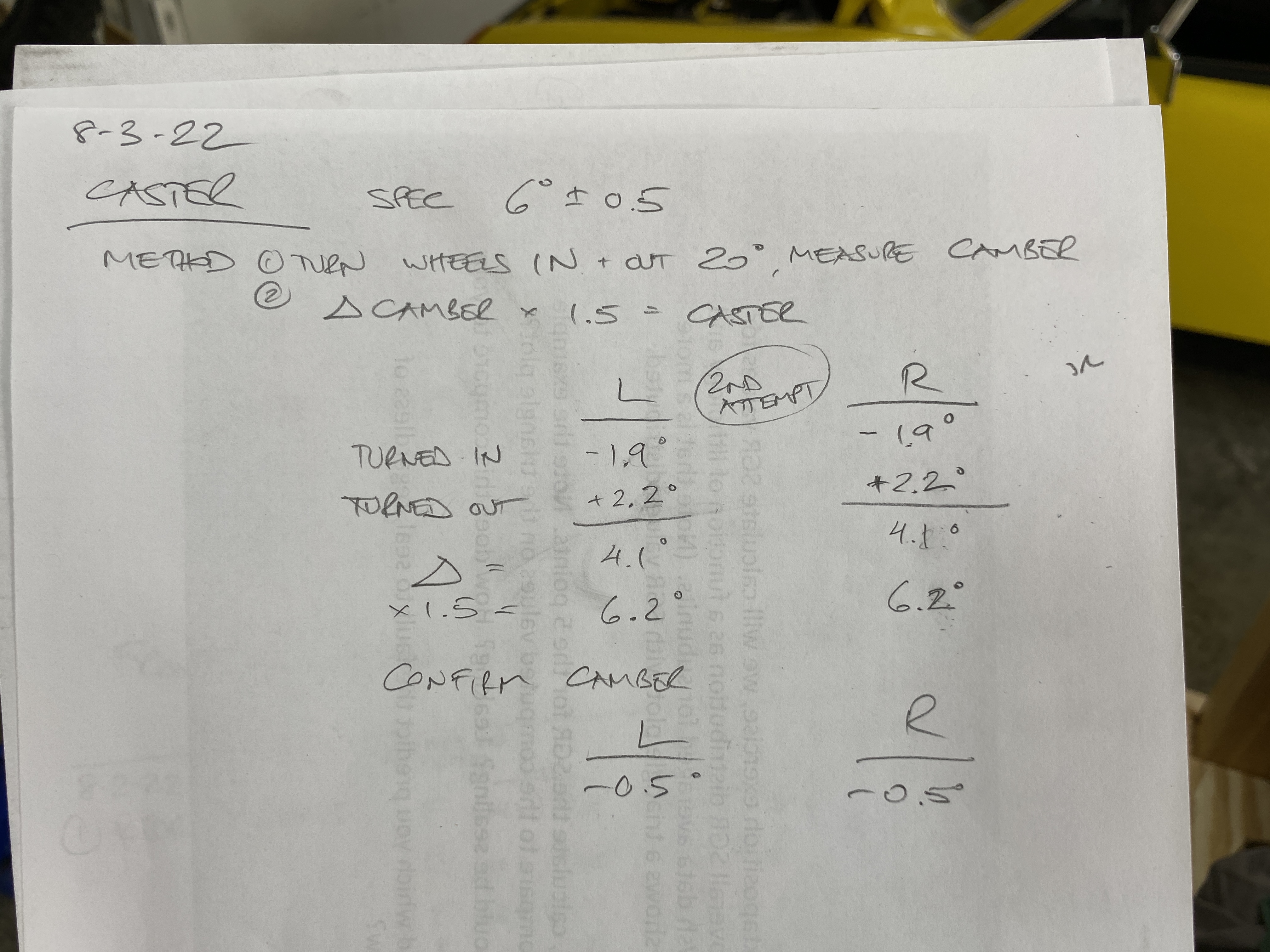

Here are my results. The caster spec is 6.0° and I got 6.2° on both sides.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 3 2022, 07:43 PM
Post #5796


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

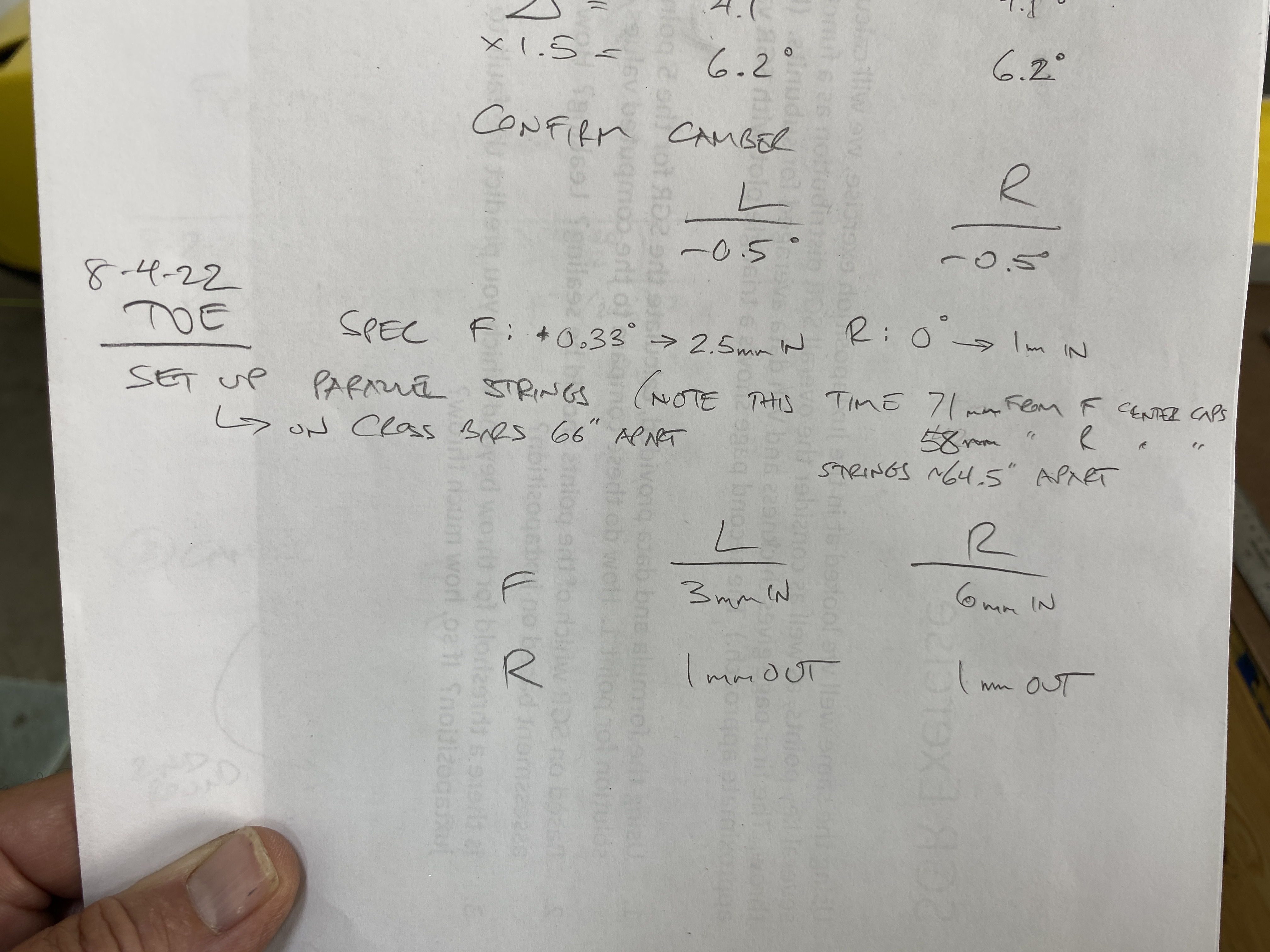

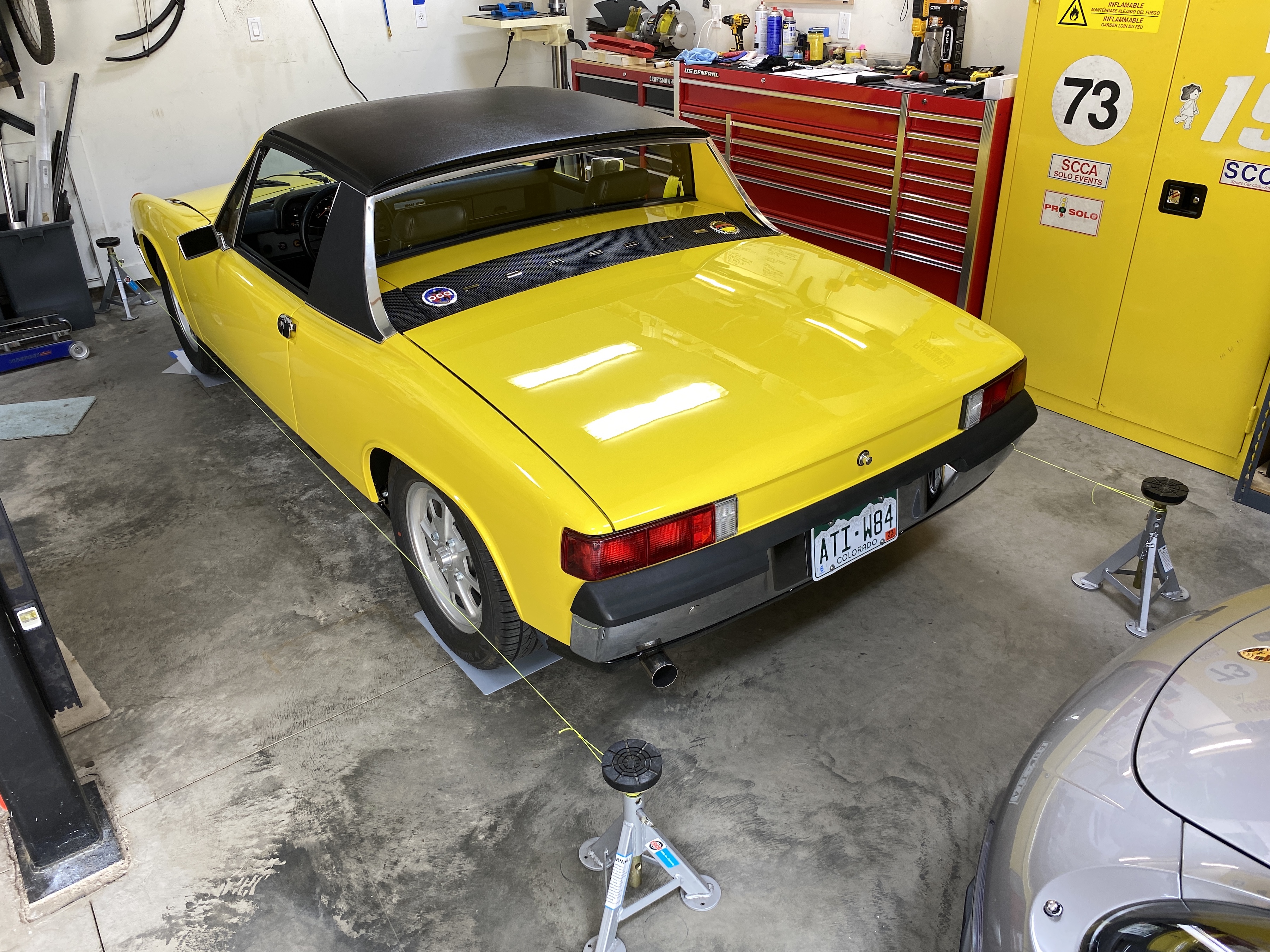

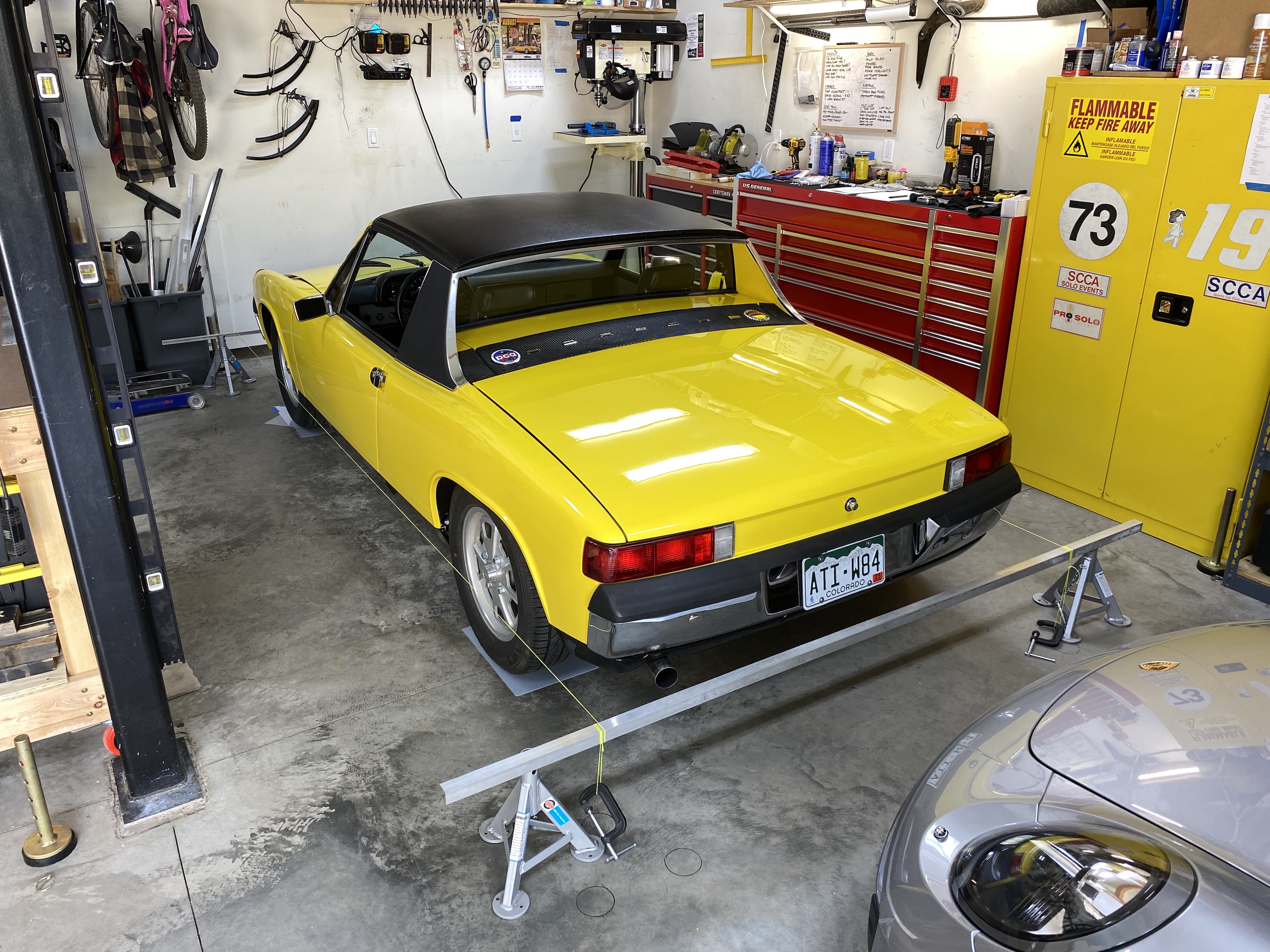

Last thing today I set up the parallel strings for measuring front and rear toe.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 4 2022, 07:31 PM
Post #5797


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Before I started working on setting toe-in, I reset the strings using cross bars. Much easier this way to maintain constant distance front and rear.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 4 2022, 07:33 PM
Post #5798


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Here are my initial measurements, which I could repeat. Uneven in the front and toe-out in the rear.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 4 2022, 07:35 PM
Post #5799


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

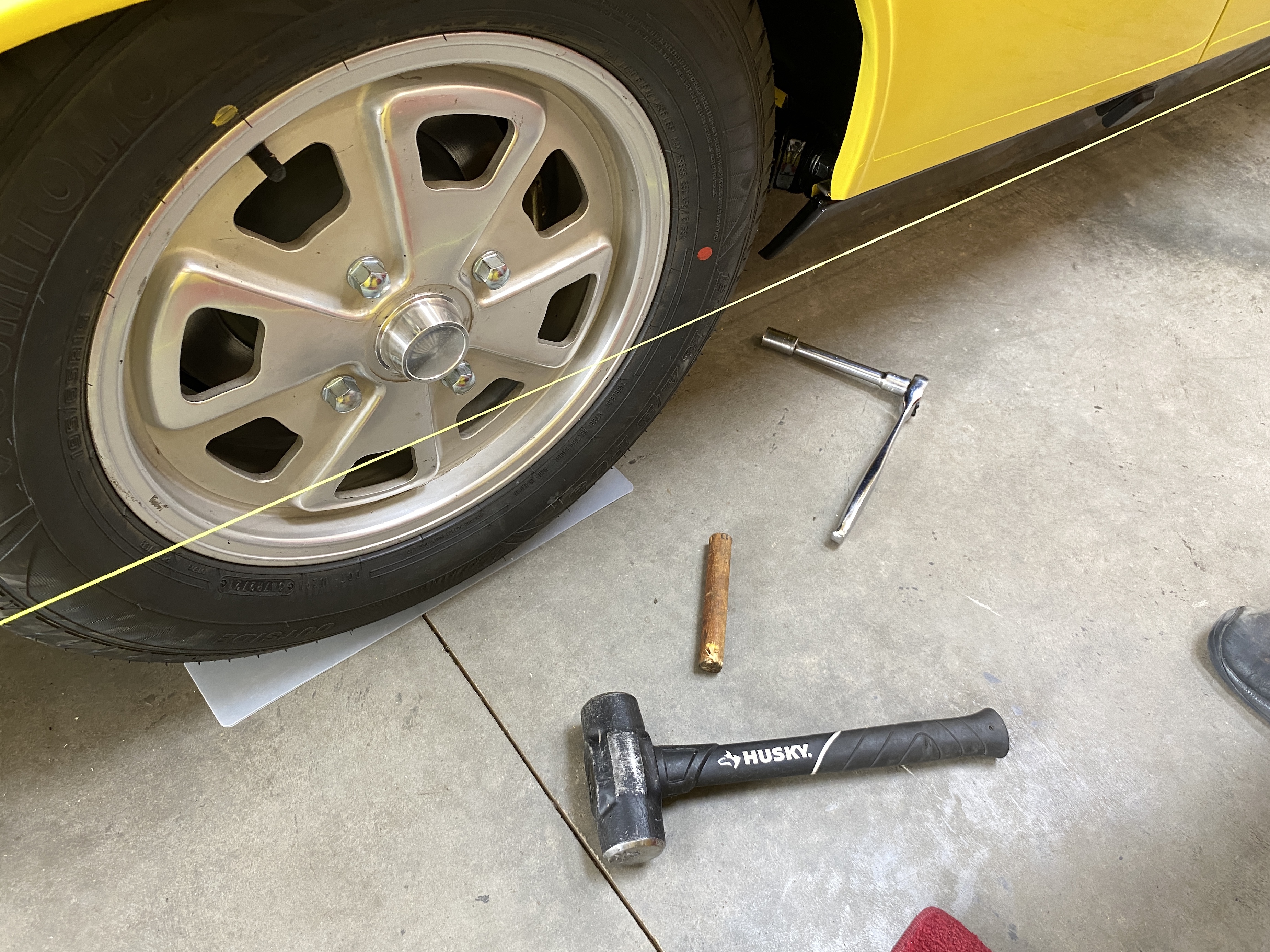

To adjust the rear, I loosed the 3 bolts for the outer trailing arm mount, and then shifted the mount forward with some taps from the love hammer (using a bit of hardwood dowel).


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 4 2022, 07:36 PM
Post #5800


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

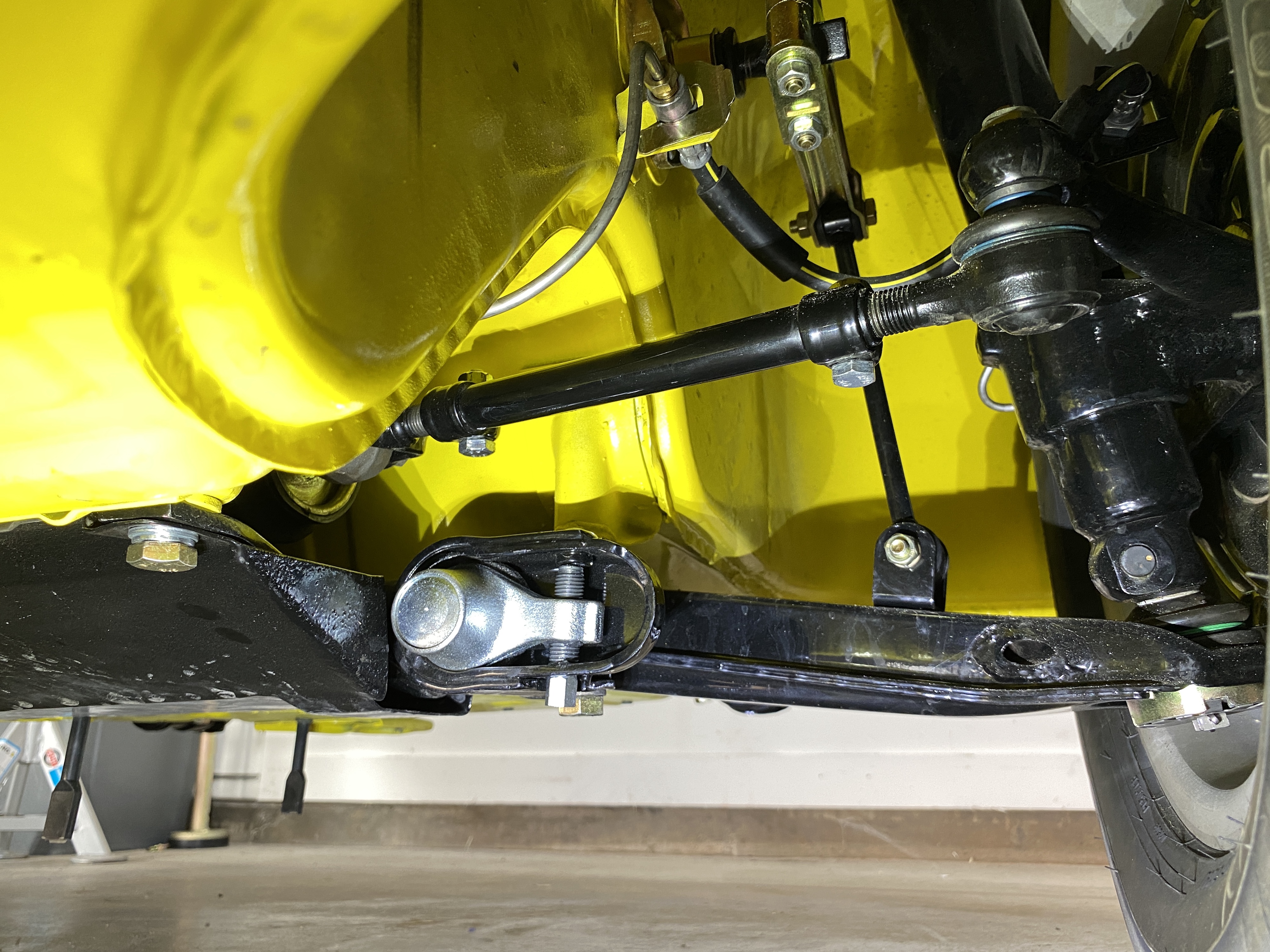

Of course the front is more civilized, with adjustable tie rods.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
