bkrantz
post Jan 28 2023, 07:52 PM
Post #6101


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

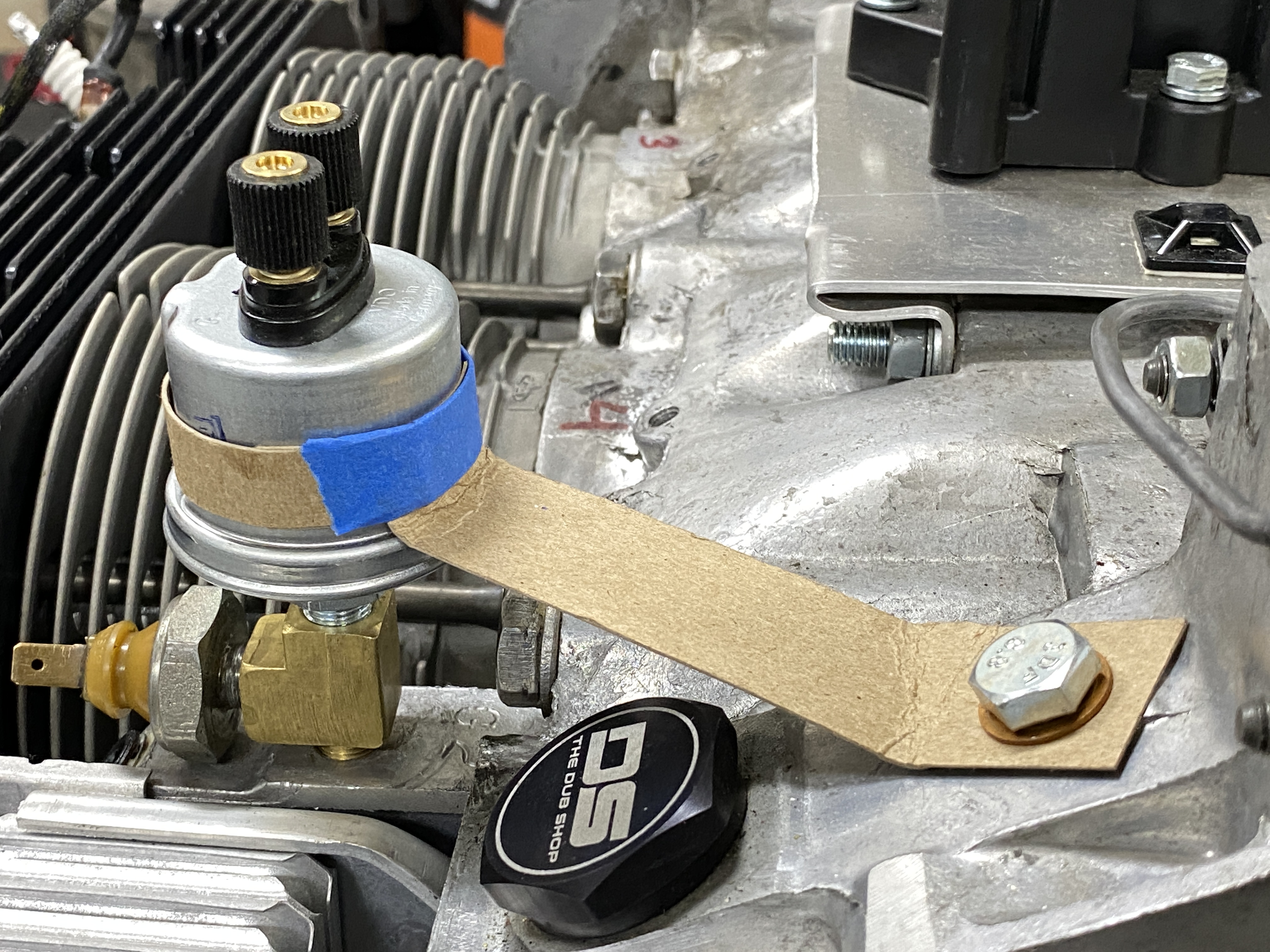

My first support design. I figure something like this should damp vibrations enough. This is easy since I don't have a distributor.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 28 2023, 07:55 PM
Post #6102


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

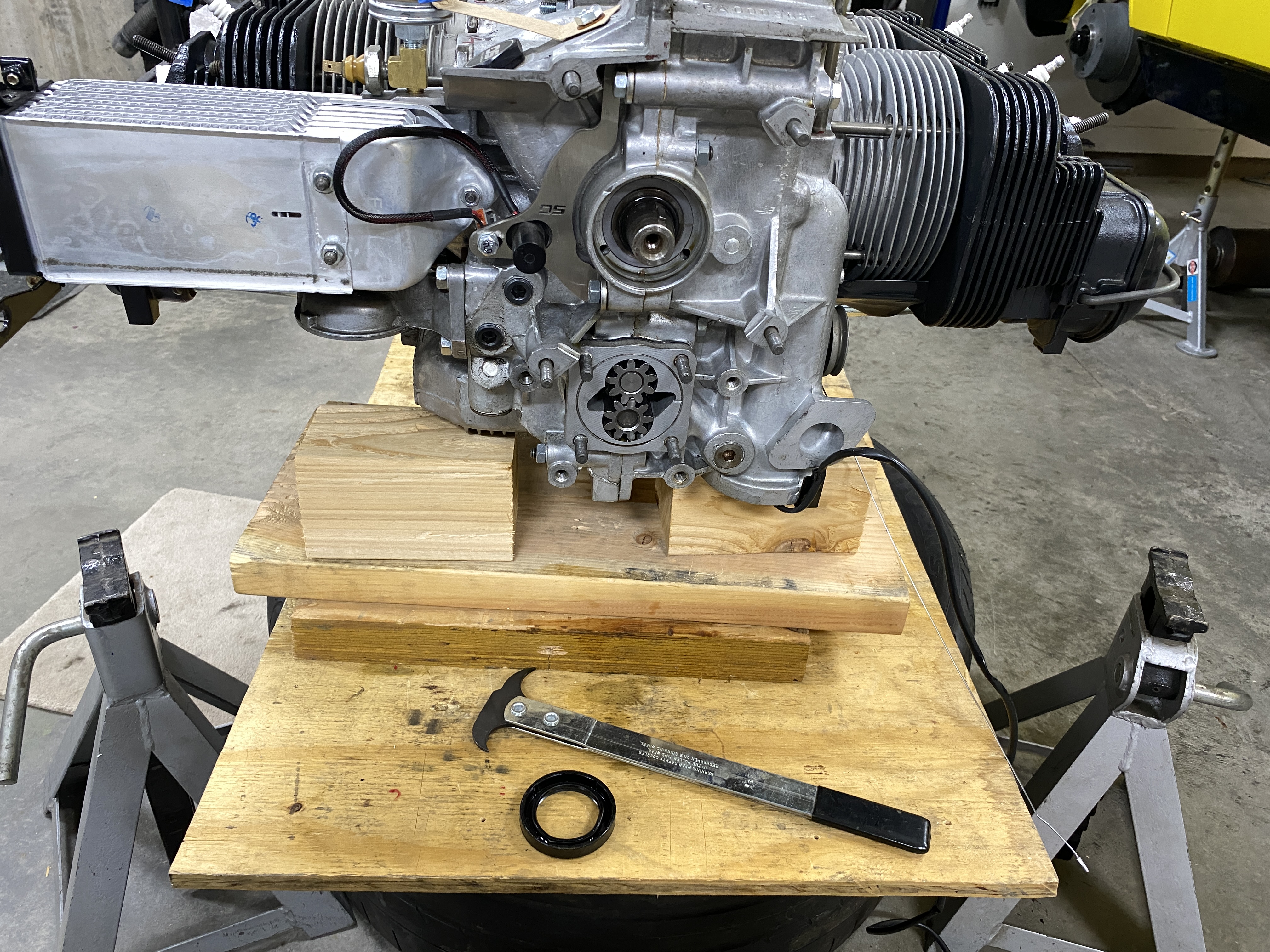

Meanwhile, I got a new oil seal (and spare) for the crank end. These are Erling, for those keeping score.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 28 2023, 07:56 PM
Post #6103


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
I popped out the old seal, and discovered another potential leak.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 28 2023, 07:57 PM
Post #6104


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

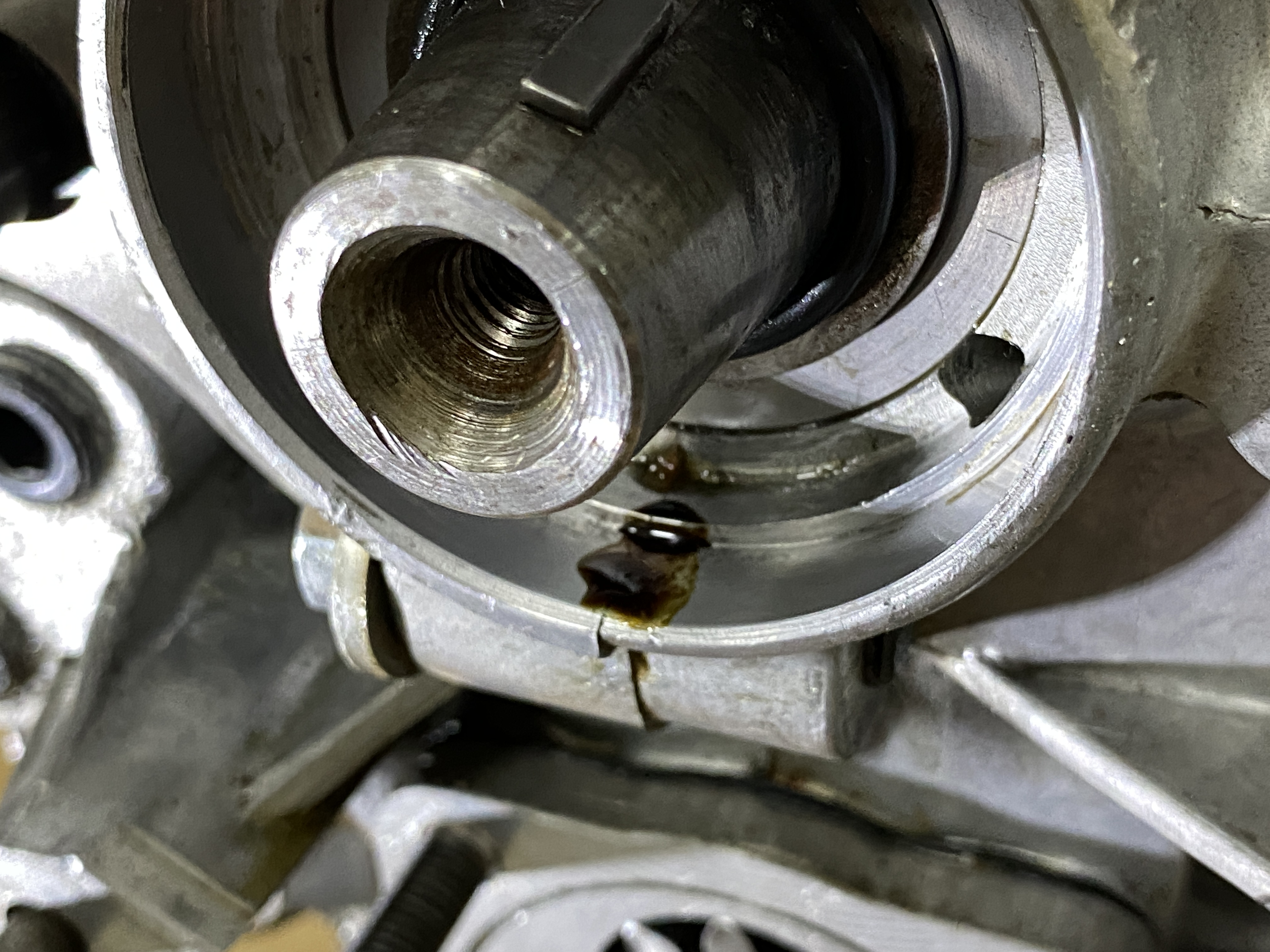

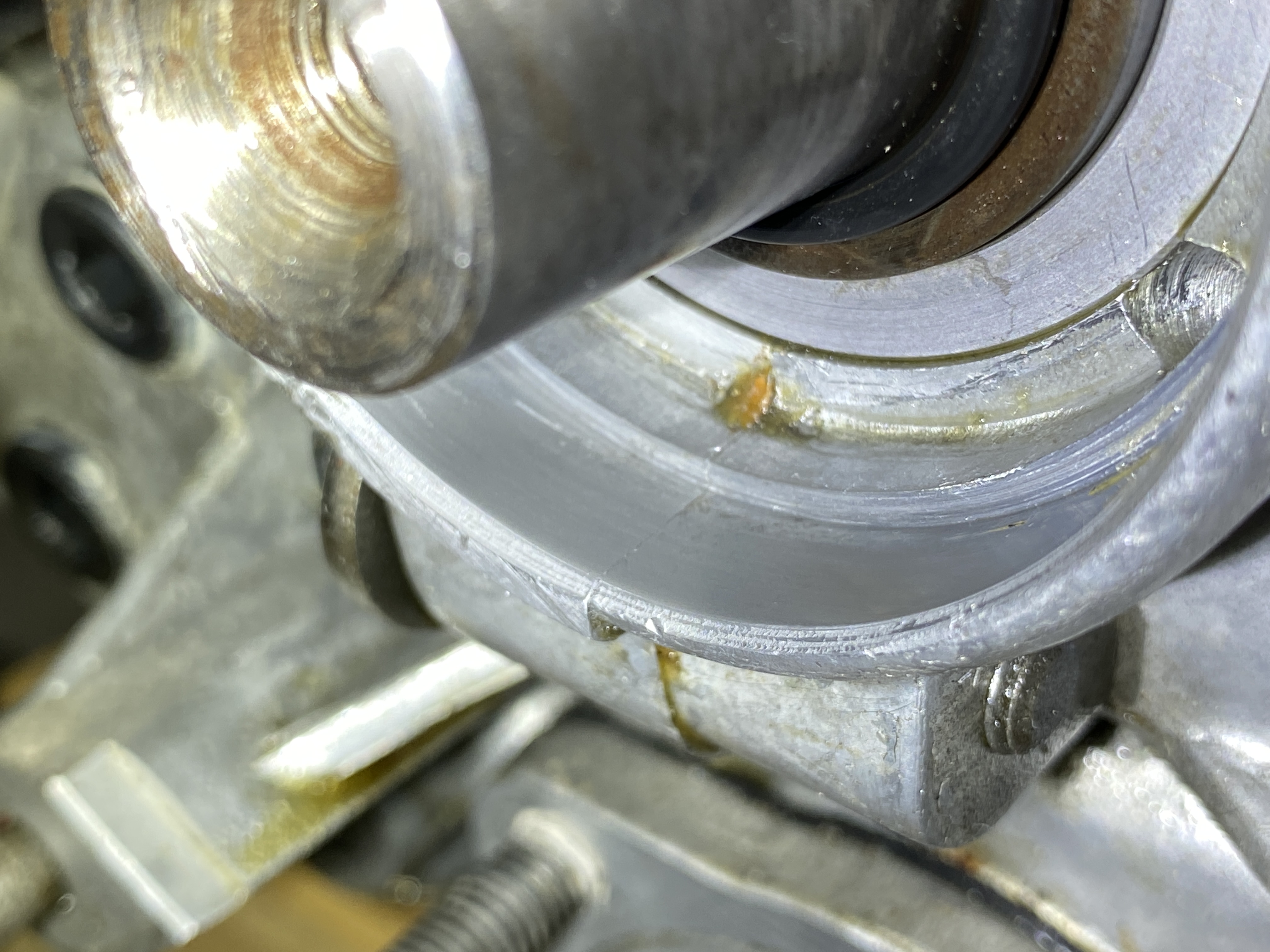

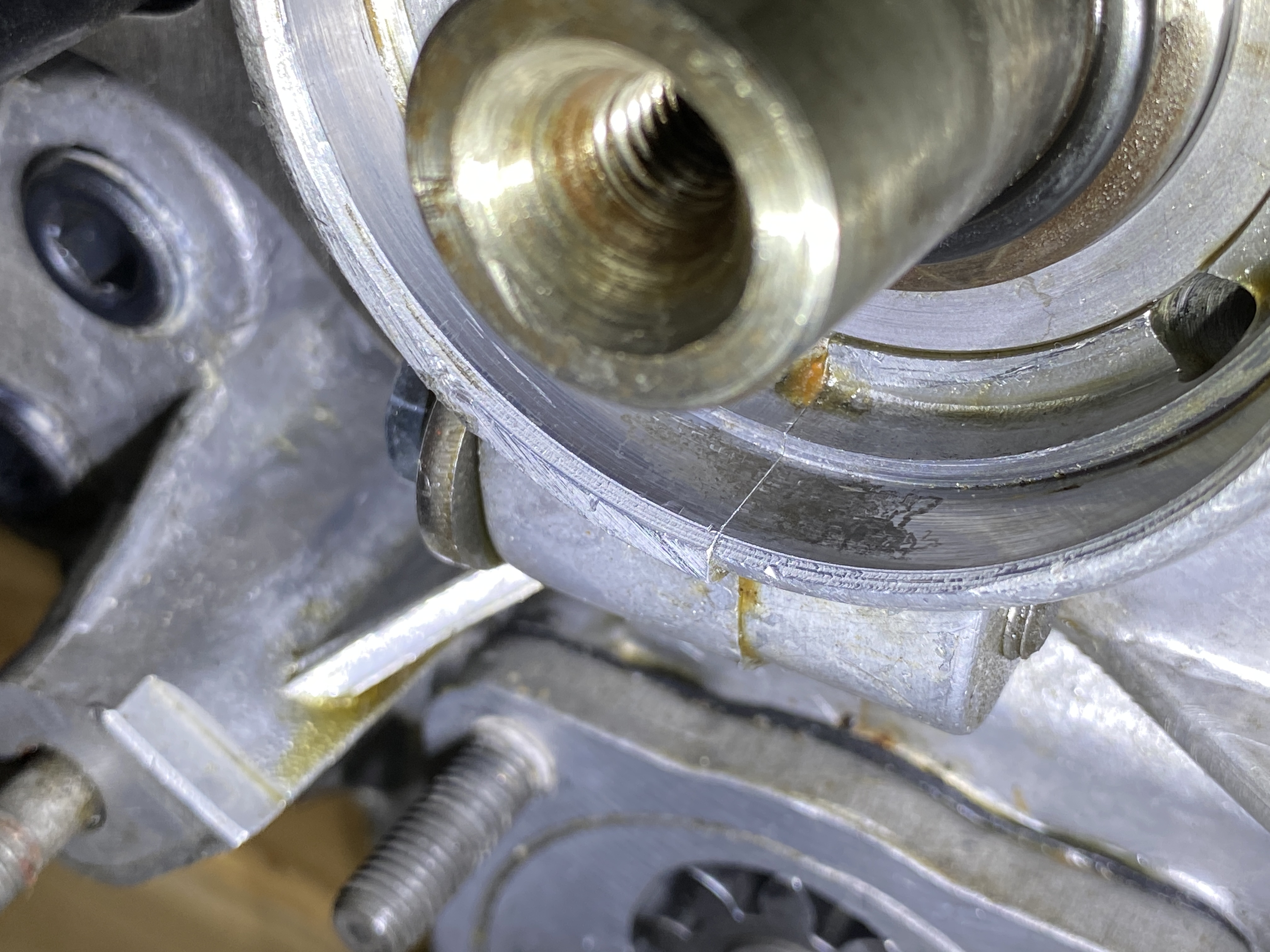

The case seam in the seal recess is not even at the bottom. You can see a small raised edge, that is obvious by feel. The top is fine.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 28 2023, 07:58 PM
Post #6105


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

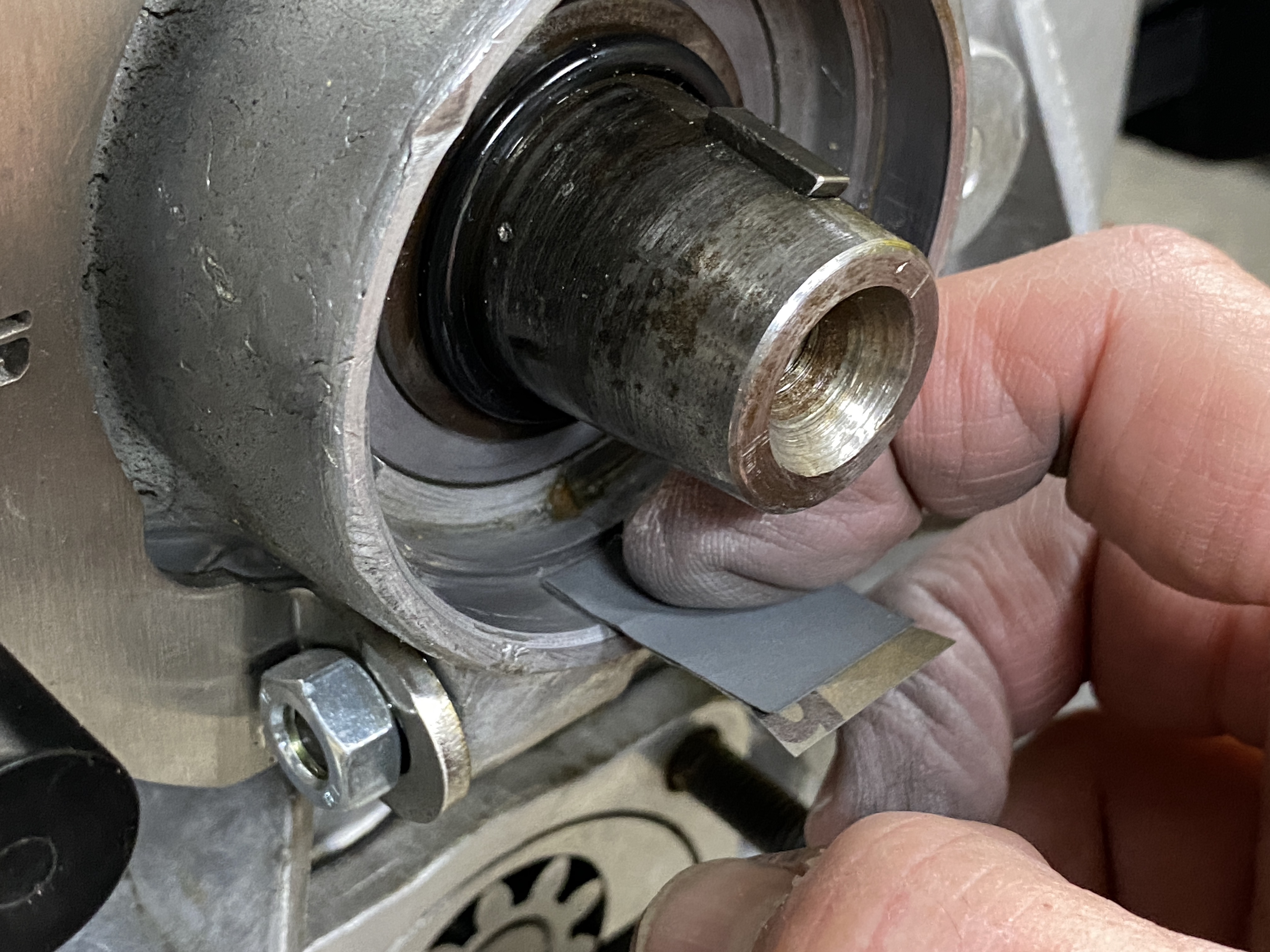

About 10 minutes with some 600 grit sand paper.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 28 2023, 07:59 PM
Post #6106


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

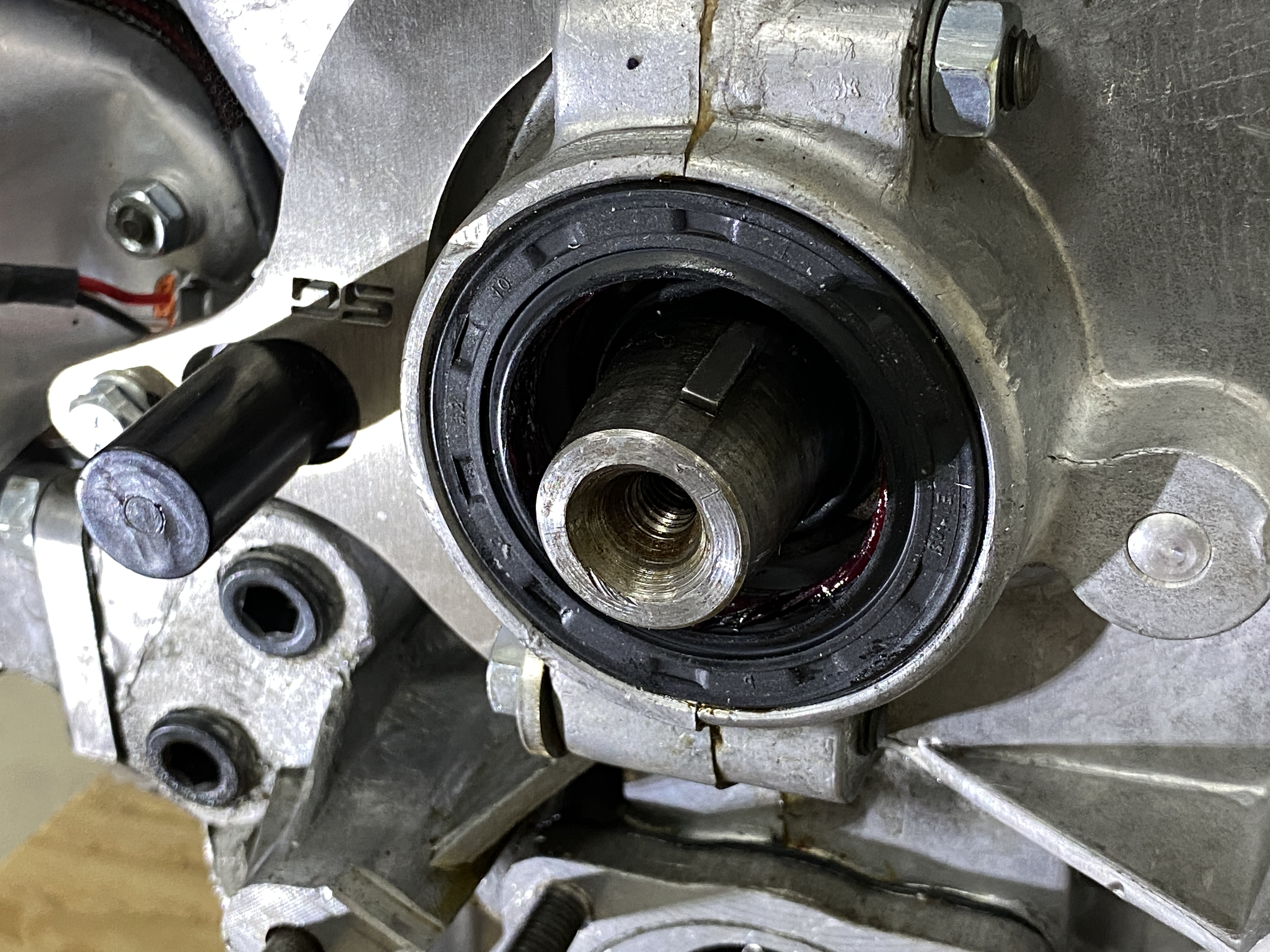

Now the recess is even across the seam.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Jan 29 2023, 07:48 AM
Post #6107


Advanced Member
****

Group: Members
Posts: 3,699
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States
QUOTE(bkrantz @ Jan 28 2023, 08:57 PM) *

The case seam in the seal recess is not even at the bottom. You can see a small raised edge, that is obvious by feel. The top is fine.


Axially?

I am not sure if I would be concerned with this. Did you get the oil pump straightened out?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 29 2023, 10:35 PM
Post #6108


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(930cabman @ Jan 29 2023, 06:48 AM) *

QUOTE(bkrantz @ Jan 28 2023, 08:57 PM) *

The case seam in the seal recess is not even at the bottom. You can see a small raised edge, that is obvious by feel. The top is fine.


Axially?

I am not sure if I would be concerned with this. Did you get the oil pump straightened out?


Yes, the offset was axial. I was concerned that the small step would keep the rubber on the outside of the seal from seating in full contact and could weep oil.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 29 2023, 10:37 PM
Post #6109


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

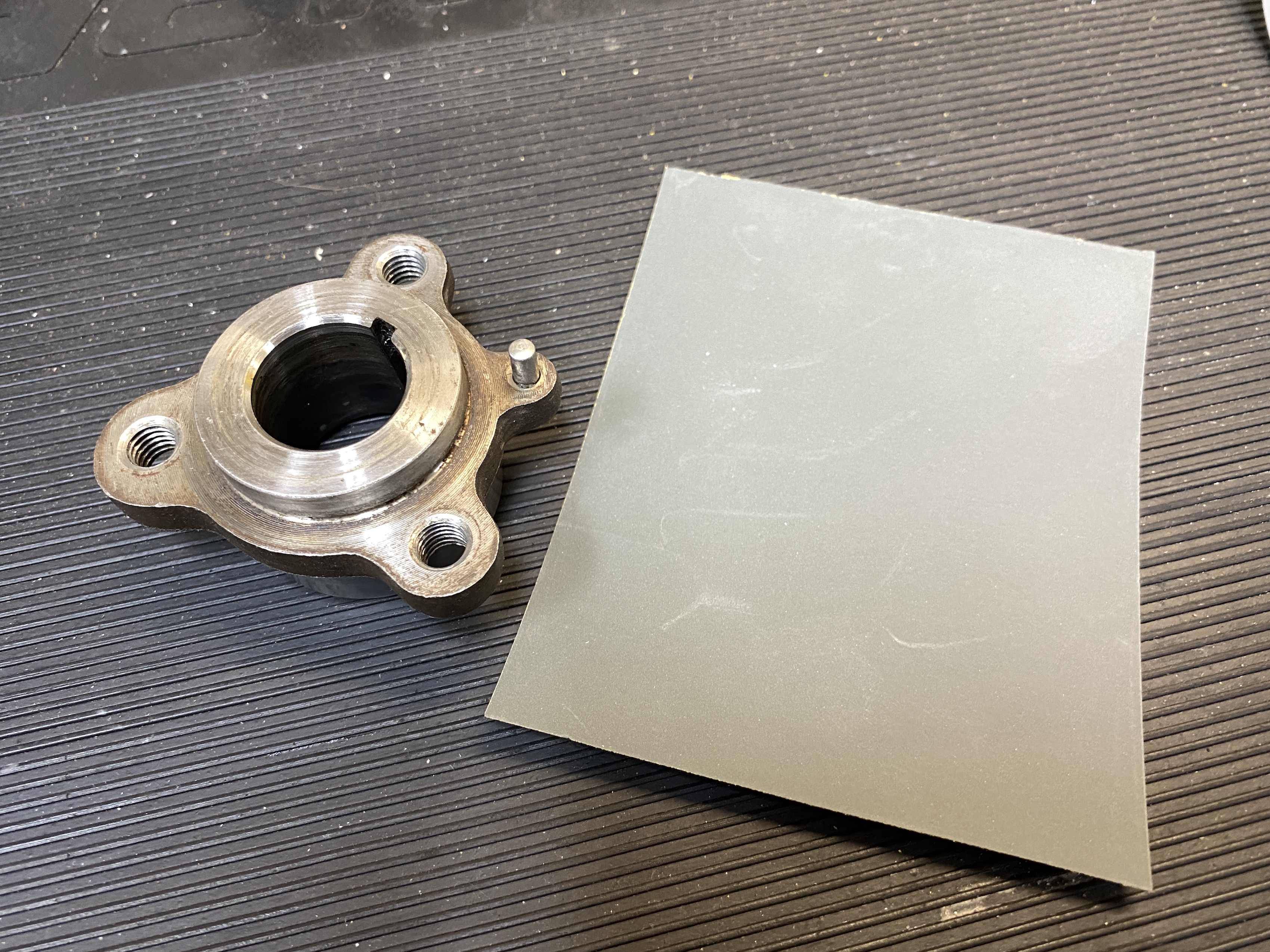

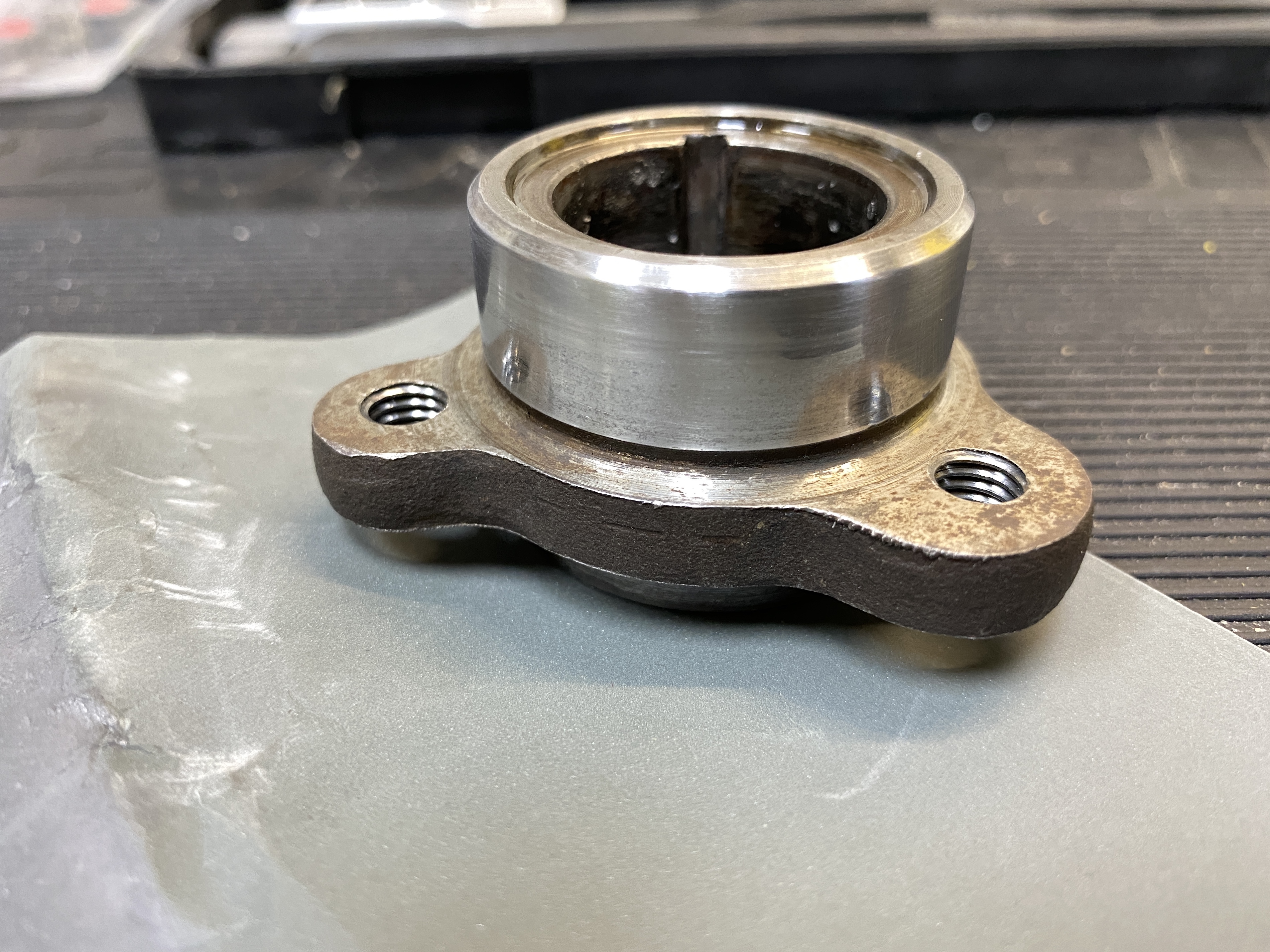

Time to start putting things back together. First I dressed the outside sealing surface of the fan hub with some 800 grit.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 29 2023, 10:37 PM
Post #6110


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Smooth.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 29 2023, 10:39 PM
Post #6111


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

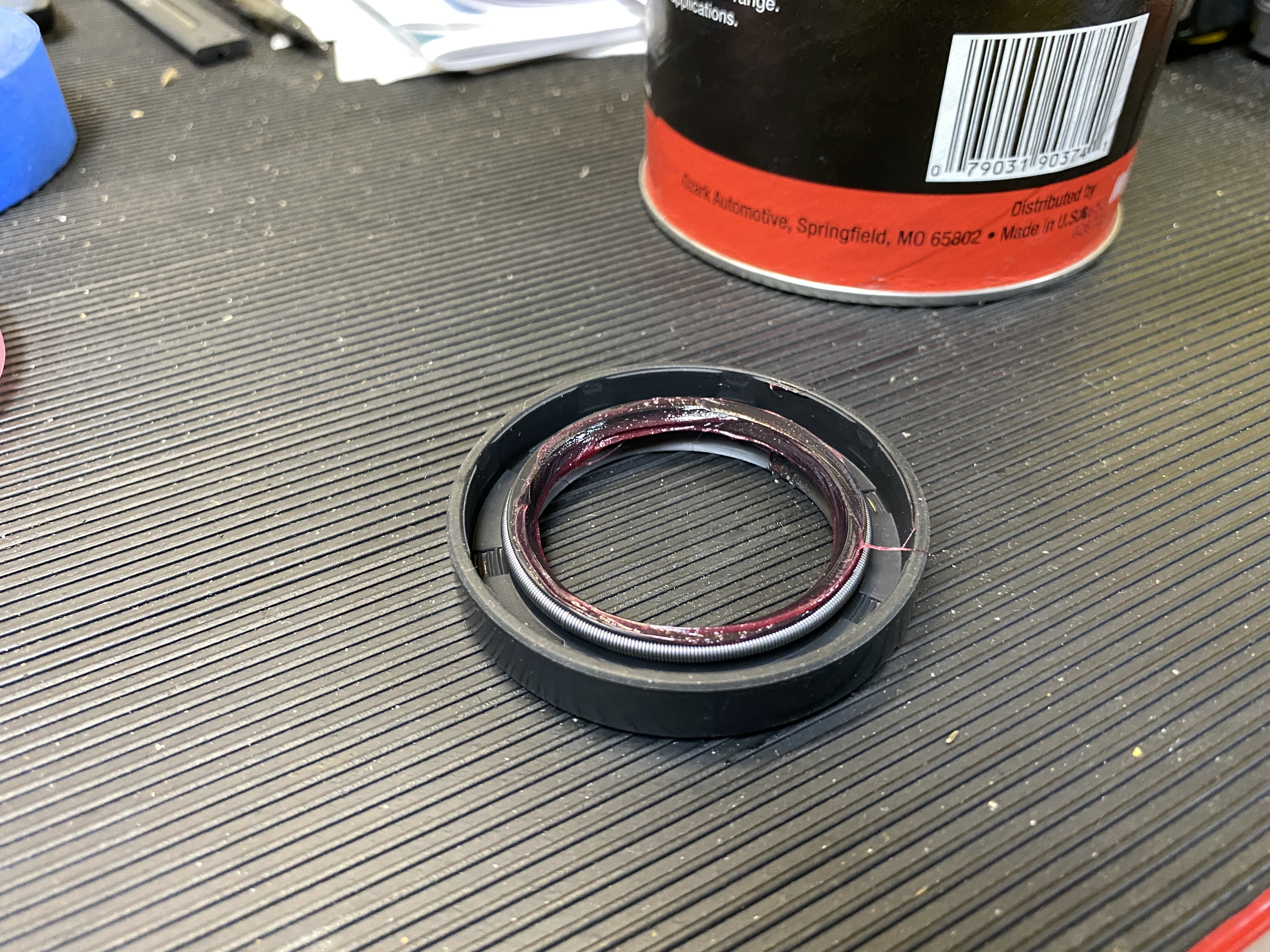

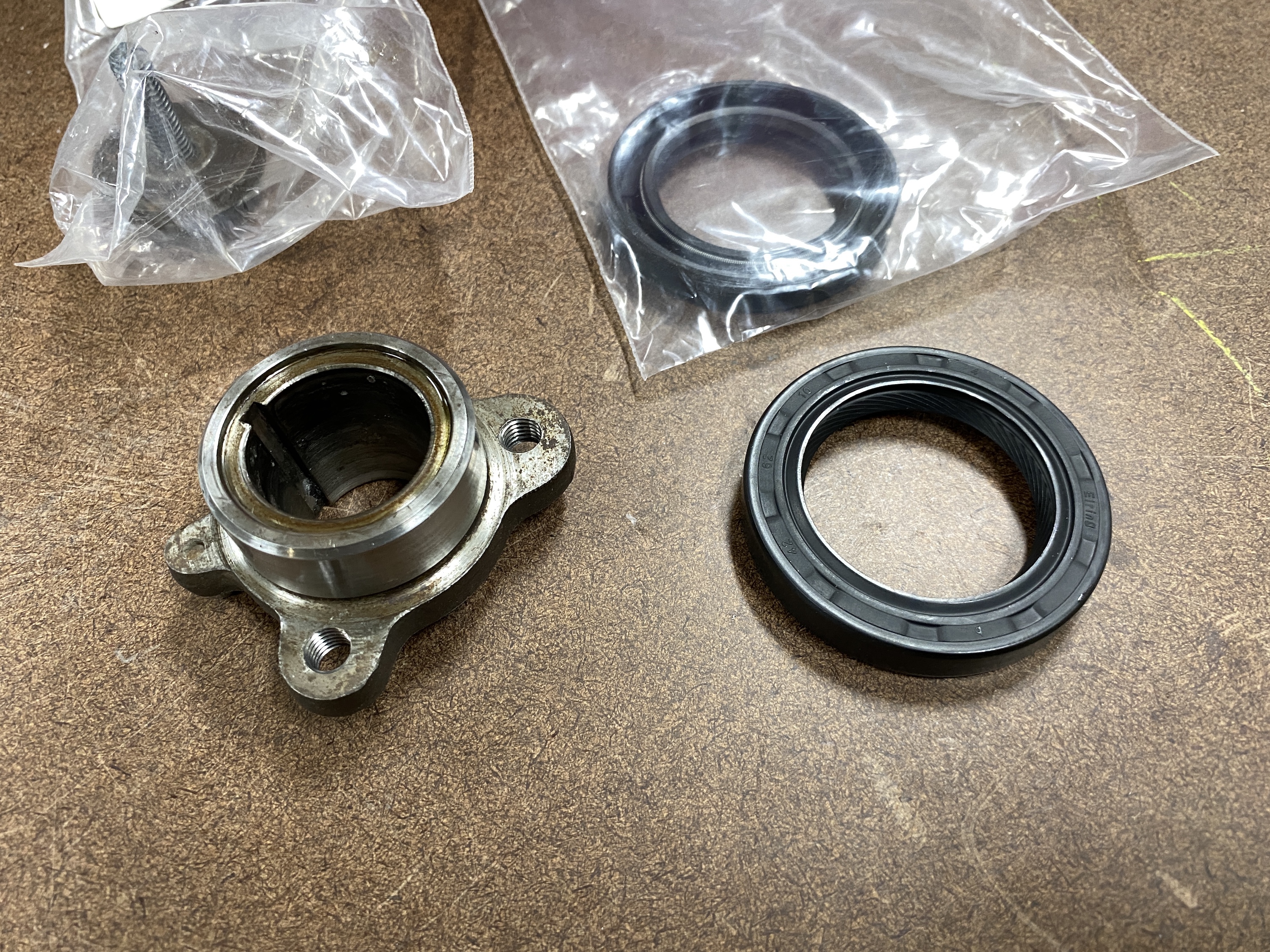

Then I got the seal ready to install, with a bit of grease on the sealing lip.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 29 2023, 10:40 PM
Post #6112


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Then a couple of dabs of gasket sealant in the seal recess on the case seams.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 29 2023, 10:41 PM
Post #6113


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

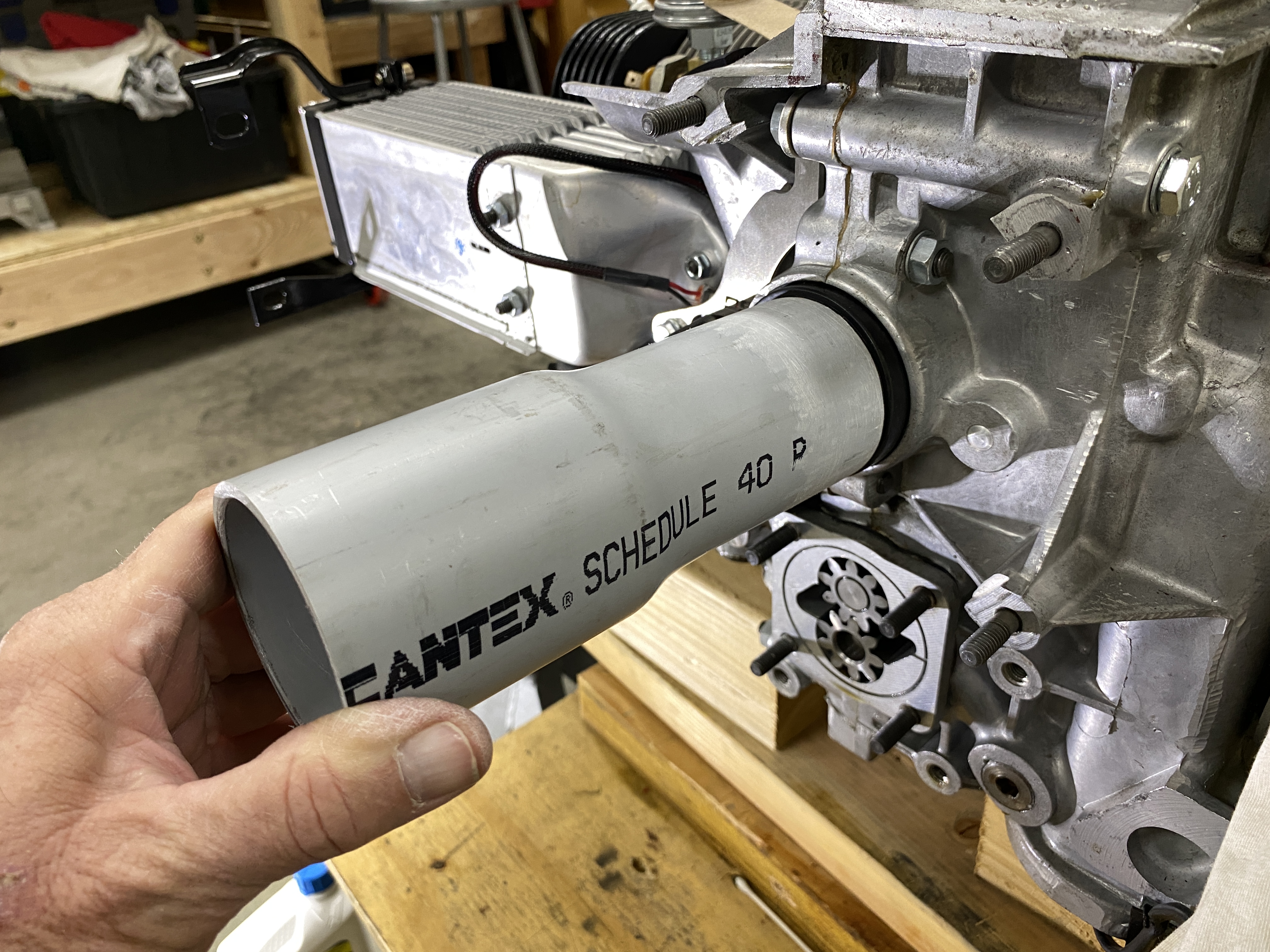

Turns out my PVC pipe wheel cap tool is the right size for seating the seal.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 29 2023, 10:43 PM
Post #6114


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Seal fully seated and bottomed out against the internal recess.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 29 2023, 10:43 PM
Post #6115


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

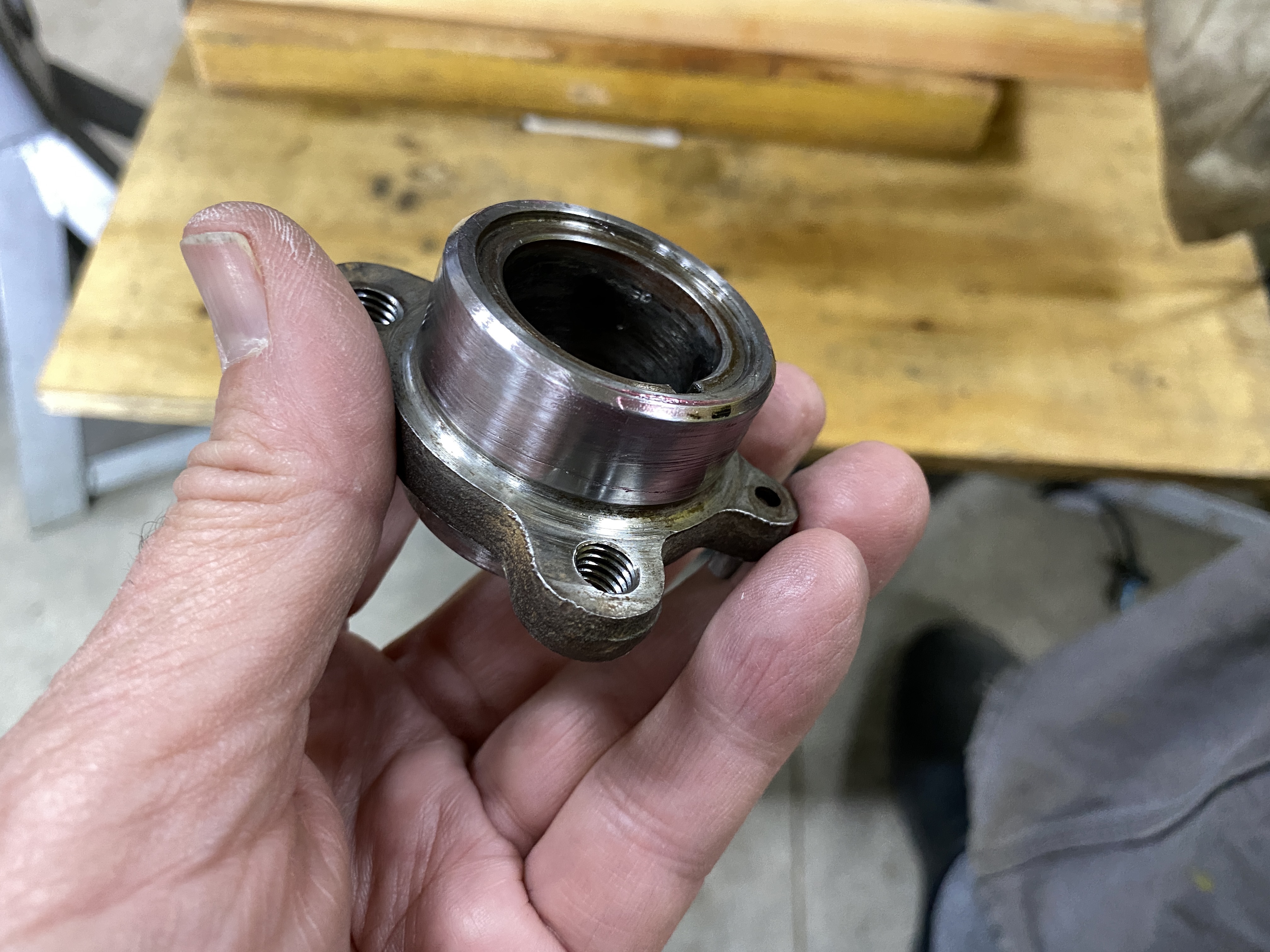

Hub with a bit of grease.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 29 2023, 10:47 PM
Post #6116


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

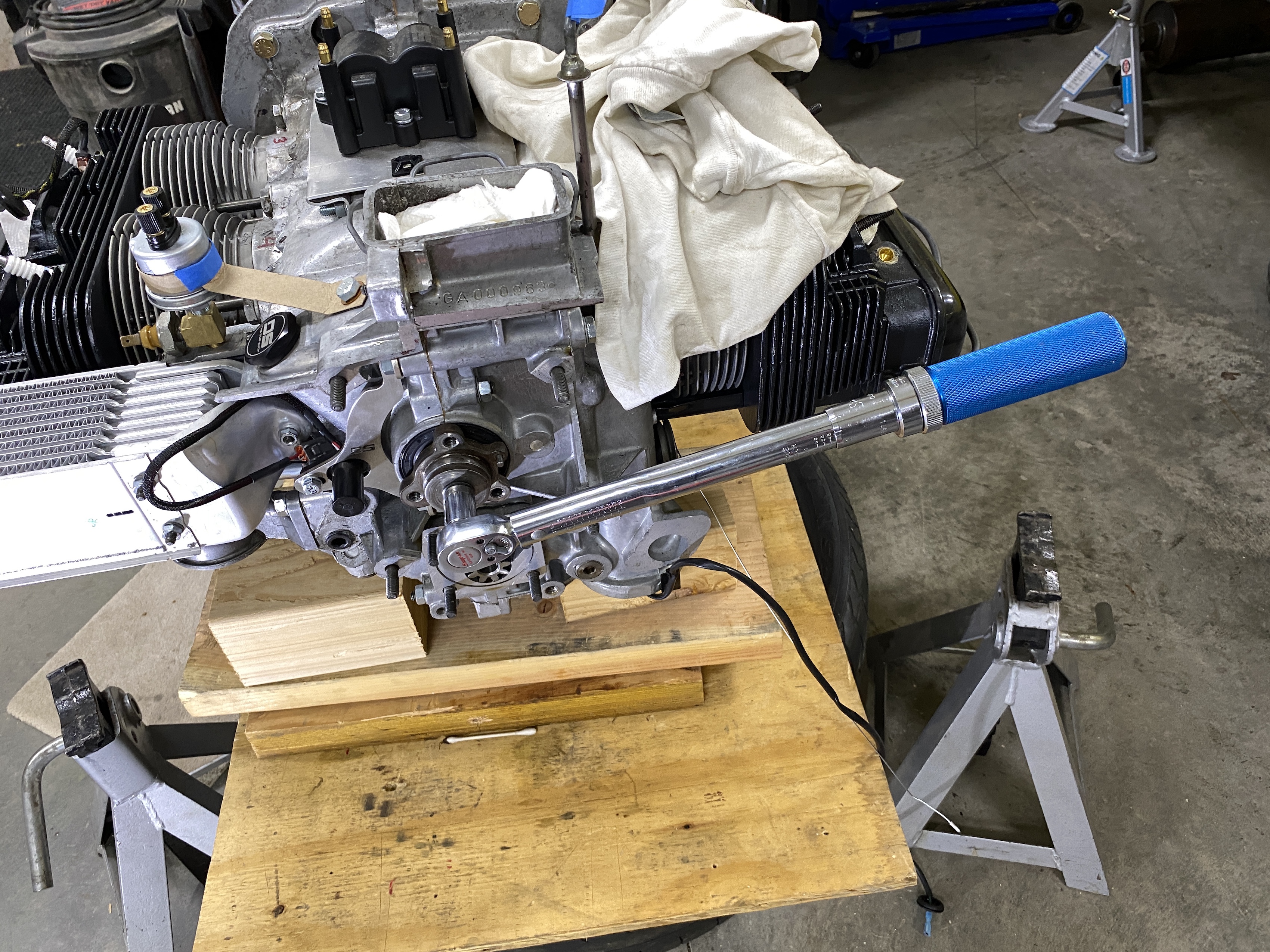

Torquing the hub retaining nut to 3.2 m-kg.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 29 2023, 10:48 PM
Post #6117


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

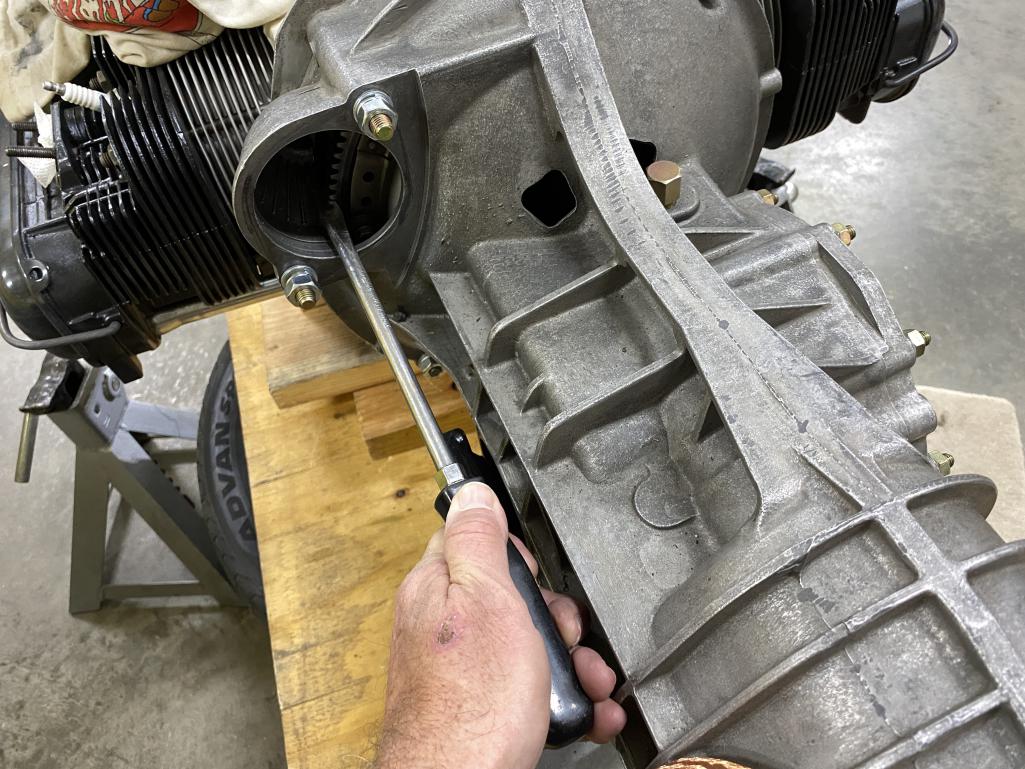

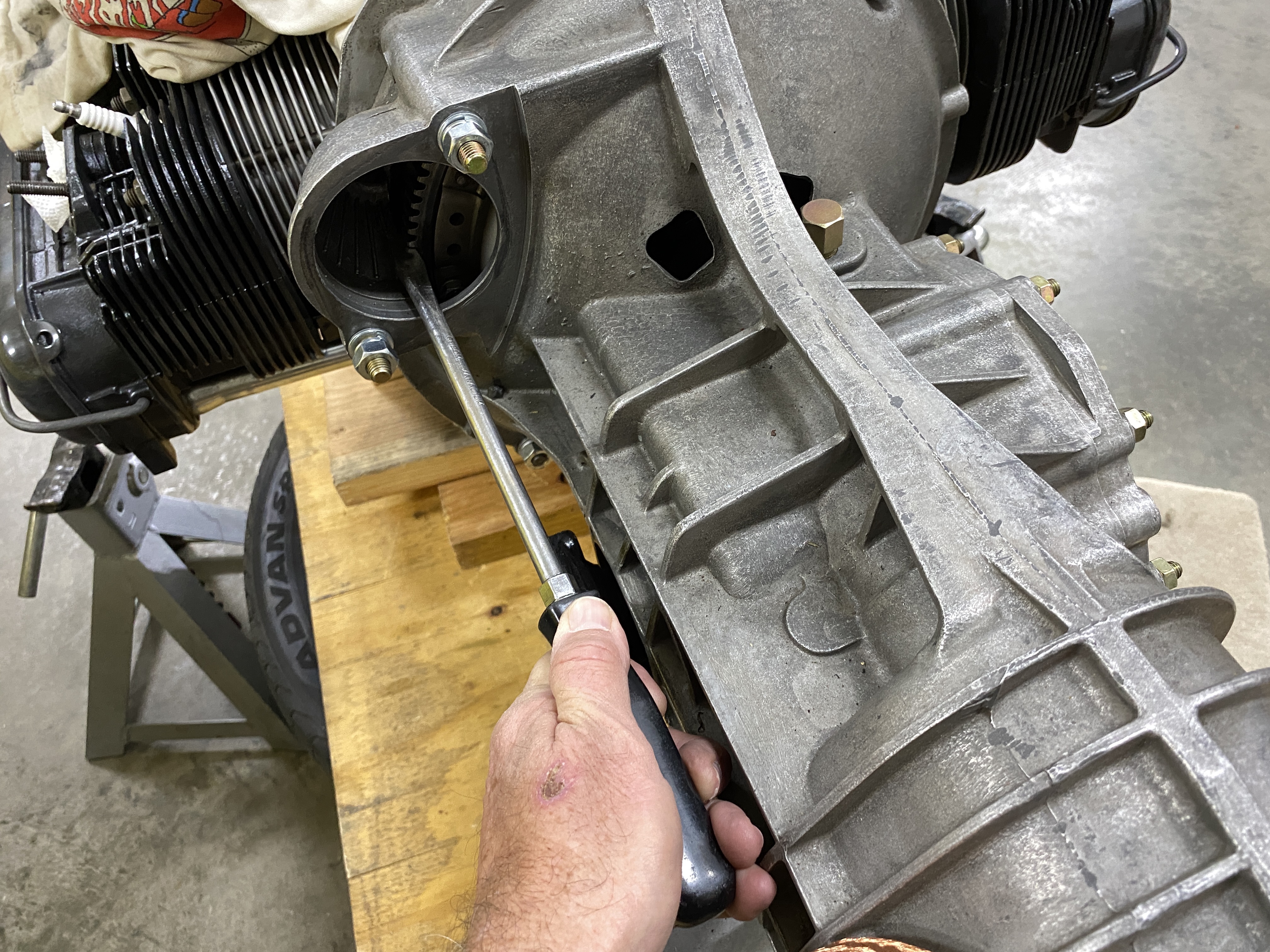

With a big screwdriver in the flywheel teeth to hold the crank in place.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 29 2023, 10:49 PM
Post #6118


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

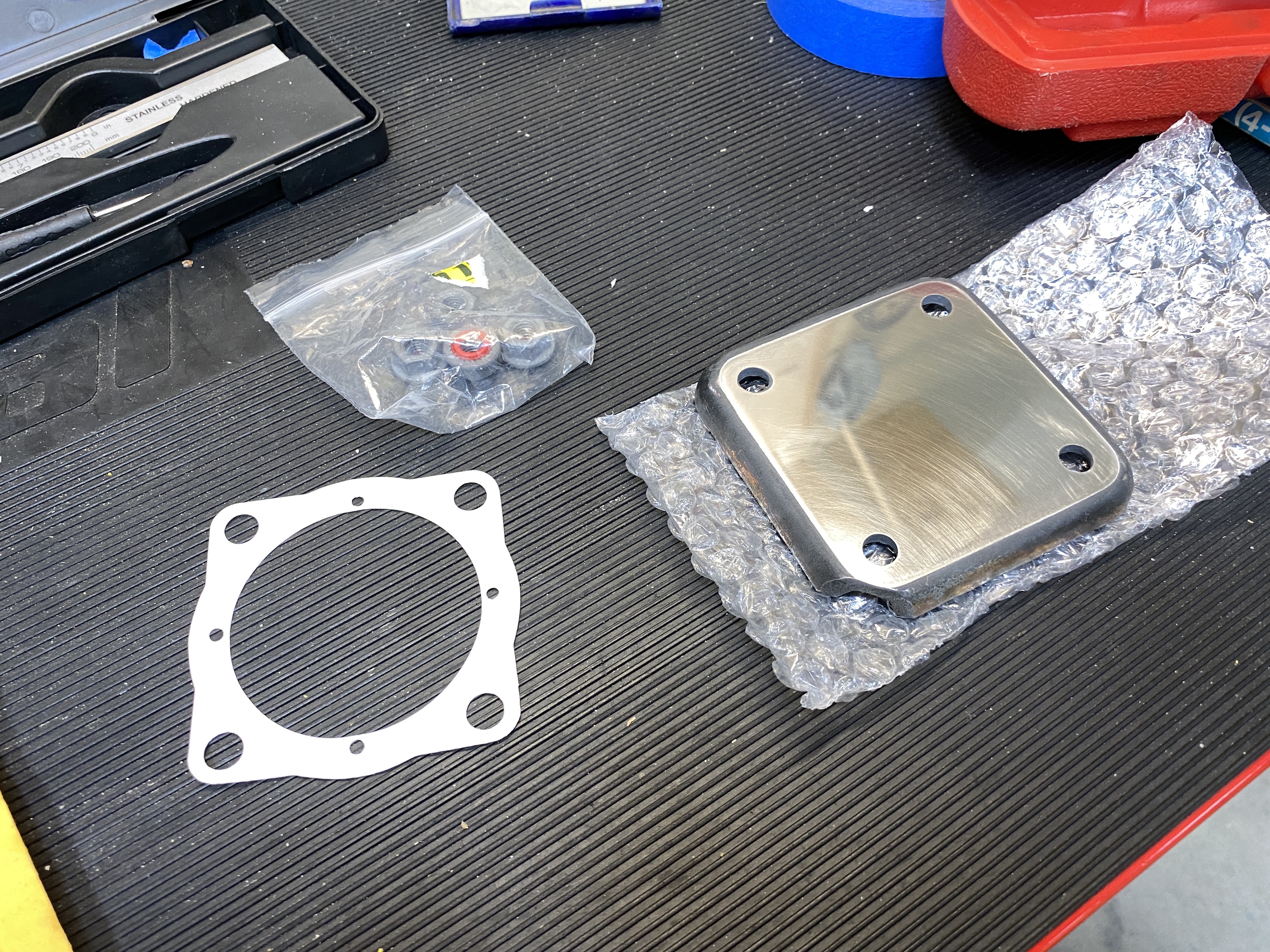

Next the oil pump cover.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 29 2023, 10:50 PM
Post #6119


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

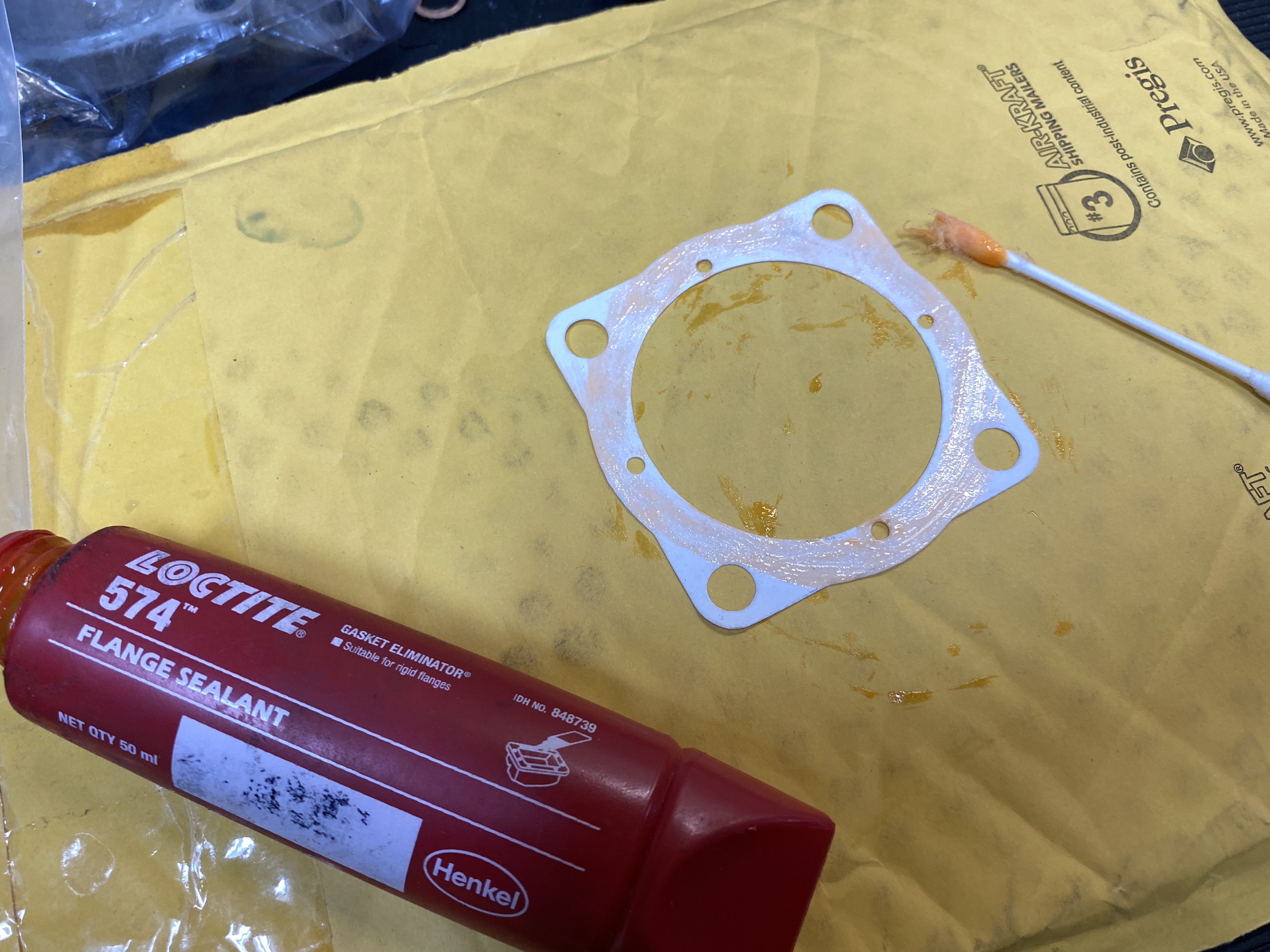

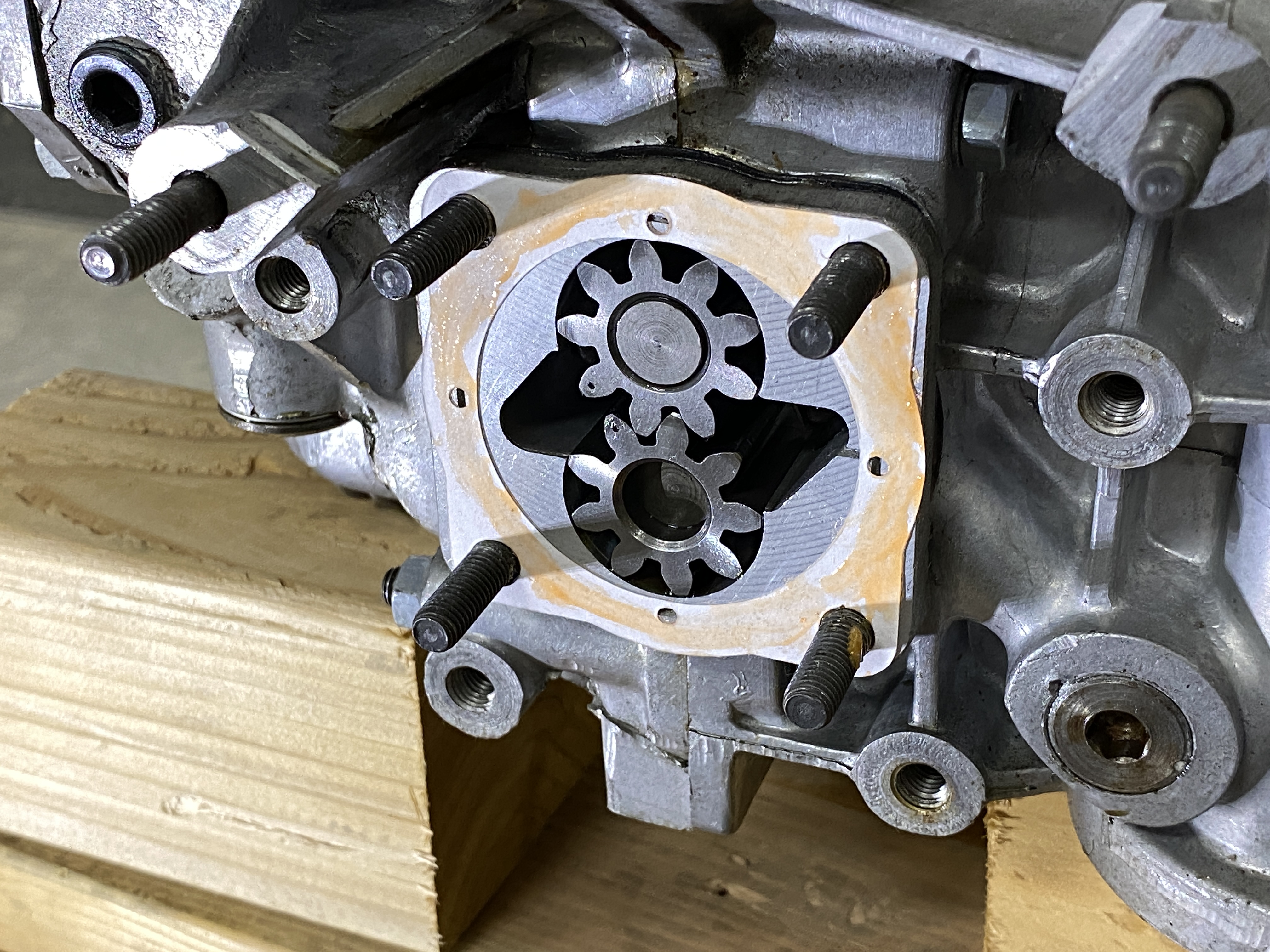

A thin smear of sealant on the gasket.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 29 2023, 10:51 PM
Post #6120


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

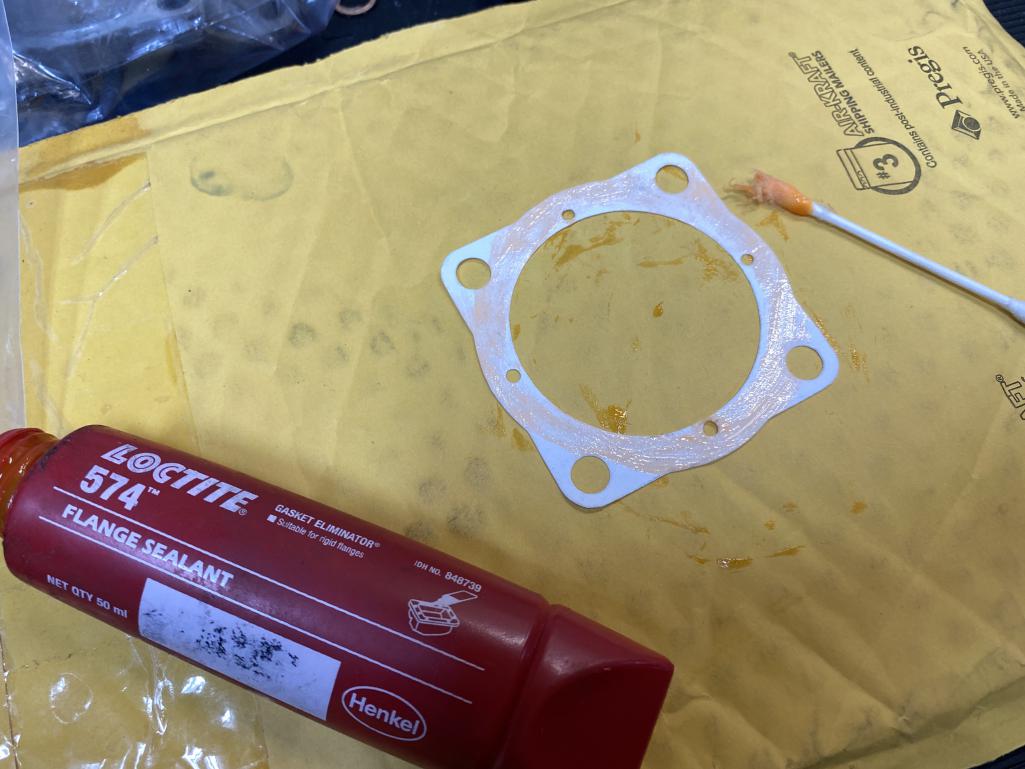

Both sides.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
