Enough engine (and exhaust) for today.

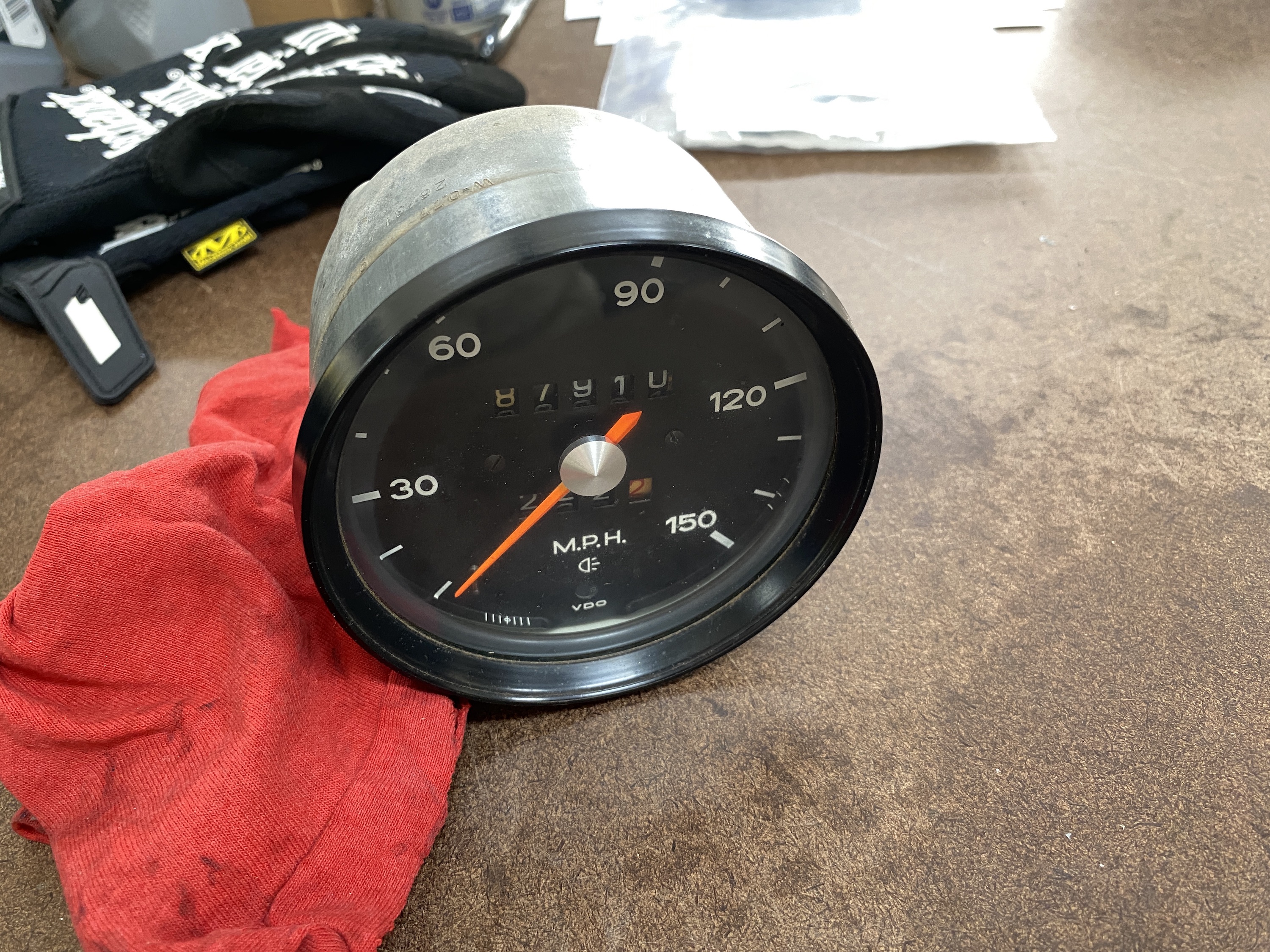

A whole new task: the speedometer. Both odometers did not work, and the speed reads about 5-6 mph too high.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:35 PM
Post #6322


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

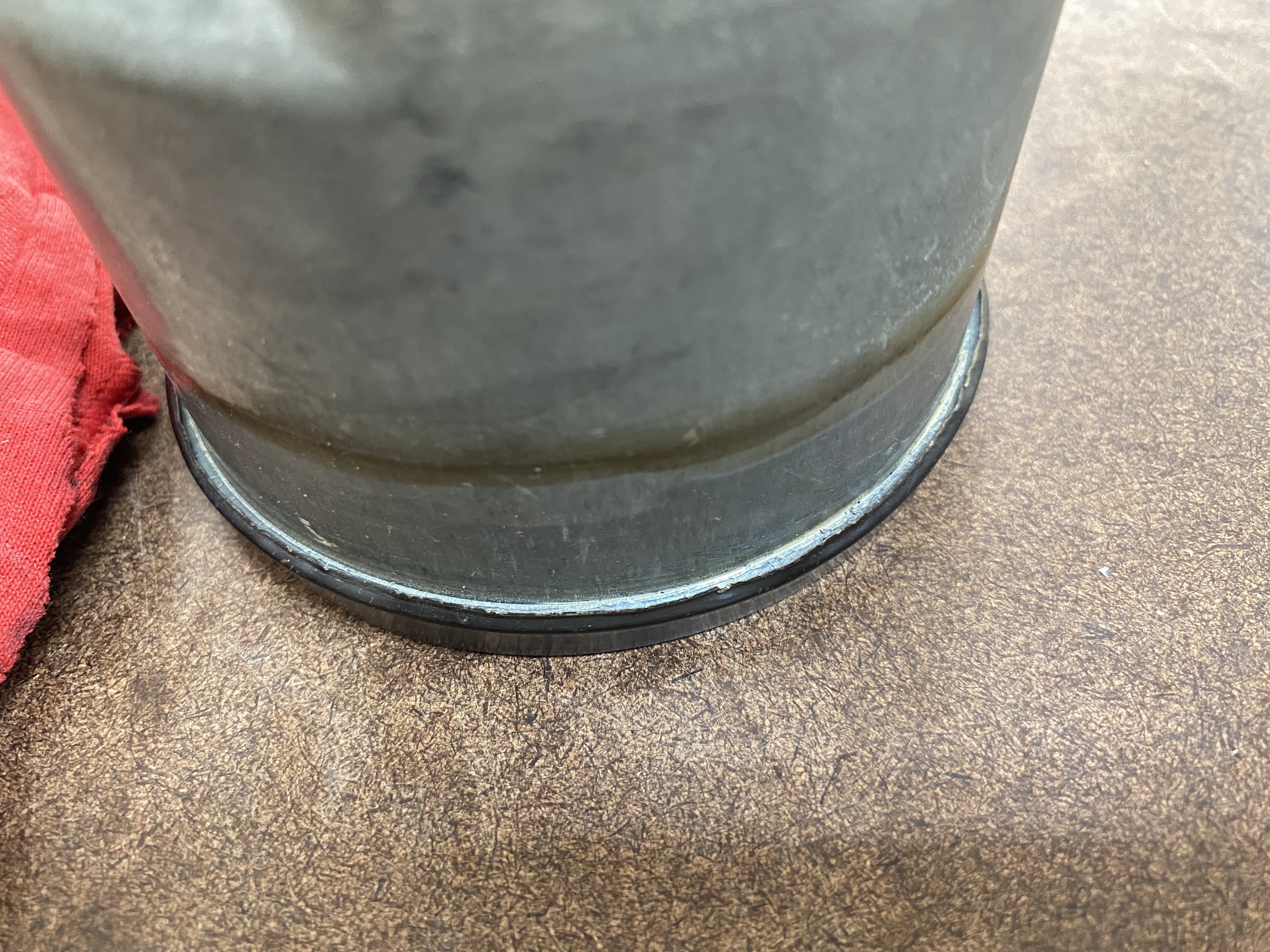

Somebody has had this open before! The retaining ring edge looks a bit rough.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:36 PM
Post #6323


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

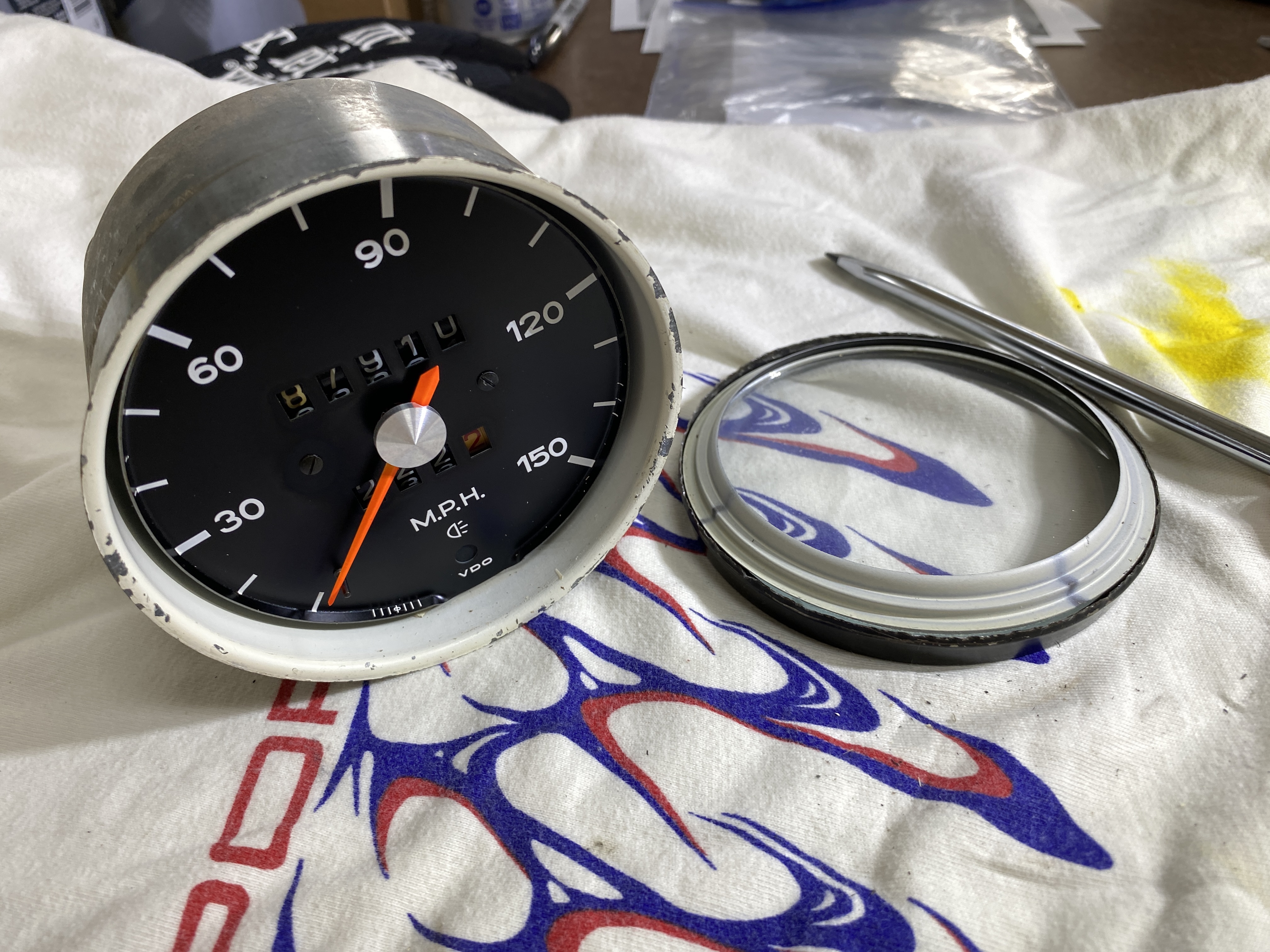

I did the usual gentle prying round and round, until the ring came off.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:37 PM
Post #6324


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

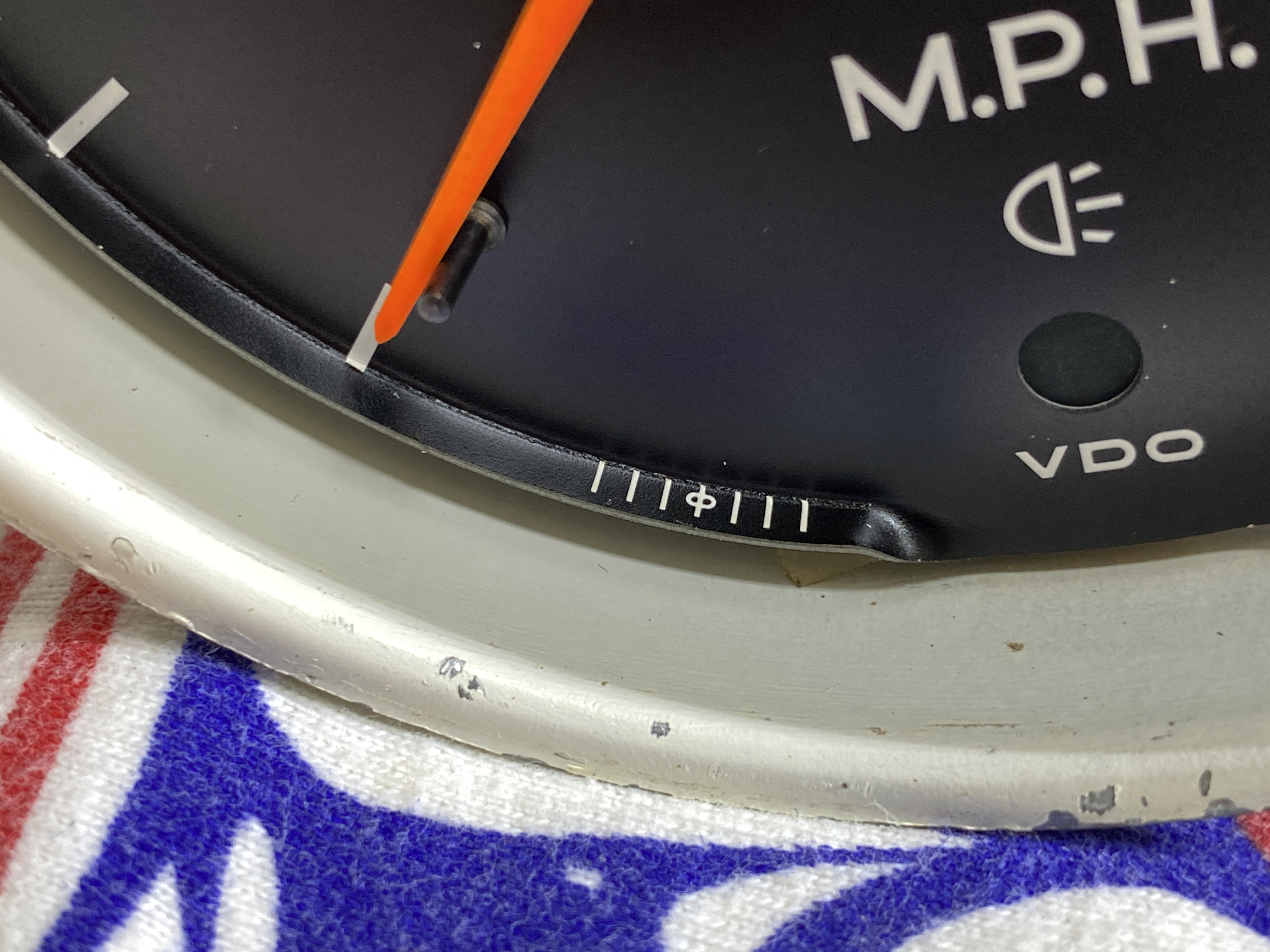

I did notice these marks on the dial. Reference marks for calibrating the needle?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:38 PM
Post #6325


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

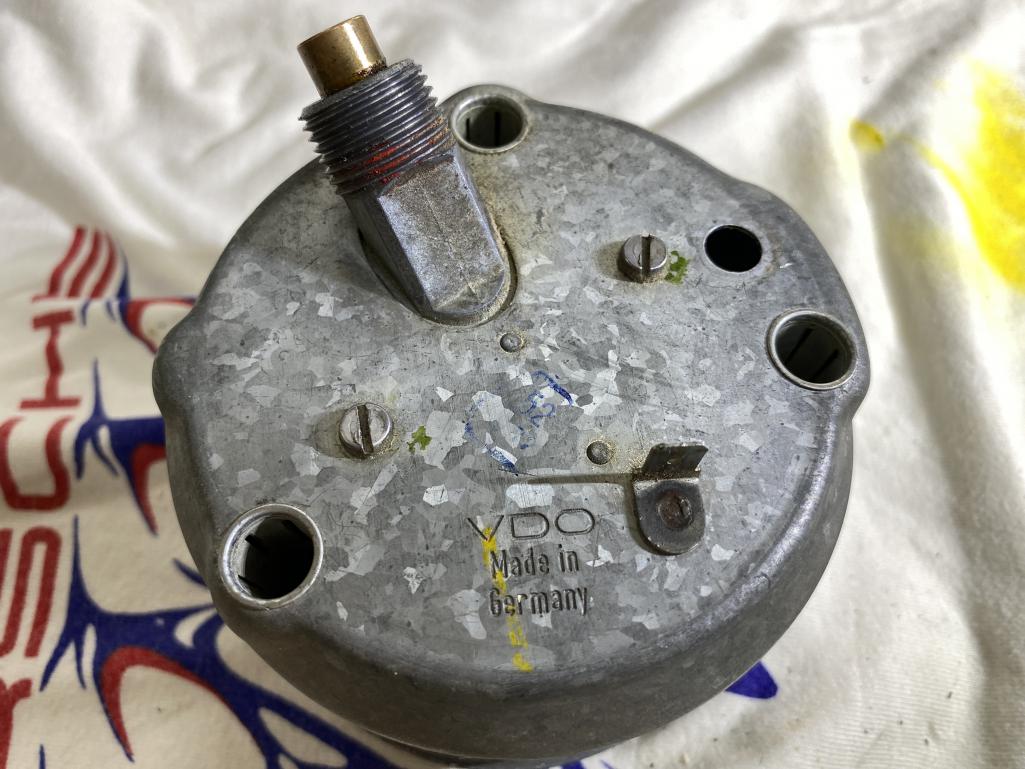

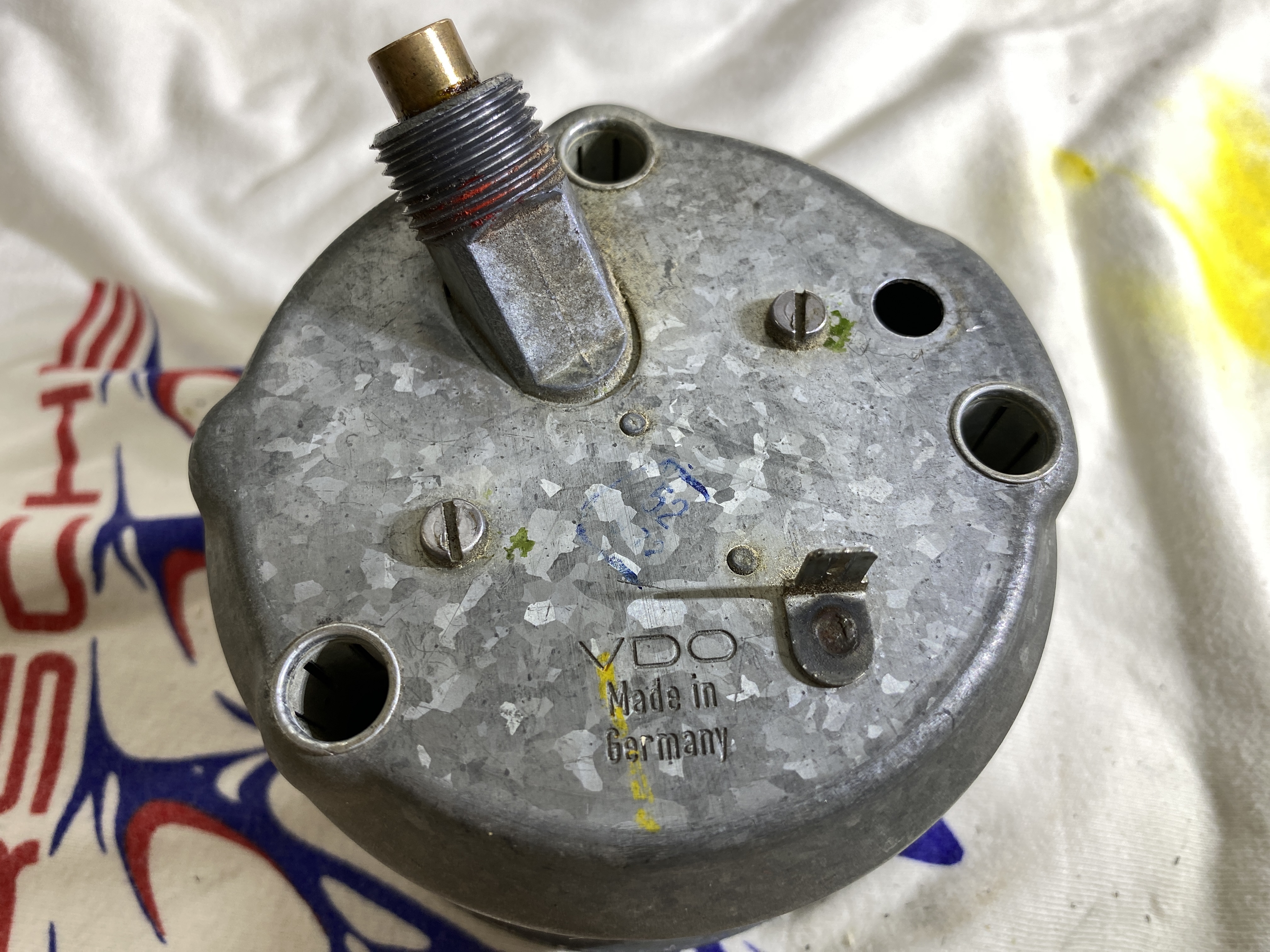

Remove two screws on the back...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:39 PM
Post #6326


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

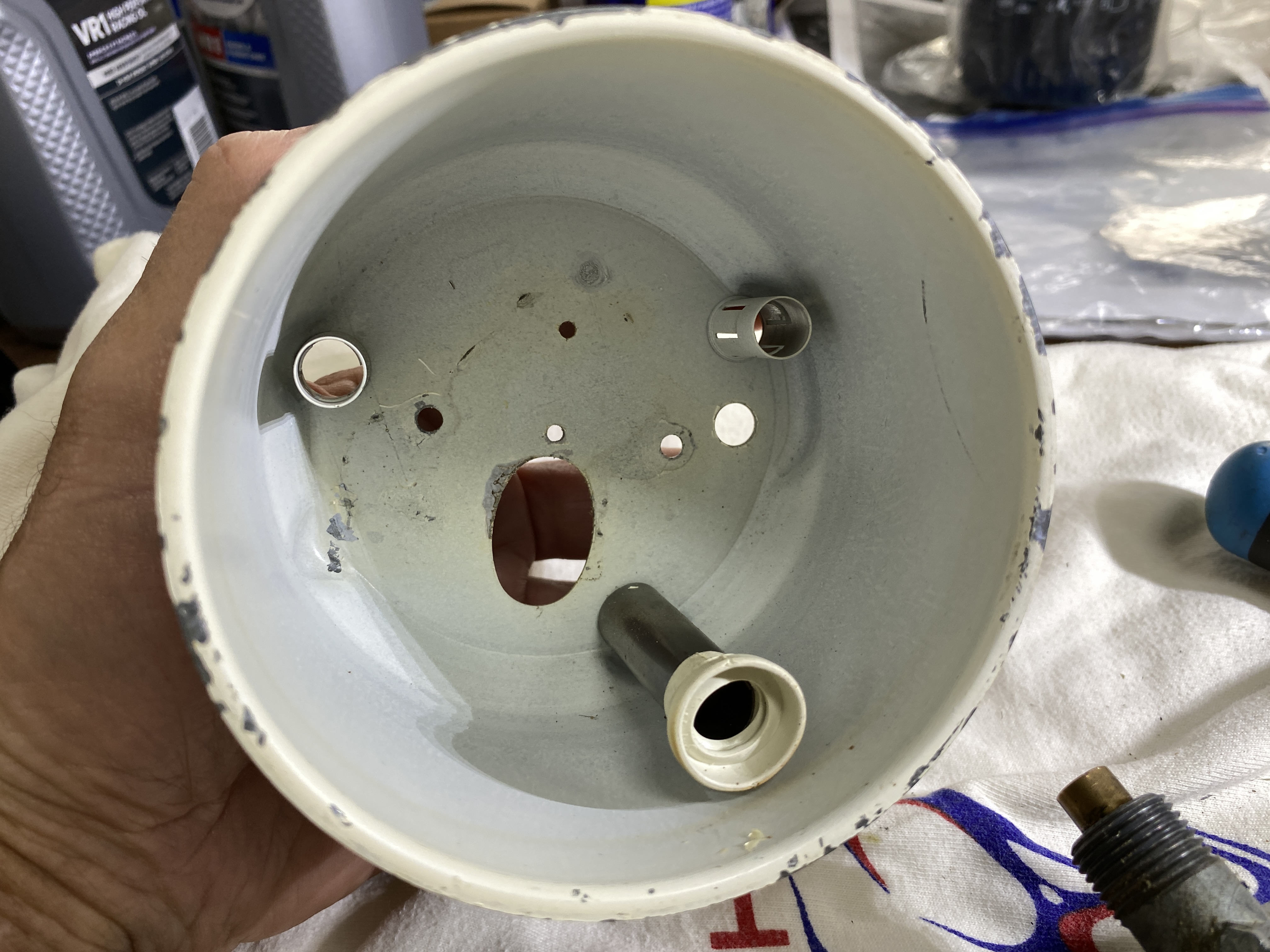

And out comes the gauge guts.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:41 PM
Post #6327


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

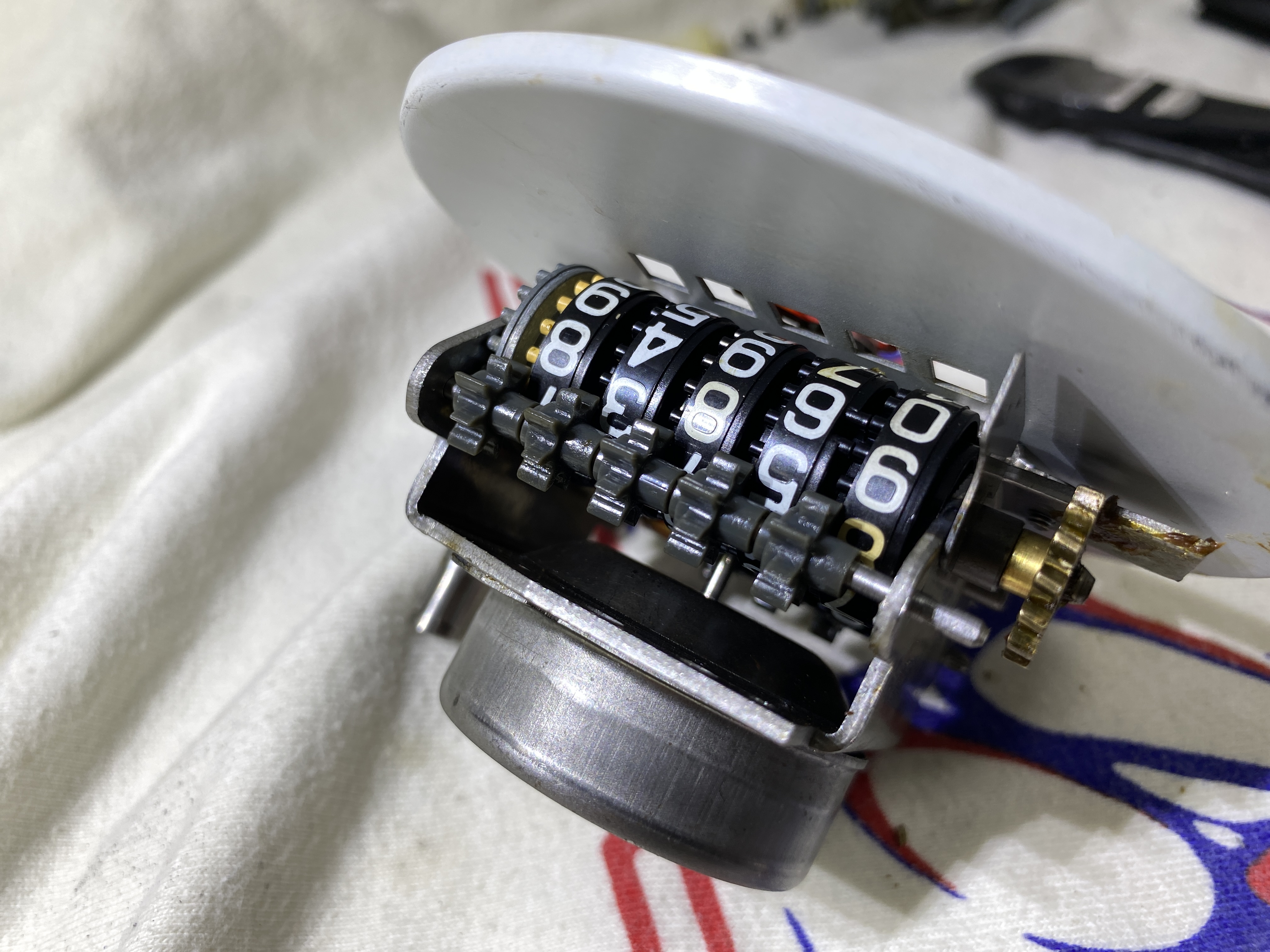

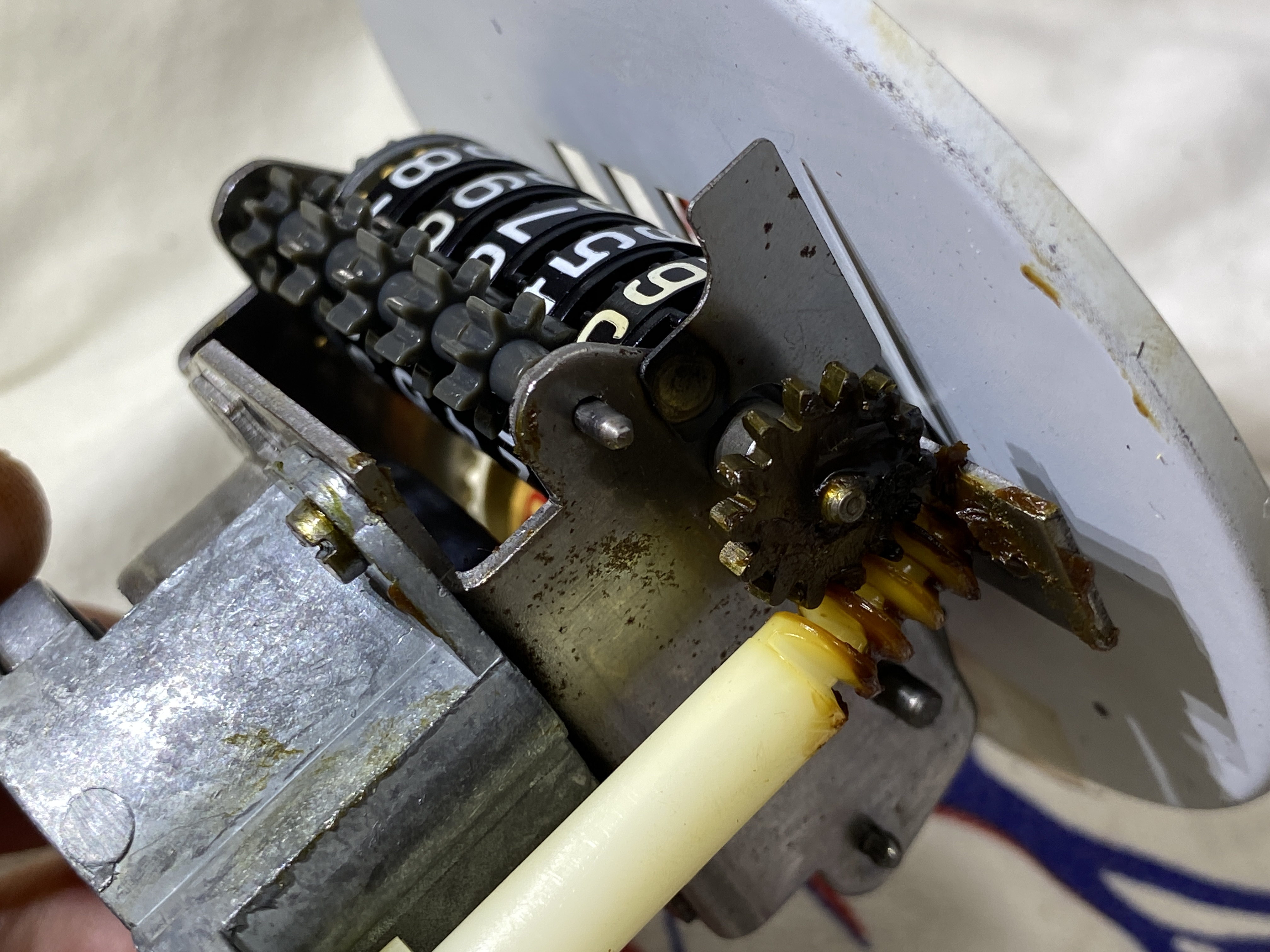

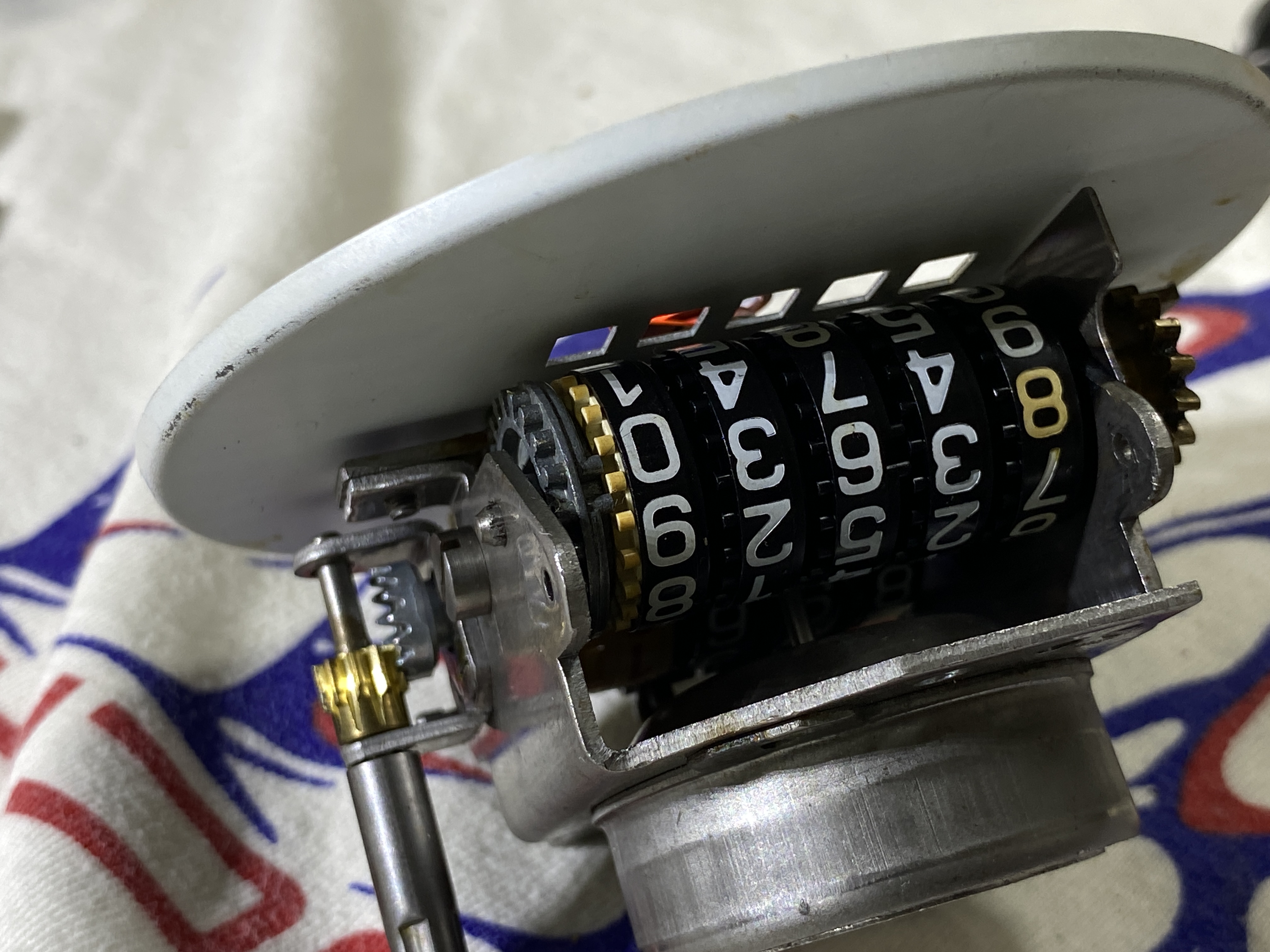

My odometer had the typical problem: the drive comes into the gear on the left side of the upper (main odometer) shaft.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:43 PM
Post #6328


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

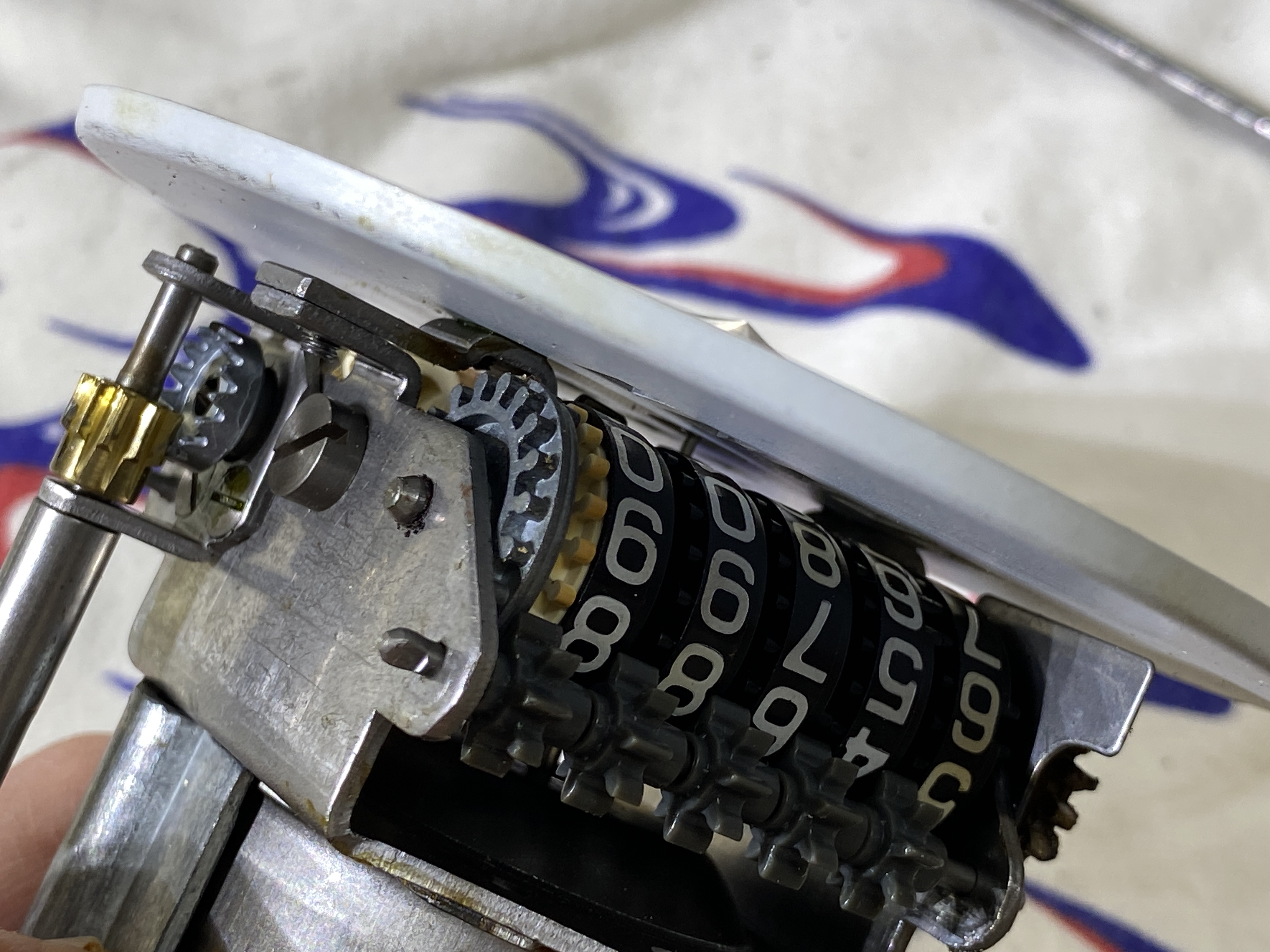

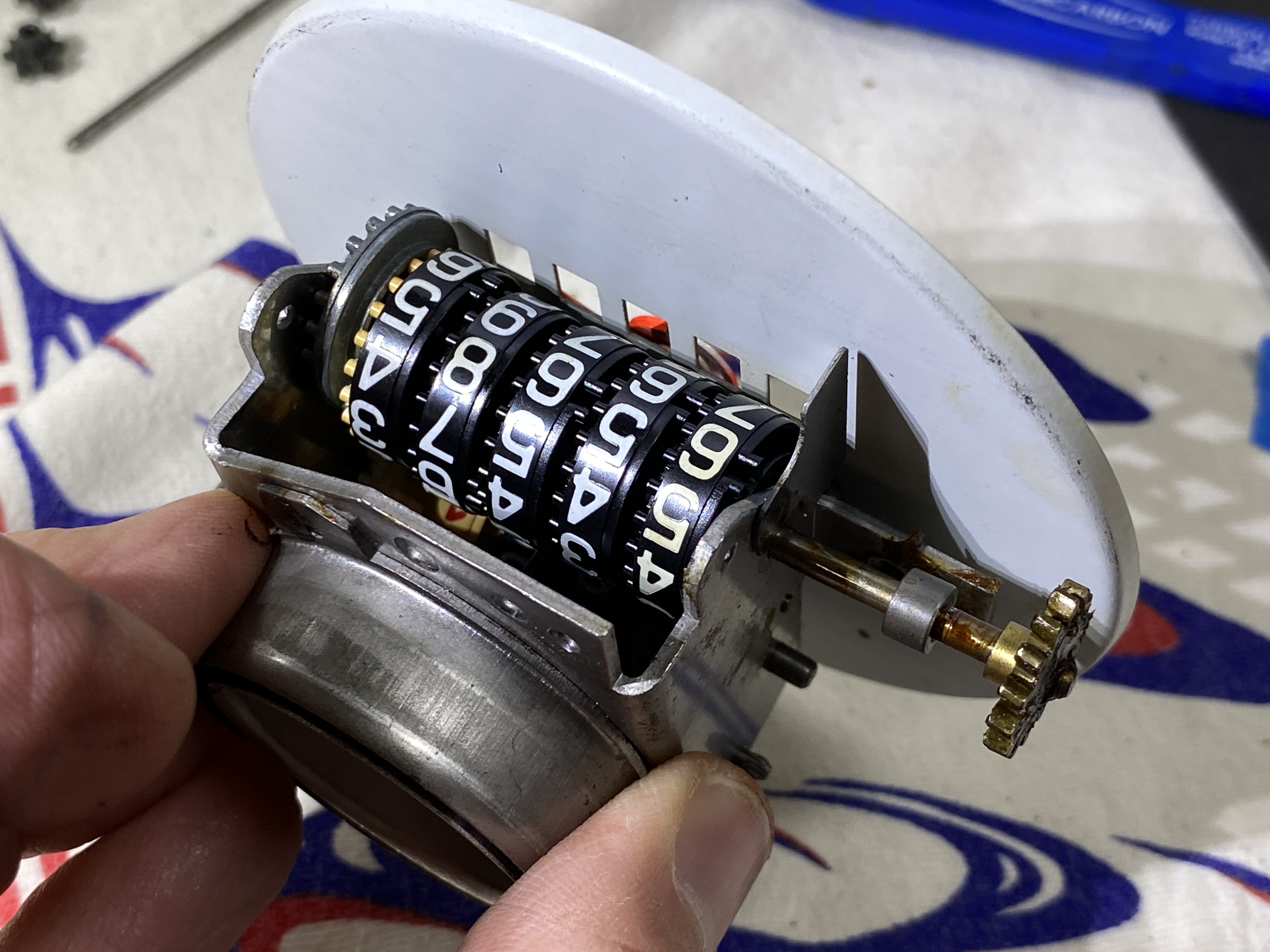

And eventually reaches the pot metal gear on the right end of the number wheels. The metal wheel then drives the ones-digit number wheel, as well as the trip odometer. But the metal gear lost grip on the shaft and does not turn as the shift is driven.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:45 PM
Post #6329


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

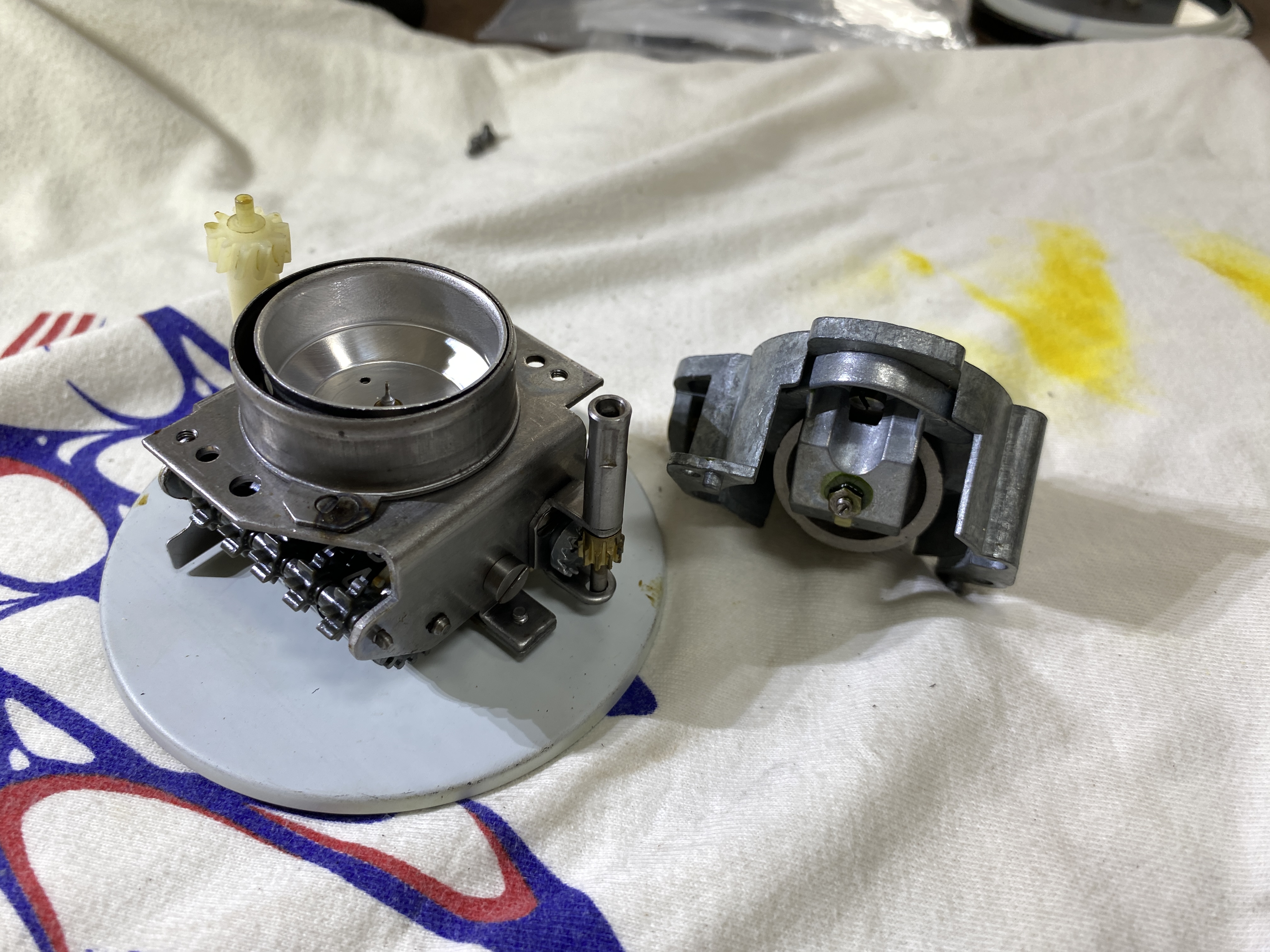

For access, I removed the speedometer drive module. Just 2 more screws.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:47 PM
Post #6330


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Then I removed the secondary shaft and the small gears that drive the number wheels. That shaft was crimped on both ends, so it took some work to reduce the crimp on one end.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:48 PM
Post #6331


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

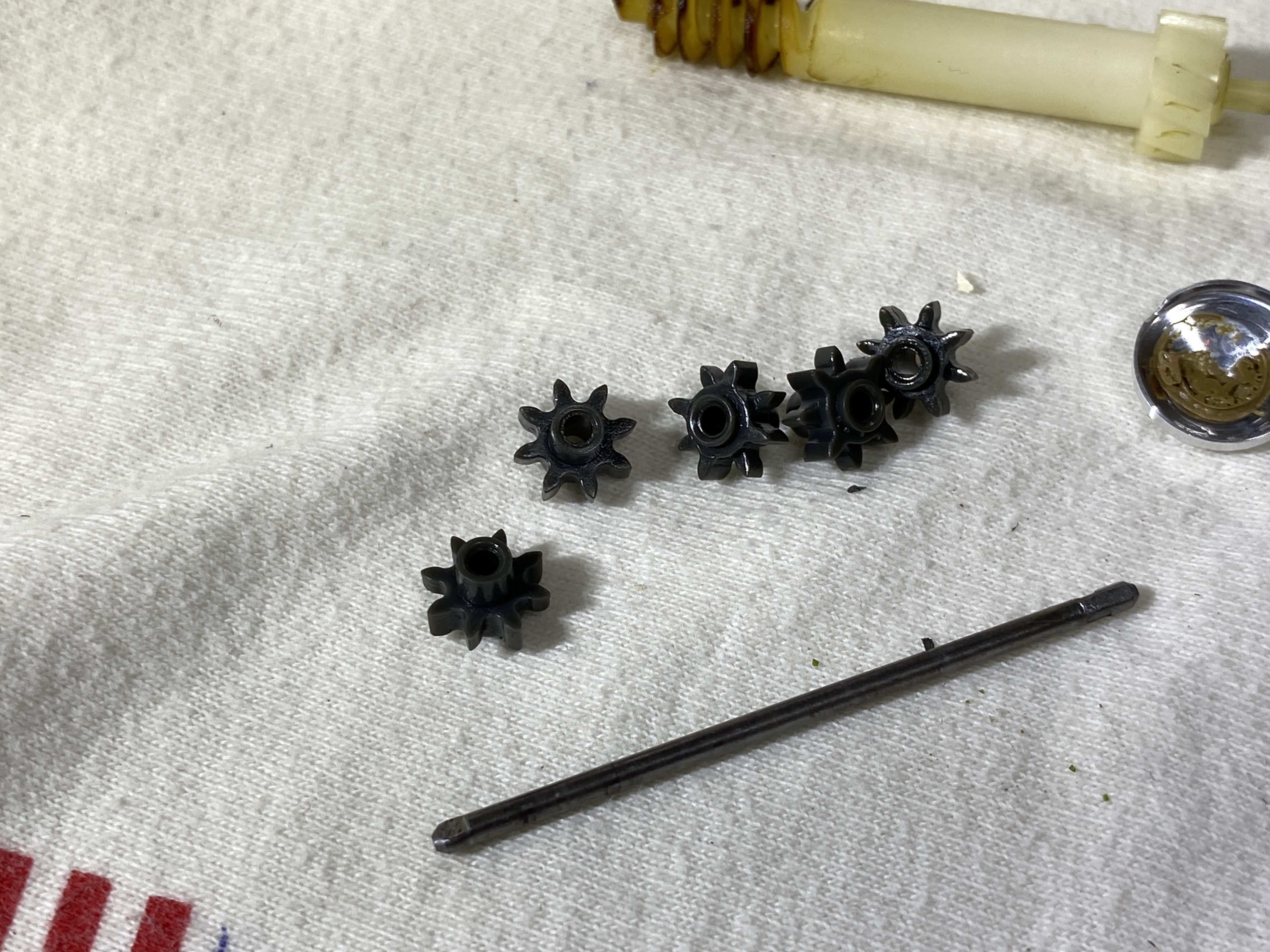

Secondary shaft and small gears.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:50 PM
Post #6332


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
The main shaft pulled out easy, since the metal gear had no grip.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:51 PM
Post #6333


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

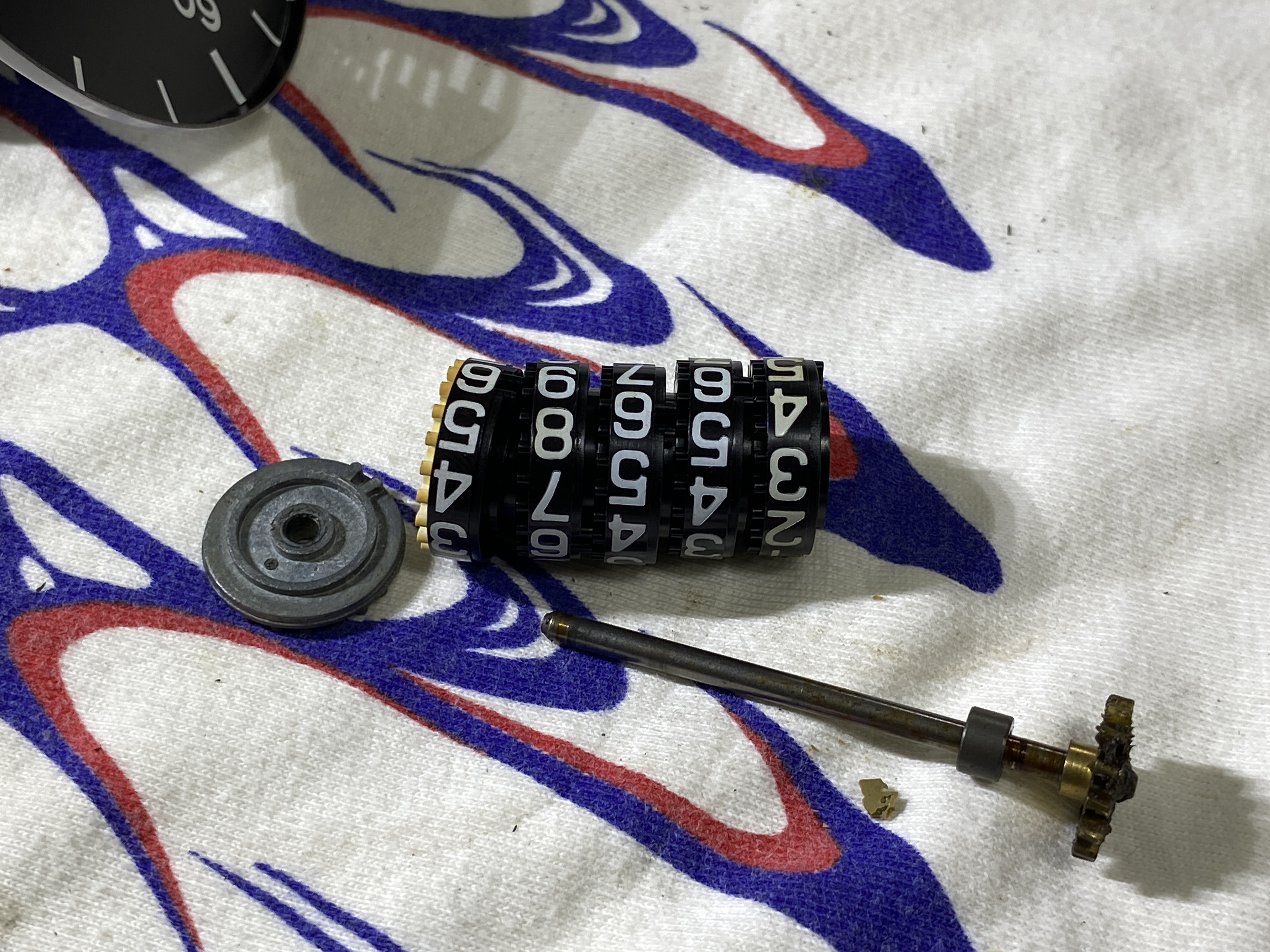

All the main odometer parts.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:52 PM
Post #6334


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

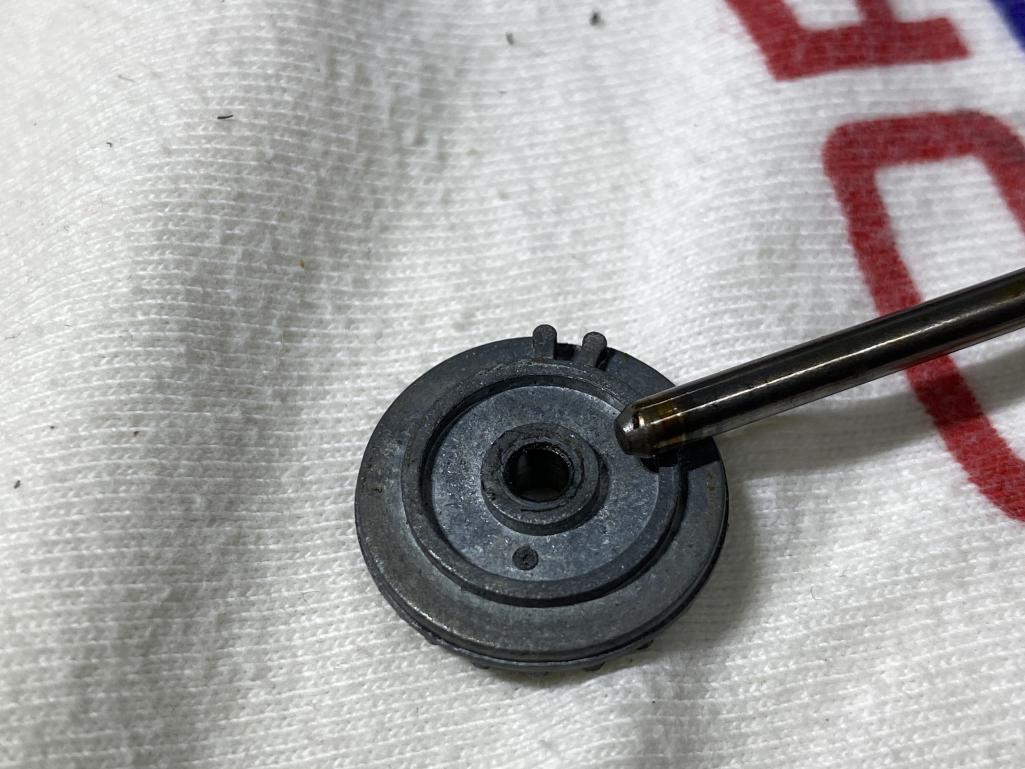

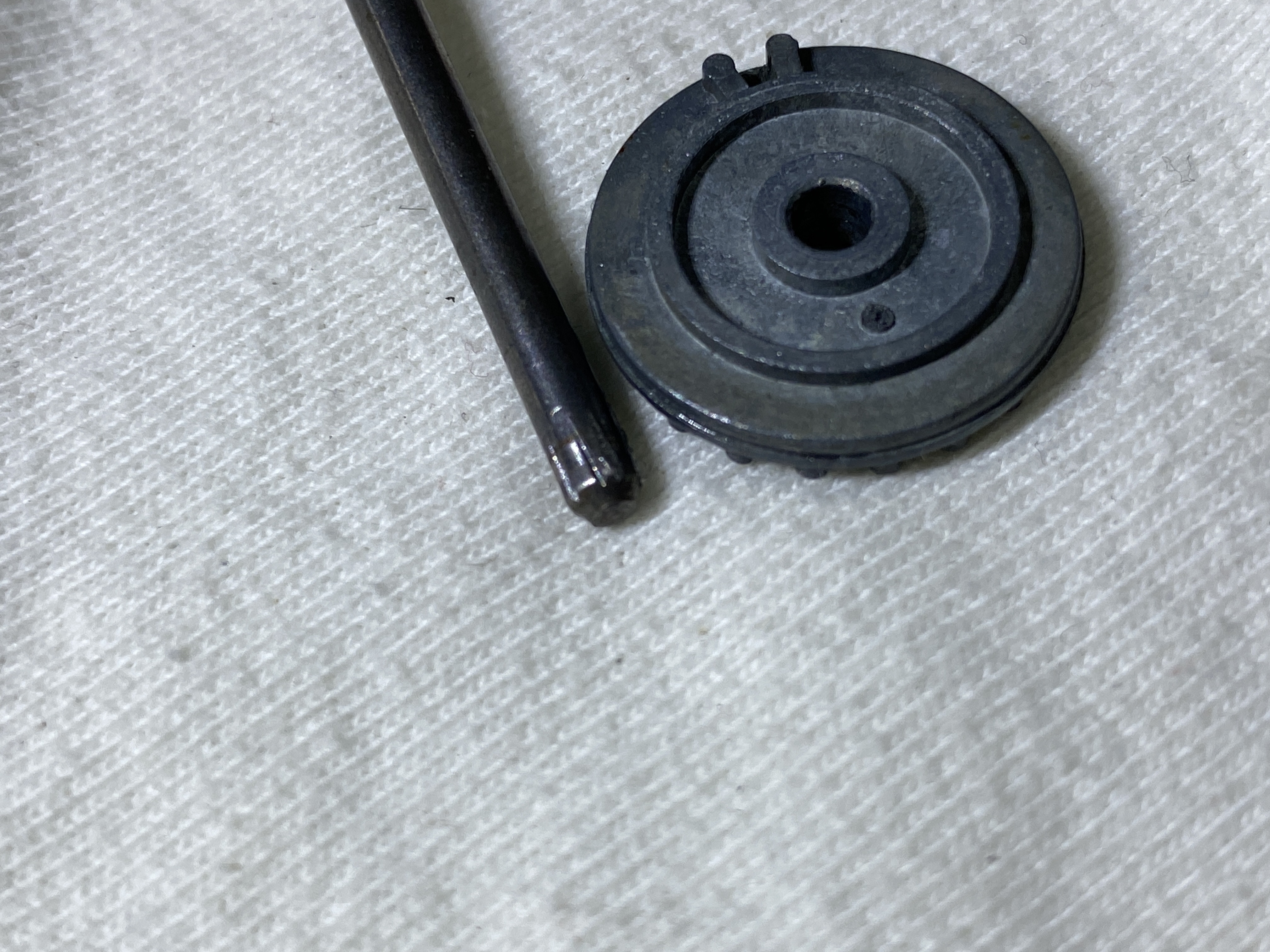

Here's the end of the shaft with marks from spinning in the gear.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:57 PM
Post #6335


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
To make a "permanent" grip and fix, I first used my side-cutters to make some ridges on the end of the shaft.

BTW, I kinda over did the ridges, and had to sand the shaft down a bit to fit through the hole in the side plate.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:58 PM
Post #6336


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

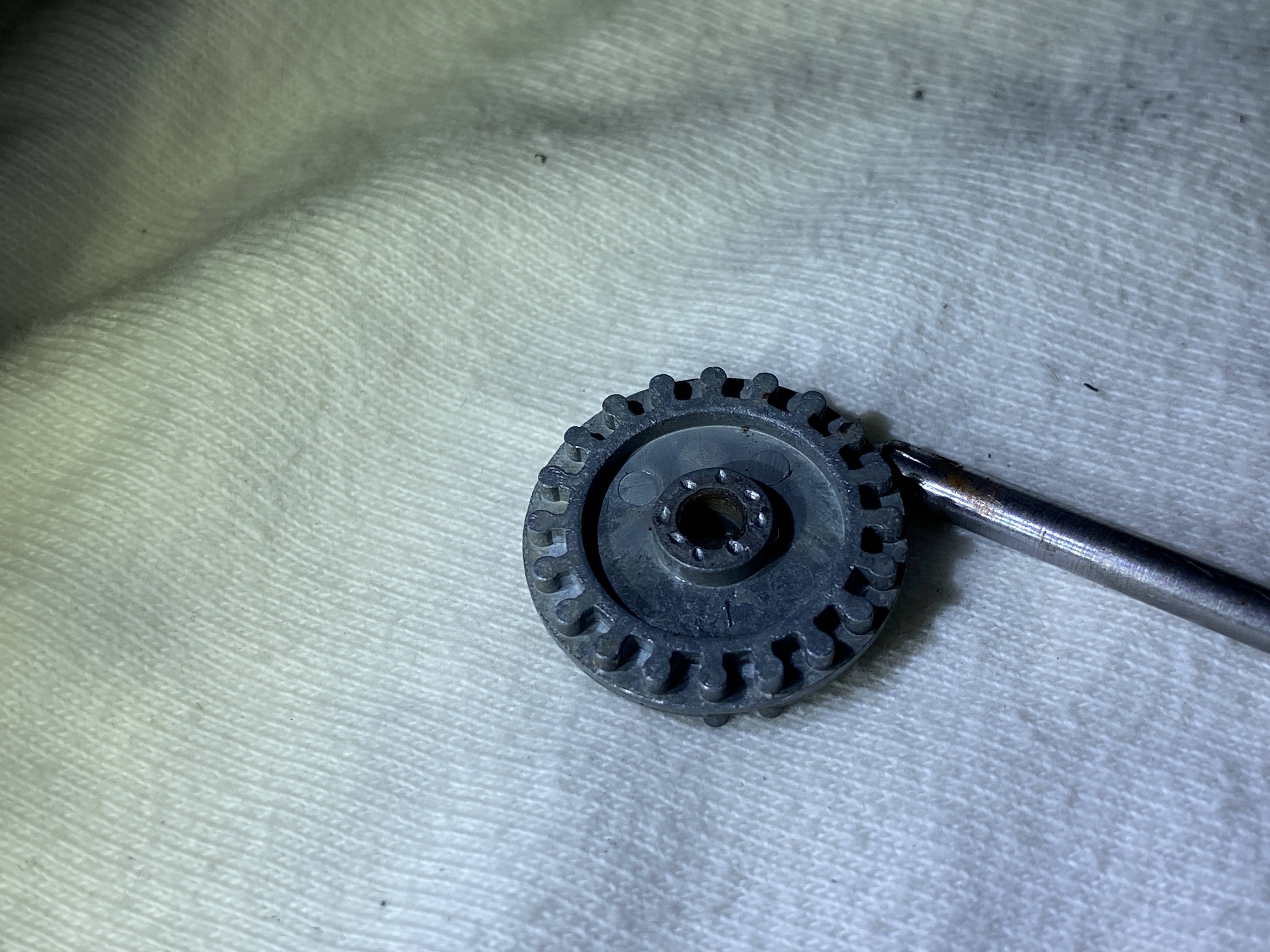

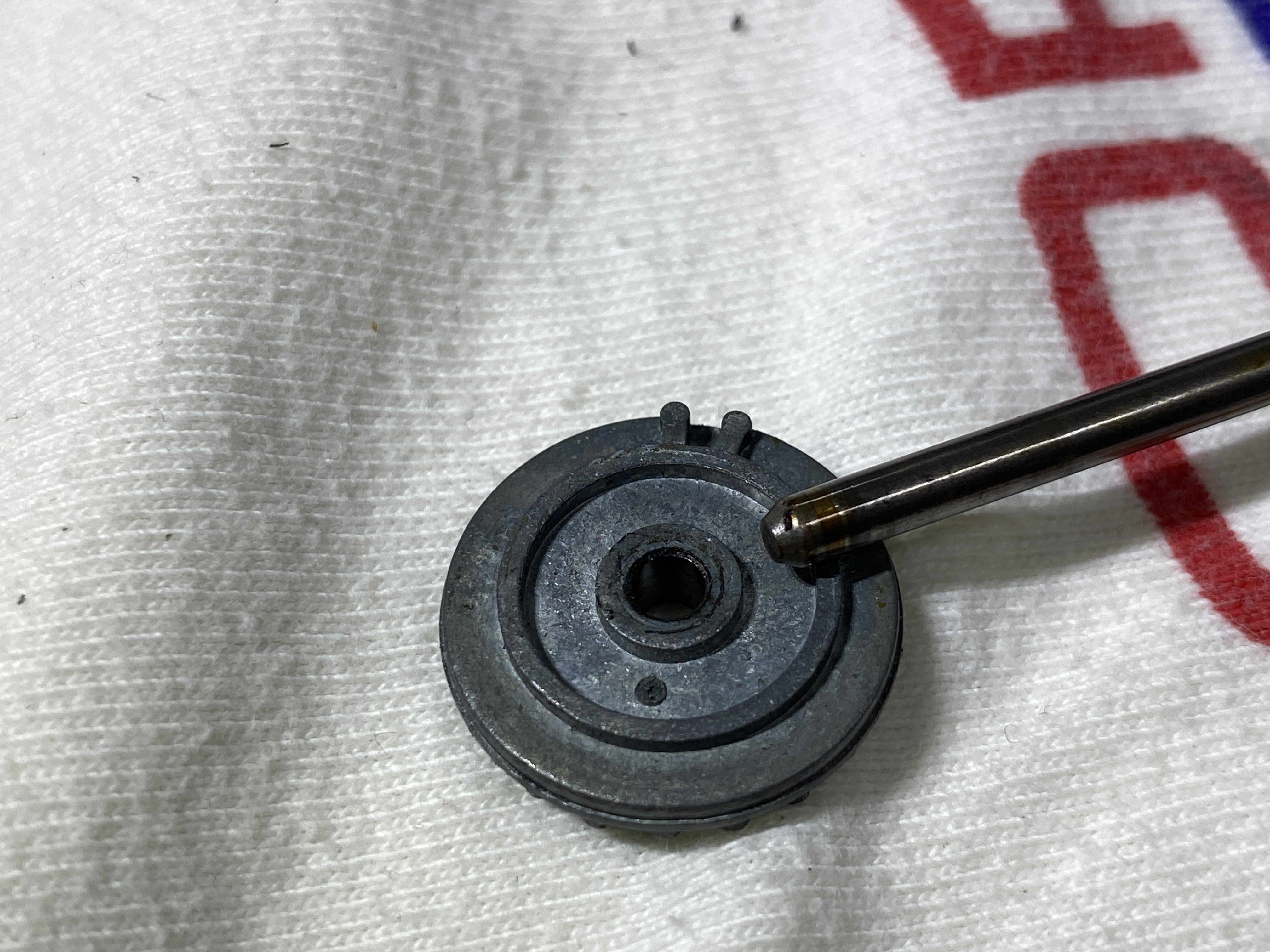

Then I deformed the hole in the metal gear with some gentle punches.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 07:59 PM
Post #6337


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Perfect! It took gentle hammer taps to seat the shaft in the metal gear. Now the gear turns with the shaft.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 08:01 PM
Post #6338


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

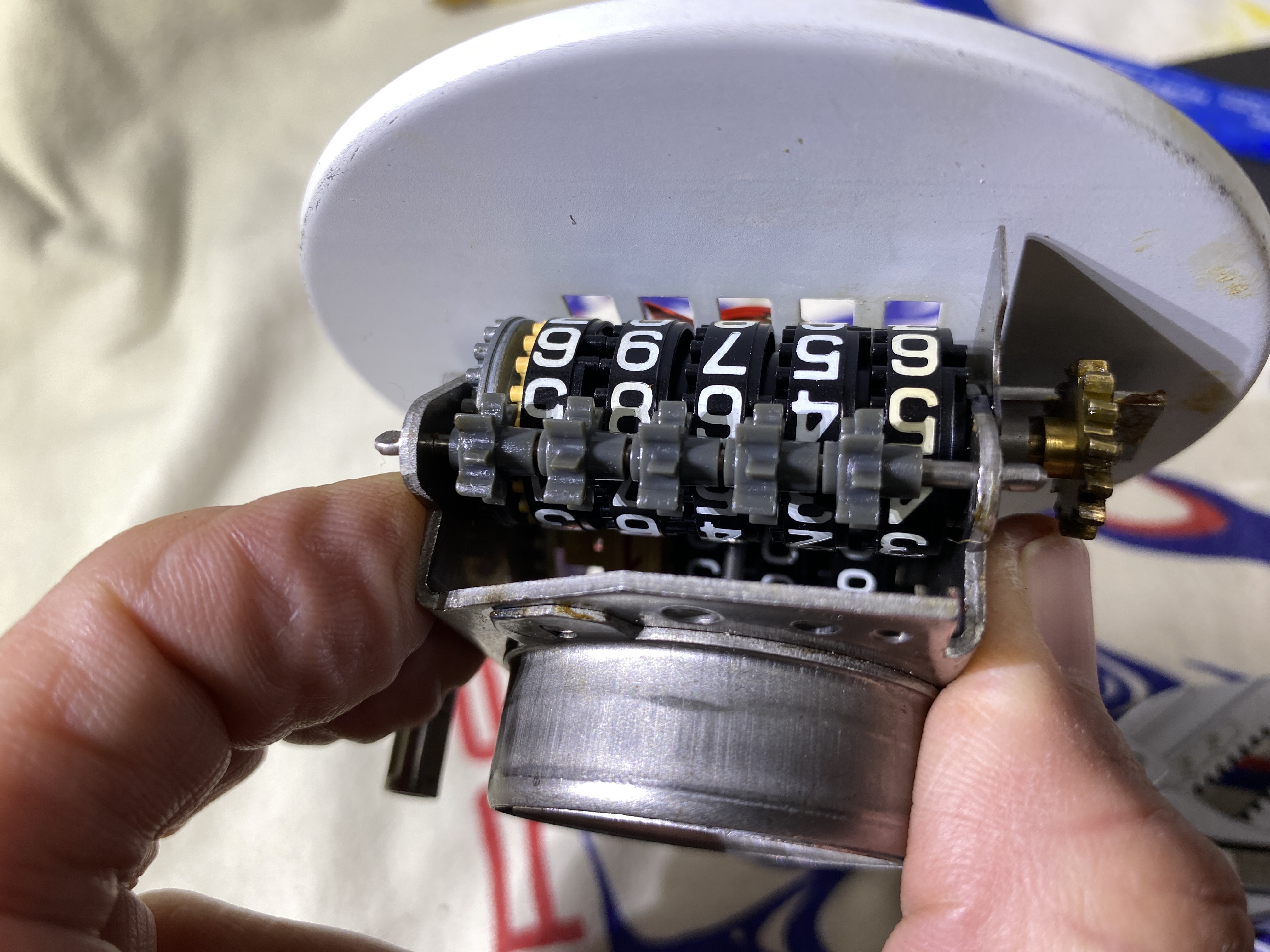

Then the secondary shaft the the small gears. I spun the input shaft and everything seems to work.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2023, 08:03 PM
Post #6339


914 Guru
*****

Group: Members
Posts: 8,342
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

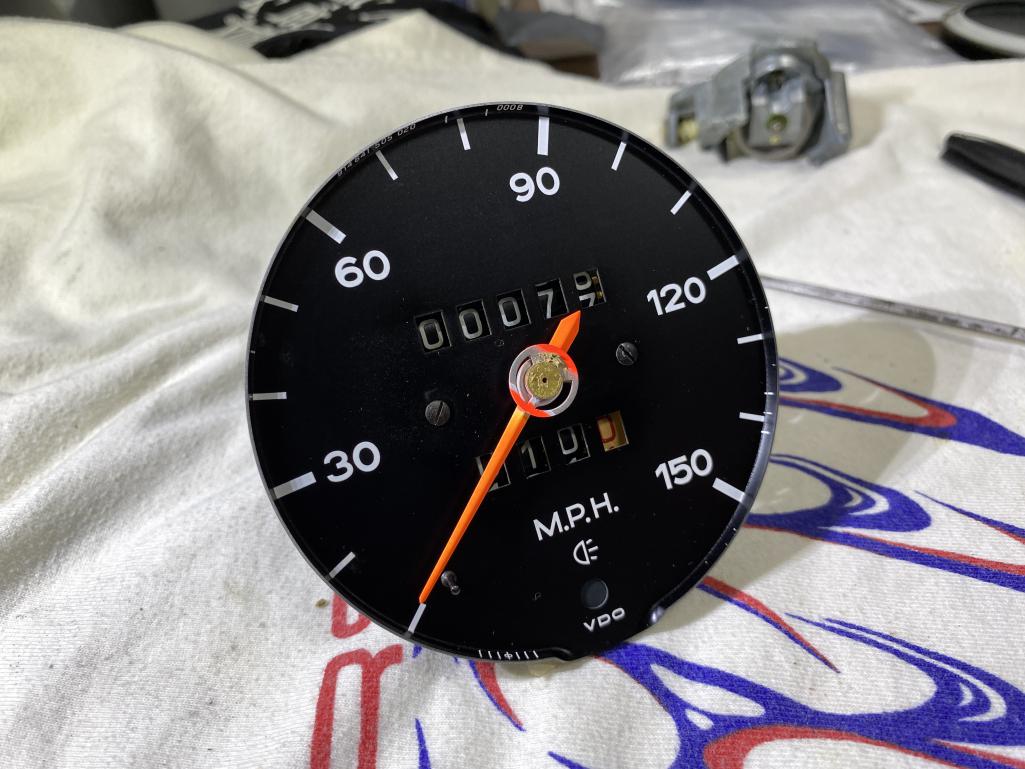

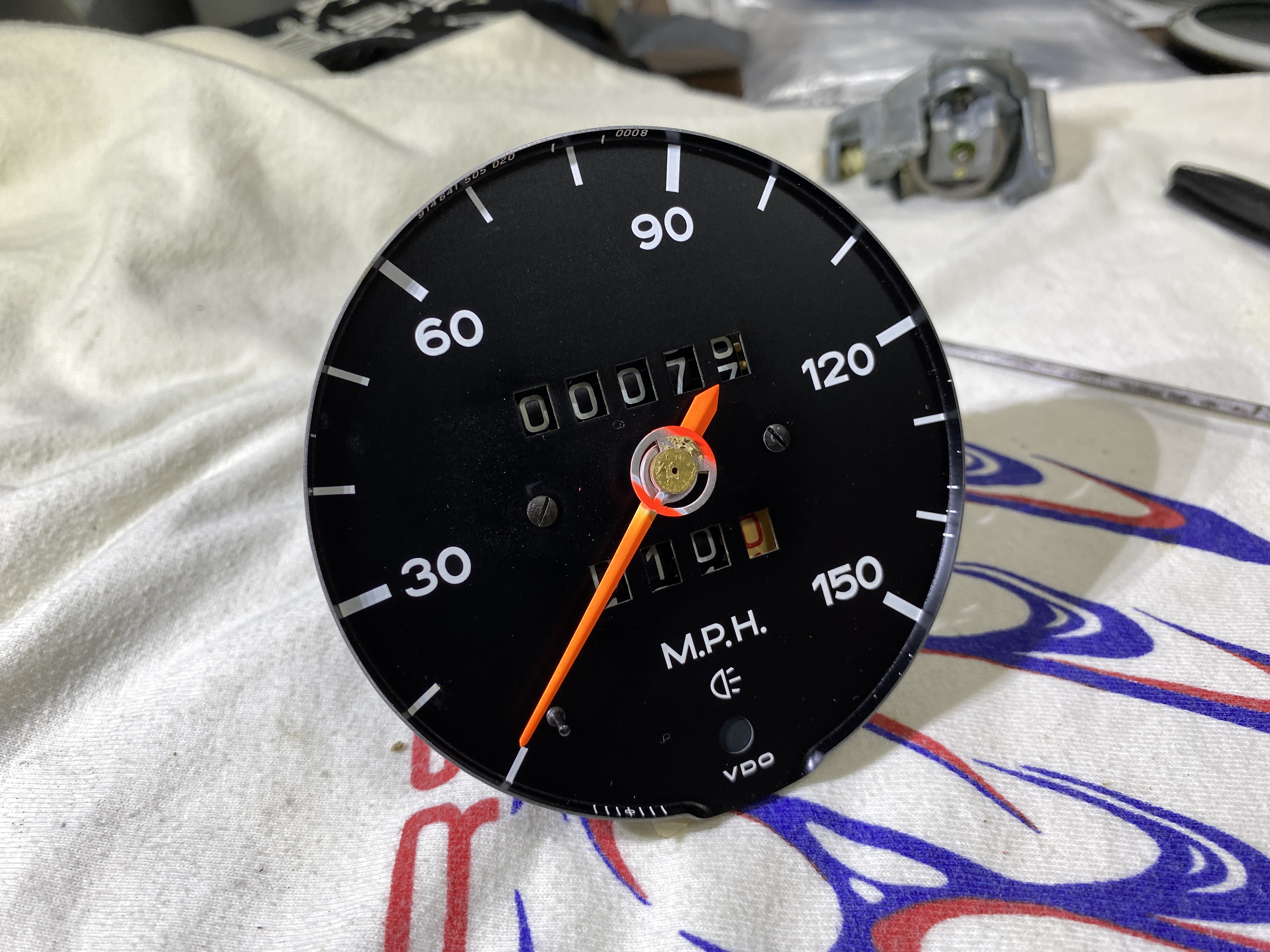

That takes care of the odometer. Next up, the speedometer re-calibration. Does anyone know if the needle is a press fit? I tried to pry gently, and it seems stuck.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Mar 14 2023, 06:53 AM
Post #6340


Michael
**********

Group: Members
Posts: 10,297
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Amazing- I believe the needle is a press-fit, if I am recalling my conversation with Hartmut at Palo Alto Speedo correctly. (IMG:style_emoticons/default/beerchug.gif)
