> Rebuiding Inside-out
bkrantz
post Mar 24 2024, 08:08 PM
Post #6721


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

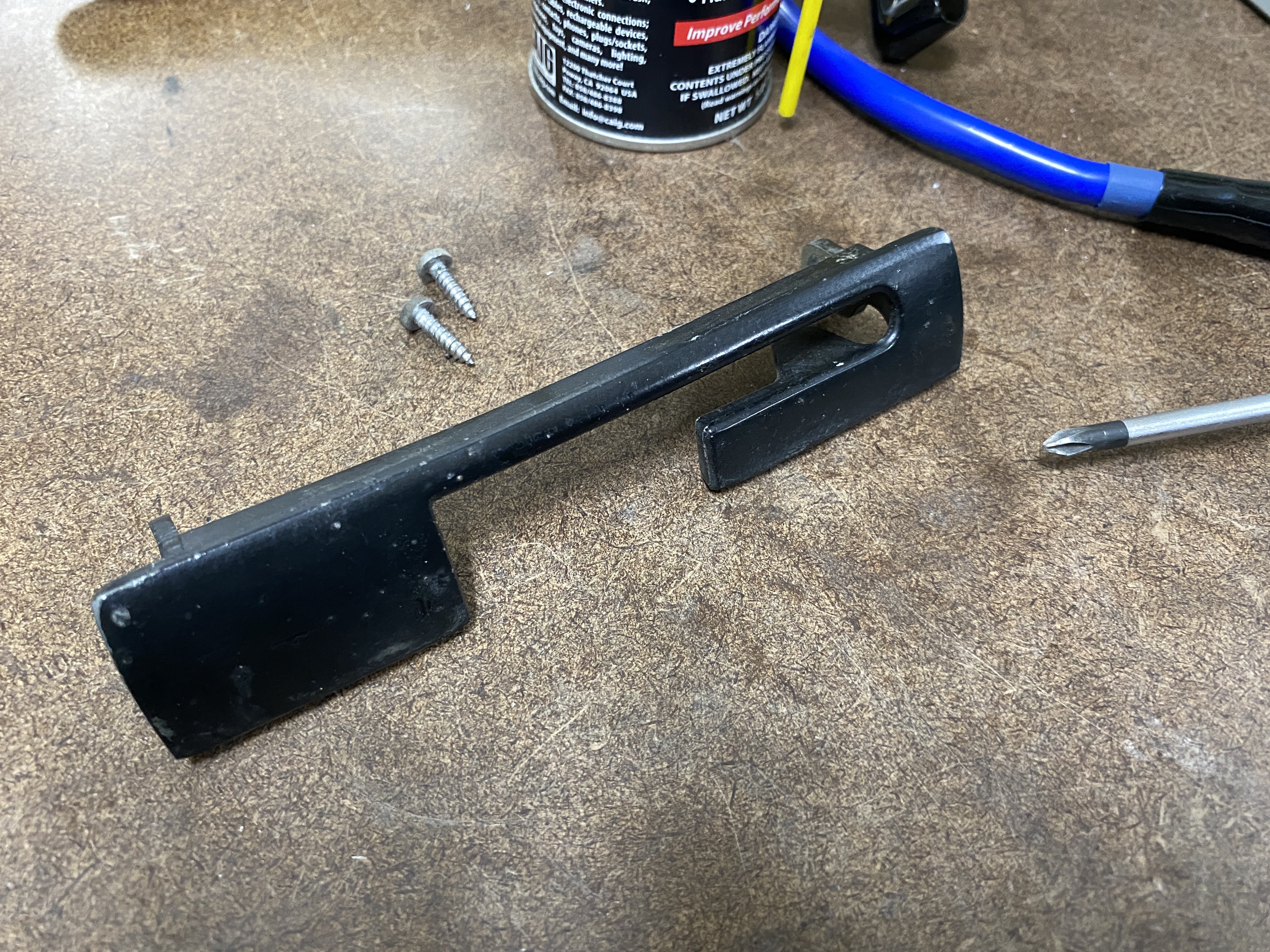

Last bits to remove: the latch cover plates.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 24 2024, 08:09 PM
Post #6722


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

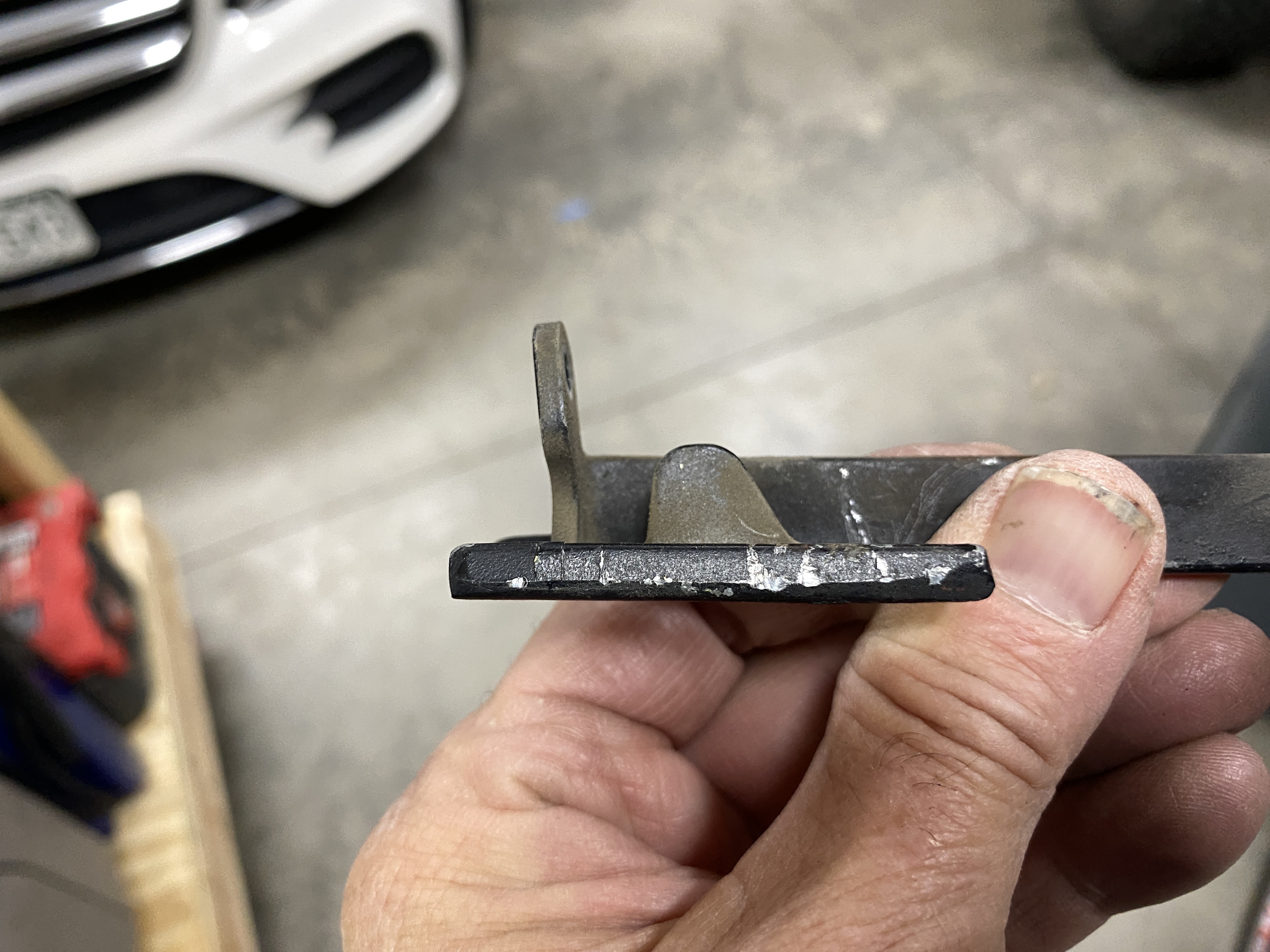

The mounting ears were bent out. I took the chance and bent them back in, which helped with the fit in the new pad. I also has to trim the corners in the pad recesses.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 24 2024, 08:10 PM
Post #6723


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

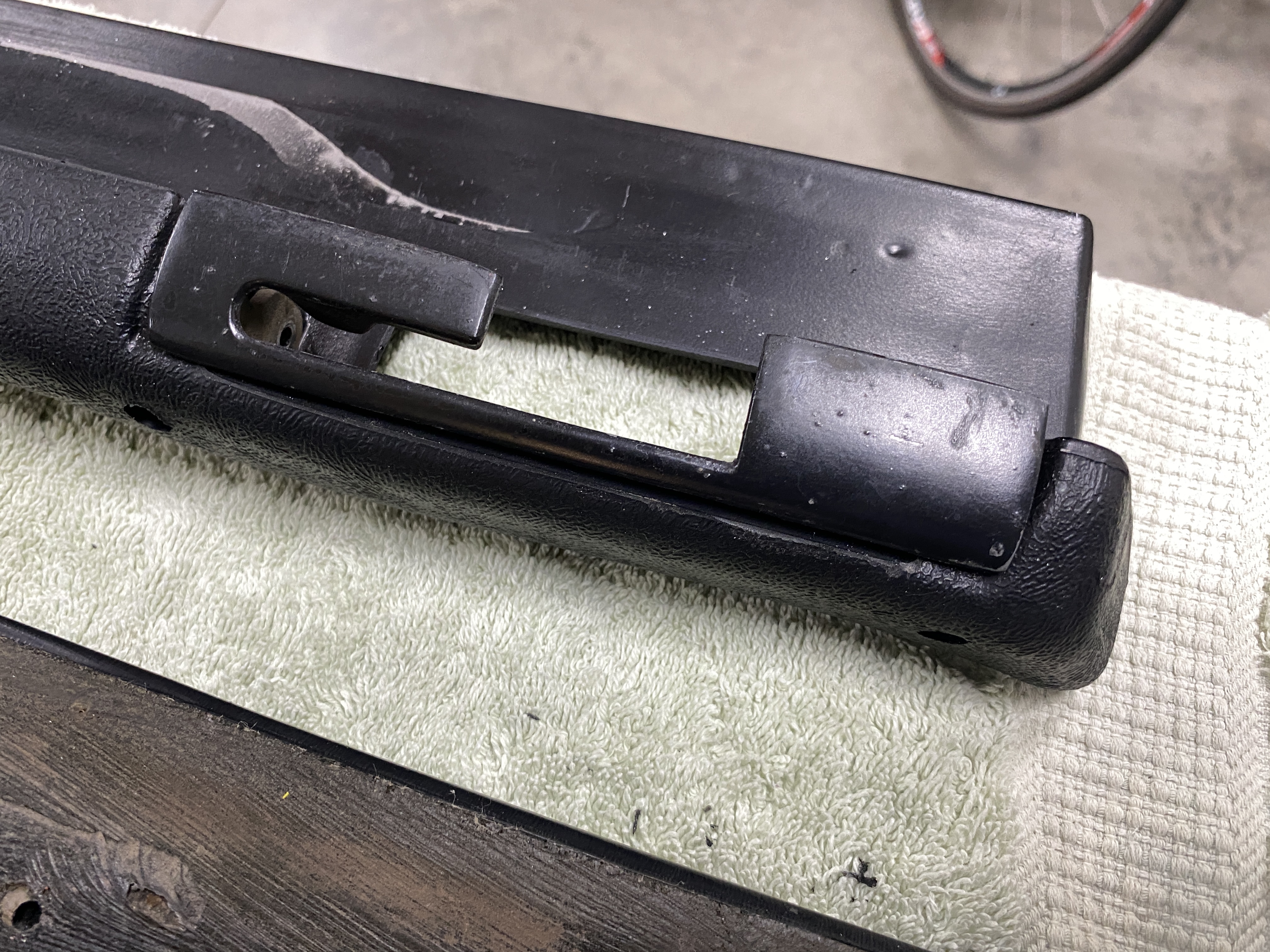

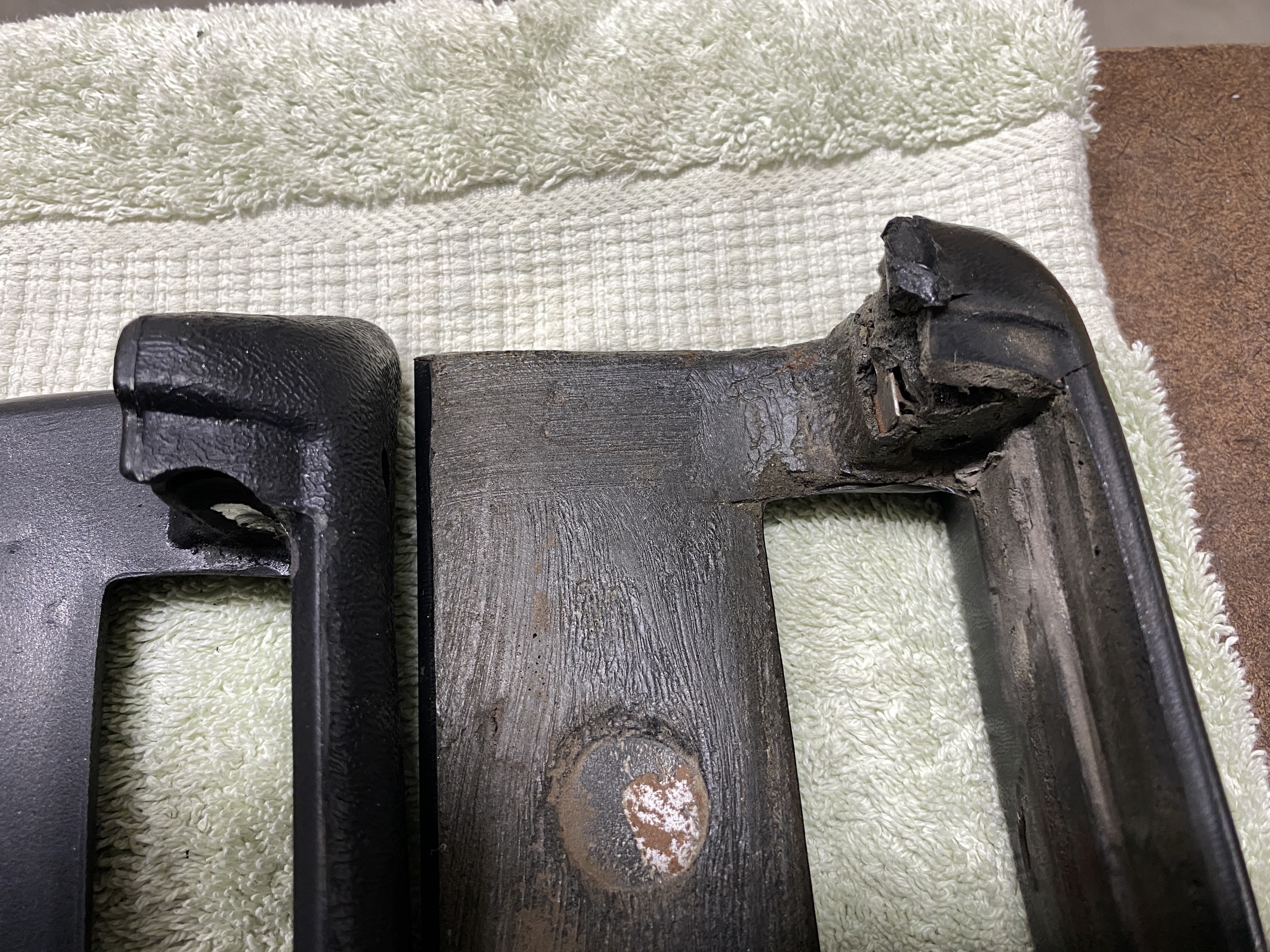

I also had to trim the corners in the new pad recesses, to make them more angular.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 24 2024, 08:11 PM
Post #6724


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

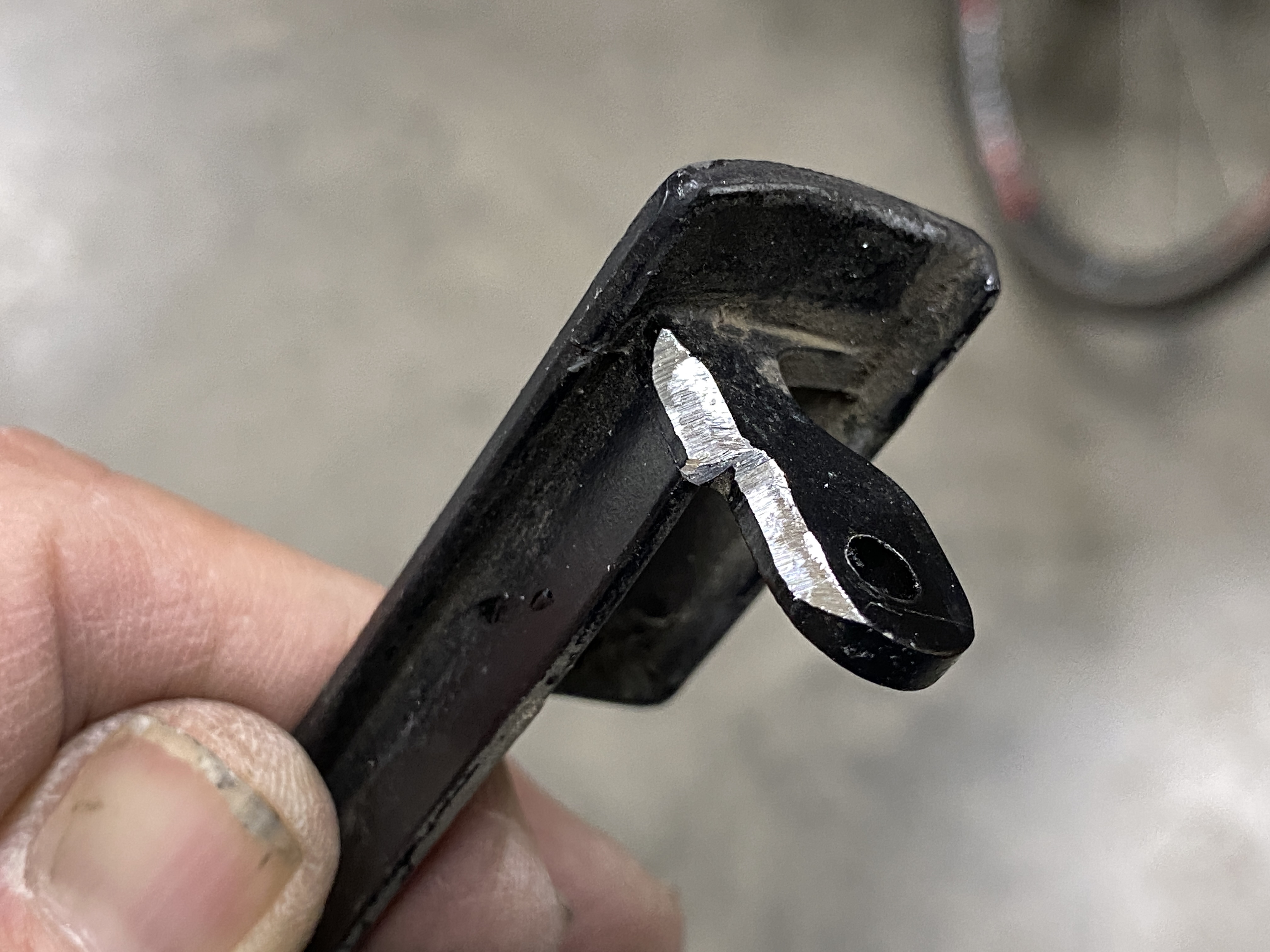

Final adjustment: take a bit off the sharp corners of the mounting ears.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 24 2024, 08:13 PM
Post #6725


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Not 100% but pretty good. I did have to drill holes for the mounting ear screws.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 24 2024, 08:14 PM
Post #6726


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

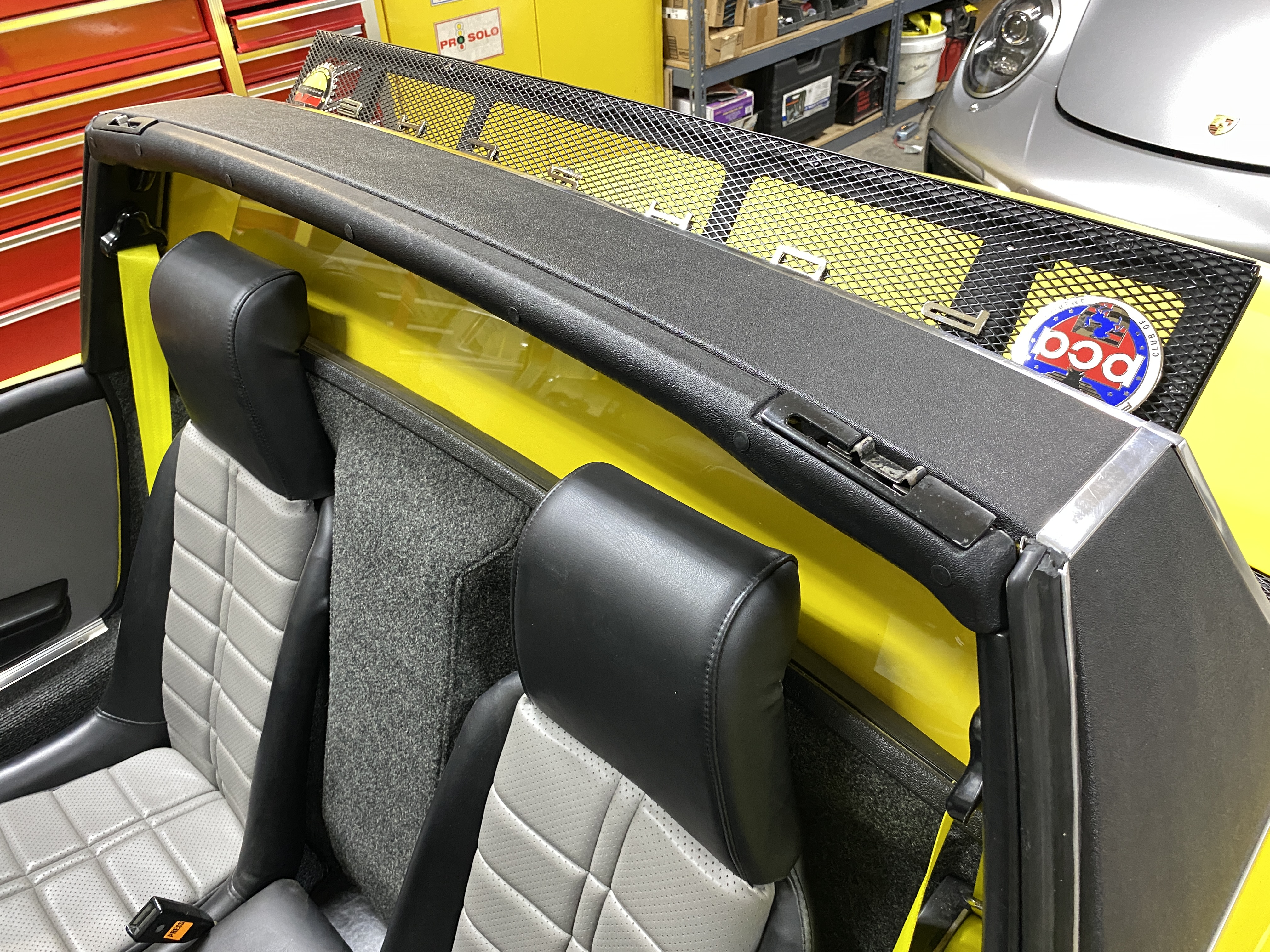

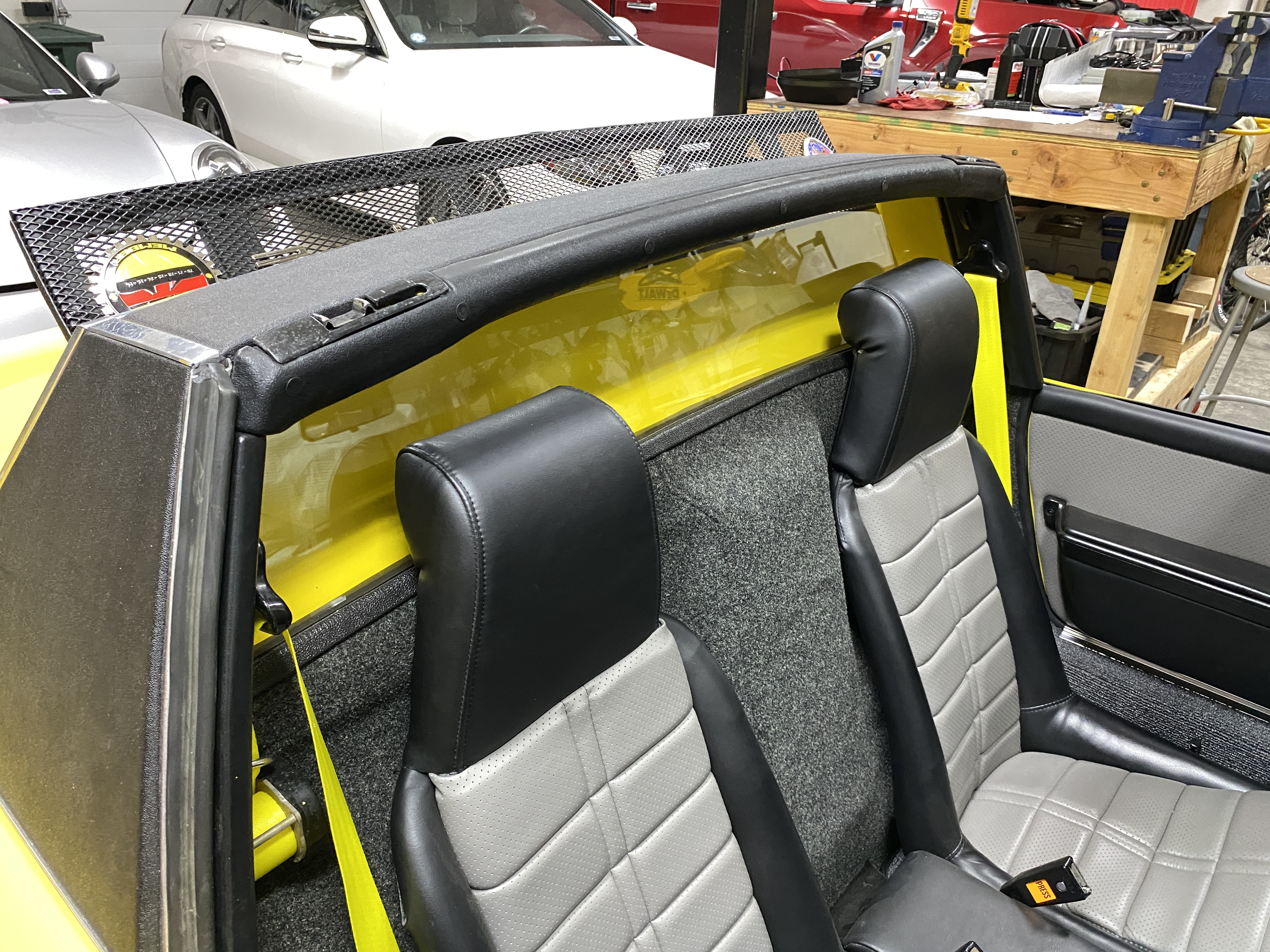

Installed. I did have to punch a few new screw holes in the targa bar.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 24 2024, 08:14 PM
Post #6727


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
View from the other side.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 24 2024, 08:15 PM
Post #6728


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

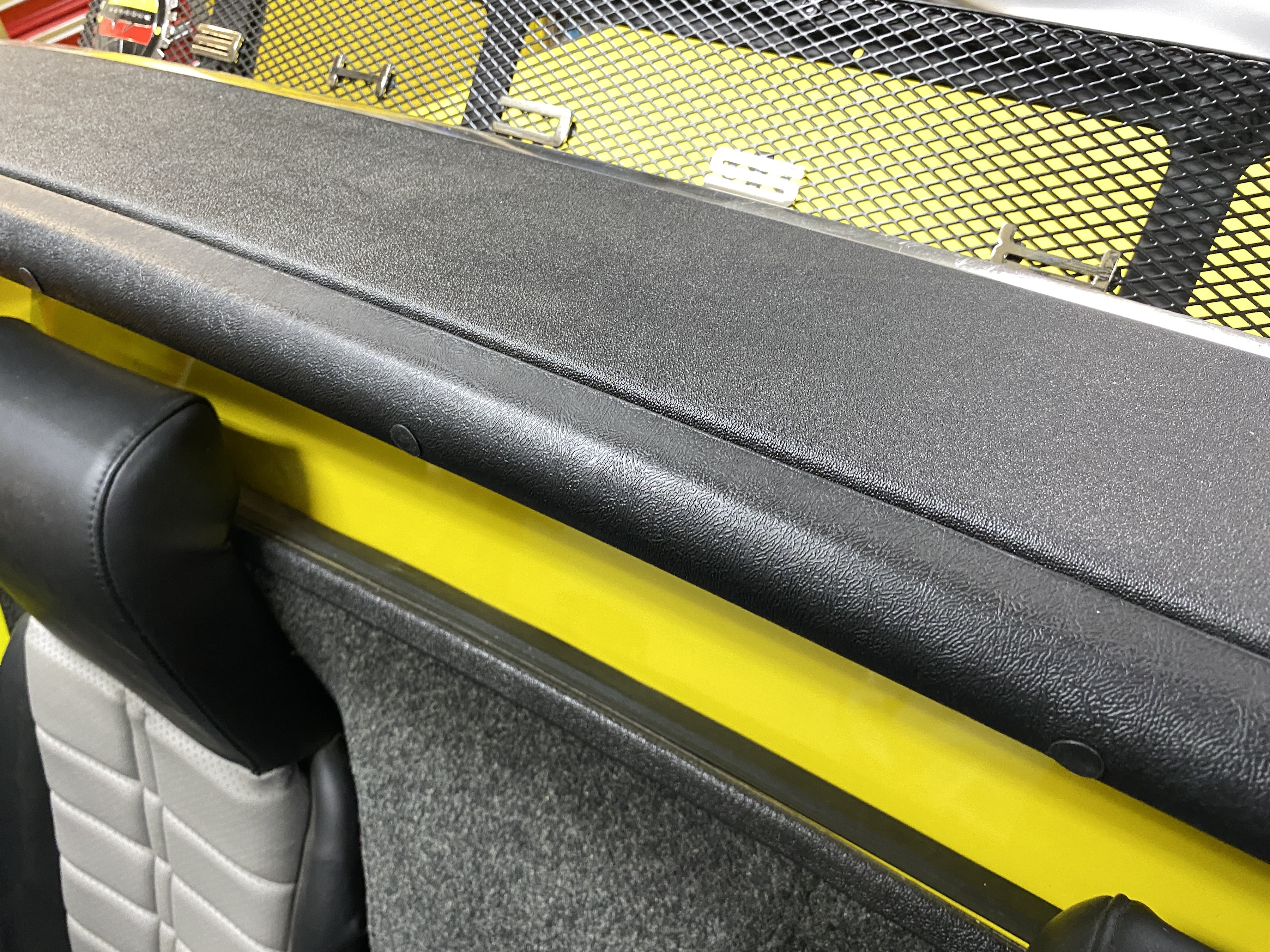

No cracks--very happy! (IMG:style_emoticons/default/cheer.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 24 2024, 08:16 PM
Post #6729


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
First task in 2024 done. Now, can I keep the momentum?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Mar 25 2024, 04:52 AM
Post #6730


Advanced Member
****

Group: Members
Posts: 3,697
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States
Depends if you are able to get your grandkids involved in your "hobby"

btw: lookin good
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Mar 25 2024, 07:00 AM
Post #6731


Michael
**********

Group: Members
Posts: 10,094
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Very nicely done. The remainder of the list should be a breeze for you. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Mar 25 2024, 02:44 PM
Post #6732


RN
****

Group: Members
Posts: 2,801
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Targa bar looks great.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 25 2024, 08:22 PM
Post #6733


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(930cabman @ Mar 25 2024, 03:52 AM) *

Depends if you are able to get your grandkids involved in your "hobby"

btw: lookin good


Thanks. Right now I am trying to get her hooked on Brio wooden trains.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 06:37 PM
Post #6734


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

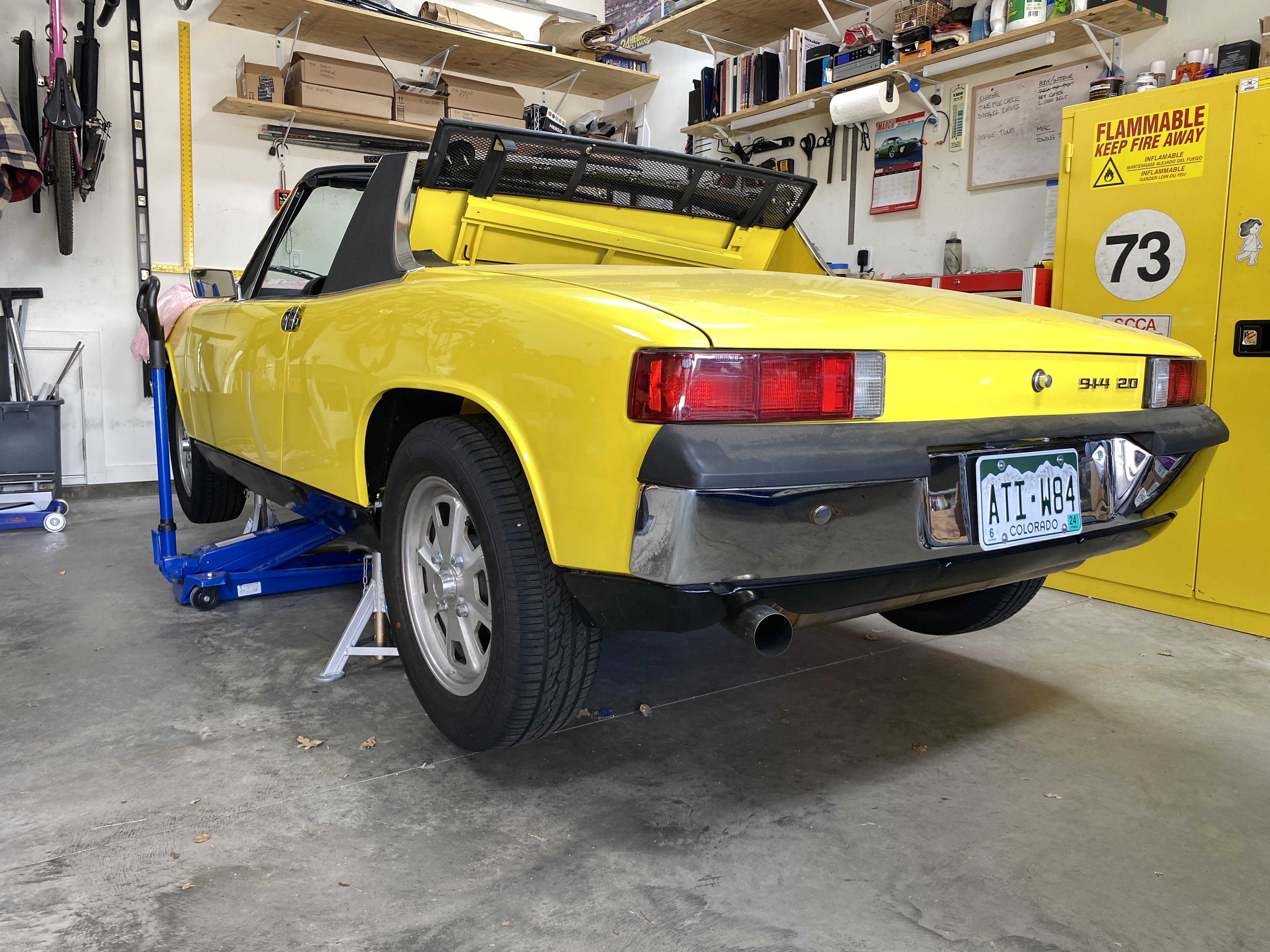

Time to install the towing tie-downs (more later). I got the 914 up on jack stands for the first time in 2024.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 06:42 PM
Post #6735


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

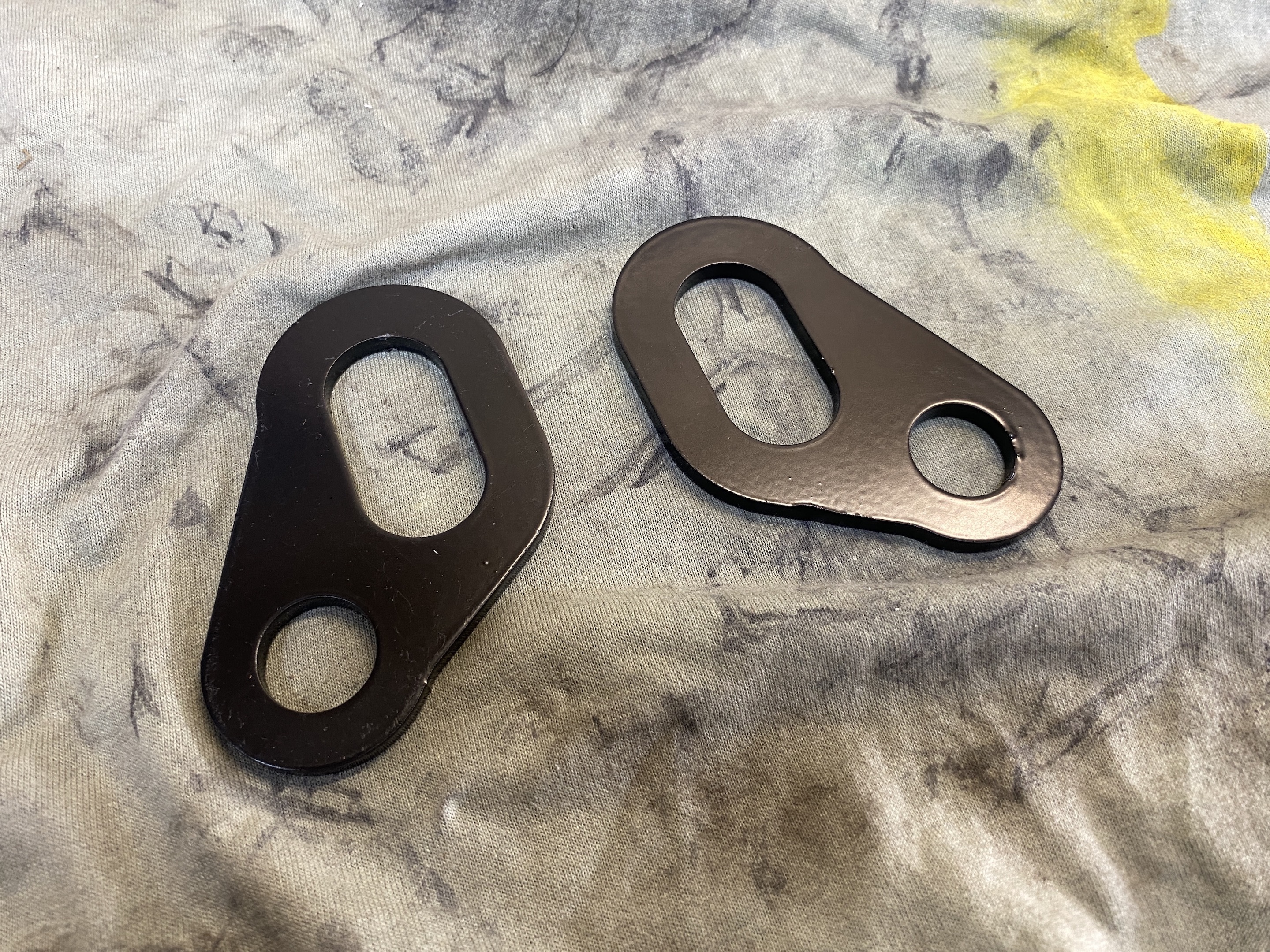

Here are the rear tie downs. These mount on the shock lower bolt.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 06:43 PM
Post #6736


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

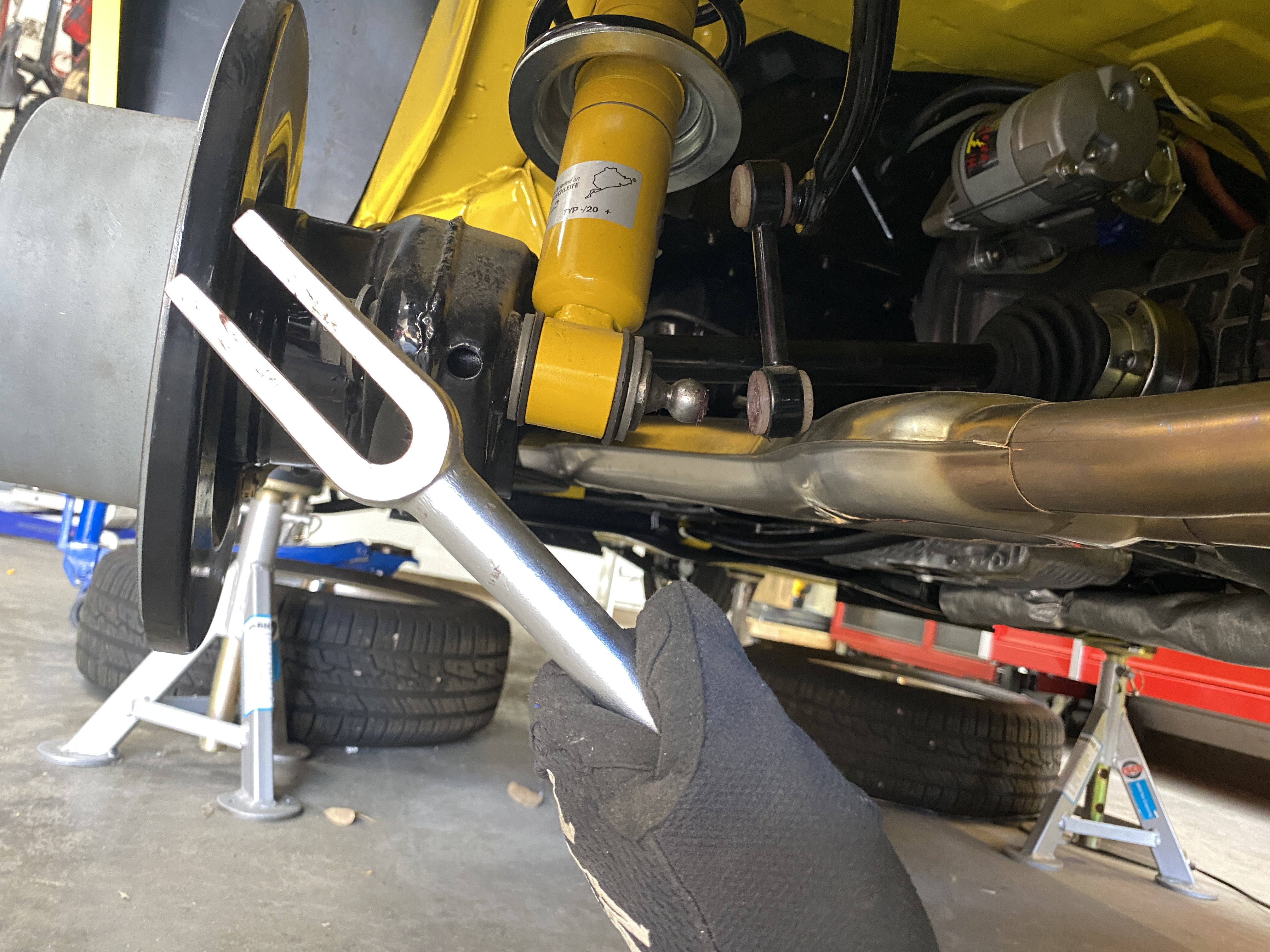

Step 1: pop off the rear sway bar links. A good use for the ol' ball joint fork.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 06:44 PM
Post #6737


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

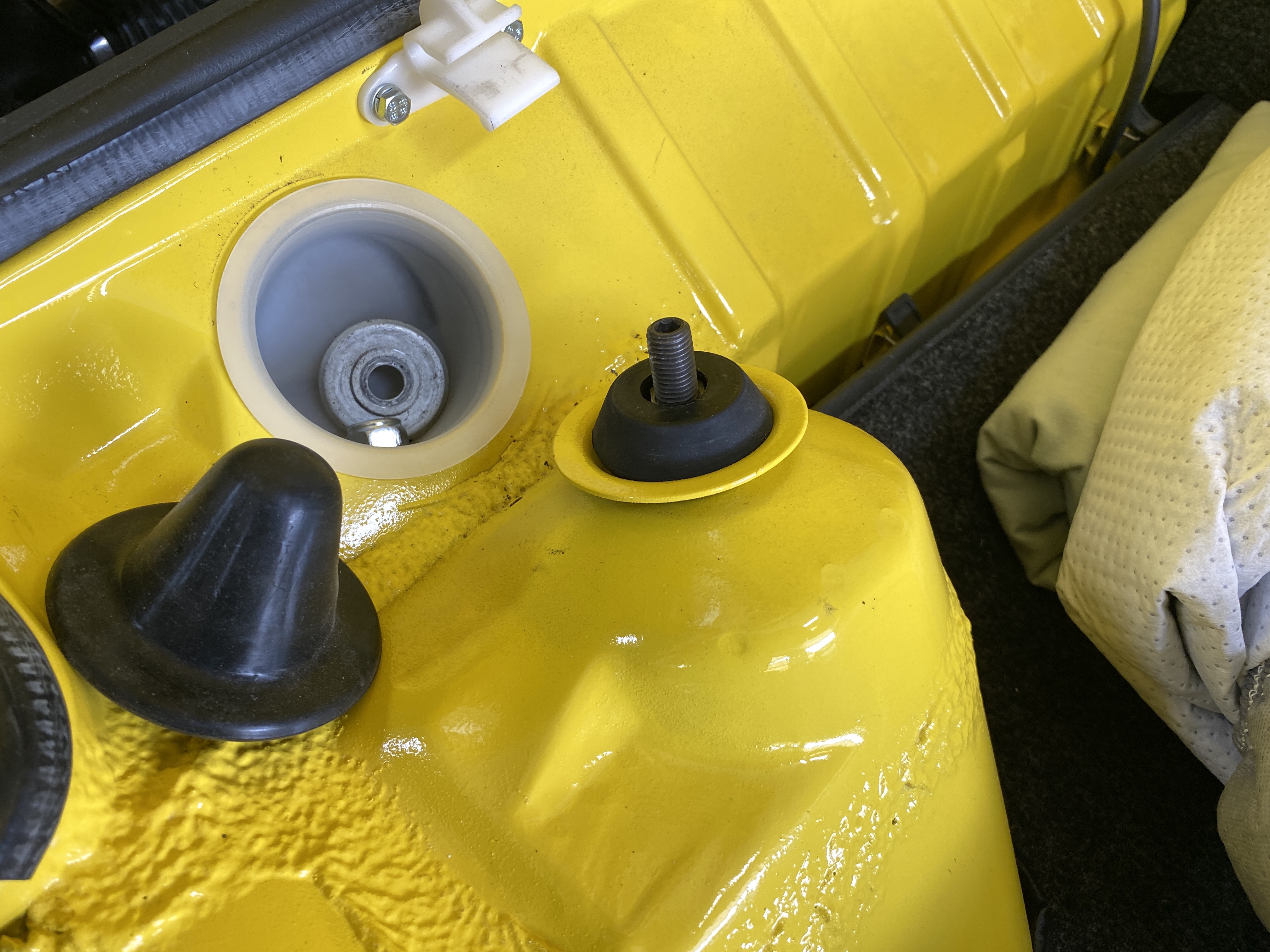

To make clearance, I lowered the shock-spring assembly after unbolting the top mount.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 06:45 PM
Post #6738


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

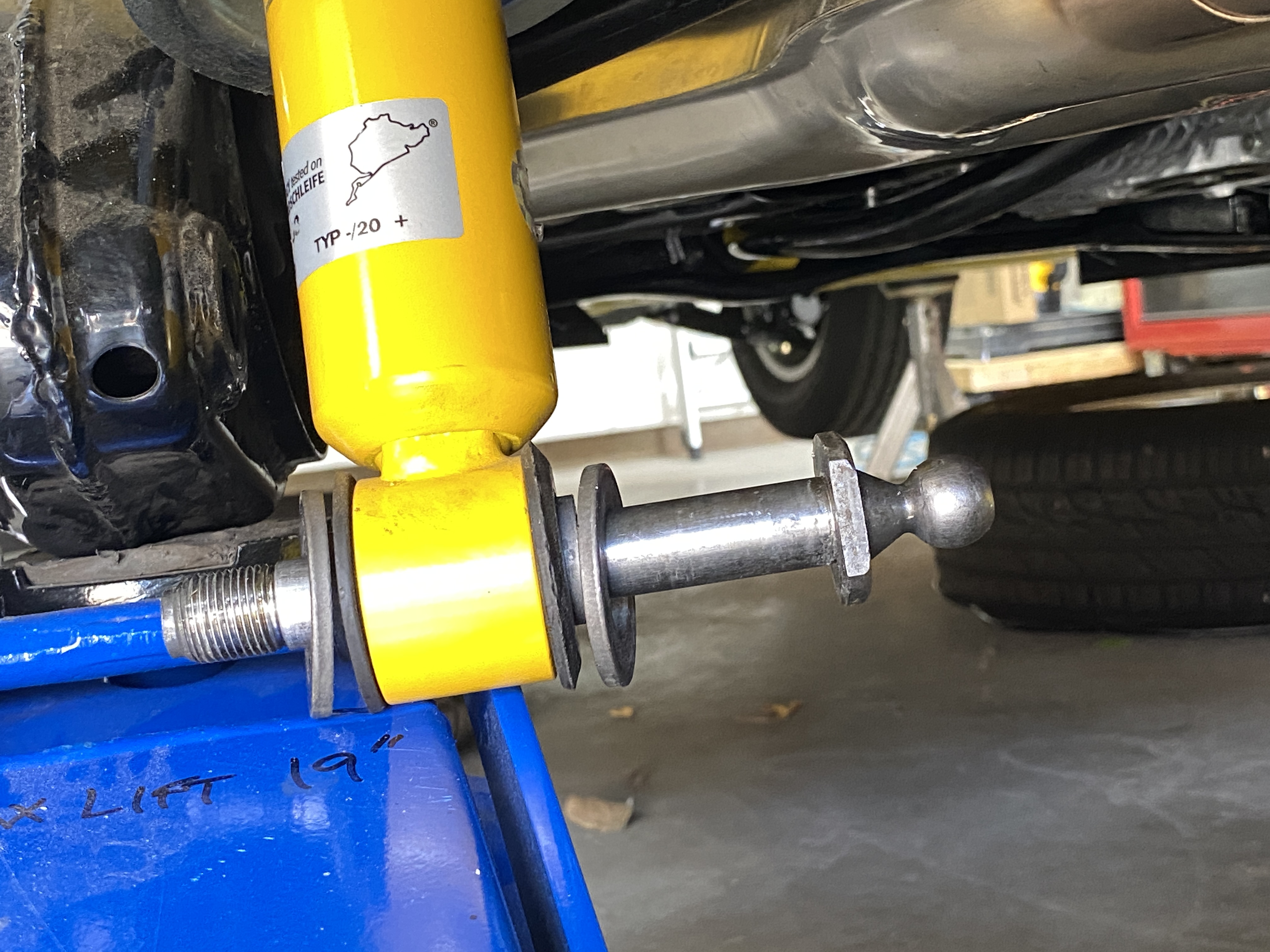

With the trailing arm lowered, and the nut undone, the big bolt slides out.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nivekdodge
post Mar 30 2024, 06:45 PM
Post #6739


Member
**

Group: Members
Posts: 273
Joined: 28-August 21
From: Pittsburgh Pa
Member No.: 25,860
Region Association: MidAtlantic Region
Bob
I used 3M 8857 for a lot of rubber repairs and it seems to work well, except in extreme heat, and is sandable to make it nicer looking

Kevin
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 06:46 PM
Post #6740


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

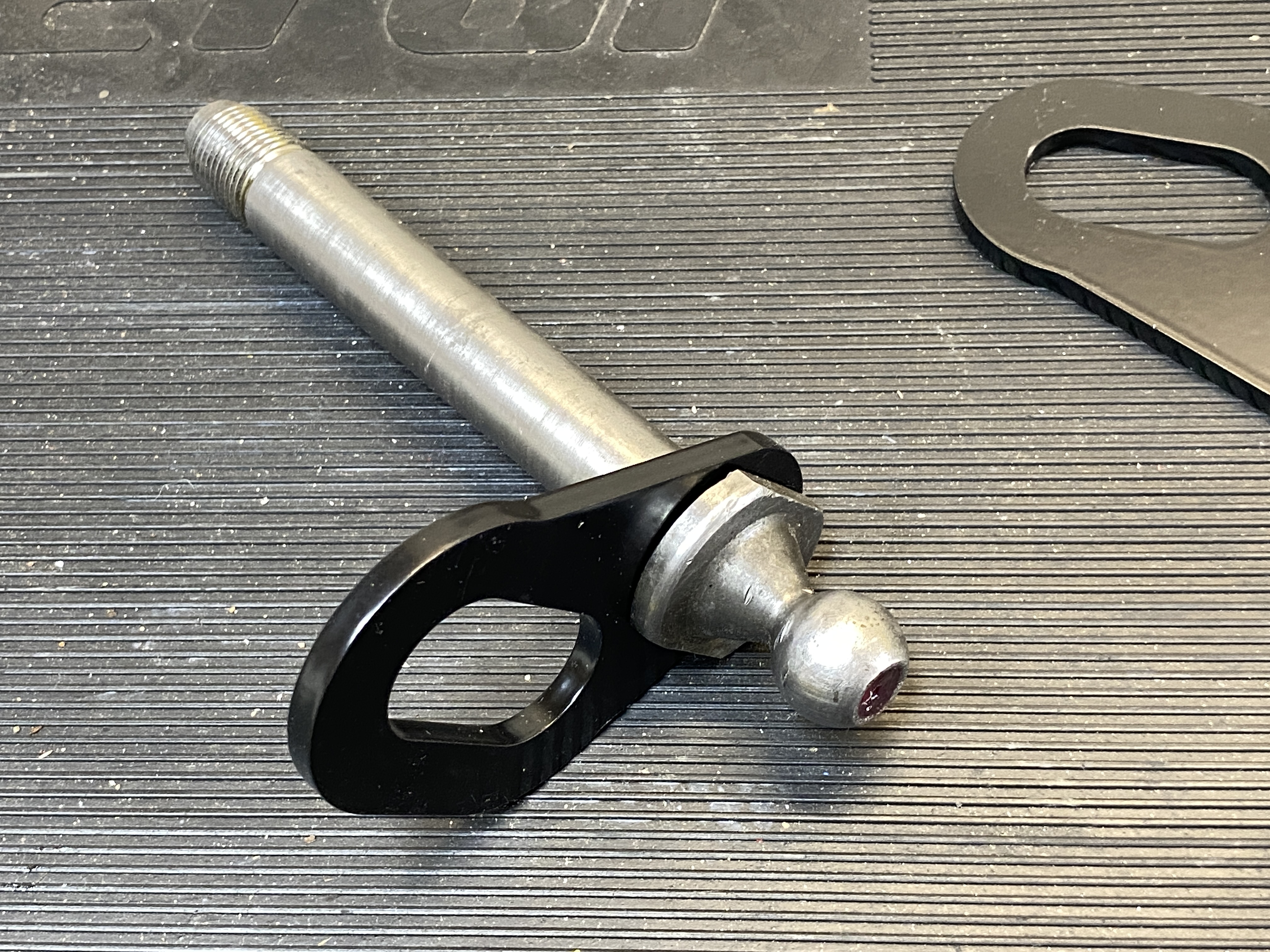

Here's the tie down on the bolt.


Attached thumbnail(s)
Attached Image
