> Rebuiding Inside-out
bkrantz
post Mar 30 2024, 06:47 PM
Post #6741


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

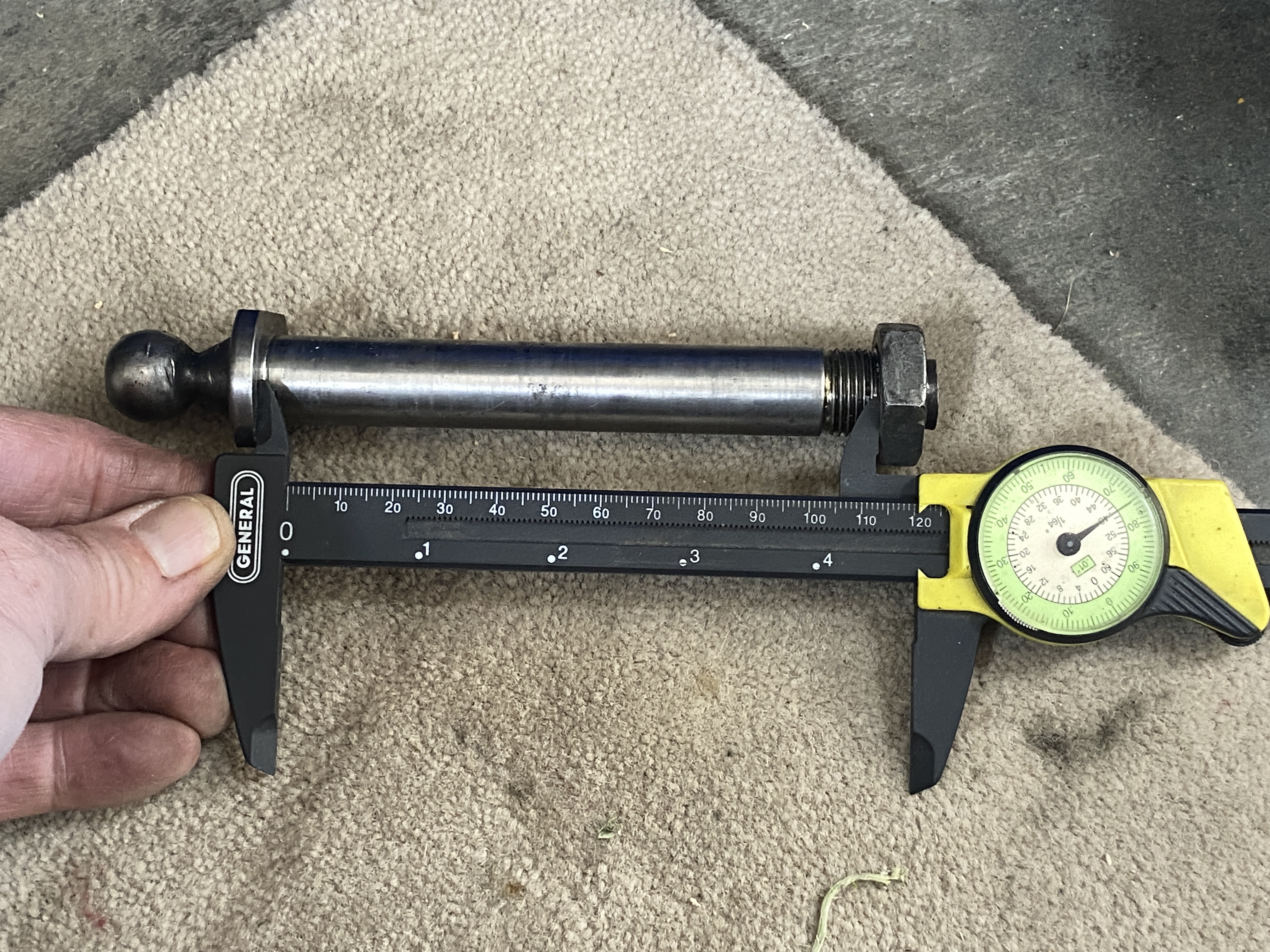

The challenge now is bolt length, with the nut fully engaged. I have about 120 mm to work with.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 06:48 PM
Post #6742


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
The trailing arm bolt tube is about 61 mm.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 06:49 PM
Post #6743


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

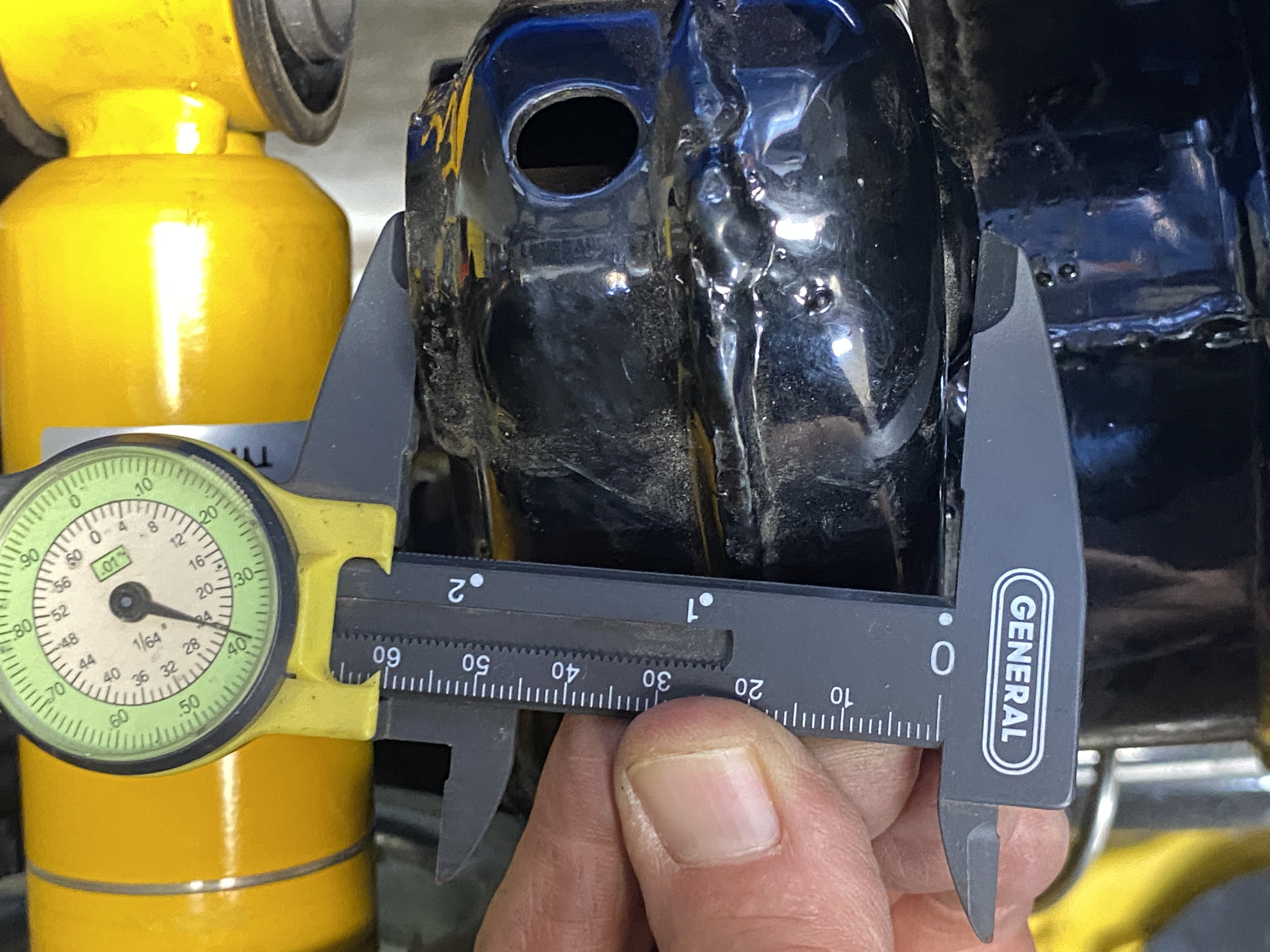

And the strut base is about 51 mm. That leaves me 8 mm.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 06:51 PM
Post #6744


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

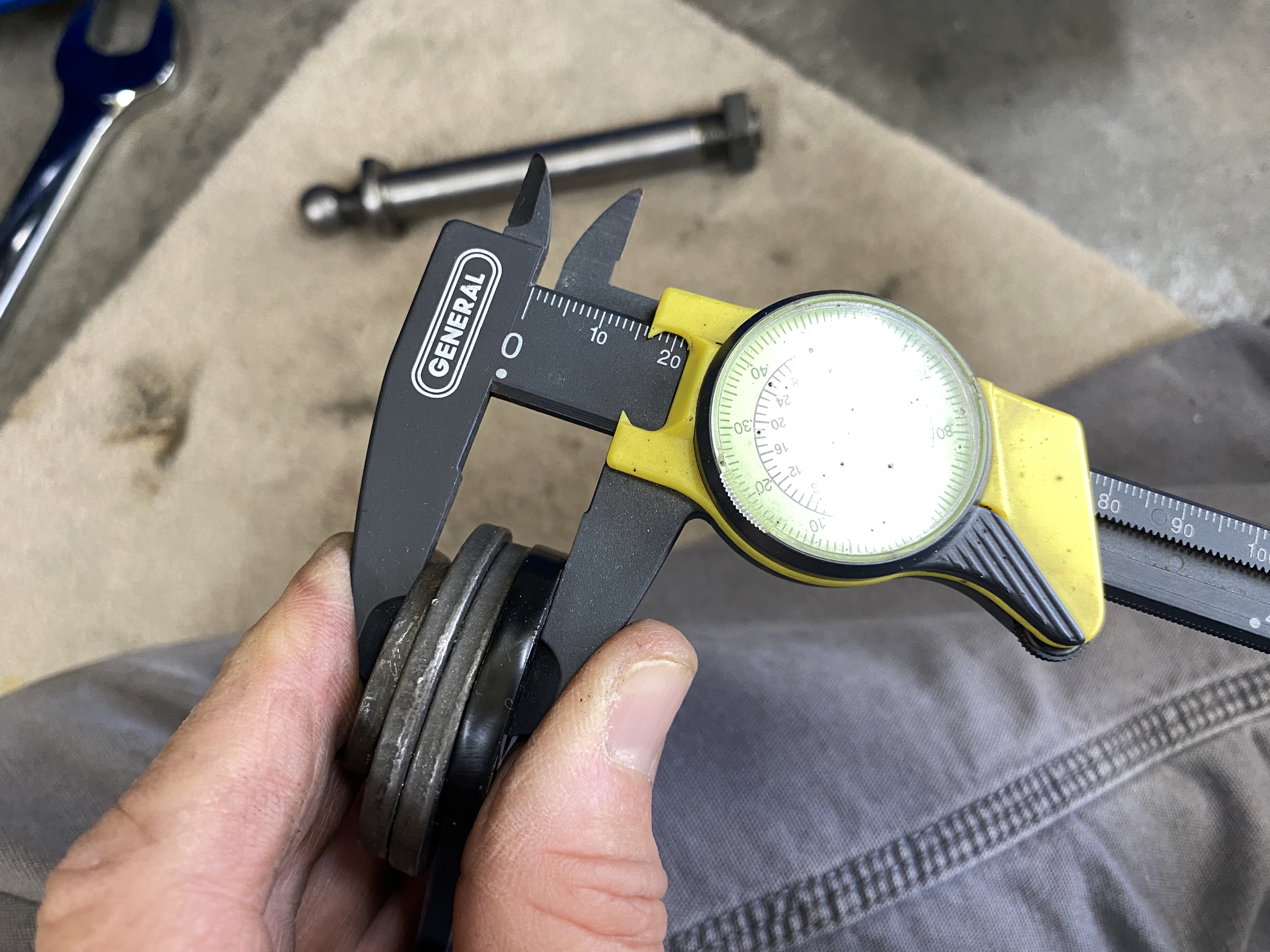

The full stack of shock bottom washers, flat washer, lock washer, and new tie down is about 16 mm--way too much!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 06:53 PM
Post #6745


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

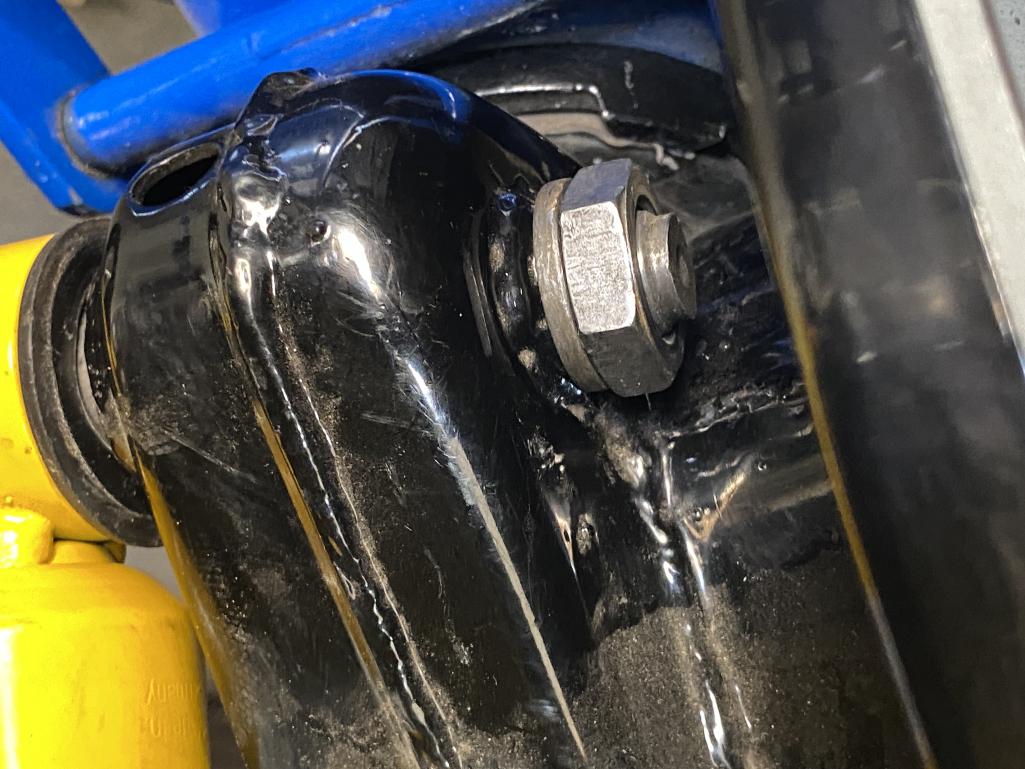

In the end, I used only the lock washer. With anything else, the threads on the nut were only partially engaged.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 06:54 PM
Post #6746


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

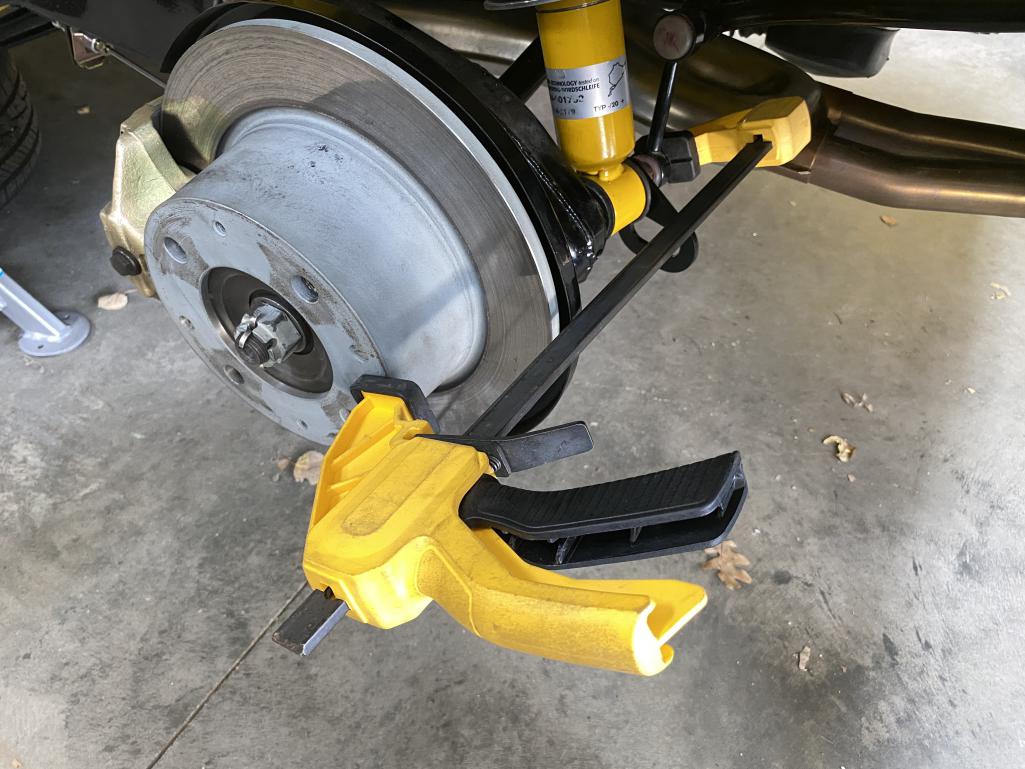

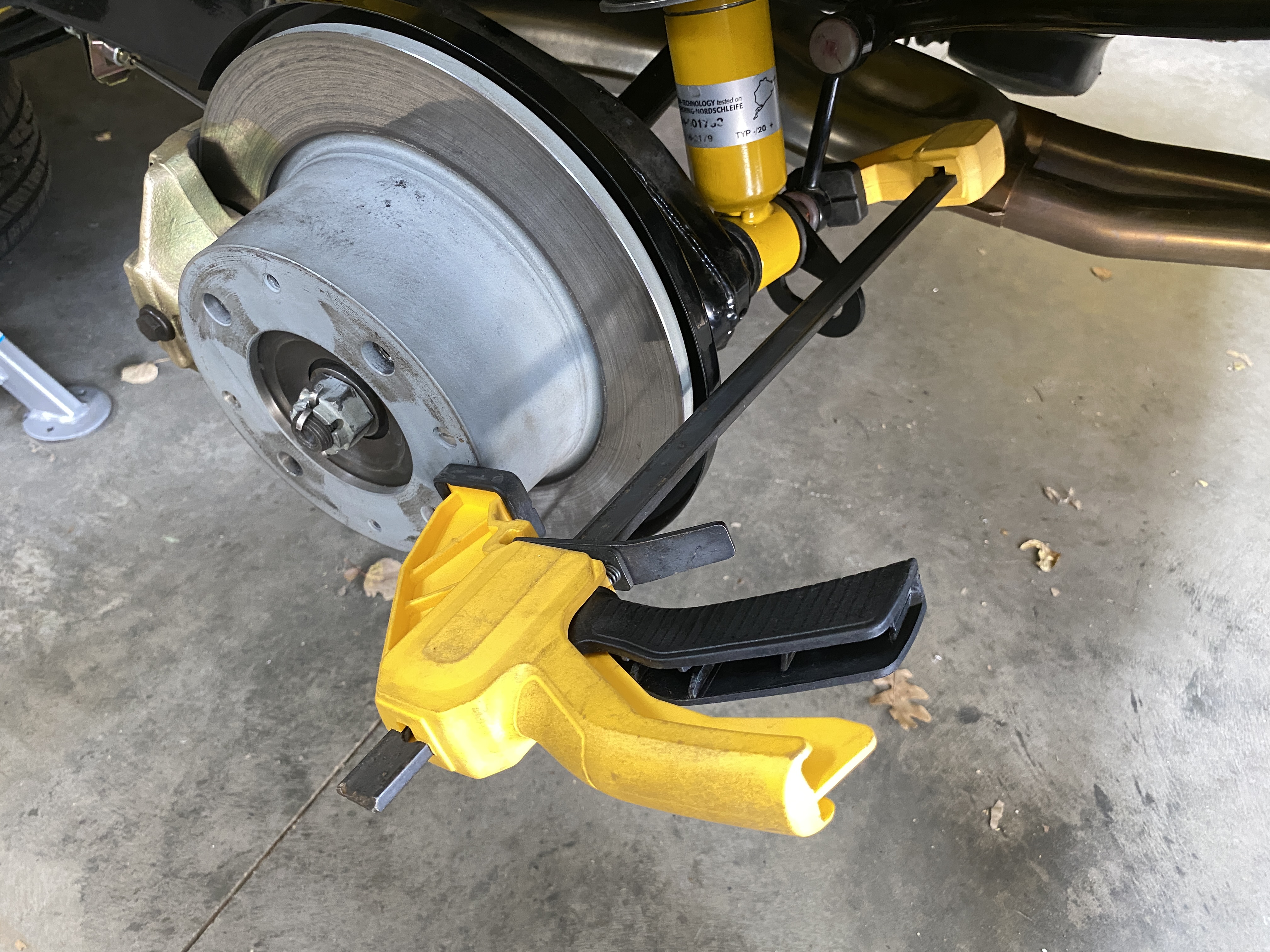

Then pop the sway bar link back on with a clamp.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 06:55 PM
Post #6747


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

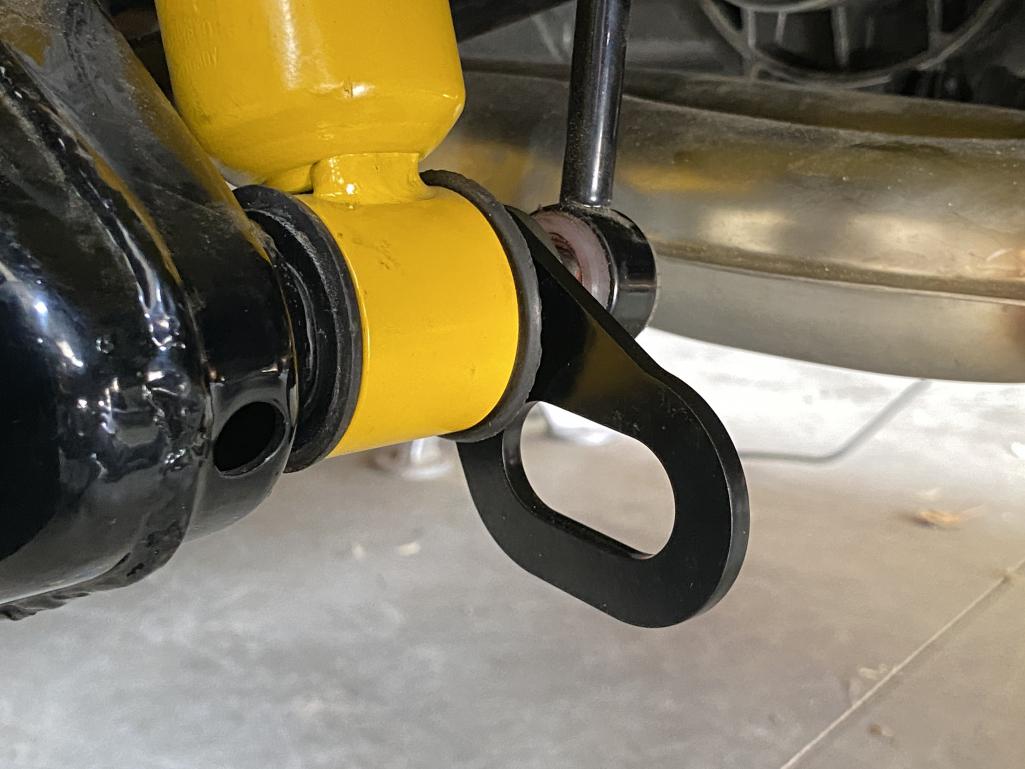

Rear tie downs ready.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 06:56 PM
Post #6748


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

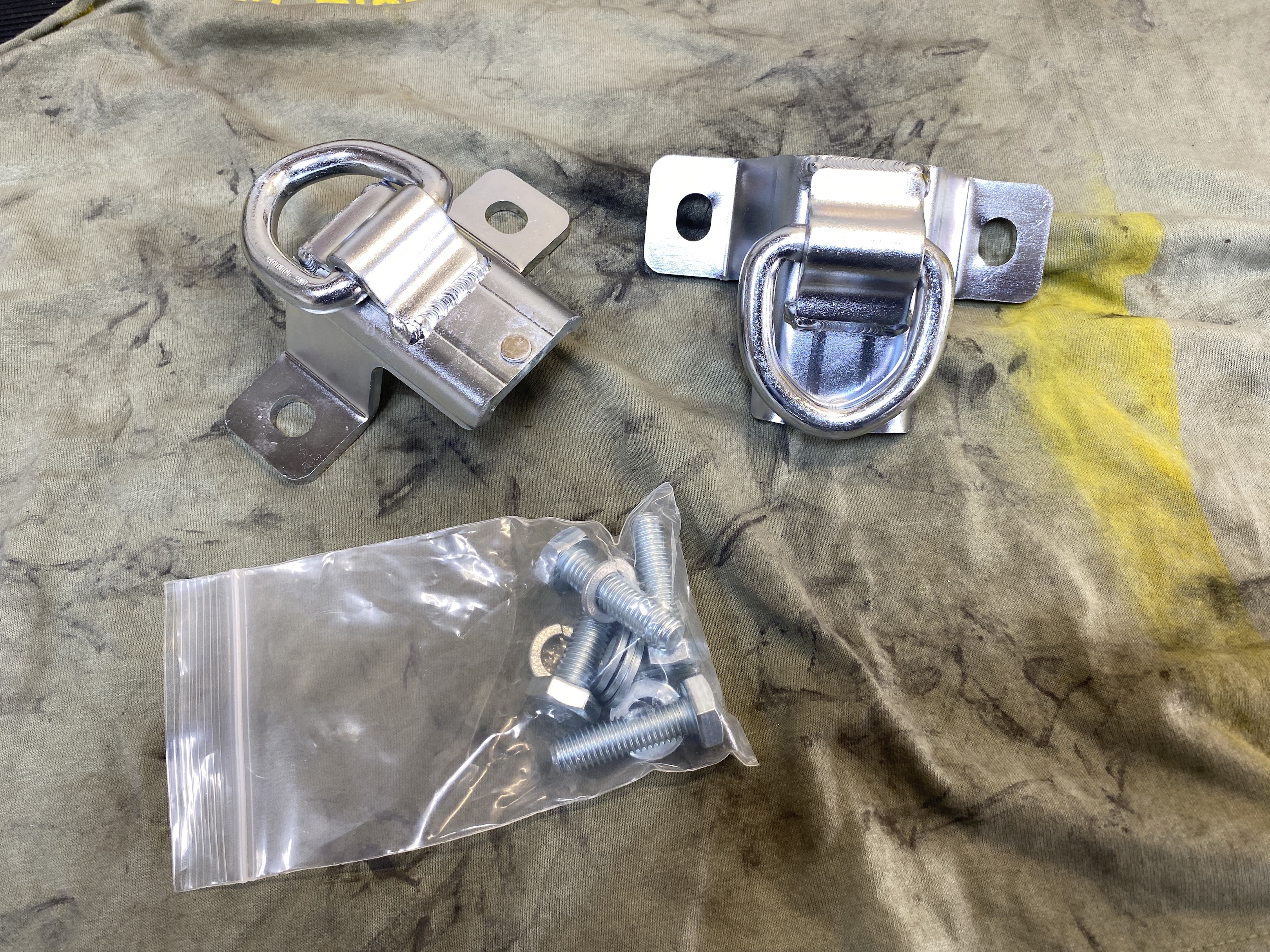

Then time for the front tie downs. I got these from Tangerine. Nicely made with new bolts included.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 06:57 PM
Post #6749


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

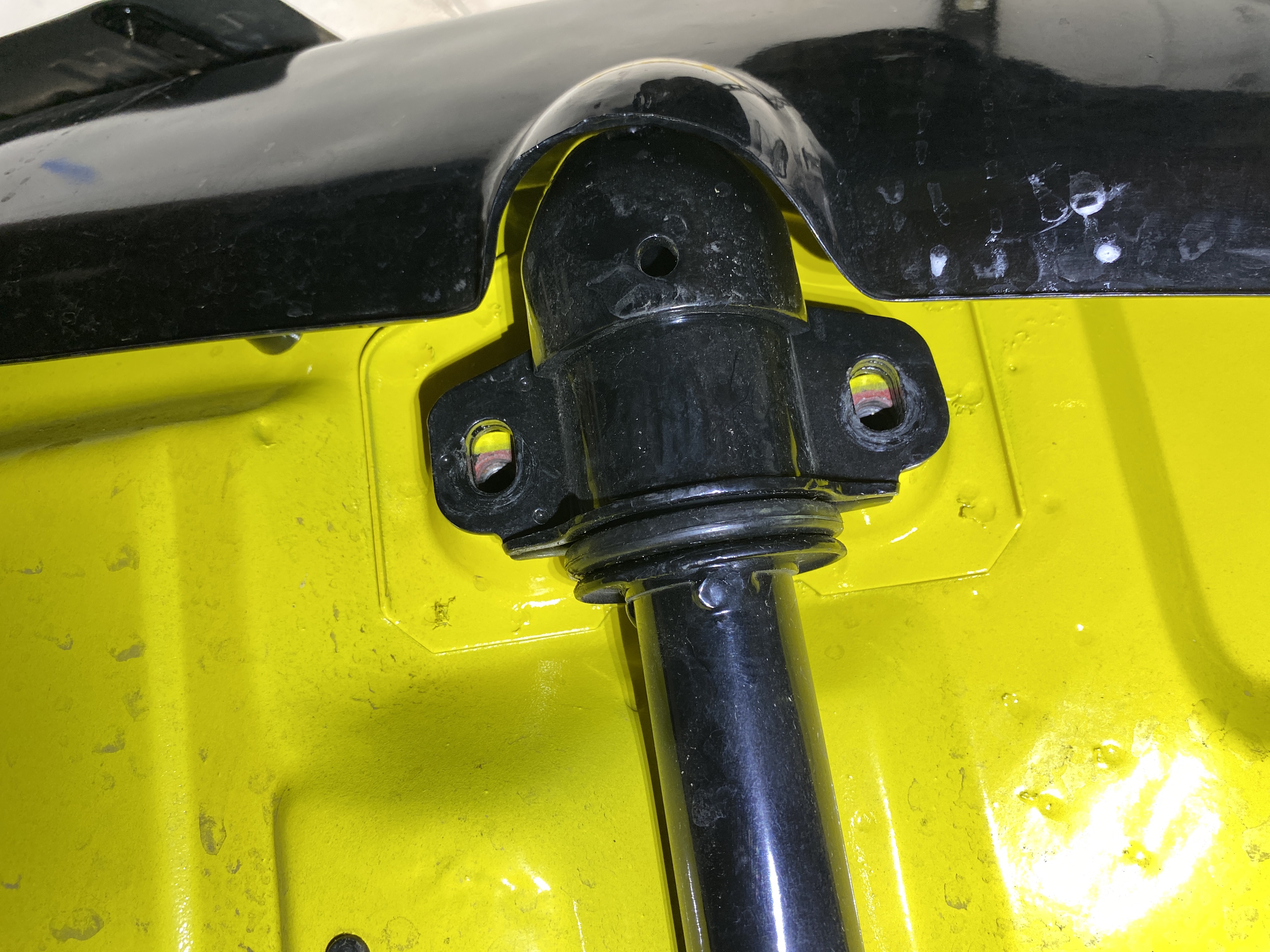

These require removal of the two side bolts on the front A-arm mounts. The 3rd bolt in front (under the shield) keeps the mount in place.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 06:58 PM
Post #6750


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

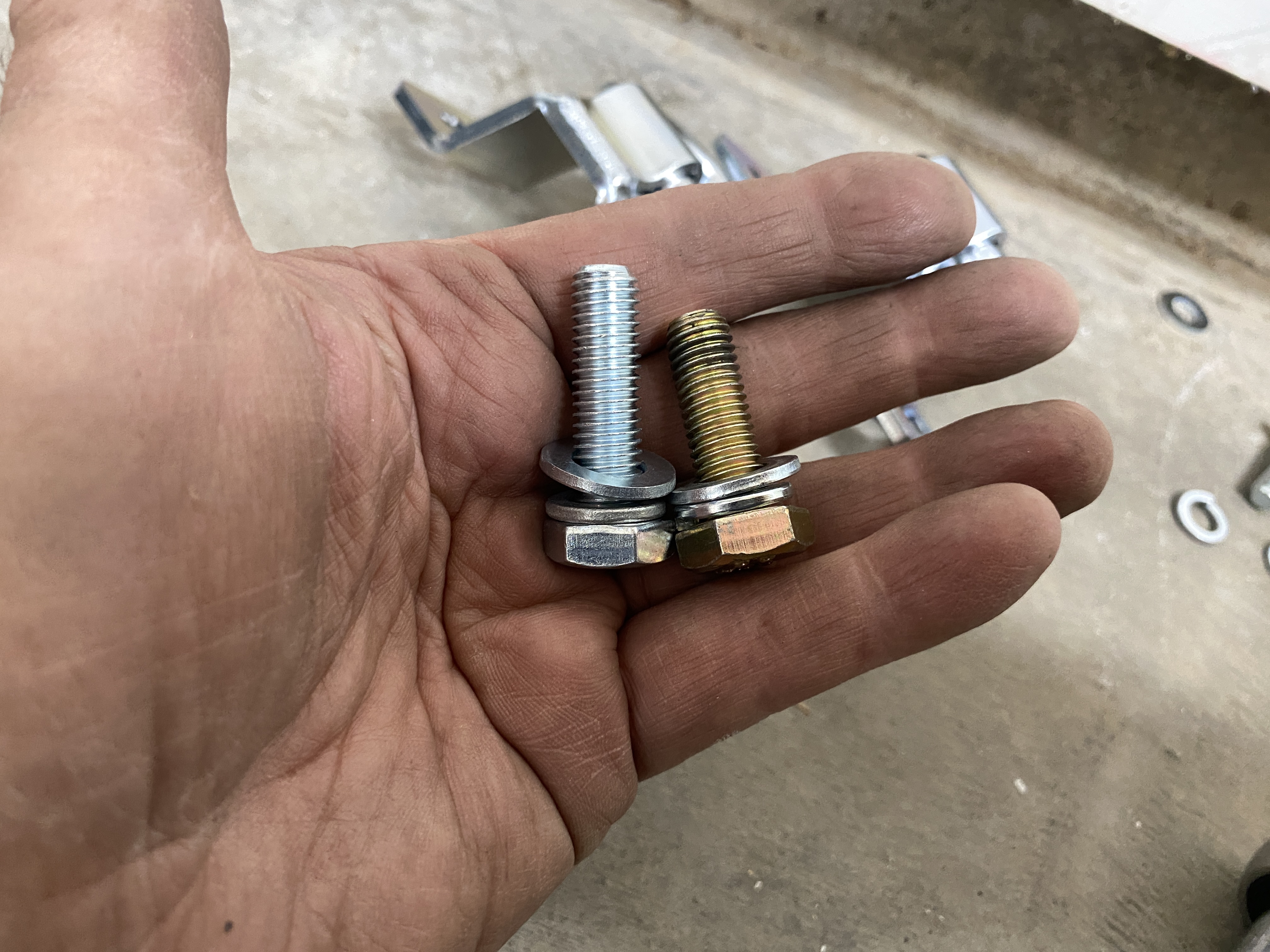

New vs original bolts. Both are 8.8.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 07:00 PM
Post #6751


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

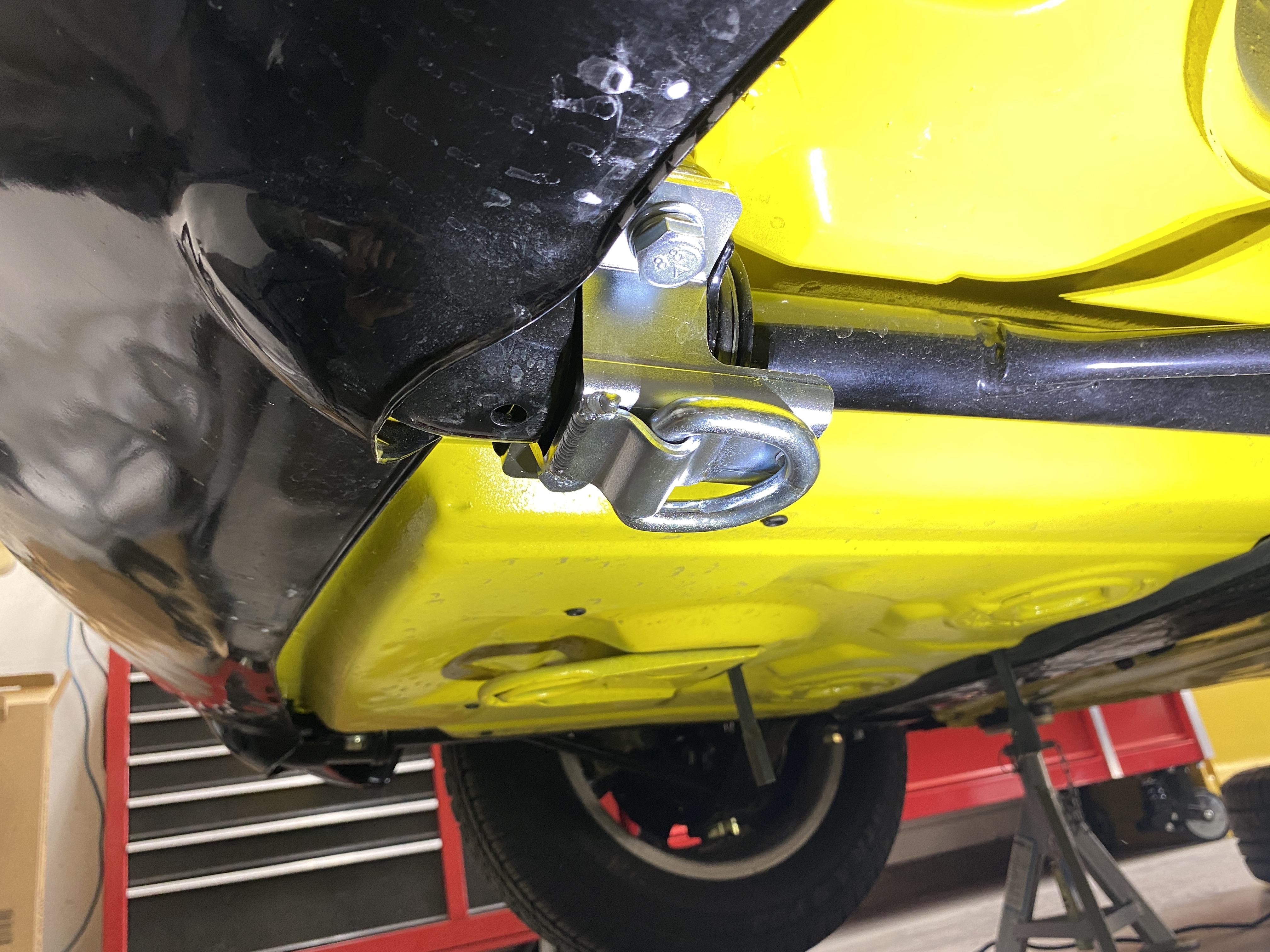

Tie down installed. This cool updated design has a magnet to keep the ring from dangling when not in use.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 07:05 PM
Post #6752


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

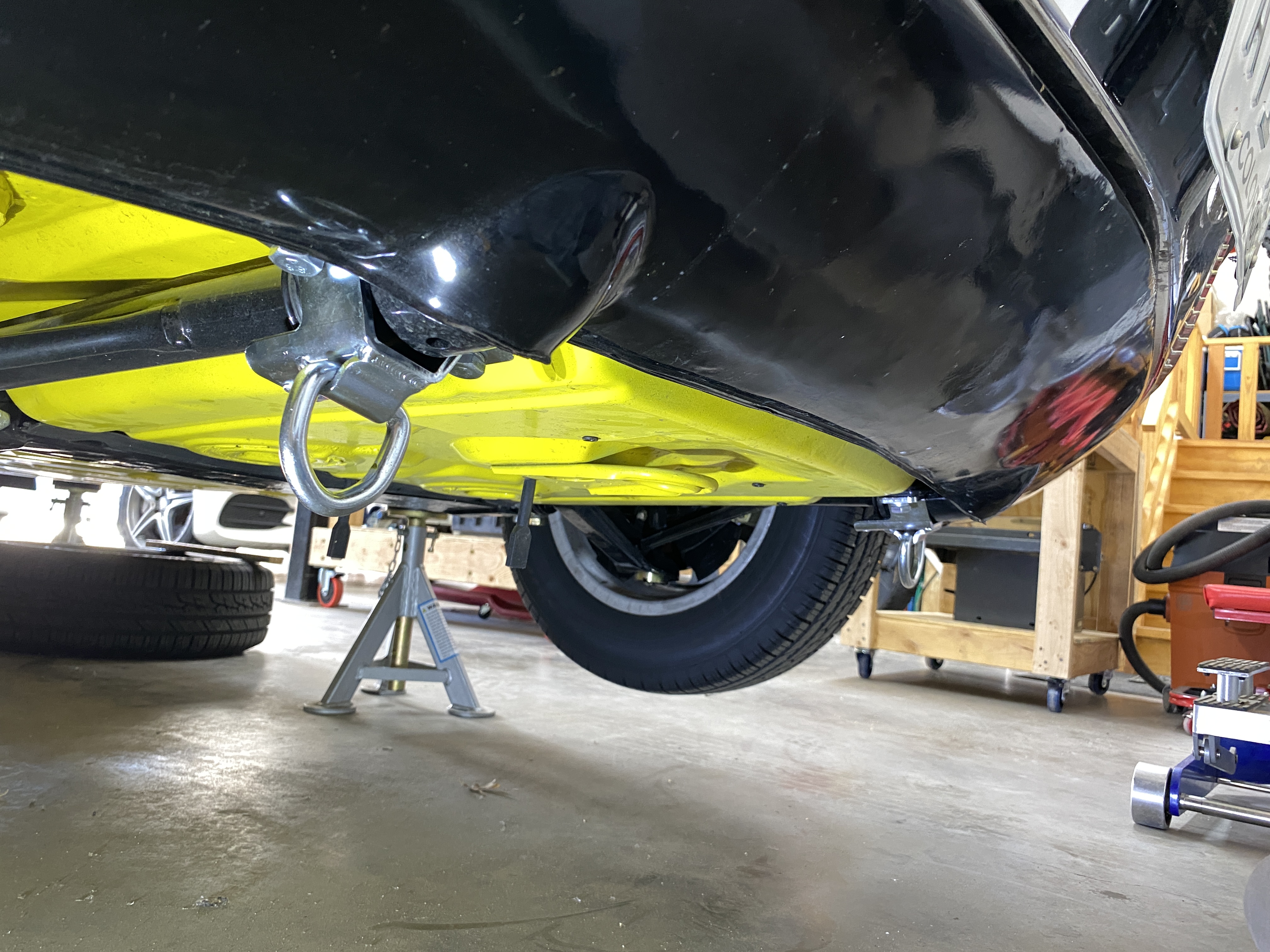

Both sides took about 10 minutes.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 07:05 PM
Post #6753


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

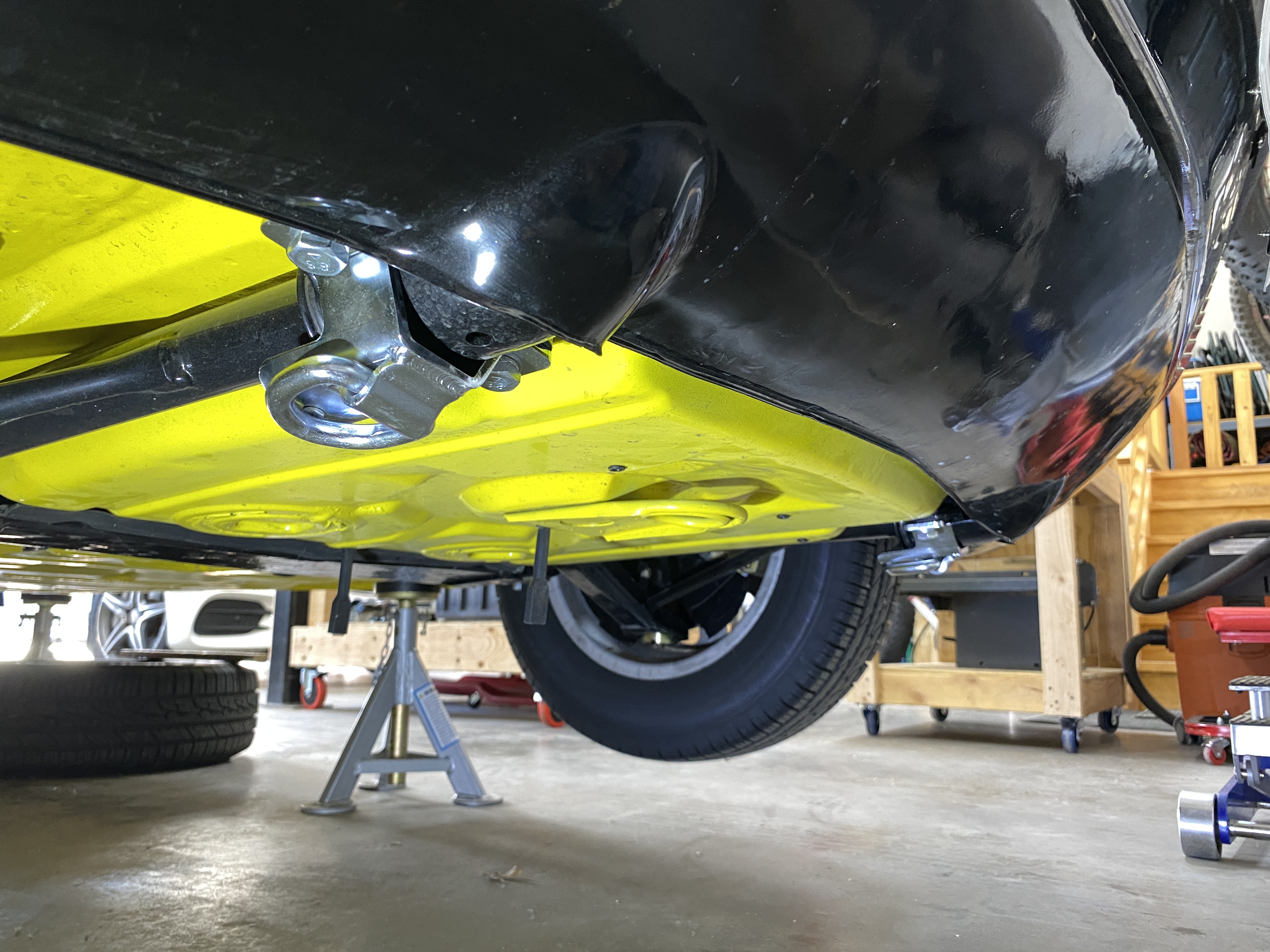

Loops tucked up, and ready to roll.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FourBlades
post Mar 30 2024, 07:06 PM
Post #6754


From Wreck to Rockin
****

Group: Members
Posts: 2,056
Joined: 3-December 07
From: Brevard, FL
Member No.: 8,414
Region Association: South East States

Nice tie downs!

Your car is looking amazing. (IMG:style_emoticons/default/first.gif)

John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 07:09 PM
Post #6755


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

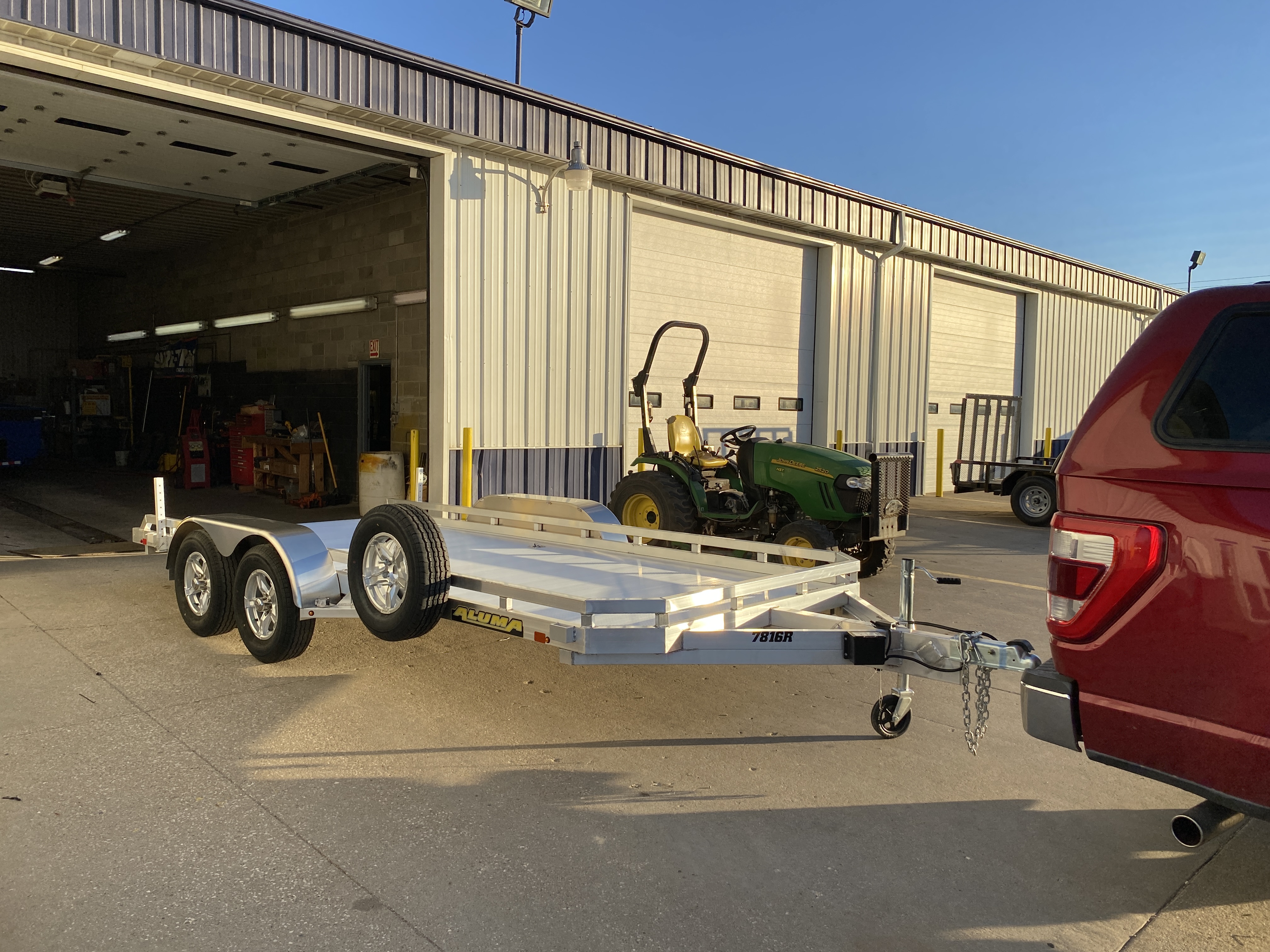

I am going to use editorial privilege here, and add in my Aluma trailer. I got this specifically to tow my 914 to events and other distant locations. My wonderful, wonderful wife wants to join in, but has declared she will not spend multiple hours in the right seat, just to get somewhere.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 07:11 PM
Post #6756


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

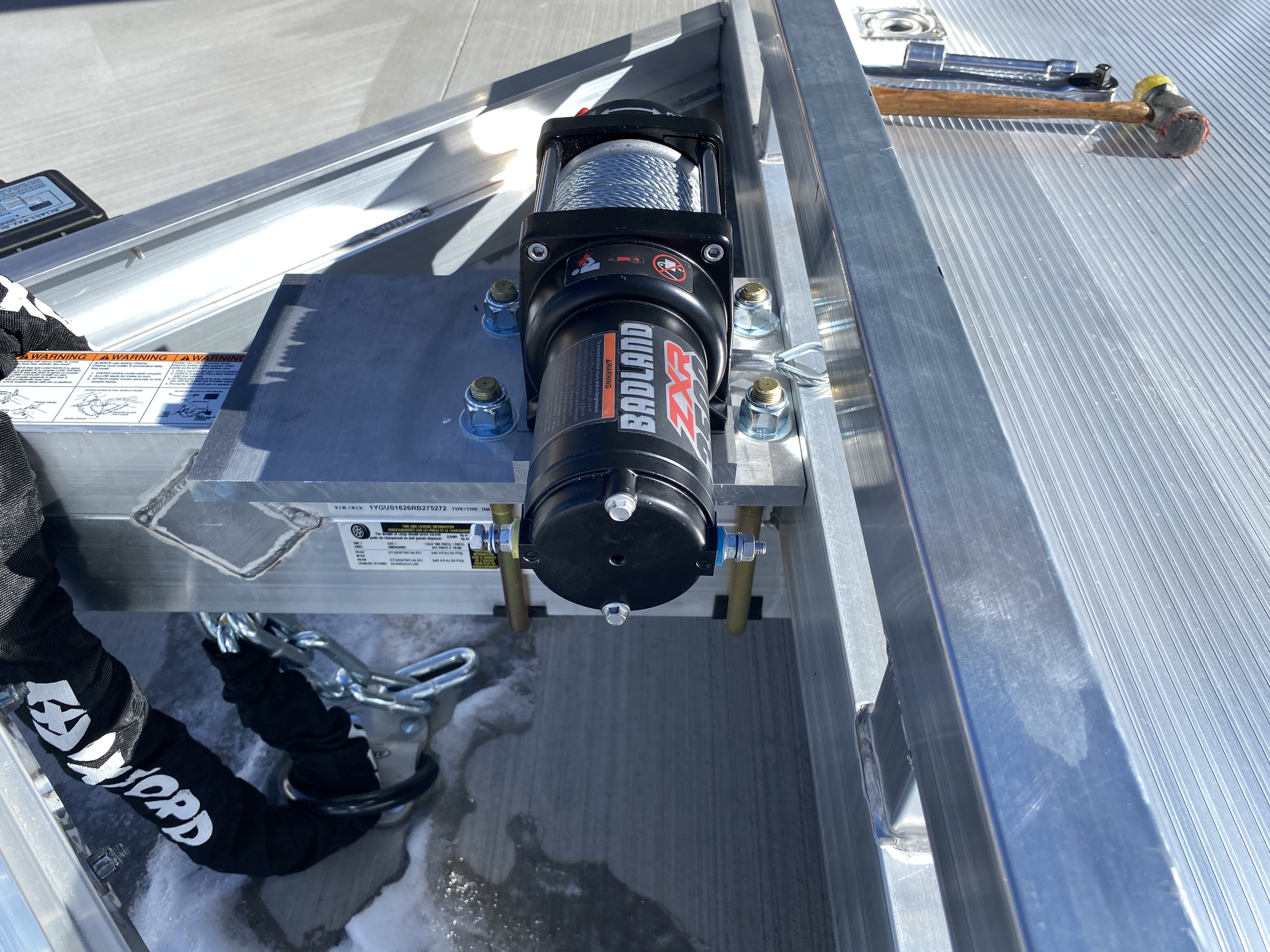

To make loading easier (including on my marriage) I added a 3500 lb winch. I installed this using a 5/8 inch thick aluminum plate. The winch bolts to the plate, and the plate is held to the main trailer member with some big square-end U-bolts.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 07:13 PM
Post #6757


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

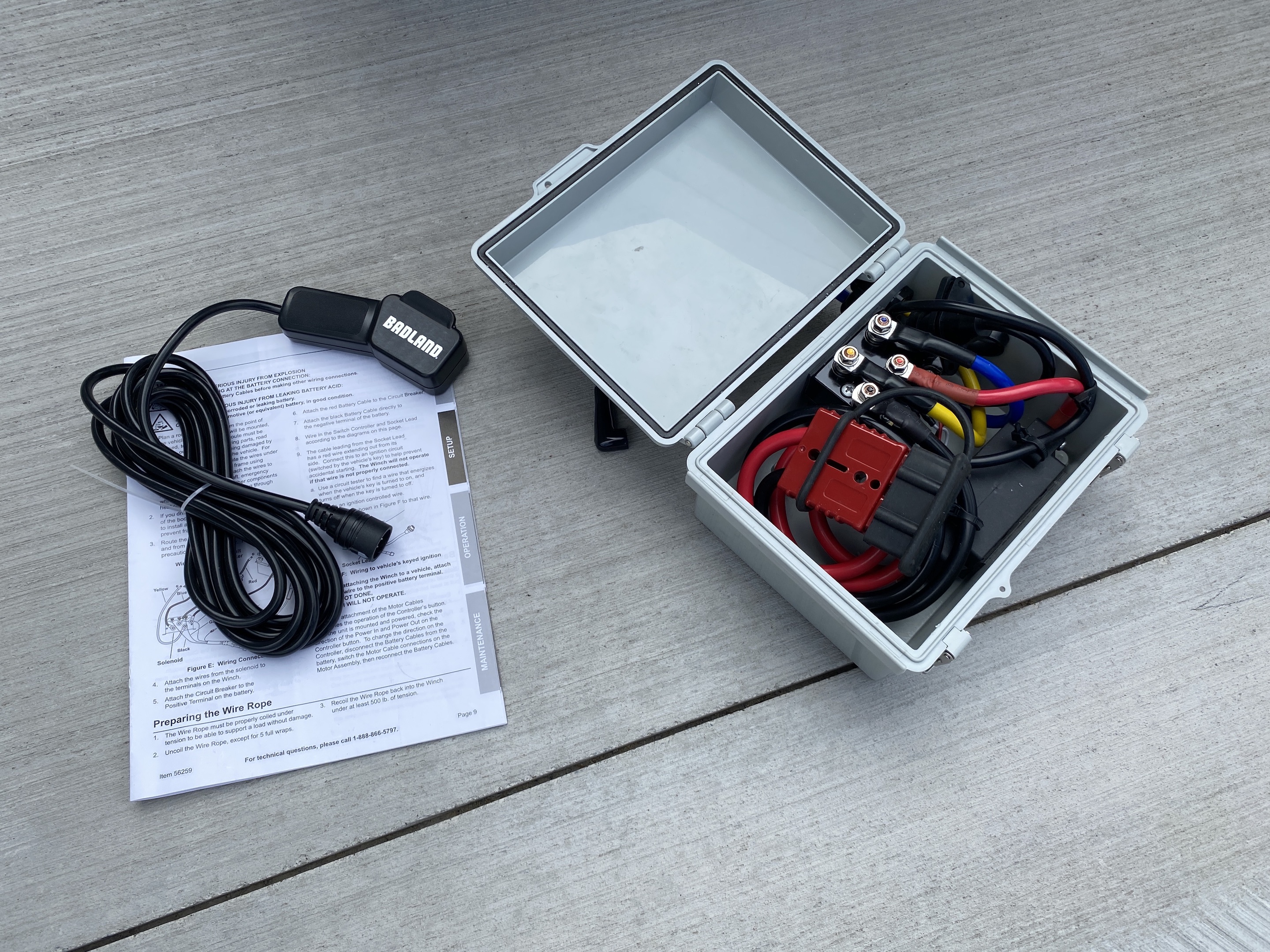

My remaining task is the power system. I already have the relay and connections in a waterproof box. Now to mount this on the trailer.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 07:14 PM
Post #6758


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

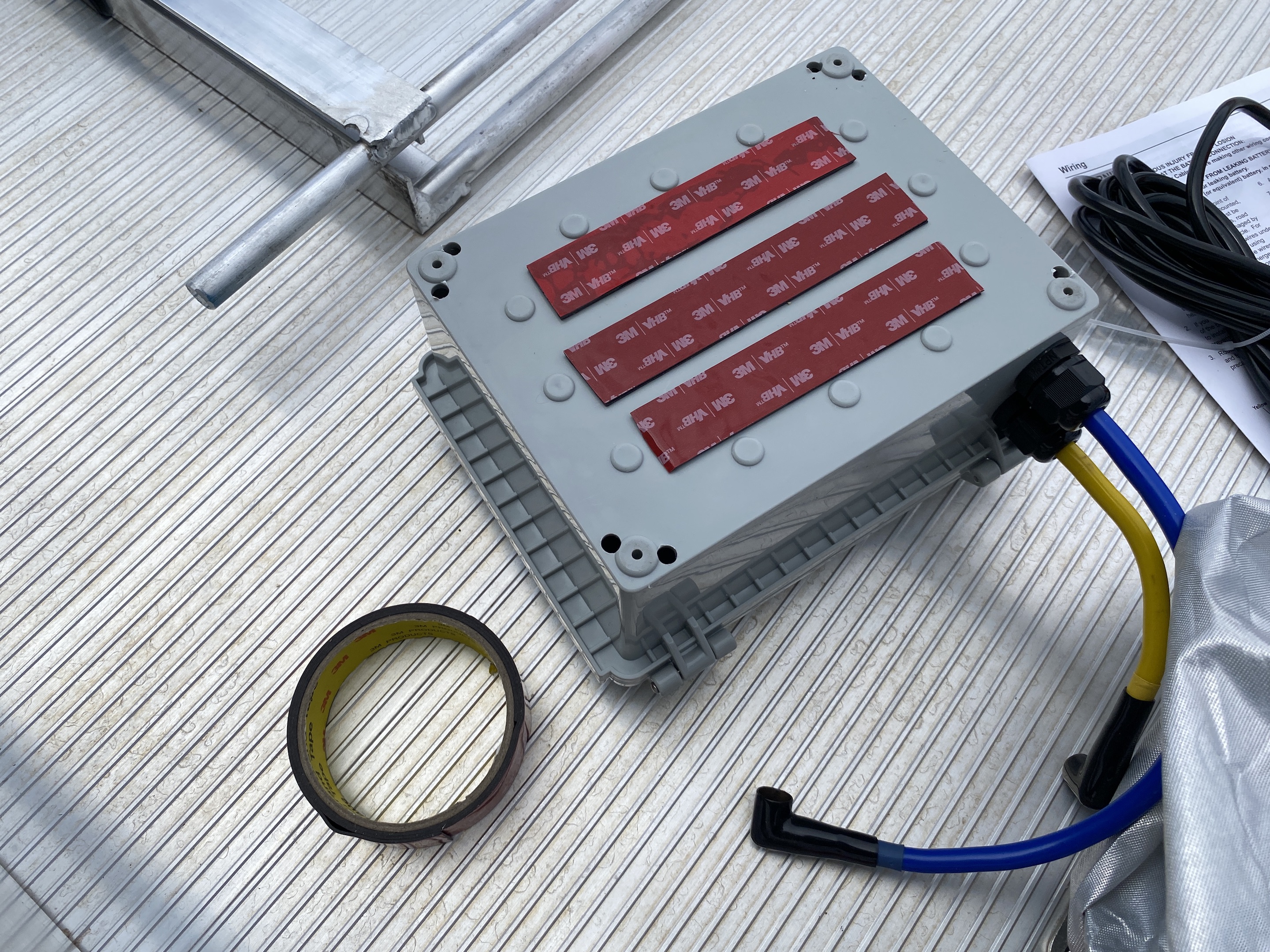

For now, I am using 3M industrial strength adhesive tape, with double tape layers to account for the nubs on the bottom of the box.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 07:15 PM
Post #6759


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

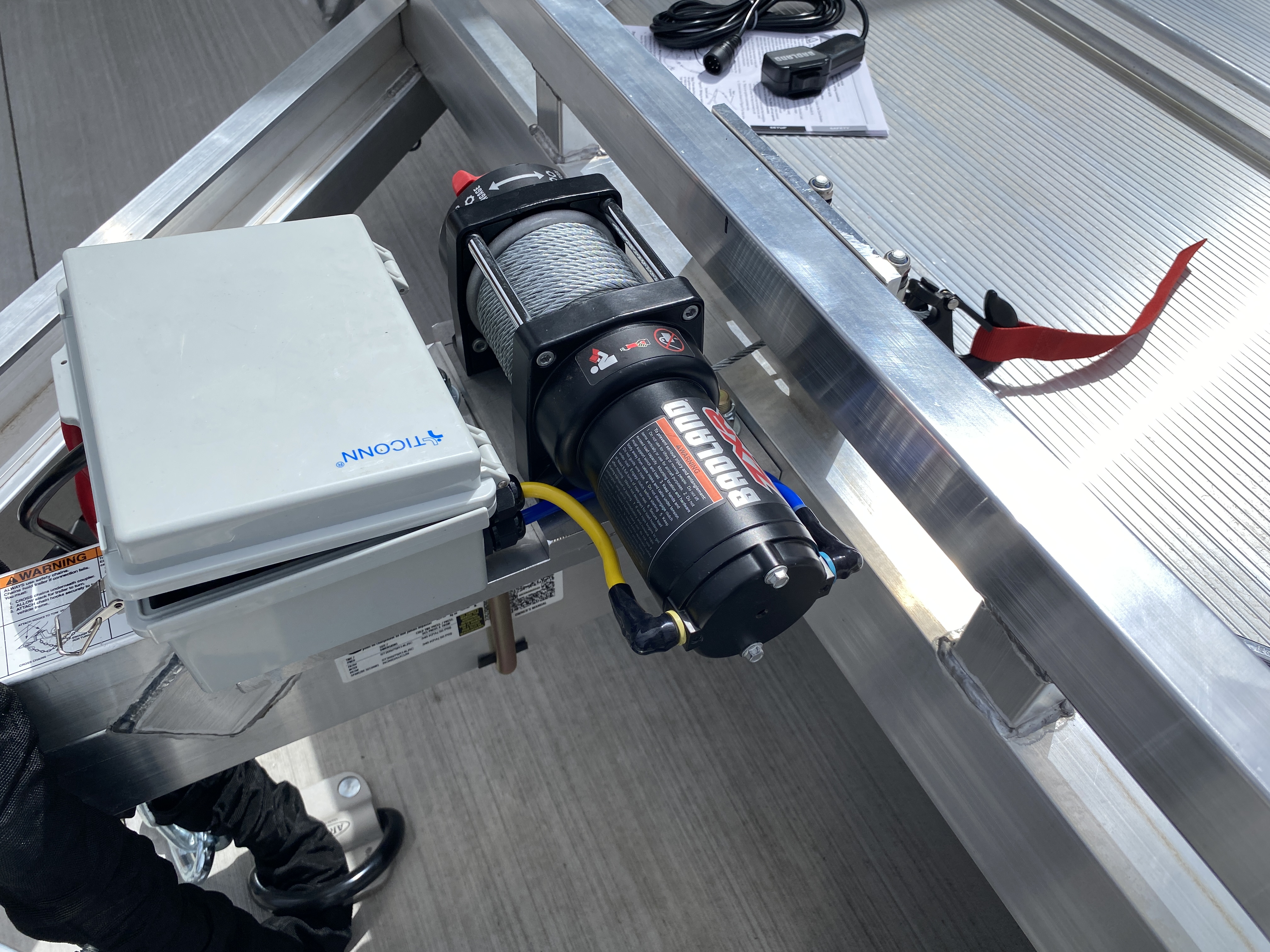

Box installed, and power cables attached to the winch.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 30 2024, 07:16 PM
Post #6760


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

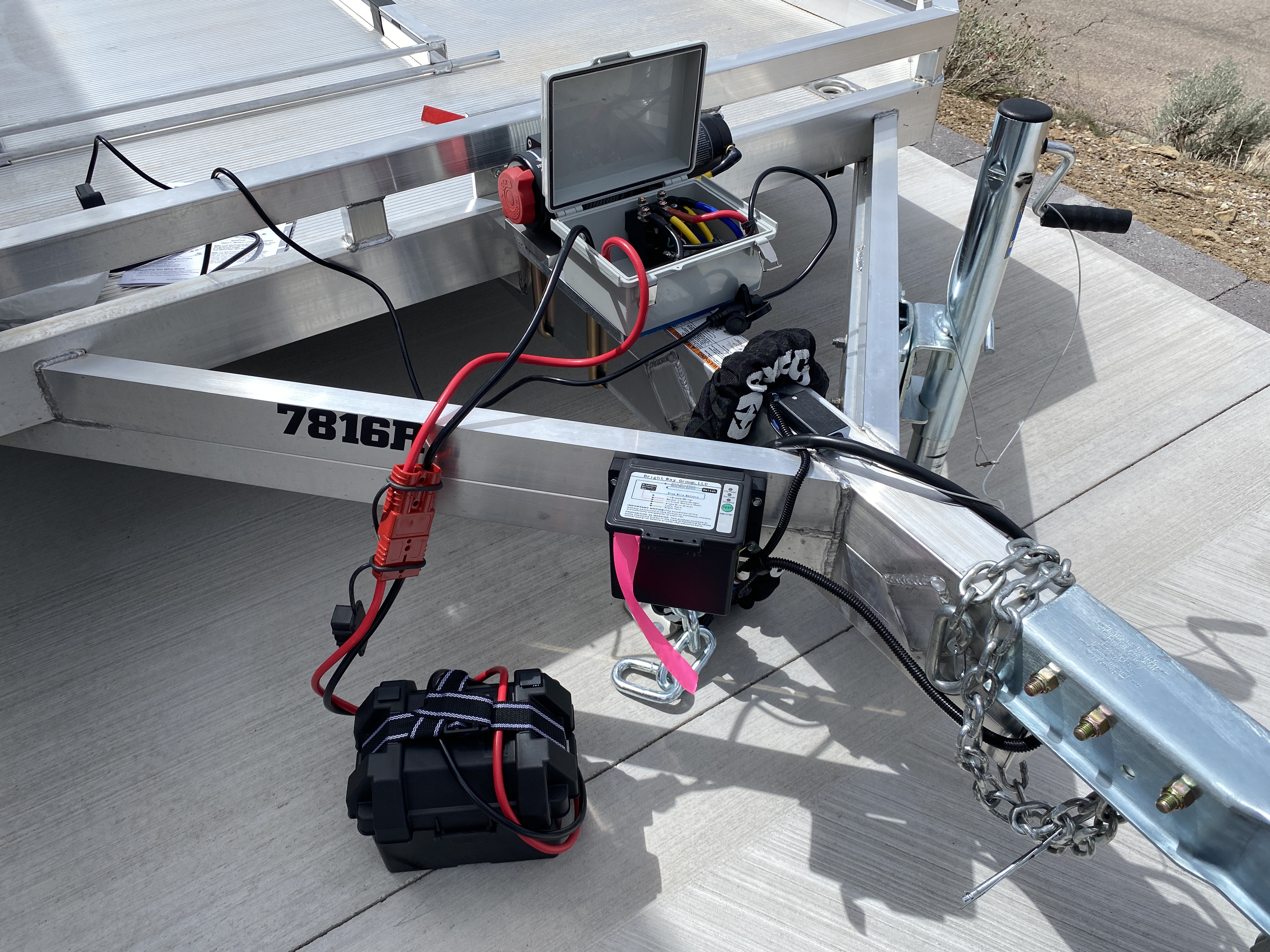

Here's my setup version 1.0, with a stand-alone battery. The battery cables are very heavy gauge, with a big quick-connect.


Attached thumbnail(s)
Attached Image
