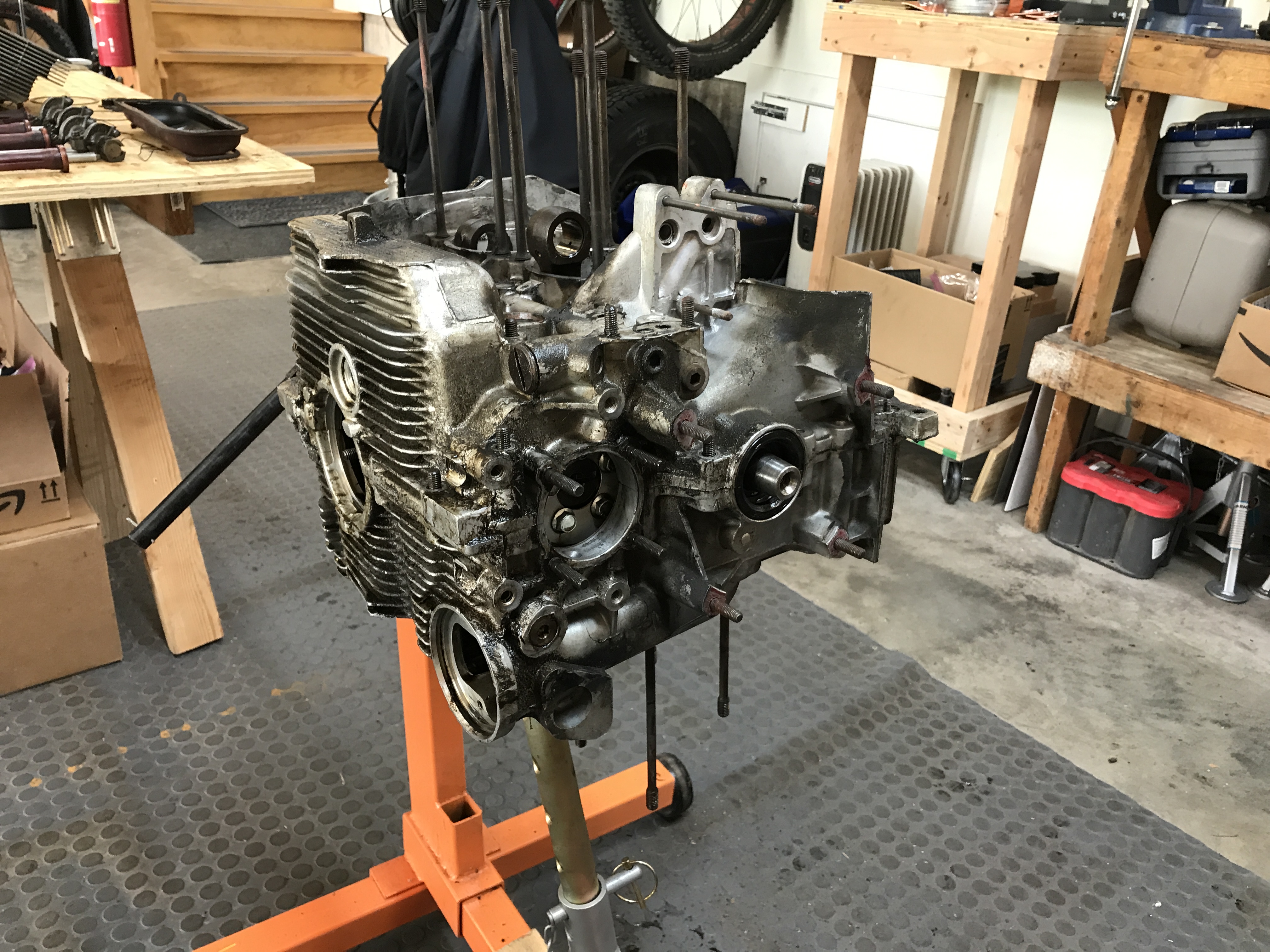

So, after removing the 6 main case bolts, and undoing 20 fasteners around the perimeter and elsewhere, I am ready to split the case. But the seam is resisting.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Jul 3 2020, 09:13 PM
Post #882


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
Attached Image

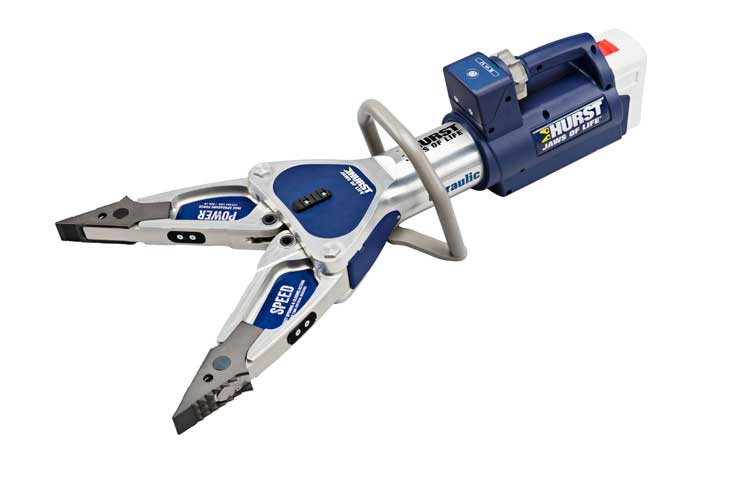

I'd bet something like this could split the case halves.....
(IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Jul 3 2020, 10:12 PM
Post #883


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,903
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
Did you get the bolt that goes through the windage tray? It is between the two cylinder spigots in a recess.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Kansas 914
post Jul 4 2020, 09:58 AM
Post #884


Advanced Member
****

Group: Members
Posts: 2,999
Joined: 1-March 03
From: Durango, Colorado
Member No.: 373
Region Association: Rocky Mountains
QUOTE(ClayPerrine @ Jul 3 2020, 10:12 PM) *

Did you get the bolt that goes through the windage tray? It is between the two cylinder spigots in a recess.

It was the same one I didn't see when I first split a case.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 4 2020, 08:33 PM
Post #885


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
All the bolts were out (I counted them at least a dozen times).

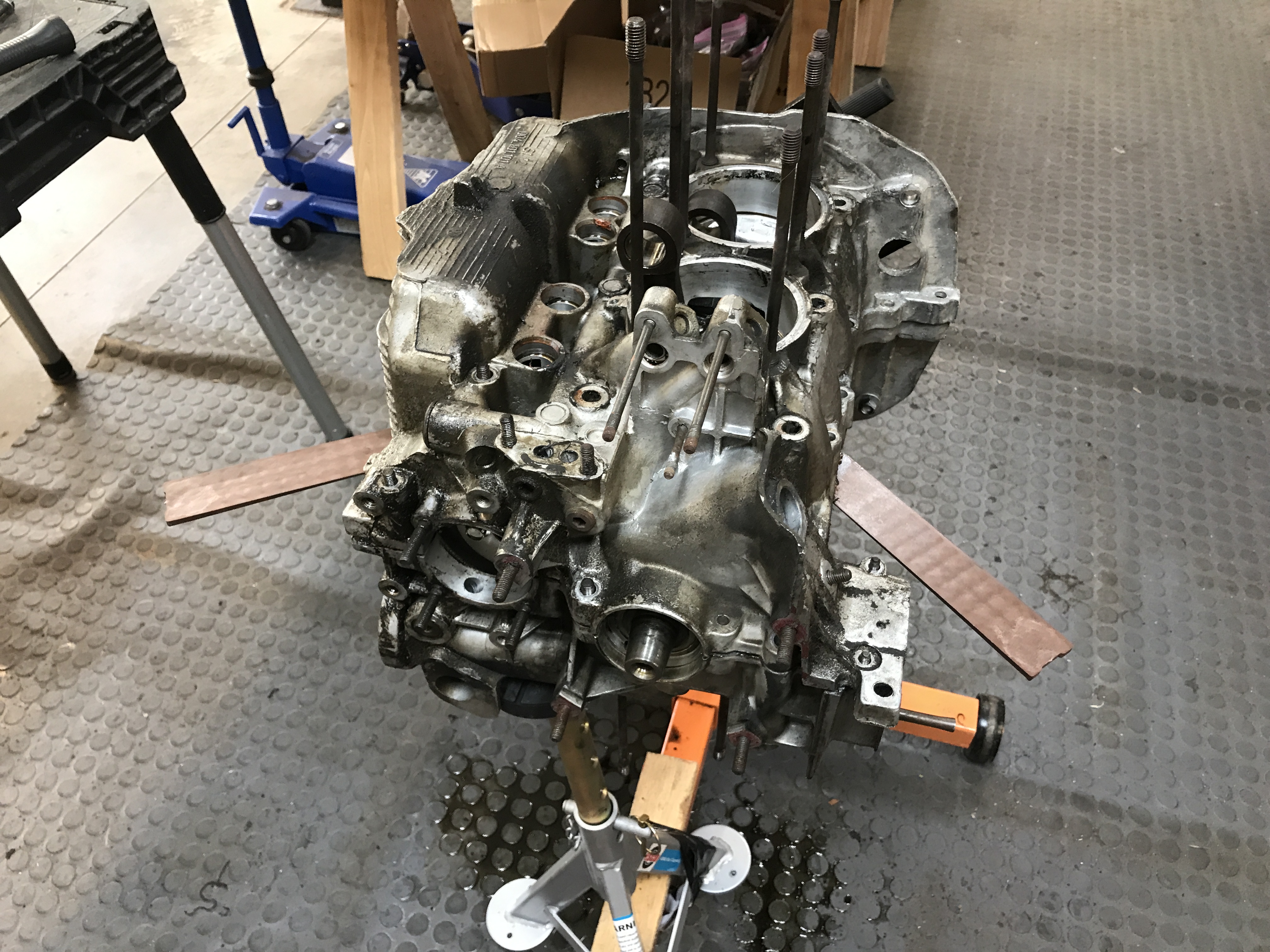

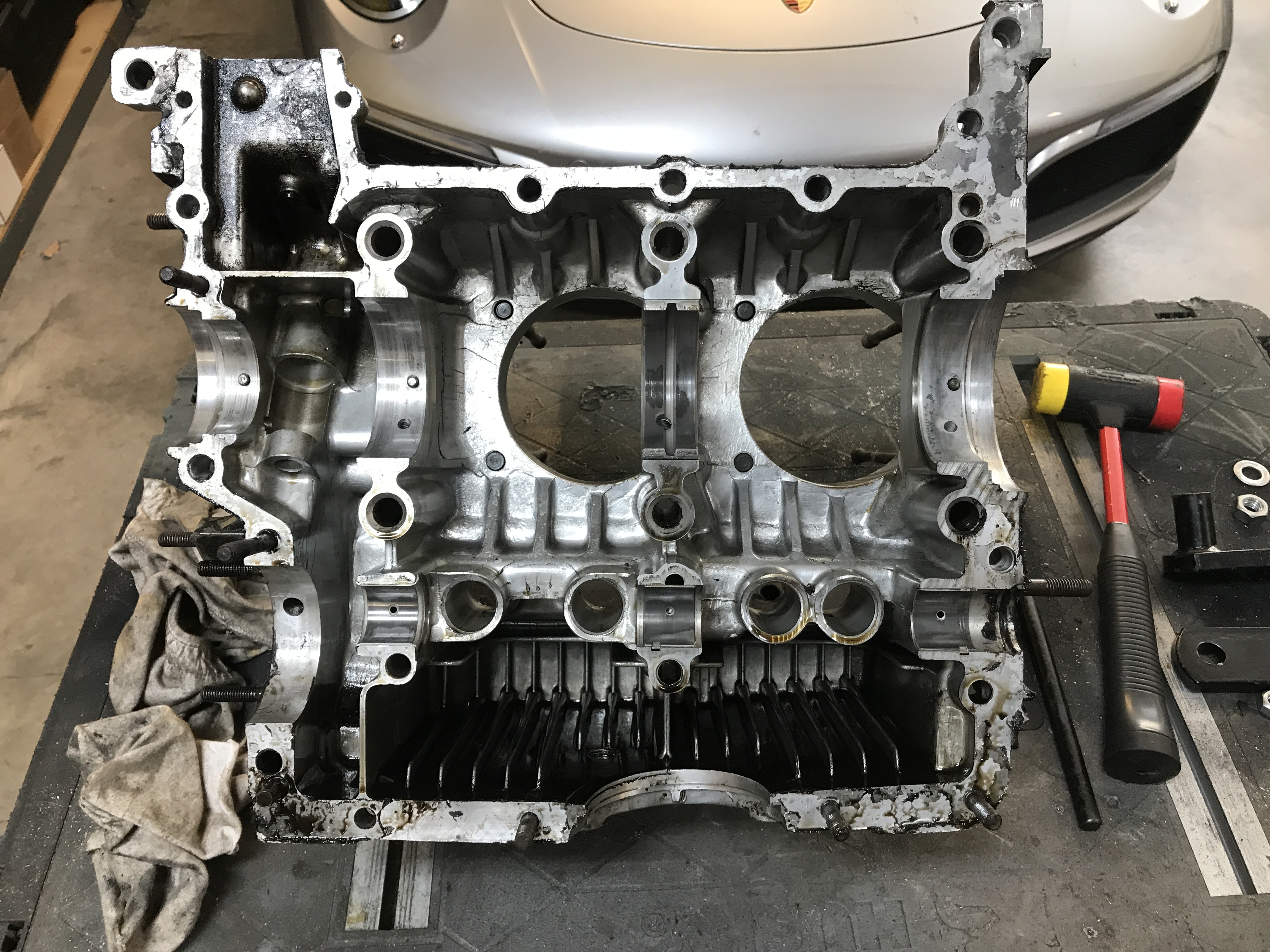

I tried the method of prying between the front shaft impeller flange and the front seal. After a gentle pry, the seam opened up along the front, but the back was still stuck. I resorted to some plastic wedges (door frame shims), and that did the trick.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 4 2020, 08:36 PM
Post #886


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

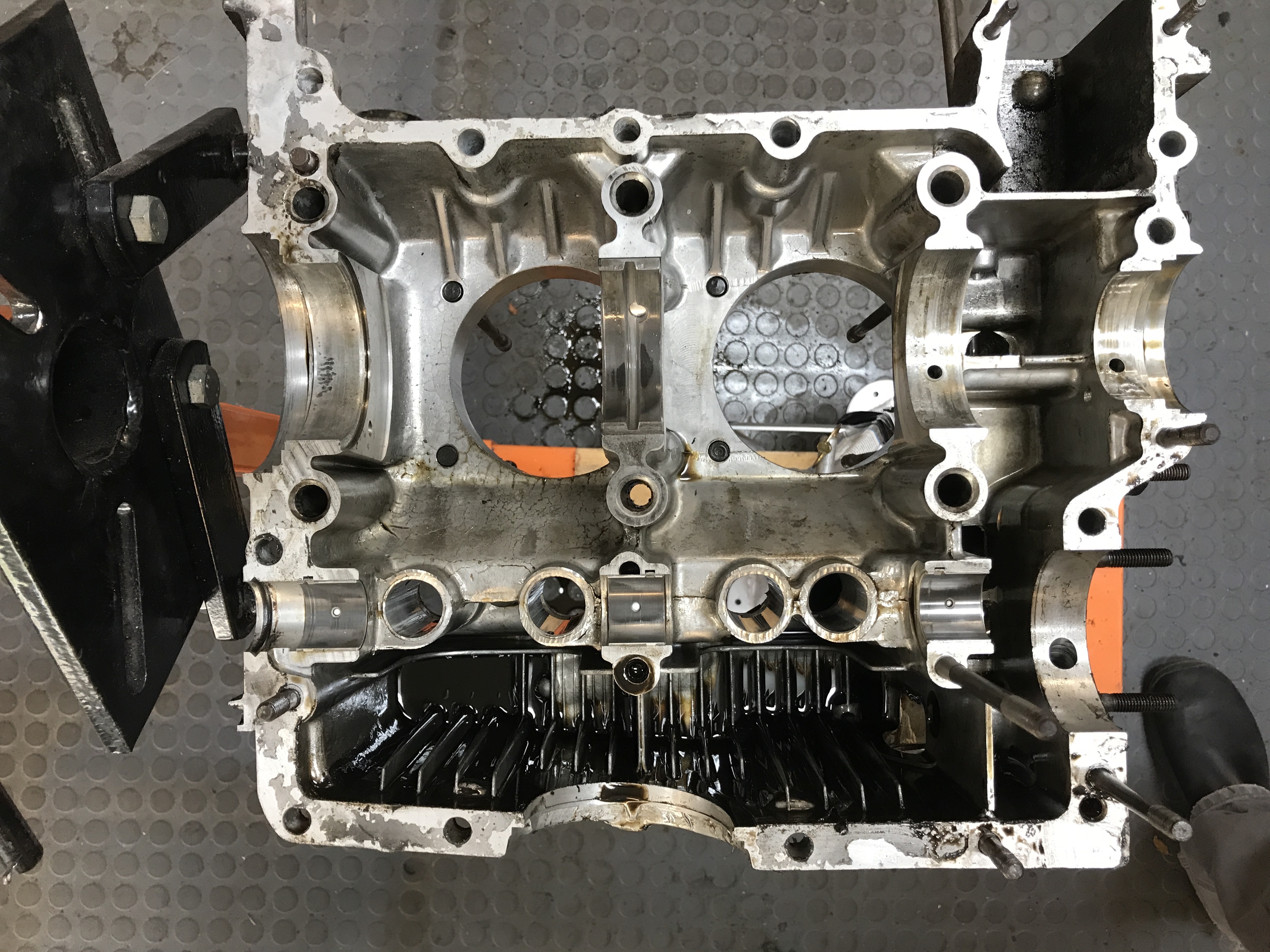

Inside the case looks very good. Left side.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 4 2020, 08:36 PM
Post #887


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Right side.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 4 2020, 08:37 PM
Post #888


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

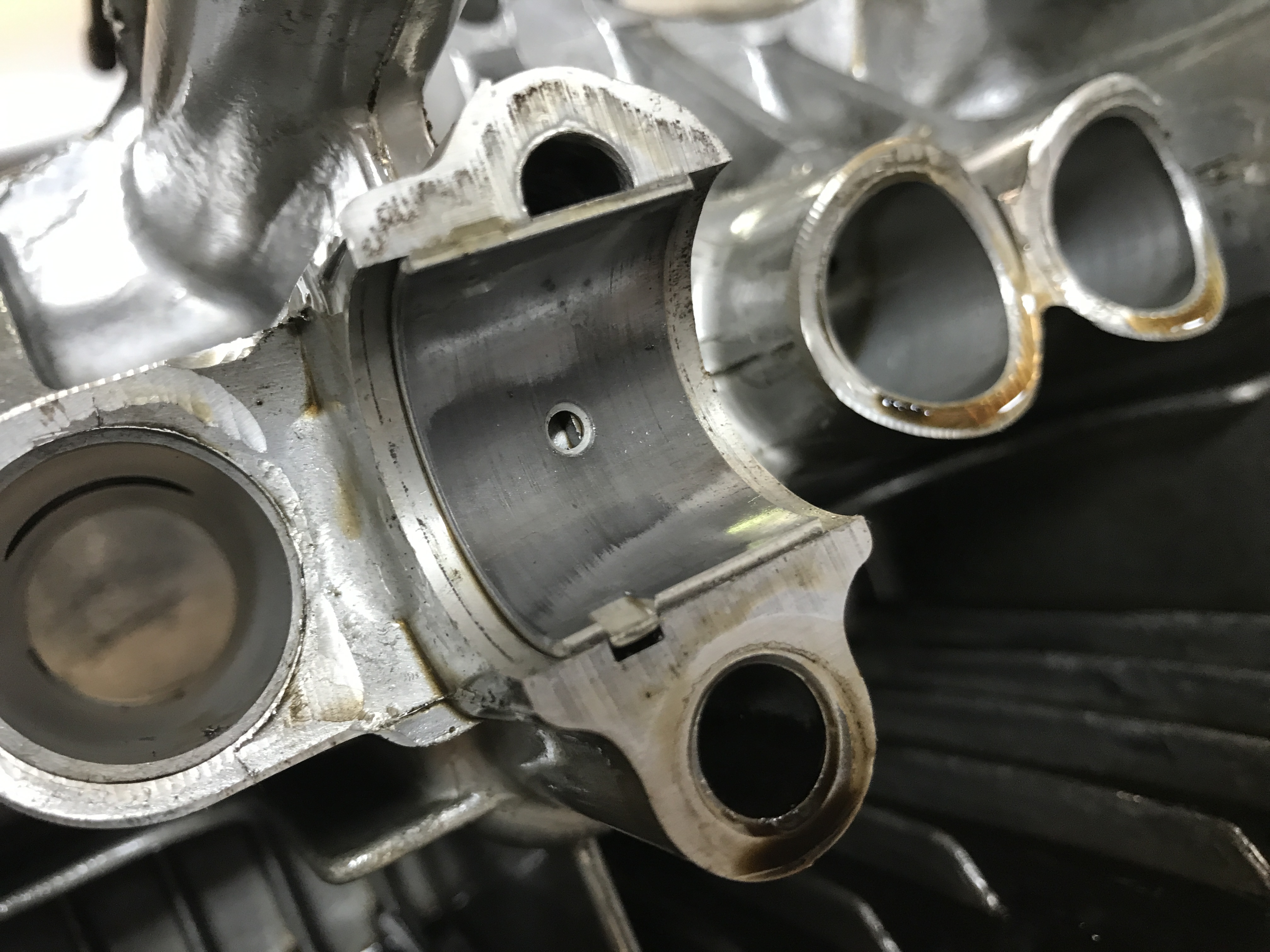

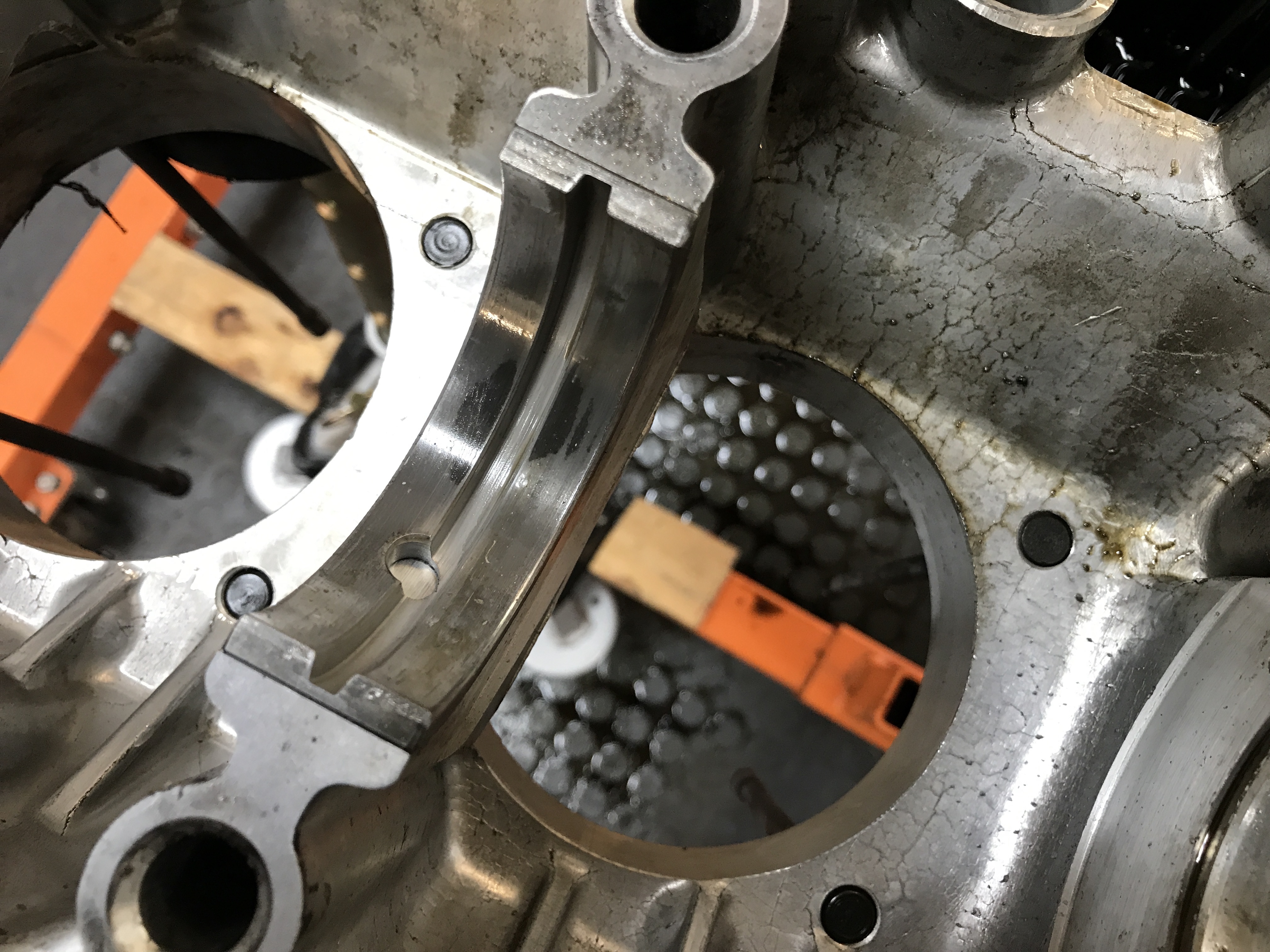

Number 2 bearing looks good.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 4 2020, 08:38 PM
Post #889


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Cam bearings also look good.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 4 2020, 08:39 PM
Post #890


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
The cam lobes look very good.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 4 2020, 08:39 PM
Post #891


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

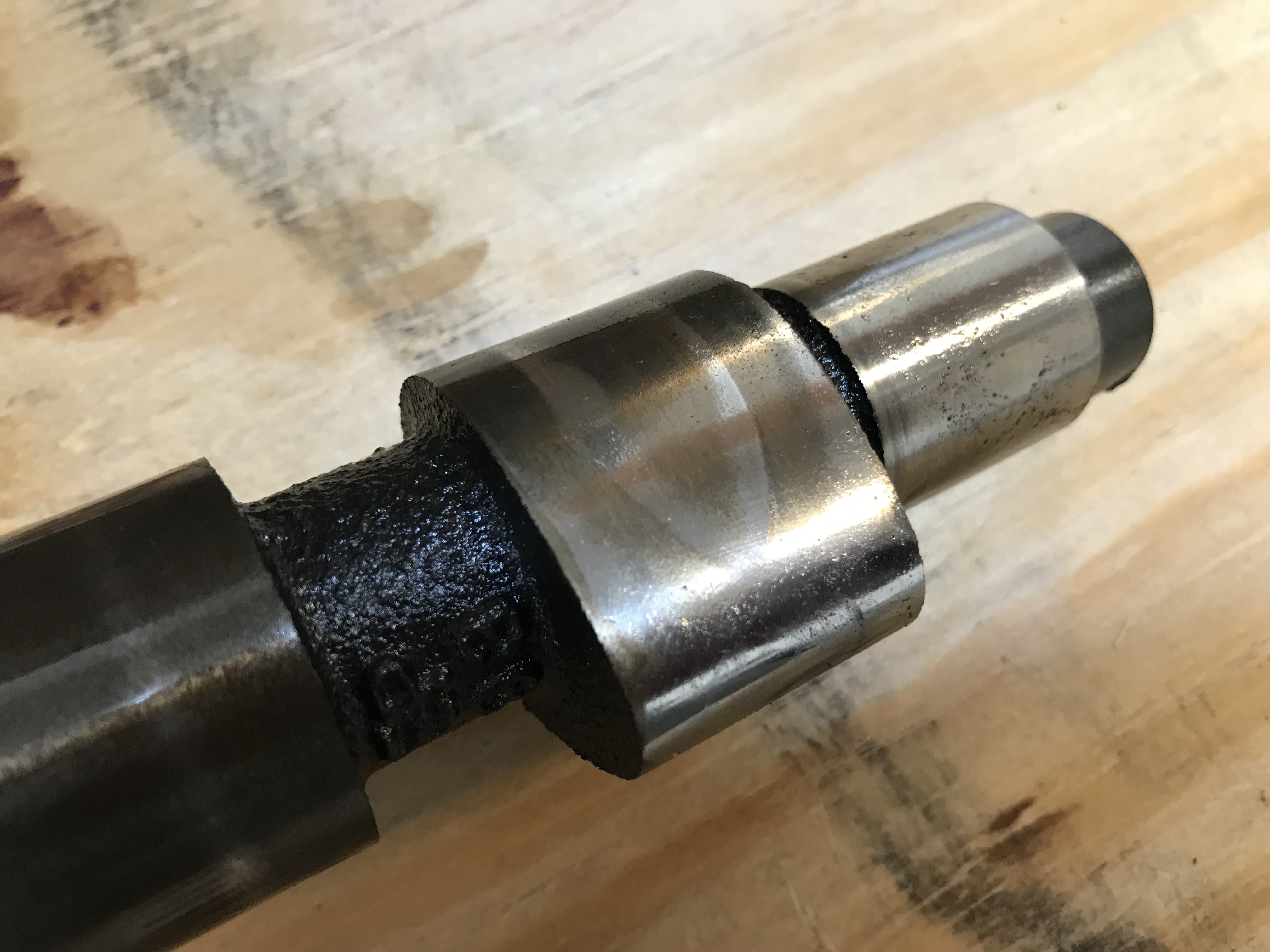

But the bolt-on cam is not stock, right?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 4 2020, 08:40 PM
Post #892


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

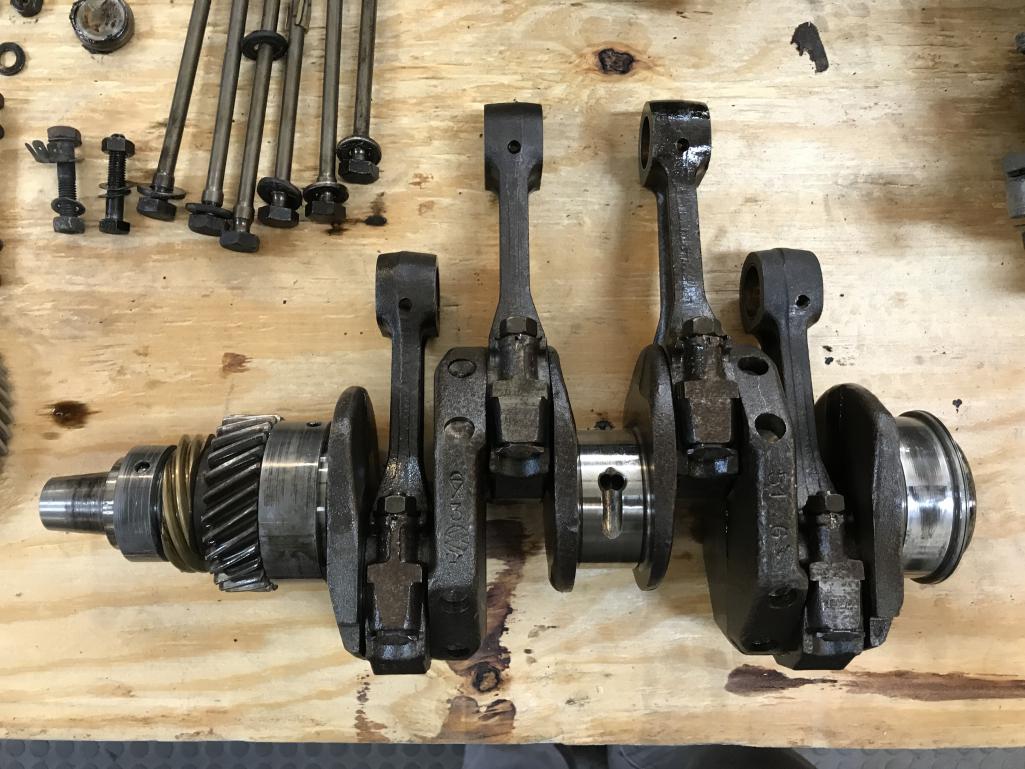

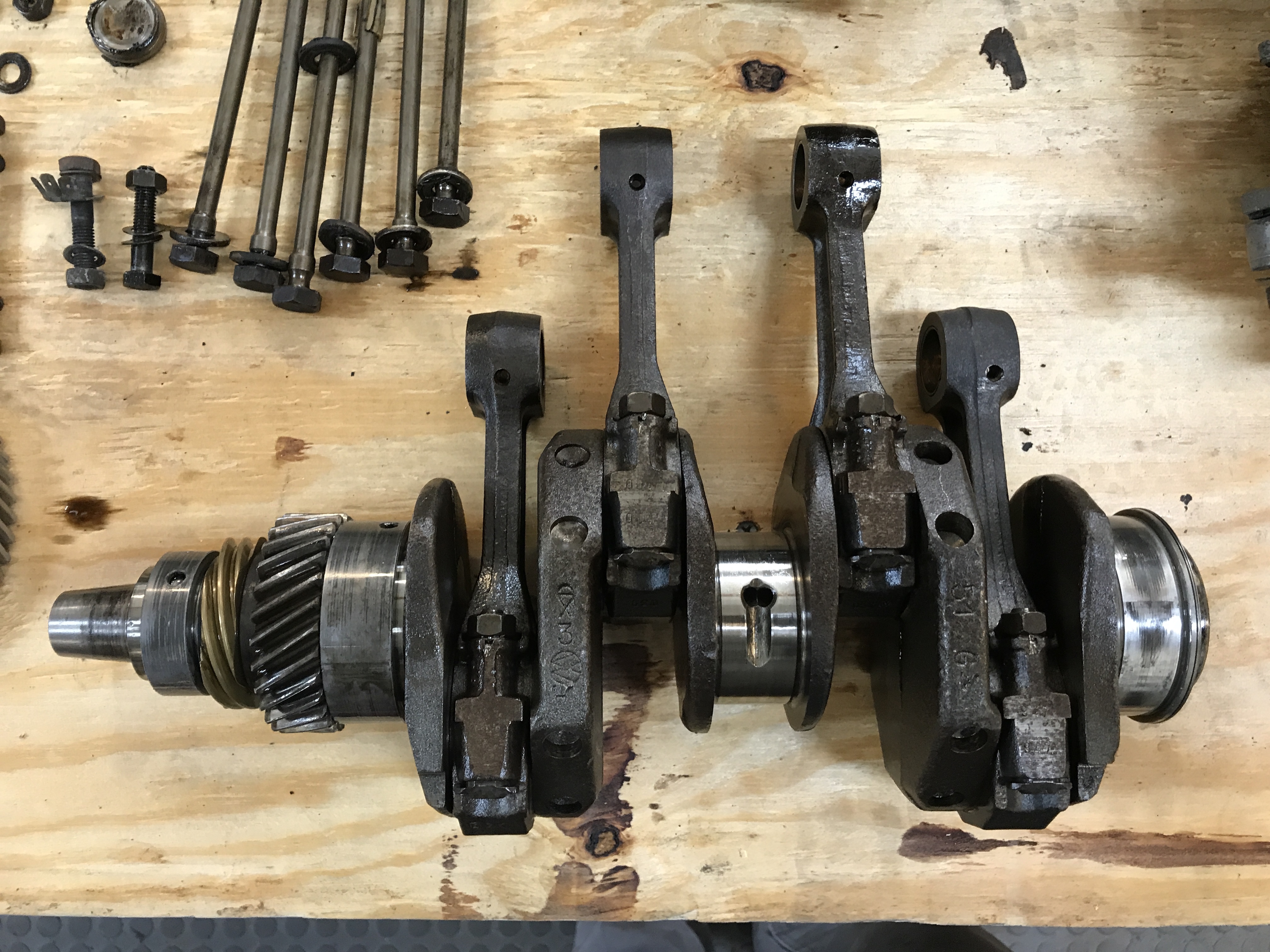

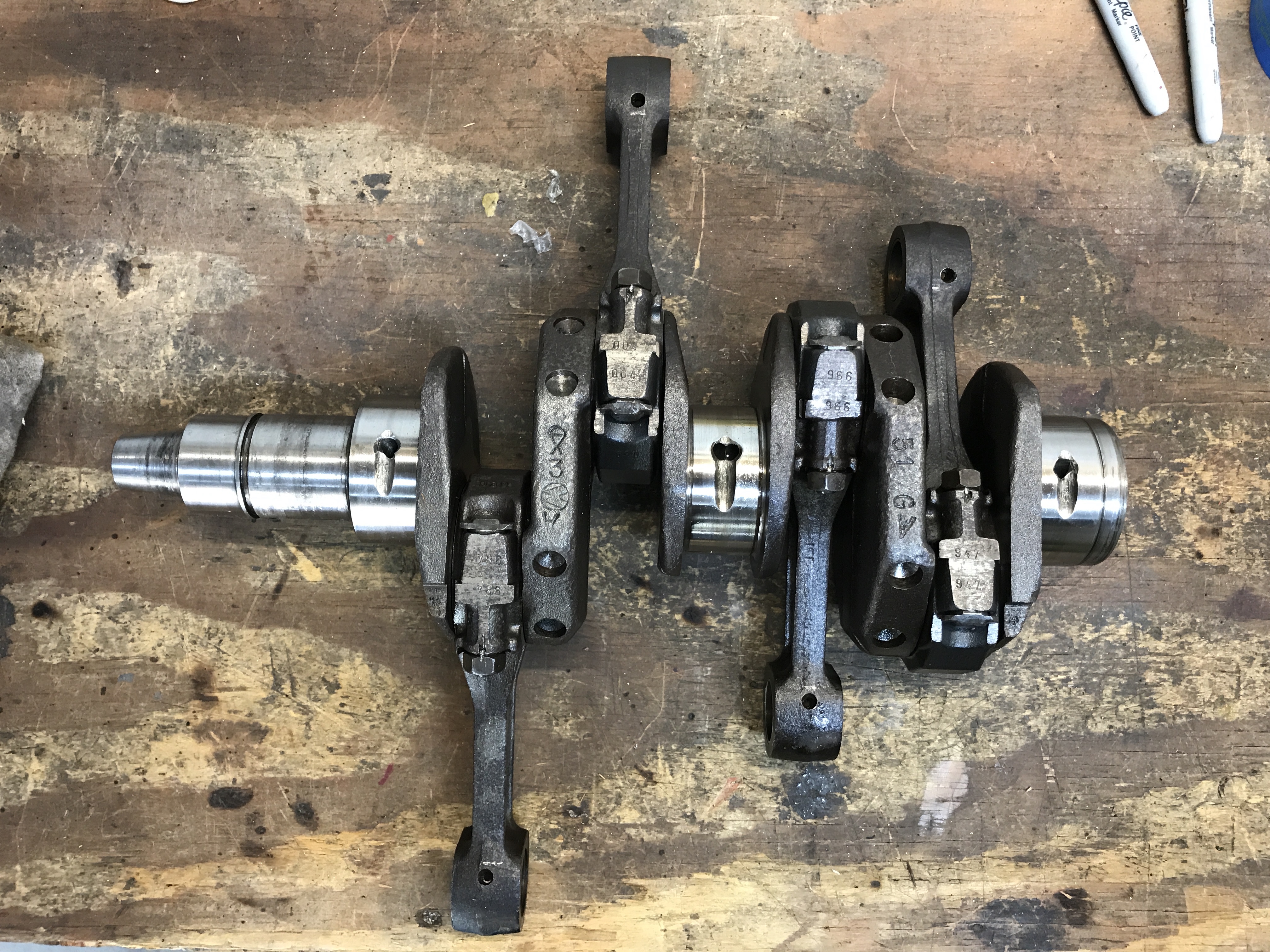

The crankshaft, fully assembled.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 4 2020, 08:41 PM
Post #893


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

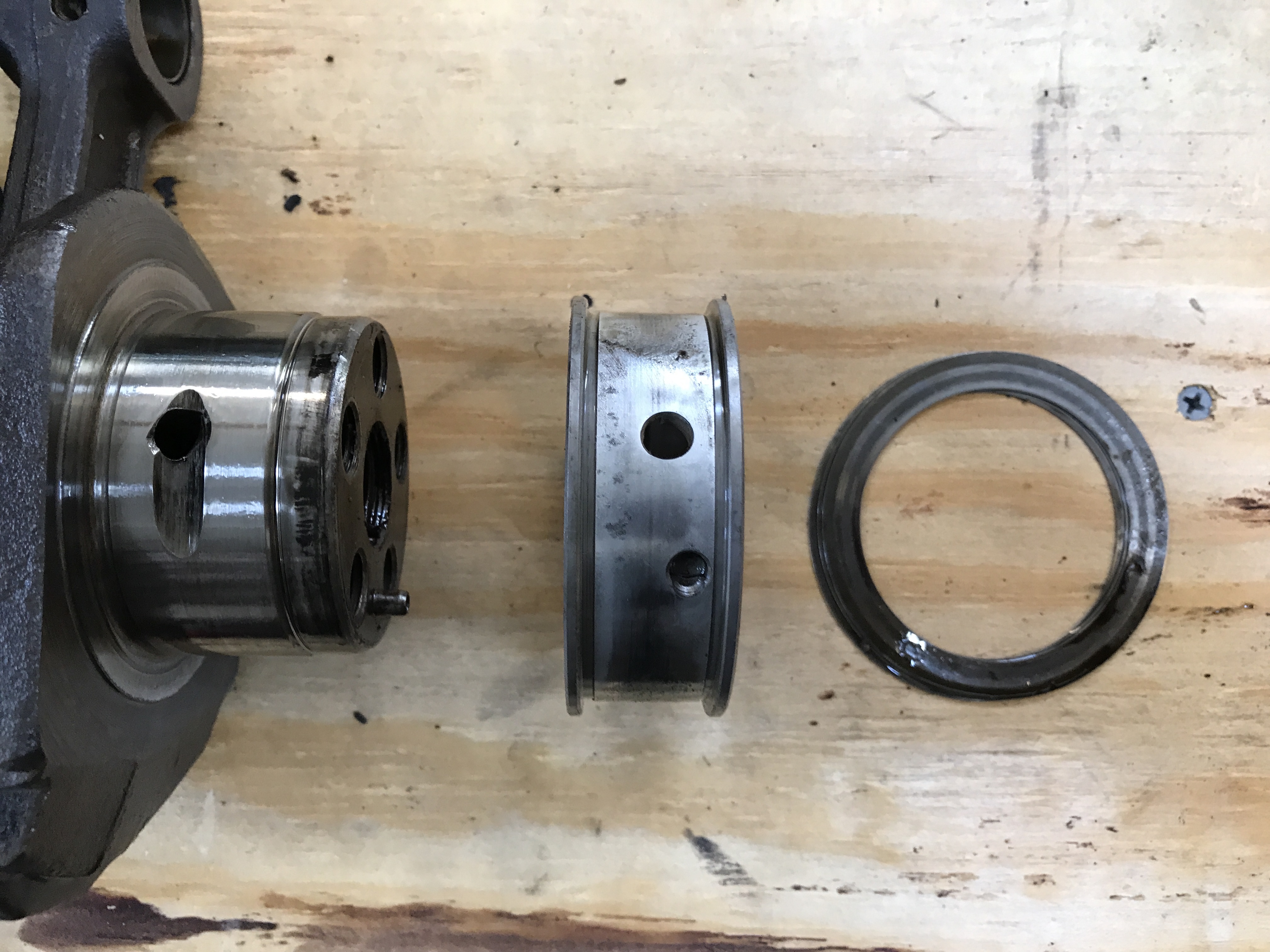

The number 1 bearing and journal.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 4 2020, 08:43 PM
Post #894


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

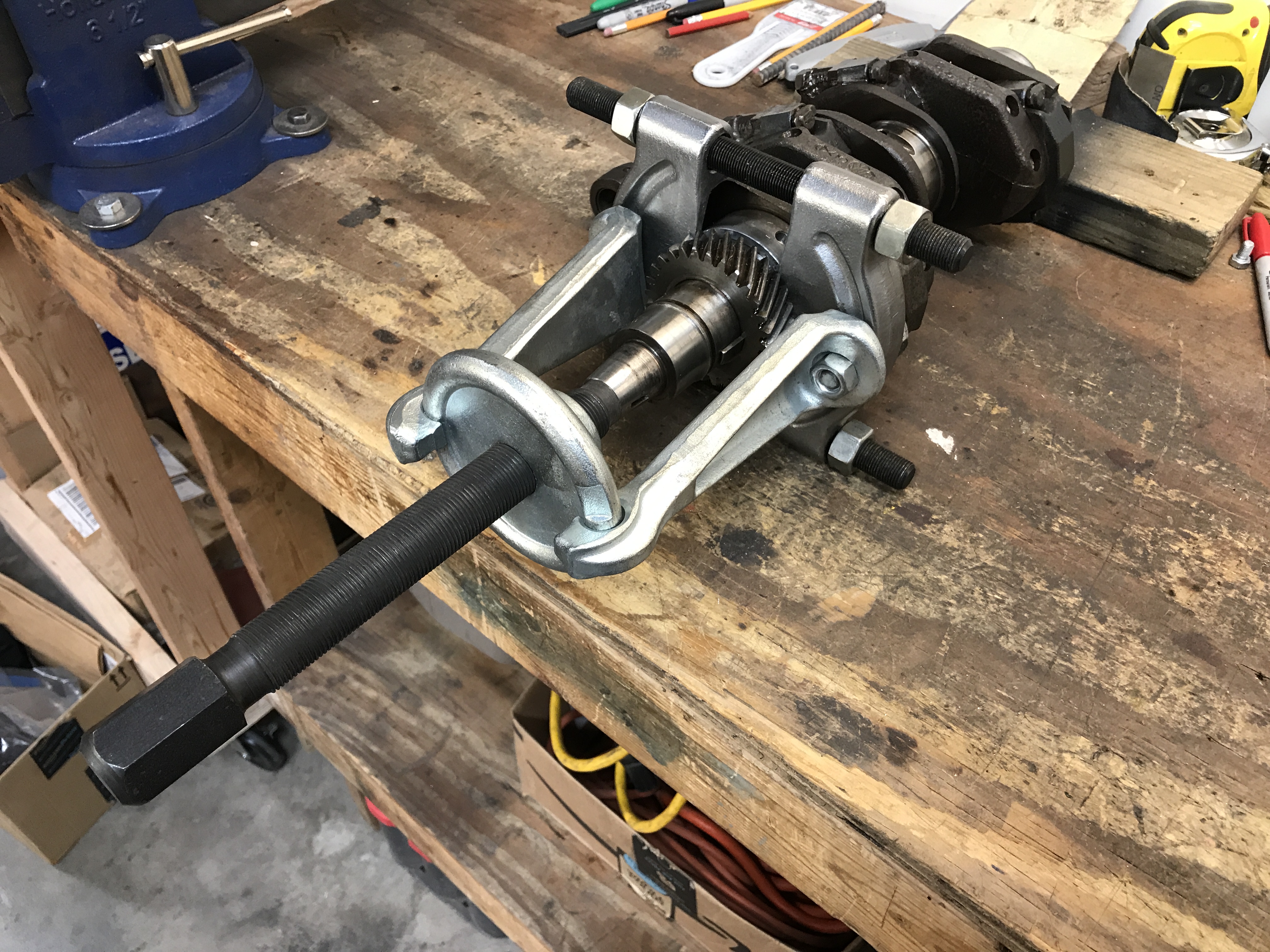

Rigged up to pull the camshaft drive gear.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 4 2020, 08:43 PM
Post #895


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

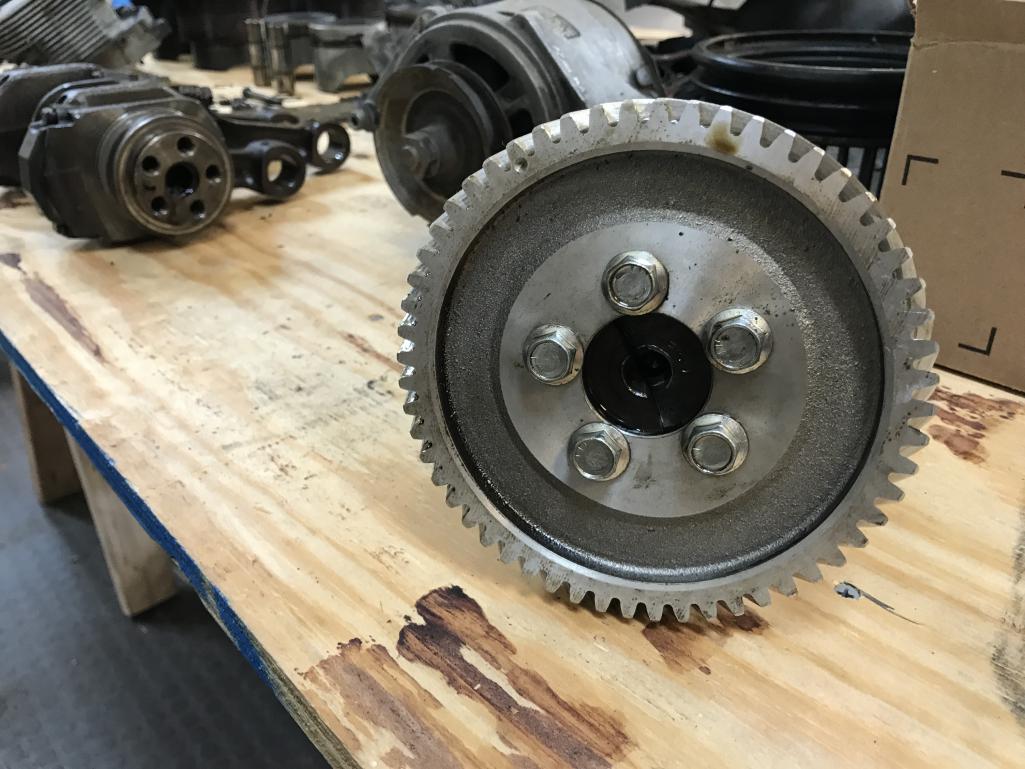

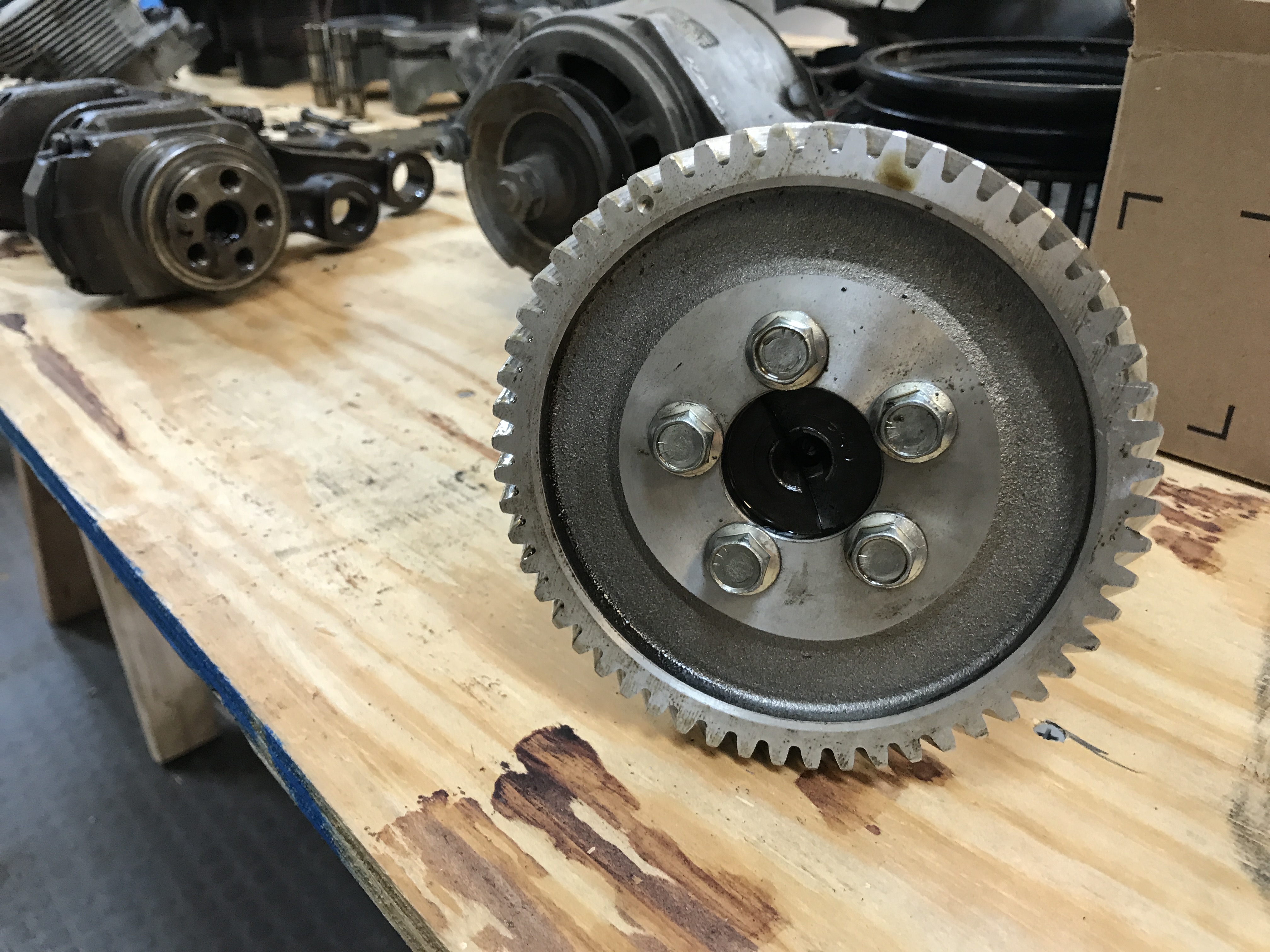

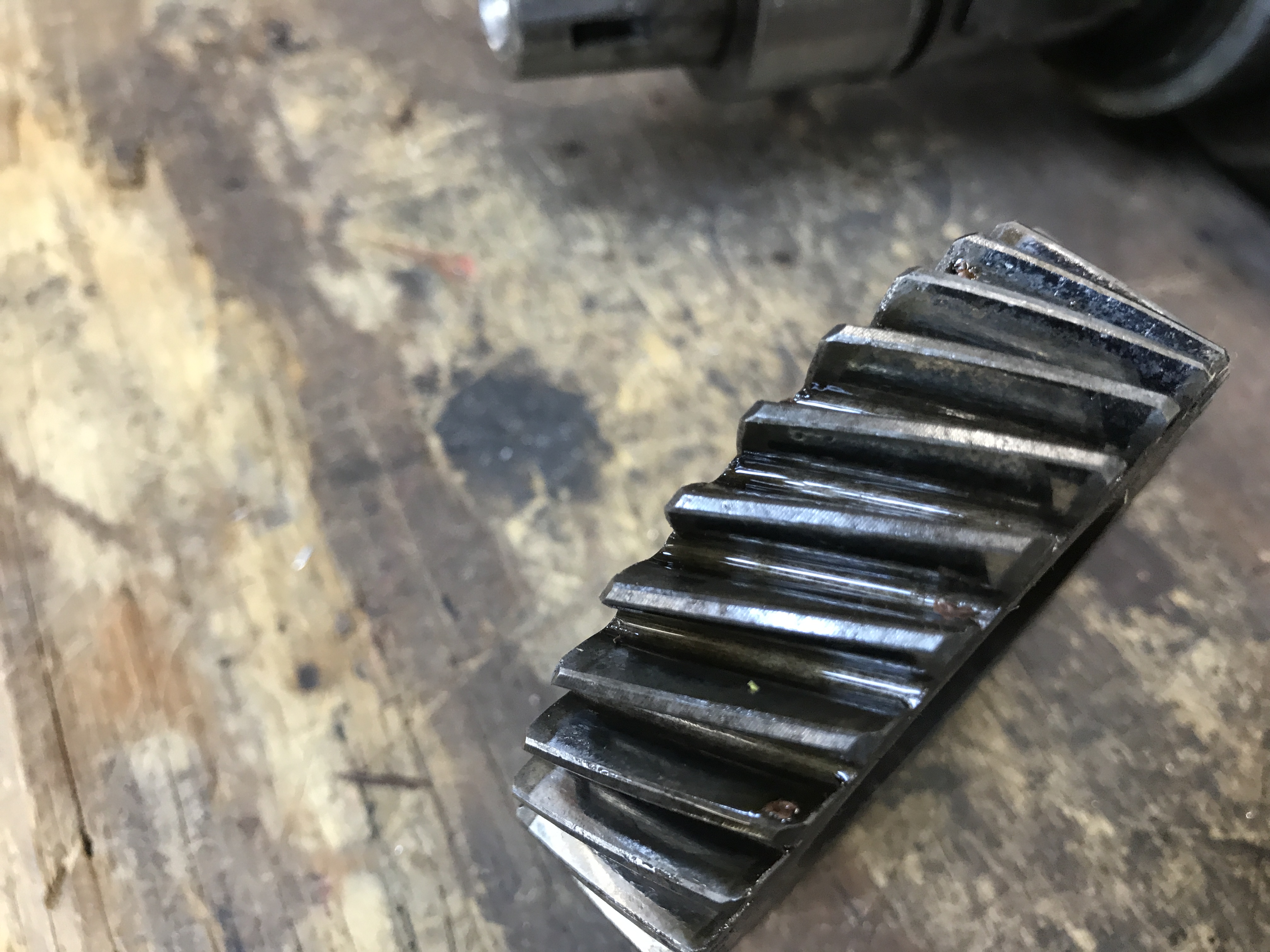

The gear itself looks very good.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 4 2020, 08:44 PM
Post #896


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Time to remove the connecting rods.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 4 2020, 08:45 PM
Post #897


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

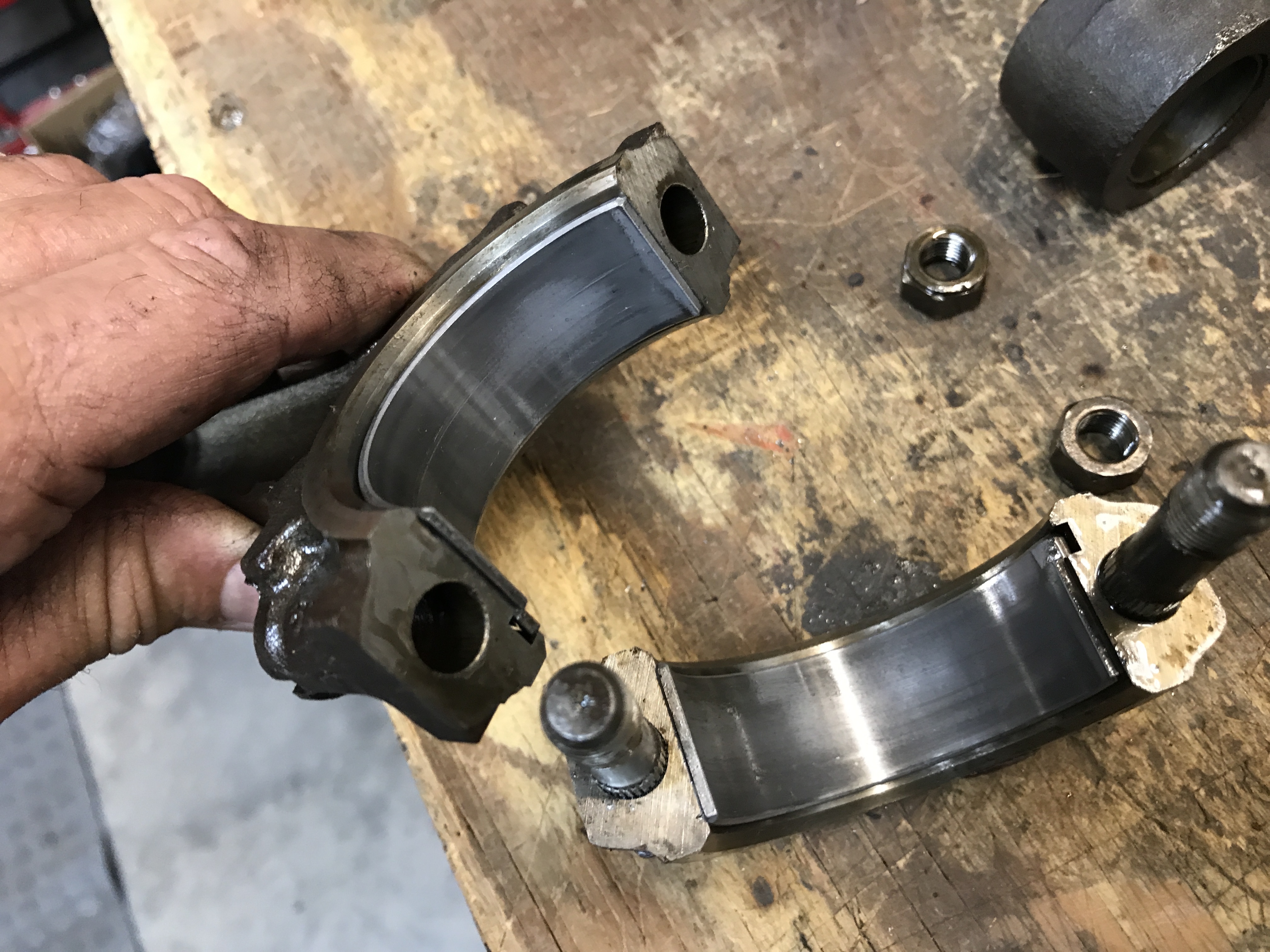

The number 1 con rod bearing looks good.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 4 2020, 08:46 PM
Post #898


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

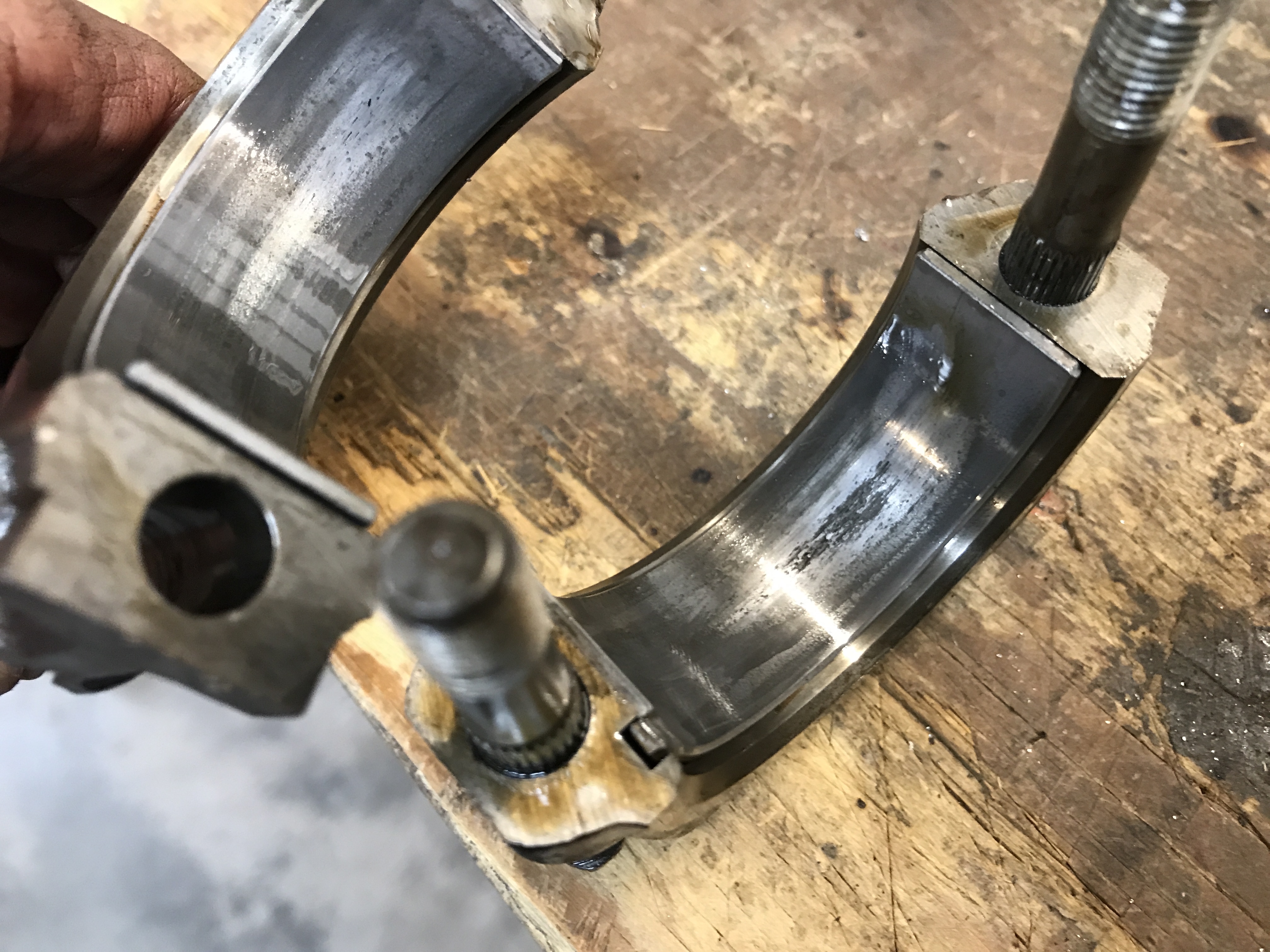

But the number 2 bearing shows a bit more wear. This is the worst one.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 4 2020, 08:49 PM
Post #899


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

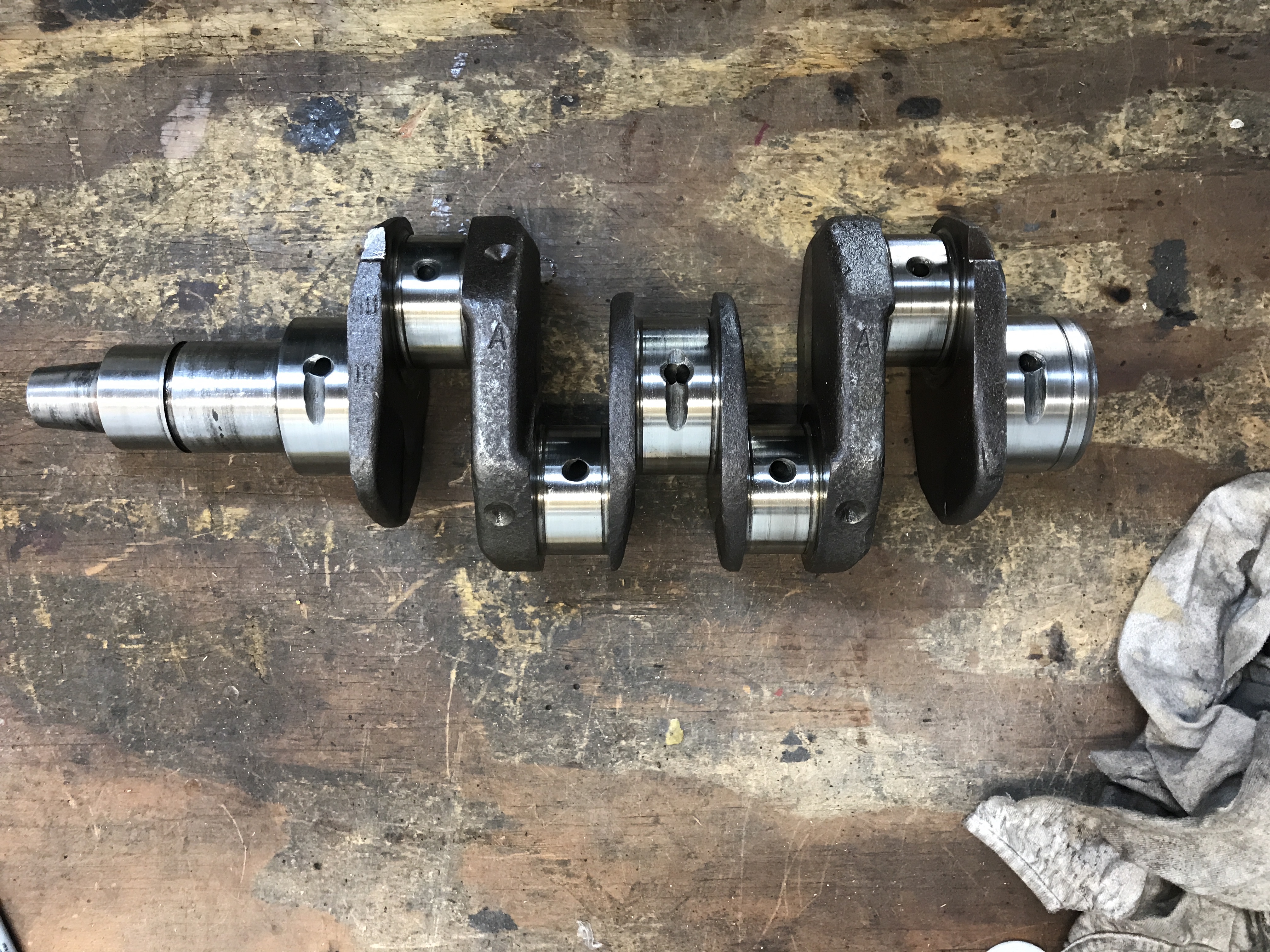

All the crank journals look great.

After a quick measuring session, the mains are about 2.3520 inches, suggesting these were ground one step undersize.

And the con rod journals are about 1.959 inches, two steps undersize.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jul 5 2020, 08:30 PM
Post #900


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

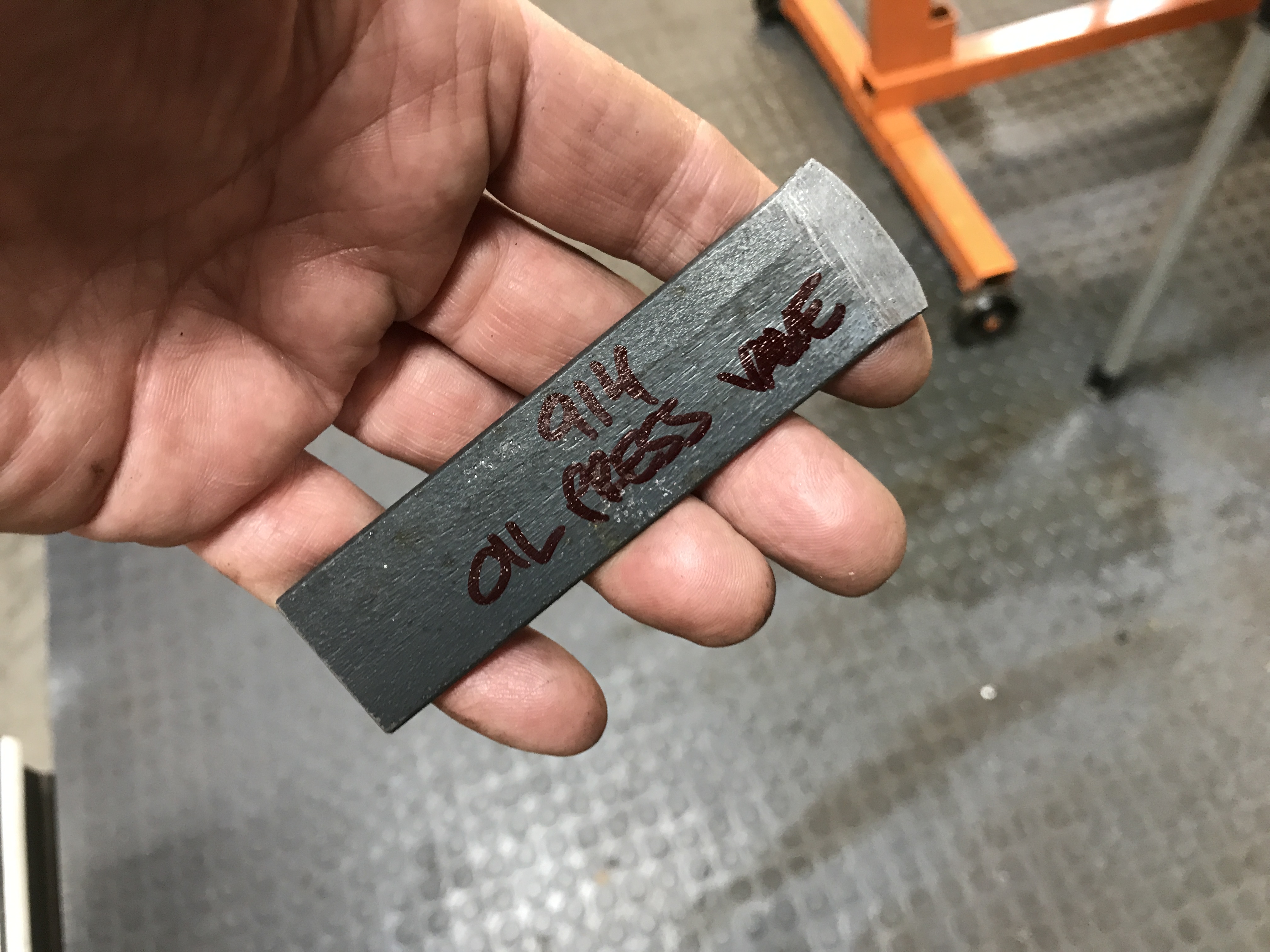

A bit more tinkering today, starting with removing the oil pressure relief valve. Step one was to make a tool to fit the slot profile in the cap.
