| Literati914 |
 May 4 2024, 11:17 AM
Post
#281
|
|
Senior Member  Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region  |
Hey guys, I’ve notice that after doing the above bushing replacement at the shift rod hinge joint- it’s quite tight.. takes a bit of force to move the coupler back and forth by hand. Is this normal after replacing the bushings?
. |
   |

|
| Literati914 |
May 4 2024, 11:18 AM
Post
#282
|
|
Senior Member Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region |
Hey guys, I’ve notice that after doing the above bushing replacement at the shift rod hinge joint- it’s quite tight.. takes a bit of force to move the coupler back and forth by hand. Is this normal after replacing the bushings?
. |
|
|
|
| Literati914 |
May 4 2024, 11:11 PM
Post
#283
|
|
Senior Member Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region |
I went back and added sound deadener to the front, under the main floor mats
Attached image(s)
|
|
|
|
| Literati914 |
May 4 2024, 11:14 PM
Post
#284
|
|
Senior Member Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region |

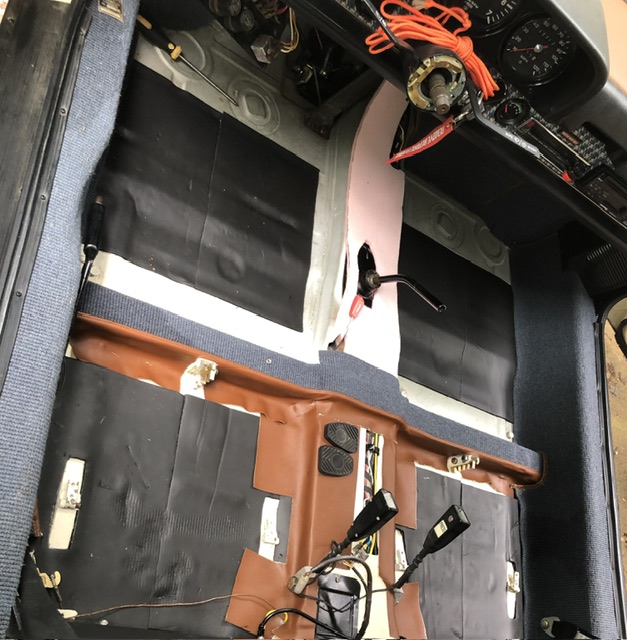

Added vinyl around the seat base, vertically up the door opening, etc. I did carpet at the crossmember area, jus ‘cause I had a little extra left over, so what the heck.
Attached image(s)
|
|
|
|
| Literati914 |
May 4 2024, 11:20 PM
Post
#285
|
|
Senior Member Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region |

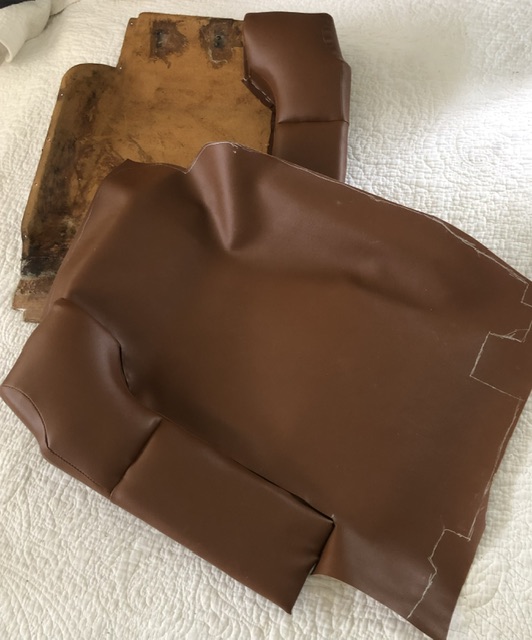

I finally decided to stop procrastinating and get my interior finished. I started reupholstering my back pad. This pad was exposed to water at the bottom so I cut off several inches and repaired with cardboard and fiberglass cloth and resin. Also I had to create and rivet in 3 of the 4 tabs at the top.
Attached image(s)
|
|
|
|
| Literati914 |
May 4 2024, 11:21 PM
Post
#286
|
|
Senior Member Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region |

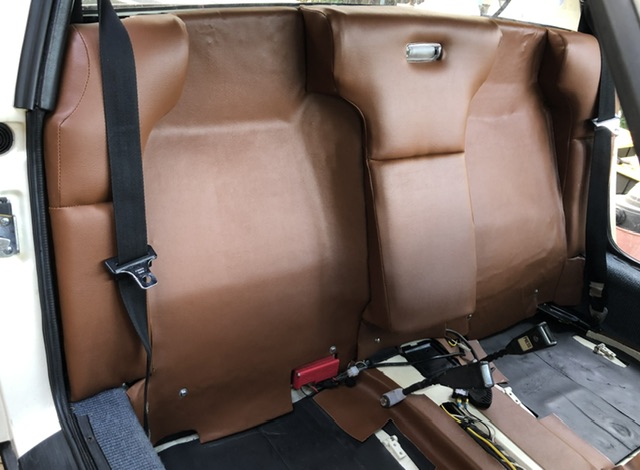

Installed
Attached image(s)
|
|
|
|
| Literati914 |
May 4 2024, 11:25 PM
Post
#287
|
|
Senior Member Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region |

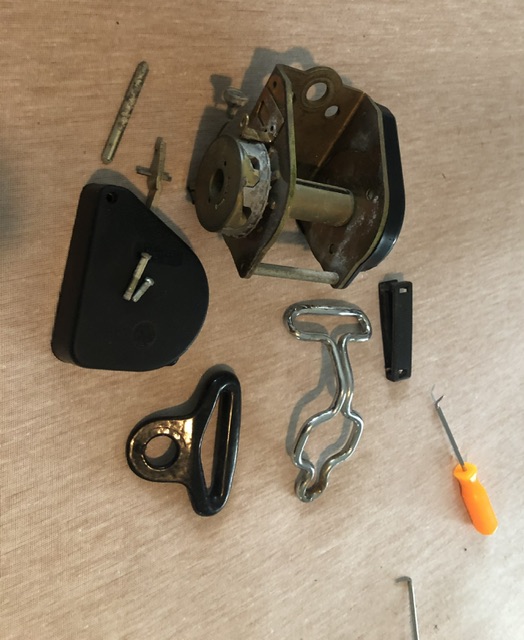

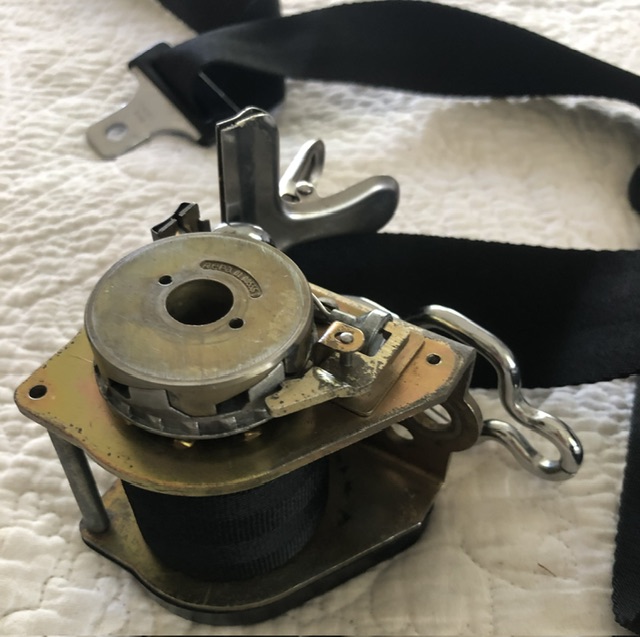

My seatbelts absolutely would not move, neither of them. So I thought I’d break them down, clean the belts and lube the gearing.
Attached image(s)
|
|
|
|
| Literati914 |
May 4 2024, 11:30 PM
Post
#288
|
|
Senior Member Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region |
I got them installed and now they actually work!! Unfortunately, they do require just a little help to get them to fully retract - despite my extra winding effort. So that’s fine, but I’ll probably eventually get a set from seatbeltplanet or wherever.
Attached image(s)
|
|
|
|
| Literati914 |
May 4 2024, 11:32 PM
Post
#289
|
|
Senior Member Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region |

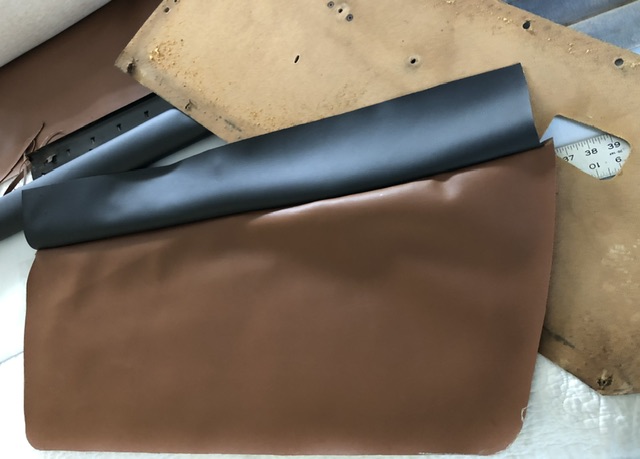

Next, I worked on my door cards. These are my old ones, original to the car.
Attached image(s)
|
|
|
|
| Literati914 |
May 4 2024, 11:34 PM
Post
#290
|
|
Senior Member Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region |

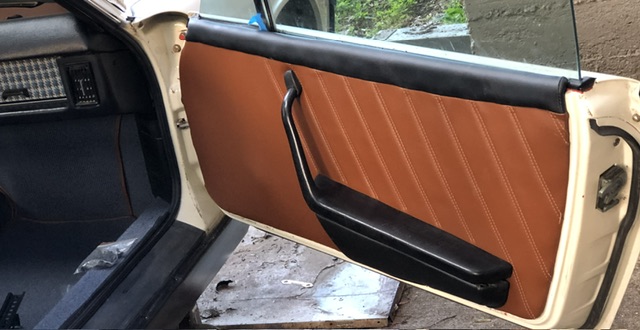

Finished and installed
Attached image(s)
|
|
|
|
| Literati914 |
May 4 2024, 11:38 PM
Post
#291
|
|
Senior Member Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region |

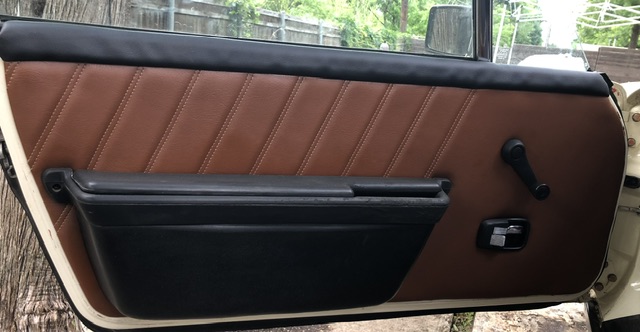

Driver’s side
ps - anyone notice that I installed the damn inner door openers/handles up side down (IMG:style_emoticons/default/lol-2.gif) Gotta go back and fix it now (IMG:style_emoticons/default/hissyfit.gif) Attached image(s)
|
|
|
|
| Literati914 |
May 4 2024, 11:52 PM
Post
#292
|
|
Senior Member Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region |

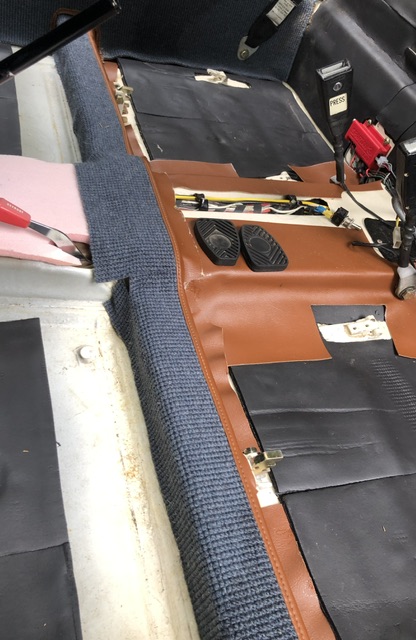

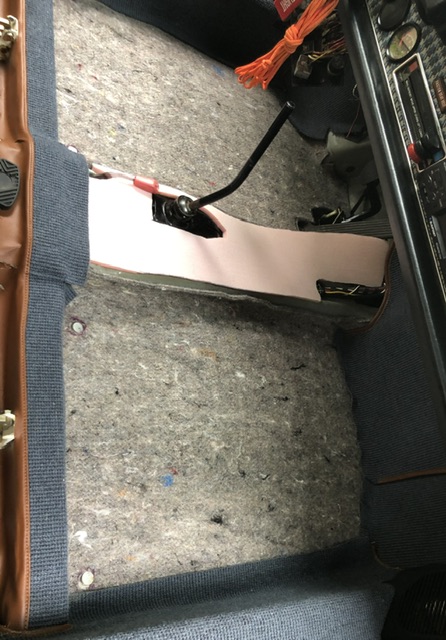

Oh I almost forgot to mention… as much as I love the carpet, it’s relatively thin felling so I added automotive carpet padding. It’s made a huge difference in the overall feel of the carpeting imho. Also, the pink foam is an attempt to even out some of waviness of the tunnel’s carpet caused by the shifter base height and wiring harness - this may get addressed further.
Attached image(s)
|
|
|
|
| Literati914 |
May 4 2024, 11:54 PM
Post
#293
|
|
Senior Member Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region |

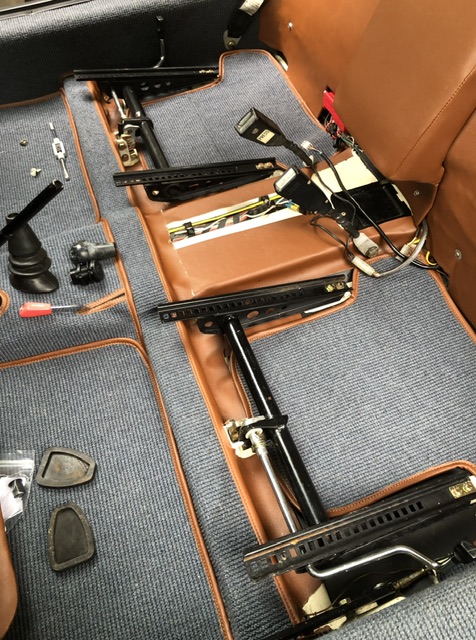

And a shot after I got the seat frames mounted
Attached image(s)
|
|
|
|
| Cairo94507 |
May 5 2024, 08:53 AM
Post
#294
|
|
Michael Group: Members Posts: 10,125 Joined: 1-November 08 From: Auburn, CA Member No.: 9,712 Region Association: Northern California
|
Looking good; great color. (IMG:style_emoticons/default/beerchug.gif)
|
 |
|
| technicalninja |
May 5 2024, 09:15 AM
Post
#295
|
|
Advanced Member Group: Members Posts: 2,086 Joined: 31-January 23 From: Granbury Texas Member No.: 27,135 Region Association: Southwest Region
|
Love the interior mods!
Different than stock but very well integrated. Doesn't "scream" different! Could have been factory... Damn NICE! |
|
|
|
| East coaster |
May 5 2024, 09:02 PM
Post
#296
|
|
Senior Member Group: Members Posts: 1,791 Joined: 28-March 03 From: Millville, NJ Member No.: 487 Region Association: None
|
Interior looking great!
|
|
|
|
| Literati914 |
May 31 2024, 06:48 PM
Post
#297
|
|
Senior Member Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region |

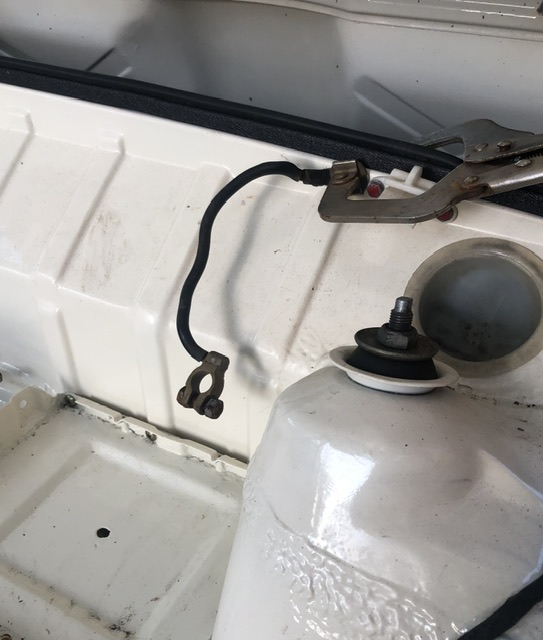

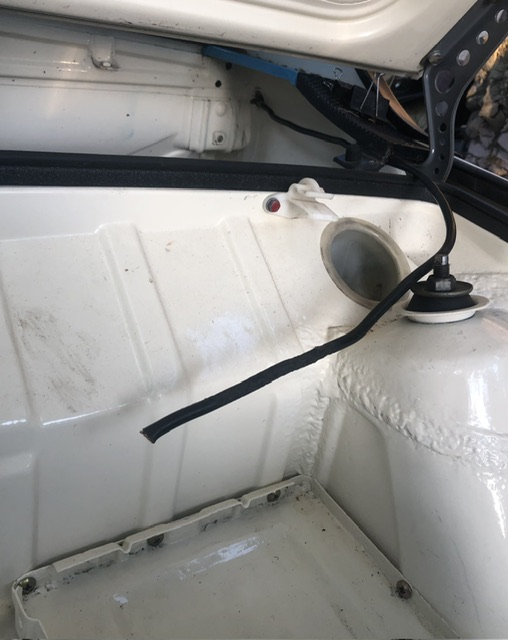

Help me decide on the main battery ground placement? Battery will reside in the trunk from now on:
I could use the stock location for the battery ground. I’m not Sure if there are drawbacks to the extra length (?) .. but then I would have to drill for another large grommet into the trunk - not liking that. Attached image(s)
|
|
|
|
| Literati914 |
May 31 2024, 06:50 PM
Post
#298
|
|
Senior Member Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region |
.. or I could possibly just add a bolt thru stud above the neg battery post and run a short neg cable like stock. Any drawbacks to doing it this way? :
Attached image(s)
|
|
|
|
| ClayPerrine |
Jun 1 2024, 06:01 AM
Post
#299
|
|
Life's been good to me so far..... Group: Admin Posts: 15,948 Joined: 11-September 03 From: Hurst, TX. Member No.: 1,143 Region Association: NineFourteenerVille
|
I would put the battery back in the stock location. But if you are not going to do that, then put a stud in close to the battery tray and run a short cable.

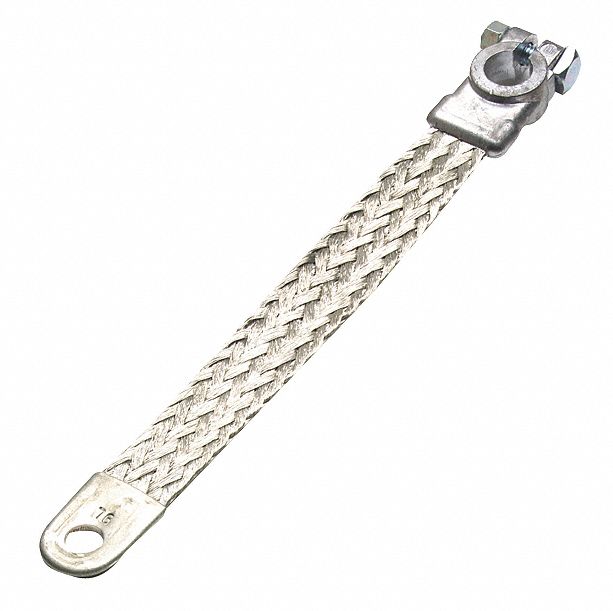

And a braided ground cable is better than the one you show in the picture.  |
|
|
|
| Literati914 |
Jun 1 2024, 10:01 AM
Post
#300
|
|
Senior Member Group: Members Posts: 1,777 Joined: 16-November 06 From: Dallas, TX Member No.: 7,222 Region Association: Southwest Region |
QUOTE(ClayPerrine @ Jun 1 2024, 07:01 AM)  I would put the battery back in the stock location. But if you are not going to do that, then put a stud in close to the battery tray and run a short cable. And a braided ground cable is better than the one you show in the picture. roger that.. thanks. |
|
|
|
|
