> It's on PMs sent -GB for Trailing Arm bushings Rubber and option for Urethane, Who's interested? 4 pcs (one car) $28 a set rubber $36 Poly
Mikey914
post Nov 18 2019, 04:08 PM
Post #1


The rubber man
**********

Group: Members
Posts: 12,739
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
We are in the process of doing the A arm bushings in rubber
We can easily do these up in a polyurethane at the same time, just have to do enough to pay for the materials and set up would be looking at 25 sets to do the Poly

The GB would be for a set of 4 (enough for 1car)

For $28 in rubber

and $36 in poly

To get the pricing right we need 40 takers in rubber and 25 in Poly


We've been in testing on these for some time and had made a couple variations.

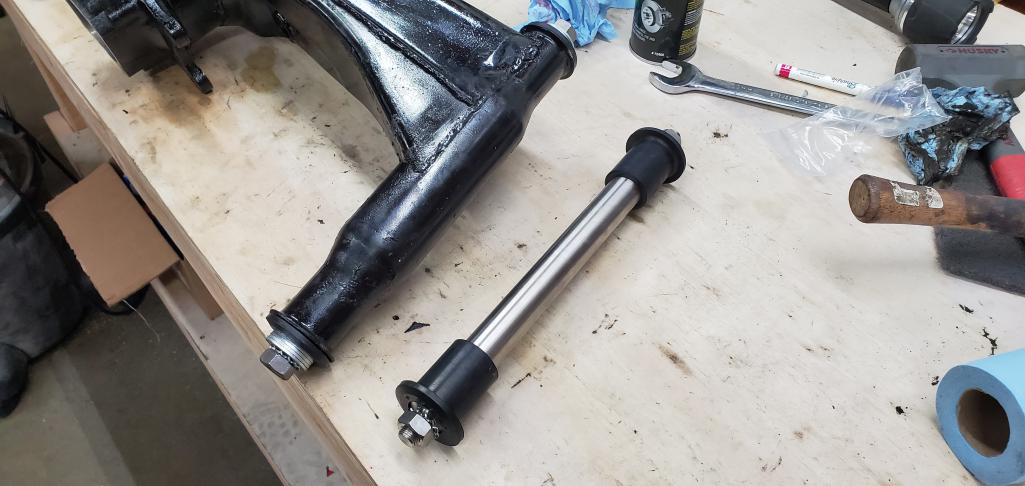

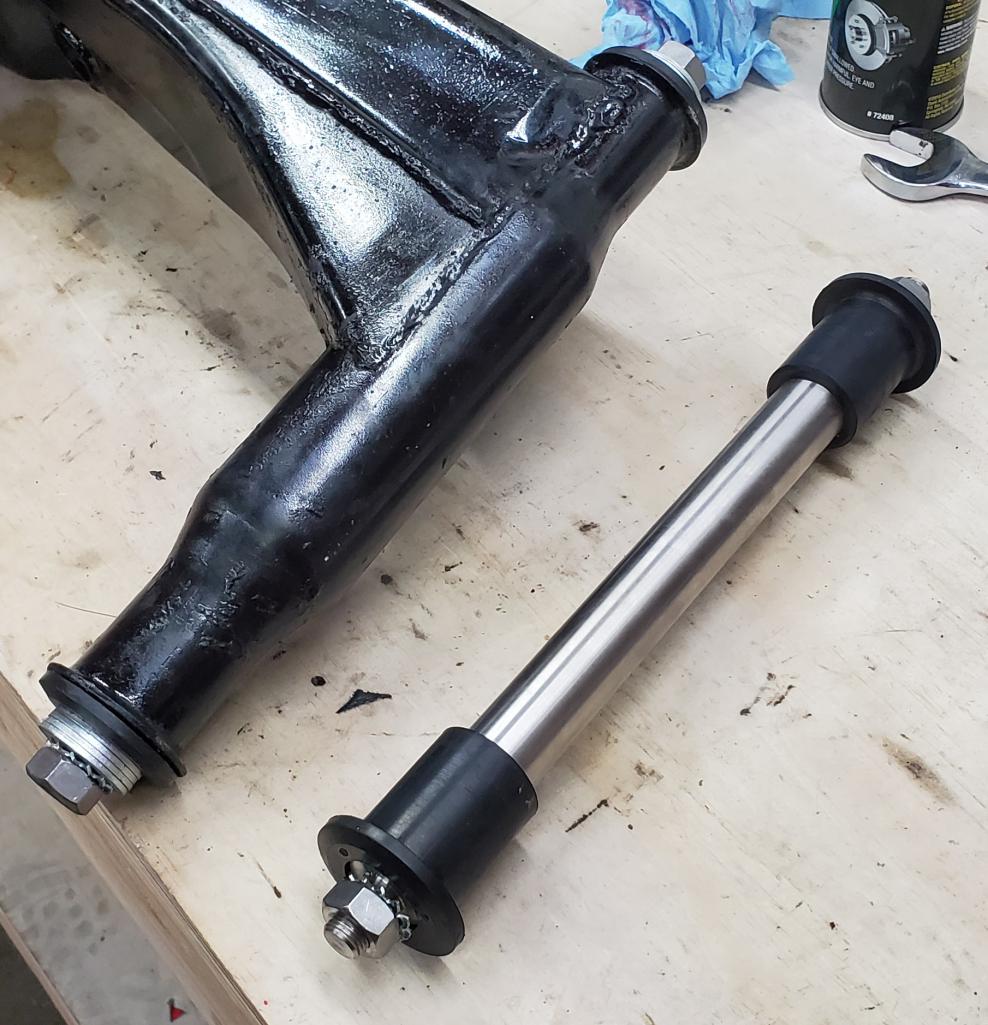

This is what they look like.

SO Who's in?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
yellowporky
post Nov 18 2019, 06:50 PM
Post #2


Member
**

Group: Members
Posts: 427
Joined: 18-October 09
From: Martinez, Ca.
Member No.: 10,948
Region Association: Northern California
do you mean trailing arm bushings? I already bought the kit so will the shaft be the same? Will these squeak after a while?
Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Nov 18 2019, 08:02 PM
Post #3


914-6 GT in waiting
***************

Group: Members
Posts: 19,635
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Mark - how do these differ from the previous ones. Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Nov 18 2019, 09:01 PM
Post #4


The rubber man
**********

Group: Members
Posts: 12,739
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
Previous ones were the self lubricating Poly-graphite we did not make them. The feedback from Eric was that we needed to make these to do exactly what factory ones did, he was mentioning that there was some squeak from them as they needed to be lubricated, as the rubber ones were not. There is some room for improvement that we will be doing also.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Nov 18 2019, 09:04 PM
Post #5


The rubber man
**********

Group: Members
Posts: 12,739
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
QUOTE(yellowporky @ Nov 18 2019, 04:50 PM) *

do you mean trailing arm bushings? I already bought the kit so will the shaft be the same? Will these squeak after a while?
Thanks

The shaft kit will be the same. The stainless is bulletproof.
I was amazed to see the factory was a hollow tube and the welds were not great. So water got in the inside and rusted.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
djway
post Nov 18 2019, 09:07 PM
Post #6


Senior Member
***

Group: Members
Posts: 787
Joined: 16-October 15
From: Riverside
Member No.: 19,266
Region Association: Southern California
(IMG:style_emoticons/default/bye1.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tbrown4x4
post Nov 19 2019, 08:00 AM
Post #7


Senior Member
***

Group: Members
Posts: 706
Joined: 13-May 14
From: Port Orchard, WA
Member No.: 17,338
Region Association: None
I'll help support the cause. One set please.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mendivil26
post Nov 19 2019, 10:26 AM
Post #8


Newbie
*

Group: Members
Posts: 31
Joined: 26-July 18
From: Riverside, Ca.
Member No.: 22,344
Region Association: Southern California
Count me in, one set for me please
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Retroracer
post Nov 19 2019, 10:32 AM
Post #9


Senior Member
***

Group: Members
Posts: 622
Joined: 7-July 13
From: Bend OR
Member No.: 16,100
Region Association: Pacific Northwest
I'll take one set please; rubber.

- Tony
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tdskip
post Nov 19 2019, 12:52 PM
Post #10


Advanced Member
****

Group: Members
Posts: 3,702
Joined: 1-December 17
From: soCal
Member No.: 21,666
Region Association: None
Poly compound is CRITICAL. Interested for sure but how will we get the right balance of compliance and firmness?

Genuine question / don’t know how to do that and haven’t tried to make bushings before.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Nov 19 2019, 02:05 PM
Post #11


The rubber man
**********

Group: Members
Posts: 12,739
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
QUOTE(Tdskip @ Nov 19 2019, 10:52 AM) *

Poly compound is CRITICAL. Interested for sure but how will we get the right balance of compliance and firmness?

Genuine question / don’t know how to do that and haven’t tried to make bushings before.

Fortunately I have (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johnhora
post Nov 19 2019, 03:17 PM
Post #12


Senior Member
***

Group: Members
Posts: 874
Joined: 7-January 03
From: Derby City KY
Member No.: 107
Region Association: None
One set in rubber please...Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tdskip
post Nov 19 2019, 03:24 PM
Post #13


Advanced Member
****

Group: Members
Posts: 3,702
Joined: 1-December 17
From: soCal
Member No.: 21,666
Region Association: None
QUOTE(Mikey914 @ Nov 19 2019, 03:05 PM) *

QUOTE(Tdskip @ Nov 19 2019, 10:52 AM) *

Poly compound is CRITICAL. Interested for sure but how will we get the right balance of compliance and firmness?

Genuine question / don’t know how to do that and haven’t tried to make bushings before.

Fortunately I have (IMG:style_emoticons/default/biggrin.gif)


Well alright then!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MM1
post Nov 19 2019, 03:29 PM
Post #14


914 obsession continues
***

Group: Members
Posts: 619
Joined: 9-May 18
From: Thousand Oaks, CA
Member No.: 22,105
Region Association: Southern California
I’m in for one rear set in rubber. . .

and one front set in rubber (add on?)!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Nov 19 2019, 05:03 PM
Post #15


bdstone914
****

Group: Members
Posts: 4,726
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
@Mikey914

Are the shafts going to be offered in a bundle deal?

I have found most original shafts are not straight which makes bushing installation very difficult.

I have done several sets of the Elephant Racing sets and the installation is tricky.

Good installation tools are a must.

I added tapers to the Elephant tools. Delrin might be more slippery and better.

I have a couple clean blasted trailing arms and would be willing to install them.

I also have sets of used shafts for test installation.

I am betting the new shafts will make installation much easier.

Bruce
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Nov 20 2019, 11:04 AM
Post #16


The rubber man
**********

Group: Members
Posts: 12,739
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
QUOTE(bdstone914 @ Nov 19 2019, 03:03 PM) *

@Mikey914

Are the shafts going to be offered in a bundle deal?

I have found most original shafts are not straight which makes bushing installation very difficult.

I have done several sets of the Elephant Racing sets and the installation is tricky.

Good installation tools are a must.

I added tapers to the Elephant tools. Delrin might be more slippery and better.

I have a couple clean blasted trailing arms and would be willing to install them.

I also have sets of used shafts for test installation.

I am betting the new shafts will make installation much easier.

Bruce



Thanks Bruce,
We have actually installed in the shop and had our 1st non commercial customer do an install. His shafts were shot so he also used the stainless shafts.
@tvdinnerbythepool
I personally found these much easier than the front. And yes I need to change the title as it's confusing. But A arm bushings will also be on special.

Anything you want to add?


http://www.914world.com/bbs2/index.php?sho...41074&st=25
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
morgan_harwell
post Nov 20 2019, 11:35 AM
Post #17


Ha! Finally snuck up on a camera!
**

Group: Members
Posts: 126
Joined: 28-January 03
From: Santa Cruz Mtns., Ca.
Member No.: 203
Region Association: Northern California
One rear set in rubber please...Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tvdinnerbythepool
post Nov 20 2019, 08:18 PM
Post #18


Member
**

Group: Members
Posts: 310
Joined: 24-July 18
From: Olympia, WA
Member No.: 22,336
Region Association: Pacific Northwest
The install of the bushings was VERY easy! The original rubber was deteriorating/cracking, stiff and definitely past it's better days. Getting those out was the most time consuming part but not too bad.

The stainless shafts matched the rubber bushings really nicely. They are a little heavier than stock but far superior craftsman ship. Pressed nicely into the bushings with my little shop press.

My Original Shafts were toast, deep rust pits and threads were toast.

Would definitely recommend both the shafts and bushings from @mikey914

Before....
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tvdinnerbythepool
post Nov 20 2019, 08:21 PM
Post #19


Member
**

Group: Members
Posts: 310
Joined: 24-July 18
From: Olympia, WA
Member No.: 22,336
Region Association: Pacific Northwest

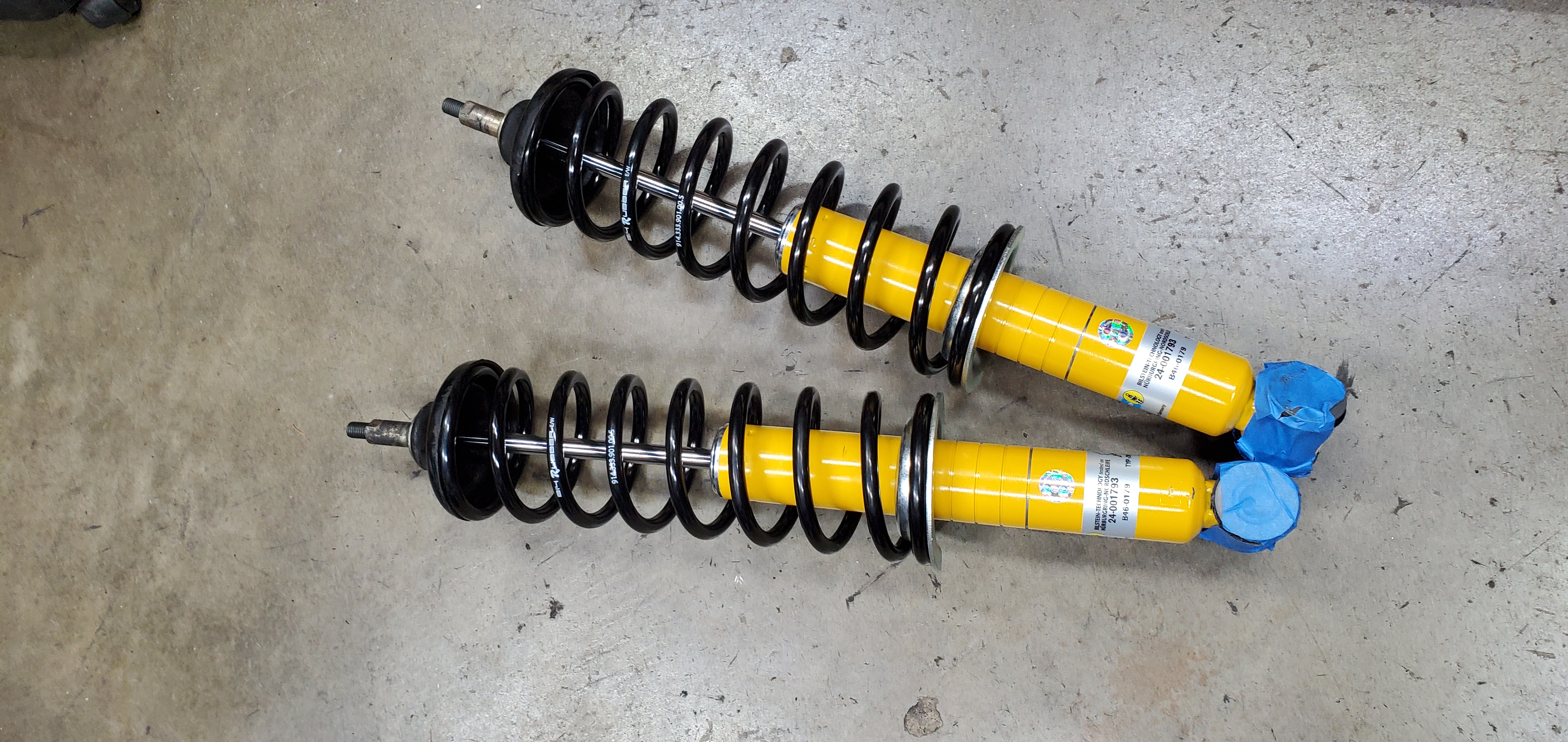

While I was in there did the Springs from 914Rubber too!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tvdinnerbythepool
post Nov 20 2019, 08:23 PM
Post #20


Member
**

Group: Members
Posts: 310
Joined: 24-July 18
From: Olympia, WA
Member No.: 22,336
Region Association: Pacific Northwest

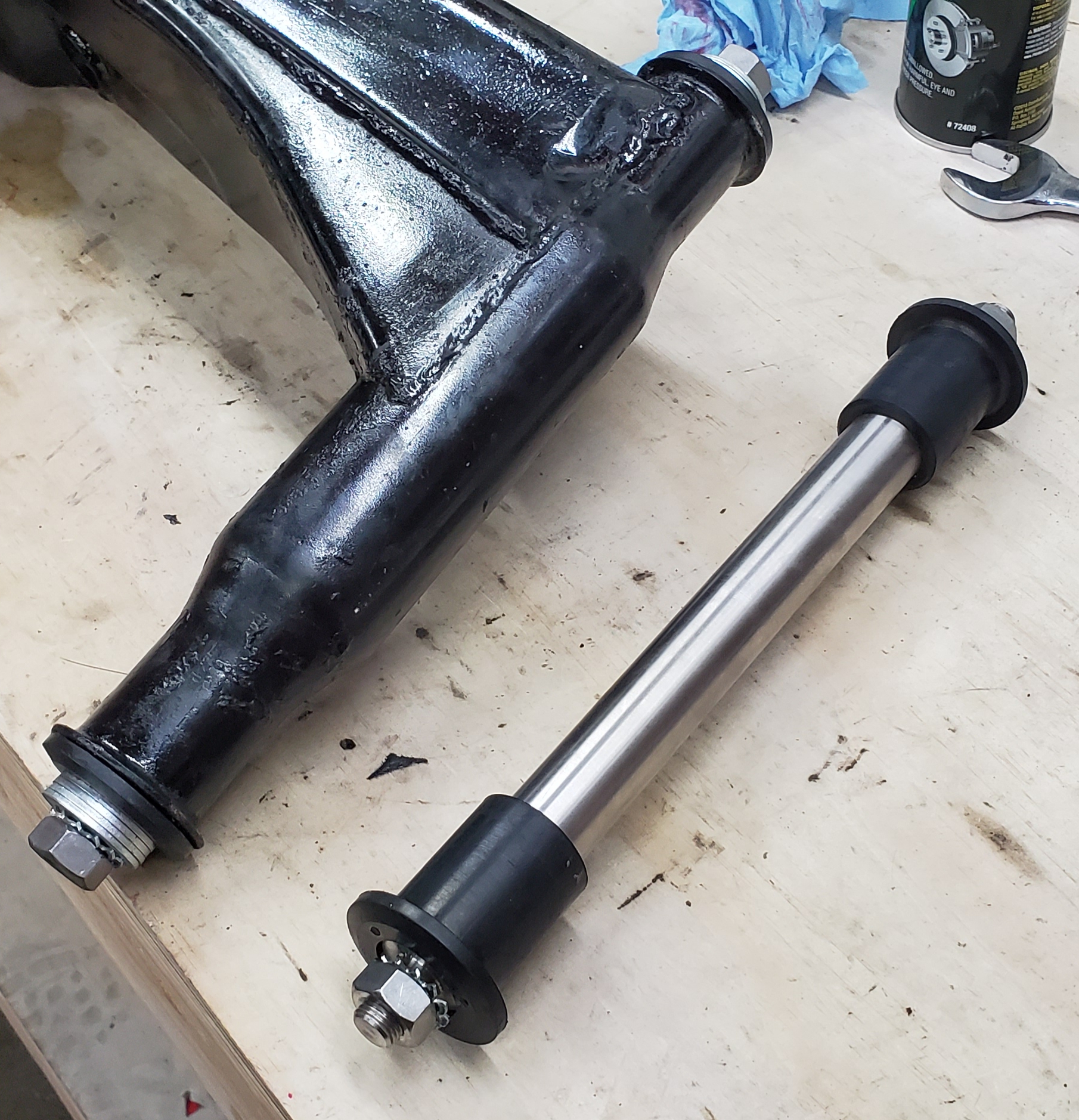

After...Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
