> Frame brace instructions needed
Stuckon914
post Jan 14 2020, 12:48 AM
Post #1


Member
**

Group: Members
Posts: 132
Joined: 25-December 18
From: East coast
Member No.: 22,747
Region Association: MidAtlantic Region
Starting to work on my 914, longs likely need to be replaced. I would like to stabilize the frame using the adjustable brace I see some use that is attached To the door opening and has adjustable turn-buckles.
Where can I find some instructions on building them?
Tried search and google with no luck.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jtprettyman
post Jan 14 2020, 10:25 AM
Post #2


Rust Bucket Owner
**

Group: Members
Posts: 109
Joined: 5-May 15
From: Murfreesboro Tennessee
Member No.: 18,707
Region Association: South East States
You can pick up a set from Tangerine Racing, they allow you to leave the doors on throughout the process to monitor door gap easily.
http://www.tangerineracing.com/tools.htm

Alternatively, just grab some box tube, turnbuckles, and some scrap and weld up your own set. I did mine very easily (I'm a CSOB, and put the $$ toward replacement sheet metal), and made them in a similar fashion to be able to monitor door gap.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jan 14 2020, 10:46 AM
Post #3


914 Guru
*****

Group: Members
Posts: 5,724
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
Heim joints and threaded bungs to make adjustable braces are cheap and available on Amazon.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TargaToy
post Jan 14 2020, 01:49 PM
Post #4


-NONSOLIS RADIOS SEDIOUIS FULMINA MITTO-
***

Group: Members
Posts: 692
Joined: 26-March 10
From: DelMarVa Peninsula
Member No.: 11,509
Region Association: MidAtlantic Region

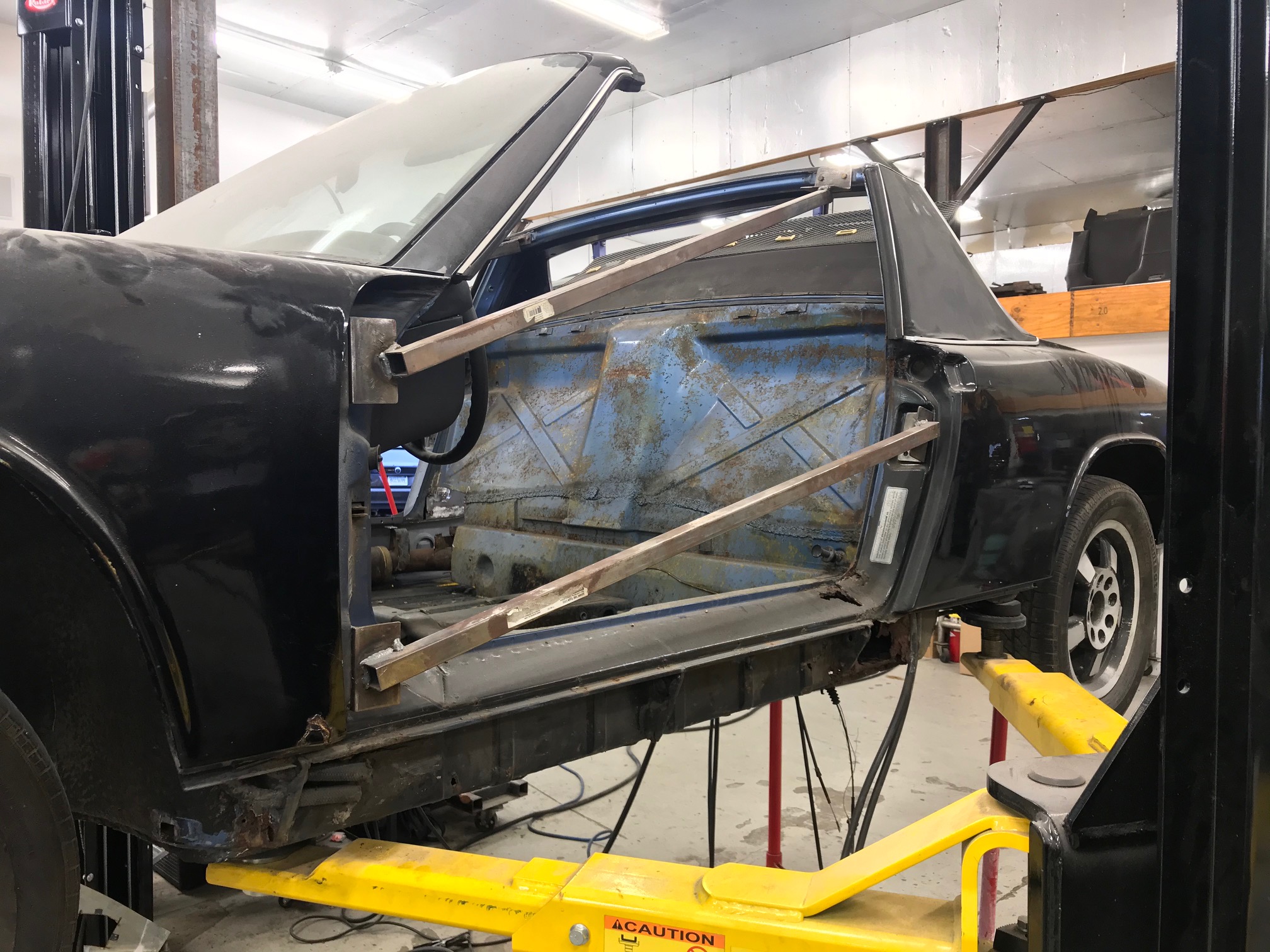

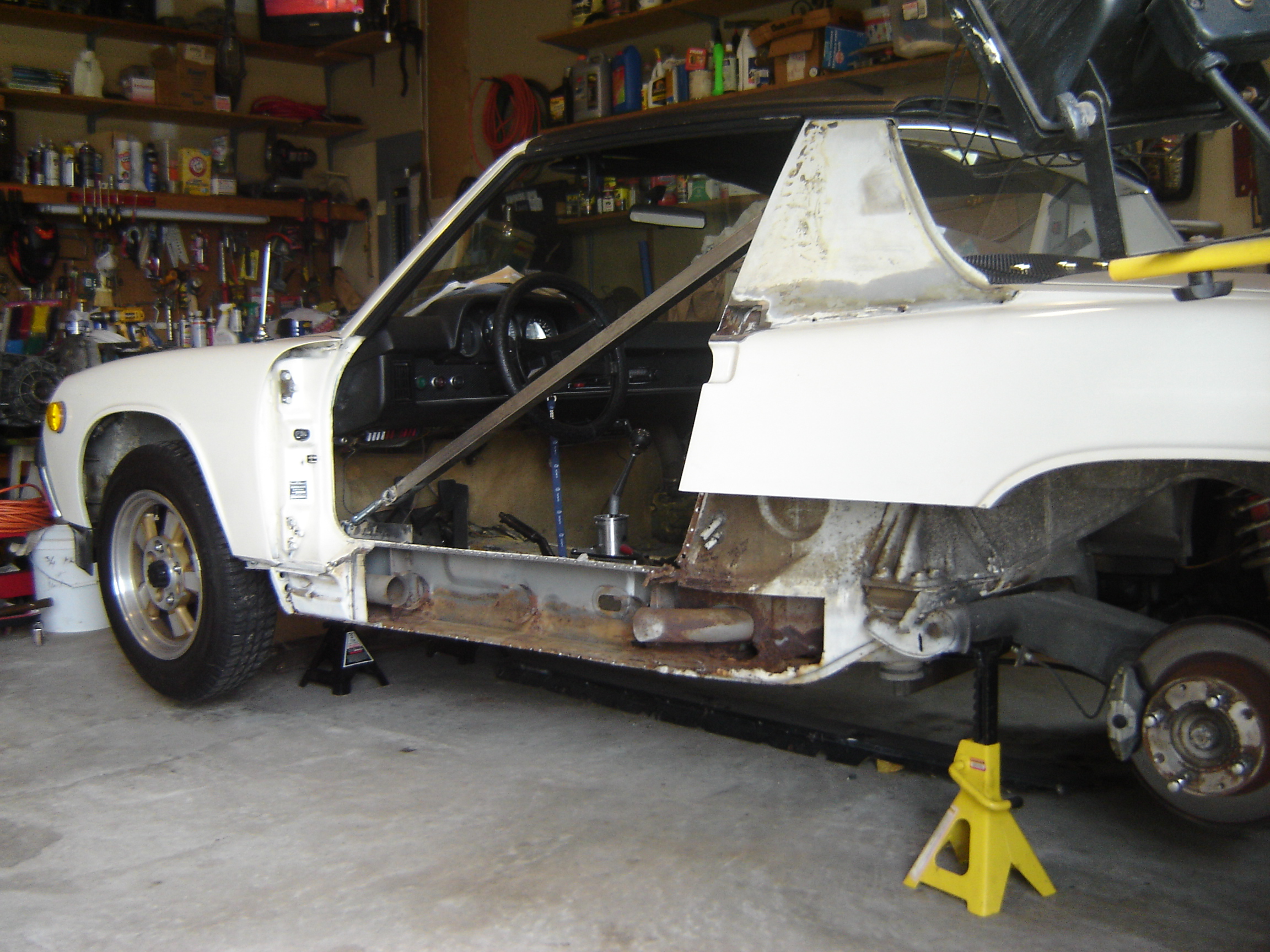

I also built mine using square tubing and turnbuckles. The top of the brace mounted at the shoulder belt pivot and I welded the lower end to the top of the longs, inboard enough that I could also close the doors. I'll have to look and see if I've got any pictures of them.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TargaToy
post Jan 14 2020, 01:53 PM
Post #5


-NONSOLIS RADIOS SEDIOUIS FULMINA MITTO-
***

Group: Members
Posts: 692
Joined: 26-March 10
From: DelMarVa Peninsula
Member No.: 11,509
Region Association: MidAtlantic Region
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jan 14 2020, 01:56 PM
Post #6


914 Guru
*****

Group: Members
Posts: 7,810
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TargaToy
post Jan 14 2020, 01:56 PM
Post #7


-NONSOLIS RADIOS SEDIOUIS FULMINA MITTO-
***

Group: Members
Posts: 692
Joined: 26-March 10
From: DelMarVa Peninsula
Member No.: 11,509
Region Association: MidAtlantic Region
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Stuckon914
post Jan 14 2020, 04:47 PM
Post #8


Member
**

Group: Members
Posts: 132
Joined: 25-December 18
From: East coast
Member No.: 22,747
Region Association: MidAtlantic Region
QUOTE(TargaToy @ Jan 14 2020, 02:56 PM) *

Attached Image

Attached Image


Exactly what I needed. Any particular type of turn buckle? Rating or dimensions?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Stuckon914
post Jan 14 2020, 04:48 PM
Post #9


Member
**

Group: Members
Posts: 132
Joined: 25-December 18
From: East coast
Member No.: 22,747
Region Association: MidAtlantic Region
QUOTE(Superhawk996 @ Jan 14 2020, 11:46 AM) *

Heim joints and threaded bungs to make adjustable braces are cheap and available on Amazon.


Learned two new terms. Thought you might be making Up terms for a minute
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Charles Freeborn
post Jan 14 2020, 05:19 PM
Post #10


Member
**

Group: Members
Posts: 244
Joined: 21-May 14
From: United States
Member No.: 17,377
Region Association: Pacific Northwest
QUOTE(Stuckon914 @ Jan 14 2020, 02:48 PM) *

QUOTE(Superhawk996 @ Jan 14 2020, 11:46 AM) *

Heim joints and threaded bungs to make adjustable braces are cheap and available on Amazon.


Learned two new terms. Thought you might be making Up terms for a minute



There's a whole wonderful vocabulary of fabrication terms.. Rivnuts, Nutserts, Flangebolts, and my favorite ... swarf... it's the curlycues and chips that you sweep up and throw away (or recycle) that comes from lathe, and milling operations.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
burton73
post Jan 14 2020, 05:19 PM
Post #11


burton73
****

Group: Members
Posts: 3,484
Joined: 2-January 07
From: Los Angeles
Member No.: 7,414
Region Association: Southern California
I have seen more than a few cars over the last 13 years that had the door gaps screwed up from shrinking metal on this type of job that you are going to do.

Know what you are doing and take it very slow and let the welds cool. Only doing a little at a time.

Going back after is a huge mess and you do not want to go there.

Bob B
(IMG:style_emoticons/default/chair.gif) (IMG:style_emoticons/default/headbang.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Stuckon914
post Jan 14 2020, 06:59 PM
Post #12


Member
**

Group: Members
Posts: 132
Joined: 25-December 18
From: East coast
Member No.: 22,747
Region Association: MidAtlantic Region
QUOTE(burton73 @ Jan 14 2020, 06:19 PM) *

I have seen more than a few cars over the last 13 years that had the door gaps screwed up from shrinking metal on this type of job that you are going to do.

Know what you are doing and take it very slow and let the welds cool. Only doing a little at a time.

Going back after is a huge mess and you do not want to go there.

Bob B
(IMG:style_emoticons/default/chair.gif) (IMG:style_emoticons/default/headbang.gif)


Will do, thanks. I want the brace on before I start taking it apart to stabilize the area. Gotta learn to weld first
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Stuckon914
post Jan 14 2020, 07:01 PM
Post #13


Member
**

Group: Members
Posts: 132
Joined: 25-December 18
From: East coast
Member No.: 22,747
Region Association: MidAtlantic Region
QUOTE(Charles Freeborn @ Jan 14 2020, 06:19 PM) *

QUOTE(Stuckon914 @ Jan 14 2020, 02:48 PM) *

QUOTE(Superhawk996 @ Jan 14 2020, 11:46 AM) *

Heim joints and threaded bungs to make adjustable braces are cheap and available on Amazon.


Learned two new terms. Thought you might be making Up terms for a minute



There's a whole wonderful vocabulary of fabrication terms.. Rivnuts, Nutserts, Flangebolts, and my favorite ... swarf... it's the curlycues and chips that you sweep up and throw away (or recycle) that comes from lathe, and milling operations.


Rivnuts and nutserts sound like terms used to pull someone’s leg.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TargaToy
post Jan 14 2020, 07:34 PM
Post #14


-NONSOLIS RADIOS SEDIOUIS FULMINA MITTO-
***

Group: Members
Posts: 692
Joined: 26-March 10
From: DelMarVa Peninsula
Member No.: 11,509
Region Association: MidAtlantic Region
QUOTE(Stuckon914 @ Jan 14 2020, 05:47 PM) *

QUOTE(TargaToy @ Jan 14 2020, 02:56 PM) *




Exactly what I needed. Any particular type of turn buckle? Rating or dimensions?

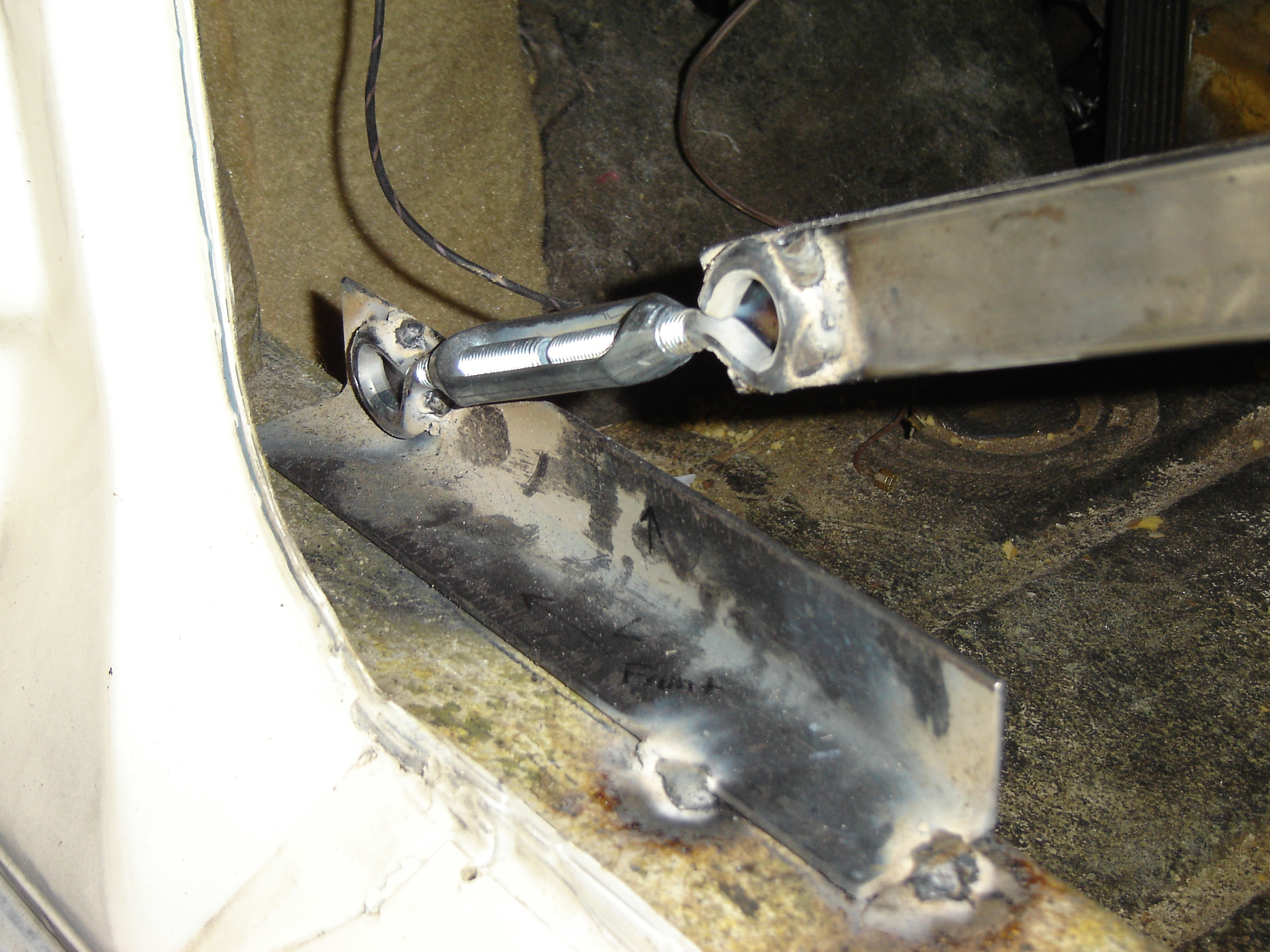

Attached Image

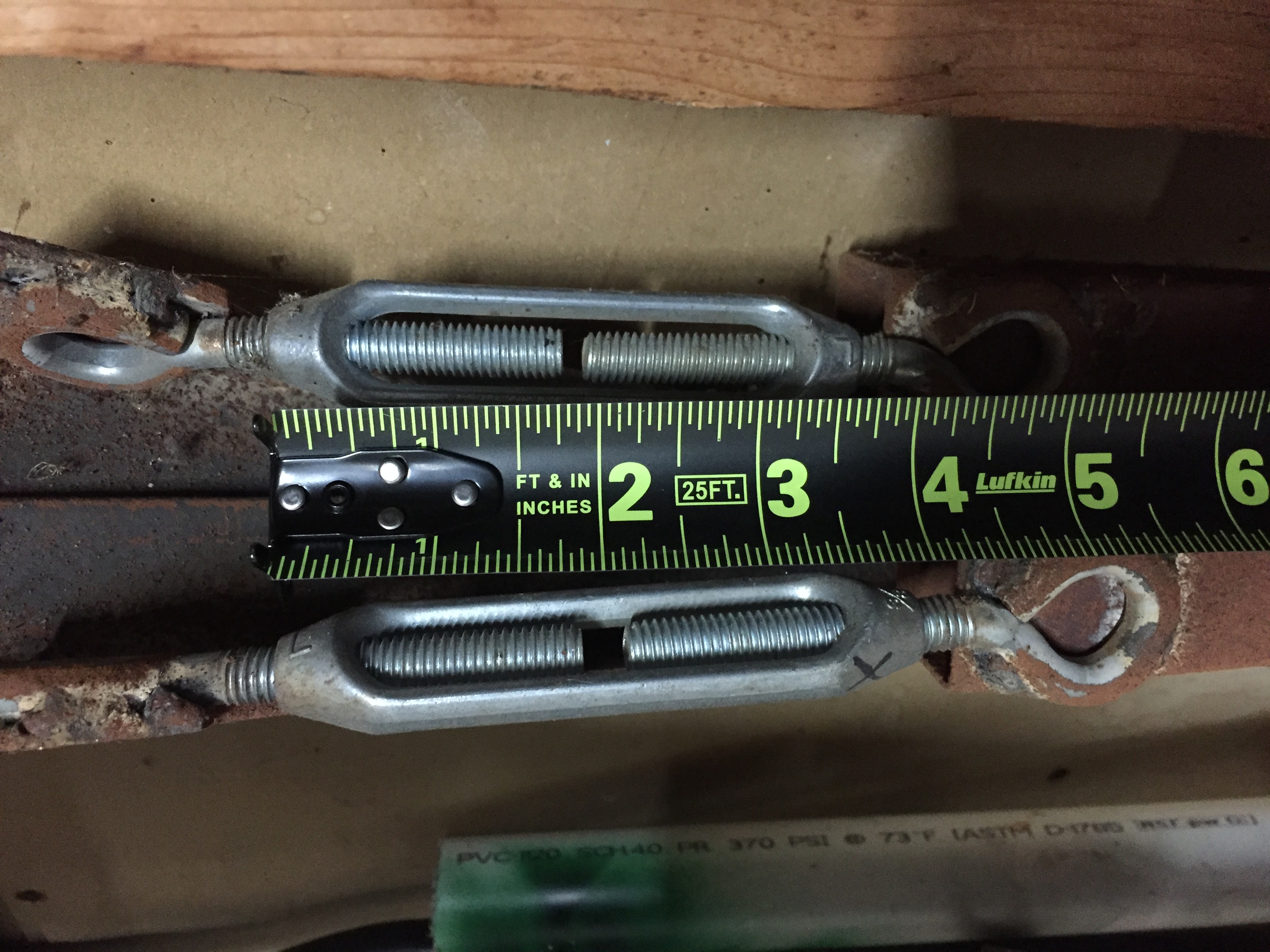

I had to walk out in the garage and measure them. Looks like 4” turnbuckles. No special rating. They just felt stout enough when I was shopping for the components.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Jan 14 2020, 08:49 PM
Post #15


Spooling.... Please wait
**********

Group: Members
Posts: 13,376
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
How much of the longs are you planning on doing? Floor pan too?

You might need to do more than just a simple brace...

This wasn't that difficult to make. But picking up the suspension points on a jig would be a really good idea. Casters on the jig would make it movable.


https://www.youtube.com/watch?v=T5vkjZCWEJs
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Stuckon914
post Jan 14 2020, 09:30 PM
Post #16


Member
**

Group: Members
Posts: 132
Joined: 25-December 18
From: East coast
Member No.: 22,747
Region Association: MidAtlantic Region
QUOTE(TargaToy @ Jan 14 2020, 08:34 PM) *

QUOTE(Stuckon914 @ Jan 14 2020, 05:47 PM) *

QUOTE(TargaToy @ Jan 14 2020, 02:56 PM) *




Exactly what I needed. Any particular type of turn buckle? Rating or dimensions?


Attached Image

I had to walk out in the garage and measure them. Looks like 4” turnbuckles. No special rating. They just felt stout enough when I was shopping for the components.



Appreciated
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
