> Why in tarnations did they do that?, very curious
ahycaramba
post Feb 3 2020, 10:06 PM
Post #1


“I live my life a quarter mile at a time.”
**

Group: Members
Posts: 161
Joined: 17-March 15
From: Murrieta, California
Member No.: 18,534
Region Association: Southern California
Ok I had my car media blasted and found something very interesting. On both sides of the floor board and one under the foot pedals there are round impressions with a half moon shape cut into them, total of five. Is this from the factory? What was their thought process on that? (IMG:style_emoticons/default/idea.gif) (IMG:style_emoticons/default/screwy.gif) Thinking of welding them up.

Thanks in advance
Al

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Feb 3 2020, 10:24 PM
Post #2


Advanced Member
****

Group: Members
Posts: 2,708
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
Most likely spot welder access or assembly line attachment related
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ahycaramba
post Feb 3 2020, 10:40 PM
Post #3


“I live my life a quarter mile at a time.”
**

Group: Members
Posts: 161
Joined: 17-March 15
From: Murrieta, California
Member No.: 18,534
Region Association: Southern California
QUOTE(gms @ Feb 3 2020, 08:24 PM) *

Most likely spot welder access or assembly line attachment related


At first I thought it was put there for drainage purposes but realized that wasn’t it because they were covers in seam sealer.
Thanks for the clarity.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Feb 4 2020, 01:13 AM
Post #4


Resident German
*************************

Group: Admin
Posts: 41,943
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(gms @ Feb 3 2020, 08:24 PM) *

Most likely spot welder access or assembly line attachment related

(IMG:style_emoticons/default/agree.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
peteyd
post Feb 4 2020, 07:09 AM
Post #5


Senior Member
***

Group: Members
Posts: 733
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada

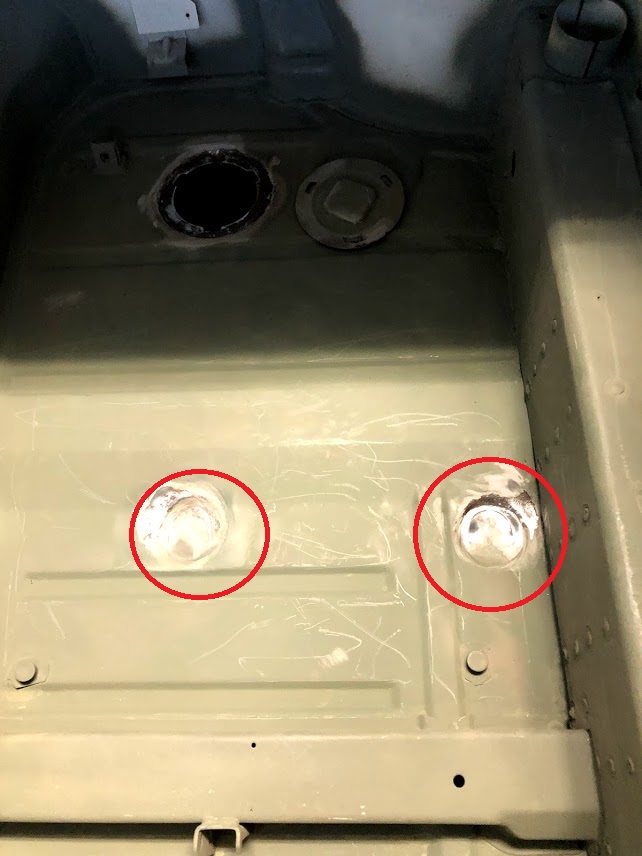

I think that Al is asking about the circled portion.

Attached Image

These were present on all 911 floorpans as well. They were probably for drainage. That is all that we can imagine they were for. Whether it was for a process on the assembly line? I'm sure the 911 guys have discussed it as well.

Pete
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ahycaramba
post Feb 4 2020, 08:14 PM
Post #6


“I live my life a quarter mile at a time.”
**

Group: Members
Posts: 161
Joined: 17-March 15
From: Murrieta, California
Member No.: 18,534
Region Association: Southern California
Thanks for the insight gentlemen.
Pete you were right on the money as to what i was referring to.
I'm glad to know mine is not a one off.
(IMG:style_emoticons/default/beerchug.gif)
Al
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Feb 4 2020, 08:55 PM
Post #7


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
I wish it was for draining after it was dipped in anti corrosive, but most all of us have proof that never happened.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Feb 4 2020, 09:26 PM
Post #8


914 Guru
*****

Group: Members
Posts: 8,175
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
I see what you did there.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Literati914
post Feb 5 2020, 12:00 AM
Post #9


Senior Member
***

Group: Members
Posts: 1,780
Joined: 16-November 06
From: Dallas, TX
Member No.: 7,222
Region Association: Southwest Region
QUOTE(ahycaramba @ Feb 3 2020, 10:06 PM) *

..screwy: Thinking of welding them up.


Yep, that's my plan (IMG:style_emoticons/default/welder.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Feb 5 2020, 08:48 AM
Post #10


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,950
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
The big round holes with the plugs in them were to hold the panel to the assembly jig. Once the body was assembled, the jig was removed and the plugs installed.

As for the small ones with the half moon cutout, I would doubt they were for spot welder access. That would require bending the metal before welding, and bending it back once done. Most spot welders on assembly lines are either big monsters with huge jaw openings, or they are built into the assembly jig.

Maybe for drainage when they dip primed the chassis.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
UROpartsman
post Feb 5 2020, 04:11 PM
Post #11


Member
**

Group: Members
Posts: 292
Joined: 22-October 15
From: Simi Valley, CA
Member No.: 19,288
Region Association: None
Indeed, these cut outs have been the subject of many discussions on 911 forums. Many folks believe they were intended to allow drainage after the parts were dip-primered, but Clay's body jig explanation also makes sense for the large holes. The openings were later sealed with bitumen on the inside and body schutz on the outside, so they were never intended to be open on a finished car.

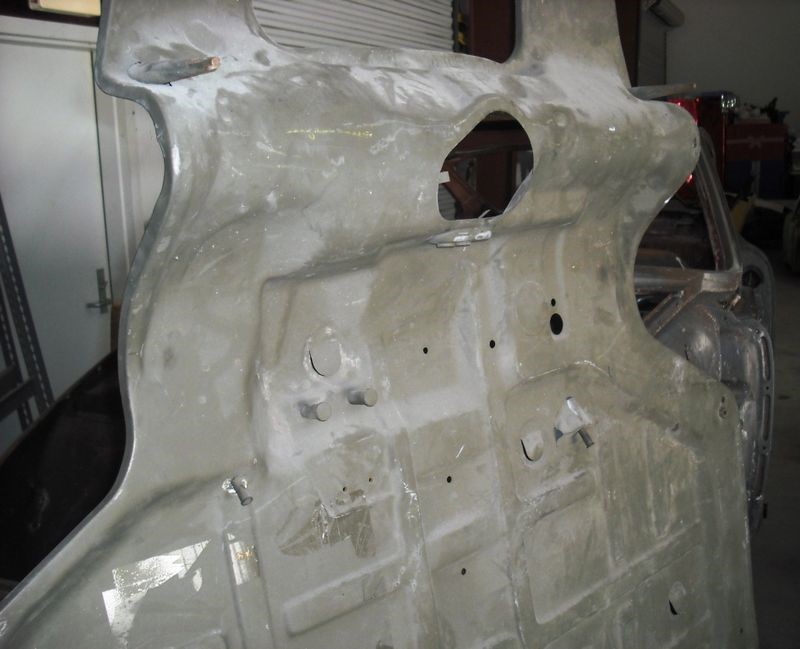

Here's a NOS 911 floor pan with similar punch-outs.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Feb 6 2020, 11:16 AM
Post #12


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,950
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
I have a Porsche factory video of 356 bodies being built. It shows the metal being put on the jigs as they add each part, and they use the same big holes to connect to the jig. The little holes were to drain away the excess paint when the chassis was dip primered.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Feb 6 2020, 03:15 PM
Post #13


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,647
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
QUOTE(ClayPerrine @ Feb 6 2020, 09:16 AM) *

I have a Porsche factory video of 356 bodies being built. It shows the metal being put on the jigs as they add each part, and they use the same big holes to connect to the jig. The little holes were to drain away the excess paint when the chassis was dip primered.

Post it up in another thread Clay. (IMG:style_emoticons/default/drooley.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Feb 6 2020, 07:45 PM
Post #14


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
I guess Germans forgot primer is hygroscopic (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Feb 7 2020, 02:16 PM
Post #15


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,950
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(76-914 @ Feb 6 2020, 03:15 PM) *

QUOTE(ClayPerrine @ Feb 6 2020, 09:16 AM) *

I have a Porsche factory video of 356 bodies being built. It shows the metal being put on the jigs as they add each part, and they use the same big holes to connect to the jig. The little holes were to drain away the excess paint when the chassis was dip primered.

Post it up in another thread Clay. (IMG:style_emoticons/default/drooley.gif)


I will have to rip the cd that it is on.

Clay
