> type 4 gasket set
brant
post Feb 4 2020, 10:38 AM
Post #1


914 Wizard
**********

Group: Members
Posts: 11,824
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
do the VR gasket sets come with front and rear main gaskets?

I have a kit that I think is new
I've been trying to see what it may be missing or is it complete?
and I don't see front and rear main gaskets...

but don't see anything else missing and not sure the kits even come with the main gaskets?



I'm cleaning out the garage and intend to sell a lot of junk in the near future
but definitely do no want to mis-represent, so would love informed opinion about whether or not this is a complete gasket set.

TIA
brant

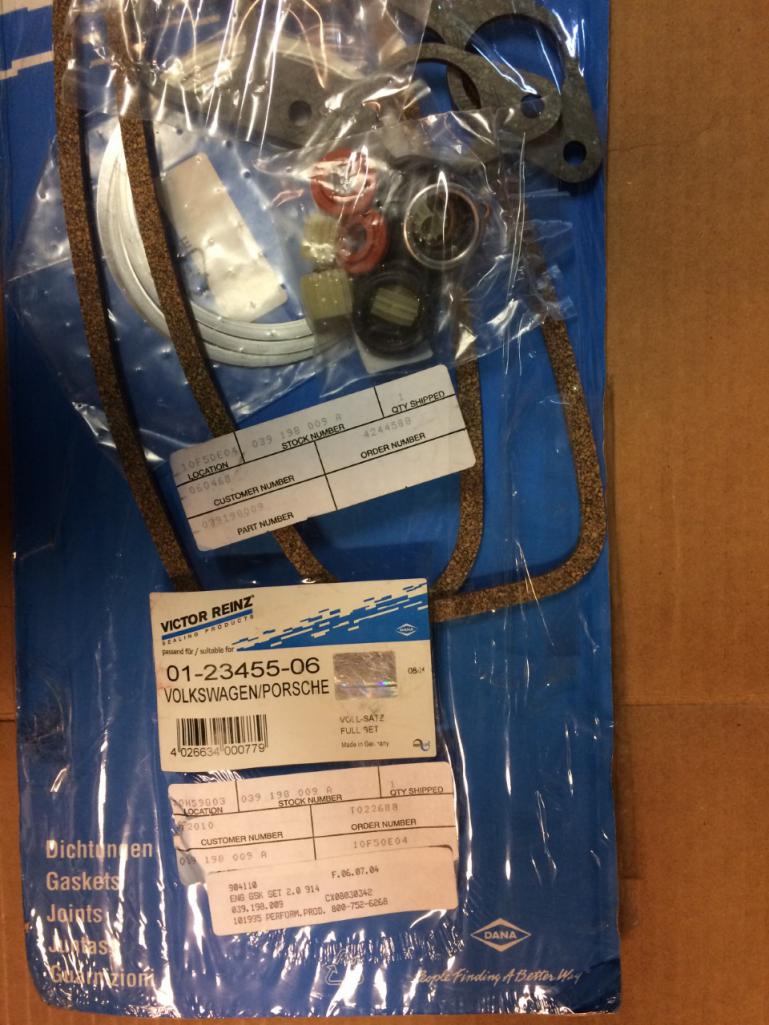

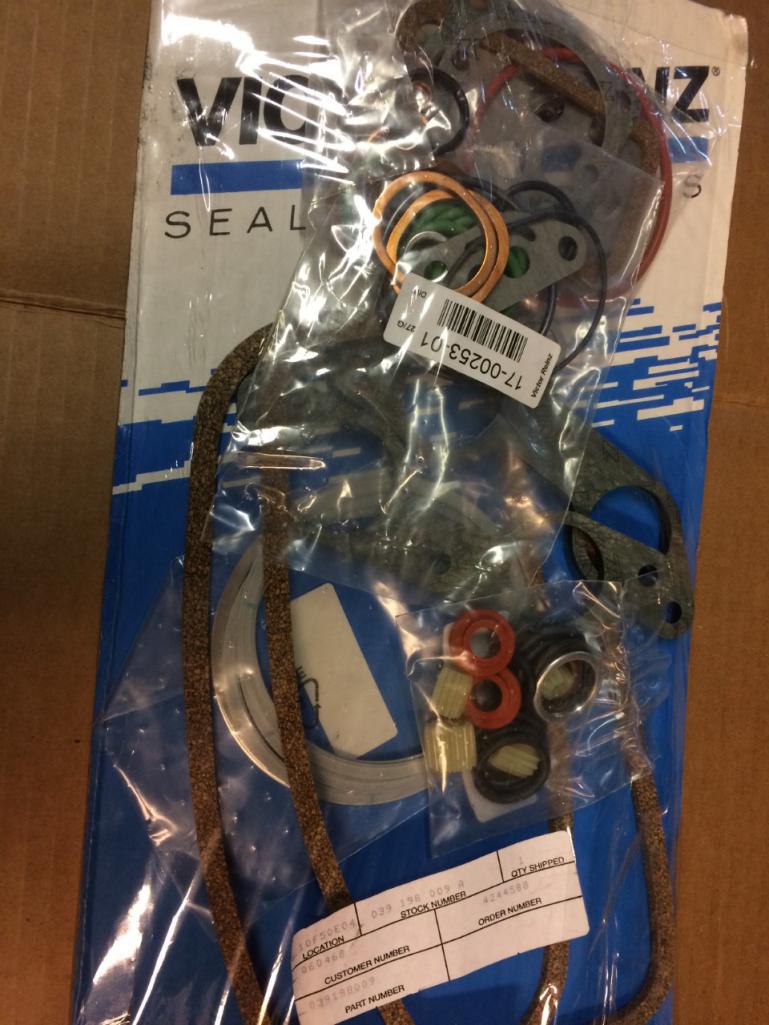

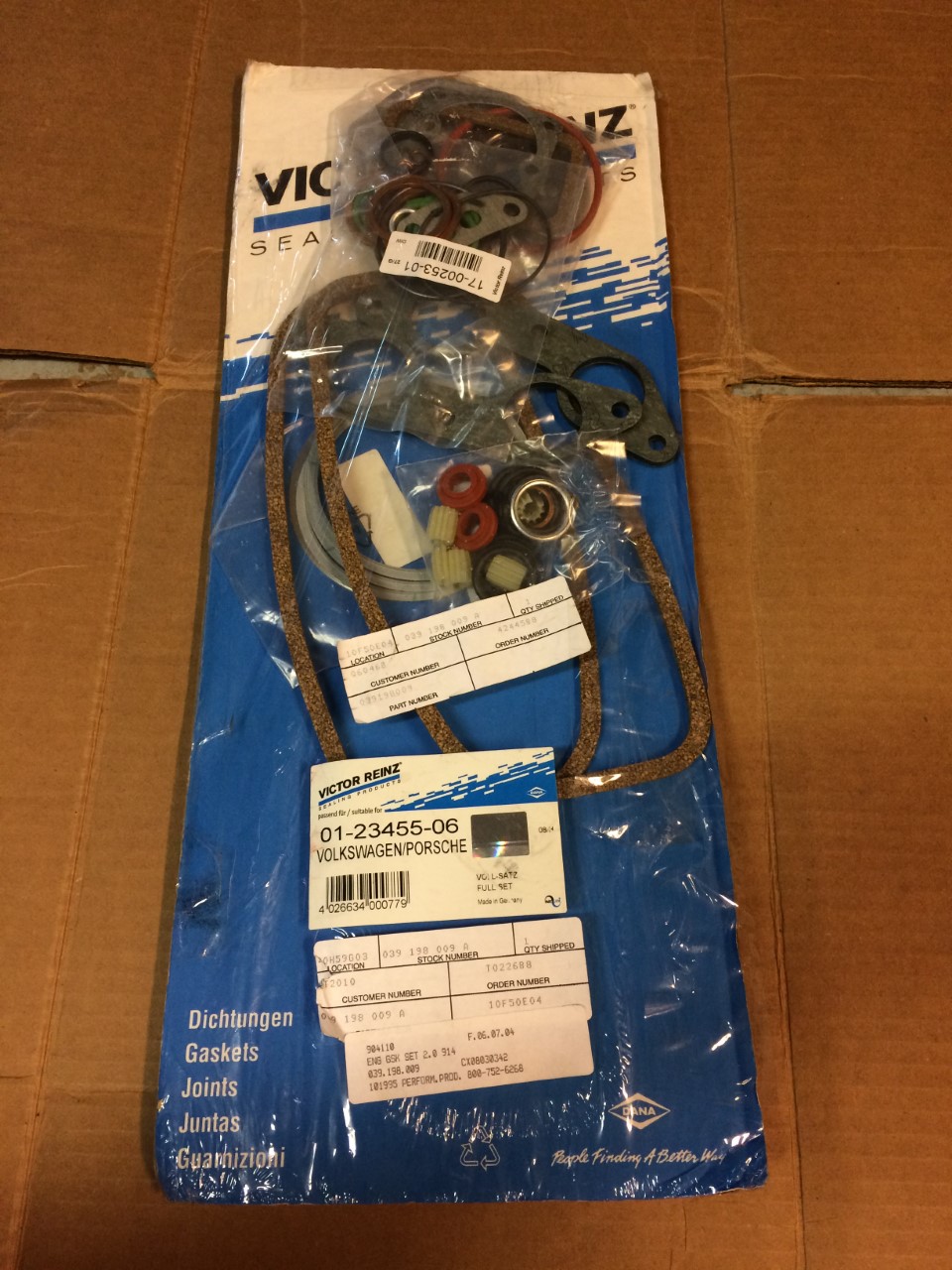

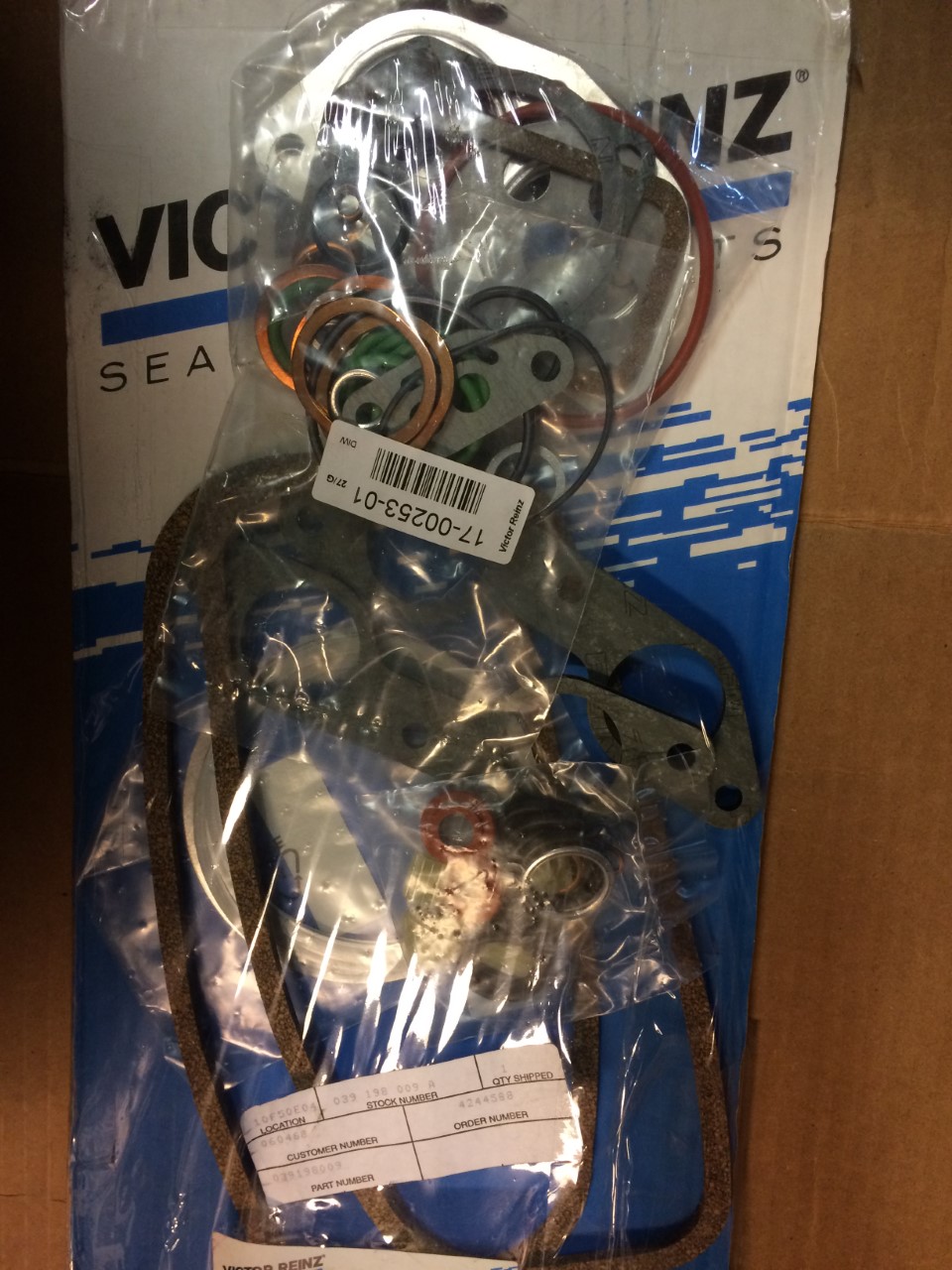

Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Nogoodwithusernames
post Feb 4 2020, 10:50 AM
Post #2


Member
**

Group: Members
Posts: 277
Joined: 31-May 16
From: Sutter, CA
Member No.: 20,051
Region Association: None
I'm mid rebuild right now on a t4 motor and none of the gasket sets I've seen include the main seals.

Depending on what size this is for I may be interested when you get things listed up. (Edit: looks like it's for a 2.0 based on the intake gaskets so won't work on the 1.7 I'm working on.)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Feb 4 2020, 10:56 AM
Post #3


914 Wizard
**********

Group: Members
Posts: 11,824
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
QUOTE(Nogoodwithusernames @ Feb 4 2020, 09:50 AM) *

I'm mid rebuild right now on a t4 motor and none of the gasket sets I've seen include the main seals.

Depending on what size this is for I may be interested when you get things listed up. (Edit: looks like it's for a 2.0 based on the intake gaskets so won't work on the 1.7 I'm working on.)



thank you!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
brant
post Feb 4 2020, 10:56 AM
Post #4


914 Wizard
**********

Group: Members
Posts: 11,824
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
QUOTE(Nogoodwithusernames @ Feb 4 2020, 09:50 AM) *

I'm mid rebuild right now on a t4 motor and none of the gasket sets I've seen include the main seals.

Depending on what size this is for I may be interested when you get things listed up. (Edit: looks like it's for a 2.0 based on the intake gaskets so won't work on the 1.7 I'm working on.)



its a 2.0
I'll put it in the classifieds today or so...
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Feb 4 2020, 10:58 AM
Post #5


The rubber man
**********

Group: Members
Posts: 12,741
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
oil pump gasket is missing
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Feb 4 2020, 11:02 AM
Post #6


914 Wizard
**********

Group: Members
Posts: 11,824
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
QUOTE(Mikey914 @ Feb 4 2020, 09:58 AM) *

oil pump gasket is missing



I hadn't noticed
thank you...

is it supposed to be a round o'ring, or a paper gasket?
good eye..
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Feb 4 2020, 11:43 AM
Post #7


914 Guru
*****

Group: Members
Posts: 9,034
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
Paper gasket and it should be in the kit. Main seals never included.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Feb 4 2020, 12:13 PM
Post #8


Advanced Member
****

Group: Members
Posts: 4,754
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None
Have used the VR sets but never seen front and rear seals included,good thing really as I don't like the rear main seals they make anyway,everthing else supplied seems fine as per my last build.
I bought 2 sets many years ago and I'am surprised how much more they cost now (IMG:style_emoticons/default/sad.gif) .
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Feb 4 2020, 12:18 PM
Post #9


914 Wizard
**********

Group: Members
Posts: 11,824
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
QUOTE(914Sixer @ Feb 4 2020, 10:43 AM) *

Paper gasket and it should be in the kit. Main seals never included.



thanks again... I'll shake everything up and look again tonight before I try to sell it used... don't want to misrepresent anything
User is online!Profile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Feb 4 2020, 12:49 PM
Post #10


914 Guru
*****

Group: Members
Posts: 8,110
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
the 914 never came with the front and rear main seals unlike the 356 and 911 kits, nor did it come with the windage tray seals (which we had to have made)


QUOTE(brant @ Feb 4 2020, 09:38 AM) *

do the VR gasket sets come with front and rear main gaskets?

I have a kit that I think is new
I've been trying to see what it may be missing or is it complete?
and I don't see front and rear main gaskets...

but don't see anything else missing and not sure the kits even come with the main gaskets?



I'm cleaning out the garage and intend to sell a lot of junk in the near future
but definitely do no want to mis-represent, so would love informed opinion about whether or not this is a complete gasket set.

TIA
brant
User is online!Profile CardPM
Go to the top of the page
+Quote Post
76-914
post Feb 4 2020, 02:07 PM
Post #11


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,647
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
I can't remember which brand I used about 10 years ago but the windage tray seals were in there. I remember looking at them and thinking what do these fit? Once I split the car I saw them and knew. Front a & rear mains, no. I bought those from some VW Bus supplier as the rear main was mentioned as being superior to others. I bought the OEM main bearings from you George. They were unobtanium at that time.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Feb 4 2020, 04:23 PM
Post #12


914 Wizard
**********

Group: Members
Posts: 11,824
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
Thanks again for all of great input!

I looked again at the set. Shook it to see the gaskets better

I think this is the oil pump gasket (with the 4 bolt holes)


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
motorvated
post Feb 4 2020, 05:38 PM
Post #13


Member
**

Group: Members
Posts: 282
Joined: 13-February 13
From: Colorado
Member No.: 15,519
Region Association: Rocky Mountains
My gasket kit did not come with front or rear main seals. It came with one oil pump cover gasket, as does yours, when it appears that the oil pump housing on my engine has another paper gasket between it and the case which was not provided.

Not to high jack this thread, but what are the eight white ribbed plastic sleeve-like things that are shown in the plastic bags in the first couple of photos. My gasket kit also has them, but I haven't seen anything like them in/on my motor.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
injunmort
post Feb 4 2020, 05:47 PM
Post #14


Senior Member
***

Group: Members
Posts: 1,024
Joined: 12-April 10
From: sugarloaf ny
Member No.: 11,604
Region Association: North East States
vibration dampners for the cylinder studs used on a bus.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Feb 4 2020, 06:02 PM
Post #15


914 Guru
*****

Group: Members
Posts: 9,034
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
Vibration dampers go on all type 4 engines.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
motorvated
post Feb 4 2020, 06:20 PM
Post #16


Member
**

Group: Members
Posts: 282
Joined: 13-February 13
From: Colorado
Member No.: 15,519
Region Association: Rocky Mountains
QUOTE(914Sixer @ Feb 4 2020, 05:02 PM) *

Vibration dampers go on all type 4 engines.


If I'm not mistaken, there are 16 cylinder head studs on Type 4 engines, and only eight of these vibration dampeners in the kit. Install two per cylinder? Install them where, bottom of cylinder, top of the heads? I'm confused.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BeatNavy
post Feb 4 2020, 06:51 PM
Post #17


Certified Professional Scapegoat
****

Group: Members
Posts: 2,944
Joined: 26-February 14
From: Easton, MD
Member No.: 17,042
Region Association: MidAtlantic Region
Are there eight in the kit or six? They go on the long through case bolts, not the head studs:

Attached Image


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TheCabinetmaker
post Feb 6 2020, 06:55 AM
Post #18


I drive my car everyday
*****

Group: Members
Posts: 8,325
Joined: 8-May 03
From: Tulsa, Ok.
Member No.: 666
6 vibration dampers on case thru bolts. Have never seen windage tray rubbers in any of the 3 dozen kits I've used.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Feb 6 2020, 09:50 AM
Post #19


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
I've been using VR kits since the early 90's, nothing has changed.
RMS, nose seal or windage tray seals not included.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
