> Stock steering wheel installation questions, what parts to i need to put back on a stock wheel?
DRPHIL914
post Feb 12 2020, 12:29 PM
Post #1


Dr. Phil
*****

Group: Members
Posts: 5,810
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
So I had a aftermarket wheel on my car when I bought it 12 years ago, and about 1-2 years into my ownership I scored an Ebay deal $50 for a very nice wood wheel that is now in the car. I have been looking for a nice original wheel for a long time and recently was able to acquire one. So as I look at the OEM one it looks like I am missing the horn button, a canceling ring possibly too. not sure what else, a spring maybe? if anyone has pictures it would be helpful.

What I currently have is the Nardi wood one that is attached to the stock column. it is metal, about 3" long, and then the wheel screws to that and the rubber center cover goes over it and the wire pulls thru and is clipped to the center hole button.

My new OEM ones has a very nice center horn part, and I did read about the counter clockwise turn to remove that. it looks like it will slide onto the spined shaft once I take the spacer/mount off that is on there now, and just bolt on the stock wheel?

I guess I need to know in what order the parts go back on. Where does the canceling ring etc go ?

I pulled up one factory diagram and that kind of gives me an idea, and SMC has the rebuild kits with a horn button, spring, and rubber center piece that goes in there. but I have not seen all this assembled, so some guidance is requested.

Thanks.

Phil
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Feb 12 2020, 12:34 PM
Post #2


Dr. Phil
*****

Group: Members
Posts: 5,810
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States

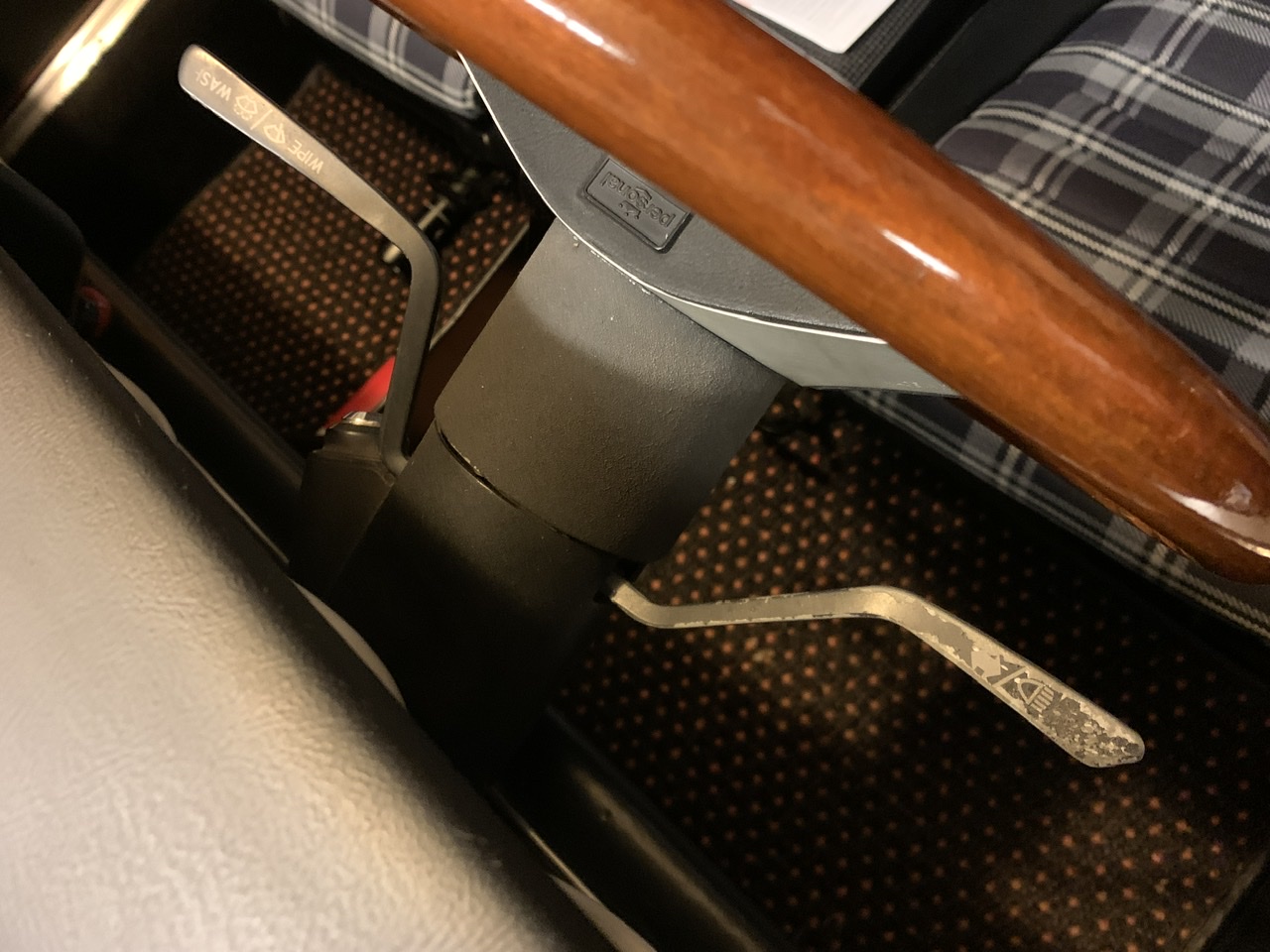

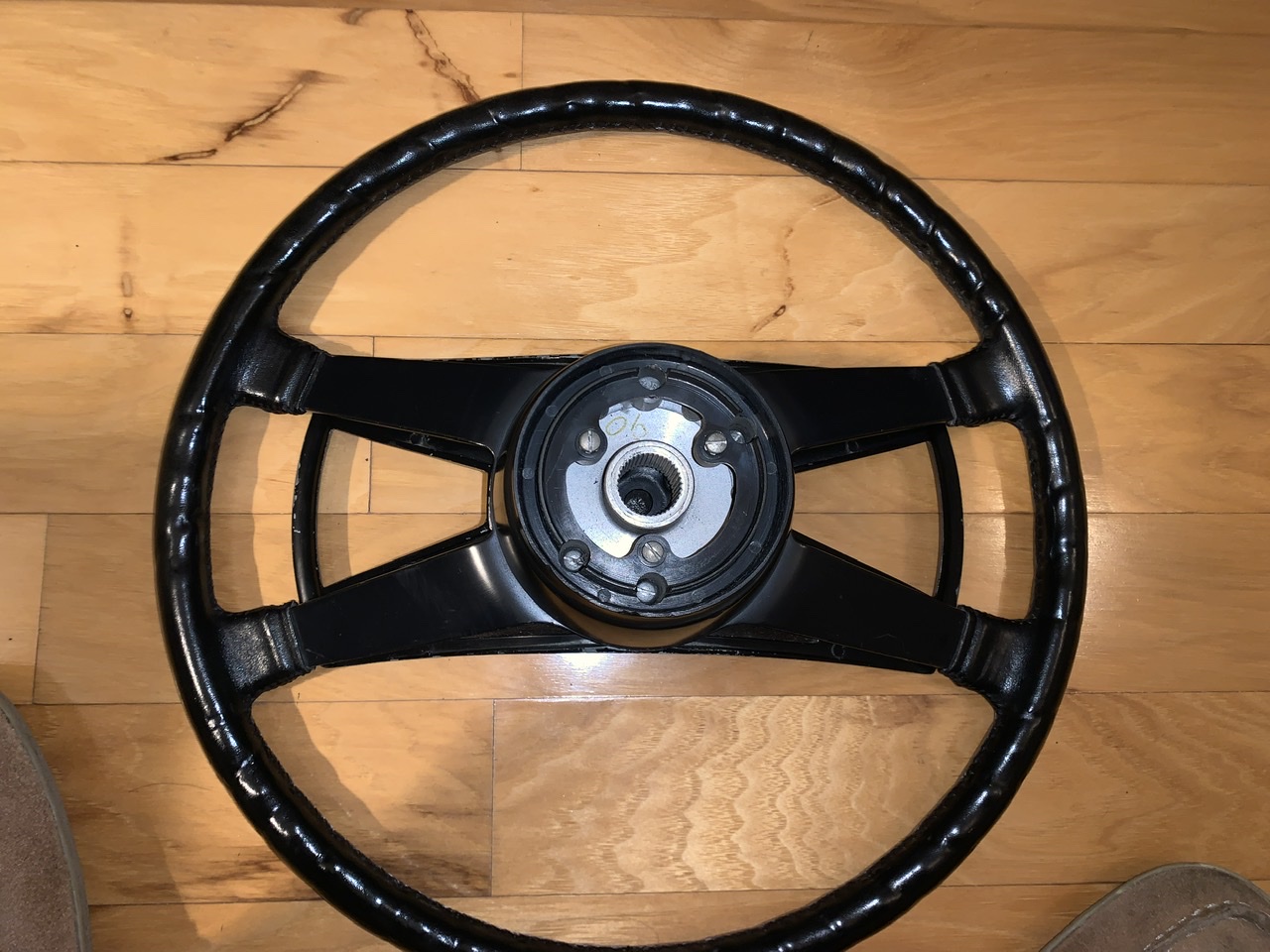

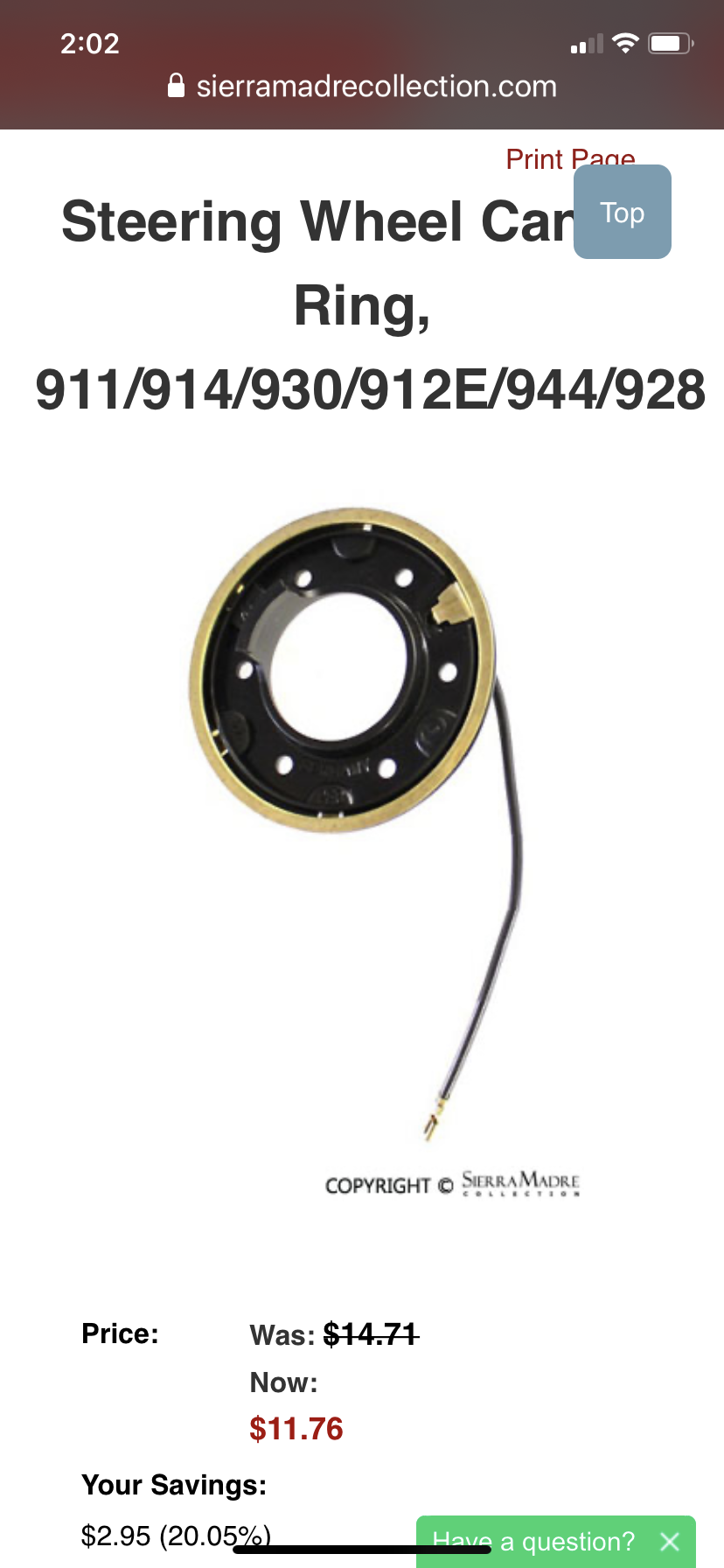

Here is a few pictures, old new-old etc and the rebuild kit for horn.

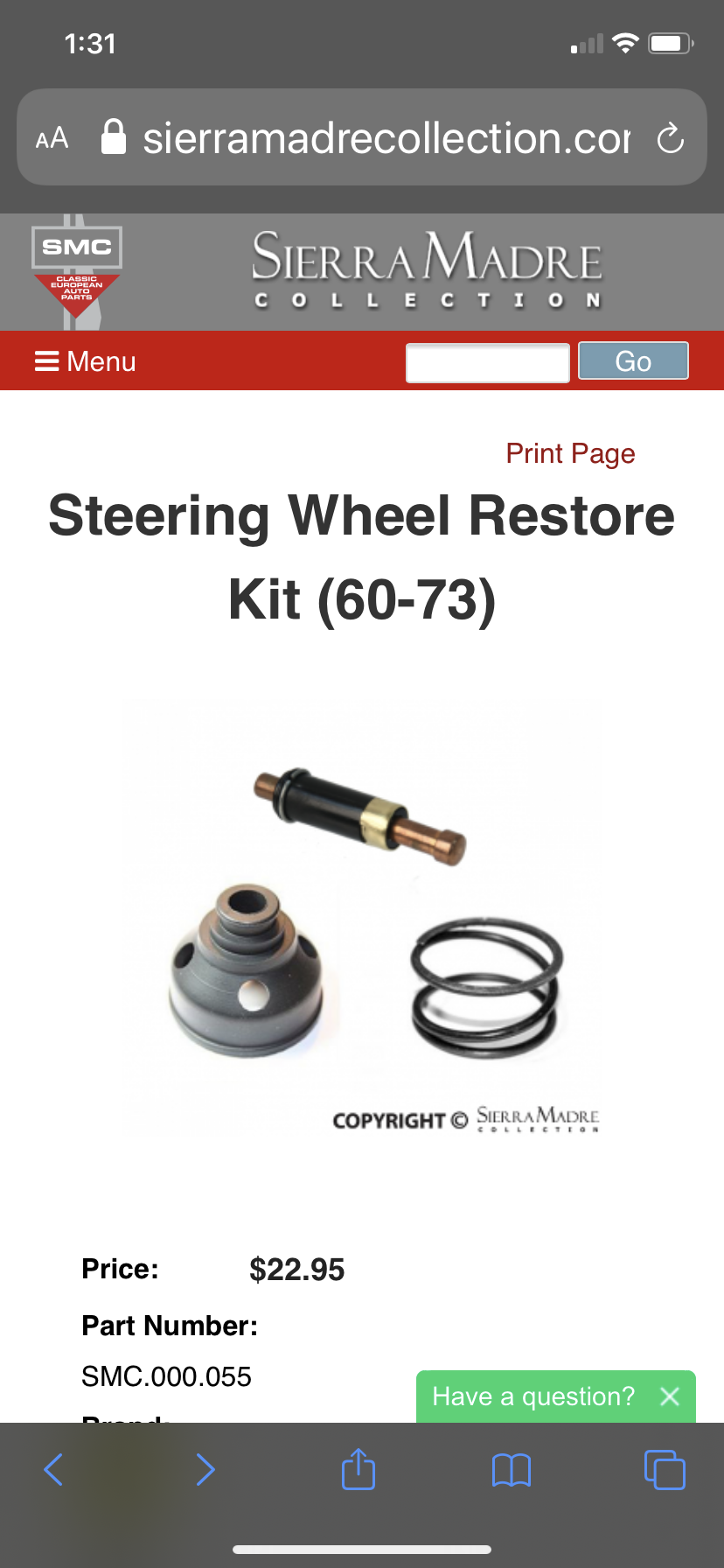

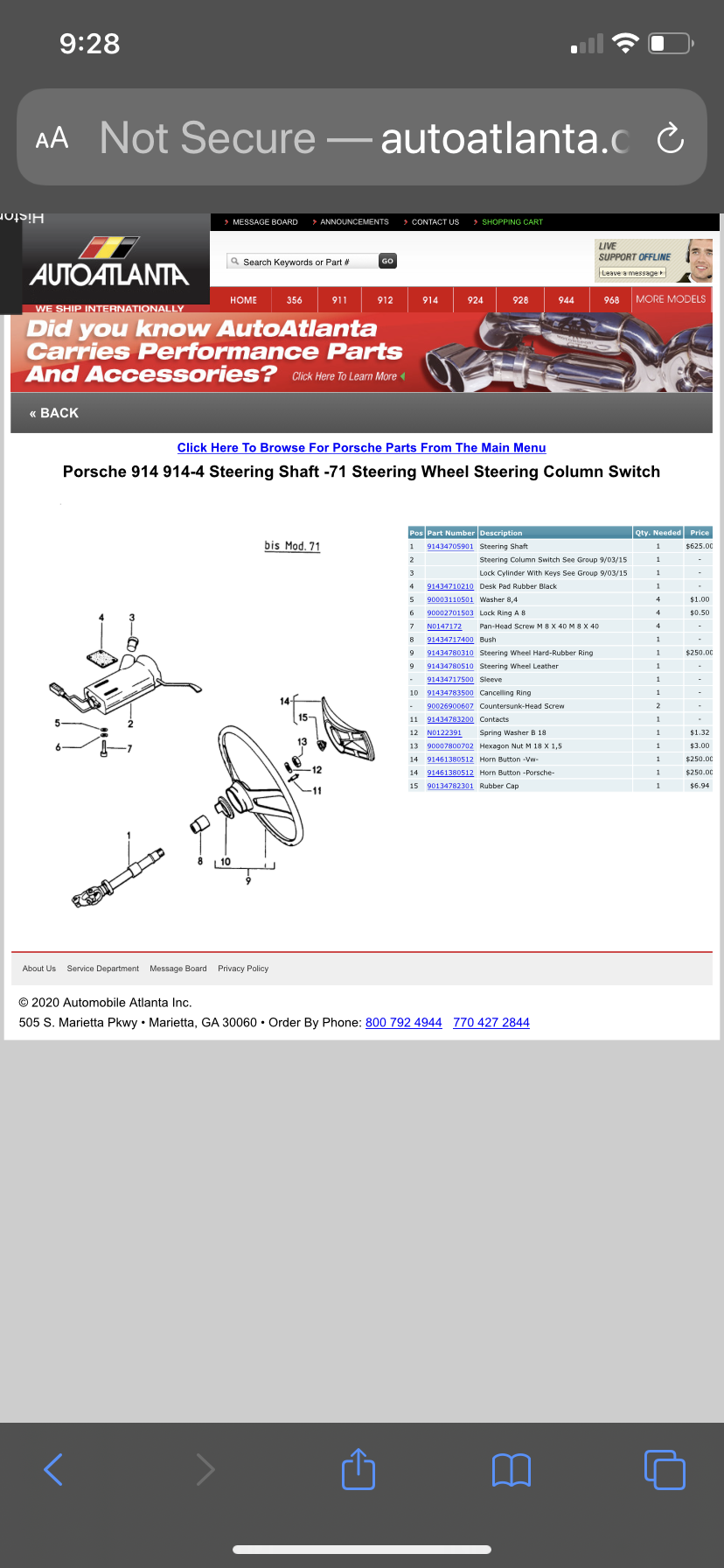

And the part diagram, and the rebuild kit parts from URO.


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Feb 12 2020, 12:53 PM
Post #3


914-6 GT in waiting
***************

Group: Members
Posts: 19,647
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
No spring or horn plunger on a mid or late car. You use a plastic hub with a plastic signal cancel ring that also has the wire for the horn to connect with the steering wheel bat wing. You do need the black rubber cone. You also want to make sure the bat wing has the correct metal bracket with a little tab to connect the horn wire. Early does not, mid and late do.
@DRPHIL914


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Feb 12 2020, 01:01 PM
Post #4


Dr. Phil
*****

Group: Members
Posts: 5,810
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
QUOTE(mepstein @ Feb 12 2020, 01:53 PM) *

No spring or horn plunger on a mid or late car. You use a plastic hub with a plastic signal cancel ring that also has the wire for the horn to connect with the steering wheel bat wing. You do need the black rubber cone. You also want to make sure the bat wing has the correct metal bracket with a little tab to connect the horn wire. Early does not, mid and late do.
@DRPHIL914

do you hve a picture of the back side of the metal ring that has the tab for the wire to connect to?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Feb 12 2020, 01:03 PM
Post #5


Dr. Phil
*****

Group: Members
Posts: 5,810
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
This? Ok


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Feb 12 2020, 01:17 PM
Post #6


914-6 GT in waiting
***************

Group: Members
Posts: 19,647
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(DRPHIL914 @ Feb 12 2020, 02:03 PM) *

This? Ok

Yes. I have an extra plastic hub if you need one.
I don’t have a pic of the back of the batwing. Show a pic of yours when you get a chance and we can see if it’s the right one.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Feb 12 2020, 01:46 PM
Post #7


Dr. Phil
*****

Group: Members
Posts: 5,810
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
QUOTE(mepstein @ Feb 12 2020, 02:17 PM) *

QUOTE(DRPHIL914 @ Feb 12 2020, 02:03 PM) *

This? Ok

Yes. I have an extra plastic hub if you need one.
I don’t have a pic of the back of the batwing. Show a pic of yours when you get a chance and we can see if it’s the right one.

Ok will do
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Feb 12 2020, 02:46 PM
Post #8


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,193
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
That wheel will look good in the car.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Feb 12 2020, 03:00 PM
Post #9


Dr. Phil
*****

Group: Members
Posts: 5,810
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
QUOTE(rhodyguy @ Feb 12 2020, 03:46 PM) *

That wheel will look good in the car.


I like my wood wheel, but I agree, and it’s larger and it makes seeing gauges much easier too. The indents from being wrapped I don’t mind, and eventually I can have it rewrapped, but it’s just fine . Trying to get it put in for Werks reunion judging in 3 weeks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Feb 12 2020, 03:07 PM
Post #10


914-6 GT in waiting
***************

Group: Members
Posts: 19,647
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
I wonder if the wrap marks would steam out.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Feb 12 2020, 03:09 PM
Post #11


Dr. Phil
*****

Group: Members
Posts: 5,810
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
QUOTE(mepstein @ Feb 12 2020, 04:07 PM) *

I wonder if the wrap marks would steam out.

They might, leather is very firm but in excellent condition, no rot etc.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Feb 12 2020, 05:34 PM
Post #12


Dr. Phil
*****

Group: Members
Posts: 5,810
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
QUOTE(DRPHIL914 @ Feb 12 2020, 02:46 PM) *

QUOTE(mepstein @ Feb 12 2020, 02:17 PM) *

QUOTE(DRPHIL914 @ Feb 12 2020, 02:03 PM) *

This? Ok

Yes. I have an extra plastic hub if you need one.
I don’t have a pic of the back of the batwing. Show a pic of yours when you get a chance and we can see if it’s the right one.

Ok will do

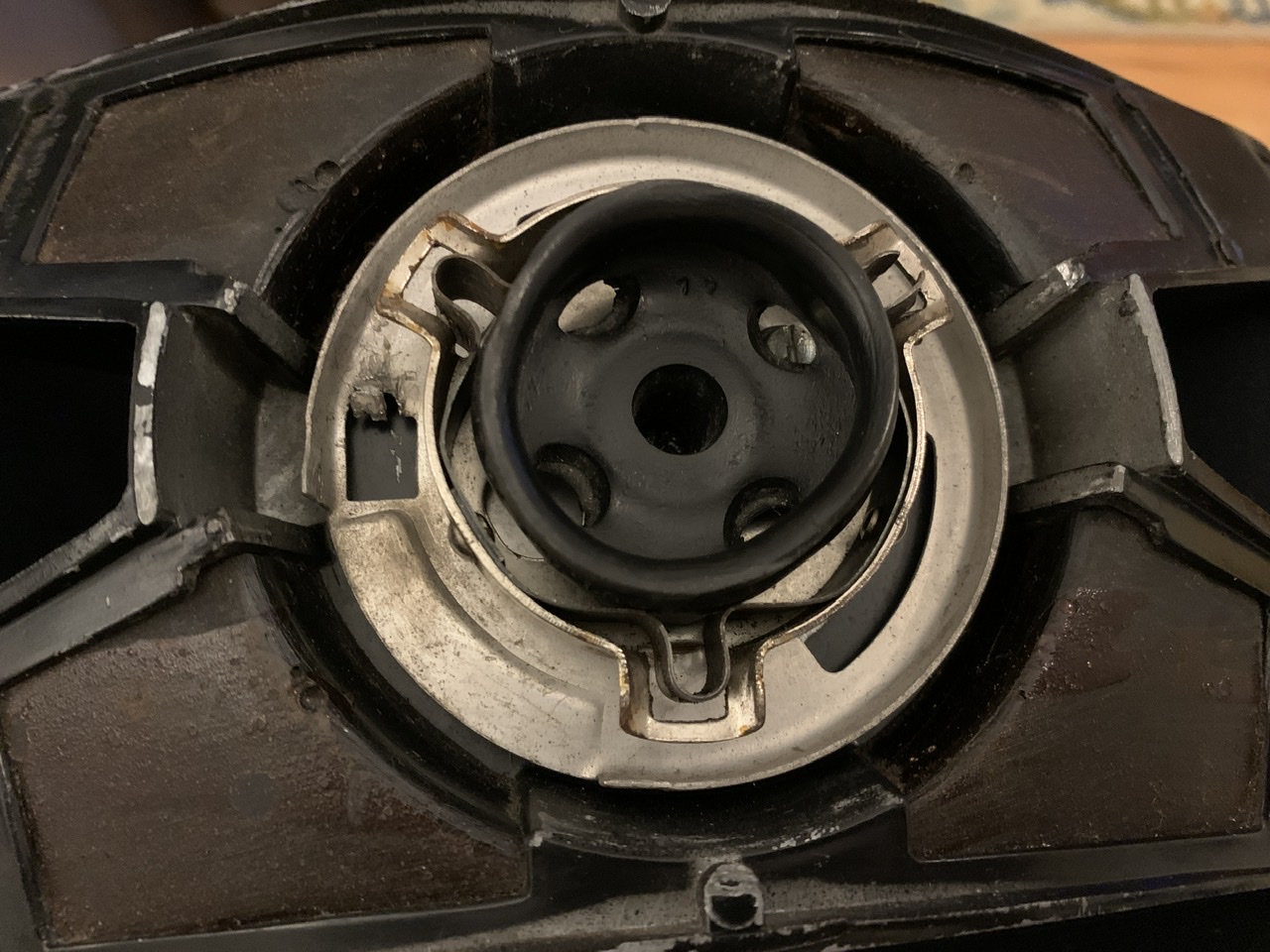

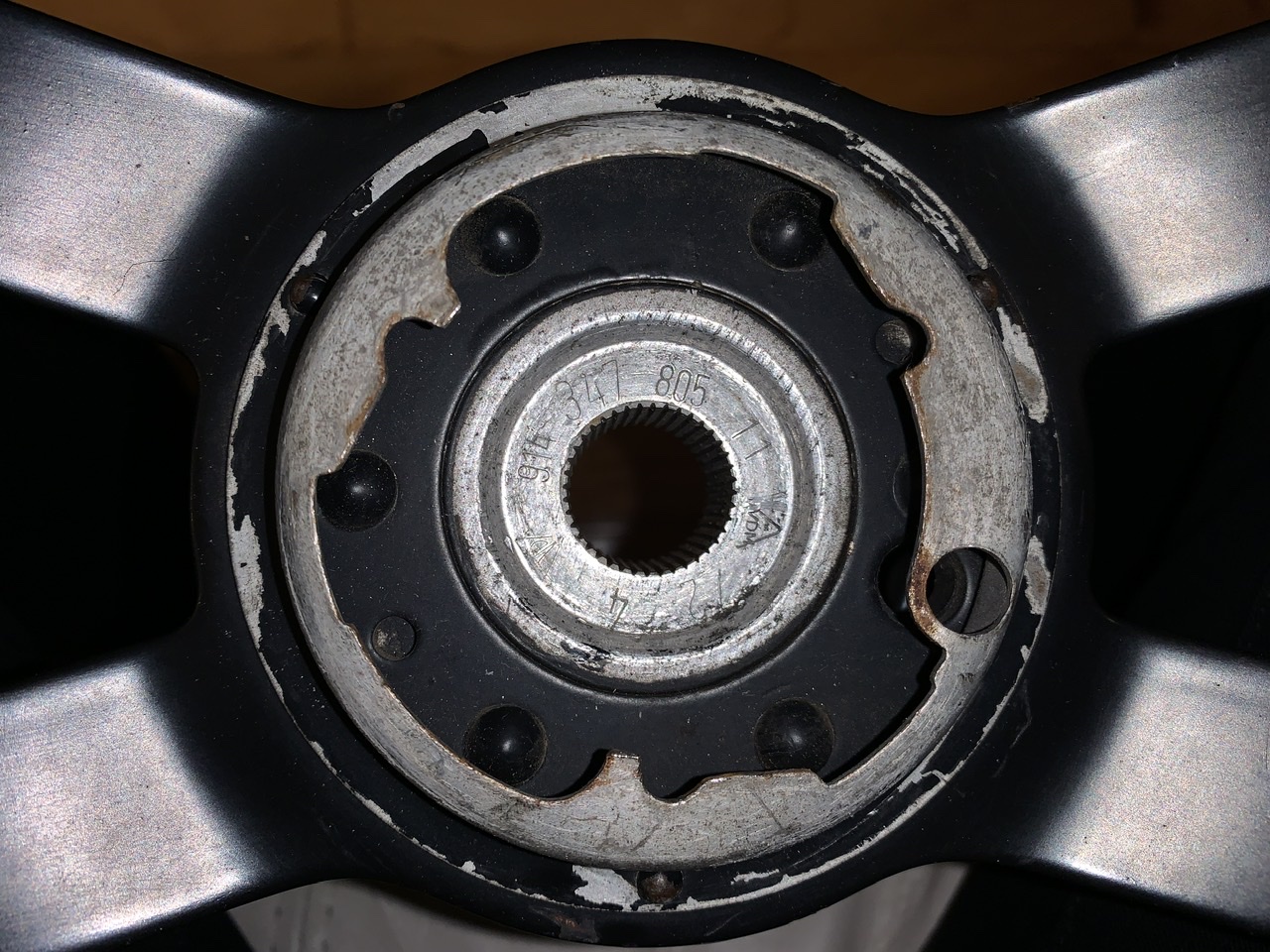

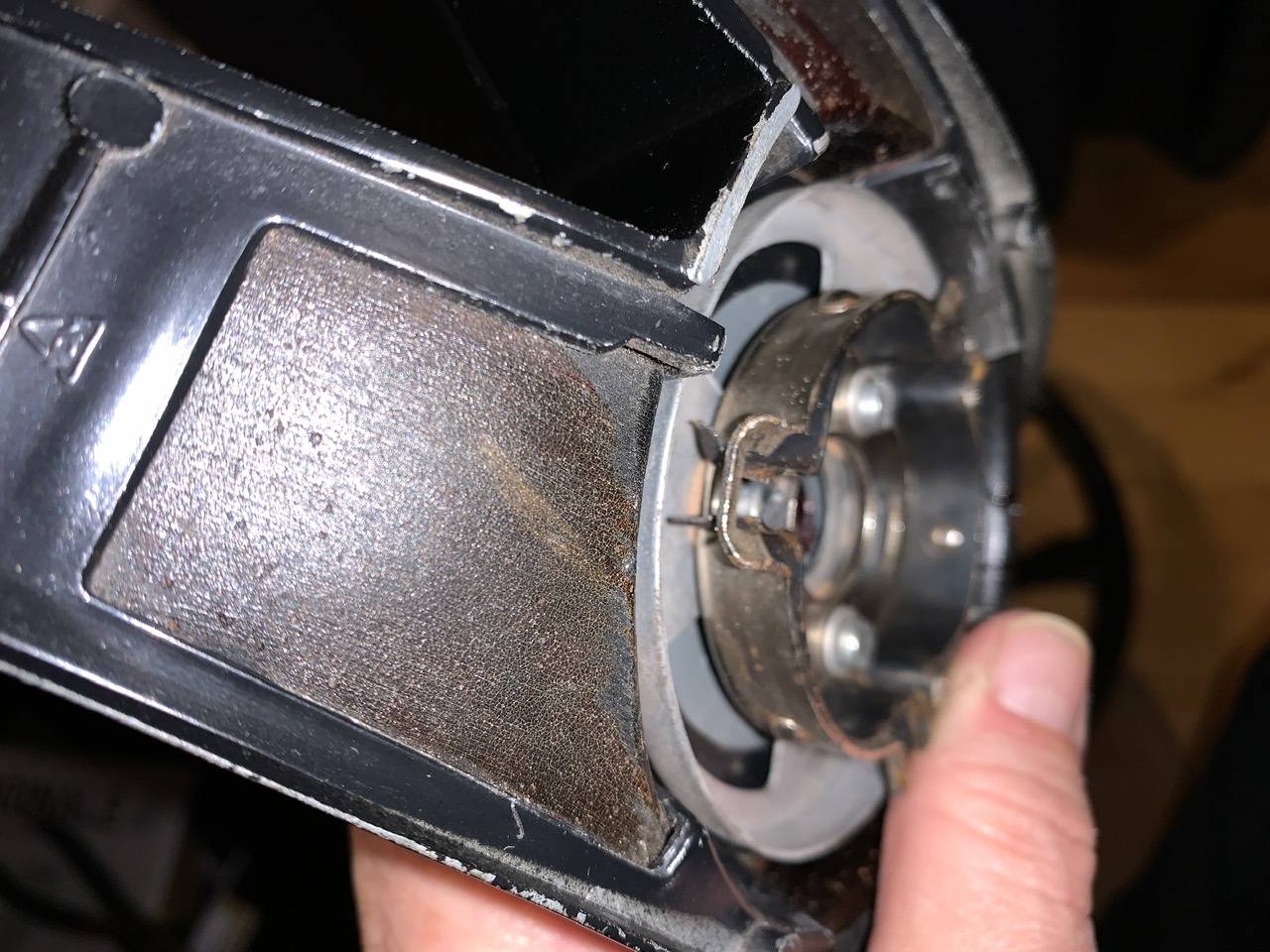

Here are pictures of the back inside of the horn part. And the steering wheel from front and rear, and the spacer with current steering wheel
@mepstein


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Feb 12 2020, 05:39 PM
Post #13


Dr. Phil
*****

Group: Members
Posts: 5,810
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
Also the 2 end tabs of the spring thing look bent, does this matter or should I source a new center piece?

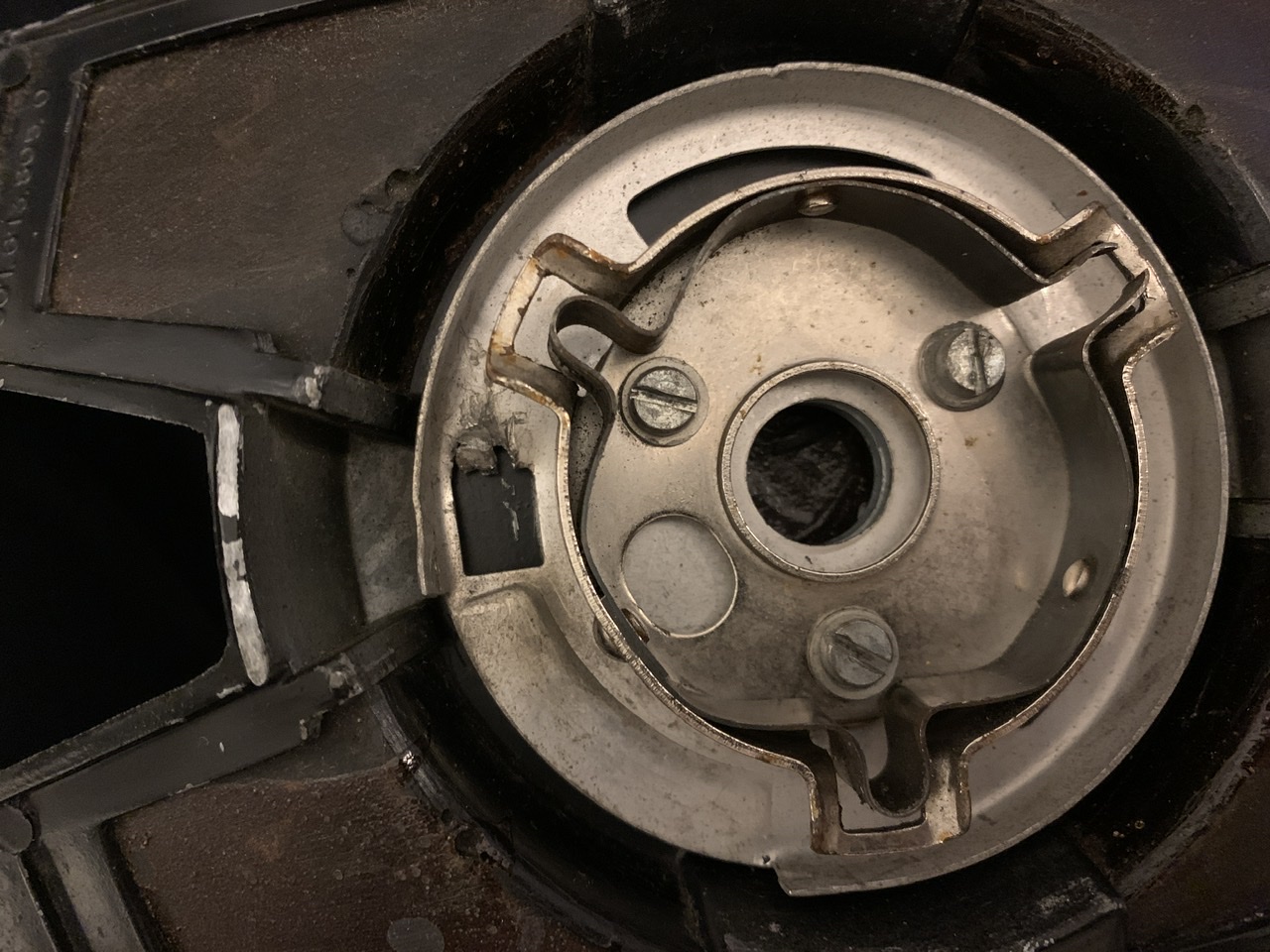

Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Feb 12 2020, 05:46 PM
Post #14


914-6 GT in waiting
***************

Group: Members
Posts: 19,647
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
So good news. You have the correct hub and batwing with tab. It looks a little boogered up but the tab is just a connection to ground the brown wire on the turn signal cancel ring that you need. You can bolt on the wheel now but it won't self cancel or work the horn until you install that part. Oh, and the black rubber cone. It acts as a rubber spacer on the back of the batwing.

PS - I'm a fan of the stock 914 wheel. Porsche liked it so much, they used it on the 911RS and 911RSR

@DRPHIL914

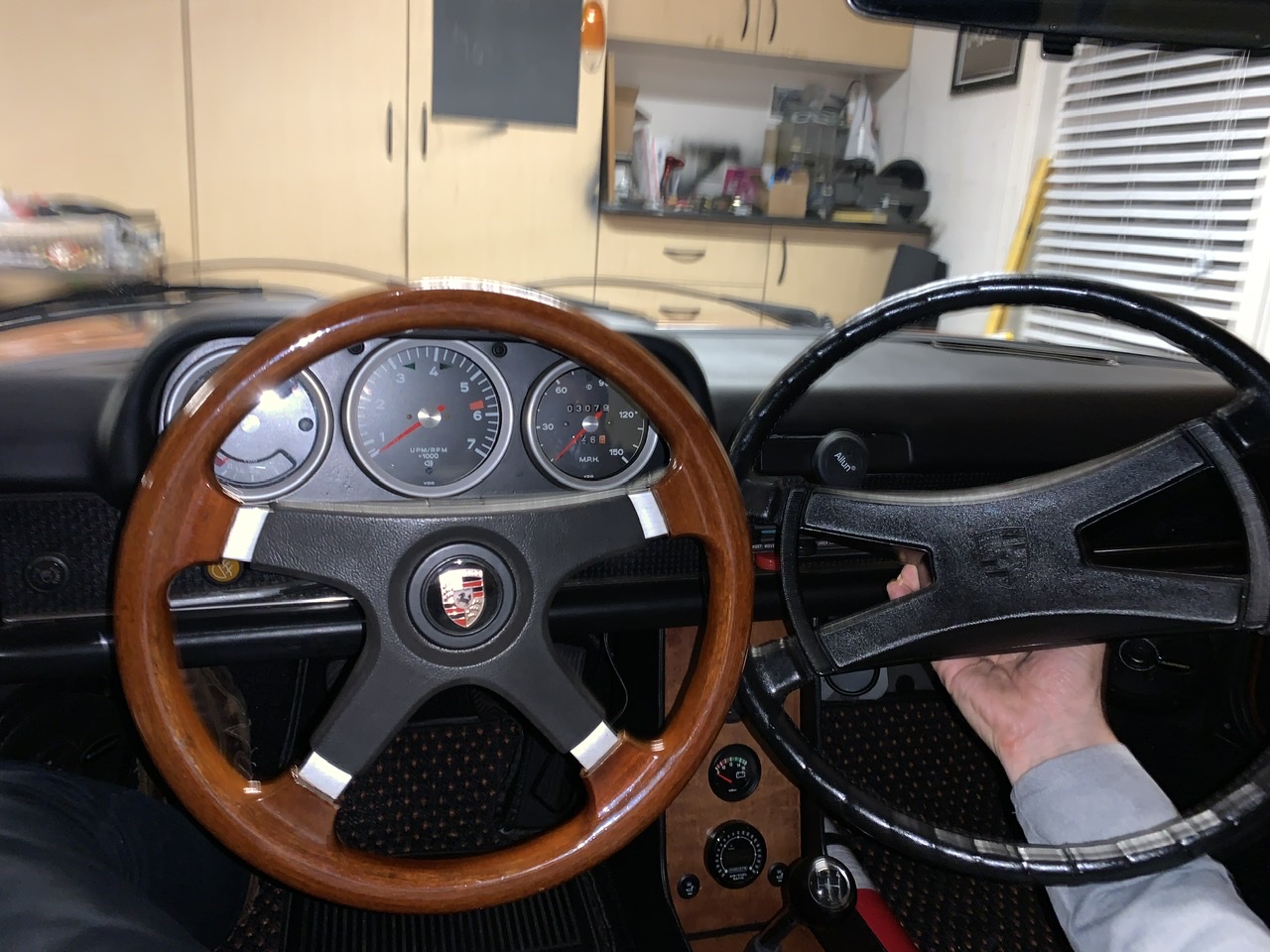

Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FlacaProductions
post Feb 12 2020, 05:56 PM
Post #15


Senior Member
***

Group: Members
Posts: 1,845
Joined: 24-November 17
From: LA
Member No.: 21,628
Region Association: Southern California
Looks like you may need this as your horn wire tab is broken off.
You MAY be able to rig something in there but this would do the trick. Can't find it from any other vendors.


https://www.ebay.com/itm/Porsche-914-steeri...in/332917558050
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Feb 12 2020, 06:04 PM
Post #16


914-6 GT in waiting
***************

Group: Members
Posts: 19,647
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(FlacaProductions @ Feb 12 2020, 06:56 PM) *

Looks like you may need this as your horn wire tab is broken off.
You MAY be able to rig something in there but this would do the trick. Can't find it from any other vendors.


https://www.ebay.com/itm/Porsche-914-steeri...in/332917558050


Phillip - I can dig up one for free if you need it. Won't be until the weekend.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Feb 12 2020, 09:21 PM
Post #17


Dr. Phil
*****

Group: Members
Posts: 5,810
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
QUOTE(mepstein @ Feb 12 2020, 07:04 PM) *

QUOTE(FlacaProductions @ Feb 12 2020, 06:56 PM) *

Looks like you may need this as your horn wire tab is broken off.
You MAY be able to rig something in there but this would do the trick. Can't find it from any other vendors.


https://www.ebay.com/itm/Porsche-914-steeri...in/332917558050


Phillip - I can dig up one for free if you need it. Won't be until the weekend.

That would be great!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Feb 13 2020, 09:49 AM
Post #18


Dr. Phil
*****

Group: Members
Posts: 5,810
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
QUOTE(mepstein @ Feb 12 2020, 07:04 PM) *

QUOTE(FlacaProductions @ Feb 12 2020, 06:56 PM) *

Looks like you may need this as your horn wire tab is broken off.
You MAY be able to rig something in there but this would do the trick. Can't find it from any other vendors.


https://www.ebay.com/itm/Porsche-914-steeri...in/332917558050


Phillip - I can dig up one for free if you need it. Won't be until the weekend.

@mepstein
If you have both those in good shape let me know, b cause the smaller ring that has the spring part in it is not in good shape either. I did order the other 2 parts, the runner part and the cancel ring with wire that attaches to the back side of the wheel. I do have my eye on a batwing with both parts that are in good condition on eBay, if I get it for cheap, you can hold off. The ebay one has those 2 parts, in good shape, right now $15 and free shipping.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Feb 13 2020, 11:26 AM
Post #19


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,193
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
Mark Heard had found the little white plastic washers that are part of the assem. I was looking for the ones I bought after reading this thread. Isolate the ring from the metal body?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Feb 13 2020, 11:51 AM
Post #20


914-6 GT in waiting
***************

Group: Members
Posts: 19,647
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(rhodyguy @ Feb 13 2020, 12:26 PM) *

Mark Heard had found the little white plastic washers that are part of the assem. I was looking for the ones I bought after reading this thread. Isolate the ring from the metal body?

I have plenty of the fiber washers. I’ll throw some in with the metal disk.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
