> Jacking point damage?
Biggles
post Mar 25 2020, 10:00 AM
Post #1


Member
**

Group: Members
Posts: 165
Joined: 5-September 13
From: UK
Member No.: 16,353
Region Association: England



I've noticed that the front jacking points on my car aren't level, and wondered if they've gone up as the car has been lifted - thoughts? It all seems solid.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Mar 25 2020, 10:15 AM
Post #2


Resident German
*************************

Group: Admin
Posts: 39,611
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



They are crooked because those aren't jacking points!

There is noting solid on the other side, using them as jacking points means you are deforming your floorpan.
(IMG:style_emoticons/default/shades.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Biggles
post Mar 25 2020, 10:29 AM
Post #3


Member
**

Group: Members
Posts: 165
Joined: 5-September 13
From: UK
Member No.: 16,353
Region Association: England



QUOTE(SirAndy @ Mar 25 2020, 04:15 PM) *

They are crooked because those aren't jacking points!

There is noting solid on the other side, using them as jacking points means you are deforming your floorpan.
(IMG:style_emoticons/default/shades.gif)


Ok not good. Thanks. I had used a reference on the world referencing round 'donuts' that were safe to jack on - evidently not! What purpose do those areas serve ?

So where is good to Jack up the car?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Mar 25 2020, 10:37 AM
Post #4


914 Guru
*****

Group: Members
Posts: 6,533
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None



jack under the engine mounting bar, or the front cross member, these are to rest jack stands with pieces of plywood to cushion the jack stand from the donut


QUOTE(Biggles @ Mar 25 2020, 09:29 AM) *

QUOTE(SirAndy @ Mar 25 2020, 04:15 PM) *

They are crooked because those aren't jacking points!

There is noting solid on the other side, using them as jacking points means you are deforming your floorpan.
(IMG:style_emoticons/default/shades.gif)


Ok not good. Thanks. I had used a reference on the world referencing round 'donuts' that were safe to jack on - evidently not! What purpose do those areas serve ?

So where is good to Jack up the car?

User is online!Profile CardPM
Go to the top of the page
+Quote Post
bretth
post Mar 25 2020, 11:05 AM
Post #5


Senior Member
***

Group: Members
Posts: 731
Joined: 23-June 15
From: Central TX
Member No.: 18,882
Region Association: Southwest Region



I thought all four doughnuts were for jacking up/supporting the car. I always used a padded floor jack there and don't think i ever bent any except the rusty one under the hell hole on my car.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Biggles
post Mar 25 2020, 11:13 AM
Post #6


Member
**

Group: Members
Posts: 165
Joined: 5-September 13
From: UK
Member No.: 16,353
Region Association: England



Cheers George. No engine mounting bar. It's a 6. I've been jacking on the rear donuts or on the trailing arm pick up points at the rear - no good?


QUOTE(dr914@autoatlanta.com @ Mar 25 2020, 04:37 PM) *

jack under the engine mounting bar, or the front cross member, these are to rest jack stands with pieces of plywood to cushion the jack stand from the


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Mar 25 2020, 11:17 AM
Post #7


Resident German
*************************

Group: Admin
Posts: 39,611
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



The donuts were used to suspend the cars on the assembly line.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Biggles
post Mar 25 2020, 11:18 AM
Post #8


Member
**

Group: Members
Posts: 165
Joined: 5-September 13
From: UK
Member No.: 16,353
Region Association: England



QUOTE(SirAndy @ Mar 25 2020, 05:17 PM) *

The donuts were used to suspend the cars on the assembly line.

Attached Image


Wow. Thanks. Still learning.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Mar 25 2020, 11:19 AM
Post #9


Resident German
*************************

Group: Admin
Posts: 39,611
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



And if you check the location of the donuts in the front and look at that location from above you'll find that it is only supported by the thin sheetmetal of the floor pan.
In the rear, it's only supported by the thin sheetmetal of the triangle piece in that corner.

There is nothing structural backing up any of the donuts ...
(IMG:style_emoticons/default/shades.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wes
post Mar 25 2020, 11:58 AM
Post #10


wes
***

Group: Members
Posts: 1,397
Joined: 8-December 07
From: Ukiah Ca
Member No.: 8,436
Region Association: Northern California



I saved this year’s back from here.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kroelofsen
post Mar 25 2020, 02:12 PM
Post #11


Newbie
*

Group: Members
Posts: 39
Joined: 27-June 19
From: The Netherlands
Member No.: 23,255
Region Association: Europe



QUOTE(SirAndy @ Mar 25 2020, 06:19 PM) *

And if you check the location of the donuts in the front and look at that location from above you'll find that it is only supported by the thin sheetmetal of the floor pan.
In the rear, it's only supported by the thin sheetmetal of the triangle piece in that corner.

There is nothing structural backing up any of the donuts ...
(IMG:style_emoticons/default/shades.gif)


Hi SirAndy, I'm sorry to say I don't agree with you for the rear donuts... Few weeks ago took of the triangle plate + donut to check for any rust and to make it straight again. The donut itself is directly under the frame member and supports it fully, see picture.

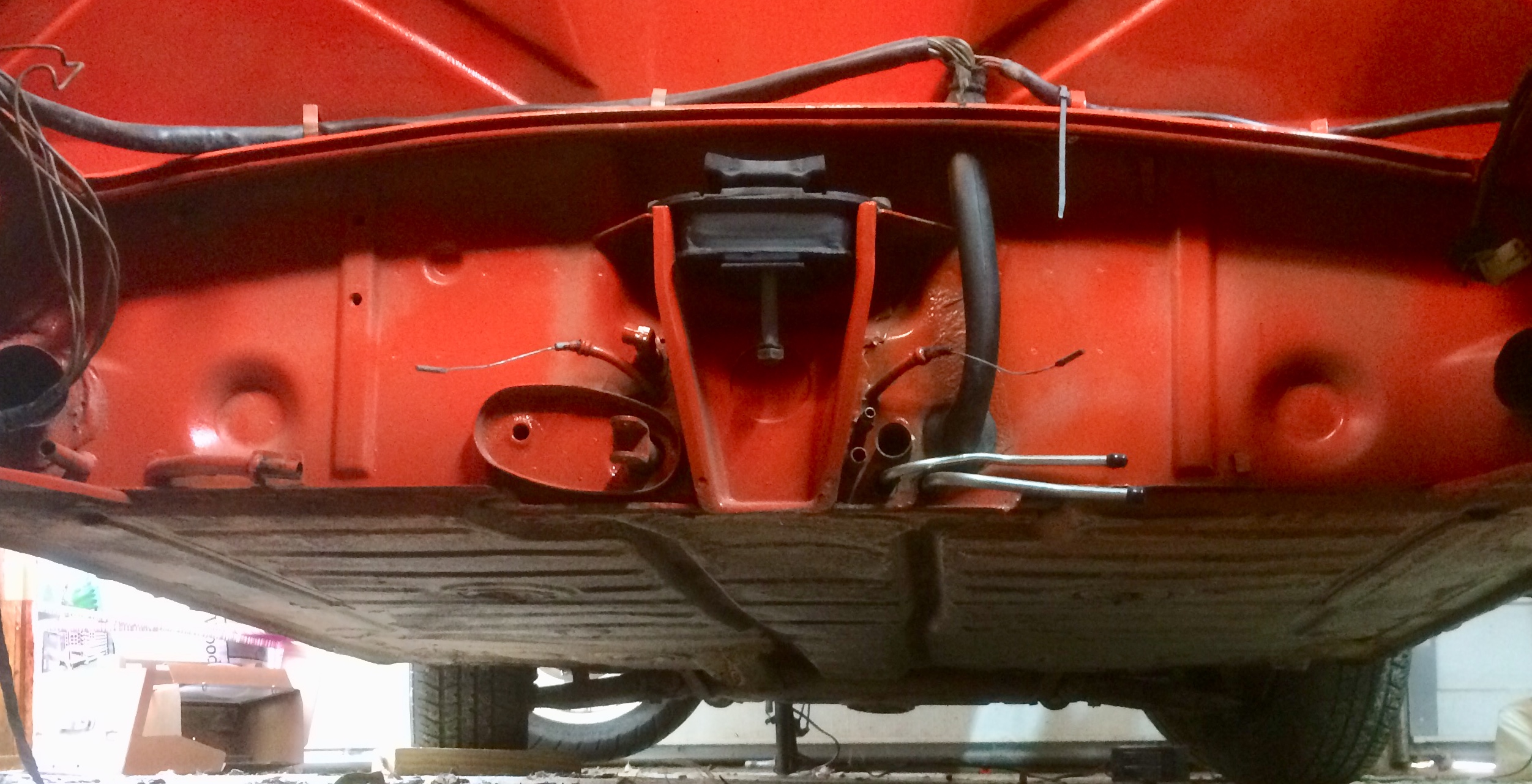

Attached Image

The front I don't know yet...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gandalf_025
post Mar 25 2020, 03:14 PM
Post #12


Senior Member
***

Group: Members
Posts: 1,144
Joined: 25-June 09
From: North Shore, Massachusetts
Member No.: 10,509
Region Association: North East States



You can see the point on the floor ,in front of
the engine mount where it has been dented in
from many years of being jacked up with a
floor jack with a piece of wood on it..

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Mar 25 2020, 04:34 PM
Post #13


Advanced Member
****

Group: Members
Posts: 3,160
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None



QUOTE(gandalf_025 @ Mar 25 2020, 05:14 PM) *

You can see the point on the floor ,in front of
the engine mount where it has been dented in
from many years of being jacked up with a
floor jack with a piece of wood on it..

Attached Image


(IMG:style_emoticons/default/agree.gif) Very common damage on 6s but hard to avoid as it is a very
solid point on the chassis and provides great height when jacked there.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ctc911ctc
post Mar 25 2020, 04:47 PM
Post #14


Senior Member
***

Group: Members
Posts: 523
Joined: 9-June 18
From: boston
Member No.: 22,206
Region Association: North East States



SirAndy! MORE OF THESE FACTORY PICTURES PLEASE!




QUOTE(SirAndy @ Mar 25 2020, 11:17 AM) *

The donuts were used to suspend the cars on the assembly line.

Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mbseto
post Mar 25 2020, 04:59 PM
Post #15


Senior Member
***

Group: Members
Posts: 1,085
Joined: 6-August 14
From: Cincy
Member No.: 17,743
Region Association: North East States



So aside from accuracy, there's no reason to replace these?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bretth
post Mar 25 2020, 06:13 PM
Post #16


Senior Member
***

Group: Members
Posts: 731
Joined: 23-June 15
From: Central TX
Member No.: 18,882
Region Association: Southwest Region



I think if it was designed to hang the whole car on, it will stand up fine to a properly placed floor jack. I don't think i would use the rear firewall area for a jack though.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
drem914
post Mar 25 2020, 06:49 PM
Post #17


Senior Member
***

Group: Members
Posts: 644
Joined: 16-May 08
From: Trabuco Canyon, CA
Member No.: 9,062
Region Association: Southern California



If those are not where we are suppose to jack the car up from, then how are we supposed to use a quick jack? I have one specifically so I don't have to use a single side lift jack to lift the car up. So much simpler to use than jack stands and a shop jack.

@cuddy_k ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SO.O.C914er
post Mar 25 2020, 07:25 PM
Post #18


Member
**

Group: Members
Posts: 494
Joined: 18-July 16
From: Mission Viejo Ca
Member No.: 20,199
Region Association: Southern California



I agree these are the jack points if they are not show something in writing from Porsche indicating the true jack points. I’ve used these since the 1980’s mine are not bent. I’m bent but they are not. (IMG:style_emoticons/default/av-943.gif) (IMG:style_emoticons/default/av-943.gif) (IMG:style_emoticons/default/lol-2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 25 2020, 08:29 PM
Post #19


Senior Member
***

Group: Members
Posts: 823
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains



QUOTE(SirAndy @ Mar 25 2020, 10:15 AM) *

They are crooked because those aren't jacking points!

There is noting solid on the other side, using them as jacking points means you are deforming your floorpan.
(IMG:style_emoticons/default/shades.gif)


There is on mine (with some custom backing plates inside the front floor).


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914e
post Mar 25 2020, 09:32 PM
Post #20


Member
**

Group: Members
Posts: 115
Joined: 21-February 20
From: Arizona
Member No.: 23,951
Region Association: Southwest Region



QUOTE(bkrantz @ Mar 25 2020, 07:29 PM) *

QUOTE(SirAndy @ Mar 25 2020, 10:15 AM) *

They are crooked because those aren't jacking points!

There is noting solid on the other side, using them as jacking points means you are deforming your floorpan.
(IMG:style_emoticons/default/shades.gif)


There is on mine (with some custom backing plates inside the front floor).



I thought about doing that as well. What gauge of sheet metal did you use?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
