Just buttoning up the appearance group gauges on my '73 and was not sure where these wires go.

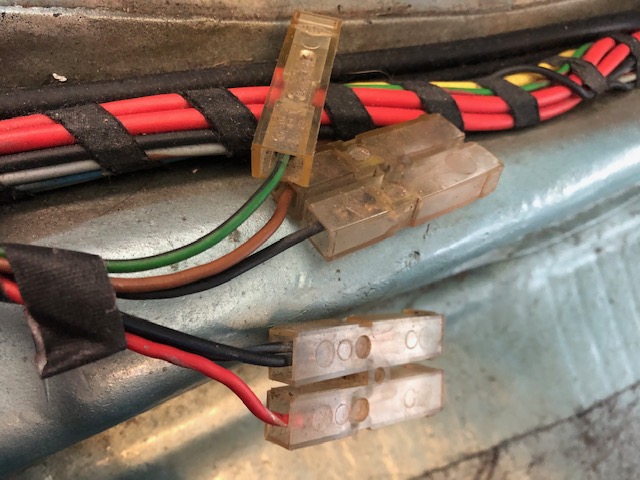

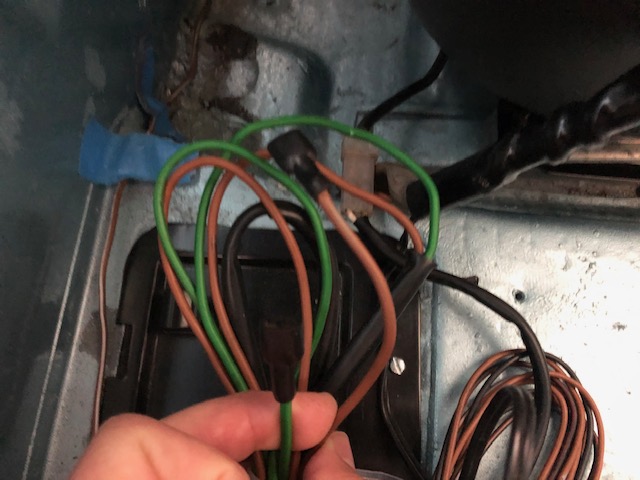

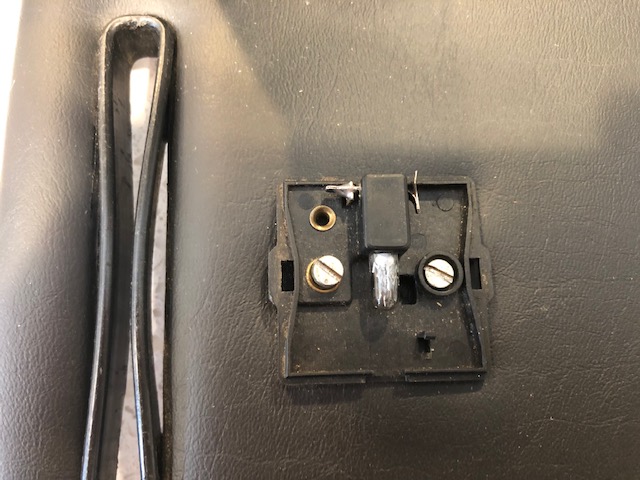

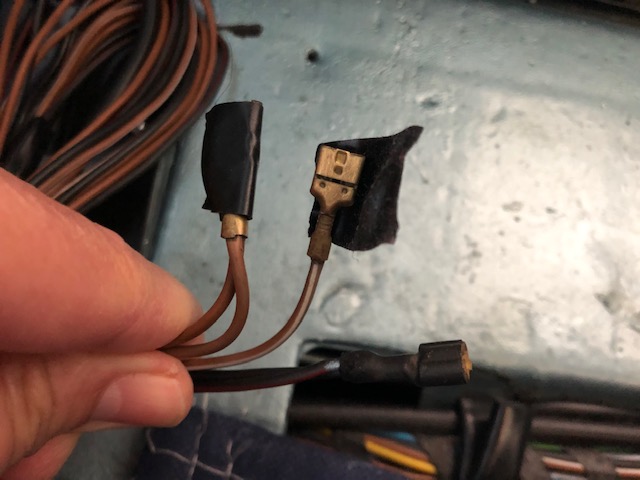

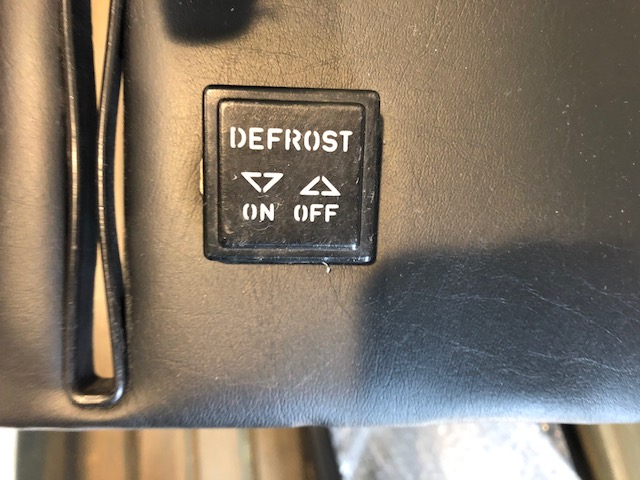

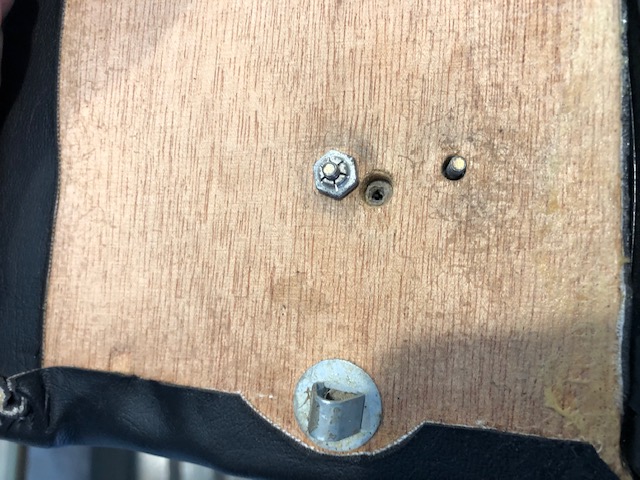

First up is the ground wire with round connector that splits off from where the harness attaches back into the connectors in the tunnel. Does this screw onto the underside of the shifter base under the defrost light?     Also where does the black and green wire attach to?  Everything else seems pretty clear as far as matching the correct color wire out of the harness to the appropriate connector in the tunnel.  The green and ground for the rear defrost glass are present as well as are the 3 wires for the backpad light, so should be good to go from here.   |
   |

|
| JeffBowlsby |
Apr 6 2020, 04:53 PM
Post
#2
|
|
914 Wiring Harnesses Group: Members Posts: 8,780 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|
|
 |
|
| 76-914 |
Apr 6 2020, 04:55 PM
Post
#3
|
|
Repeat Offender & Resident Subaru Antagonist Group: Members Posts: 13,647 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California
|
yes to 1st question. I'll look up the other. Oil pressure?
|
|
|
|
| JOEPROPER |
Apr 6 2020, 05:04 PM
Post
#4
|
|
The answer is "no" unless you ask... Group: Members Posts: 1,191 Joined: 21-November 15 From: White Plains New York Member No.: 19,387 Region Association: North East States
|
You beat me to these questions. I'll be doing the same in the coming days / weeks.
|
|
|
|
| 914_7T3 |
Apr 6 2020, 06:30 PM
Post
#5
|
|
Please forgive me, I'm new to all of this! Group: Members Posts: 1,872 Joined: 3-April 17 From: Los Angeles, CA Member No.: 20,991 Region Association: Southern California
|

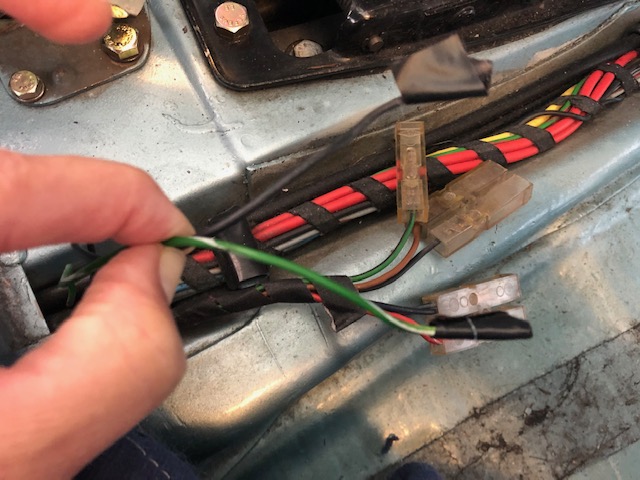

QUOTE(JeffBowlsby @ Apr 6 2020, 03:53 PM)  @JeffBowlsby Thanks for the diagram, should have checked there first. Any idea where the Green/White stripe wire with the broken tab goes? (IMG:style_emoticons/default/headbang.gif)  |
|
|
|
| bbrock |
Apr 6 2020, 07:37 PM
Post
#6
|
|
914 Guru Group: Members Posts: 5,269 Joined: 17-February 17 From: Montana Member No.: 20,845 Region Association: Rocky Mountains
|
Green/white plugs into the bottom of the heater lever.
|
|
|
|
| 914_7T3 |
Apr 6 2020, 08:28 PM
Post
#7
|
|
Please forgive me, I'm new to all of this! Group: Members Posts: 1,872 Joined: 3-April 17 From: Los Angeles, CA Member No.: 20,991 Region Association: Southern California
|
QUOTE(bbrock @ Apr 6 2020, 06:37 PM) Green/white plugs into the bottom of the heater lever. Thanks Brent, thats awesome! (IMG:style_emoticons/default/smilie_pokal.gif) I'll need to put on a new connector first. |
|
|
|
| JOEPROPER |
Apr 11 2020, 12:23 PM
Post
#8
|
|
The answer is "no" unless you ask... Group: Members Posts: 1,191 Joined: 21-November 15 From: White Plains New York Member No.: 19,387 Region Association: North East States
|
(IMG:style_emoticons/default/icon_bump.gif) Bumping this thread because it helped me today! (IMG:style_emoticons/default/smilie_pokal.gif)
|
|
|
|
| 914_7T3 |
Apr 12 2020, 12:18 PM
Post
#9
|
|
Please forgive me, I'm new to all of this! Group: Members Posts: 1,872 Joined: 3-April 17 From: Los Angeles, CA Member No.: 20,991 Region Association: Southern California
|
QUOTE(JOEPROPER @ Apr 11 2020, 11:23 AM) (IMG:style_emoticons/default/icon_bump.gif) Bumping this thread because it helped me today! (IMG:style_emoticons/default/smilie_pokal.gif) Glad all that worked out. Verified the heater control yesterday and there was already a wire connected having me question the correct location for the remaining green/white . Thought I would reach out to @bbrock just to make sure and came to that conclusion along with the Haynes manual that indeed the green/white wire goes there. Need to trace back where the existing wire on the control is actually going ............ At least the gauges are good to go! |
|
|
|
|
