> Valve geometry hell
malcolm2
post Jun 25 2020, 09:19 PM
Post #1


Advanced Member
****

Group: Members
Posts: 2,550
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States



Help me out here. Working on the subject and can’t figure it out.

9590 cam. 0.426 lift on the card. Adjustable pushrod tool.

I get to 0.426 lift. But the geometry between the swivel foot and the valve is wack. That is shortening the PR.

Stretch out the PR and i get 0.430 lift and almost straight valve to adjuster. The foot is too tight to the 1.7 rocker boss.

Bought some shims to lift the rocker stand and try that.

Question is: why am I so far off the card lift? Does it matter?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wndsrfr
post Jun 26 2020, 05:53 AM
Post #2


Senior Member
***

Group: Members
Posts: 1,243
Joined: 30-April 09
From: Rescue, Virginia
Member No.: 10,318
Region Association: MidAtlantic Region



QUOTE(malcolm2 @ Jun 25 2020, 07:19 PM) *

Help me out here. Working on the subject and can’t figure it out.

9590 cam. 0.426 lift on the card. Adjustable pushrod tool.

I get to 0.426 lift. But the geometry between the swivel foot and the valve is wack. That is shortening the PR.

Stretch out the PR and i get 0.430 lift and almost straight valve to adjuster. The foot is too tight to the 1.7 rocker boss.

Bought some shims to lift the rocker stand and try that.

Question is: why am I so far off the card lift? Does it matter?

Len Hoffman is the one to listen to....HAMInc.... shoot him a PM if he doesn't get here first
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Olympic 914
post Jun 26 2020, 06:03 AM
Post #3



***

Group: Members
Posts: 1,227
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States



When using the swivel foot on the 1.7 rocker arms you have to grind back the bottom of the rocker arm.

Some do it on a milling machine , but you can do it with a grinder. Just be sure to keep it level.

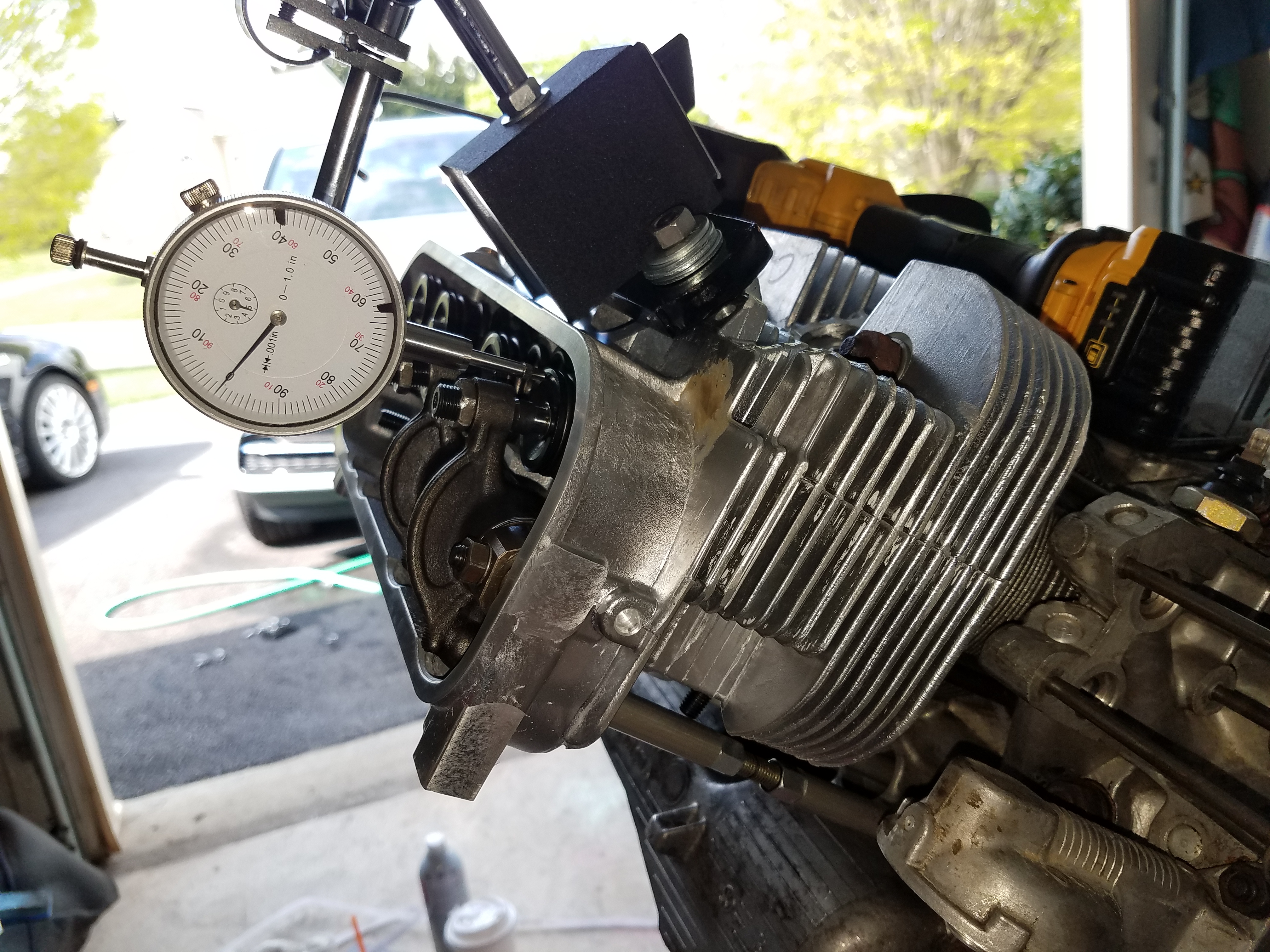

.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Jun 26 2020, 06:23 AM
Post #4


Advanced Member
****

Group: Members
Posts: 2,550
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States



I do plan on removing material. Is it about 0.060” that needs to come off?

It just seems odd to have a published lift that can’t be used.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nditiz1
post Jun 26 2020, 07:15 AM
Post #5


Senior Member
***

Group: Members
Posts: 508
Joined: 26-May 15
From: Mount Airy, Maryland
Member No.: 18,763
Region Association: MidAtlantic Region



I had my rockers milled, but I can't remember how much. I rebuilt this assuming a mild cam. I think I was right around your numbers. I remember needing to shorten the stock PR by a very small amount.

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914werke
post Jun 26 2020, 08:33 AM
Post #6


"I got blisters on me fingers"
*****

Group: Members
Posts: 5,712
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest



Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Jun 26 2020, 09:49 AM
Post #7


that's what I do!
***************

Group: Members
Posts: 18,885
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada



Don't worry about the lift vs the card.
Instead worry about getting the geometry correct.
I take more than .060 off and the countersink must clear the foot in all directions.
I don't use shims, at least not much shim.

I cut the swivel foot down and recut the slot, as the screws can/could hit the valve cover.
The cool trick for doing this is to put two 32T blades in your hacksaw, first cut the slot deeper, then grind off the excess thread.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Jun 26 2020, 09:49 AM
Post #8


Advanced Member
****

Group: Members
Posts: 2,550
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States



The counter sink is a nice touch. great picture. Tells the whole story. Not sure I can do that. Might have to take them somewhere.

I measured the boss (isn't that what the threaded part of the arm is called?). I got 0.492 on two, 0.502 on one and 0.496 on the last.

I figured to take the 0.060 from the 0.492 and get 0.432. Then shoot for that on all 4.

So at this point all my lift attempts with the adjustable push rod tool have yielded a lift with in +/- 5% of the card. So I should not worry about the final lift result?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Jun 26 2020, 09:55 AM
Post #9


Advanced Member
****

Group: Members
Posts: 2,550
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States



QUOTE(Mark Henry @ Jun 26 2020, 10:49 AM) *

Don't worry about the lift vs the card.
Instead worry about getting the geometry correct.
I take more than .060 off and the champher



Cool. That is the direction I was heading. Don't really have much choice otherwise.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Jun 26 2020, 11:03 AM
Post #10


that's what I do!
***************

Group: Members
Posts: 18,885
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada



QUOTE(malcolm2 @ Jun 26 2020, 11:55 AM) *

QUOTE(Mark Henry @ Jun 26 2020, 10:49 AM) *

Don't worry about the lift vs the card.
Instead worry about getting the geometry correct.
I take more than .060 off and the champher countersink



Cool. That is the direction I was heading. Don't really have much choice otherwise.


Take the .060 off the smallest rocker then match the rest.
After a generous countersink it won't look like much thread left, maybe less than a 1/4", but it's never been an issue.
To get very little shim you only have the screw about 1-1/2 turns in, that's why you need a generous countersink and thus you have a lot of thread sticking out the top.
If you need reassurance it's how Raby does them.

The geometry... well I see some of the threads and giggle at all the complication (IMG:style_emoticons/default/biggrin.gif)
At one half of measured lift the the adjuster screw should be in line with the valve stem. The rock (degrees) of the swivel foot from open to close should be equal. That's about all you need to know.

Just an FYI If you have well machined heads, like Len's, then all the valve stems are equal, if you start into needing different lengths of PR there's something wrong with the head machining and/or case deck.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Jun 26 2020, 11:35 AM
Post #11


Advanced Member
****

Group: Members
Posts: 2,550
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States



Thanks for the input. Heads are camper specials.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Jun 29 2020, 05:05 PM
Post #12


Advanced Member
****

Group: Members
Posts: 2,550
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States



I have removed about 0.060”. There is no way i am gonna be able to counter sink. I tried a shop today. He wanted nothing to do with it. He did try one, but just succeeded in heating up the rocker and was pissed that he may have ruined his tool. I have another to try tomorrow. But that guy succeeded in bending my 1.8 crank 7 years ago. Maybe one other shop to call in Nashville tomorrow.

So 8 rockers don’t weigh that much. Who has a shop i can send them too?

Thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wndsrfr
post Jun 29 2020, 09:19 PM
Post #13


Senior Member
***

Group: Members
Posts: 1,243
Joined: 30-April 09
From: Rescue, Virginia
Member No.: 10,318
Region Association: MidAtlantic Region



QUOTE(malcolm2 @ Jun 29 2020, 03:05 PM) *

I have removed about 0.060”. There is no way i am gonna be able to counter sink. I tried a shop today. He wanted nothing to do with it. He did try one, but just succeeded in heating up the rocker and was pissed that he may have ruined his tool. I have another to try tomorrow. But that guy succeeded in bending my 1.8 crank 7 years ago. Maybe one other shop to call in Nashville tomorrow.

So 8 rockers don’t weigh that much. Who has a shop i can send them too?

Thanks.

Send a PM to Len Hoffman HAMInc......
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Highland
post Jun 29 2020, 11:14 PM
Post #14


Member
**

Group: Members
Posts: 374
Joined: 8-August 11
From: San Diego, CA
Member No.: 13,418
Region Association: Southern California



I used this guy and he seemed to do a good job.

https://www.thesamba.com/vw/classifieds/det....php?id=2130116
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BeatNavy
post Jun 30 2020, 04:27 AM
Post #15


SirAndy found my badge!
****

Group: Members
Posts: 2,331
Joined: 26-February 14
From: Easton, MD
Member No.: 17,042
Region Association: MidAtlantic Region



QUOTE(Highland @ Jun 30 2020, 01:14 AM) *

I used this guy and he seemed to do a good job.

https://www.thesamba.com/vw/classifieds/det....php?id=2130116

I used him as well. He's responsive and reliable.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TheCabinetmaker
post Jun 30 2020, 04:48 AM
Post #16


I drive my car everyday
*****

Group: Members
Posts: 8,033
Joined: 8-May 03
From: Tulsa, Ok.
Member No.: 666



My 9550 Cam, .426 lift ended up at 436. Bonus!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
nditiz1
post Jun 30 2020, 06:44 AM
Post #17


Senior Member
***

Group: Members
Posts: 508
Joined: 26-May 15
From: Mount Airy, Maryland
Member No.: 18,763
Region Association: MidAtlantic Region



QUOTE(BeatNavy @ Jun 30 2020, 03:27 AM) *

QUOTE(Highland @ Jun 30 2020, 01:14 AM) *

I used this guy and he seemed to do a good job.

https://www.thesamba.com/vw/classifieds/det....php?id=2130116

I used him as well. He's responsive and reliable.

I also used him for my build.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Jun 30 2020, 07:53 AM
Post #18


Advanced Member
****

Group: Members
Posts: 2,550
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States



Len and i talked about other machine work. IIRC he does not do walk in stuff. Mostly his own head work. I was lucky on my 1911 build in 2012. HAM found a 2nd 1.8 head for me and rebuilt 2 for me. This time i went with new type 4 store camper specials. Built by HAM. I got better service working with LEN the 1st time vs TIV store.

As of right now I ended with IN 0.430 and EX 0.408 both yielded a good 1/2 lift angle. Just a smidge of swivel foot clearance with no counter sink.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Jul 4 2020, 06:24 PM
Post #19


Engine Surgeon
*****

Group: Member
Posts: 9,310
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States



With the 9590 you should dial in around a 27.1cm pushrod on the intake, to net .434” lift~

The exhaust side will usually never net more than .410” lift due to the rockers. Typically the pushrod on the exhaust side will run around 27.0Cm in length to net the most lift.

These are examples, but usually pretty close. There’s 11 variables that play into this, the biggest being flycut depth and cylinder shim figures.

I have taken up to .080” off of rockers, then lightened the 35 grams, with no issues. Those were for the 2563cc in my 356C, which has been together since 1999 and I haven’t broken a rocker yet..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
