> Are My Piston Up-Side-Down
SuperSquid
post Jun 29 2020, 06:54 PM
Post #1


Newbie
*

Group: Members
Posts: 24
Joined: 26-February 20
From: Louisville Kentucky
Member No.: 23,972
Region Association: South East States

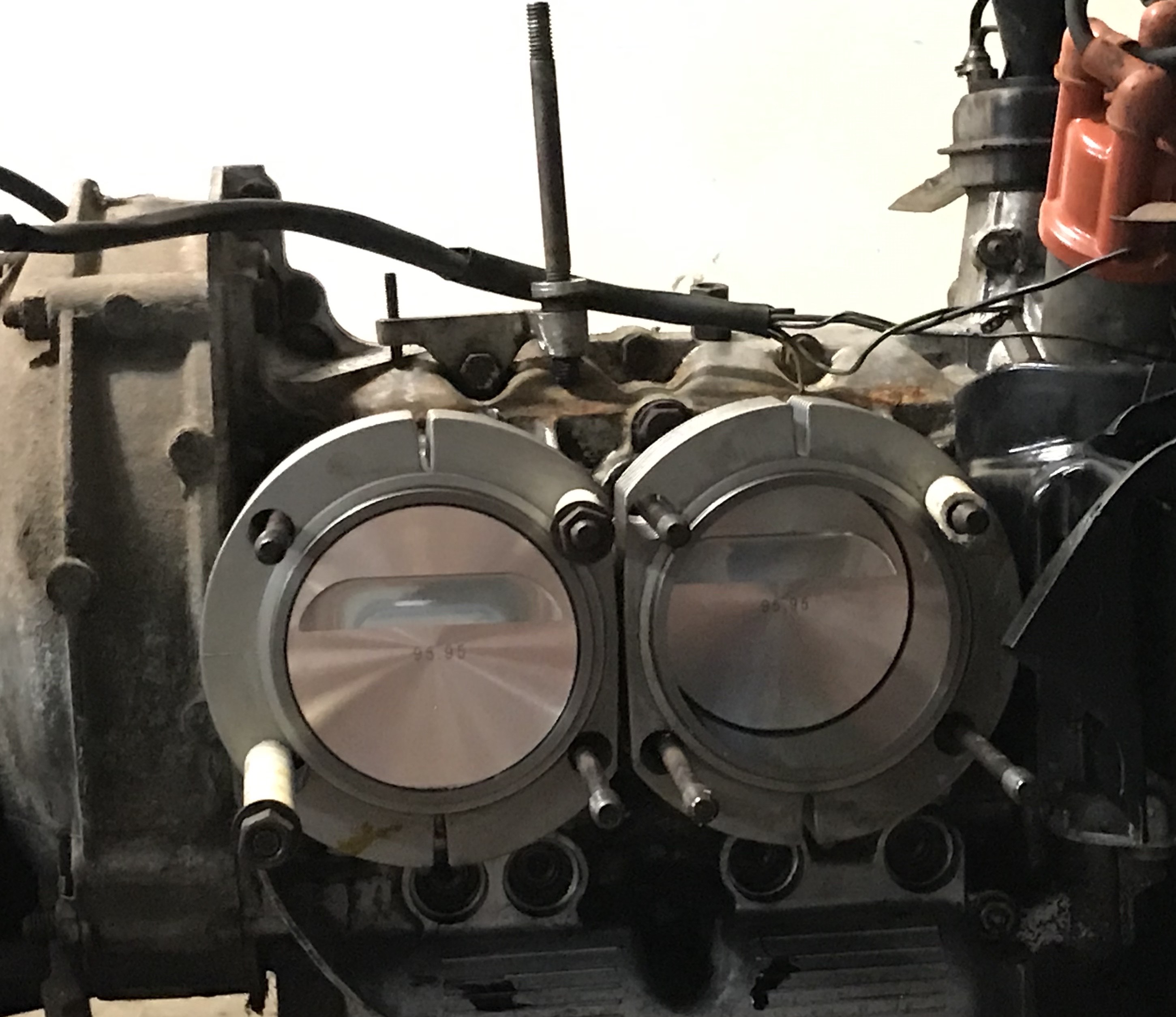

I installed my new AA piston in my type 2 bus engine yesterday and was wondering if it matters how the pistons are oriented in the cylinders? I guess I have a 50/50 shot of getting it right! Any thoughts? Thanks
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914e
post Jun 29 2020, 07:17 PM
Post #2


Member
**

Group: Members
Posts: 183
Joined: 21-February 20
From: Arizona
Member No.: 23,951
Region Association: Southwest Region



Since the pistons are clearanced for the valves, if you have it upside down the valves will hit the pistons. It has been over 30 years since I built an engine, but I'm pretty sure the valves are at the top of the head.
I will let others confirm.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
roblav1
post Jun 29 2020, 08:00 PM
Post #3


Member
**

Group: Members
Posts: 290
Joined: 18-September 12
From: VA
Member No.: 14,943
Region Association: MidAtlantic Region



Since the intake valves are bigger and have more lift and duration, I'll swag and say they're correctly oriented. But someone with more expertise than I would know.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post Jun 29 2020, 09:25 PM
Post #4


Senior Member
***

Group: Members
Posts: 697
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California



Sorry to break the news but your pistons are upside down (IMG:style_emoticons/default/sad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post Jun 30 2020, 06:55 AM
Post #5


914 Historian
****

Group: Benefactors
Posts: 4,644
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada



I don't quite understand. I have 3 different types of 2.0 pistons. The deep dish bus, the shallow dish North American, and the no dish European piston. None have valve clearance reliefs. My pistons also have arrows that point to the flywheel.
If my flat top pistons do not require valve pockets, then that would suggest those pistons do not have valve pockets either, just a relief to lower compression. This does not mean that you do not have them upside down.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
barefoot
post Jun 30 2020, 07:58 AM
Post #6


Senior Member
***

Group: Members
Posts: 845
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States



QUOTE(Montreal914 @ Jun 29 2020, 11:25 PM) *

Sorry to break the news but your pistons are upside down (IMG:style_emoticons/default/sad.gif)


Yes, the valves angle upwards, so you're upside down. These are aftermarket pistons intended for cams with more than stock lift. Both intake & exhaust are side by side, not hemi like as in Porsche 6 cylinder heads
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SuperSquid
post Jun 30 2020, 08:51 AM
Post #7


Newbie
*

Group: Members
Posts: 24
Joined: 26-February 20
From: Louisville Kentucky
Member No.: 23,972
Region Association: South East States



Thank you everyone for the great advice. The top of the pistons is flat with a concaved grove so I do not think the valves can hit anything. I think I am going to flip them just to be safe.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jun 30 2020, 10:18 AM
Post #8


Resident German
*************************

Group: Admin
Posts: 39,811
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



QUOTE(SuperSquid @ Jun 30 2020, 07:51 AM) *

Thank you everyone for the great advice. The top of the pistons is flat with a concaved grove so I do not think the valves can hit anything. I think I am going to flip them just to be safe.

Hold the head right next to it and look at the angle of the valves in the head and which way they will move when mounted.

You'll know exactly where the relieve needs to go ...
(IMG:style_emoticons/default/shades.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Carbon-14
post Jul 1 2020, 12:28 AM
Post #9


Member
**

Group: Members
Posts: 182
Joined: 7-May 20
From: Toronto, Ontario, Canada
Member No.: 24,238
Region Association: Canada



Better be sure the rings are gapped to the correct dimension, yes, you did have them upside down. Check the cold clearances of the piston to cylinder wall, to make sure it won't seize when running. Measure piston's height to cylinder head clearance, important to avoid big bangs for bucks. Buy new rod bolts and torque to spec, you did measure clearance's of new bearings. Everthing is spotless clean, right ?
Easy to do things wrong, without instruction or experience.
All the info is right here.
https://sites.google.com/site/stpsgarage/Te...ndersforinstall
https://jalopnik.com/heres-what-happened-in...kswa-1819961495
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Jul 1 2020, 07:33 AM
Post #10


that's what I do!
***************

Group: Members
Posts: 18,888
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada



Upside down (IMG:style_emoticons/default/smile.gif)

So is my pic (IMG:style_emoticons/default/laugh.gif)

(IMG:http://www.914world.com/bbs2/uploads/post-26-1403278590.jpg)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914e
post Jul 1 2020, 07:42 AM
Post #11


Member
**

Group: Members
Posts: 183
Joined: 21-February 20
From: Arizona
Member No.: 23,951
Region Association: Southwest Region



I'm guessing valve clearance is still checked with modeling clay. Generally when pistons are relieved for valve clearance there is a higher chance of contact do to higher compression and/ or higher cam lift. I would assemble it and check the clearances.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Jul 1 2020, 08:00 AM
Post #12


that's what I do!
***************

Group: Members
Posts: 18,888
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada



It's for a low CR bus with camper special heads, as long as you're not running a wild cam you only have to worry about the deck height and the CR calculation.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
