 After market oil tank install, haven't seen this before ? |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| sixnotfour |
 Sep 1 2020, 09:01 AM
Post
#1
|
|
914 Wizard  Group: Members Posts: 10,695 Joined: 12-September 04 From: Life Elevated..planet UT. Member No.: 2,744 Region Association: Rocky Mountains
 |

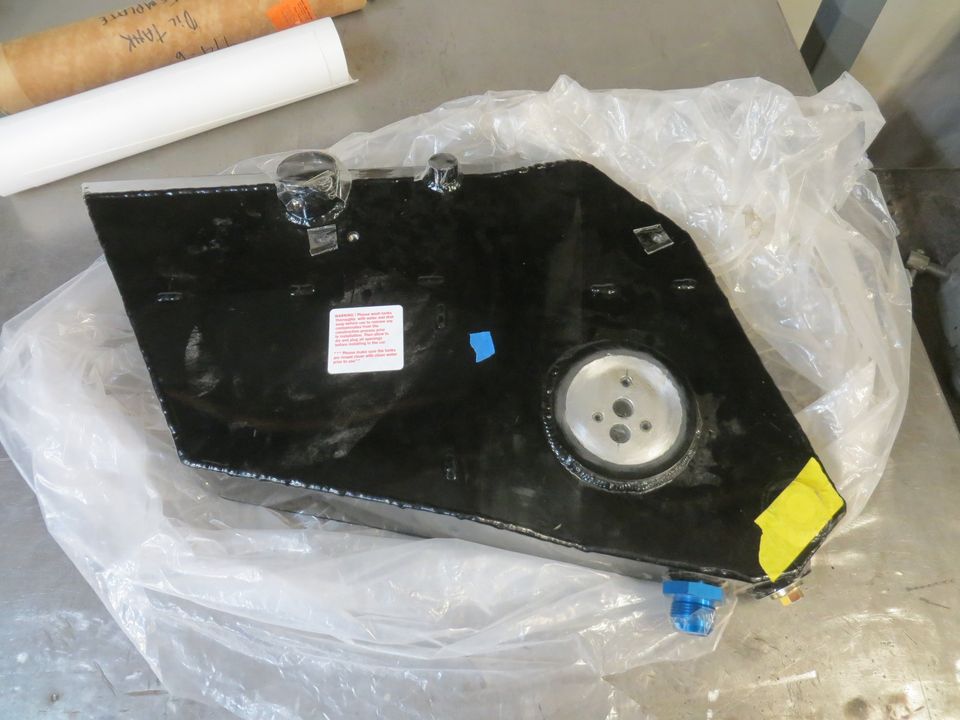

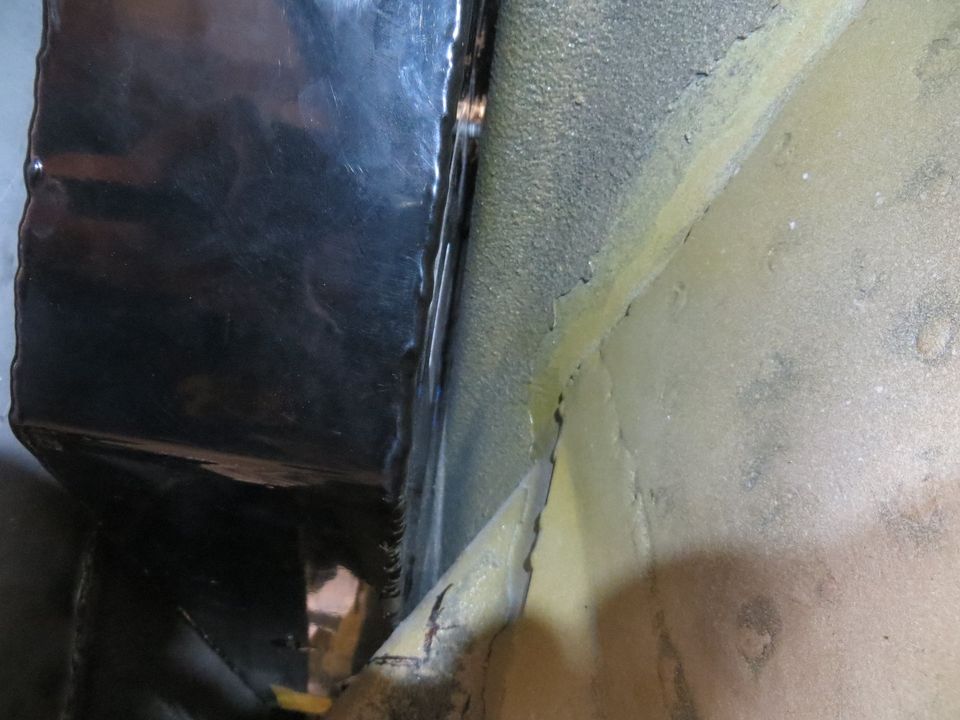

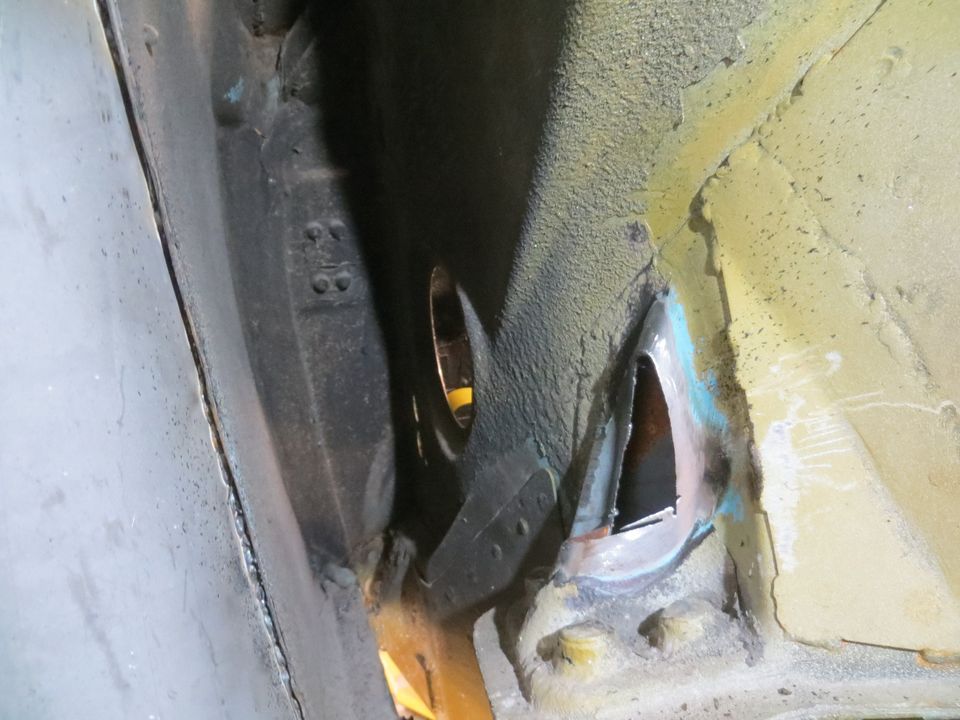

I saw this on FB, a shop installing an oil tank..did this cut..
Is it really necessary ? Attached image(s)
|
   |

|
| 914werke |
Sep 1 2020, 09:03 AM
Post
#2
|
|
"I got blisters on me fingers" Group: Members Posts: 11,036 Joined: 22-March 03 From: USofA Member No.: 453 Region Association: Pacific Northwest
|
Looks like a some reinforcement was added to the rear as well. Did it mention whos tank was to be used?
|
 |
|
| sixnotfour |
Sep 1 2020, 09:10 AM
Post
#3
|
|
914 Wizard Group: Members Posts: 10,695 Joined: 12-September 04 From: Life Elevated..planet UT. Member No.: 2,744 Region Association: Rocky Mountains
|
???
Attached image(s)
|
|
|
|
| mepstein |
Sep 1 2020, 09:32 AM
Post
#4
|
|
914-6 GT in waiting Group: Members Posts: 19,670 Joined: 19-September 09 From: Landenberg, PA/Wilmington, DE Member No.: 10,825 Region Association: MidAtlantic Region
|
If that is Ben’s / MB911 tank, no extra cutting is needed. I have the first one he made for sale and a version 3 that was made a couple months ago. Both tanks fit in my 70, 71 & 74. I have heard the door support in later cars can interfere with the tank but it doesn’t on mine. Remember the early cars had the same chassis as a six but mid year and later had changes that no longer needed to fit a six at the factory. Still, I’ve never seen the need to cut into what looks like the suspension console.
|
|
|
|
| ClayPerrine |
Sep 1 2020, 09:50 AM
Post
#5
|
|
Life's been good to me so far..... Group: Admin Posts: 15,958 Joined: 11-September 03 From: Hurst, TX. Member No.: 1,143 Region Association: NineFourteenerVille
|
That looks like the same stiffening kit I have on my big six. It is from Brad Mauyer.
The longitudinal stiffing kit from Brad Mauyer has a tab that will interfere with the installation of a stock oil tank. It interferes with the oil line coming out of the tank. I had to notch the re-enforcement to get it to clear the line in my car. It may be worse with an aftermarket tank. I have only tried the stock tank. Clay |
|
|
|
| Mark Henry |
Sep 1 2020, 07:18 PM
Post
#6
|
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
Is that cut to clear the oil hose or to get the in tank past it?
I know for sure it's not a DWD tank just looking at the welds, (I have a DWD tank) and I'm pretty sure Ben's tanks fit better than that. The DWD tank is a bit bigger than a stock tank but everything is spot on in the stock location, it was tight but went in without issue. My guess is it's a Patrick tank as I heard they were a bit rough, at least the early ones, but I admit that's 3rd-4th hand info. |
|
|
|
|
