> Aluminum Dial Trim Rings for Gauges
rothaus
post Sep 30 2020, 10:49 AM
Post #1


Member
**

Group: Members
Posts: 119
Joined: 20-November 10
From: Virginia
Member No.: 12,404
Region Association: None

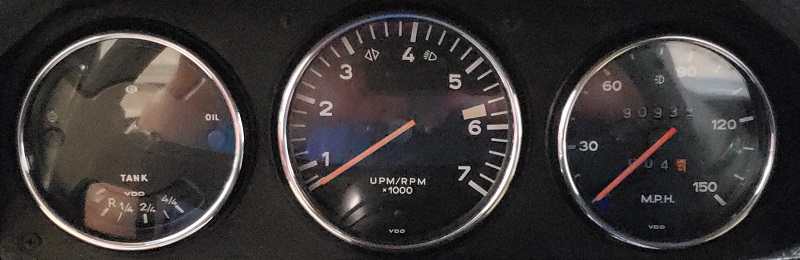

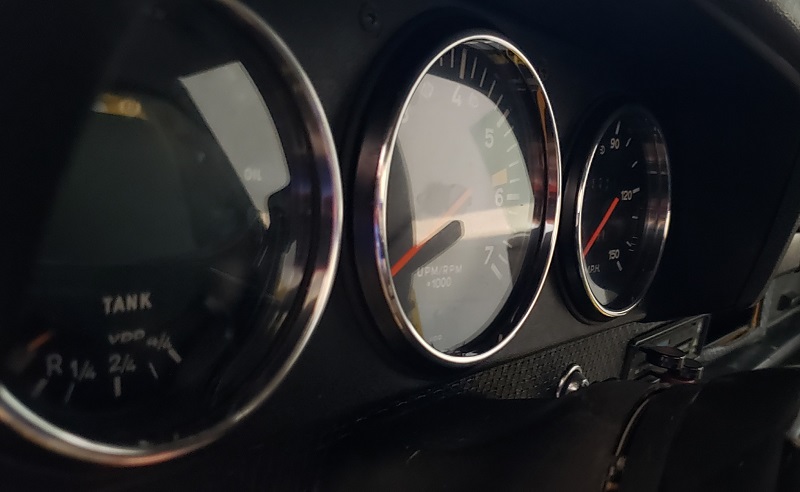

Now in stock, Dial rings for 914 Gauges.

carmagic.us

(IMG:http://www.914world.com/bbs2/uploads_offsite/carmagic.us-12404-1601484559.1.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/carmagic.us-12404-1601484559.2.jpg)

Available for early style gauges
(IMG:http://www.914world.com/bbs2/uploads_offsite/carmagic.us-12404-1601484559.3.jpg)

Late style gauges
(IMG:http://www.914world.com/bbs2/uploads_offsite/carmagic.us-12404-1601484560.4.jpg)

Thanks
Engelbert
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Nov 2 2020, 10:35 AM
Post #2


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,946
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
How do these install? stickum?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rothaus
post Nov 2 2020, 11:31 AM
Post #3


Member
**

Group: Members
Posts: 119
Joined: 20-November 10
From: Virginia
Member No.: 12,404
Region Association: None
QUOTE(914werke @ Nov 2 2020, 11:35 AM) *

How do these install? stickum?


The rings for the 3 main gauges holding mechanically, and can be removed if needed. The 3 small rings for the center console will need some silicon glue, which included with the center console ring set.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Nov 2 2020, 01:05 PM
Post #4


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,946
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
QUOTE(rothaus @ Nov 2 2020, 09:31 AM) *
The rings for the 3 main gauges holding mechanically, and can be removed if needed.


Can you elaborate? (IMG:style_emoticons/default/biggrin.gif) Do I pry off & replace or do they snap over my existing OE rings?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rothaus
post Nov 3 2020, 07:10 AM
Post #5


Member
**

Group: Members
Posts: 119
Joined: 20-November 10
From: Virginia
Member No.: 12,404
Region Association: None
QUOTE(914werke @ Nov 2 2020, 02:05 PM) *

QUOTE(rothaus @ Nov 2 2020, 09:31 AM) *
The rings for the 3 main gauges holding mechanically, and can be removed if needed.


Can you elaborate? (IMG:style_emoticons/default/biggrin.gif) Do I pry off & replace or do they snap over my existing OE rings?


Here from the instructions:

After removing the new rings from the package, try each ring on the gauge rings for fitment.

At this point they will be loose. Remove the rings and go to next step.

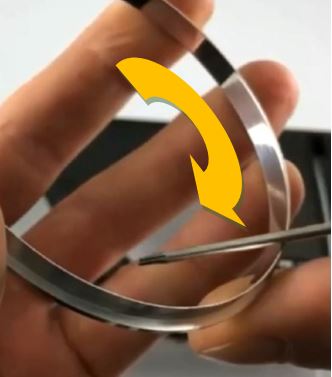

Next: Use a small screw driver to roll the edge of the trim ring slightly so a hook will be created. Do this for all the way around the edge. See picture.


Attached Image

Be careful and just do it very light and test fit. If it’s still lose and will not click in, repeat it until the ring clicks in and sits firm.

Thanks
Engelbert
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Nov 3 2020, 09:44 AM
Post #6


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,946
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
(IMG:style_emoticons/default/blink.gif) Ok perhaps its me but that is clear as MUD.
Lets try again, Do you remove the OE rings & replace them with these, or do these new rings install over the OE bezels (black painted rings that hold in the glass/plastic) ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rothaus
post Nov 3 2020, 12:08 PM
Post #7


Member
**

Group: Members
Posts: 119
Joined: 20-November 10
From: Virginia
Member No.: 12,404
Region Association: None
QUOTE(914werke @ Nov 3 2020, 10:44 AM) *

(IMG:style_emoticons/default/blink.gif) Ok perhaps its me but that is clear as MUD.
Lets try again, Do you remove the OE rings & replace them with these, or do these new rings install over the OE bezels (black painted rings that hold in the glass/plastic) ?


The trim rings install over the existing dial rings. Nothing has to be removed. The trim rings only cover the face and the inside of the existing dial ring.

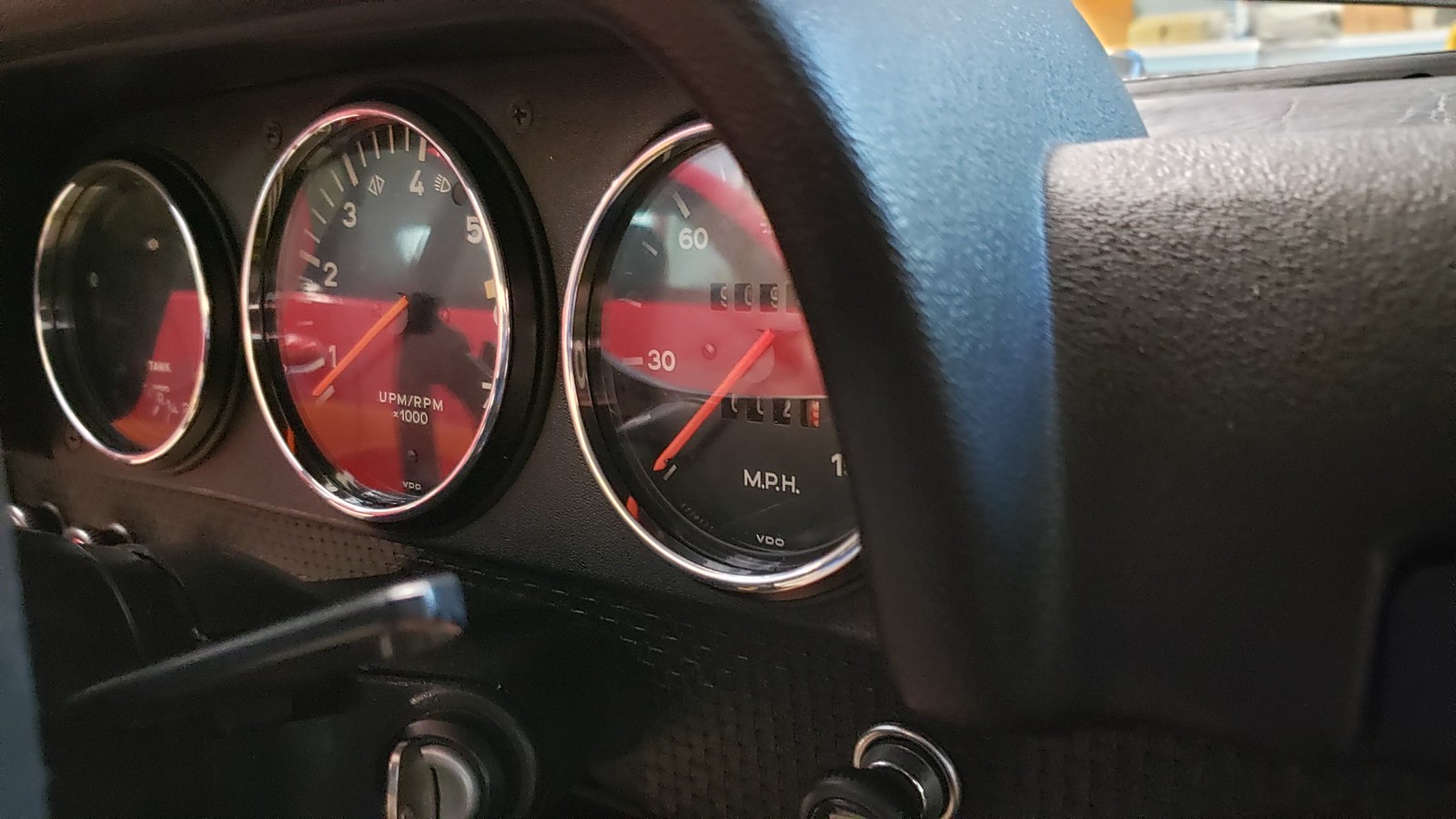

Here is a picture of another angle. You should see that the outside of the ring is still black, which is the existing ring.

(IMG:http://www.914world.com/bbs2/uploads_offsite/live.staticflickr.com-12404-1604426889.1.jpg)


Hope this helps.

Thanks
Engelbert
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Nov 3 2020, 12:28 PM
Post #8


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,946
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
(IMG:style_emoticons/default/first.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Dec 8 2020, 04:56 PM
Post #9


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,946
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Ok Im back... I have a set of these and find they are REALLY to deep for the Gauges on a 1975 MY?
I compared them to some other gauges I have, & see that they ARE the correct depth for what appears to be earlier gauges.
I had never paid any attention to this detail but apparently 75/76 gauges are different?
Regardless are there a shorter version of these available for these later gauges?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Dec 8 2020, 04:58 PM
Post #10


914-6 GT in waiting
***************

Group: Members
Posts: 19,600
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
These would be great with a set of green faces.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Dec 8 2020, 05:00 PM
Post #11


914-6 GT in waiting
***************

Group: Members
Posts: 19,600
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(914werke @ Dec 8 2020, 05:56 PM) *

Ok Im back... I have a set of these and find they are REALLY to deep for the Gauges on a 1975 MY?
I compared them to some other gauges I have, & see that they ARE the correct depth for what appears to be earlier gauges.
I had never paid any attention to this detail but apparently 75/76 gauges are different?
Regardless are there a shorter version of these available for these later gauges?

He sells 2 sizes.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Dec 8 2020, 05:11 PM
Post #12


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,946
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
QUOTE(mepstein @ Dec 8 2020, 03:00 PM) *

QUOTE(914werke @ Dec 8 2020, 05:56 PM) *

Ok Im back... I have a set of these and find they are REALLY to deep for the Gauges on a 1975 MY?
I compared them to some other gauges I have, & see that they ARE the correct depth for what appears to be earlier gauges.
I had never paid any attention to this detail but apparently 75/76 gauges are different?
Regardless are there a shorter version of these available for these later gauges?

He sells 2 sizes.

(IMG:style_emoticons/default/headbang.gif) Of course does. (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rothaus
post Dec 11 2020, 07:57 AM
Post #13


Member
**

Group: Members
Posts: 119
Joined: 20-November 10
From: Virginia
Member No.: 12,404
Region Association: None
Here again the difference between early and late style main gauges.

This should help to idetify which type of gauges you have in your 914.

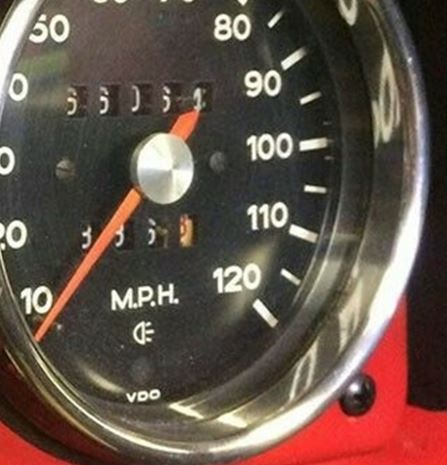

The early style have a much deeper ring, just like the 911 gauges. Also they have most likely the silver dot on the needle, as shown in the picture below.

(IMG:http://www.914world.com/bbs2/uploads_offsite/carmagic.us-12404-1601484559.3.jpg)

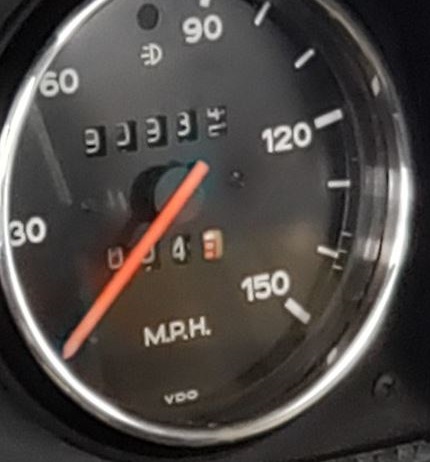

The 914 Late style gauges are not as deep. They do not have the silve dot on the needle.

(IMG:http://www.914world.com/bbs2/uploads_offsite/carmagic.us-12404-1601484560.4.jpg)

Thanks
Engelbert
