> 1.7L intake manifold hoses, -links/suggestions?
MM1
post Nov 30 2020, 03:05 PM
Post #1


At first I gazed - then I slipped into 914 obsession . . .
**

Group: Members
Posts: 291
Joined: 9-May 18
From: Thousand Oaks, CA
Member No.: 22,105
Region Association: Southern California



I can't seem to find 1.7L intake manifold hoses - when I check fitment for my 1973 1.7L the suppliers give me the red light.

Any links/suggestions?

I read an old Pelican posting where Dave said that people had resorted to using clamps on the old hoses (despite potential expansion issues).
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BillC
post Nov 30 2020, 05:07 PM
Post #2


Member
**

Group: Members
Posts: 460
Joined: 24-April 15
From: Silver Spring, MD
Member No.: 18,667
Region Association: MidAtlantic Region



QUOTE(MM1 @ Nov 30 2020, 04:05 PM) *

I can't seem to find 1.7L intake manifold hoses - when I check fitment for my 1973 1.7L the suppliers give me the red light.

Any links/suggestions?

I read an old Pelican posting where Dave said that people had resorted to using clamps on the old hoses (despite potential expansion issues).

Nobody makes the 1.7L intake hoses any more. You can use the 2.0 hoses, but you'll need to add hose clamps on both ends of each hose. That's what I had to do on my previous car (a 1.7), and I never had any problems with the hoses or the clamps.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MM1
post Nov 30 2020, 05:17 PM
Post #3


At first I gazed - then I slipped into 914 obsession . . .
**

Group: Members
Posts: 291
Joined: 9-May 18
From: Thousand Oaks, CA
Member No.: 22,105
Region Association: Southern California



QUOTE(BillC @ Nov 30 2020, 06:07 PM) *

QUOTE(MM1 @ Nov 30 2020, 04:05 PM) *

I can't seem to find 1.7L intake manifold hoses - when I check fitment for my 1973 1.7L the suppliers give me the red light.

Any links/suggestions?

I read an old Pelican posting where Dave said that people had resorted to using clamps on the old hoses (despite potential expansion issues).

Nobody makes the 1.7L intake hoses any more. You can use the 2.0 hoses, but you'll need to add hose clamps on both ends of each hose. That's what I had to do on my previous car (a 1.7), and I never had any problems with the hoses or the clamps.



Thanks, Bill. Is that because the 1.8/2.0 hoses (and runners) are a larger diameter?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Nov 30 2020, 06:10 PM
Post #4


Howdy
****

Group: Members
Posts: 2,044
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956
Region Association: South East States



I bought of a foot of this and used it.

https://www.mcmaster.com/5285K137/

At first I sourced a generic braided hose that mimics the factory boots but it was steel reinforced and quite stiff so I didn’t bother using it. I believe I still have it if you want to give it a try.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MM1
post Nov 30 2020, 06:33 PM
Post #5


At first I gazed - then I slipped into 914 obsession . . .
**

Group: Members
Posts: 291
Joined: 9-May 18
From: Thousand Oaks, CA
Member No.: 22,105
Region Association: Southern California



Thank you, Doug.

Did you have to use clamps? Does it seal well?


User is offlineProfile CardPM
Go to the top of the page
+Quote Post
yellowporky
post Nov 30 2020, 09:58 PM
Post #6


Member
**

Group: Members
Posts: 339
Joined: 18-October 09
From: Martinez, Ca.
Member No.: 10,948
Region Association: Northern California



I bought a set of 1.7 hoses from Parts Heaven before they closed and i still used clamps on them. The 1.7 and 1.8 runners are the same as far as i understand.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris914n6
post Nov 30 2020, 10:05 PM
Post #7


Jackstands are my life.
****

Group: Members
Posts: 2,620
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region



A car I'm working on has them in silicone. Likely find similar on ebay/china with the right ID or a VW site.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Nov 30 2020, 11:41 PM
Post #8


The rubber man
**********

Group: Members
Posts: 10,763
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None

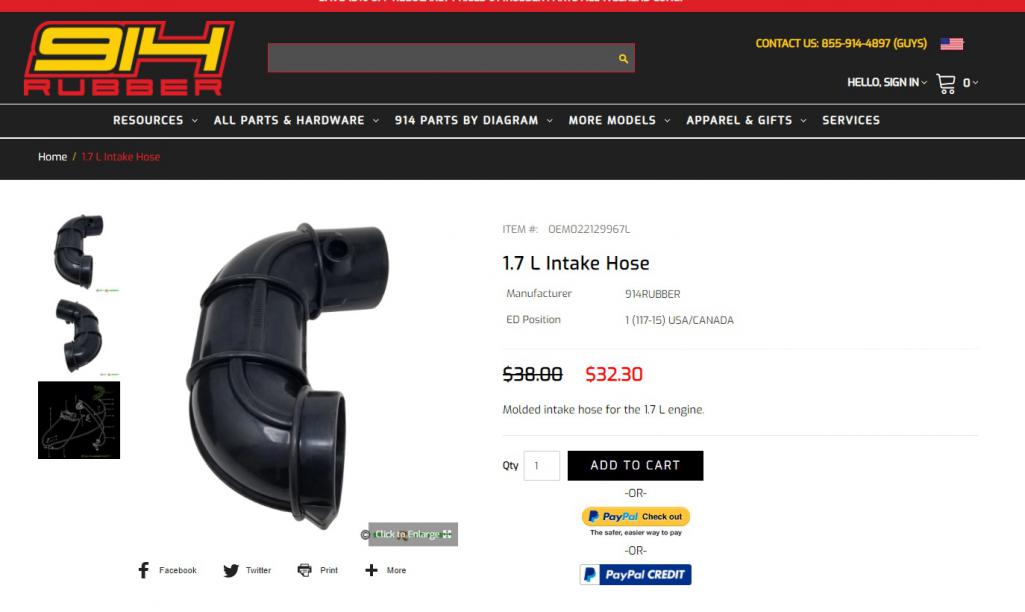

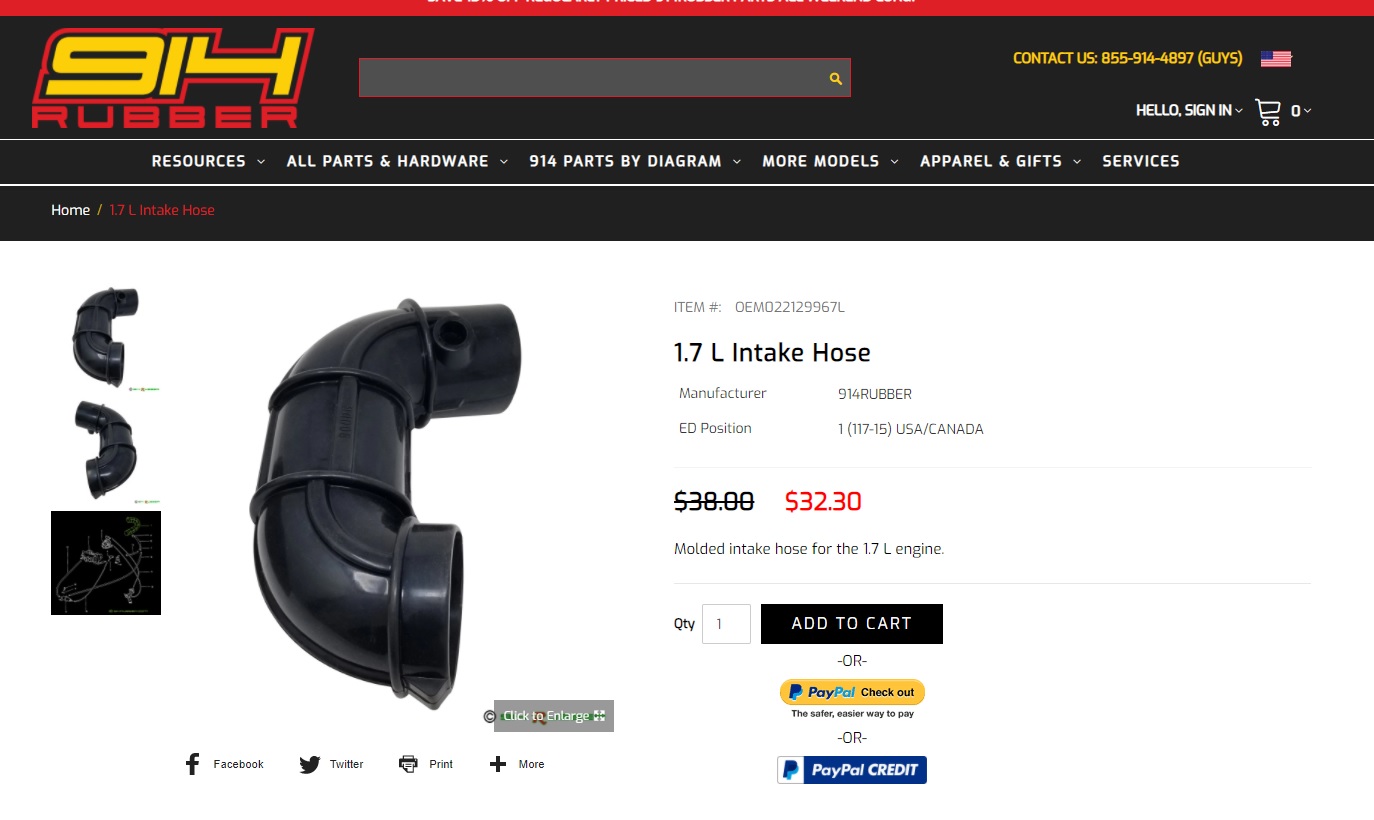

Do you mean this hose????
I have it, we make them, and also have complete vacuum hose kit and more
https://914rubber.com/17-l-intake-hose-1


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
yellowporky
post Dec 1 2020, 01:43 AM
Post #9


Member
**

Group: Members
Posts: 339
Joined: 18-October 09
From: Martinez, Ca.
Member No.: 10,948
Region Association: Northern California



I think that he is talking about the 4 short braided hoses from the plenum to the intake runners
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JamesM
post Dec 1 2020, 01:53 AM
Post #10


Senior Member
***

Group: Members
Posts: 1,274
Joined: 6-April 06
From: Kearns, UT
Member No.: 5,834
Region Association: Intermountain Region



QUOTE(yellowporky @ Nov 30 2020, 08:58 PM) *

I bought a set of 1.7 hoses from Parts Heaven before they closed and i still used clamps on them. The 1.7 and 1.8 runners are the same as far as i understand.



1.8 and 2.0 are the same diameter. 1.7 are slightly smaller.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MM1
post Dec 1 2020, 01:58 AM
Post #11


At first I gazed - then I slipped into 914 obsession . . .
**

Group: Members
Posts: 291
Joined: 9-May 18
From: Thousand Oaks, CA
Member No.: 22,105
Region Association: Southern California

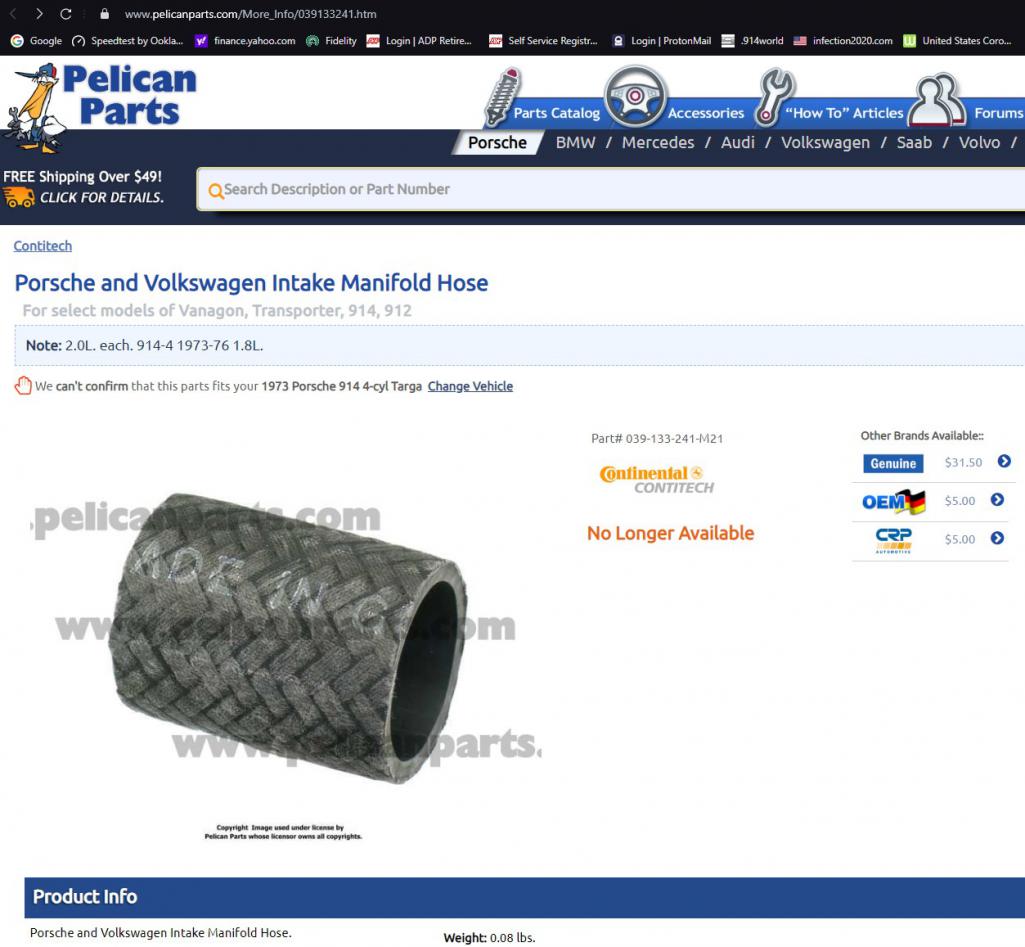

I meant these:

Attached Image

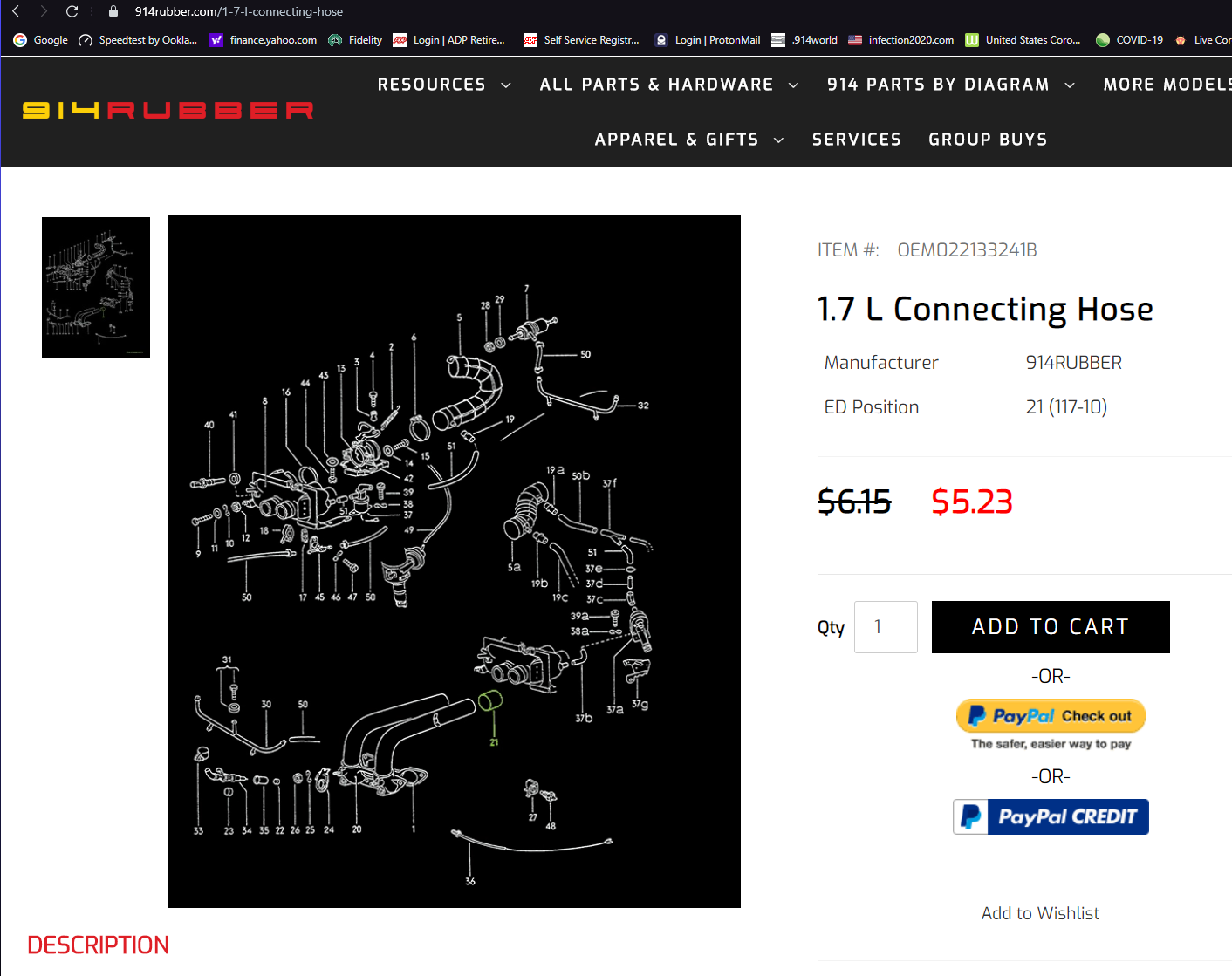

Mark - I just found them on your website and ordered them:

Attached Image

But I can't find the complete vacuum hose kit - I bought a bunch of items from you this weekend, but couldn't find these . . .can you please add it to my items? Just pm me or call - whatever's easiest.

Thank you,

Marcus

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Dec 1 2020, 02:09 AM
Post #12


The rubber man
**********

Group: Members
Posts: 10,763
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None



I just finished the "kit" for my 72 that also includes the hoses in the front for expansion tank and side in the rockers. Do you need a complete kit or only from the plastic hoses in? Drop me a PM with your number I'll get you hooked up. (It's not even listed yet).
Mark
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MM1
post Dec 1 2020, 02:33 AM
Post #13


At first I gazed - then I slipped into 914 obsession . . .
**

Group: Members
Posts: 291
Joined: 9-May 18
From: Thousand Oaks, CA
Member No.: 22,105
Region Association: Southern California



QUOTE(Mikey914 @ Dec 1 2020, 03:09 AM) *

I just finished the "kit" for my 72 that also includes the hoses in the front for expansion tank and side in the rockers. Do you need a complete kit or only from the plastic hoses in? Drop me a PM with your number I'll get you hooked up. (It's not even listed yet).
Mark



Thanks, Mark! - pm sent.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Dec 3 2020, 10:39 AM
Post #14


Advanced Member
****

Group: Members
Posts: 3,822
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest



bump
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Dec 3 2020, 10:48 AM
Post #15


The rubber man
**********

Group: Members
Posts: 10,763
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None



I do have the intake runner to manifold hoses they are right here

https://914rubber.com/1-7-l-connecting-hose
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MM1
post Dec 3 2020, 11:18 AM
Post #16


At first I gazed - then I slipped into 914 obsession . . .
**

Group: Members
Posts: 291
Joined: 9-May 18
From: Thousand Oaks, CA
Member No.: 22,105
Region Association: Southern California



QUOTE(Mikey914 @ Dec 3 2020, 11:48 AM) *

I do have the intake runner to manifold hoses they are right here

https://914rubber.com/1-7-l-connecting-hose



Great! already had my order in . . .can't wait to get all this Black Friday stuff and start changing hoses/seals and refinishing tins!

I forgot to get the second oil cooler seal and 914 Rubber threw it in along with giving me the sale price on the hoses above - even though my slow typing pushed me 3 minutes past midnight into early Monday- thank you, Mark, Kenzie and Team 914 Rubber - you are appreciated!

Merry Christmas and good luck on the flight schedule, Mark!

(IMG:style_emoticons/default/santa_smiley.gif) (IMG:style_emoticons/default/wreath.gif)

p.s. - can't wait to see that vacuum hose kit with the precise bagging and chart . . .sooo helpful!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris914n6
post Dec 3 2020, 03:31 PM
Post #17


Jackstands are my life.
****

Group: Members
Posts: 2,620
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region



QUOTE(MM1 @ Nov 30 2020, 11:58 PM) *


But I can't find the complete vacuum hose kit -

The only place I know that still does that is AutoAtlanta. Minus the 22mm? braided hose that goes to the oil breather as that size is NLA.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
