> Relay board diagram, I found this, and improved it.
ClayPerrine
post Jan 14 2021, 09:17 AM
Post #1


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,899
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille

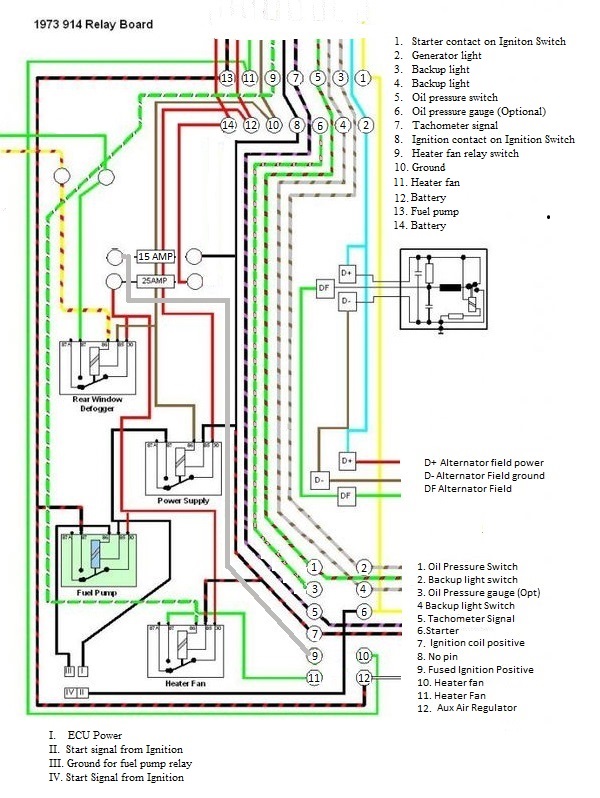

A while back I found a really good Relay Board wiring diagram. But it was missing some of the circuits. So I have spent some time updating it to match the real relay boards.


I am attaching it here in case someone finds it useful.

Clay

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jan 14 2021, 09:22 AM
Post #2


914 Guru
*****

Group: Members
Posts: 6,520
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
Thank you Clay! Very Nice!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Jan 14 2021, 09:29 AM
Post #3


Advanced Member
****

Group: Members
Posts: 3,445
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None
Just printed two copies, in color.

And happen to have a '73 (though I wonder if the relay board, like so much else in my car, like the headlight switch, is '72 spec). It's been modified, as well, for the conversion, but this is nevertheless really nice to have.

Thanks, Clay!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jamie
post Jan 14 2021, 10:38 AM
Post #4


Senior Member
***

Group: Members
Posts: 1,071
Joined: 13-October 04
From: Georgetown,KY
Member No.: 2,939
Region Association: South East States
QUOTE(ClayPerrine @ Jan 14 2021, 07:17 AM) *

A while back I found a really good Relay Board wiring diagram. But it was missing some of the circuits. So I have spent some time updating it to match the real relay boards.

I am attaching it here in case someone finds it useful.

Clay



I hope some ADMIN archives this for future reference. (IMG:style_emoticons/default/rolleyes.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GregAmy
post Jan 14 2021, 10:43 AM
Post #5


Advanced Member
****

Group: Members
Posts: 2,397
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States
Clay, what software are you using? I *still* need to draw up my diagrams from the Microsquirt install...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Jan 14 2021, 11:05 AM
Post #6


Its alive
****

Group: Members
Posts: 4,814
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
@GregAmy

Not Clay but...one of my buddies has been using QElectroTech for a bit and found it pretty good, especially for free. He likes it better than Visio, though it doesn't compare to RapidHarness or the AutoCAD we have available at work.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Jan 14 2021, 11:13 AM
Post #7


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,899
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(GregAmy @ Jan 14 2021, 10:43 AM) *

Clay, what software are you using? I *still* need to draw up my diagrams from the Microsquirt install...


Somebody else created the original diagram. I used (ahem) MSPaint to alter it. The original had unreadable pinout numbers, and informational text. It was also missing some circuits. MSPaint wouldn't work for making a new diagram, but it works to alter one.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Jan 14 2021, 11:54 AM
Post #8


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,911
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Nice!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rjames
post Jan 14 2021, 12:30 PM
Post #9


I'm made of metal
****

Group: Members
Posts: 4,140
Joined: 24-July 05
From: Shoreline, WA
Member No.: 4,467
Region Association: Pacific Northwest
Thank you for sharing this.
I'd like to nominate this to go in the Classics forum.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ctc911ctc
post Jan 14 2021, 01:12 PM
Post #10


Senior Member
***

Group: Members
Posts: 933
Joined: 9-June 18
From: boston
Member No.: 22,206
Region Association: North East States
I used to go to 2-3 different diagrams for this information - thank you - (IMG:style_emoticons/default/beer.gif) (IMG:style_emoticons/default/beerchug.gif) (IMG:style_emoticons/default/beer3.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Jan 14 2021, 01:24 PM
Post #11


914 Neferati
*****

Group: Members
Posts: 5,088
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
Nice job!

I would recommend that you change the thread title to something like, “I revised the relay board wiring diagram.” Would make it easier to search.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bob164
post Jan 14 2021, 02:49 PM
Post #12


Member
**

Group: Members
Posts: 97
Joined: 10-February 18
From: SoCal
Member No.: 21,877
Region Association: Southern California
Thank you Clay! This is a great help to the community.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Sprout
post Jan 14 2021, 03:31 PM
Post #13


Member
**

Group: Members
Posts: 125
Joined: 5-October 18
From: Kansas City
Member No.: 22,544
Region Association: Upper MidWest
As a '73 owner, I must say thank you!! (IMG:style_emoticons/default/pray.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BeatNavy
post Jan 14 2021, 03:37 PM
Post #14


Certified Professional Scapegoat
****

Group: Members
Posts: 2,938
Joined: 26-February 14
From: Easton, MD
Member No.: 17,042
Region Association: MidAtlantic Region
People have been behaving in the Sandbox lately. Clay has more time on his hands (IMG:style_emoticons/default/smile.gif)

Thanks for doing this, it does make troubleshooting much easier (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Jan 14 2021, 03:39 PM
Post #15


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,899
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(BeatNavy @ Jan 14 2021, 03:37 PM) *

People have been behaving in the Sandbox lately. Clay has more time on his hands (IMG:style_emoticons/default/smile.gif)

Thanks for doing this, it does make troubleshooting much easier (IMG:style_emoticons/default/beerchug.gif)



Yea.. if y'all behave, well then you get more stuff like this. (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jan 14 2021, 07:11 PM
Post #16


914 Idiot
***************

Group: Members
Posts: 15,059
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
QUOTE(ClayPerrine @ Jan 14 2021, 01:39 PM) *

Yea.. if y'all behave, well then you get more stuff like this. (IMG:style_emoticons/default/biggrin.gif)


If we WHAT?

Aww, shucks. Now it'll never happen!!!

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Shivers
post Jan 15 2021, 10:50 AM
Post #17


Senior Member
****

Group: Members
Posts: 2,780
Joined: 19-October 20
From: La Quinta, CA
Member No.: 24,781
Region Association: Southern California
Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Jan 15 2021, 12:09 PM
Post #18


I. I. R. C.
*****

Group: Members
Posts: 6,774
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
(IMG:style_emoticons/default/first.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Jan 17 2021, 10:28 AM
Post #19


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,899
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
Renamed this thread because @betty said I needed a more descriptive name.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Jan 19 2021, 07:28 AM
Post #20


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,899
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
FYI... I put a link to this thread in the Classics forum to make it easier to find.

Clay
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
