> Curious what you all think of this dyno read out?
Tdskip
post Sep 20 2021, 01:02 PM
Post #1


Advanced Member
****

Group: Members
Posts: 3,393
Joined: 1-December 17
From: soCal
Member No.: 21,666
Region Association: None



Several twists and turns I’m getting close to getting that XN turbo big bore engine back to me. This is the one that had a very elaborate homebrew turbo set up turns out was only running on three out of four cylinders when I did the initial teardown. I ended up having to swap the case out for another one because when it was rebuilt for the first time it was developing crazy high will pressure hand given all the unknowns and some funkiness with it that we discovered we decided it would be better to just use another case

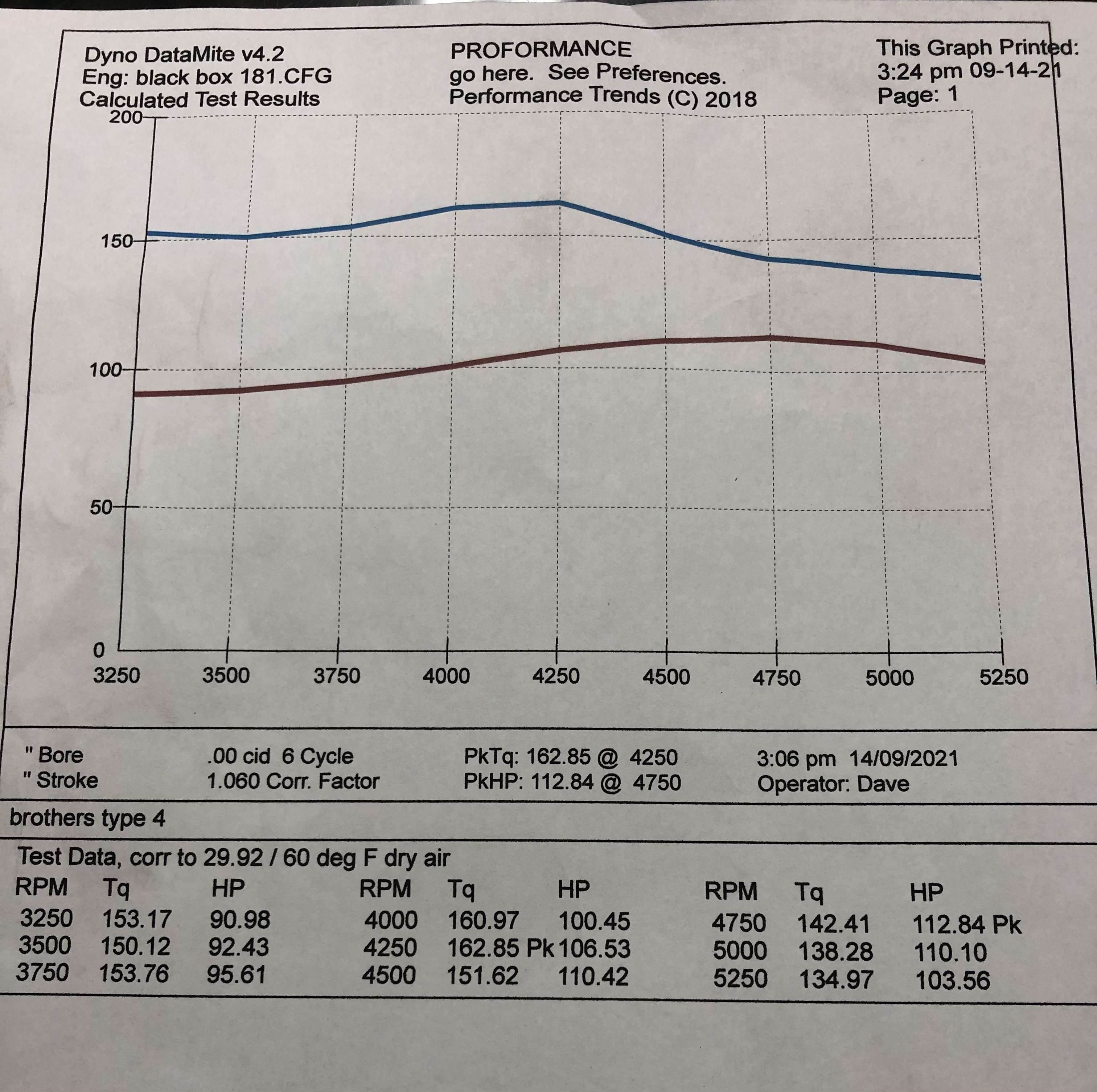

Shop let me know going in the carbs I gave them would be snappy and responsive but probably leave horsepower on the table. The shop also noted that this was not run using optimized headers and exhaust is probably a bit restrictive for this sort of build.

Thing that really jumps out to me here is that the engine is making lotta torch, or at least seems to be a lot of work, down low and had a very usable or p.m. That, to my son white uneducated eyes, suggest that should be fun for regular street use. What do you all think?

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Sep 20 2021, 01:12 PM
Post #2


Resident German
*************************

Group: Admin
Posts: 40,374
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



QUOTE(Tdskip @ Sep 20 2021, 12:02 PM) *

Curious what you all think of this dyno read out?


Shift at 4500 rpm for max acceleration ...
(IMG:style_emoticons/default/driving.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tdskip
post Sep 20 2021, 01:19 PM
Post #3


Advanced Member
****

Group: Members
Posts: 3,393
Joined: 1-December 17
From: soCal
Member No.: 21,666
Region Association: None



QUOTE(SirAndy @ Sep 20 2021, 02:12 PM) *

QUOTE(Tdskip @ Sep 20 2021, 12:02 PM) *

Curious what you all think of this dyno read out?


Shift at 4500 rpm for max acceleration ...
(IMG:style_emoticons/default/driving.gif)



Andy! Hope you are doing well.

Yes, as this is currently set up does not seem like there will be much point to ringing lots of RPMs out of it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Sep 20 2021, 02:07 PM
Post #4


Its alive
****

Group: Members
Posts: 4,641
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States



Did you keep the original heads?

Seems like the it's quite restricted given how flat that curve is.

I'm not totally in the flat torque curve makes it more fun camp though-you tend to end up with rough neck-snapping type of shifts* because your tractive force (what the tire is actually putting to the pavement) curve gets pretty wacky. Later tonight I'll see if I can pull your curve into a spreadsheet to show.

*when shifting agressively
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Sep 20 2021, 02:15 PM
Post #5


914-6 GT in waiting
***************

Group: Members
Posts: 16,901
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region



QUOTE(SirAndy @ Sep 20 2021, 03:12 PM) *

QUOTE(Tdskip @ Sep 20 2021, 12:02 PM) *

Curious what you all think of this dyno read out?


Shift at 4500 rpm for max acceleration ...
(IMG:style_emoticons/default/driving.gif)

Not necessarily. You may want to go a bit over the max so when you shift, the next gear is closer to the max. It will depend how close the gears are and what you are trying to accomplish.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Sep 20 2021, 02:27 PM
Post #6


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 20,869
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch



What is the displacement of this engine? Still normally aspirated?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tdskip
post Sep 20 2021, 02:48 PM
Post #7


Advanced Member
****

Group: Members
Posts: 3,393
Joined: 1-December 17
From: soCal
Member No.: 21,666
Region Association: None



Thanks for all the responses and discussion. This is a big engine, plus or -2.7 L in the heads were redone. I’m probably running out of fuel and being held back by the restrictive exhaust, but a bit surprised honestly that there wasn’t more horsepower there with all that said.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Sep 20 2021, 04:18 PM
Post #8


Resident German
*************************

Group: Admin
Posts: 40,374
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



QUOTE(mepstein @ Sep 20 2021, 01:15 PM) *

QUOTE(SirAndy @ Sep 20 2021, 03:12 PM) *

QUOTE(Tdskip @ Sep 20 2021, 12:02 PM) *

Curious what you all think of this dyno read out?

Shift at 4500 rpm for max acceleration ...
(IMG:style_emoticons/default/driving.gif)

Not necessarily. You may want to go a bit over the max so when you shift, the next gear is closer to the max. It will depend how close the gears are and what you are trying to accomplish.

Max *torque* is what you are after. You'll drop about 500 rpm on a quick shift, so shifting at 4500 will put him right back at the torque sweet spot.
(IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Sep 20 2021, 04:40 PM
Post #9


Senior Member
***

Group: Members
Posts: 1,008
Joined: 17-December 07
From: Off The Map
Member No.: 8,476
Region Association: None



https://www.caranddriver.com/news/a15347872...the-difference/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tdskip
post Sep 21 2021, 07:34 AM
Post #10


Advanced Member
****

Group: Members
Posts: 3,393
Joined: 1-December 17
From: soCal
Member No.: 21,666
Region Association: None



Thanks - apparently will have the first 914 Diesel engine (based on torque vs HP)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris914n6
post Sep 21 2021, 01:51 PM
Post #11


Jackstands are my life.
****

Group: Members
Posts: 2,844
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region



Shop was right about the carbs, you ran out of air. Should be a 160-180 hp motor.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Sep 21 2021, 01:56 PM
Post #12


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 20,869
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch



Esp if they have 28?MM Venturi. Spring for some headers too.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Sep 21 2021, 02:31 PM
Post #13


En Garde!
**********

Group: Admin
Posts: 12,623
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region



QUOTE(Tdskip @ Sep 20 2021, 04:48 PM) *

Thanks for all the responses and discussion. This is a big engine, plus or -2.7 L in the heads were redone. I’m probably running out of fuel and being held back by the restrictive exhaust, but a bit surprised honestly that there wasn’t more horsepower there with all that said.


You have a LOT left on the table here. That would have been a good pull for a 2056. Whatever carbs you are using, they need to be bigger. Exhaust will be the next restriction, but you clearly need more fuel and air.
Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Sep 22 2021, 07:33 PM
Post #14


914 Guru
*****

Group: Members
Posts: 5,043
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region



Something is wrong with the graph, how does it not cross at 5250 RPM?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
targa72e
post Sep 22 2021, 07:59 PM
Post #15


Member
**

Group: Members
Posts: 70
Joined: 11-September 16
From: colorado
Member No.: 20,392
Region Association: None



data is not correct in graph. If you have 162Ft/lbs at 4250RPM then you have 131HP. HP should be about 130HP from 4250-5250 based on torque numbers listed. Something is not right with data.

John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PlaysWithCars
post Sep 22 2021, 11:07 PM
Post #16


Senior Member
***

Group: Members
Posts: 505
Joined: 9-November 03
From: Southeast of Seattle
Member No.: 1,323
Region Association: Pacific Northwest



QUOTE(targa72e @ Sep 22 2021, 06:59 PM) *

data is not correct in graph. If you have 162Ft/lbs at 4250RPM then you have 131HP. HP should be about 130HP from 4250-5250 based on torque numbers listed. Something is not right with data.

John

(IMG:style_emoticons/default/agree.gif)
Simple equation relates the two and something about the data presented doesn't add up.

Power = Torque * RPM / 5252
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rufus
post Oct 1 2021, 06:11 PM
Post #17


Member
**

Group: Members
Posts: 83
Joined: 8-April 06
From: Central NC
Member No.: 5,840
Region Association: None



Agree with the others. Something’s fishy about the torque and power readings not being equal (the curves should cross) at 5252 rpm assuming torque is measured in lb-ft and power in hp and they’re numerically on the same scale.

JMHO, but I wouldn’t use the curves, or pay for the dyno testing until presented with data that makes sense. These curves don’t.

FWIW: this’s the 1st thing I look at as most of my career involved engine performance / emissions development & testing.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rufus
post Oct 1 2021, 06:36 PM
Post #18


Member
**

Group: Members
Posts: 83
Joined: 8-April 06
From: Central NC
Member No.: 5,840
Region Association: None



QUOTE(SirAndy @ Sep 20 2021, 12:12 PM) *

QUOTE(Tdskip @ Sep 20 2021, 12:02 PM) *

Curious what you all think of this dyno read out?


Shift at 4500 rpm for max acceleration ...
(IMG:style_emoticons/default/driving.gif)


Shift at 4500 rpm for maximum acceleration?

Nope. Shifting near peak torque engine speed will leave a lot of acceleration “on the table”. (Remember you want maximum torque to the rear wheels; not "upstream" of the tranny … each gear multiplies input torque differently based on ratio.) For maximum acceleration you always at least want to rev to peak power (unless for some bizarre reason that’s above redline or there’s a concern about mechanical weakness). Optimum shift points can’t be accurately determined without first knowing gear spacing. For optimum acceleration, the power and torque to the final drive (any point “downstream” of the transmission) at the shift rpm equal the power and torque available to the final drive at that vehicle speed in the next higher gear (@ WOT of course). Optimum shift points are determined from the available power / torque at the final drive as a function of vehicle speed for each gear. The points where available power & torque in one gear fall below that available in the next gear is the optimum shift point. Often optimum shift points are over the peak power rpm (assuming redline permits). Because gear spacing is not necessarily the same from shift to shift in a given gear set, optimum shift points can vary from one shift to another.

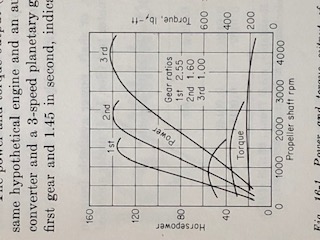

Maybe not the best example, but a random chart from an old college textbook will show the idea. Note that “propeller shaft rpm” is final drive rpm not erpm, and is proportional to vehicle speed. The peak power and torque values differ from gear to gear due to slightly different throughput efficiencies based on gear ratio. The differences in peak torque are additionally related to the different torque multiplications of gears.

So what about the curves not crossing in the chart? One must assume the curves end at engine redline. Therefore torque and power available for acceleration will immediately drop after each shift. This could be avoided with narrower spacing / more gears. The goal being to maximize “area under the curve(s)”.

If vehicle aerodynamic drag (in hp) is plotted on the same chart as final drive power, top speed is predicted by the point where drag crosses available power.
Attached Image
