> First of the Texas Twins, First Build
Puebloswatcop
post Nov 9 2021, 05:43 PM
Post #121


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

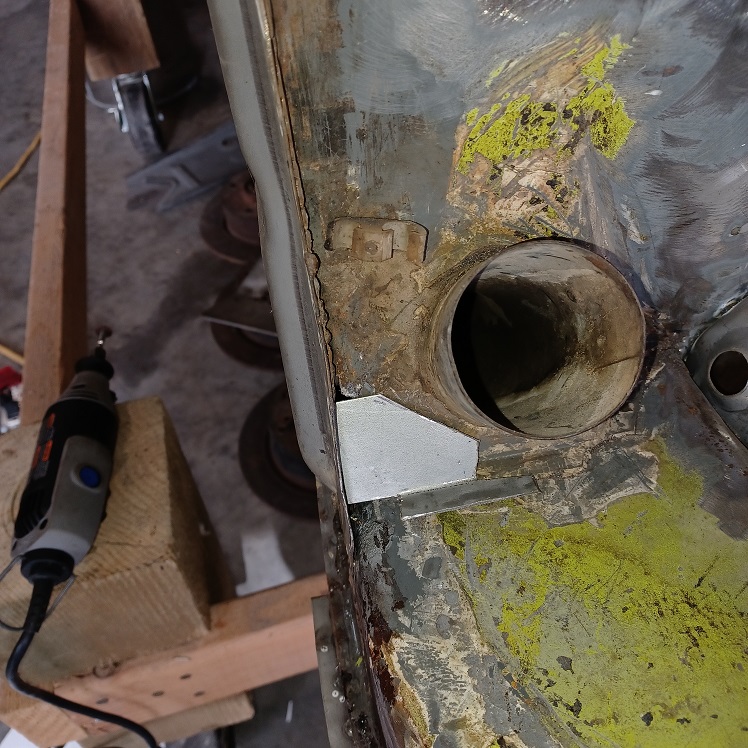

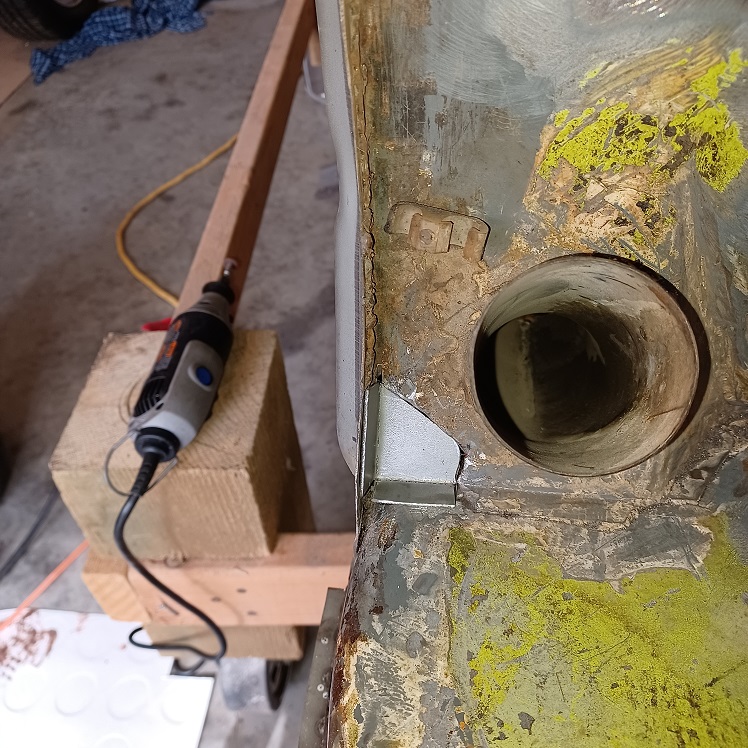

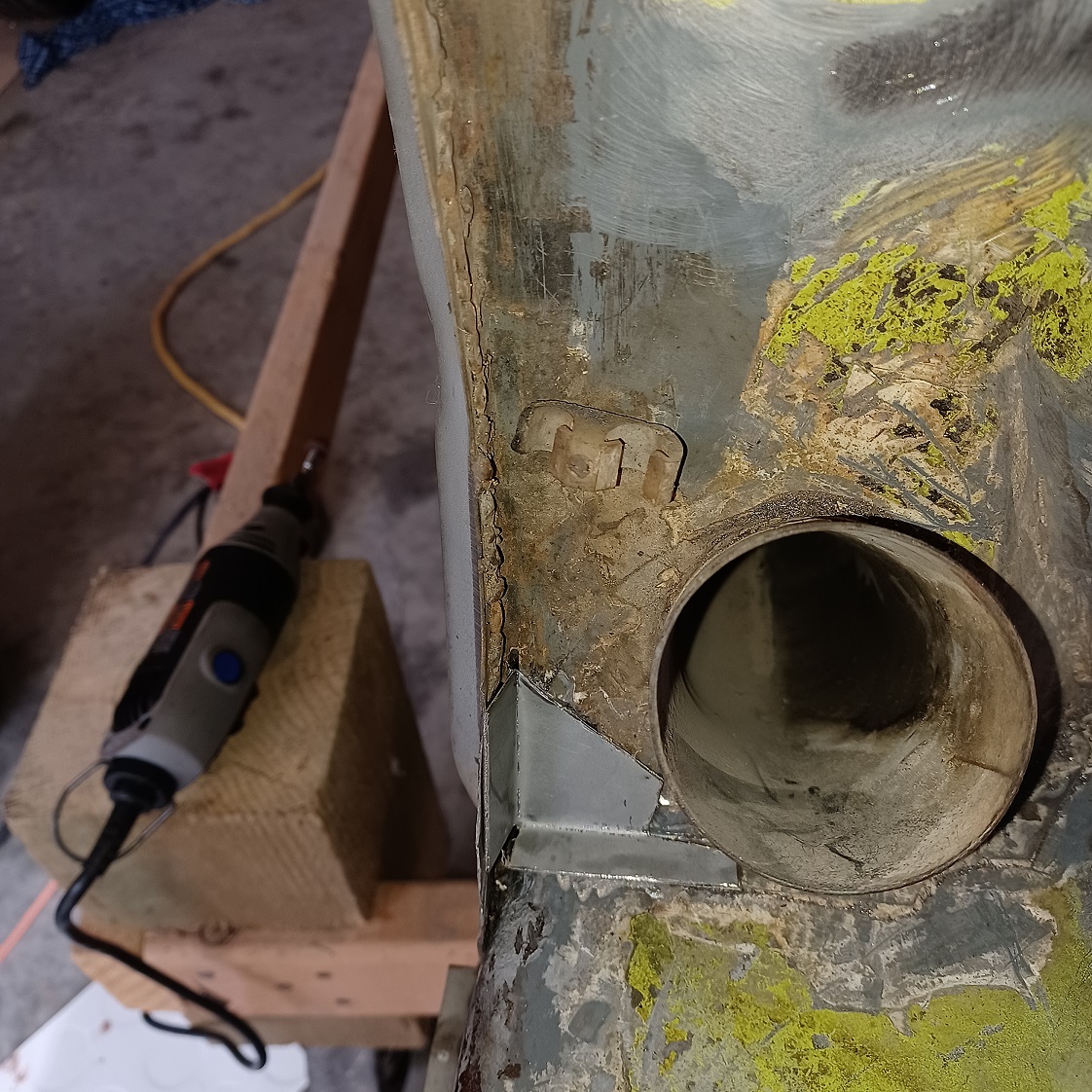

After a considerable amount of bending and cutting, I was able to get a patch into the hole complete with flanges for welding

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 9 2021, 05:48 PM
Post #122


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

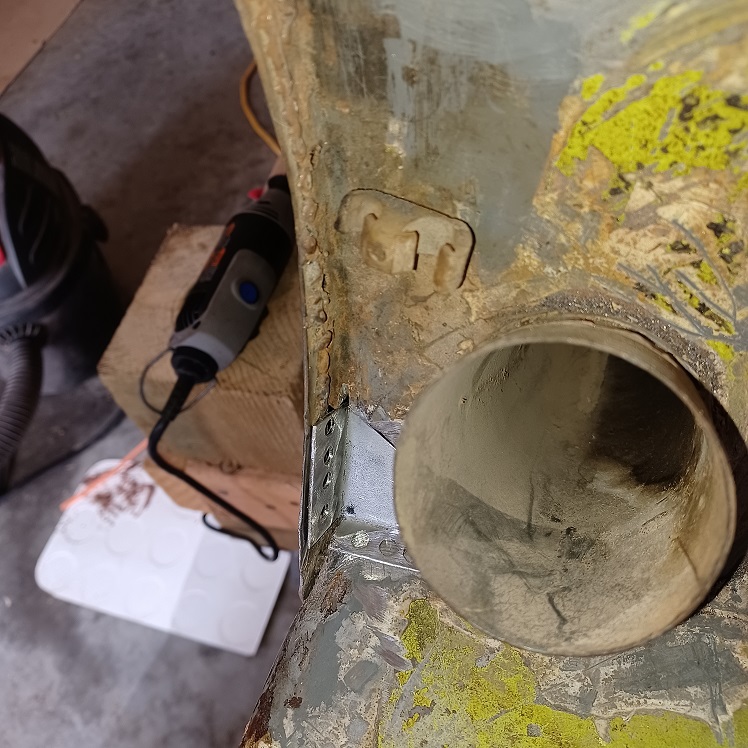

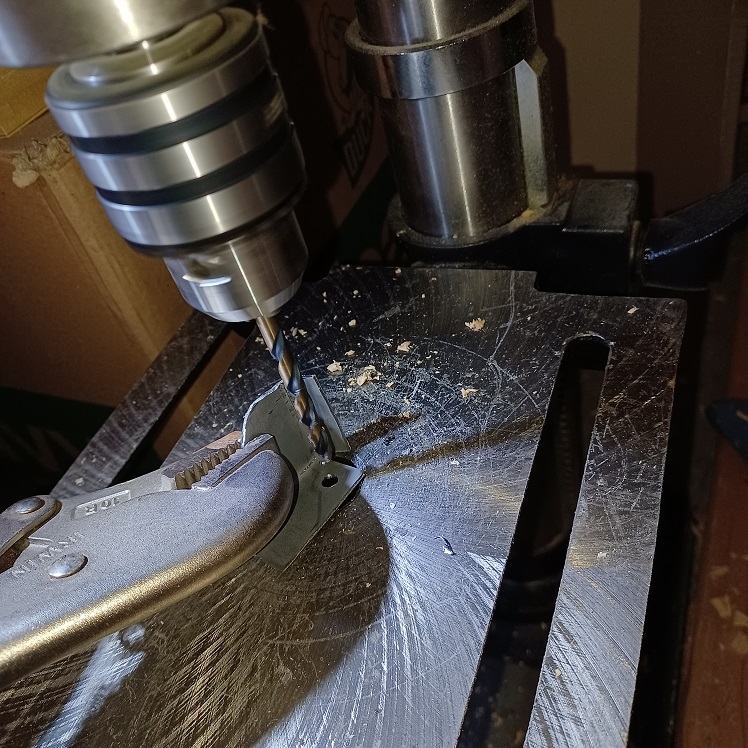

Went to get my sheet metal punch and realized it is still in Colorado, so had to put the holes in the flange the old fasioned way.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 9 2021, 05:51 PM
Post #123


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

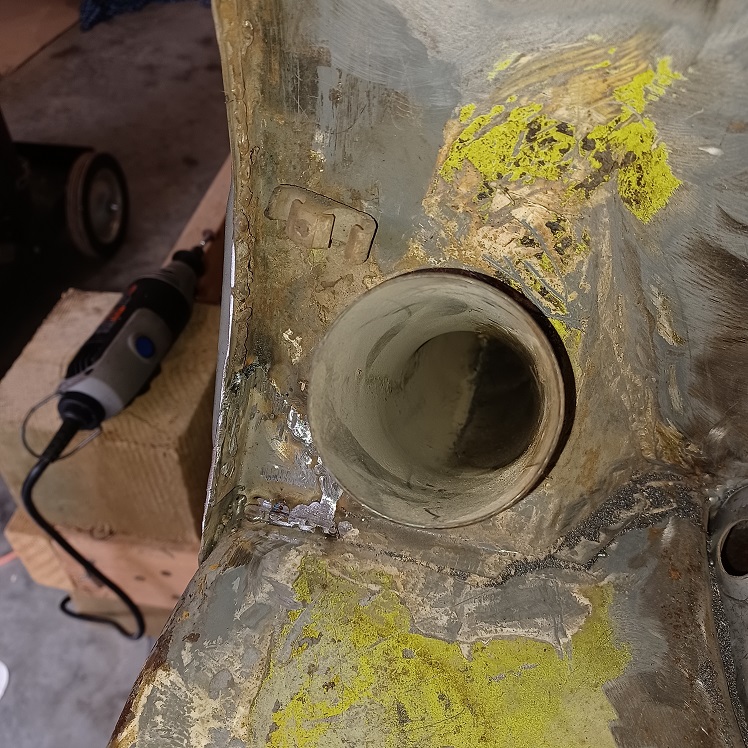

Then welded it in place, a nice solid repair, just a bit of touch up to do to smooth things out a bit more.

Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 9 2021, 05:52 PM
Post #124


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region
Went on to finish filling the holes in the trunk floor and finished grinding them flat.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 9 2021, 05:54 PM
Post #125


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region
At the end of the day, I actually got to cross three things off the white board, finally some progress..... (IMG:style_emoticons/default/piratenanner.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 9 2021, 08:22 PM
Post #126


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
The white board tells all!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 10 2021, 08:12 AM
Post #127


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region
QUOTE(bkrantz @ Nov 9 2021, 08:22 PM) *

The white board tells all!


I have to say, it makes it nice to be able to keep track of what needs to be done, and it really feels great when you get to cross something off the list.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TRS63
post Nov 10 2021, 08:18 AM
Post #128


Member
**

Group: Members
Posts: 324
Joined: 14-September 20
From: Germany - Stuttgart
Member No.: 24,690
Region Association: Europe
QUOTE(Puebloswatcop @ Nov 10 2021, 08:12 AM) *

QUOTE(bkrantz @ Nov 9 2021, 08:22 PM) *

The white board tells all!


I have to say, it makes it nice to be able to keep track of what needs to be done, and it really feels great when you get to cross something off the list.


True words! I have an excel list to follow my project and it helps with motivation to see the progress !

Antoine
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 12 2021, 04:55 PM
Post #129


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region
Work was cut short yesterday due to a power outage....Sucks when the power goes out, can't weld, grind or cut..... (IMG:style_emoticons/default/WTF.gif)

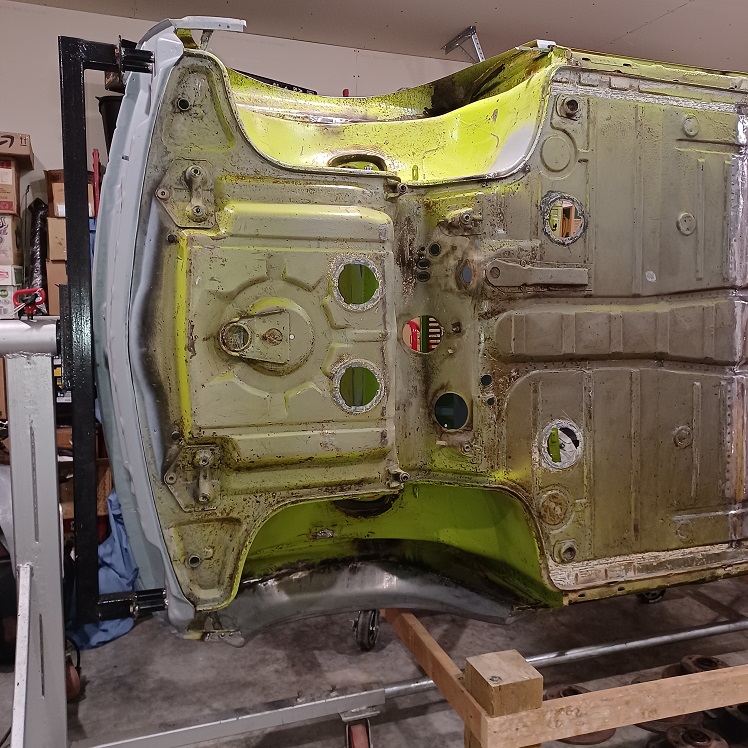

So today I did more underbody work.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 12 2021, 04:58 PM
Post #130


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

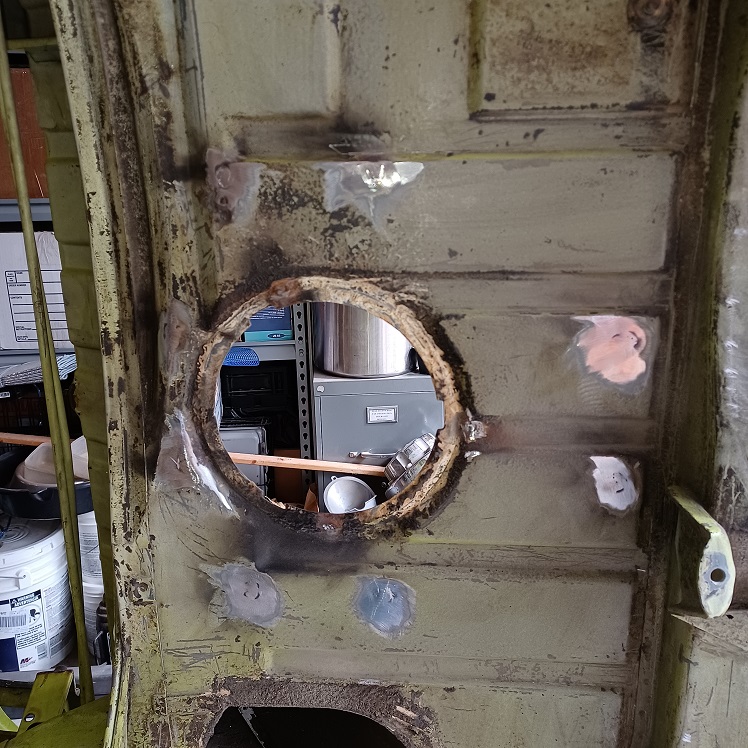

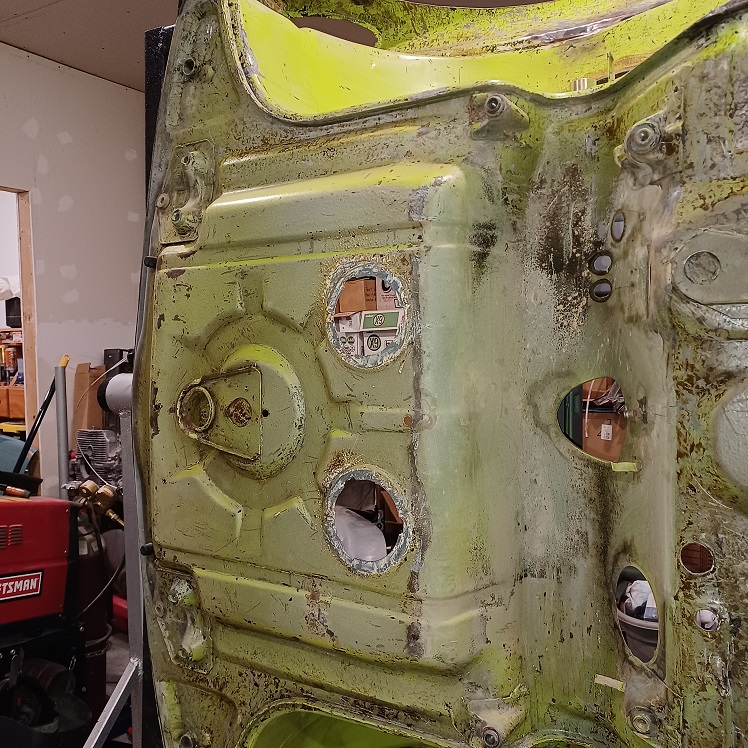

Removed the two body plugs from the frunk, and then the two from the front floor of the passenger compartment floor...

Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 12 2021, 05:03 PM
Post #131


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

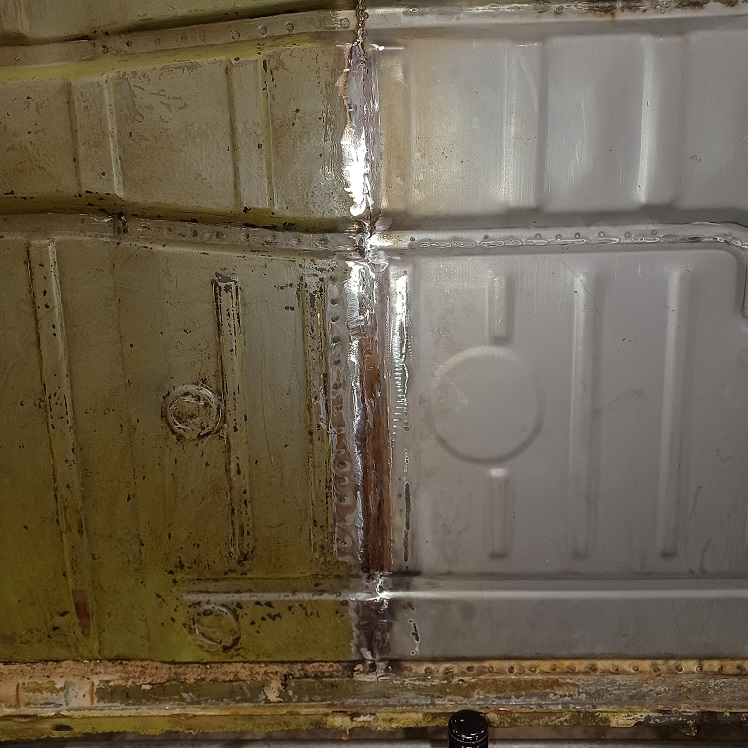

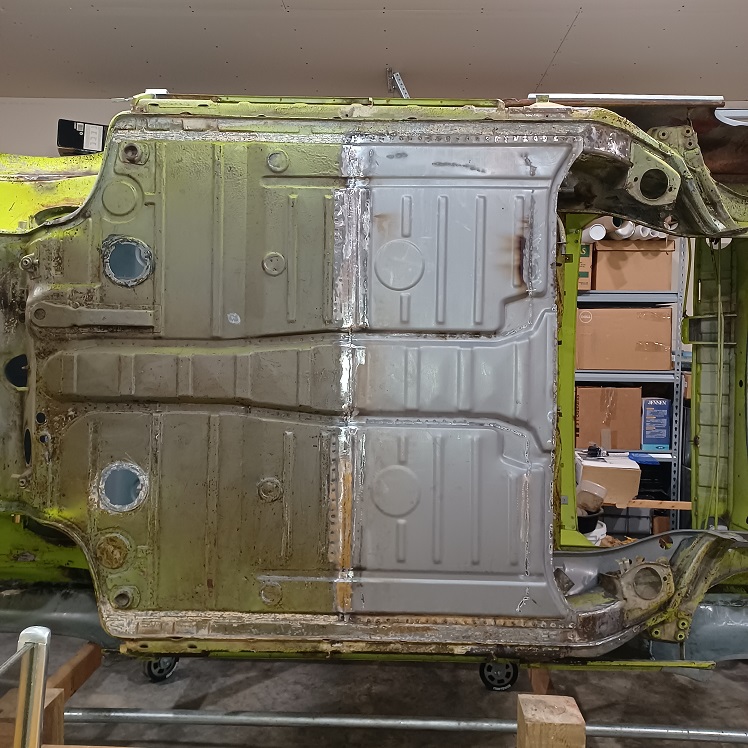

Then addressed the weld between the front floor and the replacement rear floor. Since when I put this in I was laying on my back doing the welding, I was concerned that some areas of the seam might have ened up without good penetration. So I figured I would just grind the entire seam flat and re-weld it. Good thing I did, as there were several cold welds in it so there were definite cracks. Here it is after re-welding and re-grinding, no crack, no holes.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 12 2021, 05:07 PM
Post #132


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region
I also decided that since I have to seam seal the rear half of the floor, I would go ahead and remove not only the undercoating, but the seam sealer as well. After blasting the body, I will go ahead and put new seam sealer throughout. I spent about half the day chipping off undercoating and the seam sealer.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 12 2021, 05:12 PM
Post #133


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

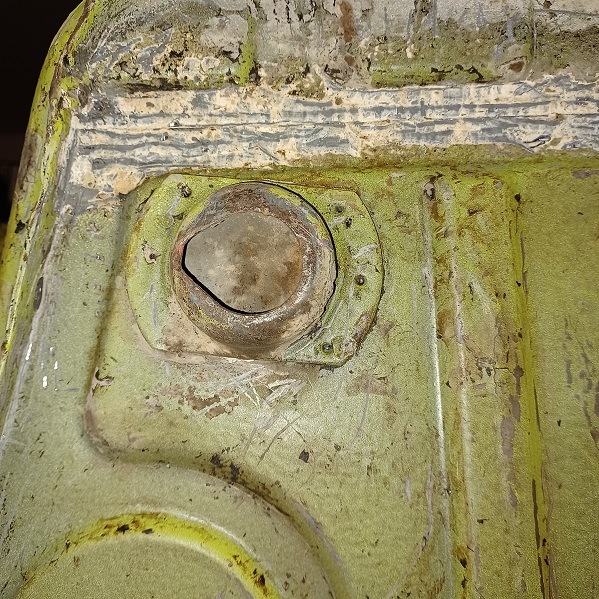

During my initial inspection of the bottom of the body I also found that the two front jacking donuts have huge amounts of wear, not sure how this happens? Used as tie downs? So these will be replaced as will the entire rear jacking points, since they had some rust issues.

Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 12 2021, 05:16 PM
Post #134


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

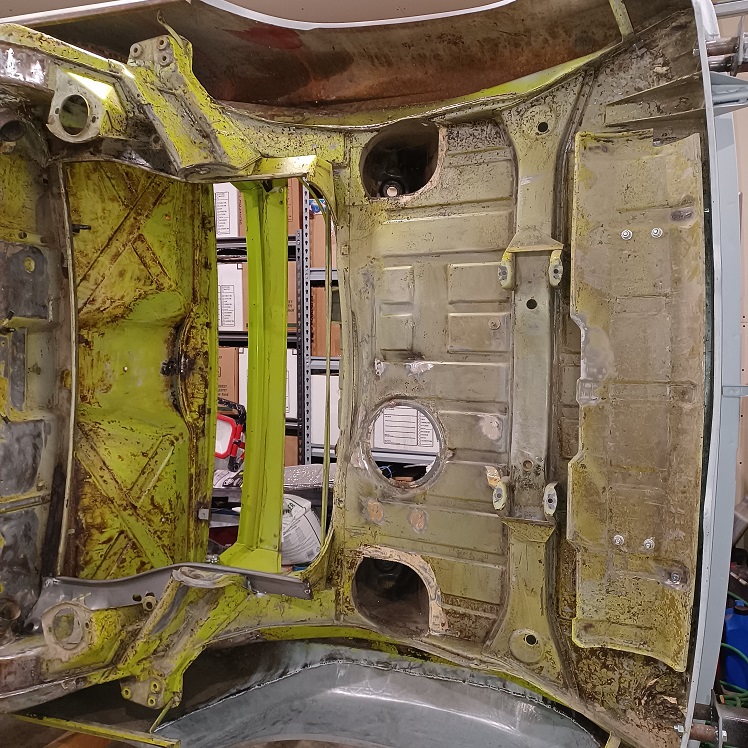

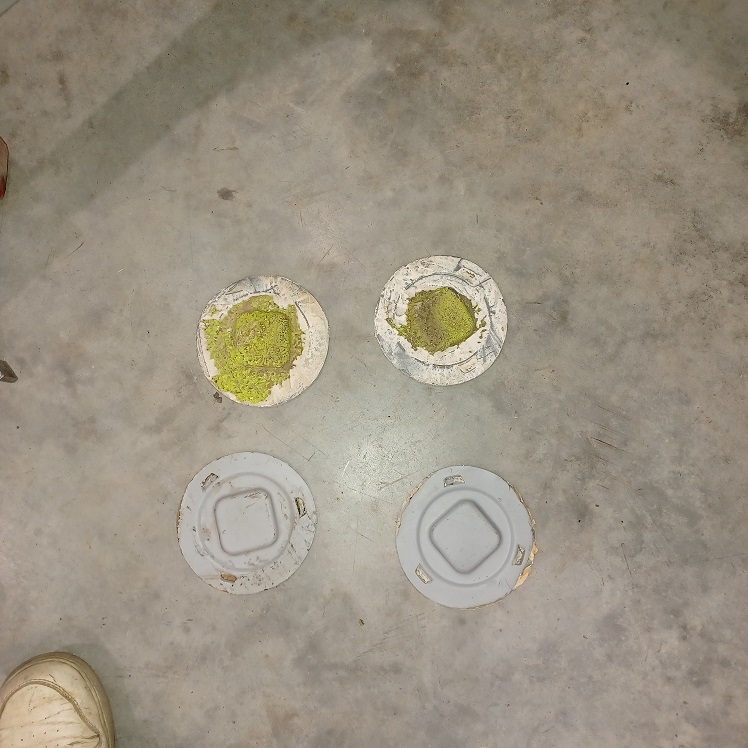

So, by the end of the day, the car is about 5 pounds lighter from all of the missing seam sealer and under coating thats missing. Now I just have to figure out how to remove the other four pounds of the sealer from the body plugs...LOL (IMG:style_emoticons/default/blink.gif)

Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 13 2021, 06:14 PM
Post #135


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

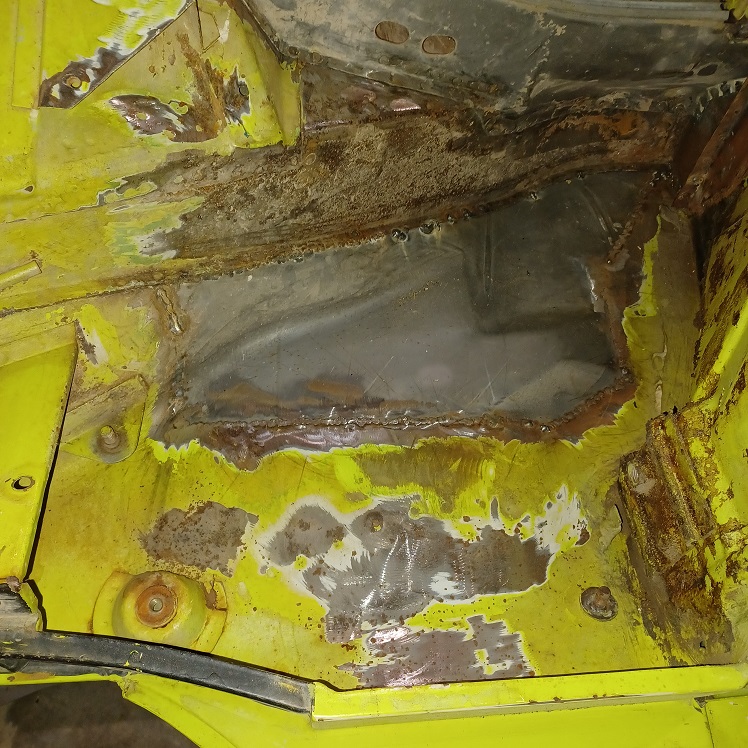

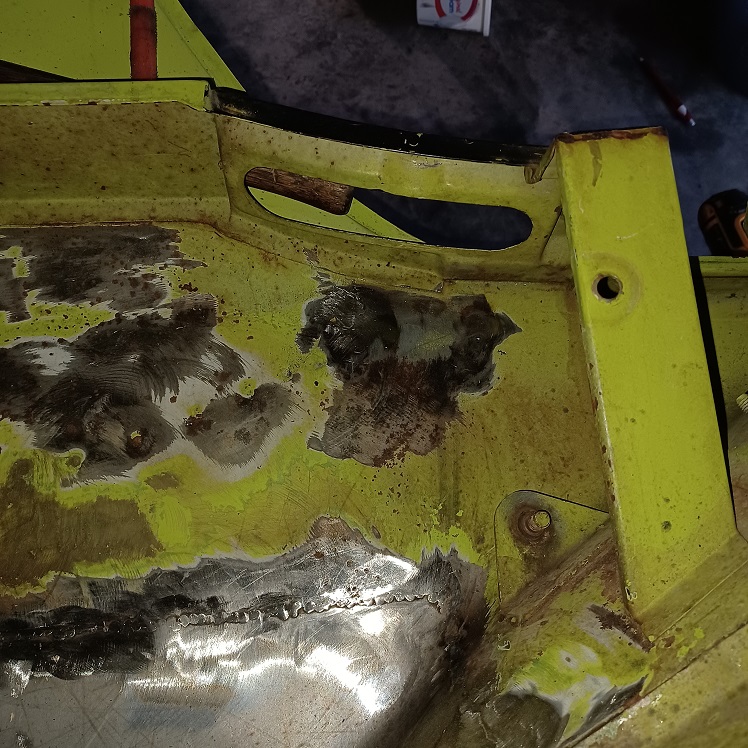

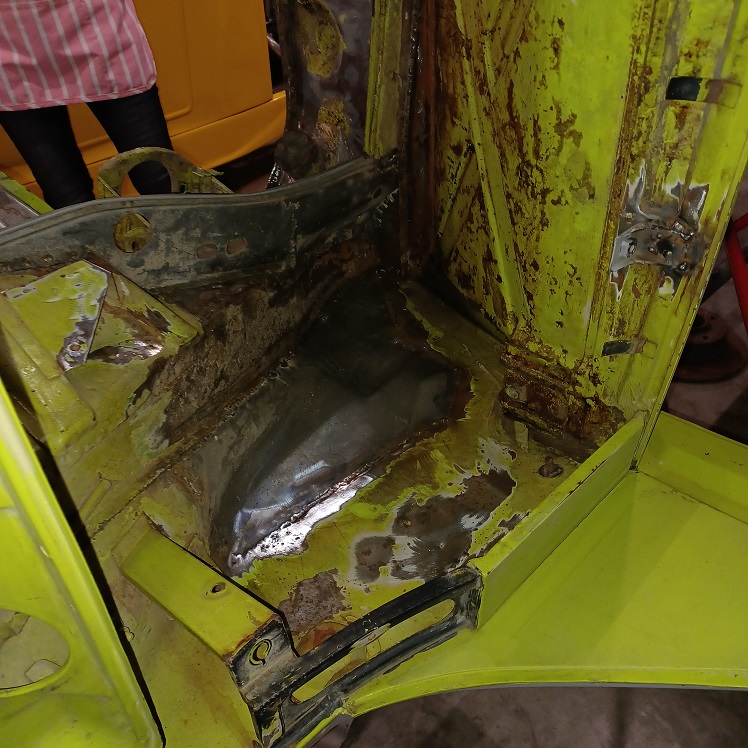

Today I decided to tackle some of the issues in the engine compartment. The hell hole has some repairs done already, but still needs some finishing work. The good thing is what appears to be rust is actually some kind of adhesive, the bad thing is i cant find anything that seems to remove it.

Attached Image

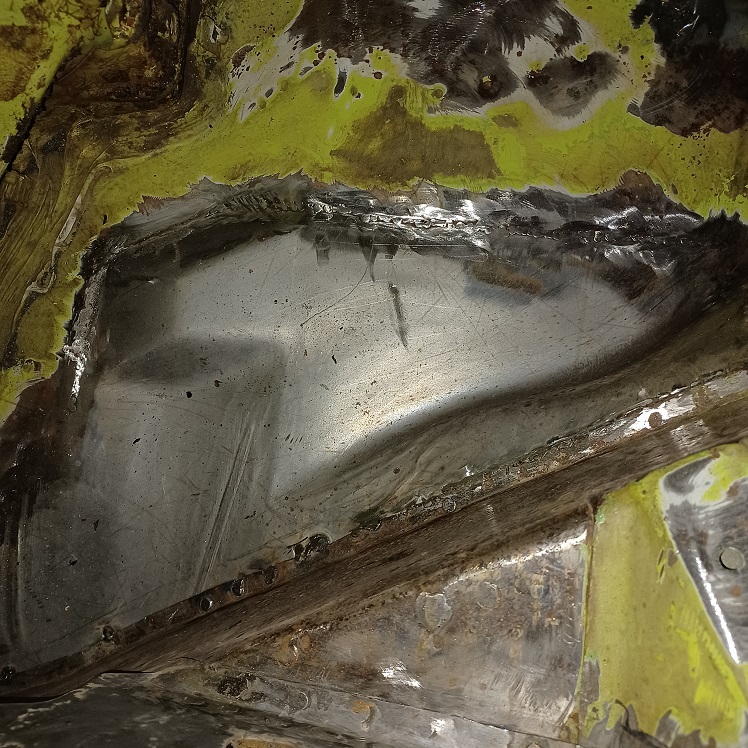

Started grinding down the repair welds

Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 13 2021, 06:20 PM
Post #136


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

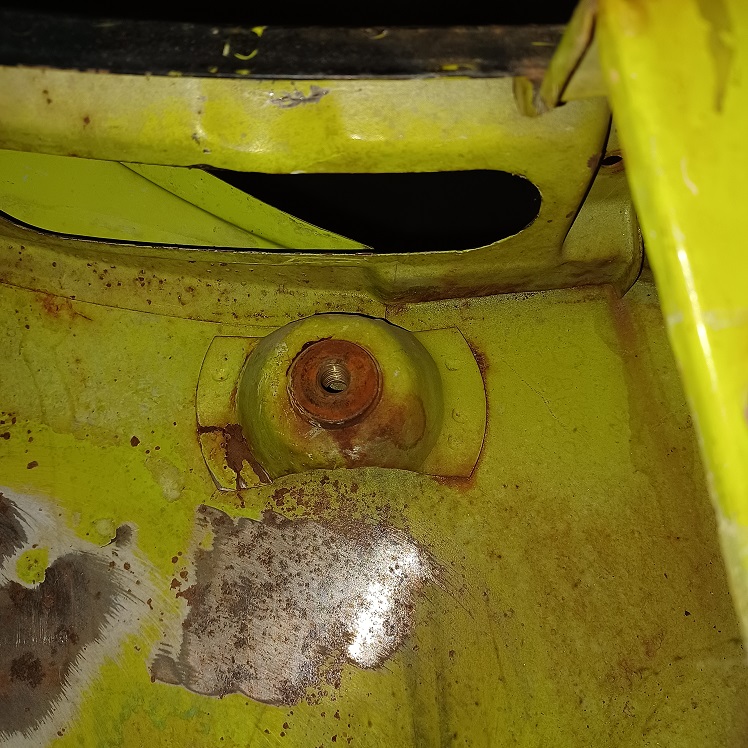

The passenger side trunk hinge pivot was cracked so I decided to go ahead and remove it. I have a set of Pivots from J West Engineering that I plan to install.

Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 13 2021, 06:26 PM
Post #137


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

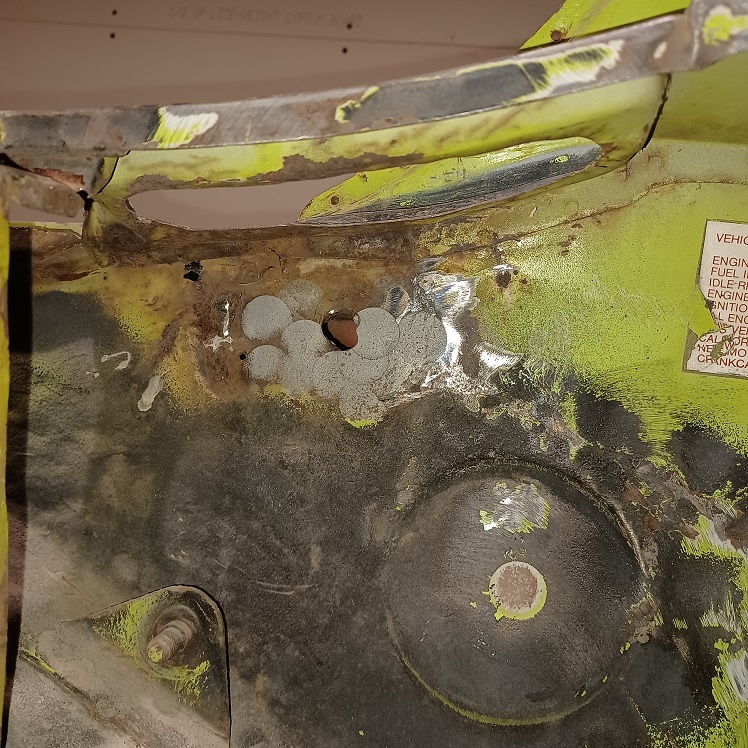

On the drivers side there is a large hole where the pivot was removed and a bolt was used as the pivot by the PO. Also there is quite a bit of hammer and dolly work to be done to finish fixing damage from a previous accident. I plan on doing that when I cut that fender for the flare.

Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 13 2021, 06:28 PM
Post #138


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

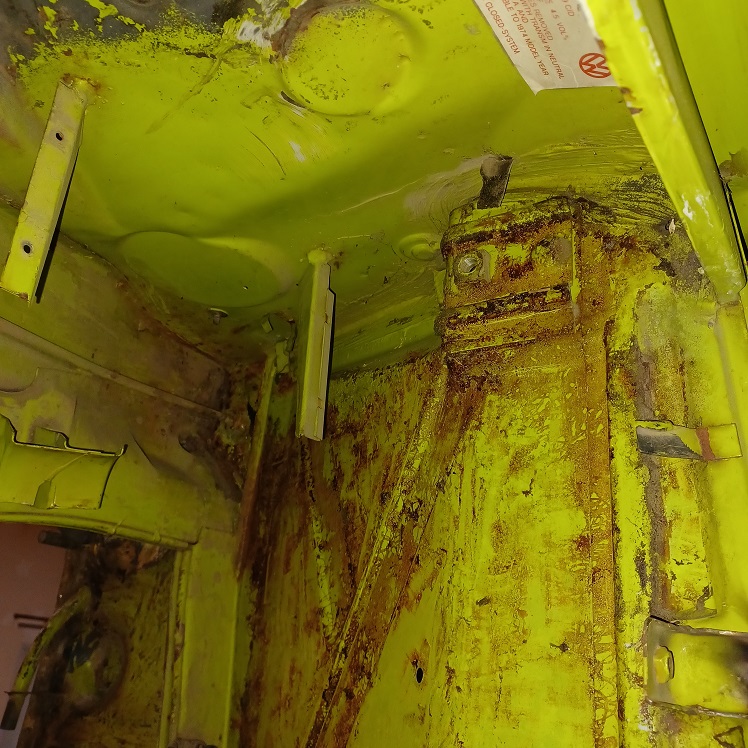

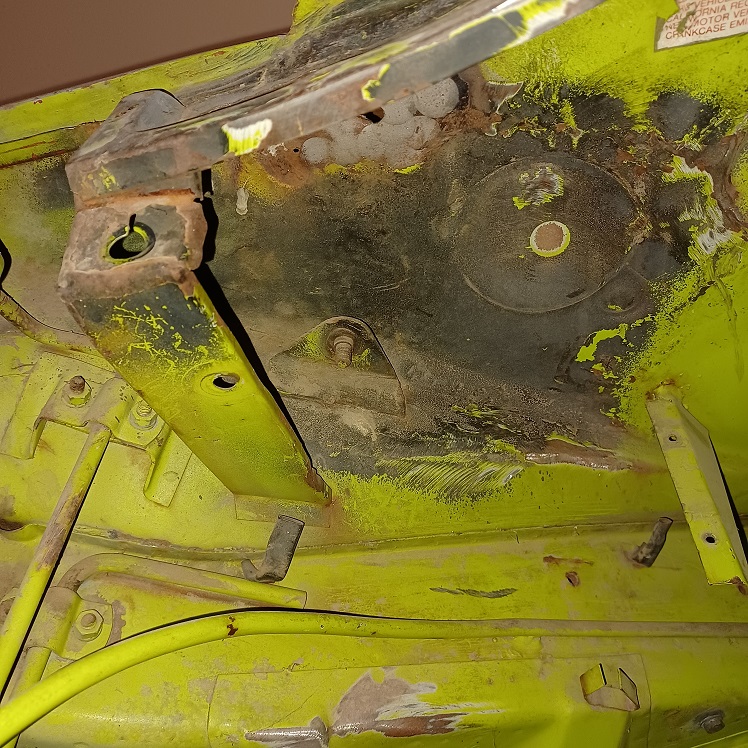

On the drivers side there is a ton of that adhesive. I may just have to wait and see if it comes out during media blasting.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 13 2021, 06:30 PM
Post #139


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

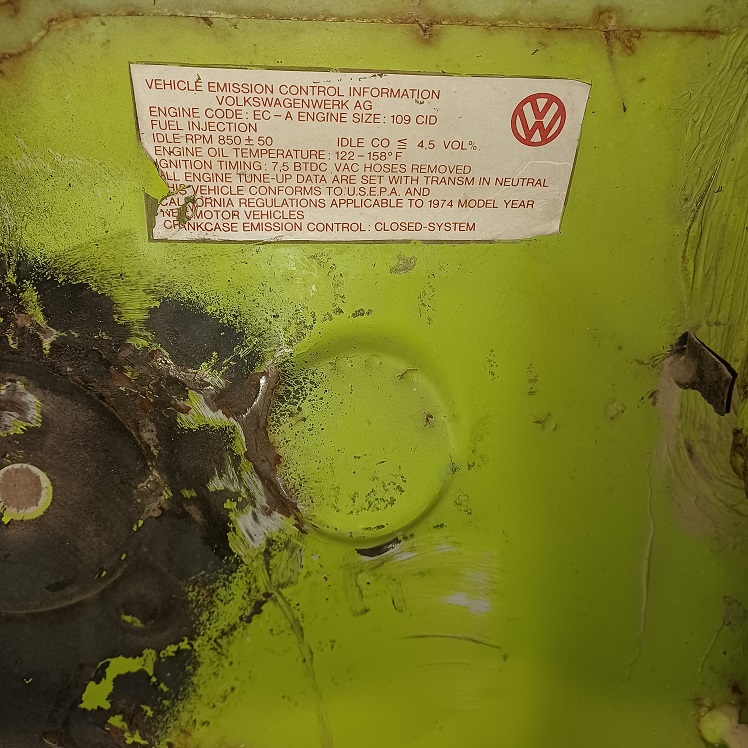

But hey, on the plus side, the original VW Emission sticker is still there.... (IMG:style_emoticons/default/av-943.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Nov 13 2021, 06:32 PM
Post #140


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

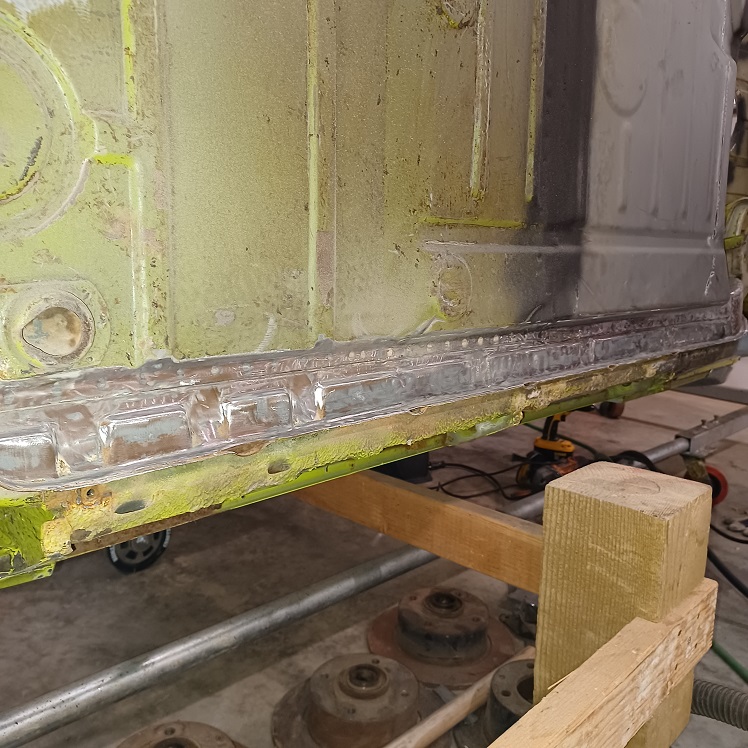

Finished removing all of the seam sealer from the passenger side floor seam

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
