> First of the Texas Twins, First Build
bkrantz
post Sep 27 2022, 08:02 PM
Post #821


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains



Howard, in case you have not already planned to, I suggest mocking up the fit of the cylinders and pistons, including any cylinder gaskets, and measuring the deck height, both for absolute depths and consistency for all four.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Sep 28 2022, 05:04 AM
Post #822


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region



QUOTE(bkrantz @ Sep 27 2022, 07:02 PM) *

Howard, in case you have not already planned to, I suggest mocking up the fit of the cylinders and pistons, including any cylinder gaskets, and measuring the deck height, both for absolute depths and consistency for all four.


Thanks for the advice Bob. I will do exactly that. Also, do you have any advice on how I can check the valve clearance from the pistons? I have oversize valves in the heads and want to be sure I don't plant one through the top of a piston.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Sep 28 2022, 05:47 AM
Post #823


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,903
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille



QUOTE(Puebloswatcop @ Sep 27 2022, 08:01 PM) *

QUOTE(ClayPerrine @ Sep 27 2022, 04:54 AM) *

Uh.. you have a problem.

The windage tray bolts to the oil pump pickup. You forgot to bolt them together.


Clay, I am a bit confused, Is that the bolt that goes through the oil pick up into the windage tray? If so I did get it in, if not, can you show me which photo to refer back to so I can figure out what I missed? Does this mean I have to tear it appart again? Thanks for any help you can provide. Like I said, this is my first build, I surely don't want to blow it to kingdom come....

Clay, please tell me this is the bolt you are referring to, so I don't have to be sad and disappointed.





The windage tray and pickup are normally installed as a unit. If the bolt is left out, then the oil pump pickup can cavitate and cause a loss of oil pressure. It appears you put the bolt in after the case was assembled.

If you did that, then you are OK.

Clay
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Sep 28 2022, 03:11 PM
Post #824


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region



QUOTE(ClayPerrine @ Sep 28 2022, 04:47 AM) *

QUOTE(Puebloswatcop @ Sep 27 2022, 08:01 PM) *

QUOTE(ClayPerrine @ Sep 27 2022, 04:54 AM) *

Uh.. you have a problem.

The windage tray bolts to the oil pump pickup. You forgot to bolt them together.


Clay, I am a bit confused, Is that the bolt that goes through the oil pick up into the windage tray? If so I did get it in, if not, can you show me which photo to refer back to so I can figure out what I missed? Does this mean I have to tear it appart again? Thanks for any help you can provide. Like I said, this is my first build, I surely don't want to blow it to kingdom come....

Clay, please tell me this is the bolt you are referring to, so I don't have to be sad and disappointed.





The windage tray and pickup are normally installed as a unit. If the bolt is left out, then the oil pump pickup can cavitate and cause a loss of oil pressure. It appears you put the bolt in after the case was assembled.

If you did that, then you are OK.

Clay



Thanks Clay,

now I can breath a sigh of relief...lol. Thanks for following my build and helping to keep me on the straight and narrow. I need all the help I can get...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nathanxnathan
post Sep 28 2022, 04:48 PM
Post #825


Member
**

Group: Members
Posts: 294
Joined: 16-February 18
From: Laguna Beach, CA
Member No.: 21,899
Region Association: Southern California



It looks like a non stock camshaft. Are you going to cut custom pushrods?

Once you've done that you can use clay on top of the piston — you can cut a cross section into the clay where the valve has hit it to check clearance. THat's how I've done it.

Other things I'm thinking about looking at the build, are if you've cc'd the heads to check compression ratio. Also if you've checked deck height.

I haven't built an engine in a long while, but I'm gearing up to do one soon, so this is good to see/follow.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
simonjb
post Sep 28 2022, 06:25 PM
Post #826


KiwiMan
***

Group: Members
Posts: 563
Joined: 18-October 16
From: Stamford, Connecticut
Member No.: 20,505
Region Association: North East States



Very inspirational - and thanks for all the photos and Tips !
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 28 2022, 08:07 PM
Post #827


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains



QUOTE(Puebloswatcop @ Sep 28 2022, 05:04 AM) *

QUOTE(bkrantz @ Sep 27 2022, 07:02 PM) *

Howard, in case you have not already planned to, I suggest mocking up the fit of the cylinders and pistons, including any cylinder gaskets, and measuring the deck height, both for absolute depths and consistency for all four.


Thanks for the advice Bob. I will do exactly that. Also, do you have any advice on how I can check the valve clearance from the pistons? I have oversize valves in the heads and want to be sure I don't plant one through the top of a piston.....


You can put some soft clay on top of the pistons, assemble everything, including heads and rocker assemblies, manually turn the motor through several cycles, and then take the heads off. Or do what I did and measure (guesstimate) valve clearance, and then use a bore scope stuck in the spark plug holes to see how close the valves get to the pistons.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Sep 29 2022, 05:10 AM
Post #828


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,903
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille



STOP TALKING ABOUT ME!!!!

I am not soft..... and I won't fit on top of the piston!!!!!! (IMG:style_emoticons/default/mad.gif)



(IMG:style_emoticons/default/av-943.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Sep 29 2022, 04:56 PM
Post #829


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region



QUOTE(nathanxnathan @ Sep 28 2022, 03:48 PM) *

It looks like a non stock camshaft. Are you going to cut custom pushrods?

Once you've done that you can use clay on top of the piston — you can cut a cross section into the clay where the valve has hit it to check clearance. THat's how I've done it.

Other things I'm thinking about looking at the build, are if you've cc'd the heads to check compression ratio. Also if you've checked deck height.

I haven't built an engine in a long while, but I'm gearing up to do one soon, so this is good to see/follow.


I do plan on doing custom cut pushrods.

So the clay thing works the same as I used to do on my SB Chevy. I thought about that, but was wondering if there was any other way. I will do this and see how it works out. Thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Sep 29 2022, 04:56 PM
Post #830


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region



QUOTE(ClayPerrine @ Sep 29 2022, 04:10 AM) *

STOP TALKING ABOUT ME!!!!

I am not soft..... and I won't fit on top of the piston!!!!!! (IMG:style_emoticons/default/mad.gif)



(IMG:style_emoticons/default/av-943.gif)



You're killin me Clay...... (IMG:style_emoticons/default/slap.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Sep 29 2022, 05:01 PM
Post #831


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

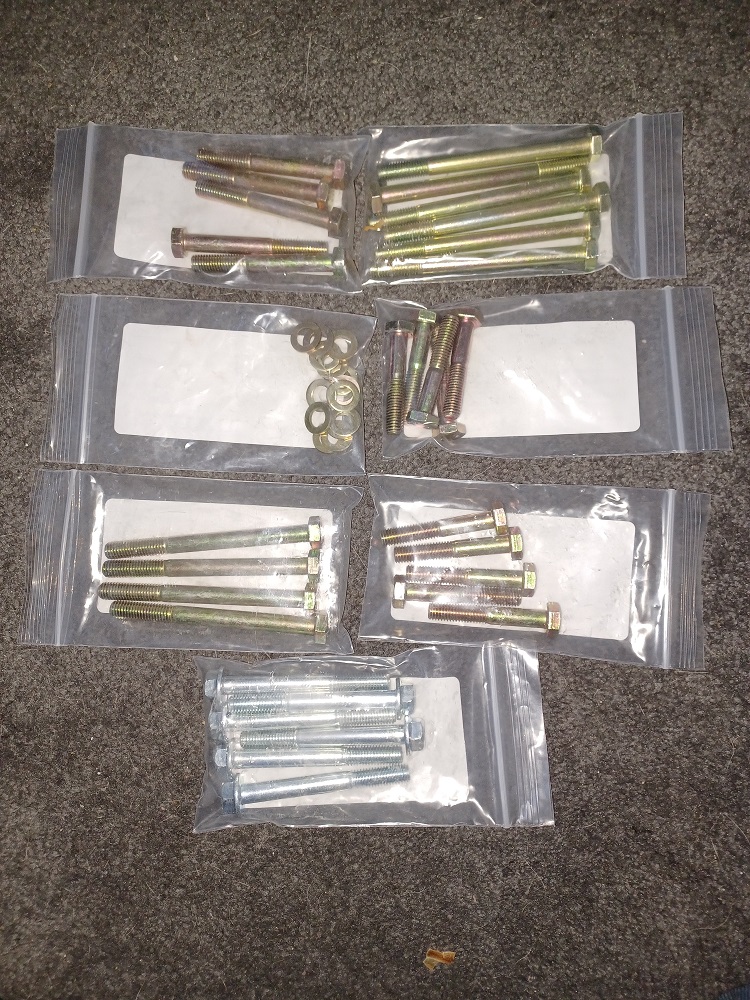

The new hardware came in today from Bel Metric, so out with the temporary bolts (old) and in with the new...no more ugly stuff.....

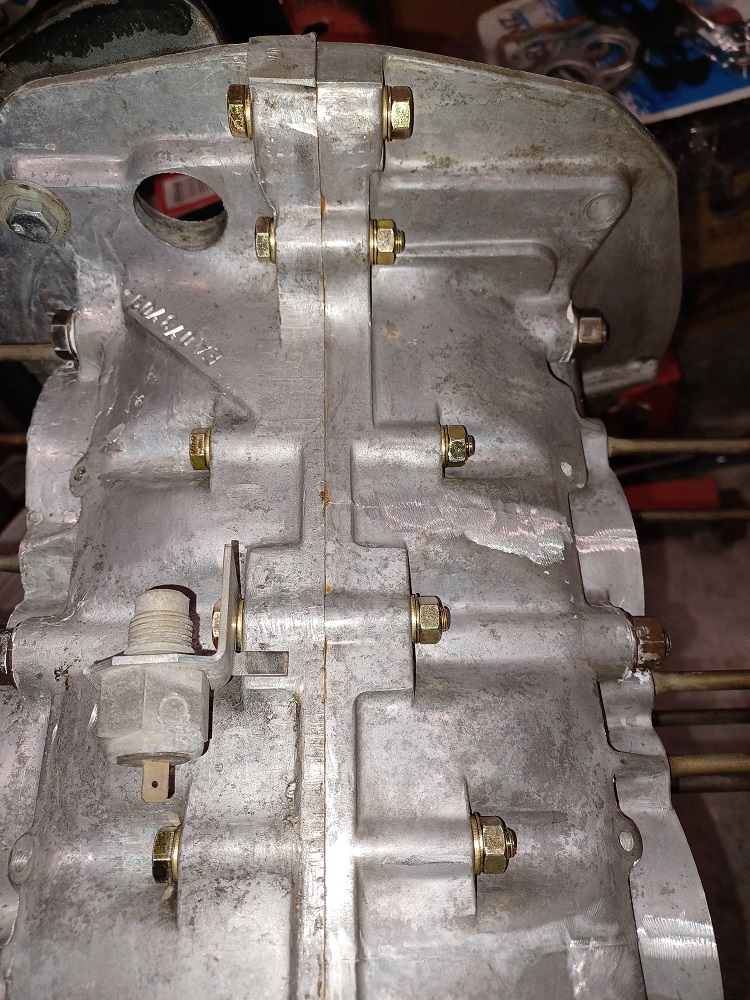

Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 29 2022, 07:02 PM
Post #832


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains



QUOTE(ClayPerrine @ Sep 29 2022, 05:10 AM) *

STOP TALKING ABOUT ME!!!!

I am not soft..... and I won't fit on top of the piston!!!!!! (IMG:style_emoticons/default/mad.gif)



(IMG:style_emoticons/default/av-943.gif)


Have you ever tried?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Sep 30 2022, 04:04 PM
Post #833


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region



Just think, If Clay could fit on top of our pistons, all of our clearance measuring issues would be solved.... (IMG:style_emoticons/default/lol-2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Oct 9 2022, 09:14 AM
Post #834


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region



Finally a day off, so I decided to work on the engine. Figured I would work on checking ring gaps, etc. I got a nice set of 96 mm cyliners, Kieth Black pistons and Hastings rings, all from European Motor Works.

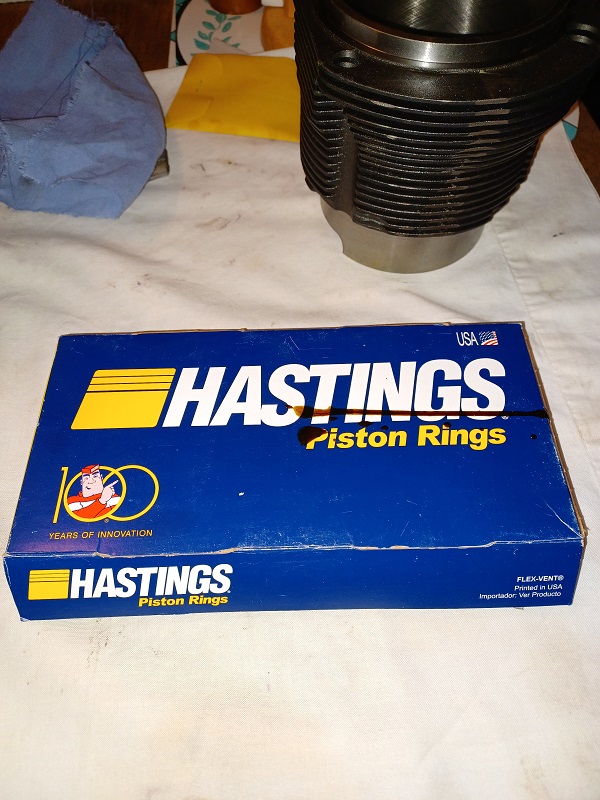

Attached Image Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Oct 9 2022, 09:18 AM
Post #835


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

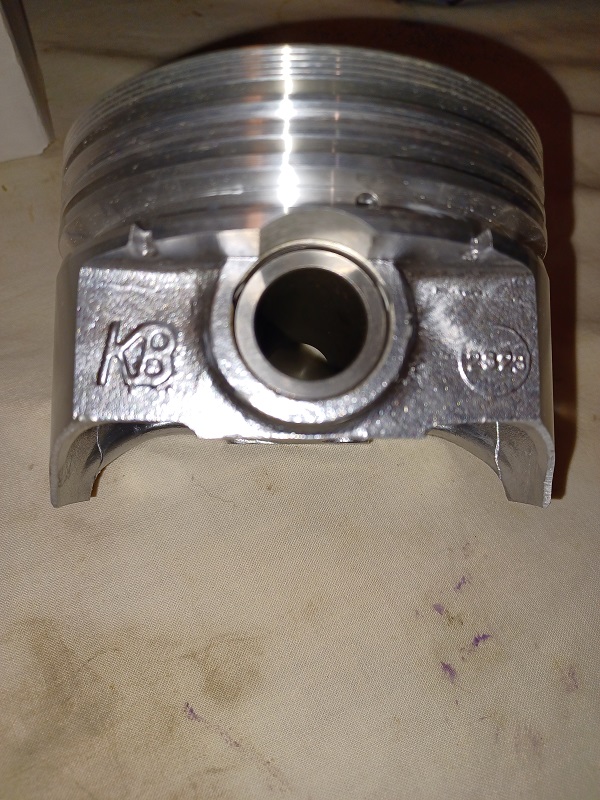

The pistons are 96 mm KB flat tops. What I noticed is there is no indicator on the piston as to which way they should be installed (e.g. no arrow). So I will have to call European this week to see if there is no offset, and if there isn't if that will be a problem.

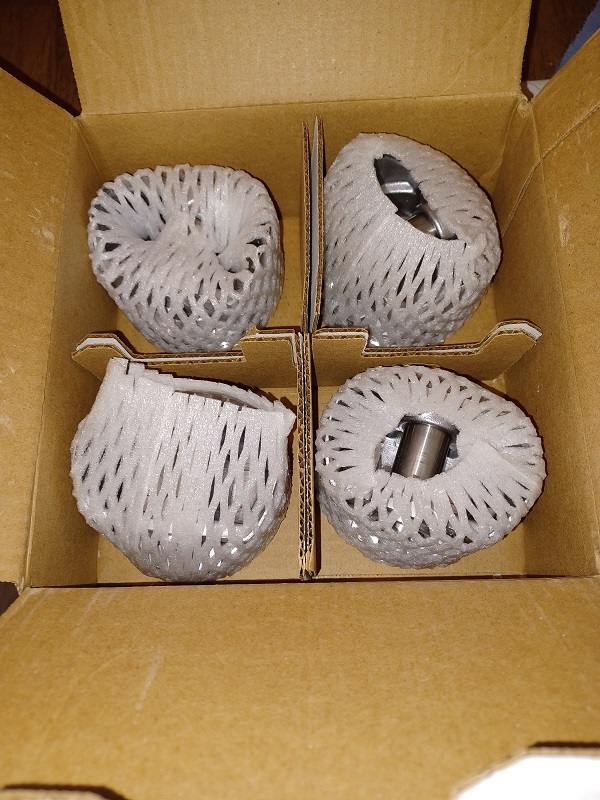

Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Oct 9 2022, 09:21 AM
Post #836


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region

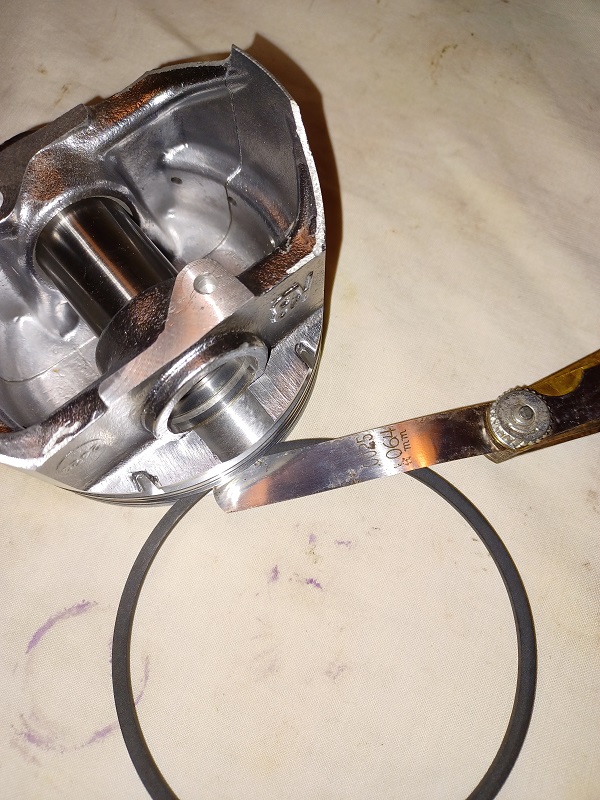

The first job was to measure all of the ring grove clearances....All came out within tollerance and the rings meaured with each piston were numbered to match that piston.

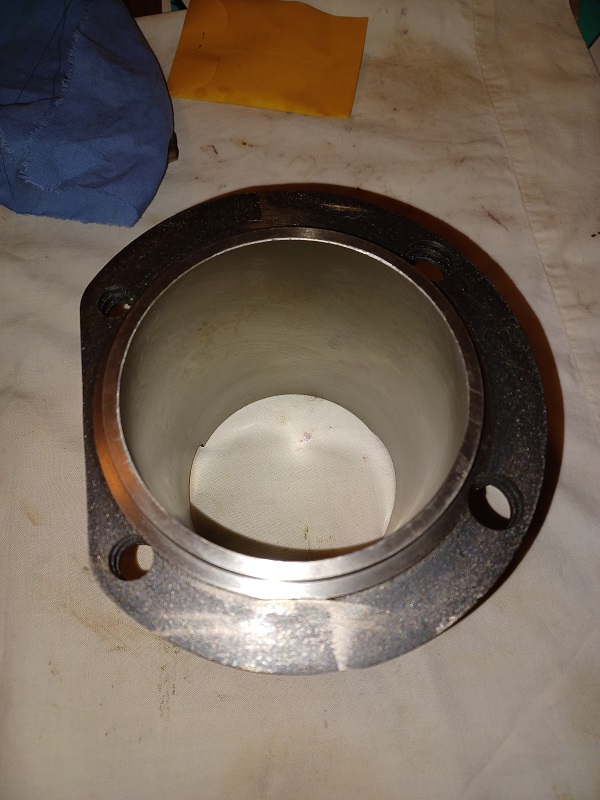

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Oct 9 2022, 09:25 AM
Post #837


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region



Then I matched the pistons and rings to each cylinder, pushed the rings down about an inch into their bores and measured all of the ring end gaps. Again, everything was acceptable. So after I check with European regarding the offset issue, I will weigh and ballance the pistons, or if need be buy different ones.

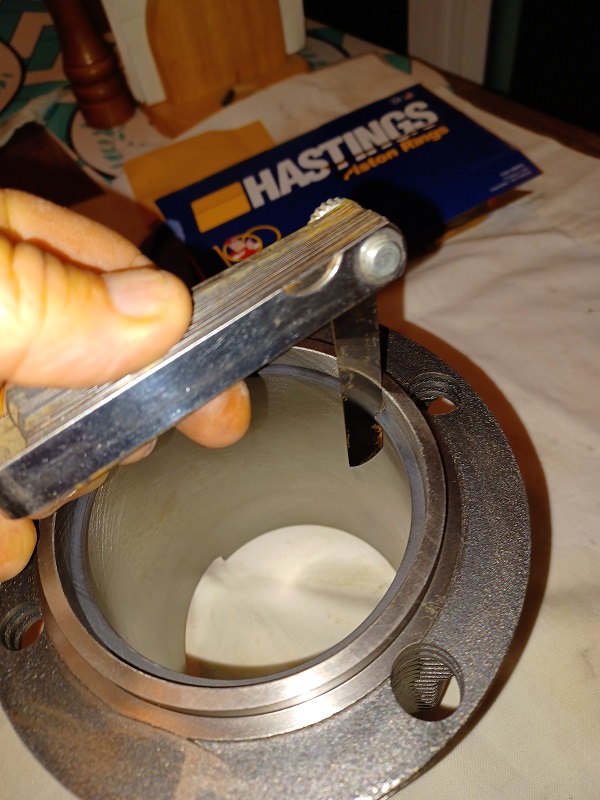

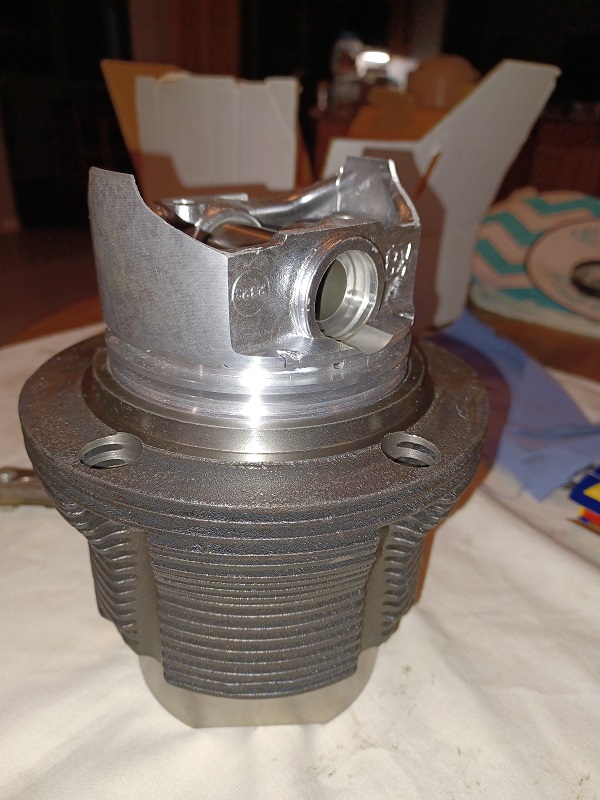

Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Oct 9 2022, 09:29 AM
Post #838


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region



Then I made a full set of cylinder retainers so when the time comes I can measure my deck height.

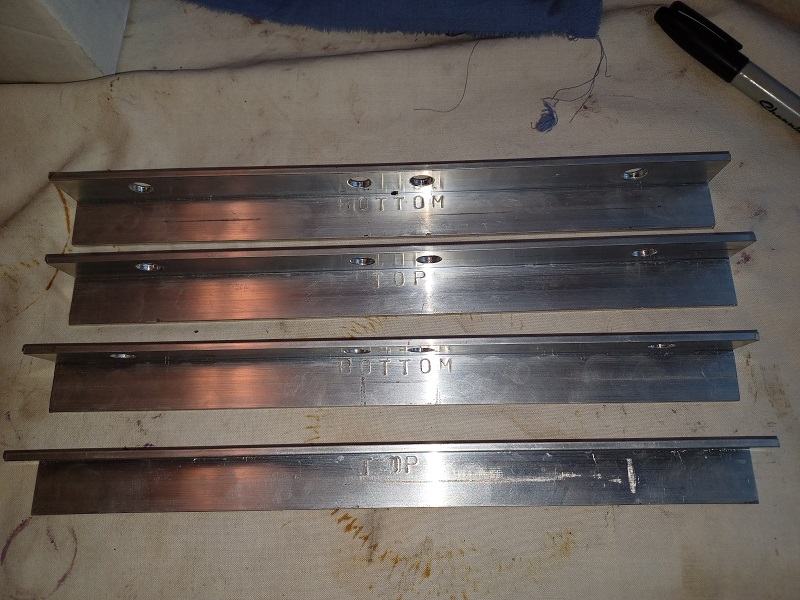

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Oct 12 2022, 04:48 PM
Post #839


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region



QUOTE(Puebloswatcop @ Oct 9 2022, 08:18 AM) *

The pistons are 96 mm KB flat tops. What I noticed is there is no indicator on the piston as to which way they should be installed (e.g. no arrow). So I will have to call European this week to see if there is no offset, and if there isn't if that will be a problem.

Attached Image Attached Image


Finally had time to call European Motorworks today. They confirmed there is no wrist pin offset and they can be installed either way. Now just waiting on my gram scale so I can balance the pistons and pins.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Oct 15 2022, 06:10 PM
Post #840


Senior Member
***

Group: Members
Posts: 1,401
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region



Yesterday I received my gram scale, so now I can check the balance of my piston assemblies.

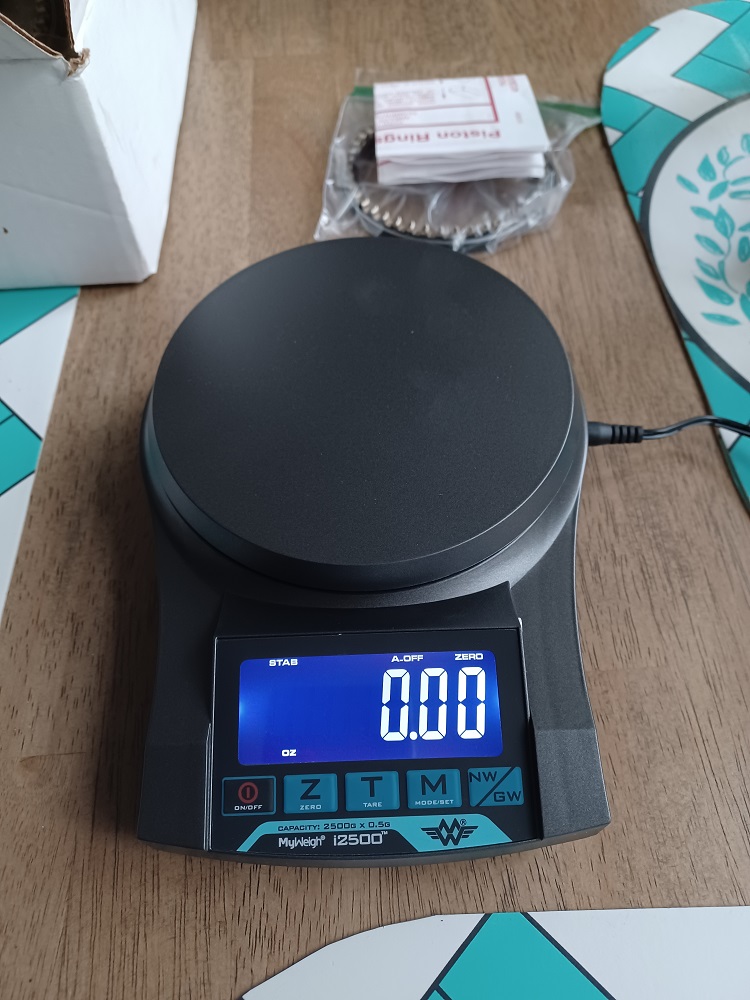

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
