> D - Jetronic female connector
56kabrio
post Jul 28 2024, 12:44 PM
Post #61


Member
**

Group: Members
Posts: 57
Joined: 1-December 05
From: Nashville, TN
Member No.: 5,219
Region Association: None



I’ll go with option 3 as well.

Thanks

Mack
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jim C
post Jul 29 2024, 07:50 AM
Post #62


Member
**

Group: Members
Posts: 206
Joined: 11-July 19
From: Texas
Member No.: 23,294
Region Association: Southwest Region



I'll go with option 3.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jul 30 2024, 10:30 AM
Post #63


914 Wiring Harnesses
*****

Group: Members
Posts: 8,704
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



Thanks all, for the interest. I will send out individual PMs today with payment details. Need to order a few more sets to accommodate everyone.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FlacaProductions
post Jul 30 2024, 11:31 AM
Post #64


Senior Member
***

Group: Members
Posts: 1,775
Joined: 24-November 17
From: LA
Member No.: 21,628
Region Association: Southern California



Thanks, Jeff - what crimper is needed?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jul 30 2024, 03:53 PM
Post #65


914 Wiring Harnesses
*****

Group: Members
Posts: 8,704
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



QUOTE(FlacaProductions @ Jul 30 2024, 10:31 AM) *

Thanks, Jeff - what crimper is needed?


Loaded question! A bit like asking what the best oil is.... (IMG:style_emoticons/default/wink.gif)


This one or similar should be sufficient for this job: https://www.waytekwire.com/product/crimper-...-metri-pack-150
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jul 30 2024, 04:13 PM
Post #66


914 Wiring Harnesses
*****

Group: Members
Posts: 8,704
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



I have PM'd everyone that indicated an interest in these, with payment details.

For anyone else interested, please contact me.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jul 30 2024, 04:14 PM
Post #67


914 Wiring Harnesses
*****

Group: Members
Posts: 8,704
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



Sorry, redundant post.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jul 31 2024, 11:04 AM
Post #68


914 Wiring Harnesses
*****

Group: Members
Posts: 8,704
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



Thanks all, payments received and additional parts ordered to be delivered on Monday to fill the orders.

Mailing today to Mack, Quinn, James and Brian
Mailing first of next week to Rick and Robert

Looking forward, I can make these connector kits available to others with a 123 Distributor running D-Jet, please contact me by PM to make arrangements.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FlacaProductions
post Jul 31 2024, 11:14 AM
Post #69


Senior Member
***

Group: Members
Posts: 1,775
Joined: 24-November 17
From: LA
Member No.: 21,628
Region Association: Southern California



I guess the more accurate question is what type of connections are being crimped?
are we putting pins wires or?? What is the proper type of tool for the job?

QUOTE(JeffBowlsby @ Jul 30 2024, 02:53 PM) *

QUOTE(FlacaProductions @ Jul 30 2024, 10:31 AM) *

Thanks, Jeff - what crimper is needed?


Loaded question! A bit like asking what the best oil is.... (IMG:style_emoticons/default/wink.gif)


This one or similar should be sufficient for this job: https://www.waytekwire.com/product/crimper-...-metri-pack-150

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jul 31 2024, 11:58 AM
Post #70


914 Wiring Harnesses
*****

Group: Members
Posts: 8,704
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



QUOTE(FlacaProductions @ Jul 31 2024, 10:14 AM) *

I guess the more accurate question is what type of connections are being crimped?
are we putting pins wires or?? What is the proper type of tool for the job?

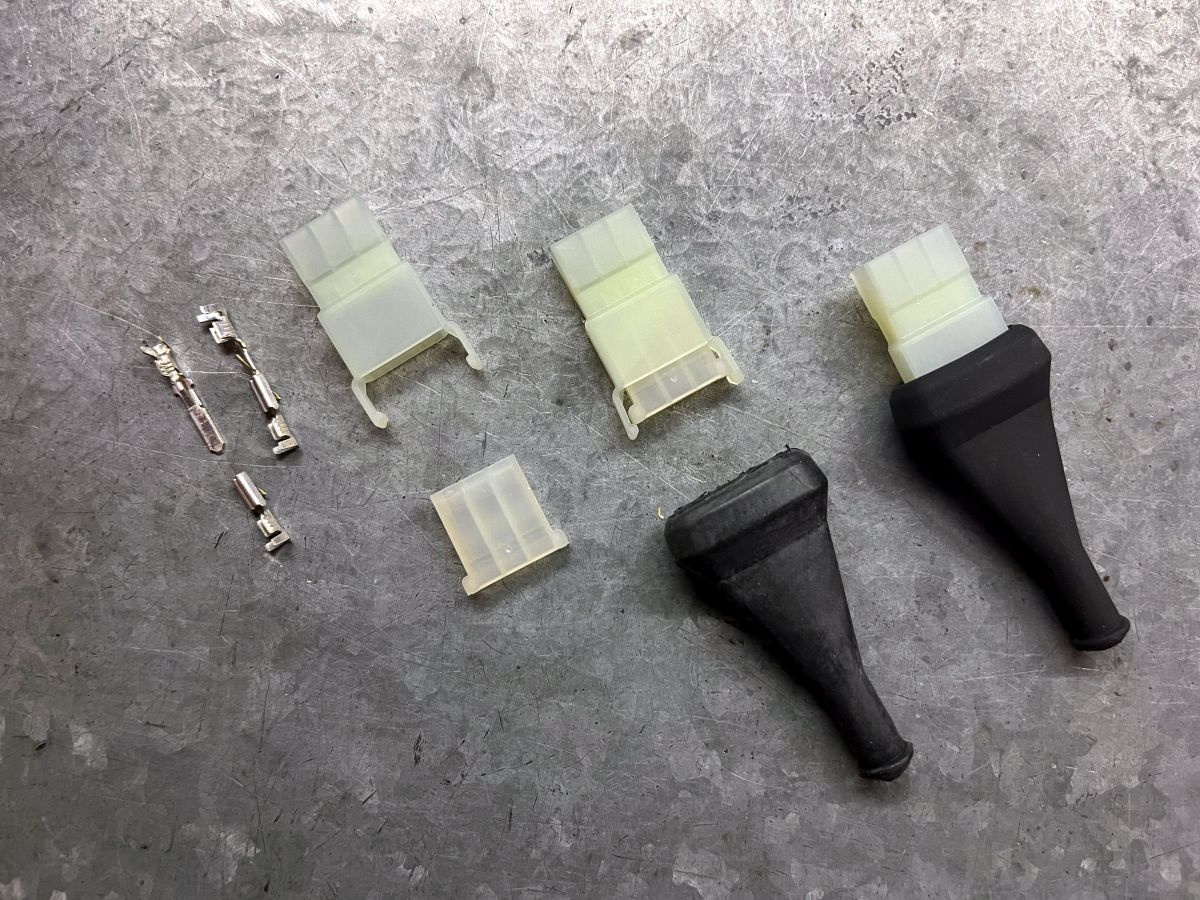

You need to crimp open barrel wire terminals onto the 2 wires on the 123 dizzy for the trigger points. The male terminals in the photo below, which insert into the cavities of the new female housing I am sending you, which mates to the male 3 pole housing on the FI wire harness.

So you need an "open barrel wire terminal crimper tool". You will also need a wire stripper to remove the wire insulation to expose the wire, to install the wire terminal.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FlacaProductions
post Jul 31 2024, 12:26 PM
Post #71


Senior Member
***

Group: Members
Posts: 1,775
Joined: 24-November 17
From: LA
Member No.: 21,628
Region Association: Southern California



Perfect! Thank you, Jeff!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jul 31 2024, 01:02 PM
Post #72


914 Guru
*****

Group: Members
Posts: 6,502
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



QUOTE(JeffBowlsby @ Jul 31 2024, 01:58 PM) *


So you need an "open barrel wire terminal crimper tool".

Cause Jeff’s too nice - I’ll reiterate this doesn’t mean the $5 set of hardware store crimpers you’ve been using with those hokey hardware store red/blue/yellow terminals
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Quinn Moore
post Aug 6 2024, 07:20 PM
Post #73


Qmoore
**

Group: Members
Posts: 116
Joined: 13-July 21
From: Lake Geneva, WI
Member No.: 25,718
Region Association: Upper MidWest



Thanks @jeffbowlsby . Received the kit today. I'll install this weekend.
Your work on this is very appreciated. Takes time and effort.

Thanks again,

QM
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiacra
post Aug 10 2024, 12:30 PM
Post #74


Person.Woman.Man.Camera.TV
**

Group: Members
Posts: 429
Joined: 1-March 19
From: East Bay Region - California
Member No.: 22,920
Region Association: Northern California



I met up with @jeffbowlsby two days ago and he installed his upgrade on both of my 123's. I have one D-Jet and one L-Jet car (1974 2.0 and 1975 1.8) and both distributors are tune +. Obviously the trigger point connections are not an issue on the L-Jet, but protection of the wires, with strain relief and extra protection from heat, are shared potential problems. I'll let Jeff further comment on his technique if he wishes, but at branch points and at the compression nut there are double layers of shrink wrap. For example, both coil wires run together through a length of shrink wrap but at the branch point there is a short length of shrink wrap under the longer length that serves to add extra strain protection. I haven't yet put on ring terminals for the grounds so I left them at the provided length. Instructions say to ground to the battery, but are any of you grounding to another location that you think is cleaner/better? I can trim this later and add the ring terminals. Here are pictures of both distributors:

D-Jet

Attached Image

Attached Image

Attached Image


L-Jet

Attached Image

Attached Image

Attached Image


User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FlacaProductions
post Aug 10 2024, 01:46 PM
Post #75


Senior Member
***

Group: Members
Posts: 1,775
Joined: 24-November 17
From: LA
Member No.: 21,628
Region Association: Southern California



That's fantastic and a great target. I just got back to Indiana and my 914 and found the envelope waiting - as promised.
I'll get on it as soon possible - looks like the perfect solution!

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Aug 11 2024, 06:17 PM
Post #76


914 Wiring Harnesses
*****

Group: Members
Posts: 8,704
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



Thx Broheen, glad you like how it turned out and I think we made a great product even better.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiacra
post Aug 12 2024, 04:07 PM
Post #77


Person.Woman.Man.Camera.TV
**

Group: Members
Posts: 429
Joined: 1-March 19
From: East Bay Region - California
Member No.: 22,920
Region Association: Northern California



QUOTE(JeffBowlsby @ Aug 11 2024, 05:17 PM) *

Thx Broheen, glad you like how it turned out and I think we made a great product even better.


It looks fantastic and even more importantly the wiring and connections are better protected and hopefully will give longer, trouble free service. Thank you again for doing this, and as always it was good to see you.

Now I only have to get off my backside and put them in. Having trouble getting over the psychological aspect of messing with smooth running engines...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
