> 914 GT 3.6 Ferrari Build, - Wiring underway!
Cairo94507
post Feb 7 2025, 08:06 AM
Post #1321


Michael
**********

Group: Members
Posts: 10,257
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
That is looking so sweet! Of course, by now, we all know the extremely high standard Chris holds himself to in everything he does. (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Feb 7 2025, 03:31 PM
Post #1322


Its alive
****

Group: Members
Posts: 4,840
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
What did you use for the 12V pass throughs? They look so clean!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 8 2025, 09:14 AM
Post #1323


914 Guru
*****

Group: Members
Posts: 5,531
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
It's page 67 of the build so how about Episode 67 to match!

https://www.youtube.com/watch?v=jSzbjMKL4rE
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 8 2025, 09:17 AM
Post #1324


914 Guru
*****

Group: Members
Posts: 5,531
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(jd74914 @ Feb 7 2025, 01:31 PM) *

What did you use for the 12V pass throughs? They look so clean!

@jd74914 - Amphenol SurLok connectors. Available in a number of configs and amp ratings. They are very tidy and nicely scratched my OCD itch!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Feb 8 2025, 10:51 AM
Post #1325


Michael
**********

Group: Members
Posts: 10,257
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
That wiring is out of this world tidy. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Feb 10 2025, 12:54 PM
Post #1326


Its alive
****

Group: Members
Posts: 4,840
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
QUOTE(tygaboy @ Feb 8 2025, 10:17 AM) *

QUOTE(jd74914 @ Feb 7 2025, 01:31 PM) *

What did you use for the 12V pass throughs? They look so clean!

@jd74914 - Amphenol SurLok connectors. Available in a number of configs and amp ratings. They are very tidy and nicely scratched my OCD itch!

Locking too, even cooler than I thought, thank you! These look like they'd be pretty cool for someone who trades batteries between cars too.

Guess I've been out of the game too long, these look like they've been around a few years too. (IMG:style_emoticons/default/laugh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 13 2025, 06:59 PM
Post #1327


914 Guru
*****

Group: Members
Posts: 5,531
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

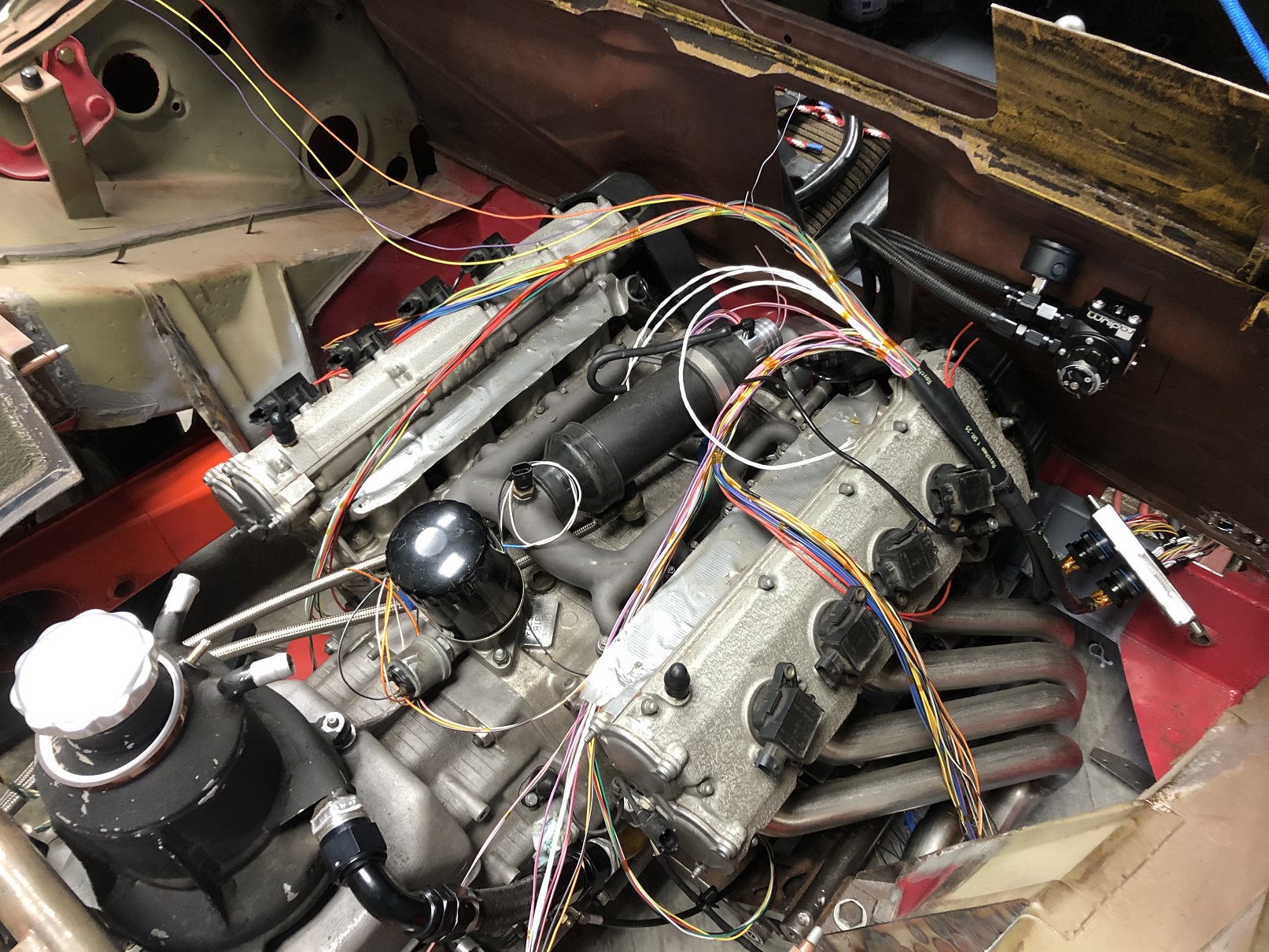

It may not look like it but that there wiring now has all the needed sensor wiring and is essentially ready to be sheathed. Then all the wires get pinned and connectors added.
After a LOT of time, I'm nearly there.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 13 2025, 07:06 PM
Post #1328


914 Guru
*****

Group: Members
Posts: 5,531
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

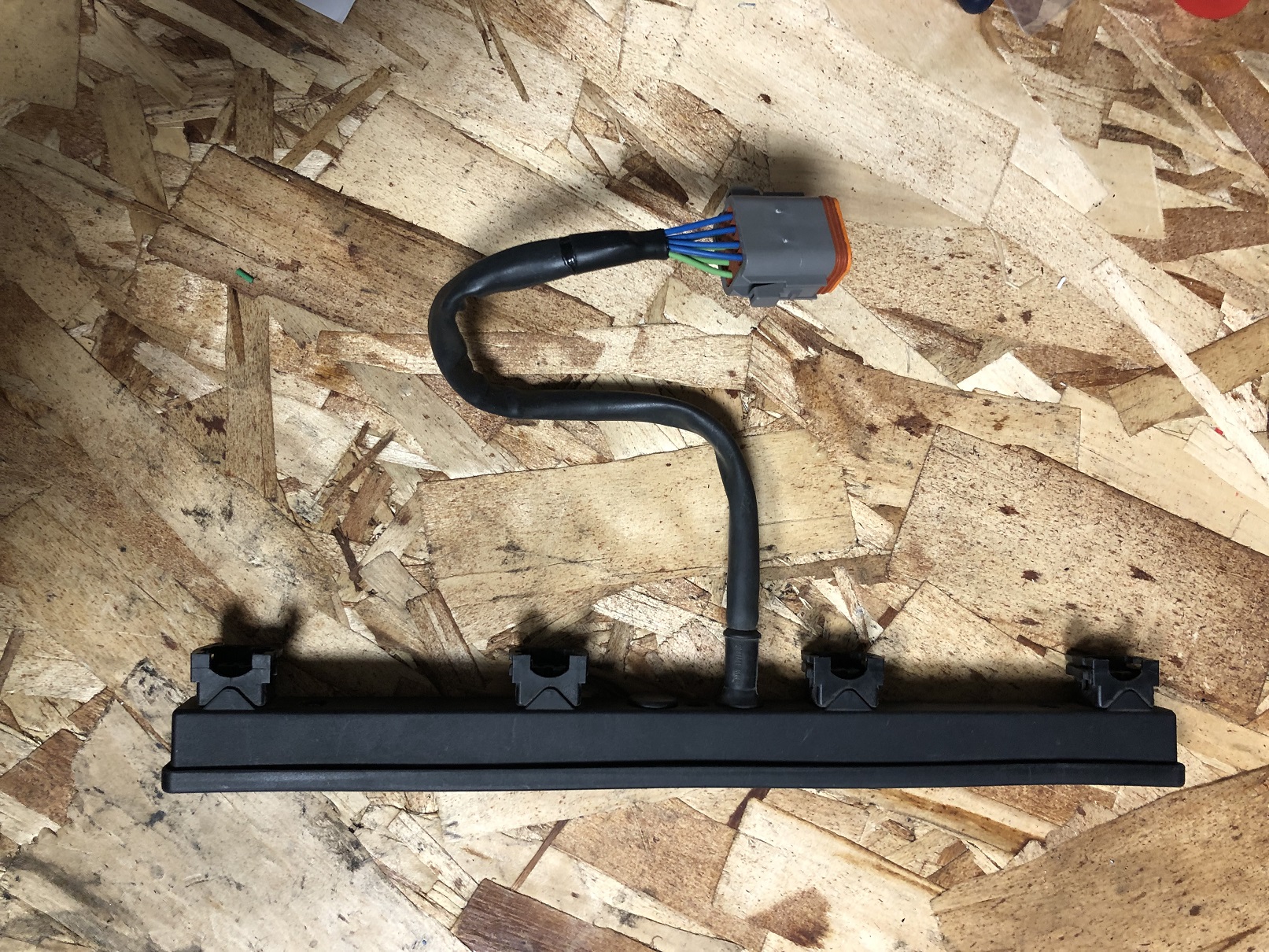

Old meets new: That's a Ferrari 360 injector bank "connector" that I cut off the factory harness. Then I worked out the needed length and added a Deutsch connetor.

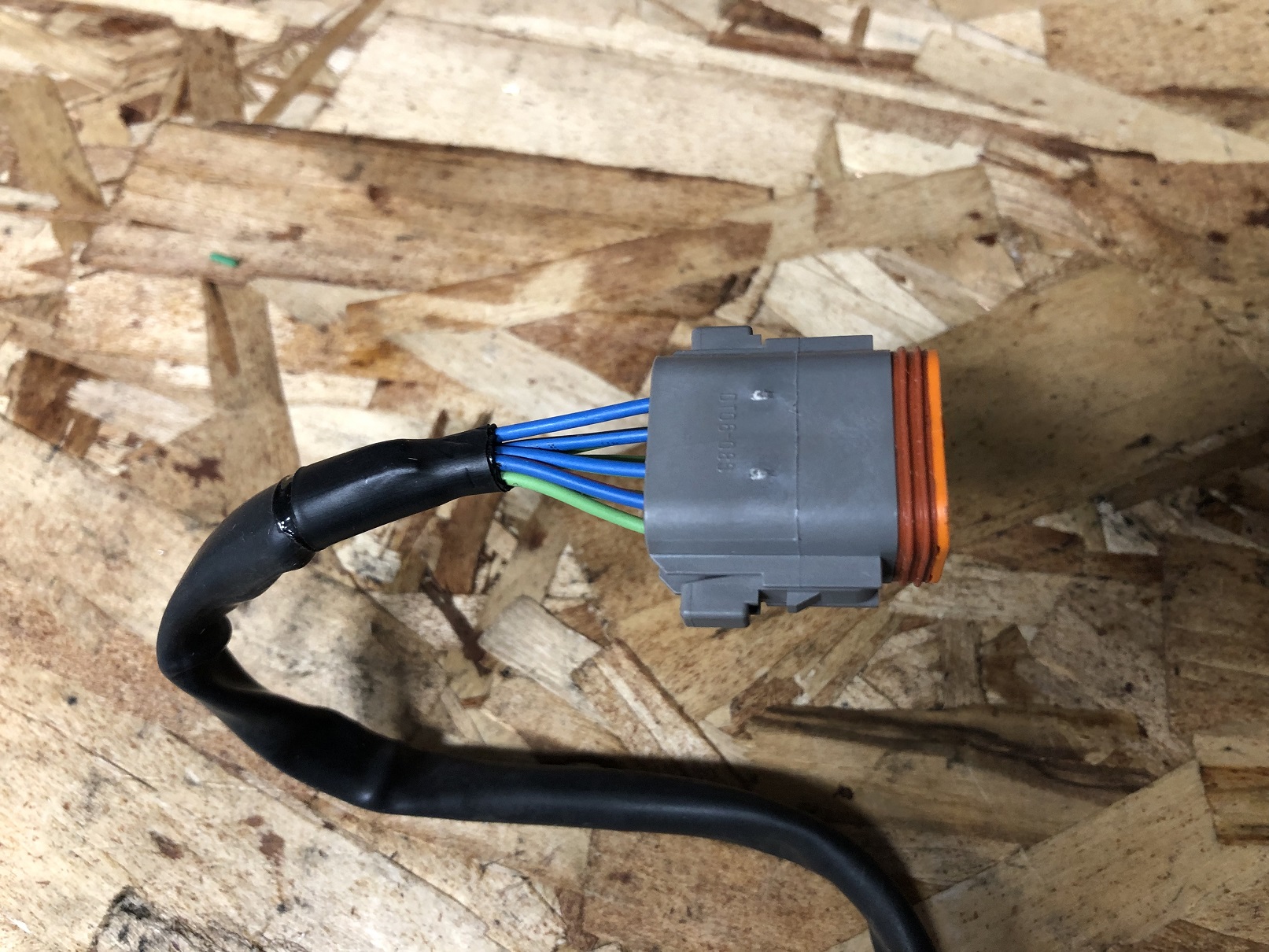

The close-up shows how the Raychem SCL heat shrink tubing adhesive seals once it's recovered.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Feb 13 2025, 07:40 PM
Post #1329


914 Wiring Harnesses
*****

Group: Members
Posts: 8,846
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Are the exposed portions of the wires in a high heat environment?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 13 2025, 10:47 PM
Post #1330


914 Guru
*****

Group: Members
Posts: 5,531
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(JeffBowlsby @ Feb 13 2025, 05:40 PM) *

Are the exposed portions of the wires in a high heat environment?

@JeffBowlsby - Hey Jeff. No. In the case of the injector bank connector pictured, both those connectors will live under the intake plenum. The harness is supported by p-clamps that hold it off the inside of the intake manifold and I do all I can to route everything such that it's away from any high heat sources. If there's any question, that area gets wrapped in heat blanket and/or the source gets a shield.
Same approach as I used on the LS build and that's worked out well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Feb 14 2025, 11:36 AM
Post #1331


914 Wiring Harnesses
*****

Group: Members
Posts: 8,846
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
QUOTE(tygaboy @ Feb 13 2025, 08:47 PM) *

QUOTE(JeffBowlsby @ Feb 13 2025, 05:40 PM) *

Are the exposed portions of the wires in a high heat environment?

@JeffBowlsby - Hey Jeff. No. In the case of the injector bank connector pictured, both those connectors will live under the intake plenum. The harness is supported by p-clamps that hold it off the inside of the intake manifold and I do all I can to route everything such that it's away from any high heat sources. If there's any question, that area gets wrapped in heat blanket and/or the source gets a shield.
Same approach as I used on the LS build and that's worked out well.


Awesome Chris...thank you for the response. Just wanted to be sure you were onto it.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 15 2025, 06:23 PM
Post #1332


914 Guru
*****

Group: Members
Posts: 5,531
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

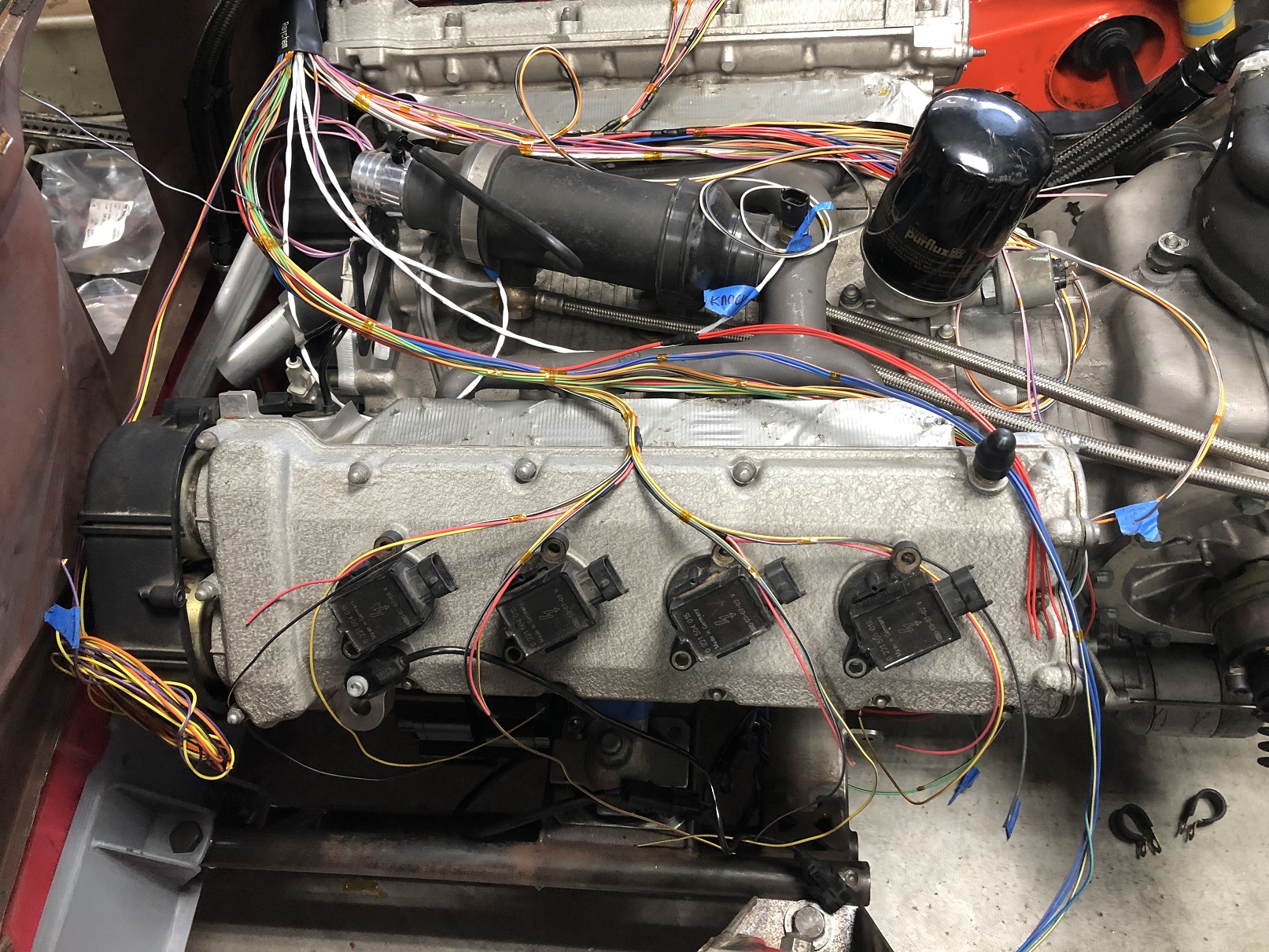

Cylinders 8, 7, 6, 5 (left to right). The ignition and injection branches are coming together nicely. But, man, is this taking a lot longer than I'd have imagined.
That said, I do find it a very Zen process, once I'm in the zone.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 22 2025, 08:34 AM
Post #1333


914 Guru
*****

Group: Members
Posts: 5,531
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
You must be thinking the wiring will never be done. Me too! (IMG:style_emoticons/default/biggrin.gif)

https://www.youtube.com/watch?v=r4mQ8U33EPk
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Feb 22 2025, 09:39 AM
Post #1334


Advanced Member
****

Group: Members
Posts: 4,795
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
All I see is spaghetti!

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Feb 23 2025, 09:55 AM
Post #1335


Michael
**********

Group: Members
Posts: 10,257
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
(IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/popcorn[1].gif) (IMG:style_emoticons/default/beer3.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 4 2025, 10:36 AM
Post #1336


914 Guru
*****

Group: Members
Posts: 5,531
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Why yes, it is a 914. Why do you ask? (IMG:style_emoticons/default/happy11.gif)

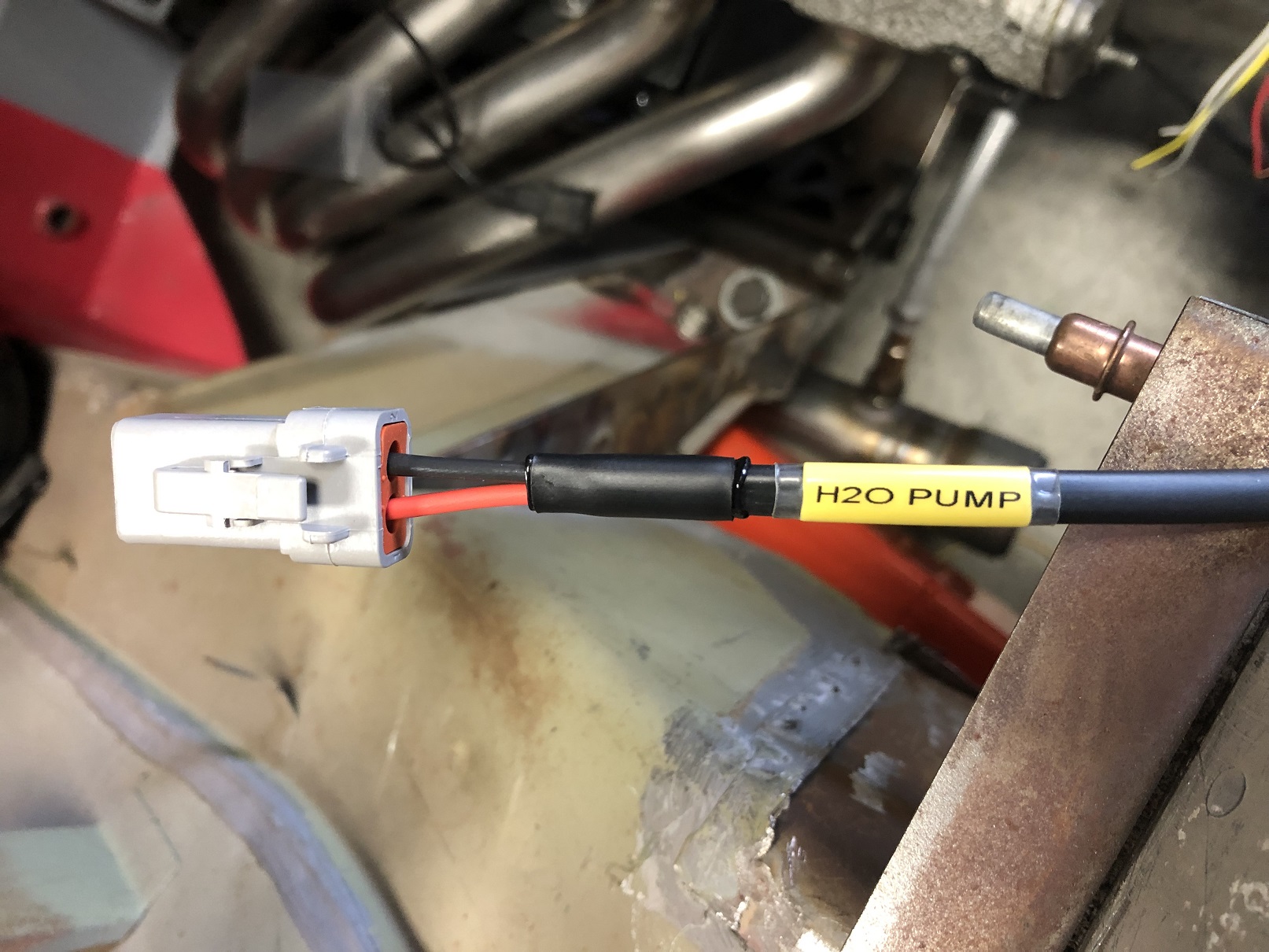

The engine harness is nearly complete. Well, version 1 anyway...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 4 2025, 08:29 PM
Post #1337


914 Guru
*****

Group: Members
Posts: 8,282
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Electric water pump? Don't them eye-talion motors come with a good ol' fan belt and pump on the front of the block?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 6 2025, 09:51 AM
Post #1338


914 Guru
*****

Group: Members
Posts: 5,531
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(bkrantz @ Mar 4 2025, 06:29 PM) *

Electric water pump? Don't them eye-talion motors come with a good ol' fan belt and pump on the front of the block?

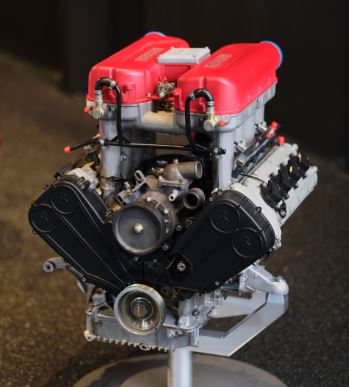

@bkrantz - They do. But I wanted that space at the top / front of the engine for routing other stuff. Freedom to mount the electric means it's a bit simpler and tidier to plumb, too.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve
post Mar 6 2025, 10:05 AM
Post #1339


914 Guru
*****

Group: Members
Posts: 5,823
Joined: 14-June 03
From: Orange County, CA
Member No.: 822
Region Association: Southern California
QUOTE(tygaboy @ Mar 6 2025, 07:51 AM) *

QUOTE(bkrantz @ Mar 4 2025, 06:29 PM) *

Electric water pump? Don't them eye-talion motors come with a good ol' fan belt and pump on the front of the block?

@bkrantz - They do. But I wanted that space at the top / front of the engine for routing other stuff. Freedom to mount the electric means it's a bit simpler and tidier to plumb, too.

AC compressor is a common replacement for the stock water pump.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 6 2025, 09:38 PM
Post #1340


914 Guru
*****

Group: Members
Posts: 8,282
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(tygaboy @ Mar 6 2025, 08:51 AM) *

QUOTE(bkrantz @ Mar 4 2025, 06:29 PM) *

Electric water pump? Don't them eye-talion motors come with a good ol' fan belt and pump on the front of the block?

@bkrantz - They do. But I wanted that space at the top / front of the engine for routing other stuff. Freedom to mount the electric means it's a bit simpler and tidier to plumb, too.


That looks a bit different from my Chevy small block. (IMG:style_emoticons/default/blink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
