> 914 GT 3.6 Ferrari Build, - Mechanicals coming along, electronics soon!
tygaboy
post Mar 12 2023, 09:18 AM
Post #701


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Here's one about the final steps to getting that first side header completed.
Now Subscribe, you cheap bastards! (IMG:style_emoticons/default/happy11.gif)

https://www.youtube.com/watch?v=MhuF25IIWxw
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Mar 12 2023, 12:01 PM
Post #702


Advanced Member
****

Group: Members
Posts: 4,842
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
Chris, for the Enzo crowd at the Cars + Caffeine
'Reveal'...display a box of Velveeta + bottle of Night Train; you know for the hard core Wine & Cheese crowd (IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/biggrin.gif)
(IMG:style_emoticons/default/marty914.jpg)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Mar 12 2023, 01:10 PM
Post #703


Michael
**********

Group: Members
Posts: 10,089
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
This is just amazing work. For those who have not met Chris, he is one of the most humble, considerate guys you will ever meet. He would literally give you the shirt off his back, I believe. I am always in awe when I stop in at the Red Barn. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Mar 12 2023, 01:57 PM
Post #704


914 Guru
*****

Group: Members
Posts: 7,252
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Chris those are f1 style merges and the term is the reverse cone as to what you referred to as the pickle if I heard that correctly.

Looking great
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgp4591
post Mar 12 2023, 05:10 PM
Post #705


914 Guru
*****

Group: Members
Posts: 5,481
Joined: 1-August 12
From: Salt Lake City Ut
Member No.: 14,748
Region Association: Intermountain Region
QUOTE(Maltese Falcon @ Mar 12 2023, 11:01 AM) *

Chris, for the Enzo crowd at the Cars + Caffeine
'Reveal'...display a box of Velveeta + bottle of Night Train; you know for the hard core Wine & Cheese crowd (IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/biggrin.gif)
(IMG:style_emoticons/default/marty914.jpg)

Or Cheeze-Whiz and a bottle of Thunderbird, just so they know that we're flexible like that! (IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 12 2023, 05:43 PM
Post #706


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

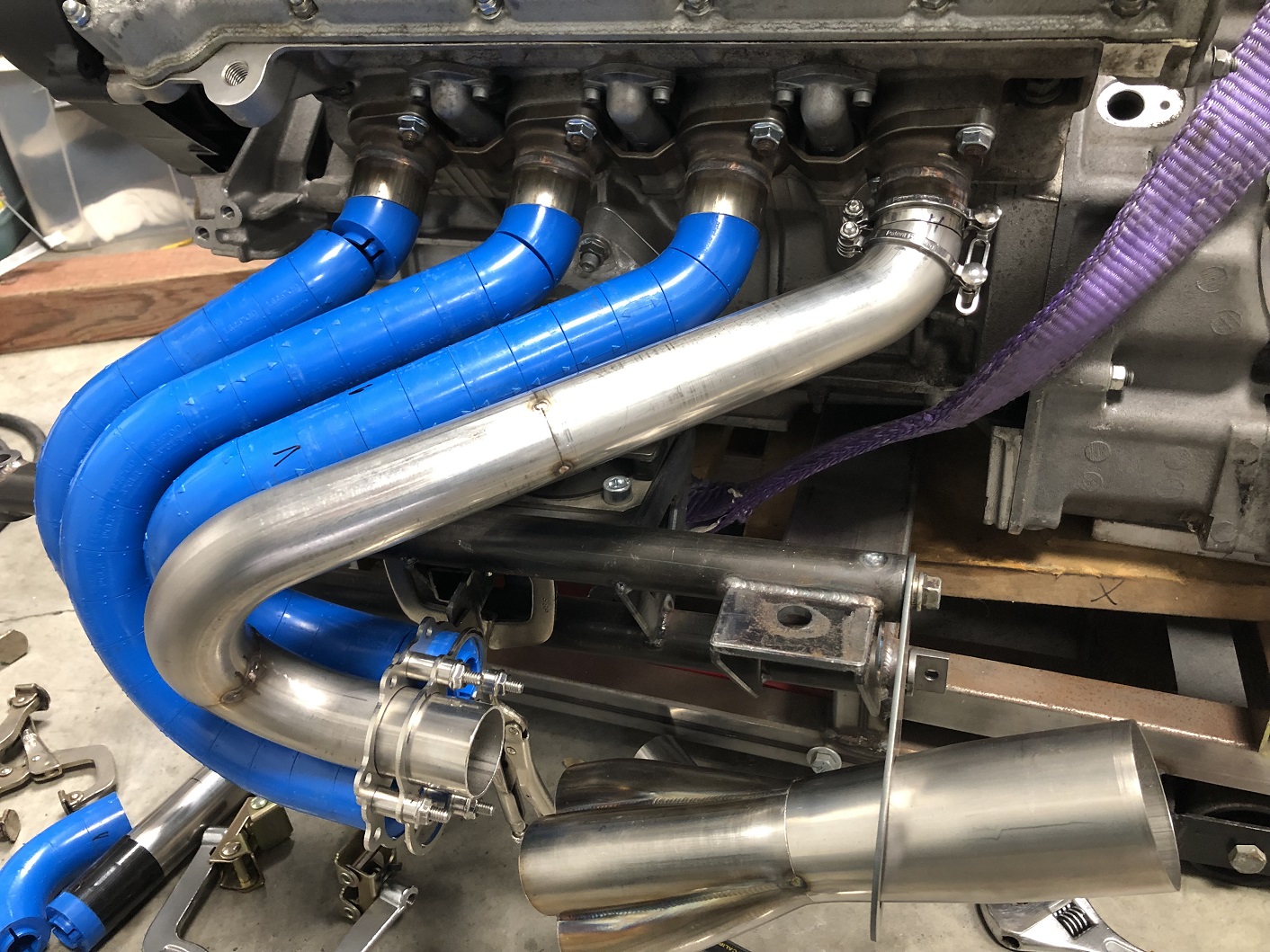

On to the other side. With it modeled, I got the the first tube fit and tacked. The overall model is slightly different, due to the cylinder bank offsets.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 12 2023, 05:47 PM
Post #707


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

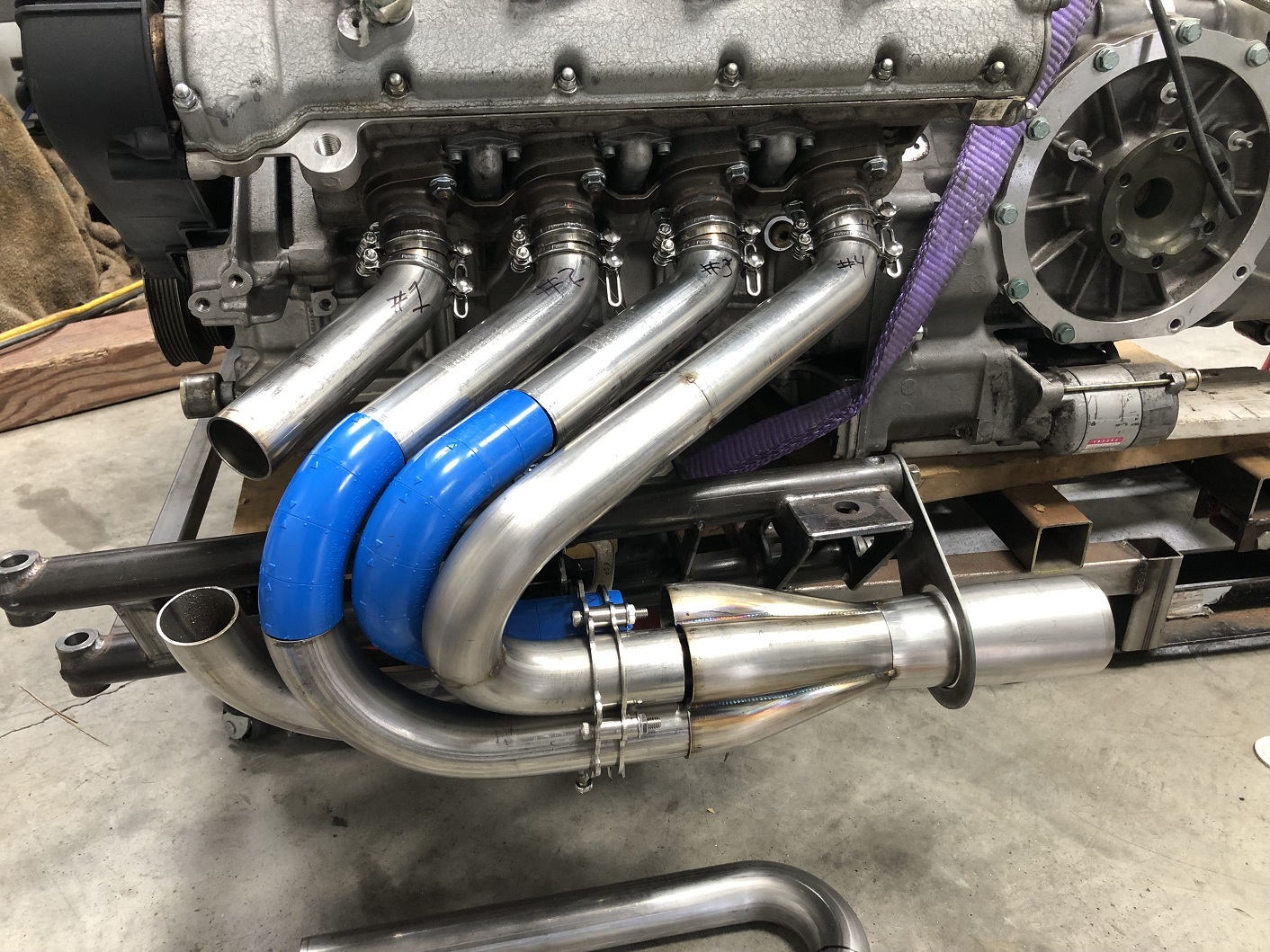

More progress. Just a few tubes left and this side will be set to final weld. Note that the tubes are all cut long at the collector so pay no attention to its fore/aft location. It's positioned to help ensure the tubes stay where I want them. It'll be slid forward to ~1" behind where the collector dummy sits now.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 12 2023, 05:49 PM
Post #708


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Just a fun pic that makes the point of just how long the "air goes in here, through there and out that" path is on this thing.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 12 2023, 07:40 PM
Post #709


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Recommended reading for all 914 owners who work on their own cars...
(IMG:style_emoticons/default/lol-2.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Mar 12 2023, 07:46 PM
Post #710


914 Guru
*****

Group: Members
Posts: 5,504
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
I’ve mastered the book, now I need to start on the car (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 13 2023, 12:42 PM
Post #711


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Let me check the "How to put a Ferrari 360 Drive Train in Your 914" instruction manual.

"Next, just replace the plastic pieces with stainless." Right-O!
(IMG:style_emoticons/default/biggrin.gif)

I ran out of 3" radius bends so it'll be a day or so before I can continue. I'm happy with how it's coming along.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
roundtwo
post Mar 14 2023, 04:58 PM
Post #712


Member
**

Group: Members
Posts: 311
Joined: 9-February 20
From: Petaluma, CA
Member No.: 23,905
Region Association: Central California
QUOTE(tygaboy @ Mar 5 2023, 12:43 PM) *

Best view of the exhaust is had by the inside of the tire! (IMG:style_emoticons/default/laugh.gif)



That's the MONEY shot right there.
Fantastic work Chris
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 14 2023, 05:07 PM
Post #713


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

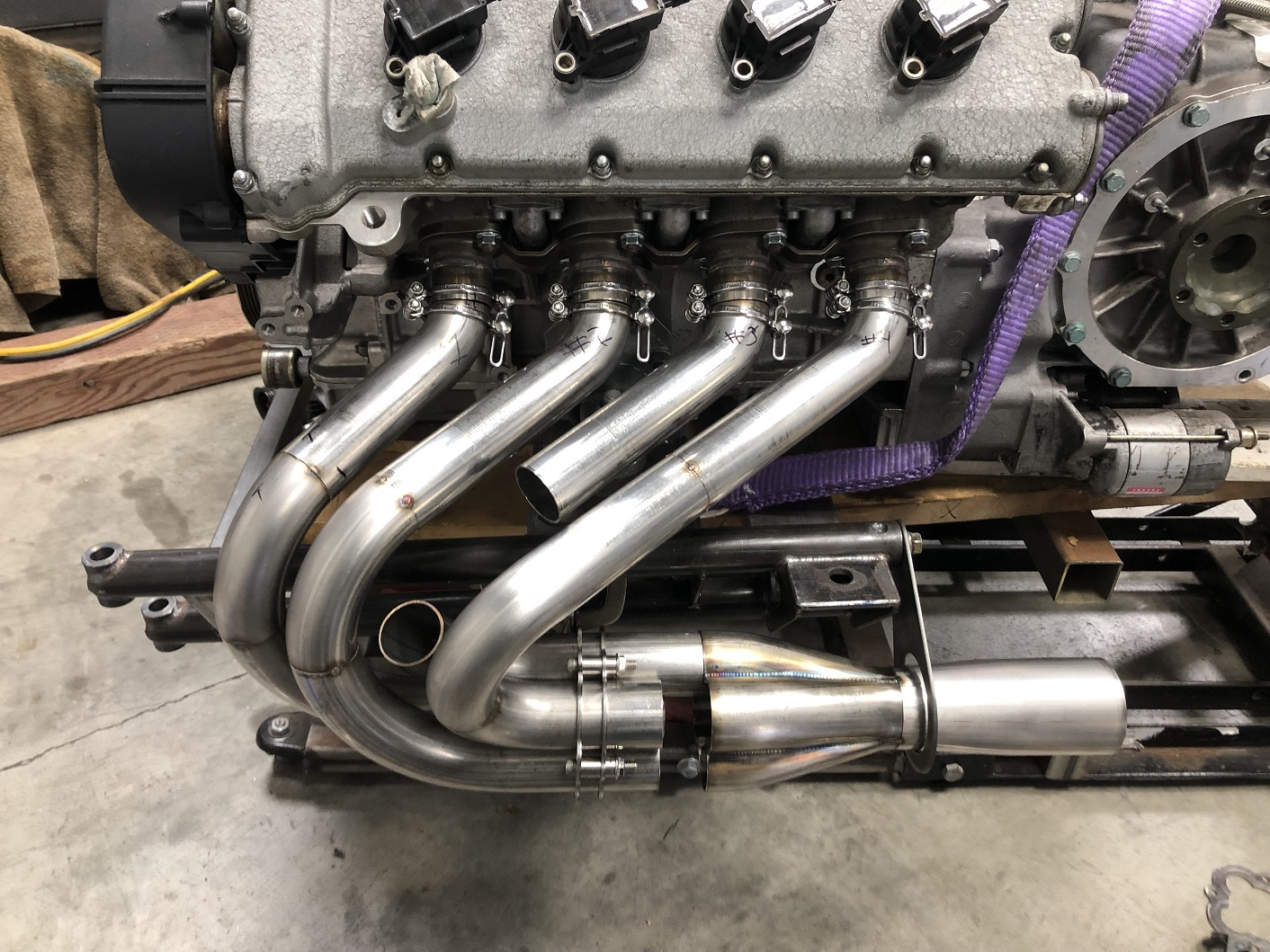

One more bend to trim and fit. Yes, I saved the tricky one for last. More practice ahead of tackling it? Sure, let's go with that! (IMG:style_emoticons/default/blink.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 15 2023, 01:43 PM
Post #714


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
One for the fabrication folks.

This is my first go at headers. I've really been working on a "slow down, be planful, think 2-3 moves ahead" mental state when I'm out in the Red Barn. But I was still pretty nervous about getting the cuts and angles to work out without being all gappy. It looks like a lot of the other metal fab I've been doing ends up translating over to this sort of work - I took my time: test fit, tune the piece A LITTLE, test again, repeat. Focus on sneaking up on the desired fit.

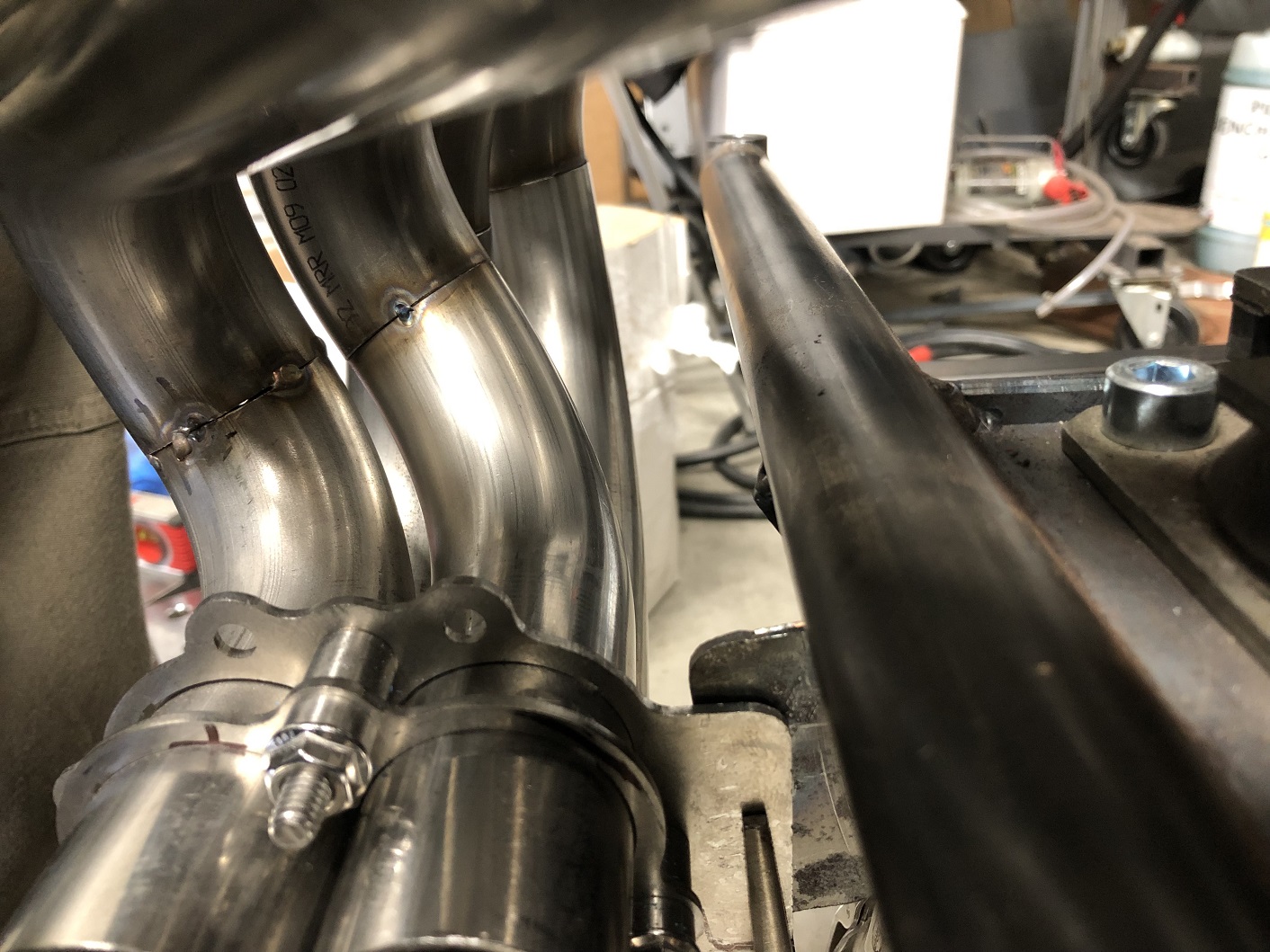

This pic highlights the "tricky" tube, mentioned above. It's the one in the middle. It worked out that it wasn't able to be modeled in plastic so it was all eye-balled and hand trimmed.

I have to say, I impressed myself on this project. No, not perfect. I learned a TON and could immediately do a better job were I to redo things but the errors are likely never going to be noticed without me pointing them out. I'm calling this a success.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 15 2023, 01:46 PM
Post #715


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

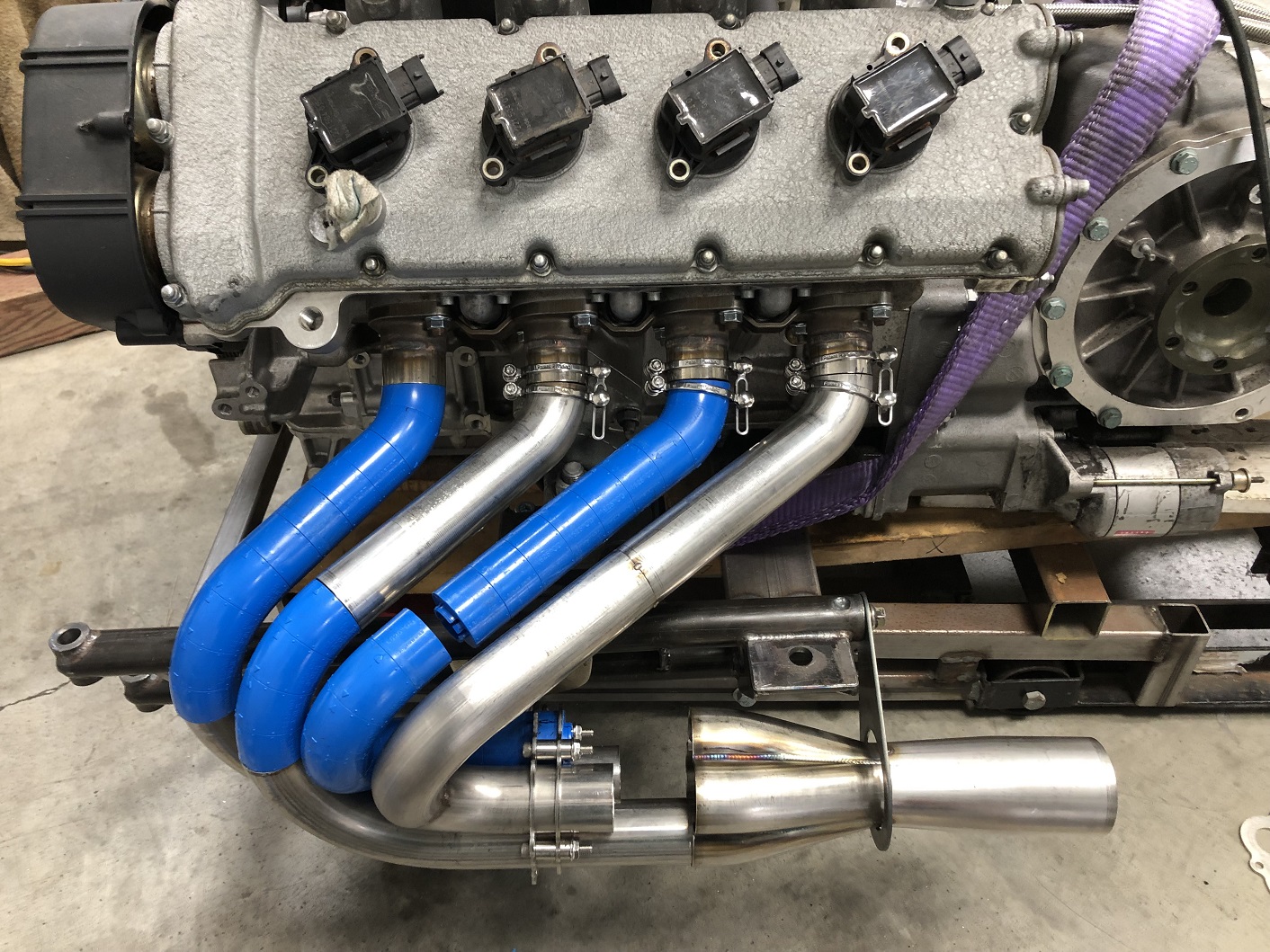

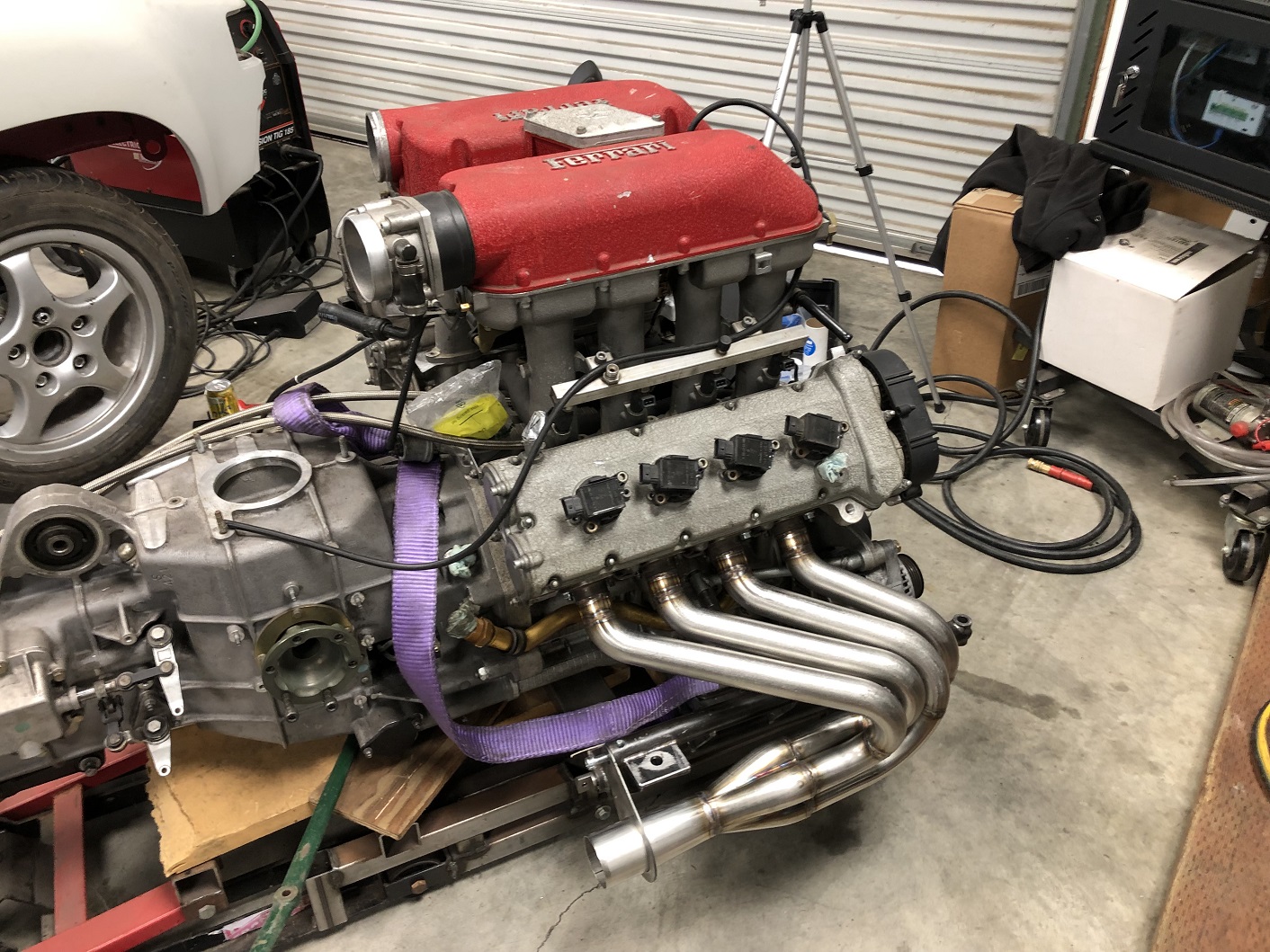

All fit and tacked. Now it's pull things apart and final welding each primary on the bench.
As you saw in the last video, everything is being back-purged when welded.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van B
post Mar 15 2023, 08:13 PM
Post #716


Senior Member
***

Group: Members
Posts: 1,618
Joined: 20-October 21
From: WR, GA
Member No.: 26,011
Region Association: None
Get that furick cup! You’ll love it! Weldmonger.com is run by Jody of welding tips and tricks on youtube. (I love his videos)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
altitude411
post Mar 15 2023, 08:27 PM
Post #717


I drove my 6 into a tree
***

Group: Members
Posts: 1,306
Joined: 21-September 14
From: montana
Member No.: 17,932
Region Association: Rocky Mountains
QUOTE(Van B @ Mar 15 2023, 08:13 PM) *

Get that furick cup! You’ll love it! Weldmonger.com is run by Jody of welding tips and tricks on youtube. (I love his videos)



(IMG:style_emoticons/default/agree.gif) You'll use a bit more gas but so much better and versatile. Well worth it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 16 2023, 09:36 AM
Post #718


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
@van B @altitude411 - I have a gas lens set up. I went back to the regular set up to force me to improve my skills and be sure I wasn't just masking bad habits with the fancy stuff.
Yes, I watch Jody's stuff. And The Fabrication Series and Pacific Arc Tig Welding. Super helpful and between the three of them, and practice, I'm getting there...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van B
post Mar 16 2023, 10:00 AM
Post #719


Senior Member
***

Group: Members
Posts: 1,618
Joined: 20-October 21
From: WR, GA
Member No.: 26,011
Region Association: None
I should've guessed you were a masochist based on your project choices. But, I'd offer that while I agree skills are important, the quality of the product is still the end goal. And if a better tool helps me achieve that end, I'm going with the good stuff. I welded with the old pinkies of every shape and variety the whole time I worked as a welder through my pre-USAF life. But if these furicks had existed then, I would've had one in a heart beat.

Frankly, for being such a tool hound, I'm surprised at your resistance to the suggestion!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Mar 16 2023, 10:06 AM
Post #720


914 Guru
*****

Group: Members
Posts: 6,520
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
Another vote for Furik cup- pricy as can be but they have their place when you need big shielded area and lots of electrode protrusion.
I love my BBW.

Having said that - your progress has been amazing on a very difficult part.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
