> 914 GT 3.6 Ferrari Build, - Mechanicals coming along, electronics soon!
East coaster
post Aug 15 2023, 06:28 PM
Post #801


Senior Member
***

Group: Members
Posts: 1,775
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
Incredible…..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Aug 15 2023, 06:37 PM
Post #802


Resident German
*************************

Group: Admin
Posts: 41,886
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
You should put one of these in the car when you're done ...
(IMG:style_emoticons/default/biggrin.gif)

(IMG:http://www.914world.com/bbs2/uploads_offsite/www.messynessychic.com-179-1692146246.1.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 15 2023, 07:40 PM
Post #803


914 Guru
*****

Group: Members
Posts: 8,142
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Hmm, a 914 with precise shifting is almost as crazy as a 914 with Ferrari power.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
flat4guy
post Aug 15 2023, 08:41 PM
Post #804


Member
**

Group: Members
Posts: 460
Joined: 10-October 16
From: nor cal
Member No.: 20,484
Region Association: Northern California
Chris - looking great. I have not seen the MB in a couple years - good to see you are biting off another project on top of the 914s. haha. Can't wait to stop by again for another look.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 21 2023, 01:44 PM
Post #805


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

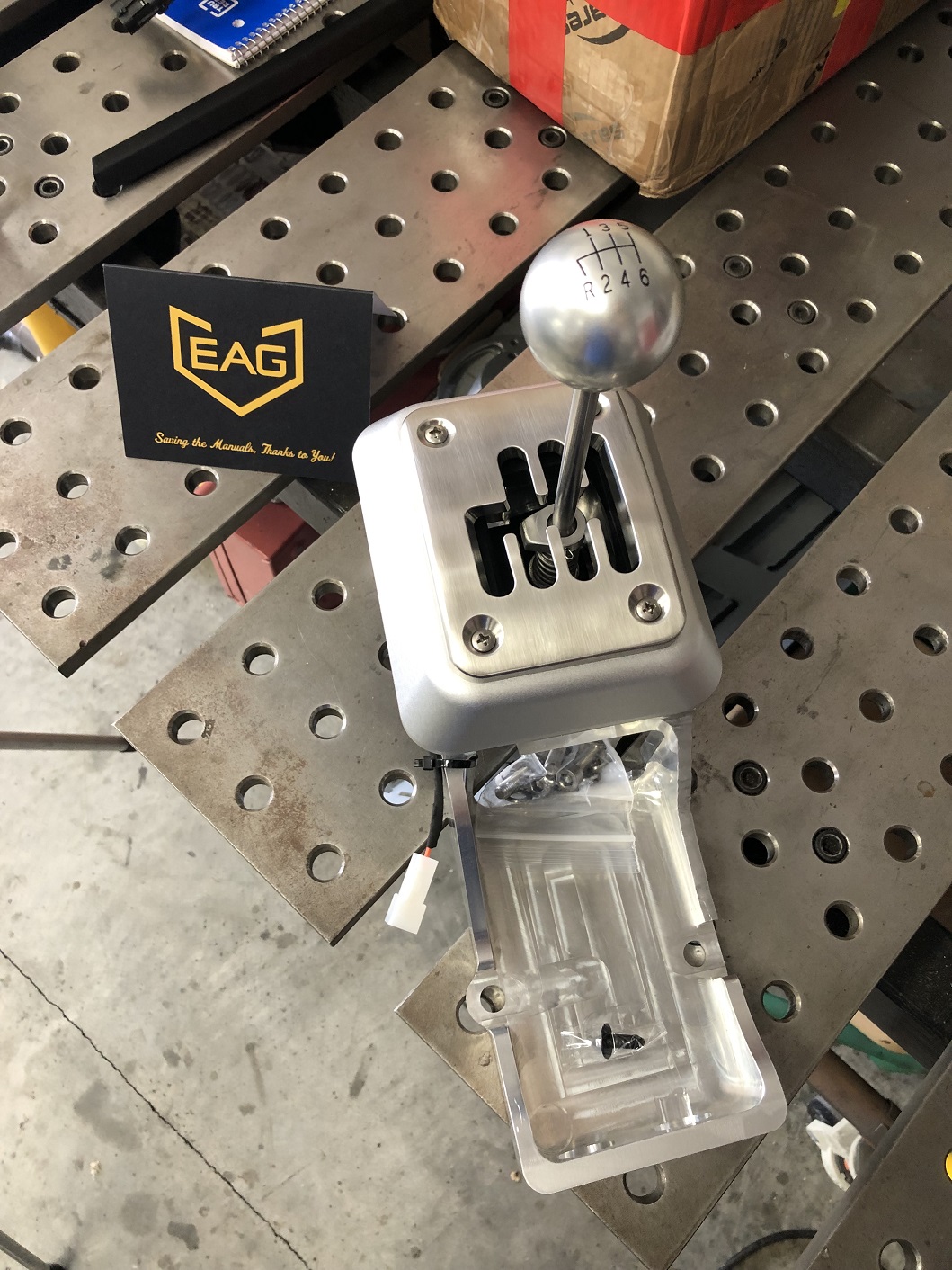

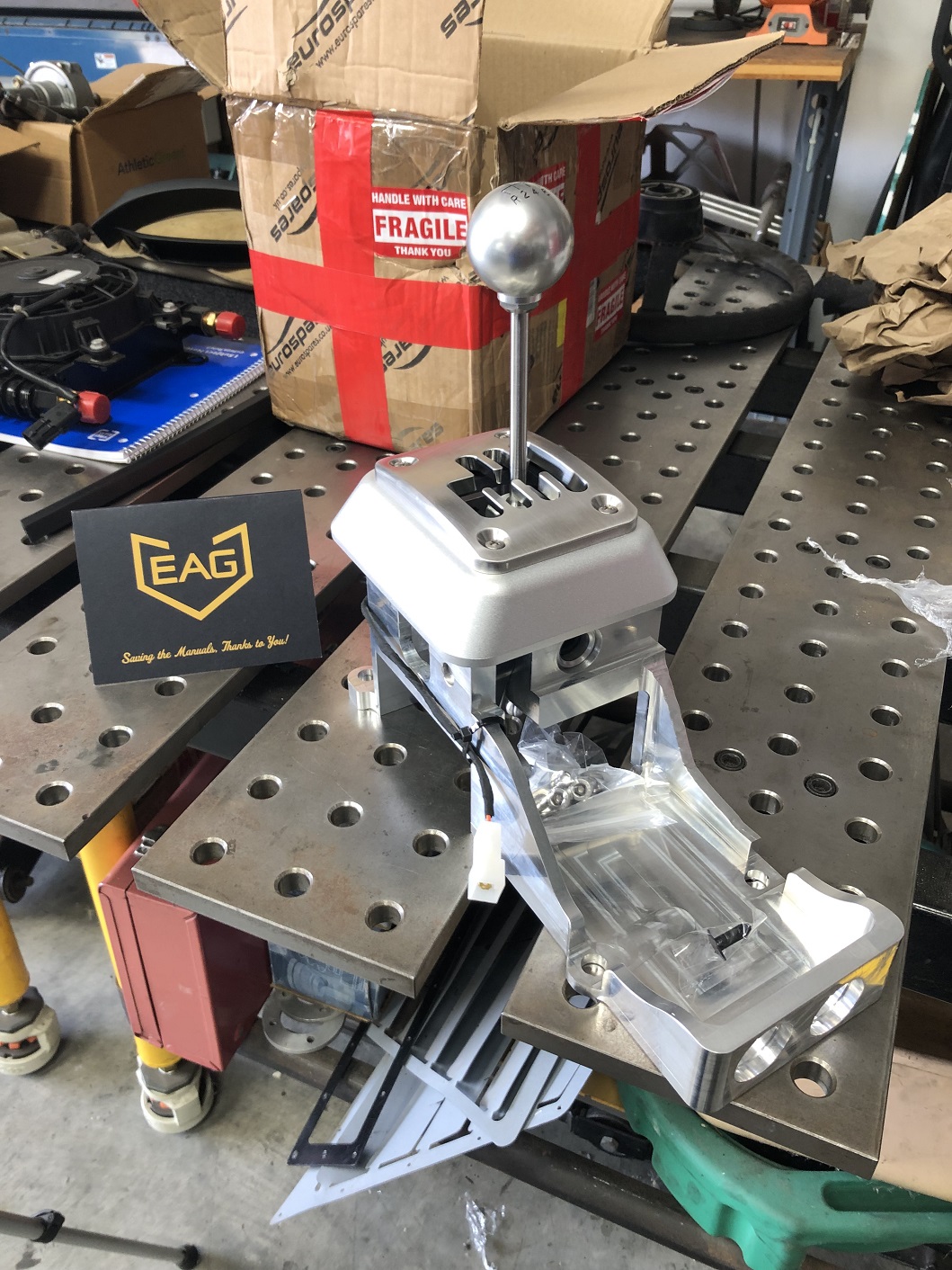

No words needed. Well, OK. But just these words:

This thing is ridiculous. It's even better in real life.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rmarx
post Aug 21 2023, 02:38 PM
Post #806


Member
**

Group: Members
Posts: 96
Joined: 5-June 07
From: Pleasant Hill, CA
Member No.: 7,784
Shifter porn.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van B
post Aug 21 2023, 02:57 PM
Post #807


Senior Member
***

Group: Members
Posts: 1,618
Joined: 20-October 21
From: WR, GA
Member No.: 26,011
Region Association: None
I can’t understand why the aluminum is so thick! It looks like it should be a stressed member in the chassis lol!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 21 2023, 05:49 PM
Post #808


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Official drop on "At the Red Barn" YouTube channel will happen Saturday AM but I thought some of you might enjoy seeing the shifter being unboxed. Yeah, I know, I'm a little bit excited...
Edit on 8/26: Updated link to "official" version:

https://www.youtube.com/watch?v=cRRDEX4xP5w
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Aug 22 2023, 07:55 AM
Post #809


Michael
**********

Group: Members
Posts: 10,088
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
I can't wait to see that shifter in person; it looks amazing in the video. I can imagine it will shift like a rifle bolt. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Aug 22 2023, 09:02 AM
Post #810


Its alive
****

Group: Members
Posts: 4,814
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
That's the OEM part? :wow:
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 22 2023, 09:14 AM
Post #811


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(jd74914 @ Aug 22 2023, 08:02 AM) *

That's the OEM part? :wow:

@jd74914 No. Finding OEM manual shifters/parts is essentially impossible. Ferrari no longer makes the components and not a lot of manuals were made back then. This is a billet aftermarket assembly from EAG out of Round Rock, TX. It's better than factory - so say the Ferraristas who know. It's spectacular.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Aug 22 2023, 09:20 AM
Post #812


Its alive
****

Group: Members
Posts: 4,814
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
Ahh, interesting. Explains the EAG thank you next to it.

That is a beautiful looking part! I'm sure it is better than factory, really looks quite incredible.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Aug 22 2023, 01:16 PM
Post #813


914 Neferati
*****

Group: Members
Posts: 5,088
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
Like a kid at Christmas.....surprised you didn't spend anytime playing with the box. (IMG:style_emoticons/default/biggrin.gif) (IMG:style_emoticons/default/driving.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 22 2023, 02:19 PM
Post #814


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

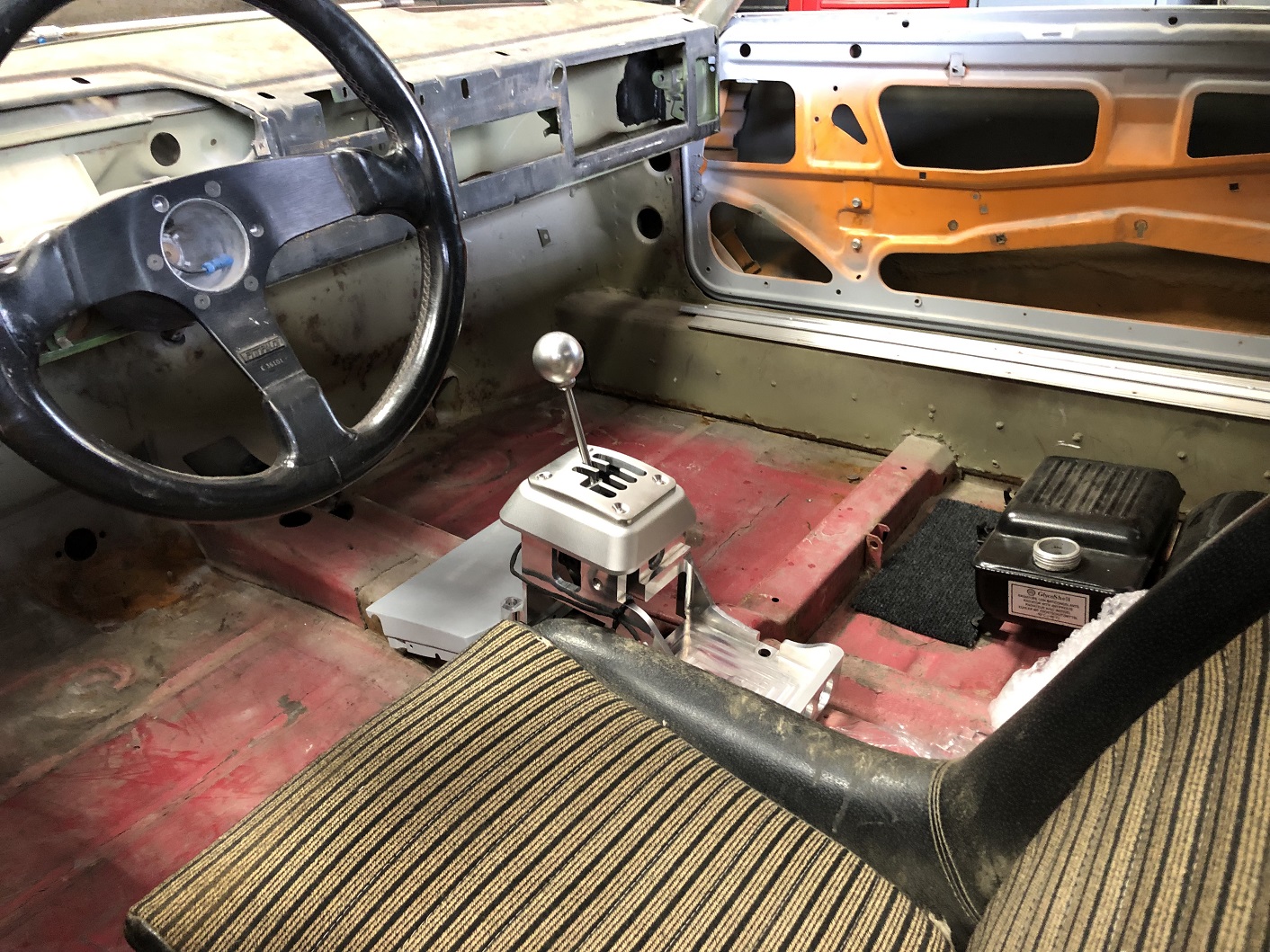

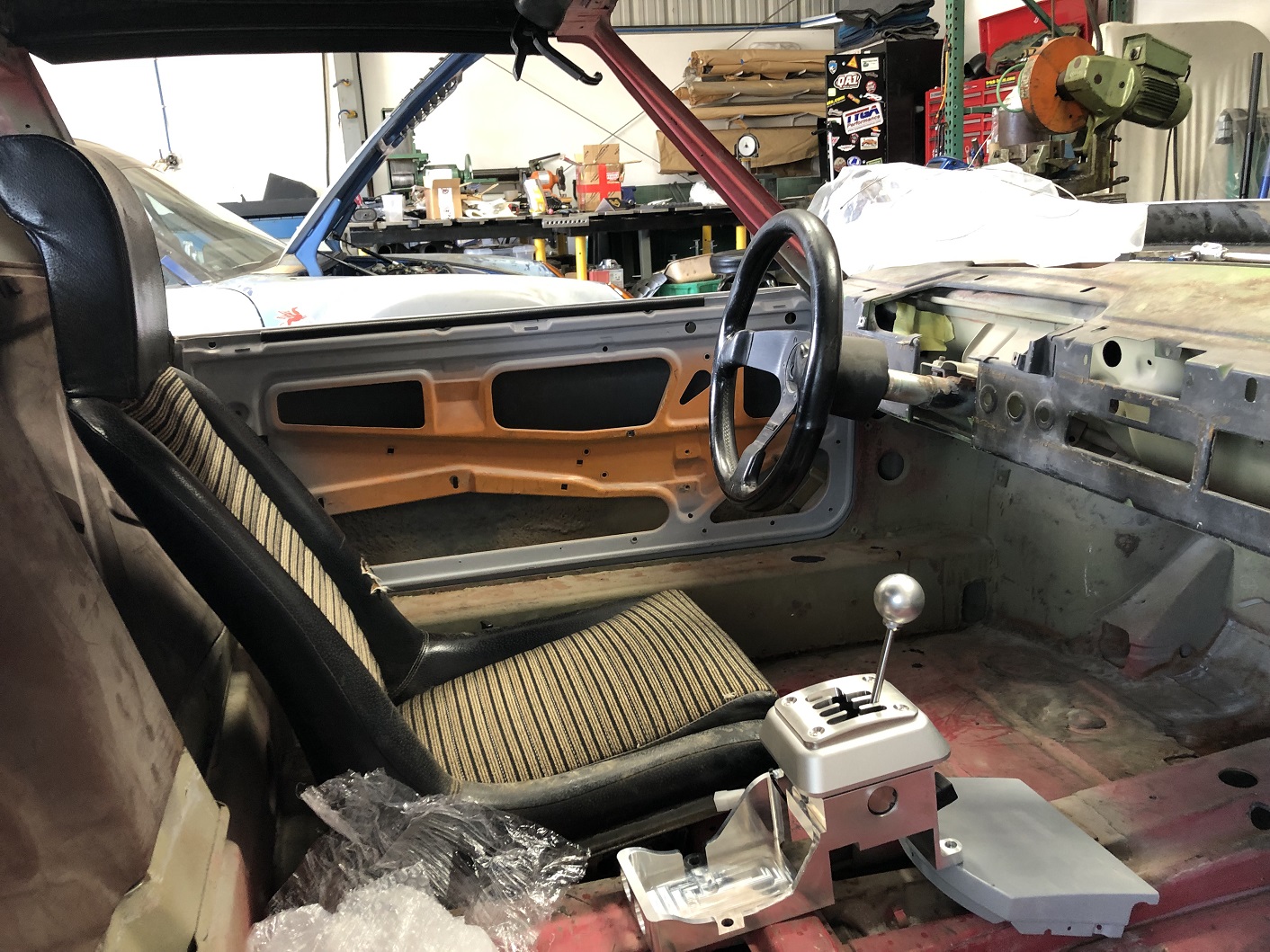

Now to work out the location and orientation. I may add a bit of "up at the front" tilt. Among other things, that helps get the shift cables pointed where I want them. Once I'm settled on that, I'll work out a mounting system. And no, it won't include a headlight cover... (IMG:style_emoticons/default/happy11.gif)
But this is where it starts getting fun: I need to think as many steps ahead as possible and account for all the other systems that need to live under this shifter and be accesible for installation/service/replacement once everything is "done".
I think I'd like to preserve the factory tunnel vs total replacement like I did in my LS car. We'll see.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Aug 22 2023, 02:33 PM
Post #815


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,899
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(tygaboy @ Aug 22 2023, 03:19 PM) *

Now to work out the location and orientation. I may add a bit of "up at the front" tilt. Among other things, that helps get the shift cables pointed where I want them. Once I'm settled on that, I'll work out a mounting system. And no, it won't include a headlight cover... (IMG:style_emoticons/default/happy11.gif)
But this is where it starts getting fun: I need to think as many steps ahead as possible and account for all the other systems that need to live under this shifter and be accesible for installation/service/replacement once everything is "done".
I think I'd like to preserve the factory tunnel vs total replacement like I did in my LS car. We'll see.



You could do what I did and cut a hole in the top of the tunnel, then run the cables out the original holes for the shifter and the speedo cable.

(IMG:http://www.914world.com/bbs2/uploads/post-1143-1604790470.jpg)

That makes it easy to get through the firewall.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Aug 22 2023, 03:57 PM
Post #816


Michael
**********

Group: Members
Posts: 10,088
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
I love that shifter and Clay's idea for the cables. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 22 2023, 04:10 PM
Post #817


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(ClayPerrine @ Aug 22 2023, 01:33 PM) *


You could do what I did and cut a hole in the top of the tunnel, then run the cables out the original holes for the shifter and the speedo cable.

That makes it easy to get through the firewall.


@ClayPerrine Clay - The issue I (may) have is the Ferrari engine location requires I get the cables pointing to the right (passenger) side of the engine before they get through the firewall. I have to get back under the car and verify details now that the headers are in there but as I recall, I can't go under the engine. As with my LS car, the cables need to get past the crank pulley by going outside / above it. So now that I'm thinking about it, I may not want the front tilted up. It'll all work out, one way or another.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Aug 22 2023, 05:04 PM
Post #818


Senior Member
***

Group: Members
Posts: 1,775
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
I like the re-use of the factory headlight cover (IMG:style_emoticons/default/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 24 2023, 06:05 PM
Post #819


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

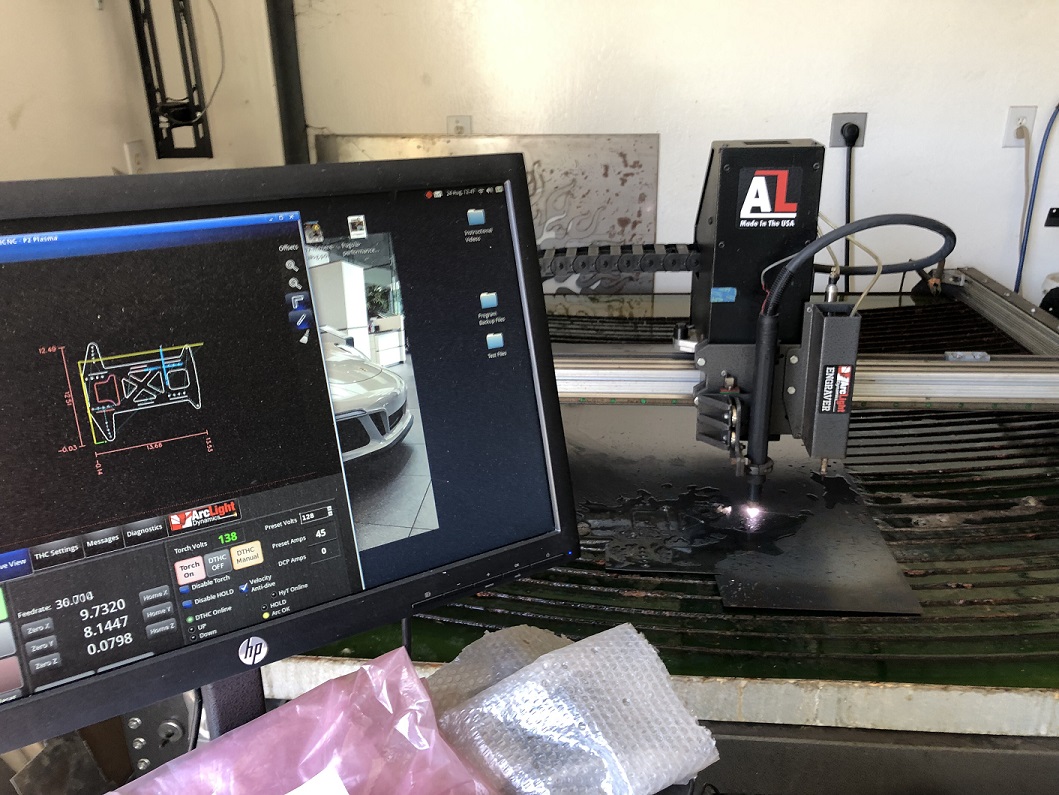

Here's the plasma table earning it's keep cutting V1 of the shifter mount. Anyone surprised it looks a bit more complicated than "just a mount"? (IMG:style_emoticons/default/laugh.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 24 2023, 06:21 PM
Post #820


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

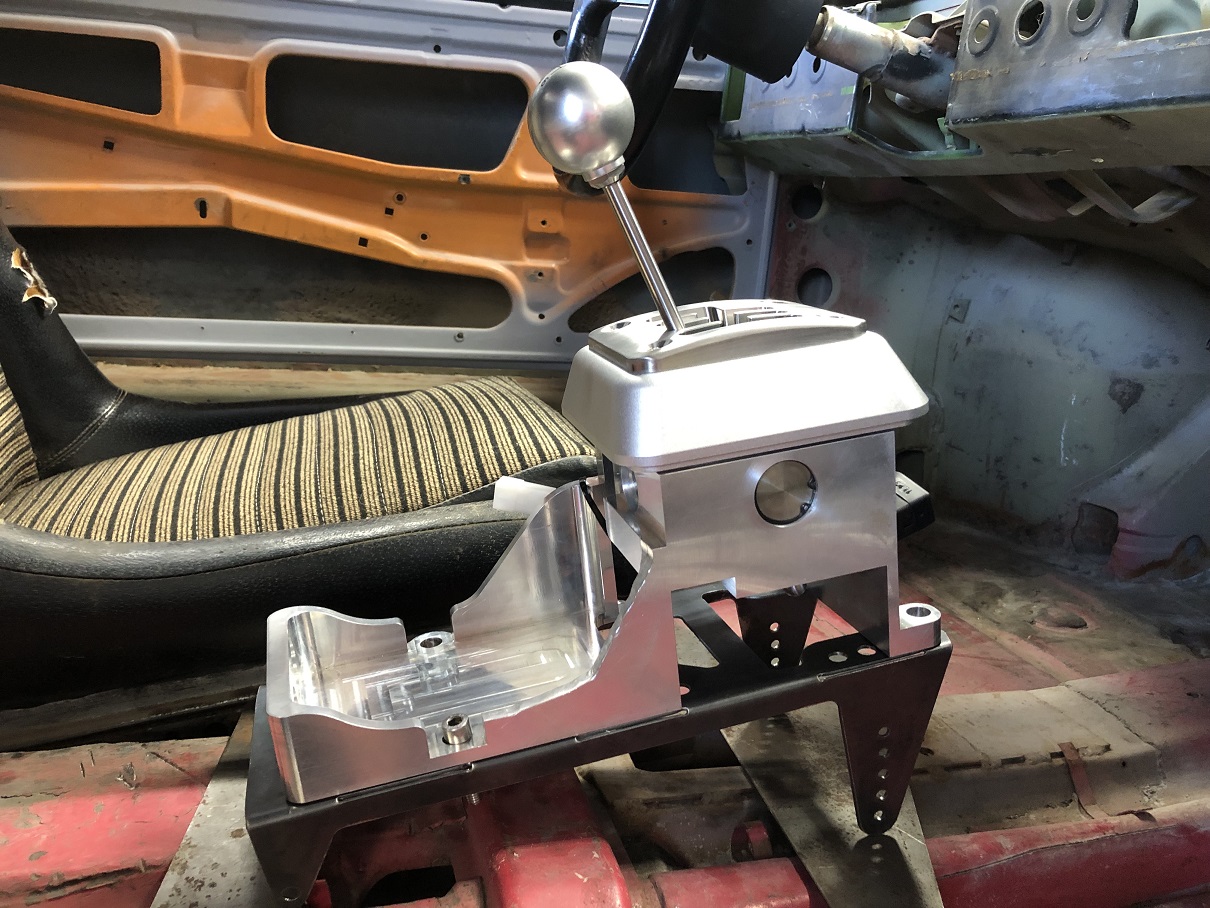

Initial mock up of the shifter base mount.
I figured future drivers of this car may prefer a bit different shifter location so...
There will be tabs welded to the chassis but this mount can rotate around that tab at the rear and tilt from flat to about 2" up at the front, enabled by the series of holes in the front tab.
Of course, when it's tilted, the knob moves up and rearward. So the mount also has a series of holes (you can see them just behind the front shift block mount) that allow for the entire shifter assembly to move forward / back, to best suit the driver. Here it's approximating the highest/most forward position.

Version II is on the drawing table but it's a bit more complicated (and potentially impractical) so it may never happen. It adds knobs to enable real-time adustment of tilt and fore/aft positions. Again, don't hold your breath.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
