Family,
I have learned so much from this site - engine out, valve job, fuel stuff, oil cooler removal, etc etc Does anyone have a rough schematic of the heater components? i.e. fan, heat exchanger, crinkly hose, through engine shelf, blah blah blah. I would really appreciate it. T |
   |

|
| rhodyguy |
Aug 2 2005, 03:35 PM
Post
#2
|
|
Chimp Sanctuary NW. Check it out. Group: Members Posts: 22,193 Joined: 2-March 03 From: Orion's Bell. The BELL! Member No.: 378 Region Association: Galt's Gulch |
pass side. the j-tube, pipe under the fan tube, connects to the s shaped branch duct that is currently off. you need the splitter piece on the aux fan to connect the pass side.
k Attached image(s)
|
|
|
|
| Garland |
Aug 2 2005, 06:30 PM
Post
#3
|
|
Restoration Fanatic Group: Members Posts: 1,397 Joined: 8-January 04 From: ......Michigan...... Member No.: 1,535 Region Association: Upper MidWest
|

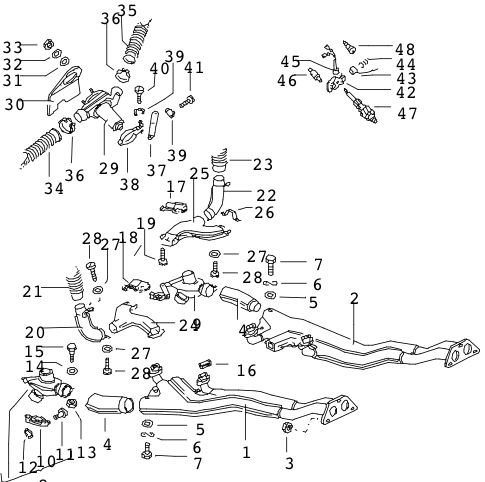

try this
Attached image(s)
|
|
|
|
|
