Need some help. I recently found out the PO put a fuel gauge from what appears to be a 75 and I have a 73. I received a replacement gauge for a 1973, but I would prefer to save time if someone has a diagram or photo on the correct pin placement. I have tried using the search engine, but I can't seem to locate the proper diagram. Can anyone help me out?
Thanks. |
   |

|
| FlacaProductions |
Sep 19 2022, 12:38 PM
Post
#2
|
|
Senior Member Group: Members Posts: 1,775 Joined: 24-November 17 From: LA Member No.: 21,628 Region Association: Southern California
|

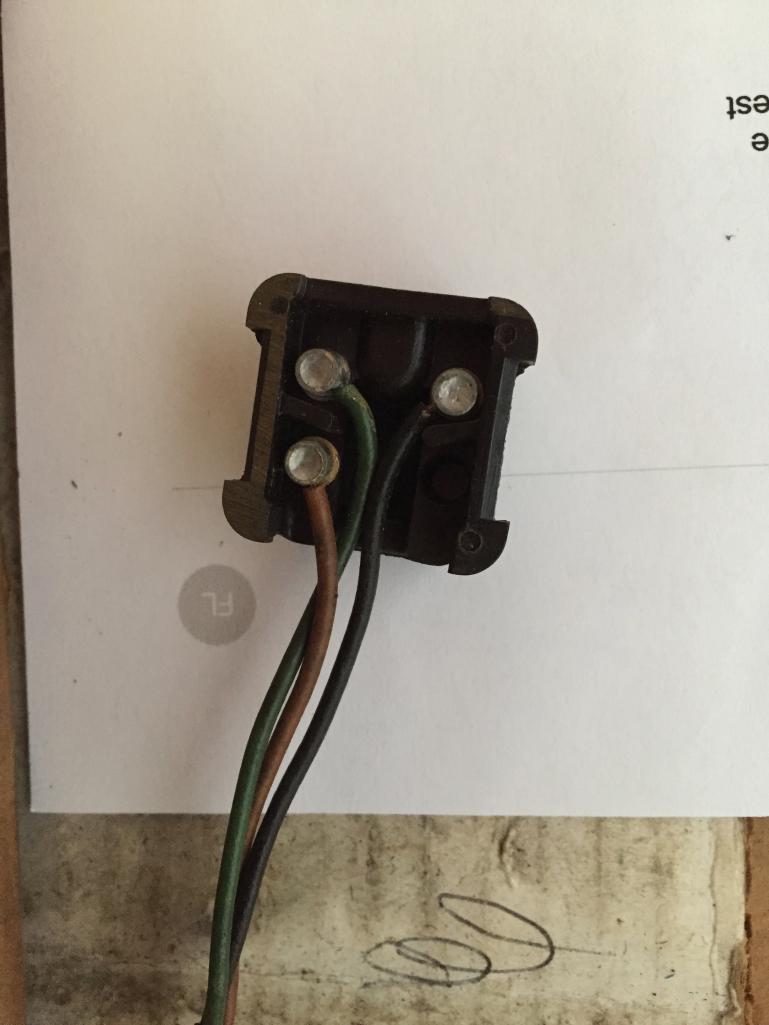

I don't believe that fuel gauges changed over the years other than early have silver dot centers and late have black dots - if that's what you mean. As to pinout - are you referring to the pins on the top of the sender in the front trunk on top of the fuel tank?
 |
|
|
|
| TINCAN914 |
Sep 19 2022, 12:48 PM
Post
#3
|
|
Summer's Commin... Group: Members Posts: 2,440 Joined: 18-August 05 From: Colorado Springs, CO. Member No.: 4,611 Region Association: Rocky Mountains |
Hey Brian,

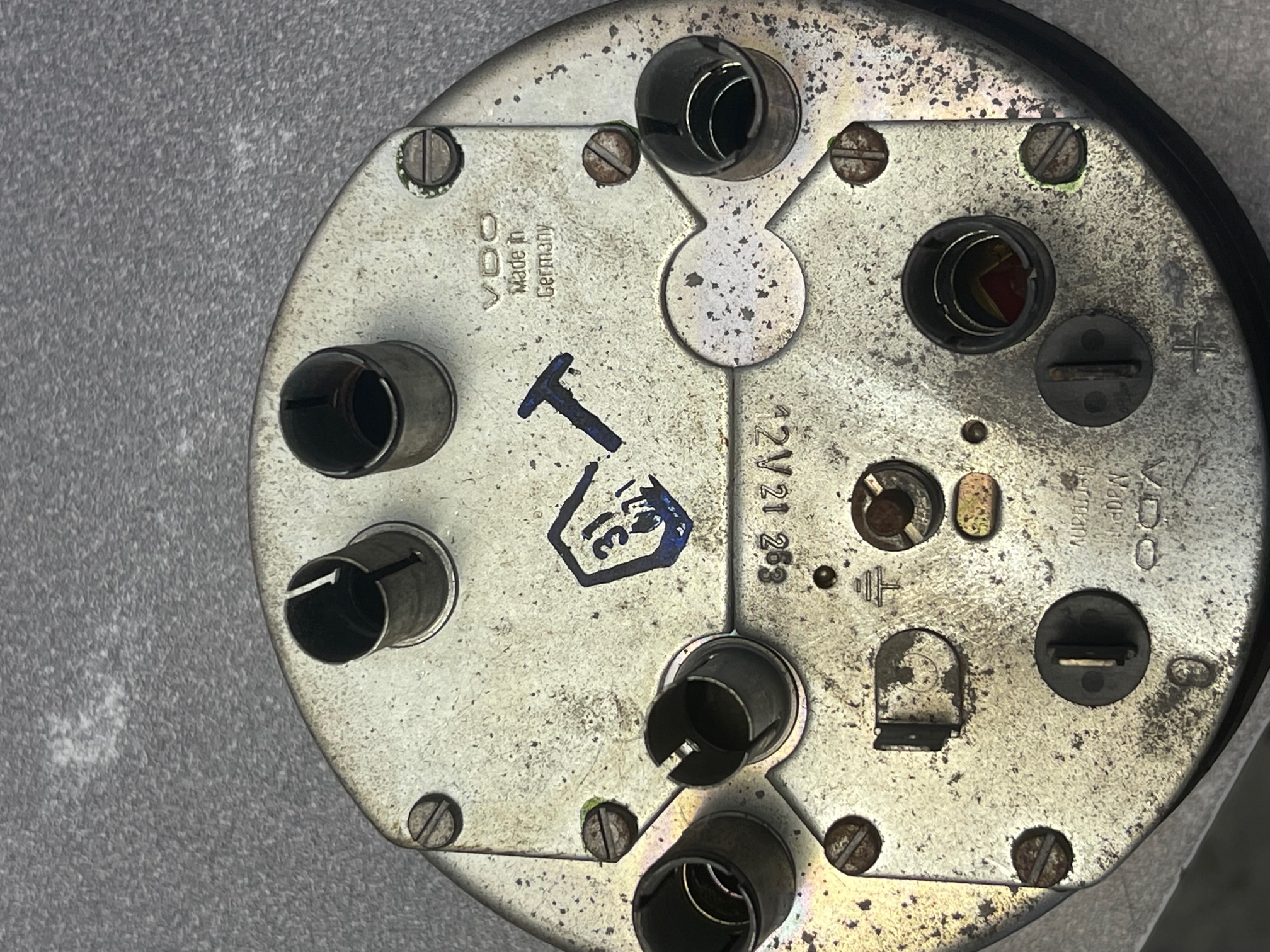

The back of the gauges that I am finding are different, in the layout, ie bulbs, and terminal placement. Added photo of new gauge for reference. I see the ground wire terminal, the +positive terminal, but I'm not sure what wire attaches to the terminal across from the positive, and then the small what appears to be a screw with the nut. Do[attachment=852145]es anything attach to that? Attached thumbnail(s)
|
|
|
|
| sportlicherFahrer |
Sep 19 2022, 01:18 PM
Post
#4
|
|
Nothing to see here. Group: Members Posts: 1,100 Joined: 18-April 05 From: Tacoma, WA Member No.: 3,945 Region Association: Pacific Northwest
|
Red w/ white stripe to +, black to the warning light, green to G. There should be a brown that goes to the ground contact that has multiple wires on one spade. As far as I can recall, nothing goes to the stud.
|
|
|
|
| TINCAN914 |
Sep 19 2022, 01:21 PM
Post
#5
|
|
Summer's Commin... Group: Members Posts: 2,440 Joined: 18-August 05 From: Colorado Springs, CO. Member No.: 4,611 Region Association: Rocky Mountains |
Thanks Jim,,
|
|
|
|
| sportlicherFahrer |
Sep 19 2022, 01:25 PM
Post
#6
|
|
Nothing to see here. Group: Members Posts: 1,100 Joined: 18-April 05 From: Tacoma, WA Member No.: 3,945 Region Association: Pacific Northwest
|
|
|
|
|
| TINCAN914 |
Sep 19 2022, 01:44 PM
Post
#7
|
|
Summer's Commin... Group: Members Posts: 2,440 Joined: 18-August 05 From: Colorado Springs, CO. Member No.: 4,611 Region Association: Rocky Mountains |
QUOTE(sportlicherFahrer @ Sep 19 2022, 01:25 PM)  Red and white to + check Green to G check Brown to Ground check Black not sure which light is the warning light? The PO has a number of extra wires that are as confusing as hell |
|
|
|
| sportlicherFahrer |
Sep 19 2022, 02:03 PM
Post
#8
|
|
Nothing to see here. Group: Members Posts: 1,100 Joined: 18-April 05 From: Tacoma, WA Member No.: 3,945 Region Association: Pacific Northwest
|
Warning light is the light socket that is actually on the back of the fuel gauge portion close to the + terminal.
Love PO wiring! (IMG:style_emoticons/default/icon8.gif) (IMG:style_emoticons/default/barf.gif) After finding over half the under-dash wires in my wife's Fastback were red, I scrapped the whole harness and did a full replacement with original colors. Little easier to come by for those cars... |
|
|
|
| TINCAN914 |
Sep 19 2022, 02:42 PM
Post
#9
|
|
Summer's Commin... Group: Members Posts: 2,440 Joined: 18-August 05 From: Colorado Springs, CO. Member No.: 4,611 Region Association: Rocky Mountains |
QUOTE(sportlicherFahrer @ Sep 19 2022, 02:03 PM) Warning light is the light socket that is actually on the back of the fuel gauge portion close to the + terminal. Love PO wiring! (IMG:style_emoticons/default/icon8.gif) (IMG:style_emoticons/default/barf.gif) After finding over half the under-dash wires in my wife's Fastback were red, I scrapped the whole harness and did a full replacement with original colors. Little easier to come by for those cars... Thanks again. |
|
|
|
| FlacaProductions |
Sep 19 2022, 03:43 PM
Post
#10
|
|
Senior Member Group: Members Posts: 1,775 Joined: 24-November 17 From: LA Member No.: 21,628 Region Association: Southern California
|
ahhhh - back of the gauges. gotcha. I have to stop chiming in so early.
|
|
|
|
|
