> Reverse light switch smoking when ignition turned on
iwuzazombie
post Mar 24 2023, 06:20 PM
Post #1


Newbie
*

Group: Members
Posts: 15
Joined: 17-July 22
From: Los Angeles
Member No.: 26,700
Region Association: Southern California
Hello! My reverse light switch is smoking when ignition is turned on and the #4 fuse blows. Bad switch or what else may cause that? Thanks!

Edit: looks like these wire connectors are bad. Can they be replaced?

Update:
1. everything seemed fine in the car, starting, a few minor electrical weirdness like both blinkers blinking after a second of using them (could be just wrong bulbs i hadn't checked yet) and dash/center console lights not working
2. fuse #4 started blowing and i could smell the electrical smoke
3. went through alot of fuses trying to troubleshoot the problem, checked all the grounds including the tail lights and license plate lights as on forums alot of mentions about those potentially being culprit
4. finally found the reverse switch was smoking, took out the wires which look terrible (as seen in the picture) and then fuse #4 stopped blowing
5. now car turns over but won't start
6. gonna pull the switch today and inspect it and try to replace those male bullet connectors (what a bad design btw!!!)

Could bad connection at that reverse switch cause the car to not start?

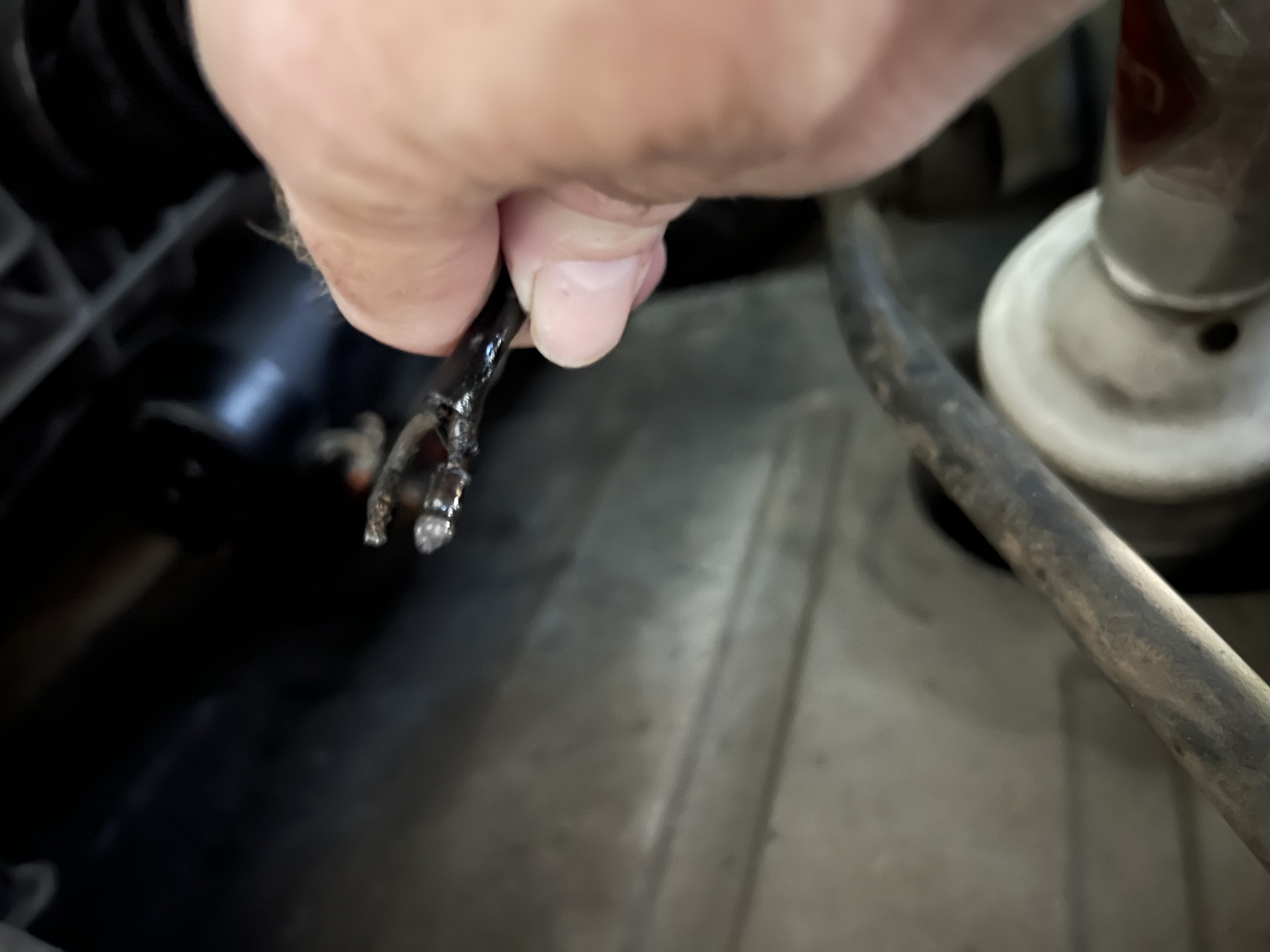

Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Mar 24 2023, 07:45 PM
Post #2


914 Wiring Harnesses
*****

Group: Members
Posts: 8,783
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Is your ignition harness 12-pin connector recently installed and is it aligned correctly on the relay board?

If you melted some wires in the harnesss it will need replacement.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 24 2023, 09:05 PM
Post #3


914 Guru
*****

Group: Members
Posts: 8,184
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Sounds like something is grounded that should not be. Does the fuse blow with the wires disconnected from the switch?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iwuzazombie
post Mar 24 2023, 09:13 PM
Post #4


Newbie
*

Group: Members
Posts: 15
Joined: 17-July 22
From: Los Angeles
Member No.: 26,700
Region Association: Southern California
QUOTE(bkrantz @ Mar 24 2023, 08:05 PM) *

Sounds like something is grounded that should not be. Does the fuse blow with the wires disconnected from the switch?


No the fuse doesn’t blow when the wires are disconnected from the switch.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iwuzazombie
post Mar 24 2023, 09:35 PM
Post #5


Newbie
*

Group: Members
Posts: 15
Joined: 17-July 22
From: Los Angeles
Member No.: 26,700
Region Association: Southern California
QUOTE(JeffBowlsby @ Mar 24 2023, 06:45 PM) *

Is your ignition harness 12-pin connector recently installed and is it aligned correctly on the relay board?

If you melted some wires in the harnesss it will need replacement.


Seems to be seated right.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Mar 24 2023, 11:28 PM
Post #6


Jerry
*****

Group: Members
Posts: 7,106
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(iwuzazombie @ Mar 24 2023, 10:13 PM) *

No the fuse doesn’t blow when the wires are disconnected from the switch.


Is this w/o the car being in reverse?

With your ohm meter, with the wires off, measure each side of the switch to chassis ground. Both sides to chassis ground should be open circuit. What do you measure?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Geezer914
post Mar 25 2023, 01:06 AM
Post #7


Geezer914
***

Group: Members
Posts: 1,803
Joined: 18-March 09
From: Salem, NJ
Member No.: 10,179
Region Association: North East States
I bought the Porsche wire connectors from Pelican parts Too bad they didn't make a male plug for that switch.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Mar 25 2023, 01:51 AM
Post #8


The rubber man
**********

Group: Members
Posts: 12,742
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
May be as simple as an ignition switch failure?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iwuzazombie
post Mar 25 2023, 09:00 AM
Post #9


Newbie
*

Group: Members
Posts: 15
Joined: 17-July 22
From: Los Angeles
Member No.: 26,700
Region Association: Southern California
QUOTE(Mikey914 @ Mar 25 2023, 12:51 AM) *

May be as simple as an ignition switch failure?


i am not thinking so unless it literally just went out. The car has started just fine without any jiggling of the key or anything. Updating my post with more info.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post Mar 25 2023, 09:04 AM
Post #10


914 Historian
*****

Group: Benefactors
Posts: 5,225
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada
No, I doubt the ignition switch would be in play. The wires in the engine harness connect through the relay board into the main harness. One wire comes from the brake pedal switch and is connected to the fuse via a wire coming to the brake switch. This wire goes to the relay board, through the engine harness, and back to the relay board and from there to the reverse lights. Aside from wiring shorts, there isn't much to go wrong. The switch failure should only make the lights inoperative (if an open failure) or always on (if a short failure). But check to see if you have a short from either pin socket on the switch to ground. That wiring to the socket looks really bad.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iwuzazombie
post Mar 25 2023, 09:51 AM
Post #11


Newbie
*

Group: Members
Posts: 15
Joined: 17-July 22
From: Los Angeles
Member No.: 26,700
Region Association: Southern California
QUOTE(davep @ Mar 25 2023, 08:04 AM) *

No, I doubt the ignition switch would be in play. The wires in the engine harness connect through the relay board into the main harness. One wire comes from the brake pedal switch and is connected to the fuse via a wire coming to the brake switch. This wire goes to the relay board, through the engine harness, and back to the relay board and from there to the reverse lights. Aside from wiring shorts, there isn't much to go wrong. The switch failure should only make the lights inoperative (if an open failure) or always on (if a short failure). But check to see if you have a short from either pin socket on the switch to ground. That wiring to the socket looks really bad.

Thanks. Yeah the wiring is really bad. I just had the clutch and flywheel replaced, you'd think the shop would have seen that. Anyway, i'll check that the ohms on it. Now that has become low priority to the car starting! At least i found the short that was blowing fuse #4!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Mar 25 2023, 12:13 PM
Post #12


I. I. R. C.
*****

Group: Members
Posts: 6,793
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
My guess is that the shop incorrectly plugged in the engine harness. I made a similar mistake about 30 years ago, it only took me one fried engine harness and I haven’t done it since.

You need a new engine harness, or ignition harness. Check with Jeff Bowlsby.
bowlsby.net
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iwuzazombie
post Mar 25 2023, 01:53 PM
Post #13


Newbie
*

Group: Members
Posts: 15
Joined: 17-July 22
From: Los Angeles
Member No.: 26,700
Region Association: Southern California
QUOTE(IronHillRestorations @ Mar 25 2023, 11:13 AM) *

My guess is that the shop incorrectly plugged in the engine harness. I made a similar mistake about 30 years ago, it only took me one fried engine harness and I haven’t done it since.

You need a new engine harness, or ignition harness. Check with Jeff Bowlsby.
bowlsby.net

Would they have had to remove the engine harness to remove the transmission to replace the clutch?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Mar 25 2023, 02:03 PM
Post #14


I. I. R. C.
*****

Group: Members
Posts: 6,793
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
QUOTE(iwuzazombie @ Mar 25 2023, 11:53 AM) *

QUOTE(IronHillRestorations @ Mar 25 2023, 11:13 AM) *

My guess is that the shop incorrectly plugged in the engine harness. I made a similar mistake about 30 years ago, it only took me one fried engine harness and I haven’t done it since.

You need a new engine harness, or ignition harness. Check with Jeff Bowlsby.
bowlsby.net

Would they have had to remove the engine harness to remove the transmission to replace the clutch?


If they pulled the engine and transmission, the 12 pin plug would get unplugged. It’s not hard to get it one row off when going back in.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Mar 25 2023, 02:14 PM
Post #15


Get that VIN ?
*****

Group: Members
Posts: 9,564
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
QUOTE(IronHillRestorations @ Mar 25 2023, 01:03 PM) *

QUOTE(iwuzazombie @ Mar 25 2023, 11:53 AM) *

QUOTE(IronHillRestorations @ Mar 25 2023, 11:13 AM) *

My guess is that the shop incorrectly plugged in the engine harness. I made a similar mistake about 30 years ago, it only took me one fried engine harness and I haven’t done it since.

You need a new engine harness, or ignition harness. Check with Jeff Bowlsby.
bowlsby.net

Would they have had to remove the engine harness to remove the transmission to replace the clutch?


If they pulled the engine and transmission, the 12 pin plug would get unplugged. It’s not hard to get it one row off when going back in.

(IMG:style_emoticons/default/agree.gif)
Been there too; one row off…. (IMG:style_emoticons/default/sad.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
flipb
post Mar 25 2023, 02:40 PM
Post #16


Senior Member
***

Group: Members
Posts: 1,772
Joined: 2-September 09
From: Fairfax, VA
Member No.: 10,752
Region Association: MidAtlantic Region
Didn't reconnect the transmission ground strap? Infamous dr914@autoatlanta.com mistake.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iwuzazombie
post Mar 25 2023, 03:42 PM
Post #17


Newbie
*

Group: Members
Posts: 15
Joined: 17-July 22
From: Los Angeles
Member No.: 26,700
Region Association: Southern California
QUOTE(flipb @ Mar 25 2023, 01:40 PM) *

Didn't reconnect the transmission ground strap? Infamous dr914@autoatlanta.com mistake.

It was running fine after I got it back. Fuse #4 was blowing after that which I finally traced to the reverse light switch, which was literally smoking. Up until minutes before I found that which took me a while and blew thru a bunch of fuses the car was starting fine. Once I found that, I pulled those really bad wires out and at that long the car no longer would start. (IMG:style_emoticons/default/sad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Mar 25 2023, 04:25 PM
Post #18


I. I. R. C.
*****

Group: Members
Posts: 6,793
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
QUOTE(flipb @ Mar 25 2023, 12:40 PM) *

Didn't reconnect the transmission ground strap? Infamous dr914@autoatlanta.com mistake.


That’s a possibility too.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Mar 25 2023, 05:24 PM
Post #19


I. I. R. C.
*****

Group: Members
Posts: 6,793
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
QUOTE(iwuzazombie @ Mar 25 2023, 01:42 PM) *

QUOTE(flipb @ Mar 25 2023, 01:40 PM) *

Didn't reconnect the transmission ground strap? Infamous dr914@autoatlanta.com mistake.

It was running fine after I got it back. Fuse #4 was blowing after that which I finally traced to the reverse light switch, which was literally smoking. Up until minutes before I found that which took me a while and blew thru a bunch of fuses the car was starting fine. Once I found that, I pulled those really bad wires out and at that long the car no longer would start. (IMG:style_emoticons/default/sad.gif)


I’m going to bet that if you look up a the underside of the trunk floor, you will find the ground strap isn’t bolted to the ground buss. If so take a picture, call the shop and tell them they’ve created a problem. The starter grounds through the transmission via the ground strap. No ground and the starter will use whatever path it finds. Typically it’s the clutch cable.

The reverse switch should never get hot like that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iwuzazombie
post Mar 25 2023, 05:50 PM
Post #20


Newbie
*

Group: Members
Posts: 15
Joined: 17-July 22
From: Los Angeles
Member No.: 26,700
Region Association: Southern California
QUOTE(flipb @ Mar 25 2023, 01:40 PM) *

Didn't reconnect the transmission ground strap? Infamous dr914@autoatlanta.com mistake.

That was one of the grounds I checked. I actually pulled it off and cleaned it and put it back.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
