> Front Sidemarker Flasher Module
second wind
post Dec 6 2023, 11:24 PM
Post #21


Senior Member
***

Group: Members
Posts: 862
Joined: 30-December 10
From: Los Angeles, California
Member No.: 12,543
Region Association: Southern California



You build ....I buy !!!!
gg
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 16 2023, 02:23 AM
Post #22


Jerry
*****

Group: Members
Posts: 7,127
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None



A little Christmas present a bit early. Gotta do some mods on the board and assemble this weekend.

A while back I was chastised by the fab house that if I put 'Made in USA' on the board I might have issues with customs. So I started putting only 'USA' on the board. Every board I do the USA get larger and larger. (IMG:style_emoticons/default/beer.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Dec 16 2023, 07:04 AM
Post #23


Michael
**********

Group: Members
Posts: 10,227
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California



Very cool; can't wait to get them. Thanks for keeping our cars safe Jerry. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 22 2023, 07:27 PM
Post #24


Jerry
*****

Group: Members
Posts: 7,127
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None



Assembled the first set of boards. They seem to work fine:


https://www.youtube.com/watch?v=t9VO-ensdqA


Now have to work out more issues such as short circuit protection and maximum loading of the sidemarker.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jack Standz
post Dec 23 2023, 10:56 AM
Post #25


Member
**

Group: Members
Posts: 454
Joined: 15-November 19
From: Happy Place (& surrounding area)
Member No.: 23,644
Region Association: None



OK, looks great!

We will take one set when they're ready, so please put us down for a set. Thank you.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 24 2023, 03:02 PM
Post #26


Jerry
*****

Group: Members
Posts: 7,127
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None



OK time to install the flasher module on my 914. My general rule is no cutting/gluing/drilling to install LEDs. So the task at hand is to un-fish the wires to the sidemarker and turnsignal out of the rubber conduits.

This is turning out to be more of chore than I thought would.

First thing is to get to the ends of the wires to disconnect from the light fixtures.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 24 2023, 03:06 PM
Post #27


Jerry
*****

Group: Members
Posts: 7,127
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None



Pulled the sidemarker wires off the socket ok. But the base of the turnsignal bucket came off with the rubber conduit. I see the bottom of the bulb socket looking out. Good thing I have extra light buckets to use.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 24 2023, 03:11 PM
Post #28


Jerry
*****

Group: Members
Posts: 7,127
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None



All the wires have been pulled out of the conduit. The power spade on the sidemarker pulled off the wire. I had added some wire to the original wires to allow for more movement when I did a refurbish a while back.

The ground wire (brown) has 2 spades on it for the sidemarker and turnsignals. I'll likely just run 2 separate ground wires to keep it simple.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 24 2023, 03:14 PM
Post #29


Jerry
*****

Group: Members
Posts: 7,127
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None

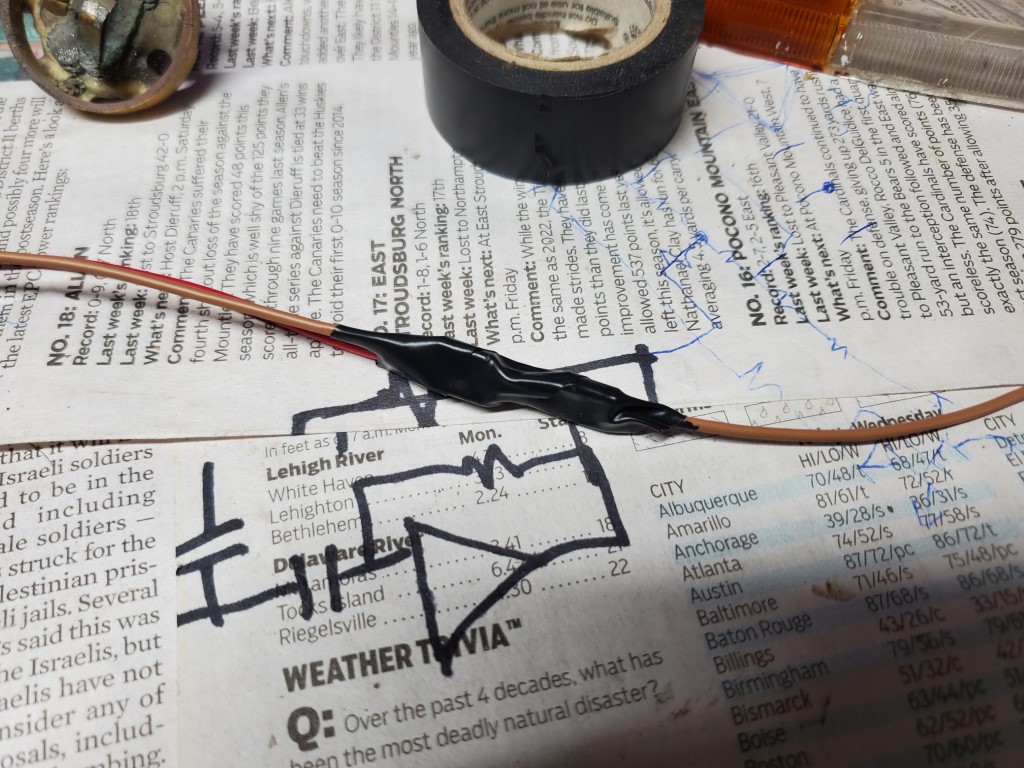

This is the power spade pulled off of the sidemarker wire. The plan was to have the OEM spades connect to the module with insulated spades as shown below. However the insulation does not cover the entire exposed metal. I'll need to have some other insulator added to this spade.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 24 2023, 07:48 PM
Post #30


Jerry
*****

Group: Members
Posts: 7,127
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None

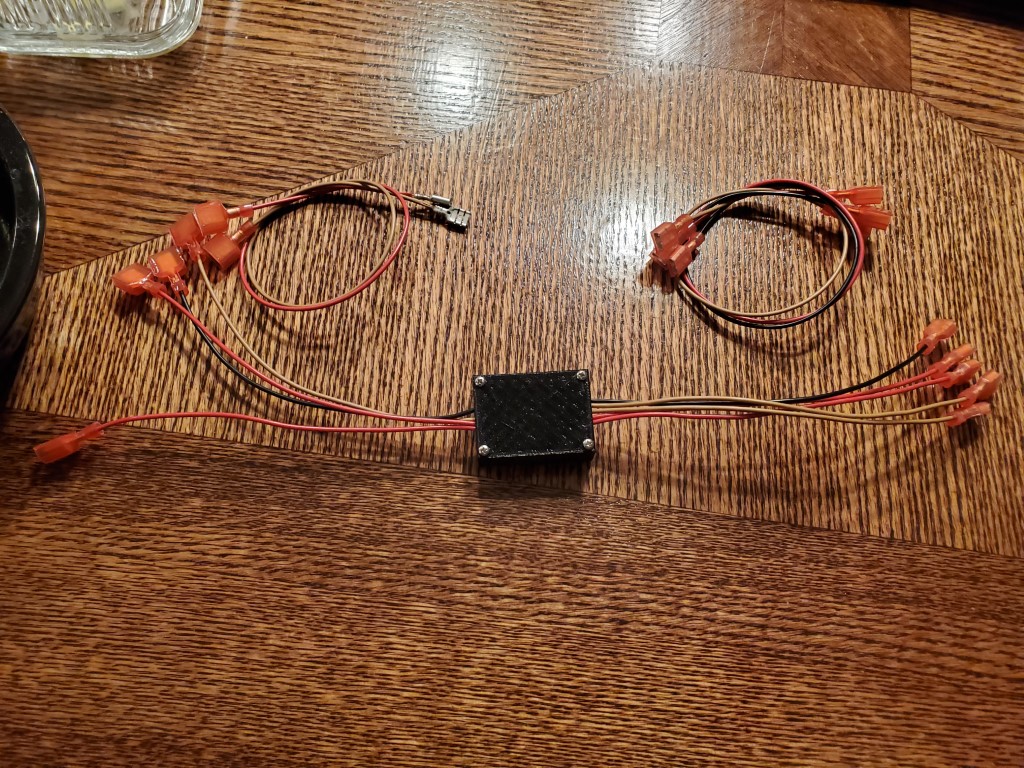

This is the assembly for one side. The module has wires on both sides. One side goes to the vehicle wires pulled out of the conduit and the other side goes to the new wires going in the conduit. The connectors on the vehicle side are female and on the turnsignal side are male so it cannot be reversed.

The spades to the sidemarker do not have insulation like OEM to make it easier to fish through the sidemarker gasket.

Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 24 2023, 07:55 PM
Post #31


Jerry
*****

Group: Members
Posts: 7,127
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None

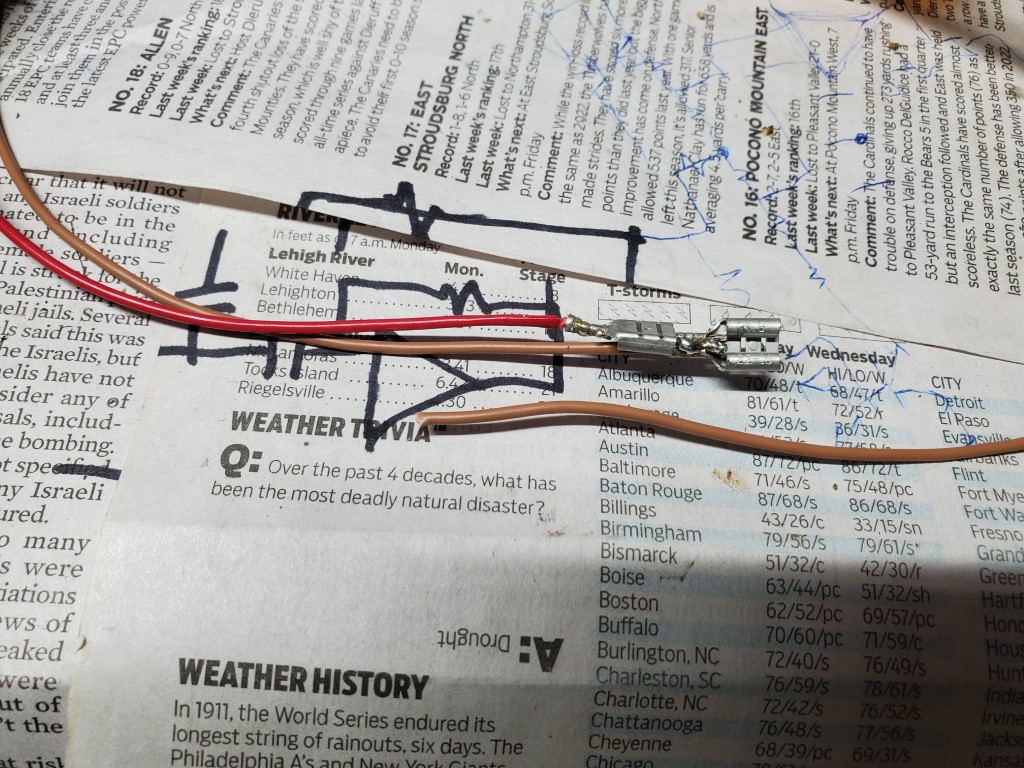

To pull the wires and spades for the sidemarker through the main conduit and sidemarker gasket, a feed wire was taped onto the spades and spades were set one in front of the other. This was the most difficult part of the install.

The spades really resisted going into the sidemarker gasket. I think it would be easier to leave the wire bare and install the spade after pulling the wire through.



Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 24 2023, 07:59 PM
Post #32


Jerry
*****

Group: Members
Posts: 7,127
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None



Sidemarker wires pulled through the main conduit.

Attached Image

Put petroleum jelly on the wires and tube of the sidemarker gasket. This still didn't help much. Probably would have helped to heat up the gasket in hot water.

Attached Image

The turnsignal wires are pulled easily through the conduit. Ready for final wire attachment.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 24 2023, 08:03 PM
Post #33


Jerry
*****

Group: Members
Posts: 7,127
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None

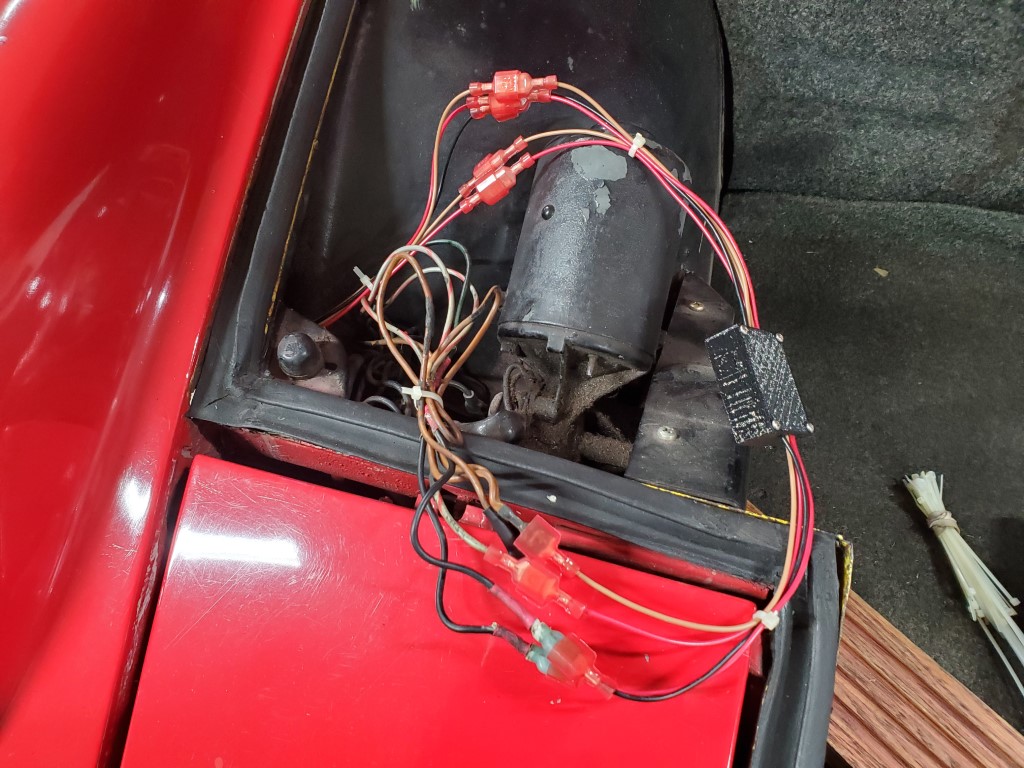

Wires all connected and tie wrapped. The pigtail wires to the module are 7 inches. I think they can be shortened to about 4 inches.

Attached Image

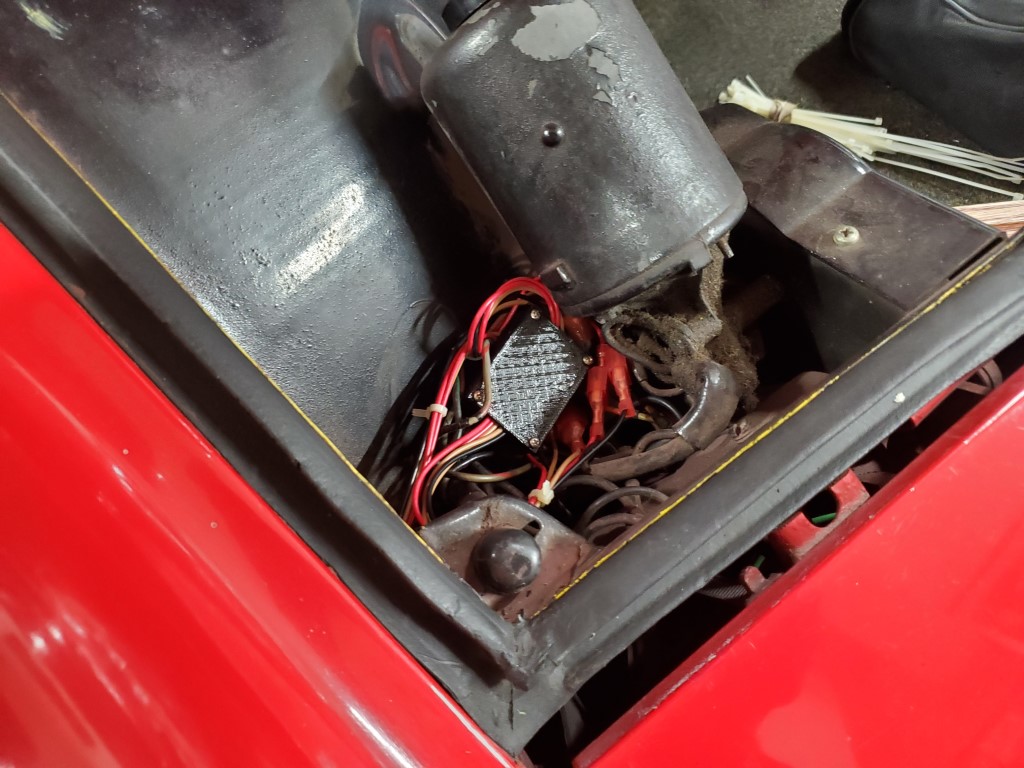

The module and wires tuck nicely behind the headlight motor.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 24 2023, 08:07 PM
Post #34


Jerry
*****

Group: Members
Posts: 7,127
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None



The module in action. When the turnsignals end notice the turnsignal white running lights and the sidemarker come back on at the same time. They both use the same timing circuit.


https://www.youtube.com/watch?v=72SavdNVw14
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Dec 25 2023, 08:00 AM
Post #35


Michael
**********

Group: Members
Posts: 10,227
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California



Great work Jerry; Merry Christmas. Looking forward to installing mine when ever you ship them. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Osnabruck914
post Dec 25 2023, 12:32 PM
Post #36


Member
**

Group: Members
Posts: 101
Joined: 19-December 22
From: United States
Member No.: 27,038
Region Association: South East States



Not sure why this is being made so complicated. I did this years ago with some wire and wire nuts under the fenders.

Osnabruck914
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Dec 25 2023, 04:13 PM
Post #37


Michael
**********

Group: Members
Posts: 10,227
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California



Going to take a shot at this.... Jerry is making LED side markers that will flash with the turn signal. Thus the module, extra wiring and the need to pull the stock wires out of the boots and run the new wires. Jerry's goal, as I understand it, is to make LED units which are plug 'n play with no damage to the original parts. He does excellent work and is a valued member of our community. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 25 2023, 06:42 PM
Post #38


Jerry
*****

Group: Members
Posts: 7,127
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None



QUOTE(Osnabruck914 @ Dec 25 2023, 01:32 PM) *

Not sure why this is being made so complicated. I did this years ago with some wire and wire nuts under the fenders.

Osnabruck914


Would you please share your solution? There's always a better mouse trap. Yes this is complicated but I couldn't figure out how to flash the sidemarker when it is already on. That means it must be turned off between flashes.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Osnabruck914
post Dec 25 2023, 06:56 PM
Post #39


Member
**

Group: Members
Posts: 101
Joined: 19-December 22
From: United States
Member No.: 27,038
Region Association: South East States



QUOTE(Spoke @ Dec 25 2023, 07:42 PM) *

QUOTE(Osnabruck914 @ Dec 25 2023, 01:32 PM) *

Not sure why this is being made so complicated. I did this years ago with some wire and wire nuts under the fenders.

Osnabruck914


Would you please share your solution? There's always a better mouse trap. Yes this is complicated but I couldn't figure out how to flash the sidemarker when it is already on. That means it must be turned off between flashes.


It's been a few years, but thought I just shared the power going to the blinker bulb with the side marker bulb. I do remember, the first time I tried to wire it up, it flashed alternately, but switched some wires around and got it simultaneous. Any way here is video proof it works:

https://www.youtube.com/watch?v=m3MytagvpbE




User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FlacaProductions
post Dec 25 2023, 10:03 PM
Post #40


Senior Member
***

Group: Members
Posts: 1,880
Joined: 24-November 17
From: LA
Member No.: 21,628
Region Association: Southern California



Maybe this is the procedure in this thread:
https://forums.pelicanparts.com/porsche-914...rn-signals.html
