> Late model Blue wire with Yellow stripe Dash location?, Where does this wire go?
TINKERGINEERING
post May 24 2024, 10:30 PM
Post #1


Member
**

Group: Members
Posts: 208
Joined: 15-March 20
From: Sierra Madre, CA
Member No.: 24,031
Region Association: Southern California



First 3 pics:

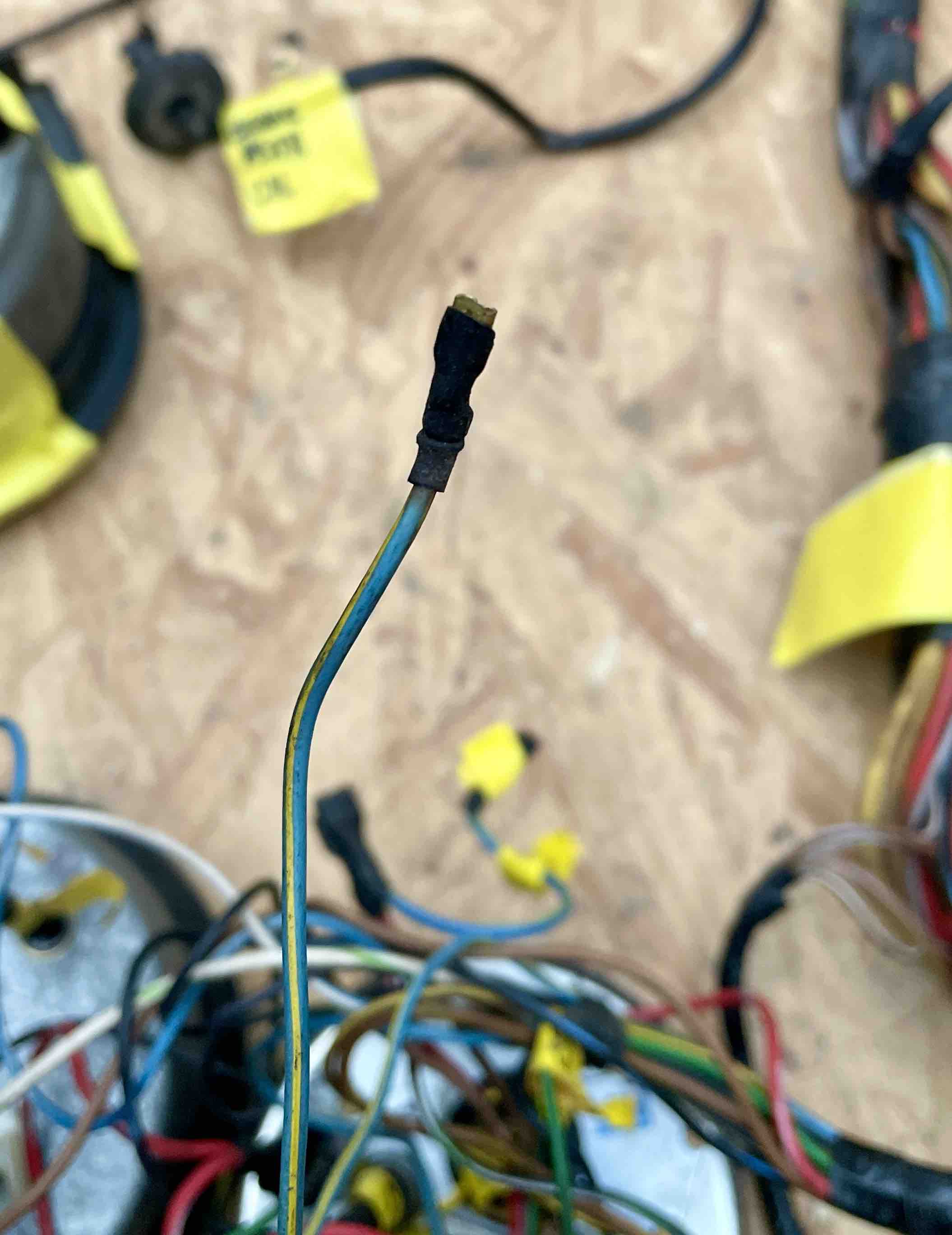

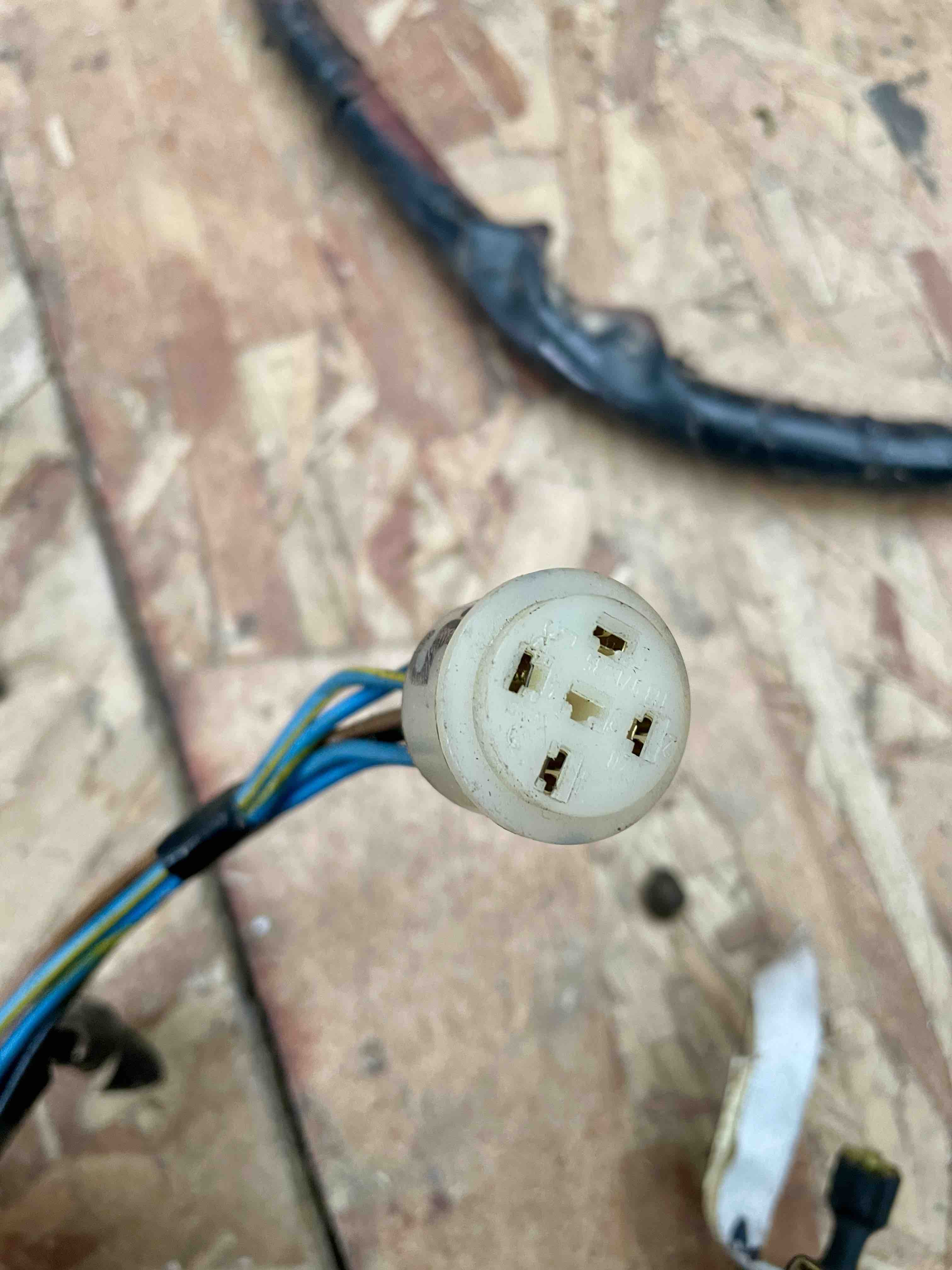

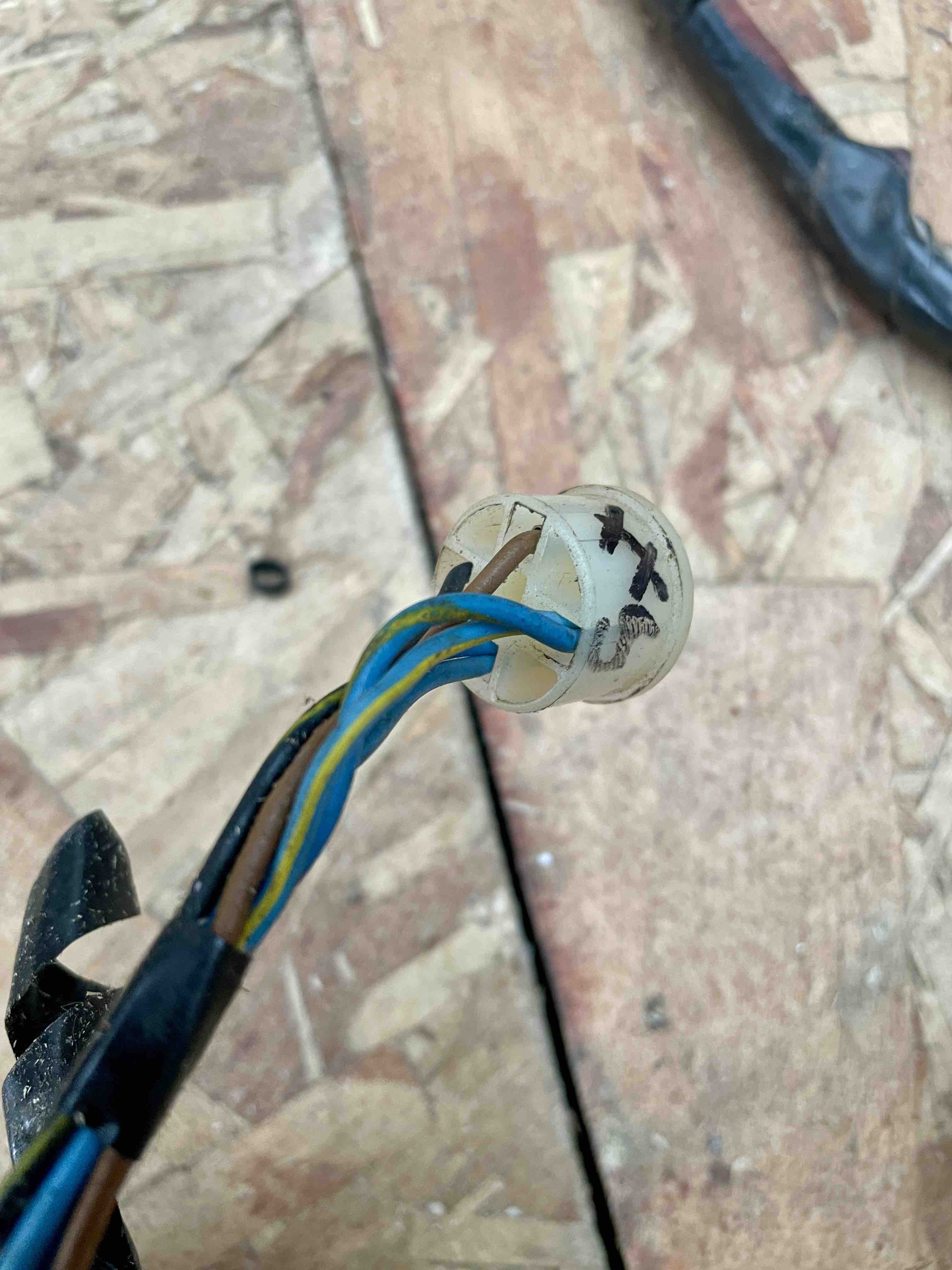

This has a small mental female blade connector and goes back to the white cylinder connector behind the firewall.
under the dash near the Gagues, where does this connect to?
Not on the diagram

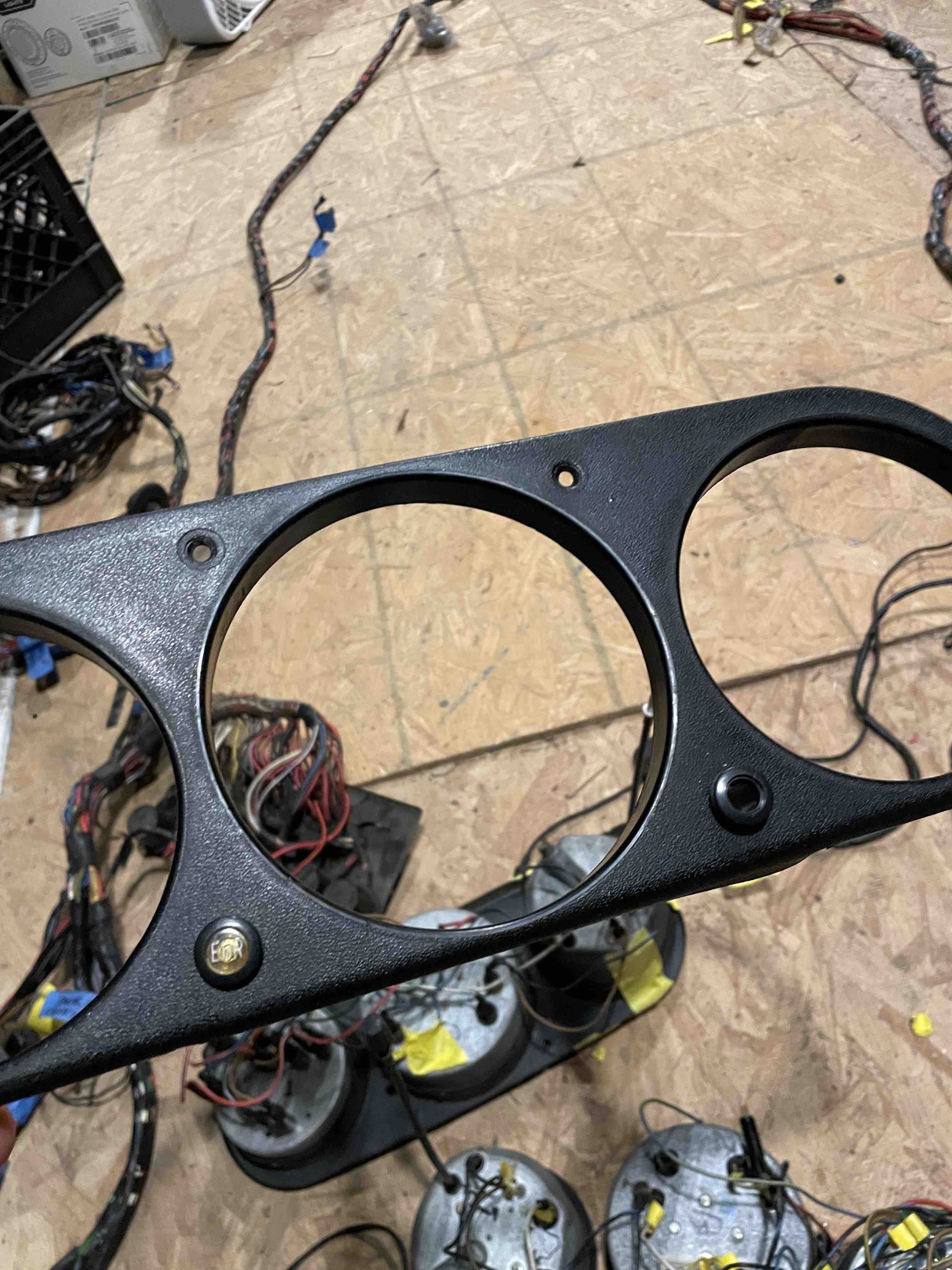

Last 3 pics of Bezel:

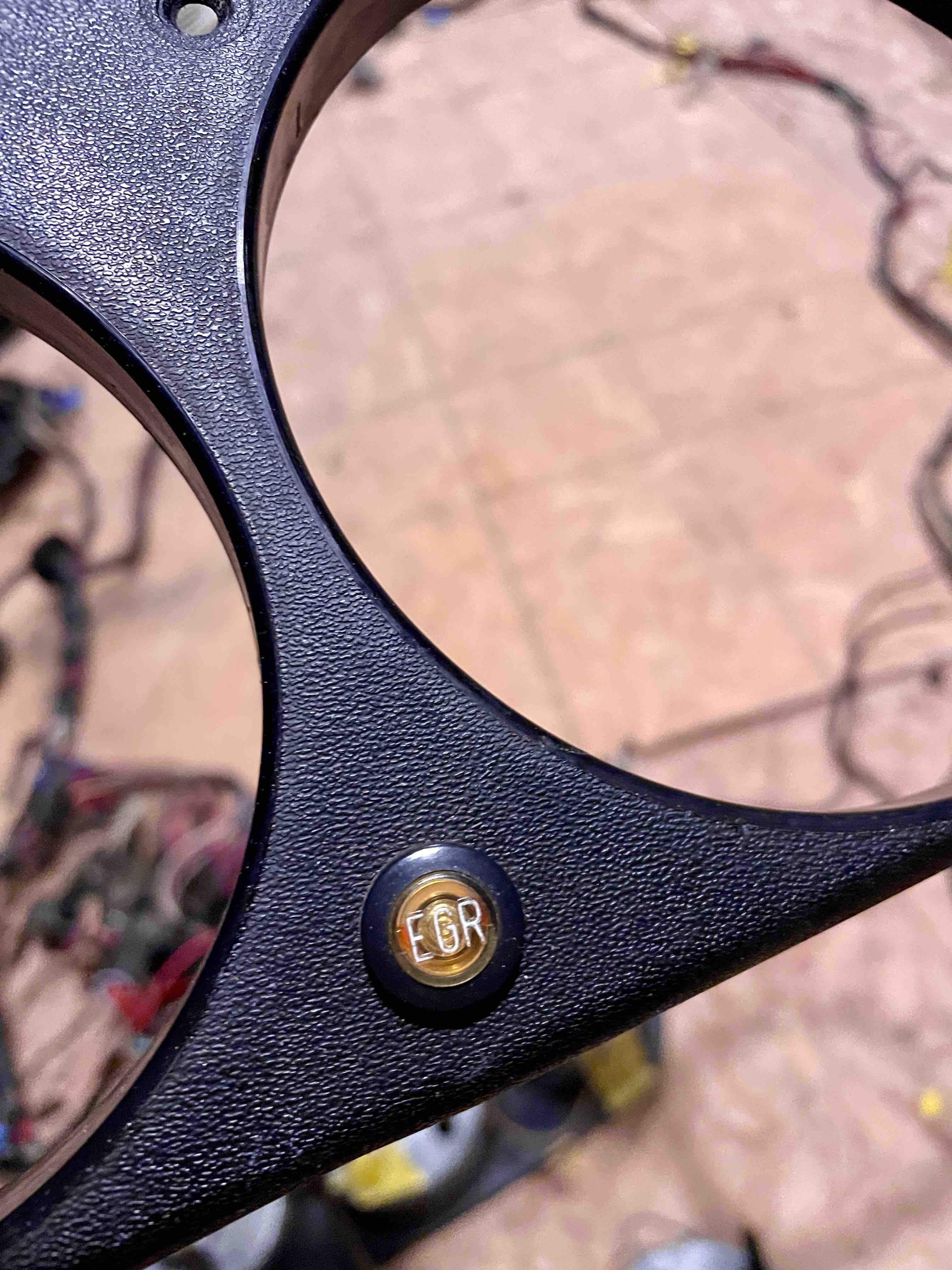

also the two lights on the instrument gauge bezel

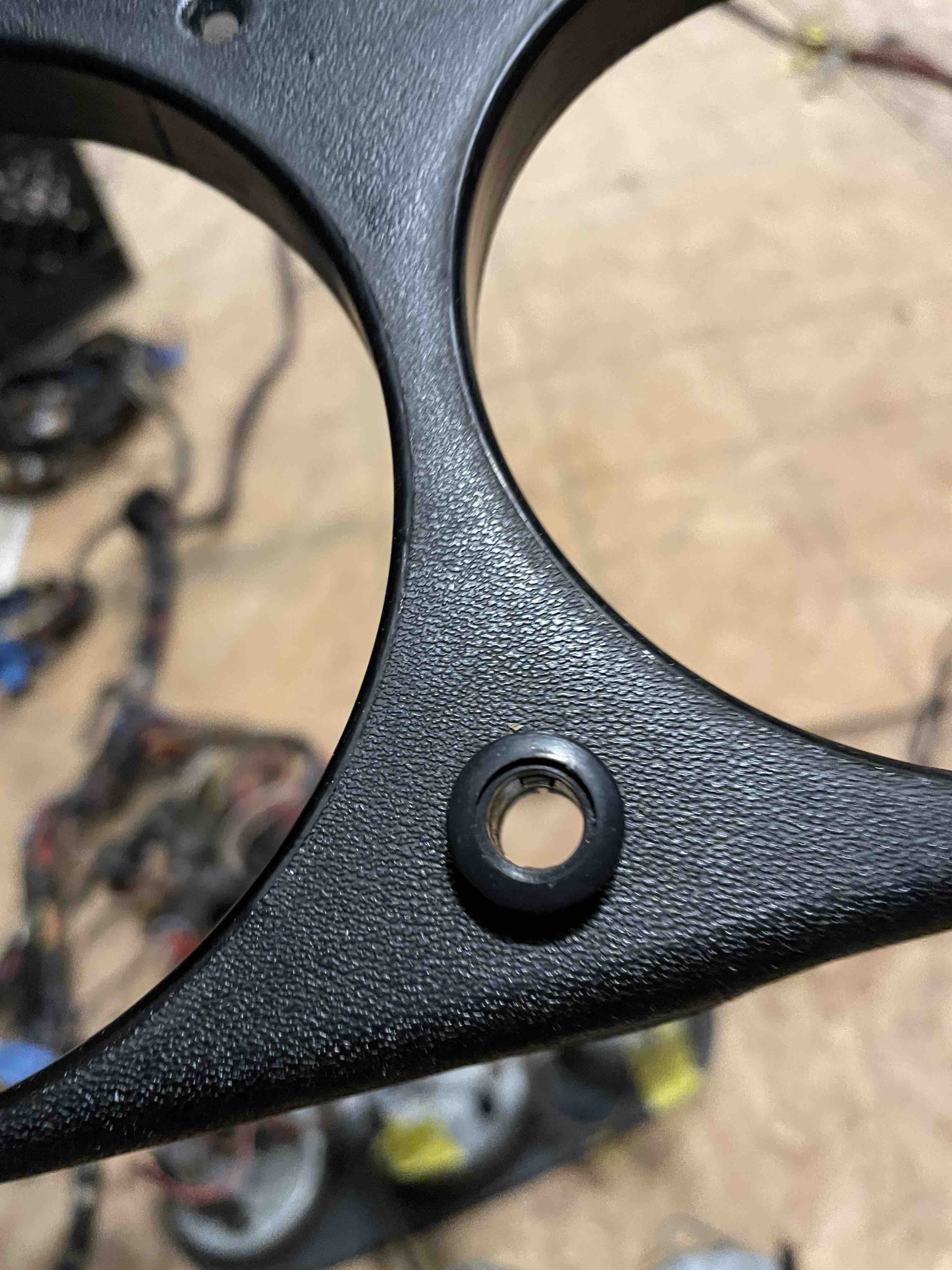

I am missing 1 of them but what do they mean and what's the one I am missing?

Basically, what are these and what do I label them?

Thanks! Frances


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
L-Jet914
post May 24 2024, 10:35 PM
Post #2


Member
**

Group: Members
Posts: 277
Joined: 24-October 12
From: Davis, CA
Member No.: 15,080
Region Association: Northern California

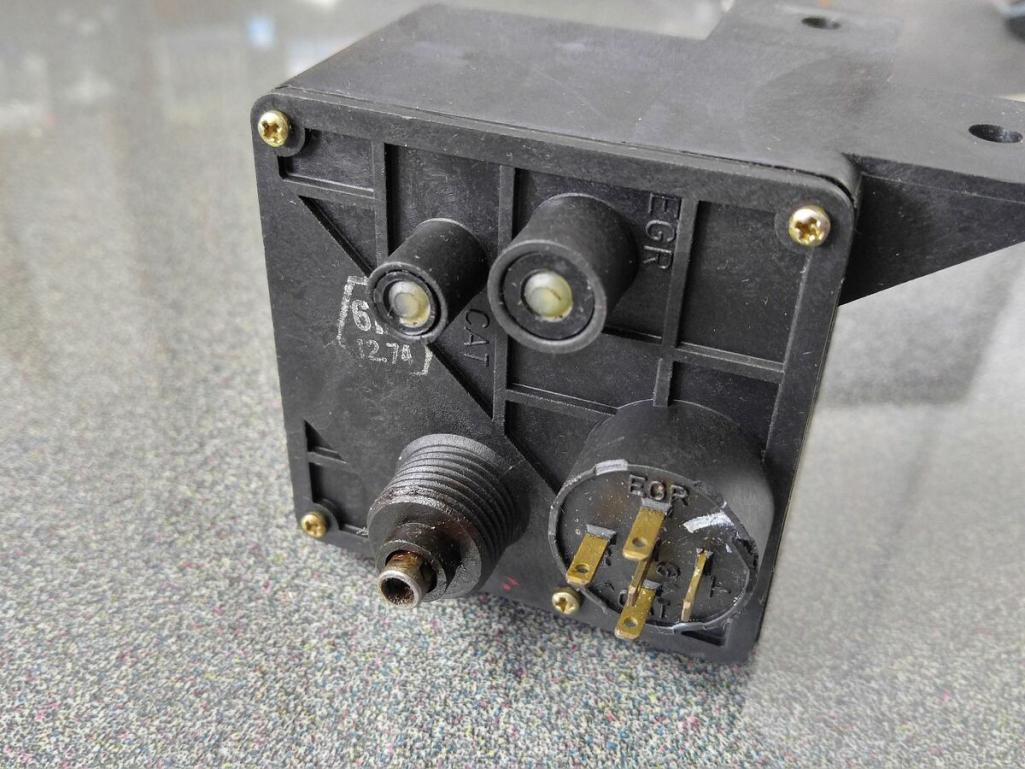

Catalytic converter temperature warning light and EGR reminder light. The 4 pin connector goes to the EGR/Cat timer box.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
saladin
post May 25 2024, 12:21 AM
Post #3


Member
**

Group: Members
Posts: 50
Joined: 18-September 07
From: Mountain View, CA
Member No.: 8,125
Region Association: Northern California

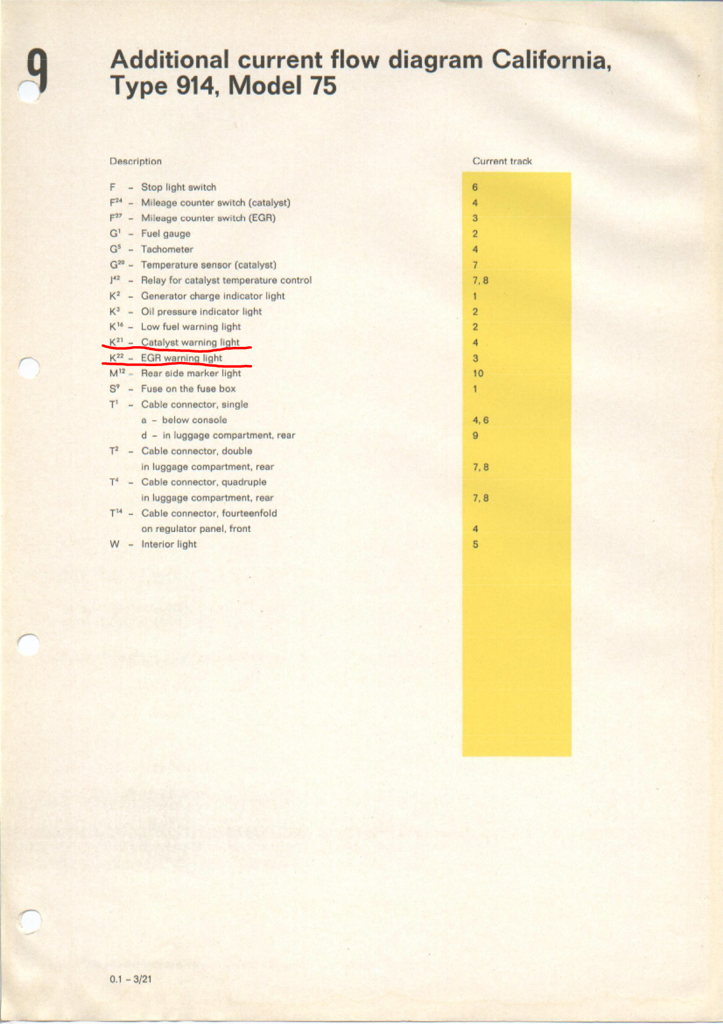

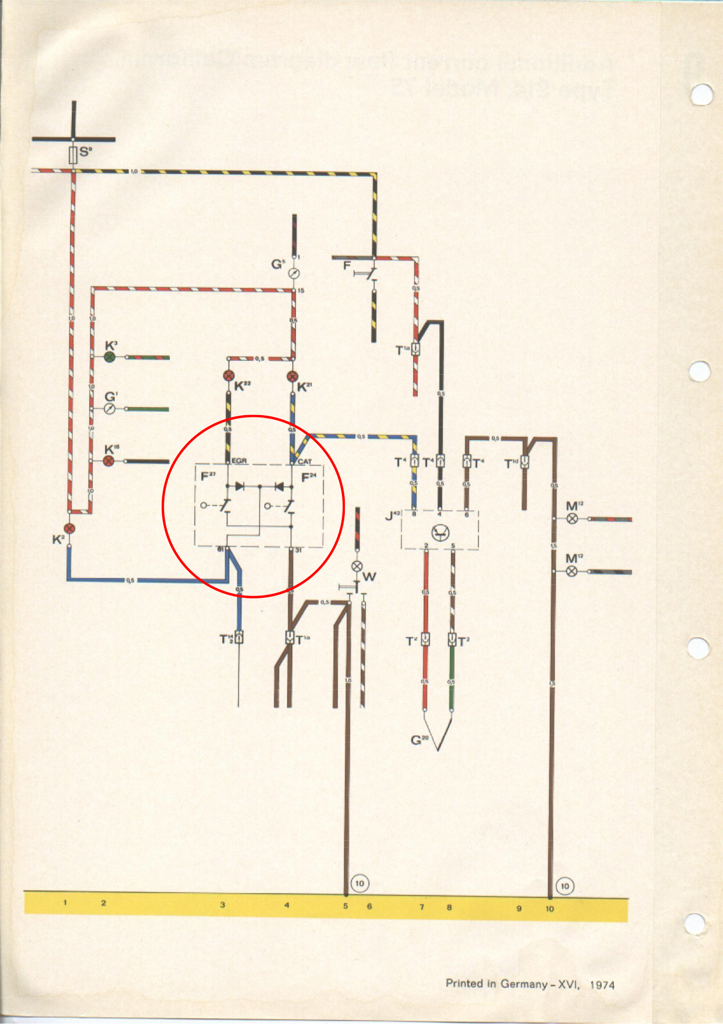

@TINKERGINEERING hopefully the below service manual current flow drawings clarify the connections.

Ken

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post May 25 2024, 07:48 AM
Post #4


914 Wiring Harnesses
*****

Group: Members
Posts: 8,704
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



To answer the questions, what L-Jet914 and Saladin posted gets you there.

The blue/yellow wire attaches to a CAT light on the dash which you are missing. The EGR and CAT lights merely indicated when these items needed servicing.

These are all components of the 1975-76 CA-only model, both 1.8L and 2.0L, that requires an EGR valve and catalytic converter for emissions. The CAT circuitry starts with a sensor to the CAT, and logic box 'relay' at the drivers side tailight area of the chassis harness, not shown in the photos above.

More info here: https://bowlsby.net/914/Classic/Emissions.htm
User is online!Profile CardPM
Go to the top of the page
+Quote Post
saladin
post May 25 2024, 10:40 AM
Post #5


Member
**

Group: Members
Posts: 50
Joined: 18-September 07
From: Mountain View, CA
Member No.: 8,125
Region Association: Northern California



QUOTE(JeffBowlsby @ May 25 2024, 06:48 AM) *

To answer the questions, what L-Jet914 and Saladin posted gets you there.

The blue/yellow wire attaches to a CAT light on the dash which you are missing. The EGR and CAT lights merely indicated when these items needed servicing.

These are all components of the 1975-76 CA-only model, both 1.8L and 2.0L, that requires an EGR valve and catalytic converter for emissions. The CAT circuitry starts with a sensor to the CAT, and logic box 'relay' at the drivers side tailight area of the chassis harness, not shown in the photos above.

More info here: https://bowlsby.net/914/Classic/Emissions.htm


@JeffBowlsby Is the J⁴² labeled as a relay for catalyst temperature control shown in the diagram the logic box 'relay' you mentioned; given the T⁴ connector is labeled as a quadruple cable connector in the rear luggage compartment and the G²⁰ is labeled as the catalyst temperature sensor which I assume is in the catalytic converter?

Ken
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post May 25 2024, 10:46 AM
Post #6


914 Wiring Harnesses
*****

Group: Members
Posts: 8,704
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



QUOTE


@JeffBowlsby Is the J⁴² labeled as a relay for catalyst temperature control shown in the diagram the logic box 'relay' you mentioned; given the T⁴ connector is labeled as a quadruple cable connector in the rear luggage compartment and the G²⁰ is labeled as the catalyst temperature sensor which I assume is in the catalytic converter?

Ken


Yes, exactly.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post May 25 2024, 01:36 PM
Post #7


Resident German
*************************

Group: Admin
Posts: 41,854
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



So in short, she doesn't need any of these on her car.
(IMG:style_emoticons/default/biggrin.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TINKERGINEERING
post May 25 2024, 02:03 PM
Post #8


Member
**

Group: Members
Posts: 208
Joined: 15-March 20
From: Sierra Madre, CA
Member No.: 24,031
Region Association: Southern California



QUOTE(SirAndy @ May 25 2024, 12:36 PM) *

So in short, she doesn't need any of these on her car.
(IMG:style_emoticons/default/biggrin.gif)


yep there's that too haaa
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TINKERGINEERING
post May 25 2024, 02:06 PM
Post #9


Member
**

Group: Members
Posts: 208
Joined: 15-March 20
From: Sierra Madre, CA
Member No.: 24,031
Region Association: Southern California



not on my diagram
Thanks for these print outs
I am printing and saving. I want to get the CAT bezel light button just to have it there. may need to add some other meaning to it eventually.
Hey thanks for all the responses and so fast.
914World is amazing
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris914n6
post May 25 2024, 09:29 PM
Post #10


Jackstands are my life.
****

Group: Members
Posts: 3,407
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region



EGR - Energy Gone, Recharge (low watts)
CAT - Charging Amongst Teslas (charge in process)

(IMG:style_emoticons/default/biggrin.gif)

In case you didn't know, Tesla Superchargers is the only network that's populous, reliable and constantly maintained enough to make EV practical. The others are essentially a bad gamble.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TINKERGINEERING
post Jun 6 2024, 04:00 PM
Post #11


Member
**

Group: Members
Posts: 208
Joined: 15-March 20
From: Sierra Madre, CA
Member No.: 24,031
Region Association: Southern California



QUOTE(Chris914n6 @ May 25 2024, 08:29 PM) *

EGR - Energy Gone, Recharge (low watts)
CAT - Charging Amongst Teslas (charge in process)

(IMG:style_emoticons/default/biggrin.gif)

In case you didn't know, Tesla Superchargers is the only network that's populous, reliable and constantly maintained enough to make EV practical. The others are essentially a bad gamble.

Ohh perfect. Next time someone asks these are the responses now. Haa
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TINKERGINEERING
post Jun 6 2024, 04:02 PM
Post #12


Member
**

Group: Members
Posts: 208
Joined: 15-March 20
From: Sierra Madre, CA
Member No.: 24,031
Region Association: Southern California



QUOTE(L-Jet914 @ May 24 2024, 09:35 PM) *

Catalytic converter temperature warning light and EGR reminder light. The 4 pin connector goes to the EGR/Cat timer box.

The previous DC build guy removed all combustion bits.. Apearently including this sensor module. now the plug makes sense
thanks for the great pic.
Frances
Dad gave a thumbs up too (IMG:style_emoticons/default/bye1.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jun 7 2024, 05:16 AM
Post #13


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,729
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region



I was on youtube wanting to see where you are at on your project but only came across a 1 year old video of a news reel. Any newer videos? Your getting closer to getting your license?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Geezer914
post Jun 7 2024, 05:50 AM
Post #14


Geezer914
***

Group: Members
Posts: 1,747
Joined: 18-March 09
From: Salem, NJ
Member No.: 10,179
Region Association: North East States



I wired the cat light to my oil cooler fan. The light comes on when the fan is running.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
