> Electrical, Wiring Harness Assistance
sjhenry1075
post Jun 3 2024, 12:24 PM
Post #1


Member
**

Group: Members
Posts: 269
Joined: 22-July 12
From: Stevensville, MD
Member No.: 14,709
Region Association: North East States



I hate to even post this, but I'm going to ask a bunch of few dumb questions so please bare with me. My car was painted two years ago and in my haste to drop the engine (1.7 with Djet) I did not take a lot of pictures of the wiring harnesses nor did I mark the wires. No, it they not have to be removed, but I did remove them. Yes, Huge mistake. Worst part is, the PO messed with the harness so none of the wire colors are correct.

As you probably guessed, I'm left with kind of a mess. I printed out Bowlsby's diagrams for the harnesses and the 12 point plug (which came apart during the removal process) and tested all the connections for continuity and started to put it back on the car. I few things are stumping me right now and here are my questions:

- My fuel pump no longer comes on. I looked at the wiring schematic and it shows a fuel pump wire going to the 12 pin harness, pin 12 from pin 13 of the 14 pin harness. That wire is supposed to go to the AAR valve correct?

- Is there a wire that goes from the starter to the little box in the engine compartment? It's attached to the side of the trunk and has three posts. On my Mustang it was considered the selonoid, but I'm not sure it's the same on the 914.

Do my questions make sense? I have never been good at electrical stuff. I definitely appreciate any assistance and if you want to call me a dummy that's fine too..

-
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Jun 3 2024, 07:48 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,961
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None



Okay, so let's step back & think about this. The wiring harness doesn't have much in the way of excess length for the wires that leave it. The wires that go to the fuel pump are about 6" long.

Pull the wires off the fuel pump & measure the voltage across them with the ignition turned on. You don't have to crank the engine since the fuel pump will start first.

You've a bit of a Pandora's box on your hands & be careful not to start trying things that will do more damage. The fuel pump may now have gone south.

Post some pics of the wiring to the fuel pump. We're here to help & good luck with the trouble shooting. Above all, be patient here. Rome wasn't built in a day. "73 1.7 Djet on this end too. BTW, check the wire colors again. They can't be that messed up. I'd check mine for you, but I'd have to lift up the car. The wires in the engine well are covered. Sorry.

(IMG:style_emoticons/default/ar15.gif) (IMG:style_emoticons/default/ar15.gif) (IMG:style_emoticons/default/ar15.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jun 3 2024, 11:01 PM
Post #3


914 Guru
*****

Group: Members
Posts: 6,502
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



You are facing a bit of an uphill battle especially if splicing was done and color codes don’t match.

My best advice is learn to use a DMM and to read a wiring diagram if you don’t already know how. Google / YouTube are your friend. Sounds like you’re doing some basic continuity checks so that’s a good sign. (IMG:style_emoticons/default/smilie_pokal.gif)

As answer to your questions

Yes fuel pump and AAR are on a shared circuit coming through the fuel pump relay. The fuel pump relay solenoid is powered 12v + from the power supply relay. The ECU controls (provides a ground) the fuel pump relay solenoid via ECU four pin connector, pin III

Yes the starter solenoid circuit comes from the cabin through the relay board, to the starter. NOTE: the 3 pin connectors are related to the alternator and voltage regulator. Those 3 pin connectors have nothing to do with the starter.

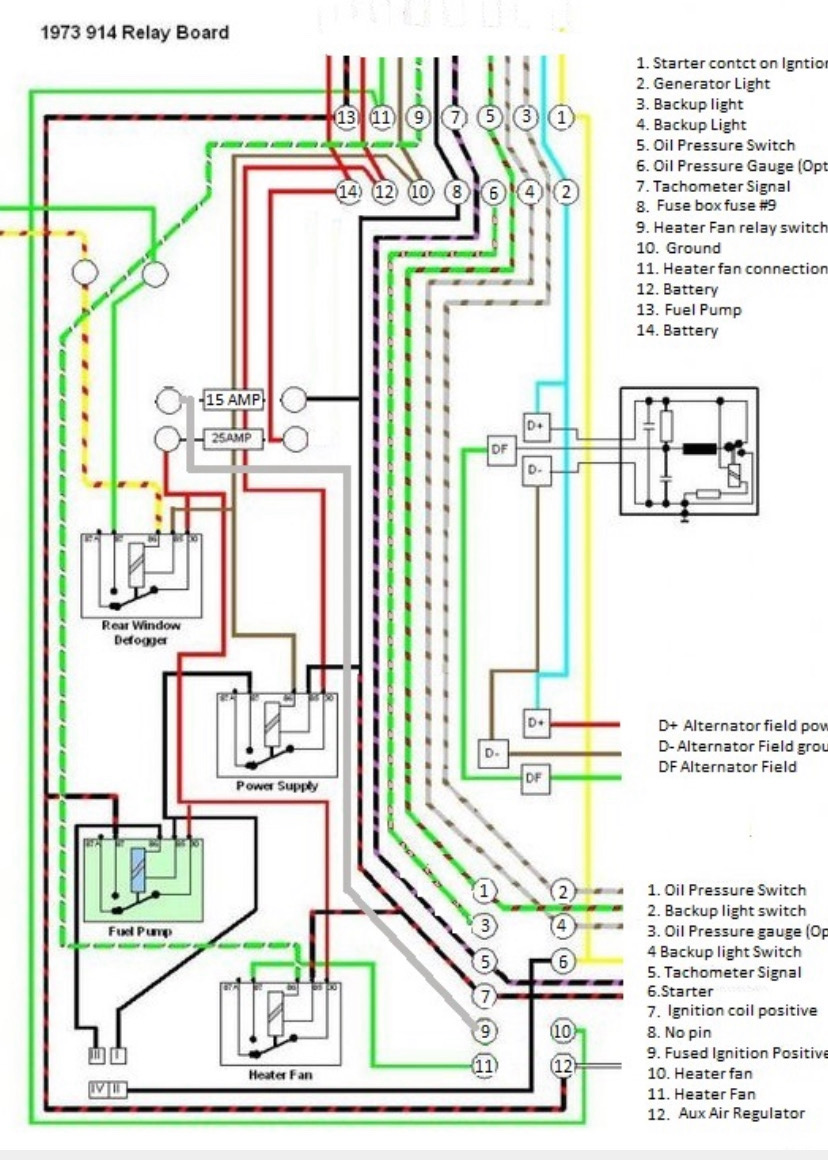

This may help you

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jun 3 2024, 11:16 PM
Post #4


914 Guru
*****

Group: Members
Posts: 6,502
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



(IMG:style_emoticons/default/thisthreadisworthlesswithoutpics.gif)

I’m sort of guessing what you’re asking about with respect to little box mounted to the trunk. Assume you mean the relay board in the engine bay but (IMG:style_emoticons/default/confused24.gif)

If you have some sort of aftermarket solenoid mounted in the trunk - all bets are off as to what some DAPO has done to your poor car. (IMG:style_emoticons/default/happy11.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
windforfun
post Jun 4 2024, 12:33 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,961
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None



CTTOI, the fuel pump wiring should have a rather unique connector on it with perhaps a rubber boot too. Simple spade lugs are not stock. Don't reverse the polarity because this will make the pump run backwards.

(IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Jun 4 2024, 02:07 PM
Post #6


Advanced Member
****

Group: Members
Posts: 3,632
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States



The drawing from Superhawk is a great starting point. That with a VOM should get you heading in the right direction
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Jun 4 2024, 02:35 PM
Post #7


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,879
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille



QUOTE(930cabman @ Jun 4 2024, 03:07 PM) *

The drawing from Superhawk is a great starting point. That with a VOM should get you heading in the right direction


http://www.914world.com/bbs2/index.php?showtopic=351033
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jun 4 2024, 03:51 PM
Post #8


914 Guru
*****

Group: Members
Posts: 6,502
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



(IMG:style_emoticons/default/agree.gif) Clay (IMG:style_emoticons/default/pray.gif) - not me. I just recycle it to those in need.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
sjhenry1075
post Jun 5 2024, 09:17 AM
Post #9


Member
**

Group: Members
Posts: 269
Joined: 22-July 12
From: Stevensville, MD
Member No.: 14,709
Region Association: North East States



Thank you for the advice everyone, hopefully I'll get a chance to dig into it today. In regards to the little box on the firewall, I'm attaching a pic for reference.. Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jun 5 2024, 09:49 AM
Post #10


914 Guru
*****

Group: Members
Posts: 8,092
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None



Maybe watching this old guy will help:


https://www.youtube.com/watch?v=YLgQxpNHzIU




QUOTE(sjhenry1075 @ Jun 3 2024, 11:24 AM) *

I hate to even post this, but I'm going to ask a bunch of few dumb questions so please bare with me. My car was painted two years ago and in my haste to drop the engine (1.7 with Djet) I did not take a lot of pictures of the wiring harnesses nor did I mark the wires. No, it they not have to be removed, but I did remove them. Yes, Huge mistake. Worst part is, the PO messed with the harness so none of the wire colors are correct.

As you probably guessed, I'm left with kind of a mess. I printed out Bowlsby's diagrams for the harnesses and the 12 point plug (which came apart during the removal process) and tested all the connections for continuity and started to put it back on the car. I few things are stumping me right now and here are my questions:

- My fuel pump no longer comes on. I looked at the wiring schematic and it shows a fuel pump wire going to the 12 pin harness, pin 12 from pin 13 of the 14 pin harness. That wire is supposed to go to the AAR valve correct?

- Is there a wire that goes from the starter to the little box in the engine compartment? It's attached to the side of the trunk and has three posts. On my Mustang it was considered the selonoid, but I'm not sure it's the same on the 914.

Do my questions make sense? I have never been good at electrical stuff. I definitely appreciate any assistance and if you want to call me a dummy that's fine too..

-

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jun 5 2024, 10:09 AM
Post #11


914 Guru
*****

Group: Members
Posts: 6,502
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



QUOTE(sjhenry1075 @ Jun 5 2024, 11:17 AM) *

Thank you for the advice everyone, hopefully I'll get a chance to dig into it today. In regards to the little box on the firewall, I'm attaching a pic for reference.. Attached Image



Yup - DAPO’s been there so I guess you weren’t joking when you said wiring has been molested.


The presence of this added solenoid was meant to solve intermittent hot start issues 914s are notorious for. Based on the way this one was done and the size of the wiring, it is a sign that it was done poorly. The OEM Bosch solenoid draws about 24 amps. The wiring from that solenoid is too small to be of much use.

Here’s how to do it properly

http://www.914world.com/bbs2/index.php?sho...p;mode=threaded

Be advised: added hot start solenoids are a Band-Aid that usually temporarily mask other underlying issues such as:

Failing ignition switch, large voltage drops in the OEM yellow stater wire due to age & corrosion, failing and/or missing ground strap between engine and transmission, failing battery cables (either + or neg.).

If it were me, I’d take it out and fix the underlying issues while you are in the process of cleaning up and sorting out your other fuel pump issues.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
windforfun
post Jun 5 2024, 10:14 AM
Post #12


Senior Member
***

Group: Members
Posts: 1,961
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None



QUOTE(dr914@autoatlanta.com @ Jun 5 2024, 08:49 AM) *

Maybe watching this old guy will help:


https://www.youtube.com/watch?v=YLgQxpNHzIU




QUOTE(sjhenry1075 @ Jun 3 2024, 11:24 AM) *

I hate to even post this, but I'm going to ask a bunch of few dumb questions so please bare with me. My car was painted two years ago and in my haste to drop the engine (1.7 with Djet) I did not take a lot of pictures of the wiring harnesses nor did I mark the wires. No, it they not have to be removed, but I did remove them. Yes, Huge mistake. Worst part is, the PO messed with the harness so none of the wire colors are correct.

As you probably guessed, I'm left with kind of a mess. I printed out Bowlsby's diagrams for the harnesses and the 12 point plug (which came apart during the removal process) and tested all the connections for continuity and started to put it back on the car. I few things are stumping me right now and here are my questions:

- My fuel pump no longer comes on. I looked at the wiring schematic and it shows a fuel pump wire going to the 12 pin harness, pin 12 from pin 13 of the 14 pin harness. That wire is supposed to go to the AAR valve correct?

- Is there a wire that goes from the starter to the little box in the engine compartment? It's attached to the side of the trunk and has three posts. On my Mustang it was considered the selonoid, but I'm not sure it's the same on the 914.

Do my questions make sense? I have never been good at electrical stuff. I definitely appreciate any assistance and if you want to call me a dummy that's fine too..

-



Come on George, you don't look a day over 30. Great video BTW. Thank you very much.

BTW, what's the PN for those relays? I assume you sell them. @dr914

(IMG:style_emoticons/default/biggrin.gif) (IMG:style_emoticons/default/biggrin.gif) (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Jun 5 2024, 02:30 PM
Post #13


Senior Member
***

Group: Members
Posts: 1,961
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None



George got me curious so I uncovered my relay board which I haven't done since 2007 when I replaced the voltage regulator with a new Bosch transistorized one from AA.

There's a spare fuse with a color that's different from the main fuse. The filaments appear to be the same size.

The three URO relays are very neatly wrapped with orange tape at the bottom.

Is this factory stock? TIA.

(IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jun 5 2024, 11:34 PM
Post #14


914 Guru
*****

Group: Members
Posts: 6,502
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



QUOTE(windforfun @ Jun 5 2024, 04:30 PM) *


Is this factory stock? TIA.


Not stock.

The fuses should be a 25A and a 15A. Was not uncommon to find 25A put in place of the 15A to serve as spare. If the 25A blows, you’re walkin’ assuming you don’t have a 25A up in the main fuse block that you can use.

URO is not the OEM supplier of original relays. Wehrle was OEM supplied relay.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
sjhenry1075
post Jun 14 2024, 08:24 AM
Post #15


Member
**

Group: Members
Posts: 269
Joined: 22-July 12
From: Stevensville, MD
Member No.: 14,709
Region Association: North East States



I want to thank everyone for their replies and assistance. I was prepared to fully diagnose the issue, multimeter and schematic in hand. I climbed under the car, looked up and yup, you guessed it, the fuel pump harness was unplugged (IMG:style_emoticons/default/headbang.gif)
Yeah, I'm an idiot. At least now I know that's the very first thing i should check. Thank you again for your time and patience!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Jun 14 2024, 12:42 PM
Post #16


Advanced Member
****

Group: Members
Posts: 3,632
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States



Don't think you are alone, more than one of us has, ___________ you fill in the blank
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Jun 14 2024, 02:47 PM
Post #17


Senior Member
***

Group: Members
Posts: 1,961
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None



Well at least you didn't short out your battery with a wrench that was too long. I burned my hand & destroyed an Optima battery. The wrench went flying & almost broke my garage door window. Optima replaced my battery for free. I didn't tell them what happened & they assumed it failed prematurely. I guess it was still under warranty.

So not only am I a dumb shit, but I'm also a liar.

"Everything I say is a lie." This is a line out of an old Star Trek episode entitled "Veeger" IIRC.

(IMG:style_emoticons/default/bs.gif) (IMG:style_emoticons/default/bs.gif) (IMG:style_emoticons/default/bs.gif)
