> 1974 914 Ignition Switch, Ignition Switch Wiring
Chuckbizkits
post Jun 10 2024, 12:07 PM
Post #1


Newbie
*

Group: Members
Posts: 3
Joined: 28-February 22
From: North OC CA
Member No.: 26,362
Region Association: Southwest Region



I am doing an LS3 swap. I've gutted all of the wiring and rewiring everything from scratch. I do want to retain the original style ignition switch. I'm having trouble identifying some of the ignition switch pigtail wires. The big red wire is BAT+ in. The medium red wire is accy run (off on start). The yellow wire is start. The grey wire is 12 v while off. Which wire is ignition run? I have a black wire, a small red wire and a grey striped wire left. Thanks for your help.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 10 2024, 12:38 PM
Post #2


914 Wiring Harnesses
*****

Group: Members
Posts: 8,704
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



https://bowlsby.net/914/WiringHarnesses/doc...4_MAIN_1974.pdf
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Chuckbizkits
post Jun 10 2024, 01:47 PM
Post #3


Newbie
*

Group: Members
Posts: 3
Joined: 28-February 22
From: North OC CA
Member No.: 26,362
Region Association: Southwest Region



QUOTE(JeffBowlsby @ Jun 10 2024, 01:38 PM) *


Sorry Jeff. This is out of my league. Which wire from the pigtail is hot at start and run?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Jun 10 2024, 04:00 PM
Post #4


Get that VIN ?
*****

Group: Members
Posts: 9,464
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California

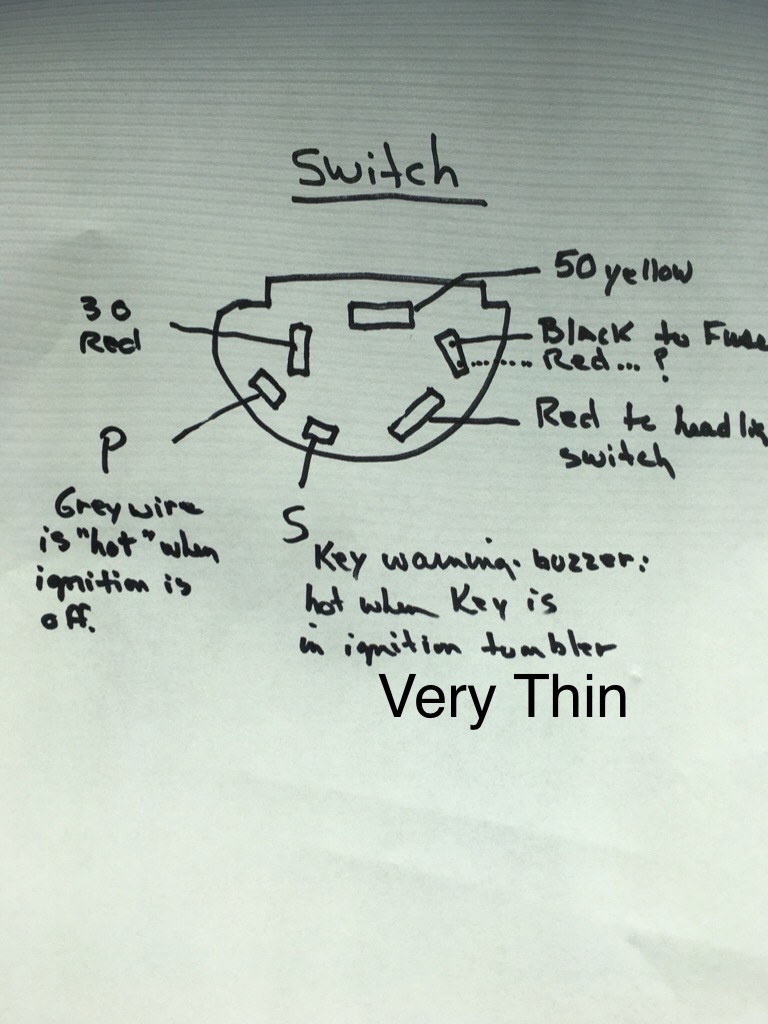

My switch:


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chuckbizkits
post Jun 11 2024, 07:33 AM
Post #5


Newbie
*

Group: Members
Posts: 3
Joined: 28-February 22
From: North OC CA
Member No.: 26,362
Region Association: Southwest Region



QUOTE(jim_hoyland @ Jun 10 2024, 05:00 PM) *

My switch:


That's it! Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
