> Brain fart regulator question
mb911
post Jun 17 2024, 01:10 PM
Post #1


914 Guru
*****

Group: Members
Posts: 7,200
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest

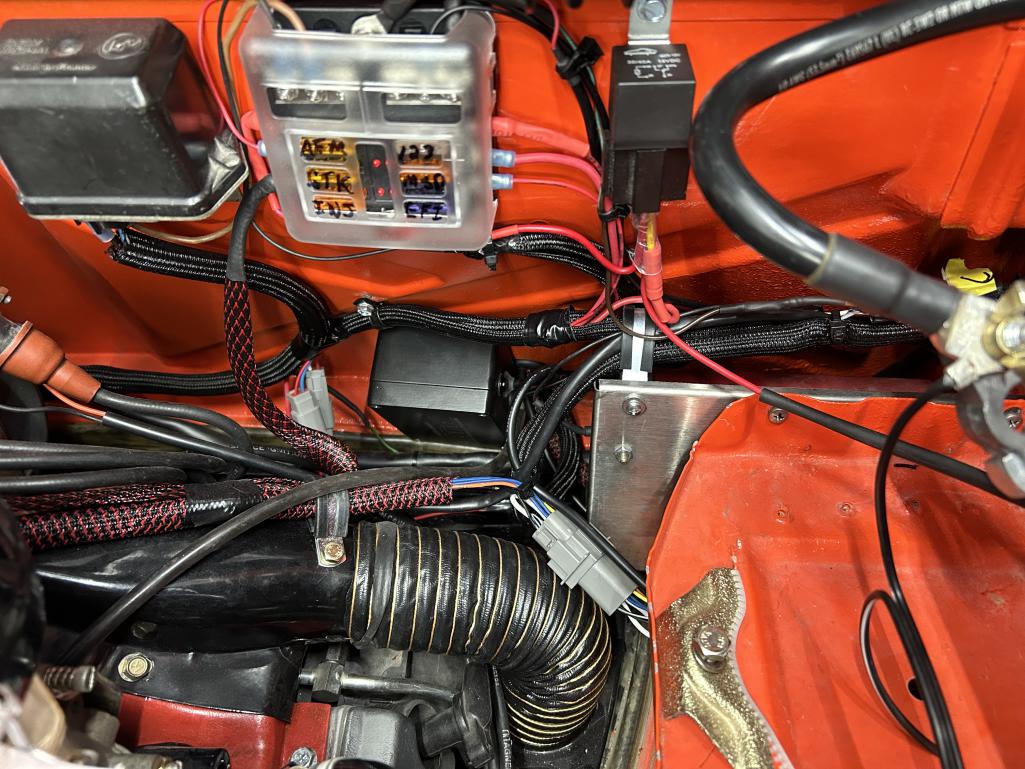

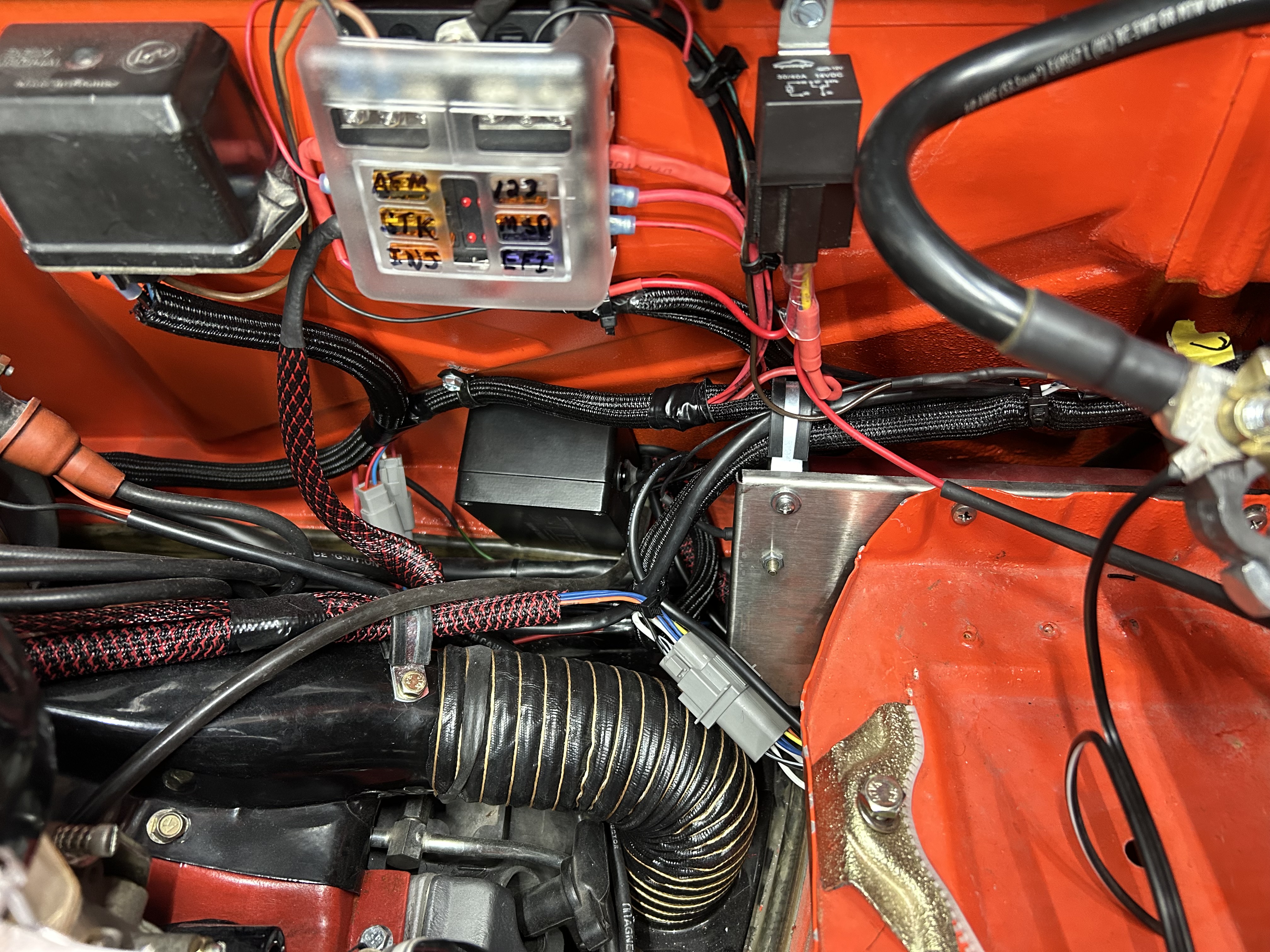

So was noticing I have less voltage while the car is running. I am use to seeing 13/14 volts as the pretty much normal. I have a fairly new marchel alternator and this year I am seeing 13v on the high side. Now I do have more electrical items, wide band o2, mega squirt, and active exhaust. Regulator going bad? Pictured in upper left. Hmm maybe I have them on the wrong pins? Might have messed that up?Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Jun 17 2024, 01:19 PM
Post #2


Advanced Member
****

Group: Members
Posts: 4,639
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None
All consumers off ? Belt too loose ?
I can't describe how it's done but I understand there is a way to test output of an
alternator before the VR.
Maybe someone can chime in ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jun 17 2024, 01:44 PM
Post #3


914 Guru
*****

Group: Members
Posts: 7,200
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(rgalla9146 @ Jun 17 2024, 11:19 AM) *

All consumers off ? Belt too loose ?
I can't describe how it's done but I understand there is a way to test output of an
alternator before the VR.
Maybe someone can chime in ?



That would be great if someone would. It would suck to have to change the alternator now
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mlindner
post Jun 17 2024, 02:06 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,568
Joined: 11-November 11
From: Merrimac, WI
Member No.: 13,770
Region Association: Upper MidWest
Ben, why are using a remote regulator....Arn't they all in the alternators on 911s. or 914-6 went the same way as the fours. Mark
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jun 17 2024, 02:14 PM
Post #5


914 Guru
*****

Group: Members
Posts: 7,200
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(mlindner @ Jun 17 2024, 12:06 PM) *

Ben, why are using a remote regulator....Arn't they all in the alternators on 911s. or 914-6 went the same way as the fours. Mark



No none of them until the mid 80s went to integrated regulators. The external regulators actually work really well. I just need to relearn it
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BillC
post Jun 17 2024, 03:05 PM
Post #6


Senior Member
***

Group: Members
Posts: 552
Joined: 24-April 15
From: Silver Spring, MD
Member No.: 18,667
Region Association: MidAtlantic Region
Wait ... someone makes a brain fart regulator? (IMG:style_emoticons/default/blink.gif) I could use one of those at work! Where can I order one?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jun 17 2024, 03:20 PM
Post #7


914 Guru
*****

Group: Members
Posts: 7,200
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(BillC @ Jun 17 2024, 01:05 PM) *

Wait ... someone makes a brain fart regulator? (IMG:style_emoticons/default/blink.gif) I could use one of those at work! Where can I order one?

(IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Jun 17 2024, 03:31 PM
Post #8


Senior Member
***

Group: Members
Posts: 1,959
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None
Since your regulator isn't part of your alternator, can't you just put a voltmeter at the output of the alternator & measure it's output voltage as you rev the engine?

What am I missing here?

(IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Artfrombama
post Jun 17 2024, 03:40 PM
Post #9


Member
**

Group: Members
Posts: 189
Joined: 21-January 24
From: Alabama
Member No.: 27,870
Region Association: South East States
Subscribed (FWIW)

What are the normal voltages? All I'm getting from my alternator is 13.6V
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jun 17 2024, 04:39 PM
Post #10


914 Guru
*****

Group: Members
Posts: 7,200
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(windforfun @ Jun 17 2024, 01:31 PM) *

Since your regulator isn't part of your alternator, can't you just put a voltmeter at the output of the alternator & measure it's output voltage as you rev the engine?

What am I missing here?

(IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif)



Well it’s AC coming of the alternator then the regulator /recitifier turns it to DC
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jun 17 2024, 05:02 PM
Post #11


914 Guru
*****

Group: Members
Posts: 6,492
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
Ben,

I’m on vacation with no access to my technical documents but happy to see what I can find on-line to help.

I don’t recognize that regulator. Is is just a 3 pin mechanical regulator or is it something different?

You should be seeing higher than 13v with say rev’s higher than 1500-2000 rpm.

As others have alluded to - make sure you don’t have some high current draw somewhere loading the system heavily. I doubt that is the case - it would take a heck of a lot of load but something like heated seats or something like an active exhaust actuator that is stuck might be pulling high current???? (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Jun 17 2024, 05:09 PM
Post #12


Senior Member
***

Group: Members
Posts: 1,959
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None
"All I'm getting from my alternator is 13.6 V."

???

Then measure the AC voltage which will be either rms or peak depending on your voltmeter. The rms voltage is peak/1.4.

What you measure at the wall socket is rms. FYI.

(IMG:style_emoticons/default/beer3.gif) (IMG:style_emoticons/default/beer3.gif) (IMG:style_emoticons/default/beer3.gif)


User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jun 17 2024, 05:21 PM
Post #13


914 Guru
*****

Group: Members
Posts: 7,200
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(Superhawk996 @ Jun 17 2024, 03:02 PM) *

Ben,

I’m on vacation with no access to my technical documents but happy to see what I can find on-line to help.

I don’t recognize that regulator. Is is just a 3 pin mechanical regulator or is it something different?

You should be seeing higher than 13v with say rev’s higher than 1500-2000 rpm.

As others have alluded to - make sure you don’t have some high current draw somewhere loading the system heavily. I doubt that is the case - it would take a heck of a lot of load but something like heated seats or something like an active exhaust actuator that is stuck might be pulling high current???? (IMG:style_emoticons/default/confused24.gif)



The fuses to the active exhaust are 5 amp so that’s not it. I will check connections and then I will probably dissect the regulator and see if it needs cleaning etc
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jun 17 2024, 05:22 PM
Post #14


914 Guru
*****

Group: Members
Posts: 7,200
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(windforfun @ Jun 17 2024, 03:09 PM) *

"All I'm getting from my alternator is 13.6 V."

???

Then measure the AC voltage which will be either rms or peak depending on your voltmeter. The rms voltage is peak/1.4.

What you measure at the wall socket is rms. FYI.

(IMG:style_emoticons/default/beer3.gif) (IMG:style_emoticons/default/beer3.gif) (IMG:style_emoticons/default/beer3.gif)



Well I know I am getting some charging just not as much as I want so the alternator is producing power
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Jun 17 2024, 05:25 PM
Post #15


Senior Member
***

Group: Members
Posts: 1,959
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None
Let me clarify here. If your voltmeter reads 120 V at the wall socket, then it measures rms voltage.

Speaking of power, 1 watt = 1 volt amp. Measuring current is a PITA since you need a really beefy ammeter that has to be placed in series with the circuit that you're testing. This is old school like me.

On the other hand, you can go with one of these:

https://www.amazon.com/Fluke-302-Digital-Cl...72629&psc=1

(IMG:style_emoticons/default/biggrin.gif) (IMG:style_emoticons/default/biggrin.gif) (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jun 17 2024, 05:27 PM
Post #16


914 Guru
*****

Group: Members
Posts: 6,492
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch

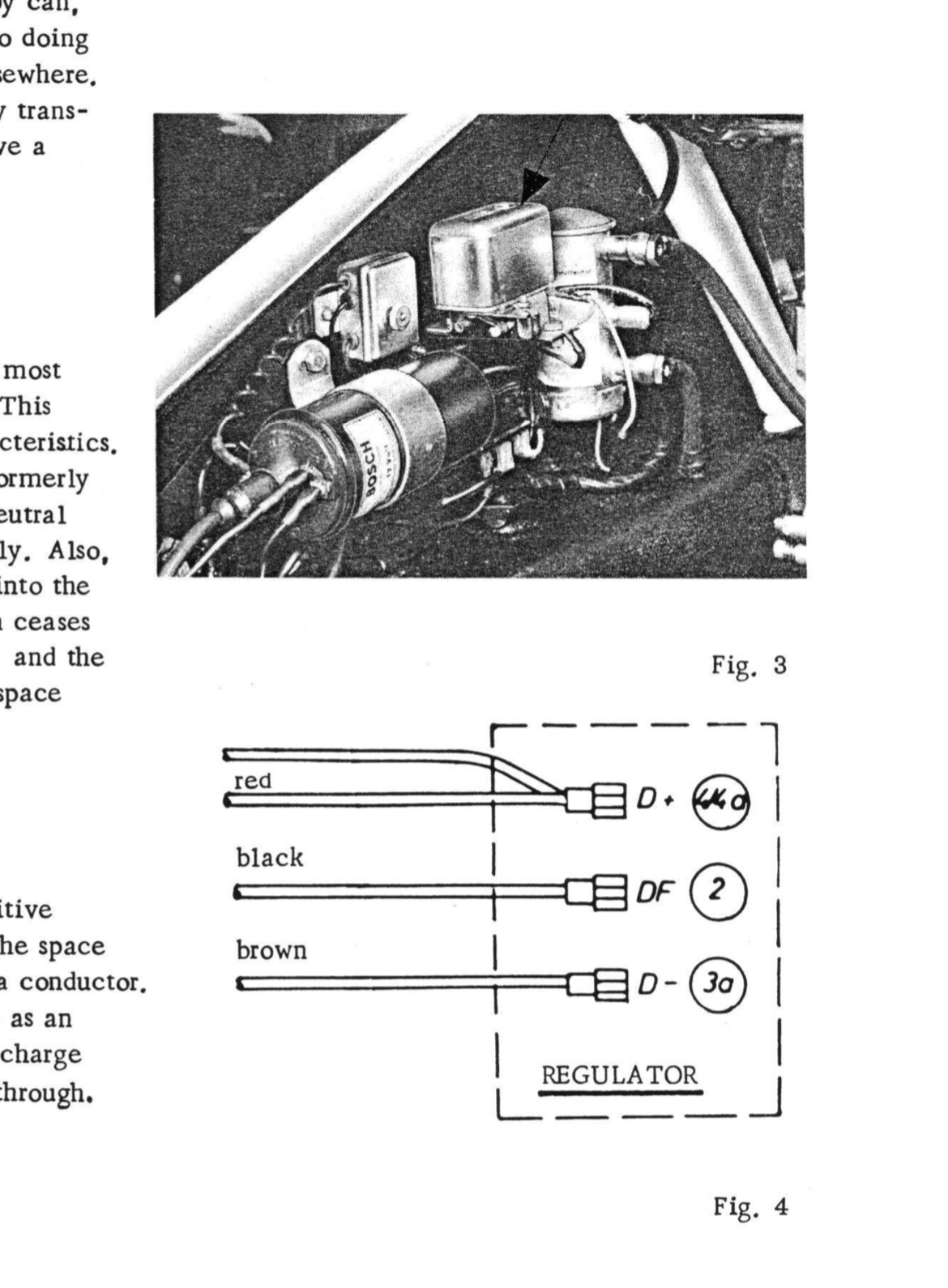

Assuming you’re running a 3 pin mechanical regulator here’s the 911 factory manual diagram / color code

Not at all uncommon to get some corrosion on the regulator contacts that can inhibit charging. In the past I’ve hit them with 400 grit and revived an in-op regulator.

Your regulator appears to have the cover riveted on unlike the Bosch /4 regulators there just have a taped on cover
Attached Image

One last thing to keep in mind is the charging voltage is dependent on battery state of charge. So if your battery is fully charged, you’re not going to develop 14v of charging voltage.

Does your charging voltage change as you load the alternator with headlamps or blower fans?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Jun 17 2024, 05:37 PM
Post #17


Senior Member
***

Group: Members
Posts: 1,959
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None
(IMG:style_emoticons/default/agree.gif) (IMG:style_emoticons/default/agree.gif) (IMG:style_emoticons/default/agree.gif)

This guy knows his shit.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jun 17 2024, 05:48 PM
Post #18


914 Guru
*****

Group: Members
Posts: 6,492
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch

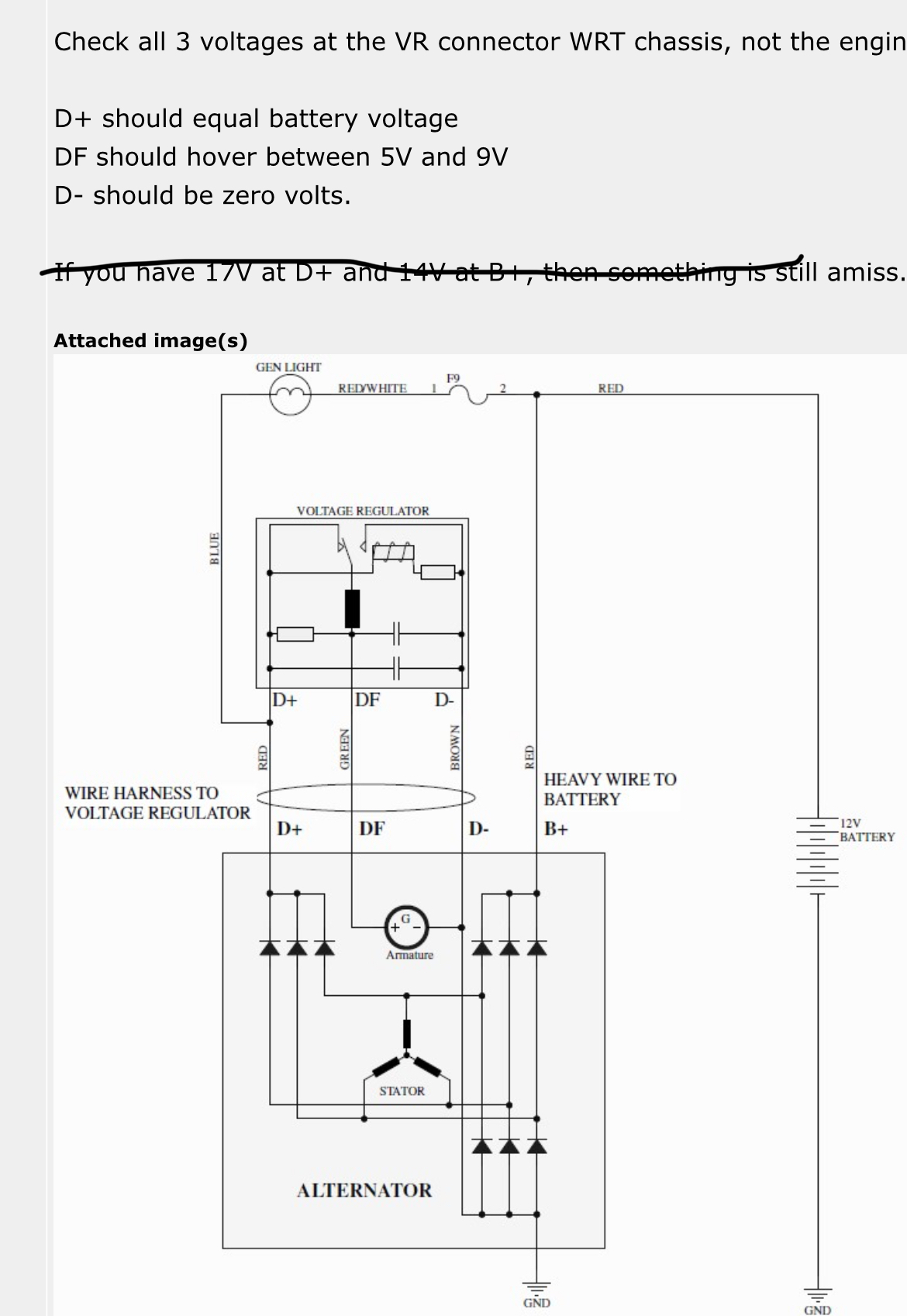

I’m going to post one more which is Spoke’s simplified schematic for an alternator and 3 pin regulator

I did a strike through on a line that has no bearing to your issue.

As previously noted the voltage on the field (DF) will vary based on battery state of charge and the electrical load the system is seeing. A higher voltage on DF indicates the system is “pushing” the alternator harder and trying to increase alternator output.

Attached Image

Note: color codes on this reflect the /4 914 regulator wiring. The other illustration is from a 911 factory manual and 911 wiring, thus the difference in color of wires.

Note 2: the voltage measurement of DF is referenced with the regulator plugged in and functioning by rapidly energizing and de-energizing the solenoid coil within the regulator.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
worn
post Jun 17 2024, 07:12 PM
Post #19


can't remember
****

Group: Members
Posts: 3,318
Joined: 3-June 11
From: Madison, WI
Member No.: 13,152
Region Association: Upper MidWest
Battery healthy? In some cases the alternator just cannot find enough charge to push against.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jun 17 2024, 07:19 PM
Post #20


914 Guru
*****

Group: Members
Posts: 7,200
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(worn @ Jun 17 2024, 05:12 PM) *

Battery healthy? In some cases the alternator just cannot find enough charge to push against.



That’s a good possibility the battery is a pretty old optima. Switching to a new battery shortly. Good thought as well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
