Highland |
![]()
Post
#1
|
Senior Member ![]() ![]() ![]() Group: Members Posts: 523 Joined: 8-August 11 From: San Diego, CA Member No.: 13,418 Region Association: Southern California ![]() |

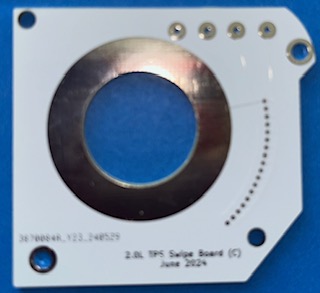

Just thought I'd share:
Parts are printed, but are rotating on pressed in plain bearings. ![]() ![]() ![]() |
emerygt350 |
![]()
Post
#2
|
Advanced Member ![]() ![]() ![]() ![]() Group: Members Posts: 2,385 Joined: 20-July 21 From: Upstate, NY Member No.: 25,740 Region Association: North East States ![]() |
That is pretty cool! How do you handle the shut off on reverse rotation?
|
JeffBowlsby |
![]()
Post
#3
|
914 Wiring Harnesses ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 8,644 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None ![]() ![]() |
Do I understand correctly...a roller contact not a sliding wiper?
Genius. No friction or parts that wear out. |
914Sixer |
![]()
Post
#4
|
914 Guru ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 8,980 Joined: 17-January 05 From: San Angelo Texas Member No.: 3,457 Region Association: Southwest Region ![]() ![]() |
Love it when members continue to ONE UP the factory part and make it simple (IMG:style_emoticons/default/first.gif)
|
Highland |
![]()
Post
#5
|
Senior Member ![]() ![]() ![]() Group: Members Posts: 523 Joined: 8-August 11 From: San Diego, CA Member No.: 13,418 Region Association: Southern California ![]() |

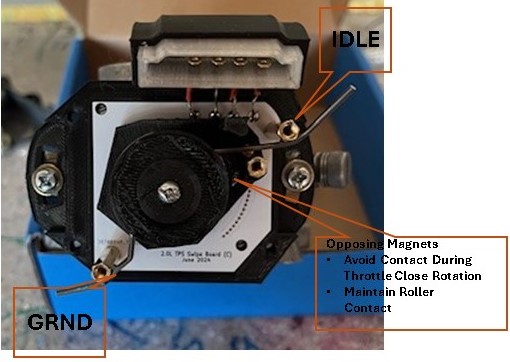

That is pretty cool! How do you handle the shut off on reverse rotation? The roller contact is Mill-Max 0945-0-15-20-09-14-11-0. Like OEM, the primary means of preventing reverse rotation contact is gravity and inertia. Between the 2 arms are magnets placed same polarity facing each other. This provides opposing force for roller contact and are offset to prevent any contact during reverse rotation. I wish I could publish some fancy calculation to determine the optimum magnet offset, but it was trial and error until I could get something that worked reliably. Not to hard with inexpensive rapid prototyping of a home 3D printer. I'm testing this on a '73 TB, so it's also nice to have the built-in backup return spring in the TPS. |
emerygt350 |
![]()
Post
#6
|
Advanced Member ![]() ![]() ![]() ![]() Group: Members Posts: 2,385 Joined: 20-July 21 From: Upstate, NY Member No.: 25,740 Region Association: North East States ![]() |
Very cool.
|
![]() ![]() |
![]() |
