 FS: New Stainless Steel Rear Alignment Shims, 1, 2, and 3mm Thick 96mm, Any three for $35, or 6 $60 with 6 new Schnoor washers |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
914World Classifieds Rules
We've established the following rules to help make your sales/purchases as successful as possible!
- Please List WTB:, FS:, TRADE: etc (want to buy, for sale, and trade respectively) before your add title.
- You *must* put a price in your ad and state how you would like payment!
- If you'd like to bump your ads, feel free to do so every two days.
- DO NOT MAKE YOUR ADS IN ALL CAPITAL LETTERS! It's considered rude.
- All eBay ads belong in the eBay category.
- Please consolidate your ads into one big lump... listings and pictures together in one thread. Please be considerate of other classified users!!
- Mark your items "SOLD" once you sell them. Please do not ask to have ads removed. Ads will automatically hide themselves after 30 days. We also ask that you leave your pricing in the ads to help others determine fair market value for future sales.
  |
| bdstone914 |
 Dec 17 2024, 09:04 PM
Post
#1
|
|
bdstone914  Group: Members Posts: 4,735 Joined: 8-November 03 From: Riverside CA Member No.: 1,319  |
Warning : Adding shims reduces the number of engaged threads of the 10mm attaching bolts. The stock length of the 10mm bolts is 55mm. If you have a shim pack more than 5mm use new longer 10.9 grade 10 mm bolts. I recently shimmed a 914 to correct the excessive rear camber. One side had about 10mm in shims before adding 3mm more in shims. We had four threads of engagement of the trailing bolts after adding more shim pack. We changed to 70 mm bolts. The other side had a shorter shim pack and the 70mm bolts bottomed out on the non threaded portion of the bolt. 65mm bolts worked.

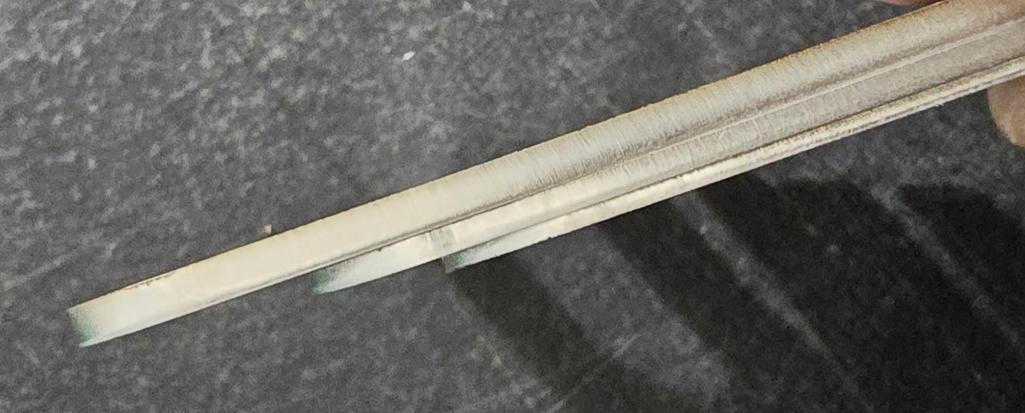

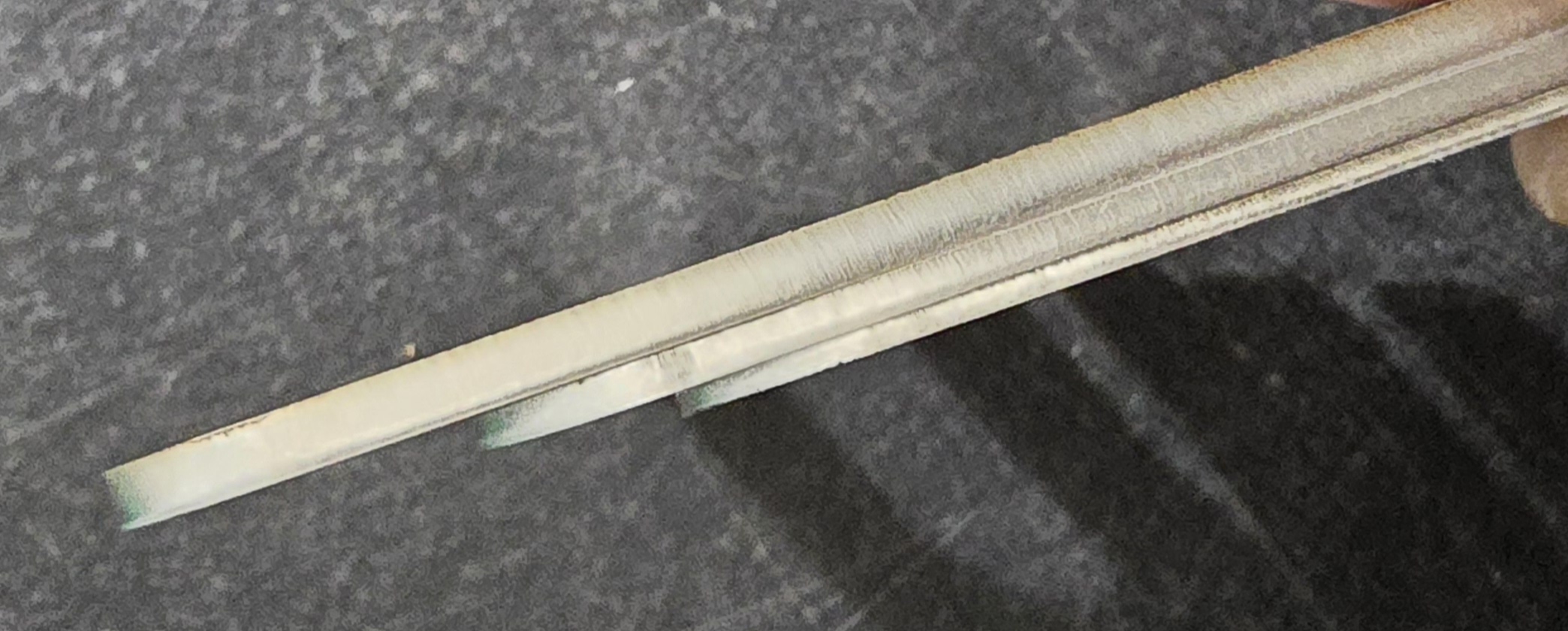

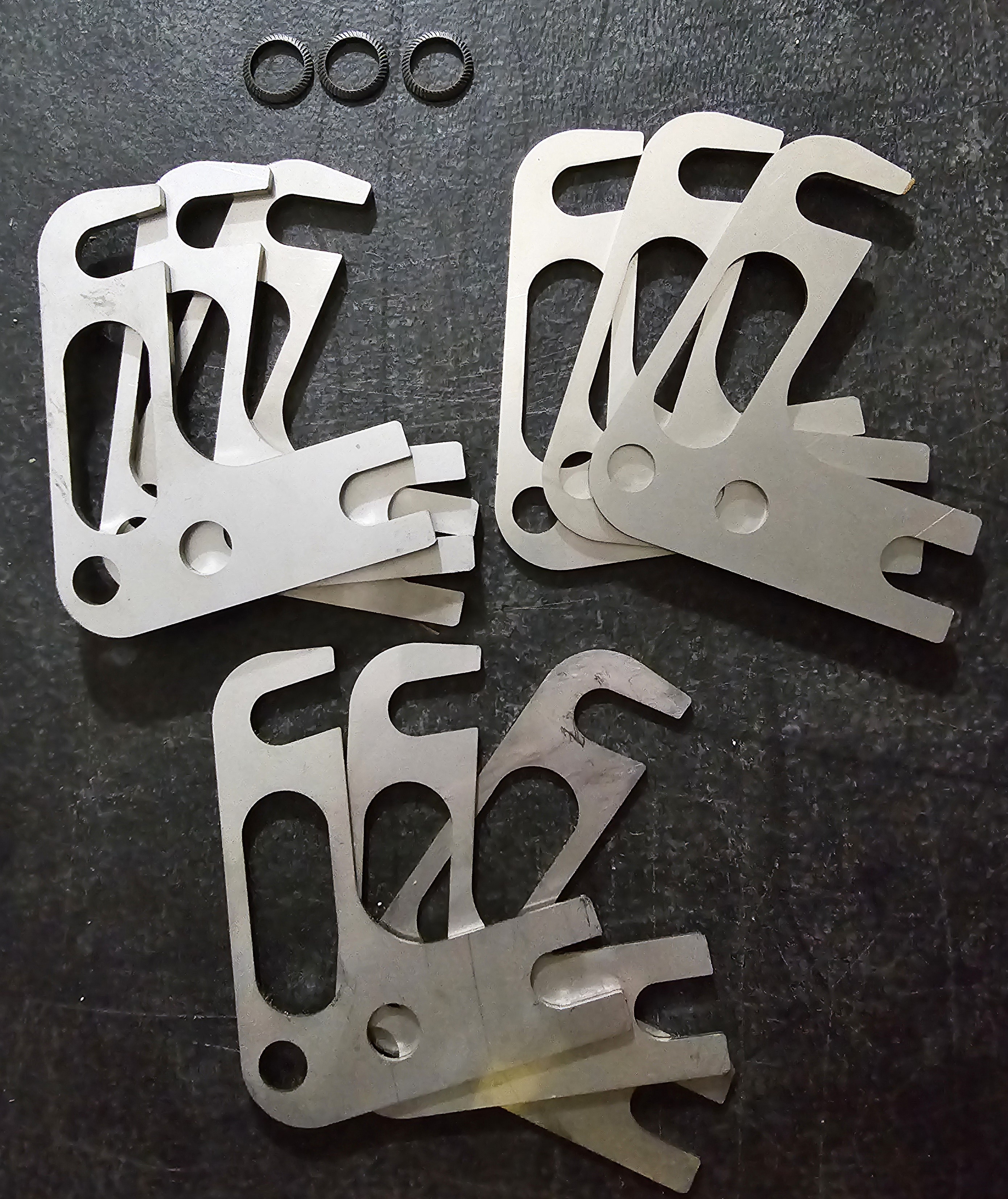

I had a new batch of stainless steel rear alignment shims in 1, 2, and 3mm thicknesses. Standard shims are 2, 3, an 4mm thick. This assortments easily allows for 1mm increments of adjustment. Any three shims for $35 or 6 for $60 shipped-. each group will include 6 new Schnoor washers as they need to be replaced if the bolts are loosened. \ @technicalninja @FlacaProductions @racer914 Attached thumbnail(s)
|
   |

|
| technicalninja |
Dec 17 2024, 09:11 PM
Post
#2
|
|
Advanced Member Group: Members Posts: 2,117 Joined: 31-January 23 From: Granbury Texas Member No.: 27,135 Region Association: Southwest Region
|
I'll take a set of 6.
PM sent. |
|
|
|
| FlacaProductions |
Dec 18 2024, 11:12 AM
Post
#3
|
|
Senior Member Group: Members Posts: 1,845 Joined: 24-November 17 From: LA Member No.: 21,628 Region Association: Southern California
|
I'll take a set of 6. Sending PM, Bruce.
|
 |
|
| racer914 |
Dec 18 2024, 11:24 AM
Post
#4
|
|
Member Group: Members Posts: 89 Joined: 1-October 19 From: Keystone Heights, FL Member No.: 23,513 Region Association: South East States
|
I'll take 6, let me know how to pay.
|
|
|
|
| sixaddict |
Dec 21 2024, 11:17 AM
Post
#5
|
|
Senior Member Group: Members Posts: 869 Joined: 22-January 09 From: Panama City Beach, FL Member No.: 9,961 Region Association: South East States
|
Bruce or anyone…..that uses Bird board…

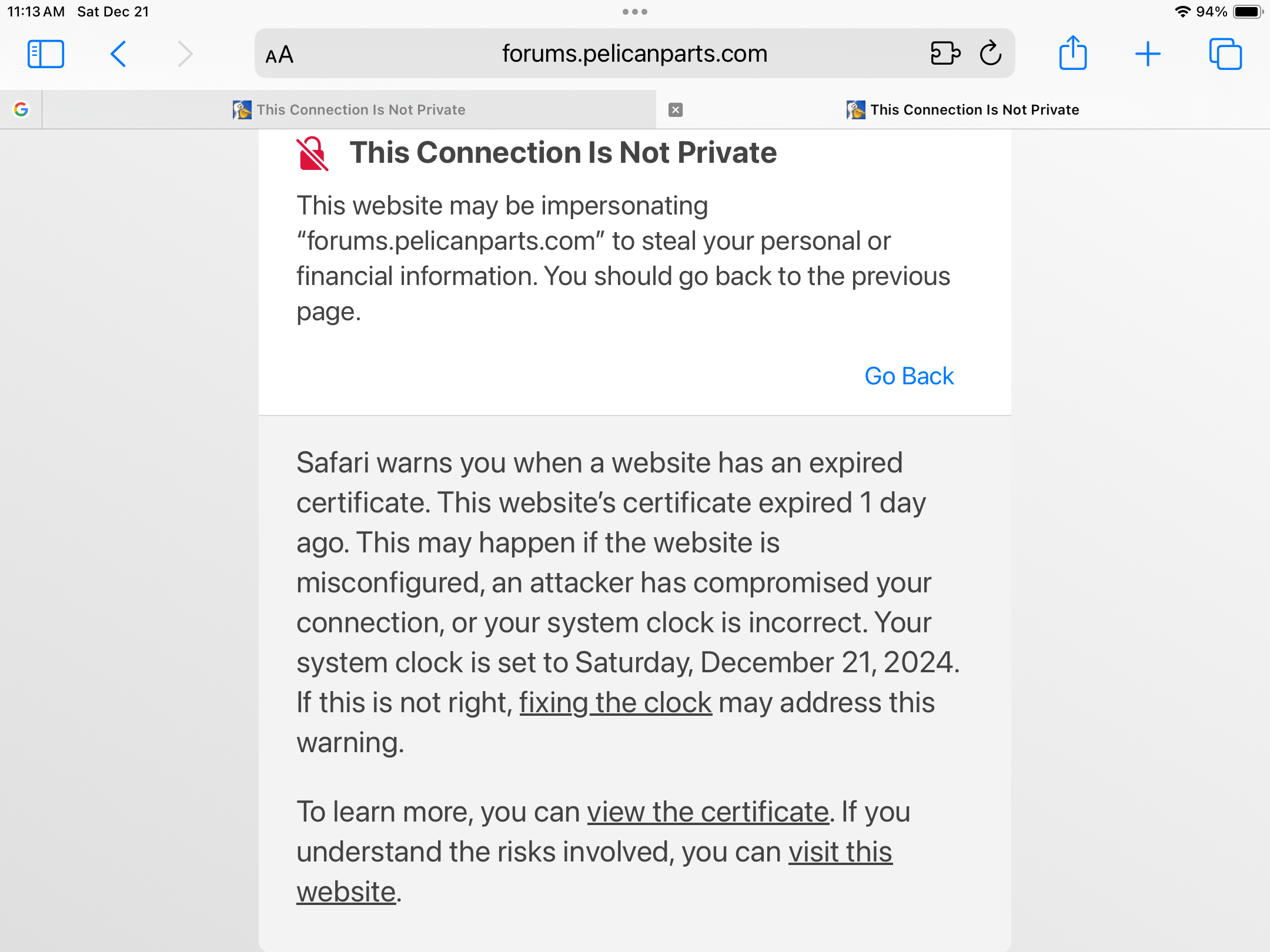

I am getting the following message….i get nervous about changing things with all the #cammers. Anyone else seeing this. See below |
|
|
|
| sixaddict |
Dec 21 2024, 11:19 AM
Post
#6
|
|
Senior Member Group: Members Posts: 869 Joined: 22-January 09 From: Panama City Beach, FL Member No.: 9,961 Region Association: South East States
|
Sorry deleted repeat
Attached thumbnail(s)
|
|
|
|
| bdstone914 |
Dec 21 2024, 09:48 PM
Post
#7
|
|
bdstone914 Group: Members Posts: 4,735 Joined: 8-November 03 From: Riverside CA Member No.: 1,319 |
|
|
|
|
| bdstone914 |
Dec 25 2024, 09:07 AM
Post
#8
|
|
bdstone914 Group: Members Posts: 4,735 Joined: 8-November 03 From: Riverside CA Member No.: 1,319 |
|
|
|
|
| FlacaProductions |
Dec 25 2024, 10:05 AM
Post
#9
|
|
Senior Member Group: Members Posts: 1,845 Joined: 24-November 17 From: LA Member No.: 21,628 Region Association: Southern California
|
QUOTE(bdstone914 @ Dec 17 2024, 07:04 PM)  Warning : Adding shims reduces the number of engaged threads of the 10mm attaching bolts. The stock length of the 10mm bolts is 55mm. If you have a shim pack more than 5mm use new longer 10.9 grade 10 mm bolts. each group will include 6 new Schnoor washers as they need to be replaced if the bolts are loosened. Good point -thanks for the reminder! |
|
|
|
|
