> Speedometer Angle Drive, Troubleshooting
SteveNMaine
post Apr 24 2025, 09:21 AM
Post #1


Newbie
*

Group: Members
Posts: 37
Joined: 12-August 24
From: Maine
Member No.: 28,288
Region Association: None
When I turn either the male or female end of the speedometer angle drive the opposite end doesn't turn, they seem to be disconnected. Is this normal?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Apr 24 2025, 10:46 AM
Post #2


Life's been good to me so far.....
***************

Group: Admin
Posts: 16,285
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(SteveNMaine @ Apr 24 2025, 10:21 AM) *

When I turn either the male or female end of the speedometer angle drive the opposite end doesn't turn, they seem to be disconnected. Is this normal?


Nope. If that is happening, the angle drive is junk.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jamie
post Apr 24 2025, 10:49 AM
Post #3


Senior Member
***

Group: Members
Posts: 1,100
Joined: 13-October 04
From: Georgetown,KY
Member No.: 2,939
Region Association: South East States
QUOTE(SteveNMaine @ Apr 24 2025, 07:21 AM) *

When I turn either the male or female end of the speedometer angle drive the opposite end doesn't turn, they seem to be disconnected. Is this normal?

This may be the source of my dead speedometer as well. I'm waiting for the speedometer head to be returned from repair before going further. I'm wondering if removing the angle drive allows trans oil to leak out? (IMG:style_emoticons/default/hissyfit.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jamie
post Apr 24 2025, 10:52 AM
Post #4


Senior Member
***

Group: Members
Posts: 1,100
Joined: 13-October 04
From: Georgetown,KY
Member No.: 2,939
Region Association: South East States
QUOTE(ClayPerrine @ Apr 24 2025, 08:46 AM) *

QUOTE(SteveNMaine @ Apr 24 2025, 10:21 AM) *

When I turn either the male or female end of the speedometer angle drive the opposite end doesn't turn, they seem to be disconnected. Is this normal?


Nope. If that is happening, the angle drive is junk.

I found many available on eBay, and a small drive gear on shaft listed as well, is this part inside the drive that is possible source of the failure? (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Ron914
post Apr 24 2025, 11:50 AM
Post #5


Member
**

Group: Members
Posts: 254
Joined: 19-April 22
From: Huntington Beach,Ca
Member No.: 26,487
Region Association: Southern California
@SteveNMaine

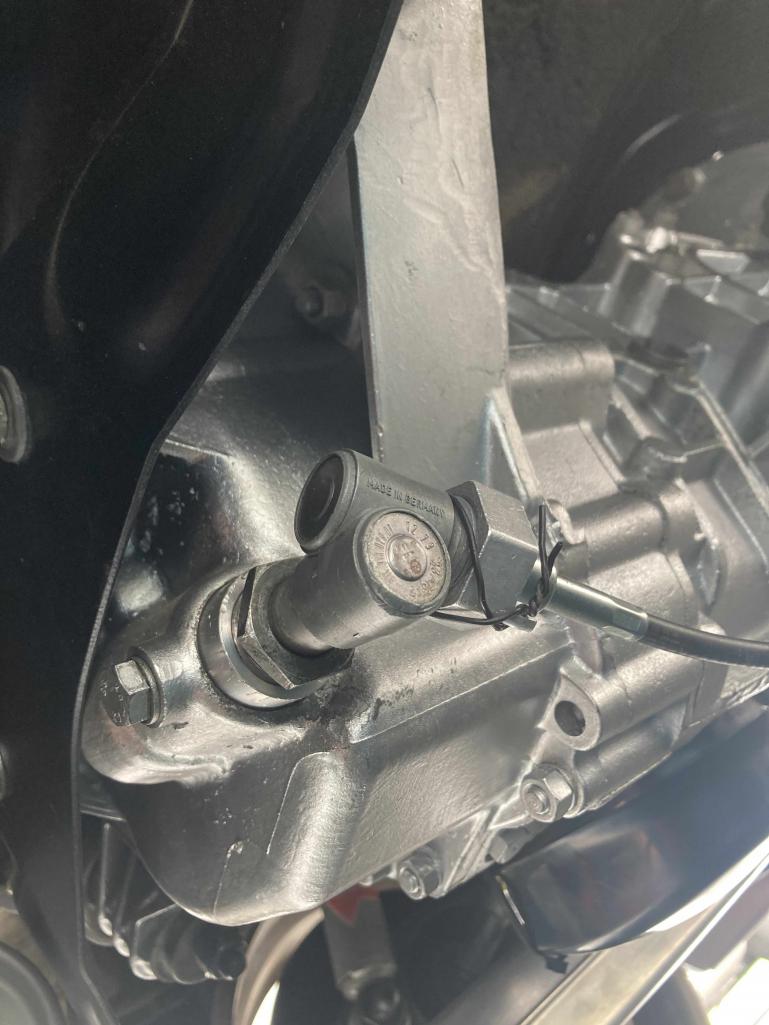

I replaced replaced my speedometer angle drive recently because it was leaking .
Bruce Stone sells one with the proper O ring vs the one 914Rubber sells ,I purchased the 914 Rubber one and have had no issues but it does have a smaller O ring .
My connection from the end of the speedo cable also was turning but now it does not turn now so replacement seemed to fix this as Clay mentioned .

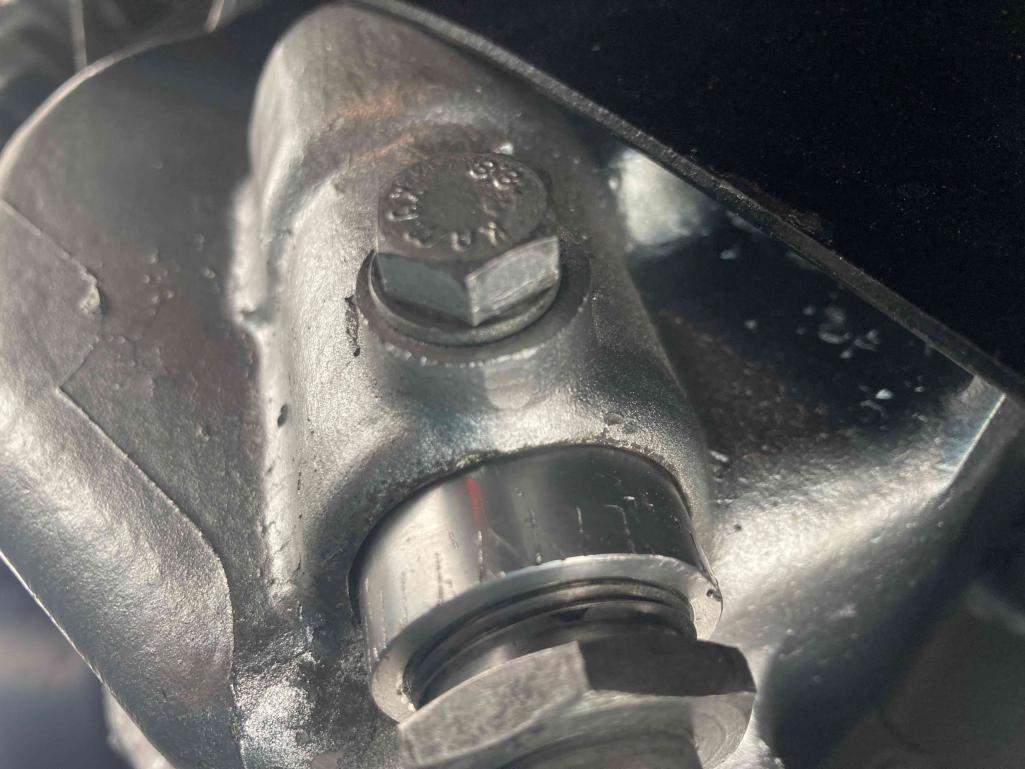

You also might check the 10mm bolt for tightness. Also the 26mm nut
Attached Image
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Apr 24 2025, 04:01 PM
Post #6


Life's been good to me so far.....
***************

Group: Admin
Posts: 16,285
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(Jamie @ Apr 24 2025, 11:52 AM) *

QUOTE(ClayPerrine @ Apr 24 2025, 08:46 AM) *

QUOTE(SteveNMaine @ Apr 24 2025, 10:21 AM) *

When I turn either the male or female end of the speedometer angle drive the opposite end doesn't turn, they seem to be disconnected. Is this normal?


Nope. If that is happening, the angle drive is junk.

I found many available on eBay, and a small drive gear on shaft listed as well, is this part inside the drive that is possible source of the failure? (IMG:style_emoticons/default/confused24.gif)


Be careful.. the 911 angle drive and the 914 angle drive look very similar. But if you try to put a 911 angle drive in a 914, the speedometer won't work. The 911 drive turns backwards from a 914 drive.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jamie
post Apr 24 2025, 08:24 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,100
Joined: 13-October 04
From: Georgetown,KY
Member No.: 2,939
Region Association: South East States
QUOTE(ClayPerrine @ Apr 24 2025, 02:01 PM) *

QUOTE(Jamie @ Apr 24 2025, 11:52 AM) *

QUOTE(ClayPerrine @ Apr 24 2025, 08:46 AM) *

QUOTE(SteveNMaine @ Apr 24 2025, 10:21 AM) *

When I turn either the male or female end of the speedometer angle drive the opposite end doesn't turn, they seem to be disconnected. Is this normal?


Nope. If that is happening, the angle drive is junk.

I found many available on eBay, and a small drive gear on shaft listed as well, is this part inside the drive that is possible source of the failure? (IMG:style_emoticons/default/confused24.gif)


Be careful.. the 911 angle drive and the 914 angle drive look very similar. But if you try to put a 911 angle drive in a 914, the speedometer won't work. The 911 drive turns backwards from a 914 drive.

Clay et al, how to tell the difference when buying used from a source like eBay? I assume some sellers won't know original source, and is there any external part number or other distinguishing characteristic for ID of correct replacement? (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jamie
post Apr 24 2025, 08:29 PM
Post #8


Senior Member
***

Group: Members
Posts: 1,100
Joined: 13-October 04
From: Georgetown,KY
Member No.: 2,939
Region Association: South East States
QUOTE(Ron914 @ Apr 24 2025, 09:50 AM) *

@SteveNMaine
I replaced replaced my speedometer angle drive recently because it was leaking .
Bruce Stone sells one with the proper O ring vs the one 914Rubber sells ,I purchased the 914 Rubber one and have had no issues but it does have a smaller O ring .
My connection from the end of the speedo cable also was turning but now it does not turn now so replacement seemed to fix this as Clay mentioned .
You also might check the 10mm bolt for tightness. Also the 26mm nut
Attached Image
Attached Image

This is a wonderfully clean looking transmission case! (IMG:style_emoticons/default/blink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Apr 25 2025, 05:29 AM
Post #9


Life's been good to me so far.....
***************

Group: Admin
Posts: 16,285
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(Jamie @ Apr 24 2025, 09:24 PM) *

QUOTE(ClayPerrine @ Apr 24 2025, 02:01 PM) *

QUOTE(Jamie @ Apr 24 2025, 11:52 AM) *

QUOTE(ClayPerrine @ Apr 24 2025, 08:46 AM) *

QUOTE(SteveNMaine @ Apr 24 2025, 10:21 AM) *

When I turn either the male or female end of the speedometer angle drive the opposite end doesn't turn, they seem to be disconnected. Is this normal?


Nope. If that is happening, the angle drive is junk.

I found many available on eBay, and a small drive gear on shaft listed as well, is this part inside the drive that is possible source of the failure? (IMG:style_emoticons/default/confused24.gif)


Be careful.. the 911 angle drive and the 914 angle drive look very similar. But if you try to put a 911 angle drive in a 914, the speedometer won't work. The 911 drive turns backwards from a 914 drive.

Clay et al, how to tell the difference when buying used from a source like eBay? I assume some sellers won't know original source, and is there any external part number or other distinguishing characteristic for ID of correct replacement? (IMG:style_emoticons/default/confused24.gif)



There is no visible difference, but the internal gears are different. You have to check the part number.

The part number for a 911 angle drive is : 911 318 029 00
The part number for a 914 angle drive is : 914 318 029 01

If you are buying used, the seller should know what kind of transmission it came from or they need to verify the part number.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Apr 25 2025, 05:48 AM
Post #10


bdstone914
****

Group: Members
Posts: 4,881
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
QUOTE(Jamie @ Apr 24 2025, 07:24 PM) *

QUOTE(ClayPerrine @ Apr 24 2025, 02:01 PM) *

QUOTE(Jamie @ Apr 24 2025, 11:52 AM) *

QUOTE(ClayPerrine @ Apr 24 2025, 08:46 AM) *

QUOTE(SteveNMaine @ Apr 24 2025, 10:21 AM) *

When I turn either the male or female end of the speedometer angle drive the opposite end doesn't turn, they seem to be disconnected. Is this normal?


Nope. If that is happening, the angle drive is junk.

I found many available on eBay, and a small drive gear on shaft listed as well, is this part inside the drive that is possible source of the failure? (IMG:style_emoticons/default/confused24.gif)


Be careful.. the 911 angle drive and the 914 angle drive look very similar. But if you try to put a 911 angle drive in a 914, the speedometer won't work. The 911 drive turns backwards from a 914 drive.

Clay et al, how to tell the difference when buying used from a source like eBay? I assume some sellers won't know original source, and is there any external part number or other distinguishing characteristic for ID of correct replacement? (IMG:style_emoticons/default/confused24.gif)


The part number is stamped on a disc on the angle drive it should start with 914.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Apr 25 2025, 05:50 AM
Post #11


bdstone914
****

Group: Members
Posts: 4,881
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
QUOTE(bdstone914 @ Apr 25 2025, 04:48 AM) *

QUOTE(Jamie @ Apr 24 2025, 07:24 PM) *

QUOTE(ClayPerrine @ Apr 24 2025, 02:01 PM) *

QUOTE(Jamie @ Apr 24 2025, 11:52 AM) *

QUOTE(ClayPerrine @ Apr 24 2025, 08:46 AM) *

QUOTE(SteveNMaine @ Apr 24 2025, 10:21 AM) *

When I turn either the male or female end of the speedometer angle drive the opposite end doesn't turn, they seem to be disconnected. Is this normal?


Nope. If that is happening, the angle drive is junk.

I found many available on eBay, and a small drive gear on shaft listed as well, is this part inside the drive that is possible source of the failure? (IMG:style_emoticons/default/confused24.gif)


Be careful.. the 911 angle drive and the 914 angle drive look very similar. But if you try to put a 911 angle drive in a 914, the speedometer won't work. The 911 drive turns backwards from a 914 drive.

Clay et al, how to tell the difference when buying used from a source like eBay? I assume some sellers won't know original source, and is there any external part number or other distinguishing characteristic for ID of correct replacement? (IMG:style_emoticons/default/confused24.gif)


The part number is stamped on a disc on the angle drive it should start with 914.


Never assume an eBay seller knows thary know what they are selling. It is more often that they don't know or tell you.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
barefoot
post Apr 25 2025, 06:08 PM
Post #12


Senior Member
***

Group: Members
Posts: 1,366
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States
yes, it well leak tranny fluid if you remove the angle drive (IMG:style_emoticons/default/sad.gif)
