> The Group 5 Project, Let's see where this goes
tygaboy
post Aug 29 2025, 05:48 PM
Post #1


914 Guru
*****

Group: Members
Posts: 5,643
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Because I don't have enough to do, that's why.

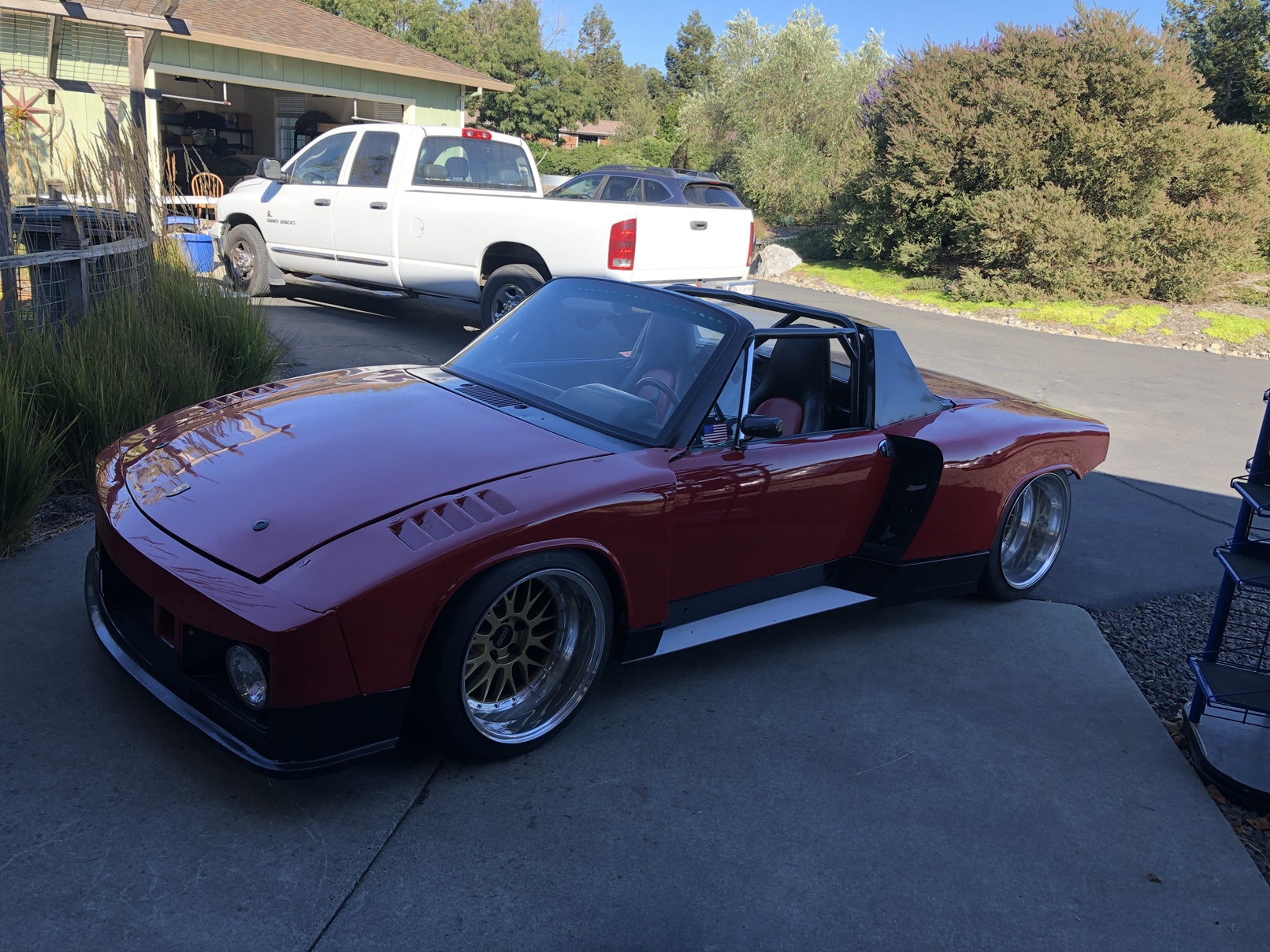

I've fallen in love with the Group 5 car that's recently been delivered to The Red Barn where we're going to give it a bit of love and improvement. This will be covered in various "At The Red Barn" YouTube videos.

THIS thread will cover my attempt to build my own set of Group 5 body panels. You'll have to wait to learn what material(s) I may have selected, as well as seeing which chassis they go on. For now, let's get started.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 29 2025, 05:59 PM
Post #2


914 Guru
*****

Group: Members
Posts: 5,643
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
I like most of the proportions of the existing bodywork but IMO, with some minor changes and "corrections", it could look even better.
I figured the best way to start would be to get a baseline into Fusion where I can try out various changes and get a feel for the look before committing to a final design.

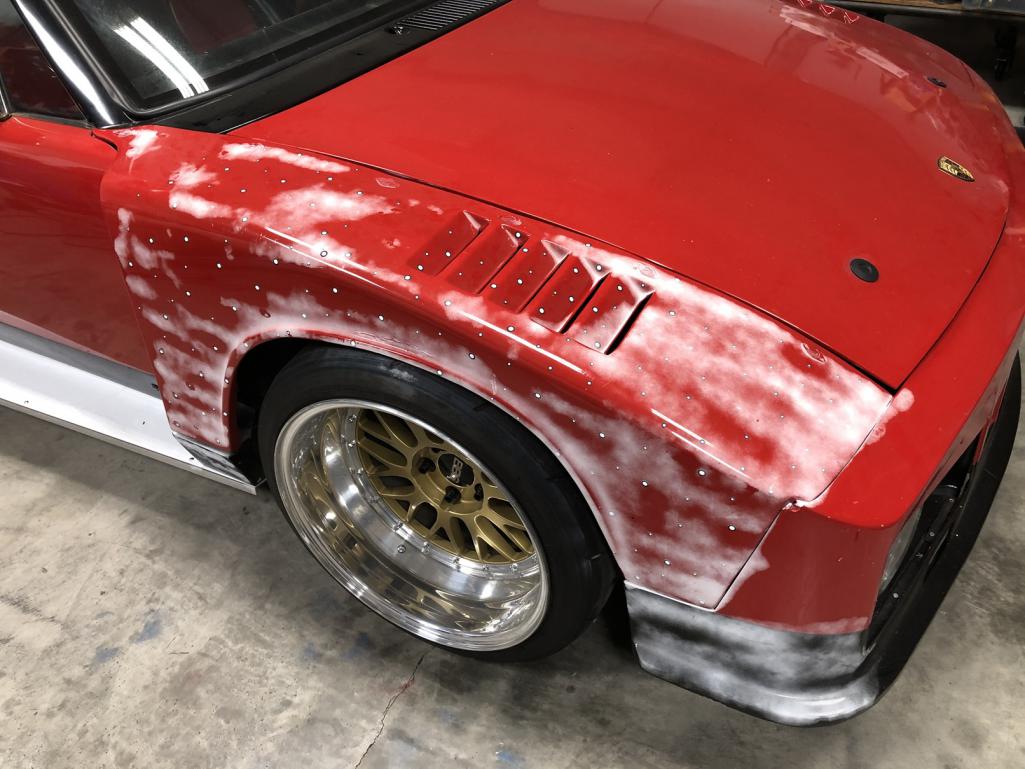

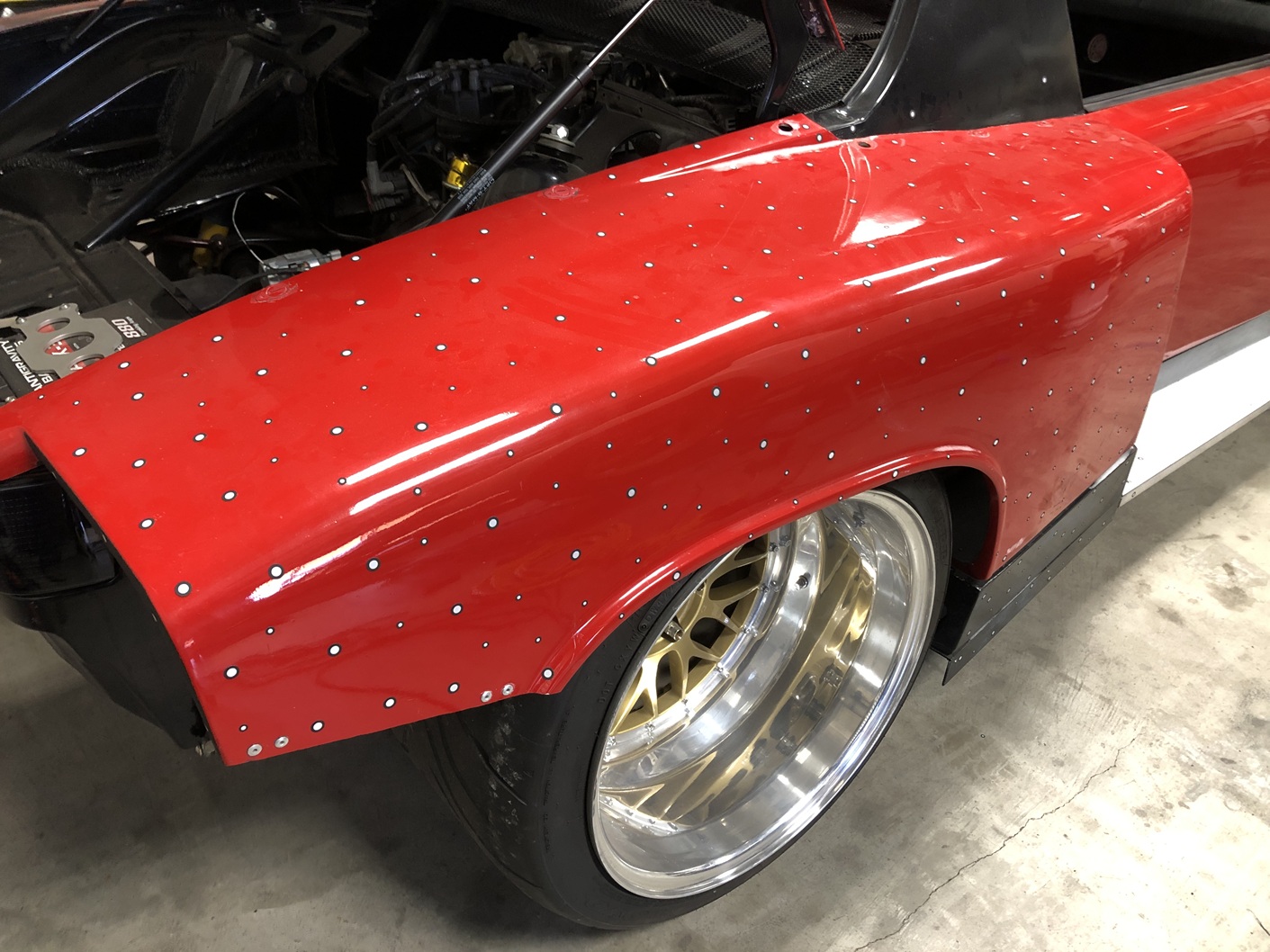

I'm still quite new to 3D scanning and here you can see I ended up using a combination of reflective markers and scanning spray.

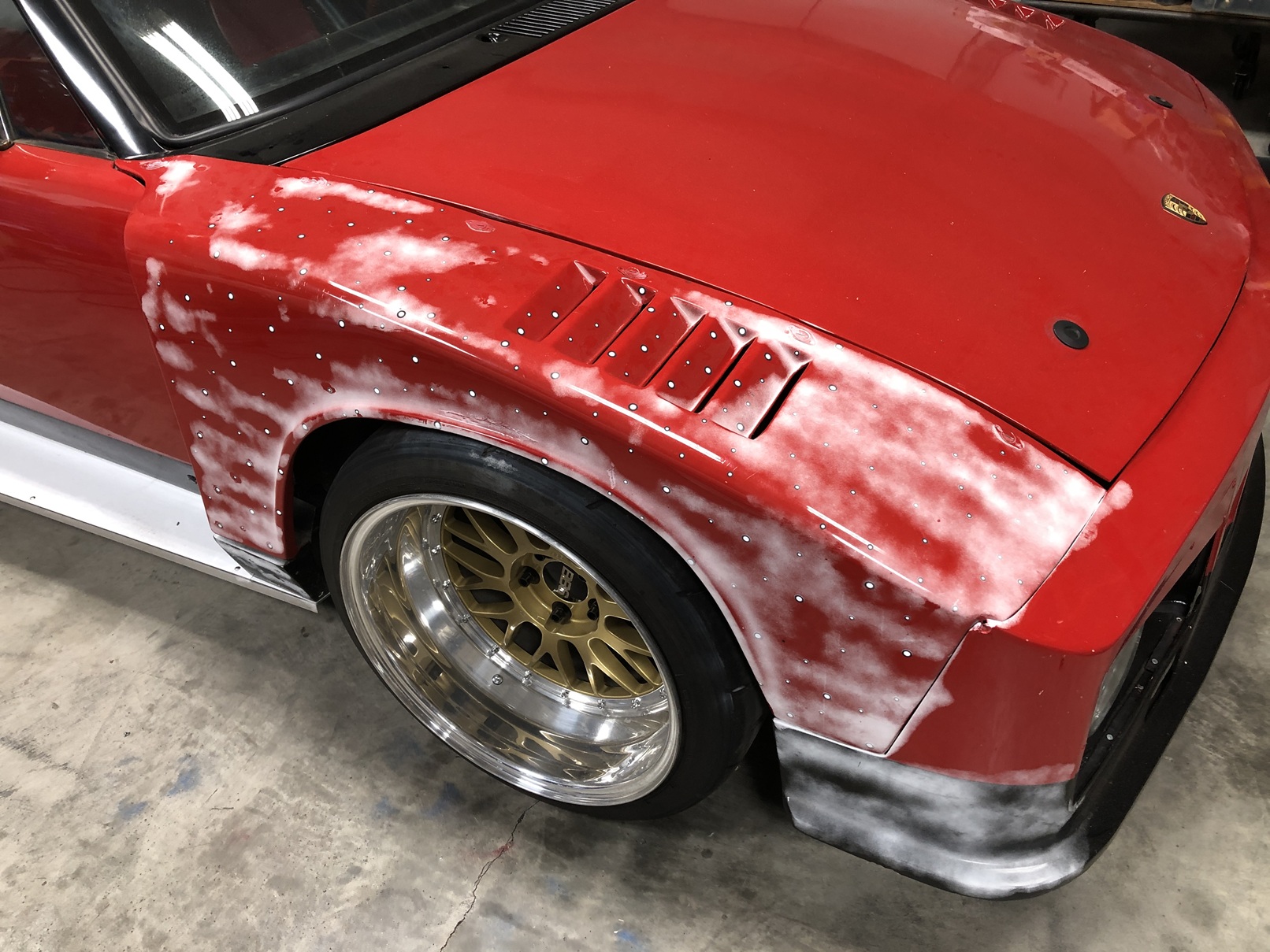

The spray dulls shiny surfaces that give the scanner a hard time. In all, it's pretty interesting in that it lasts only about 15 minutes before starting to disappear. It evaporates, leaving no residue!
It's totally gone from the rear fender leaving only the reflective markers but you can see how it's disappearing from the front.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 29 2025, 06:03 PM
Post #3


914 Guru
*****

Group: Members
Posts: 5,643
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

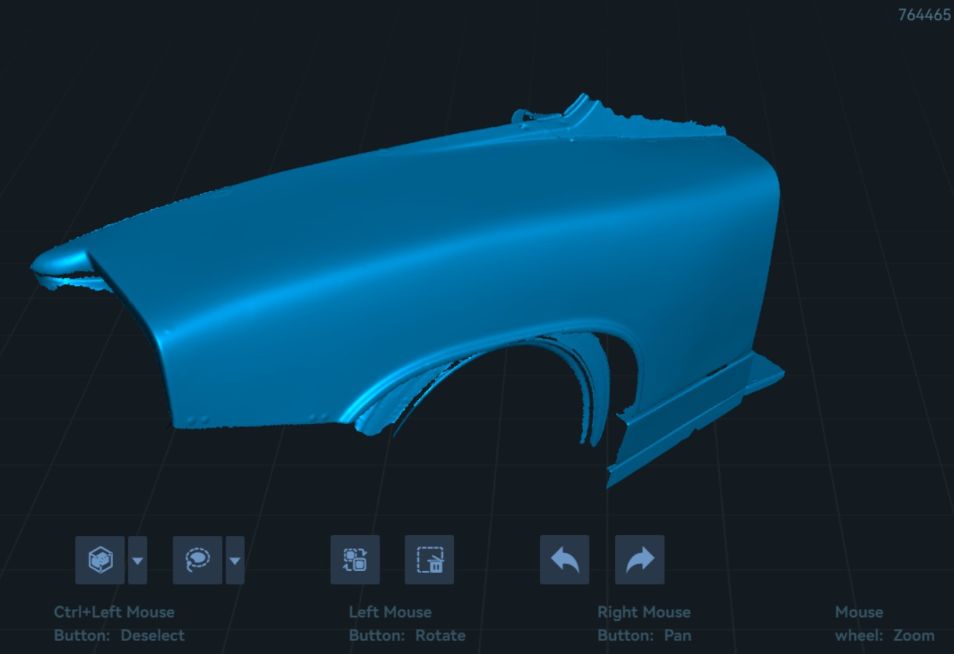

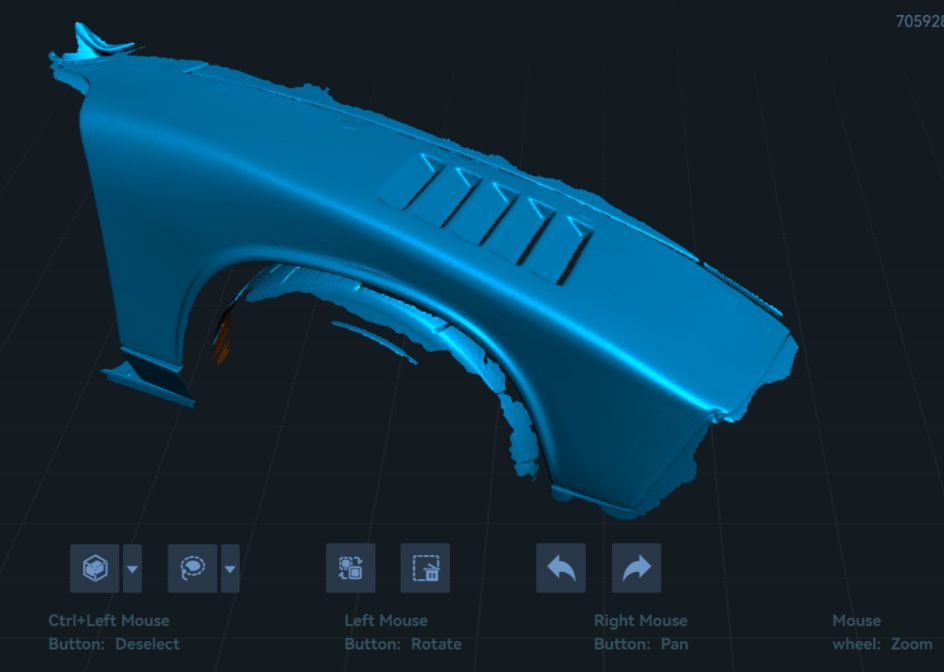

And the results. Turned out pretty well.
Step 1: Complete (IMG:style_emoticons/default/aktion035.gif)


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Aug 29 2025, 07:02 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,876
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
Very cool stuff….
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Aug 30 2025, 07:11 AM
Post #5


Michael
**********

Group: Members
Posts: 10,426
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
(IMG:style_emoticons/default/popcorn[1].gif) (IMG:style_emoticons/default/beer3.gif) Love this kind of stuff. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
slowrodent
post Aug 30 2025, 07:19 AM
Post #6


Member
**

Group: Members
Posts: 205
Joined: 29-February 20
From: Tucson/Oro Valley
Member No.: 23,981
Region Association: Southwest Region
Can't wait to see where this leads.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Aug 30 2025, 11:32 AM
Post #7


RN
****

Group: Members
Posts: 2,909
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Another awesome chapter from Chris!
I can’t wait. I love binge watching your episodes buddy!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 30 2025, 02:13 PM
Post #8


914 Guru
*****

Group: Members
Posts: 5,643
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
The project scope immediately gets out of control.

A key change I want to make re: the existing available Group 5 panels is to have the bodywork not be an overlay. Essentially, make them replacement panels. Yes, that will mean cutting off all 4 quarter panels and bonding on new ones. (IMG:style_emoticons/default/blink.gif)
I first need to know where the Group 5 panels differ in size/shape from the factory sheet metal. This means I need a scan of the factory panels. Well, it's a good thing I have a few 914s sitting around!

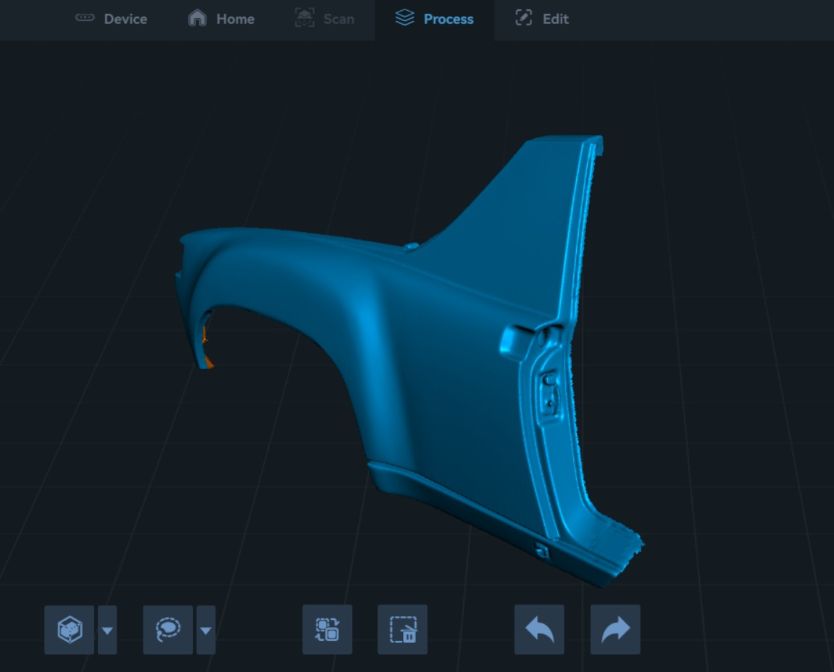

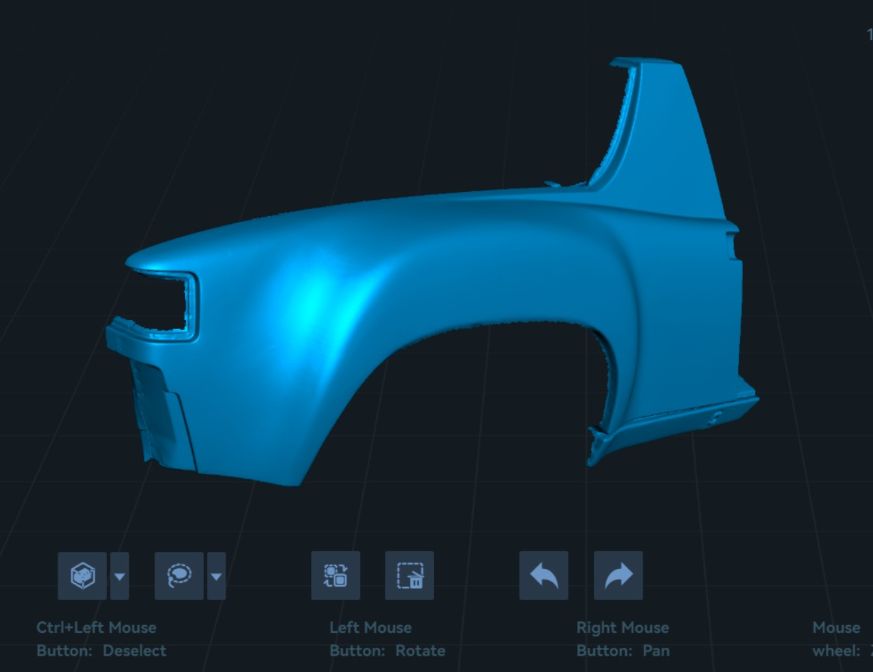

So, I scanned the Ferrari car's rear quarter. The trick now is to get the Group 5 and Ferrari car scans into Fusion and used to create surfaces so I can mate the Group 5 features to the areas of the factory panel where they fit to the chassis.
I mean, how hard can that be? (IMG:style_emoticons/default/huh.gif)


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Shivers
post Aug 30 2025, 04:40 PM
Post #9


Senior Member
****

Group: Members
Posts: 3,133
Joined: 19-October 20
From: La Quinta, CA
Member No.: 24,781
Region Association: Southern California
Oh boy! (IMG:style_emoticons/default/w00t.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Aug 31 2025, 02:58 AM
Post #10


914 Guru
*****

Group: Members
Posts: 5,106
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
One of my '80s hang out places: Dan McLoughlin's A.I.R. fabrication + fiberglass shop, 149 Santa Anita ave/ Burbank. He designed + molded the Gr-5 body kits>>this one for John Bond jr.

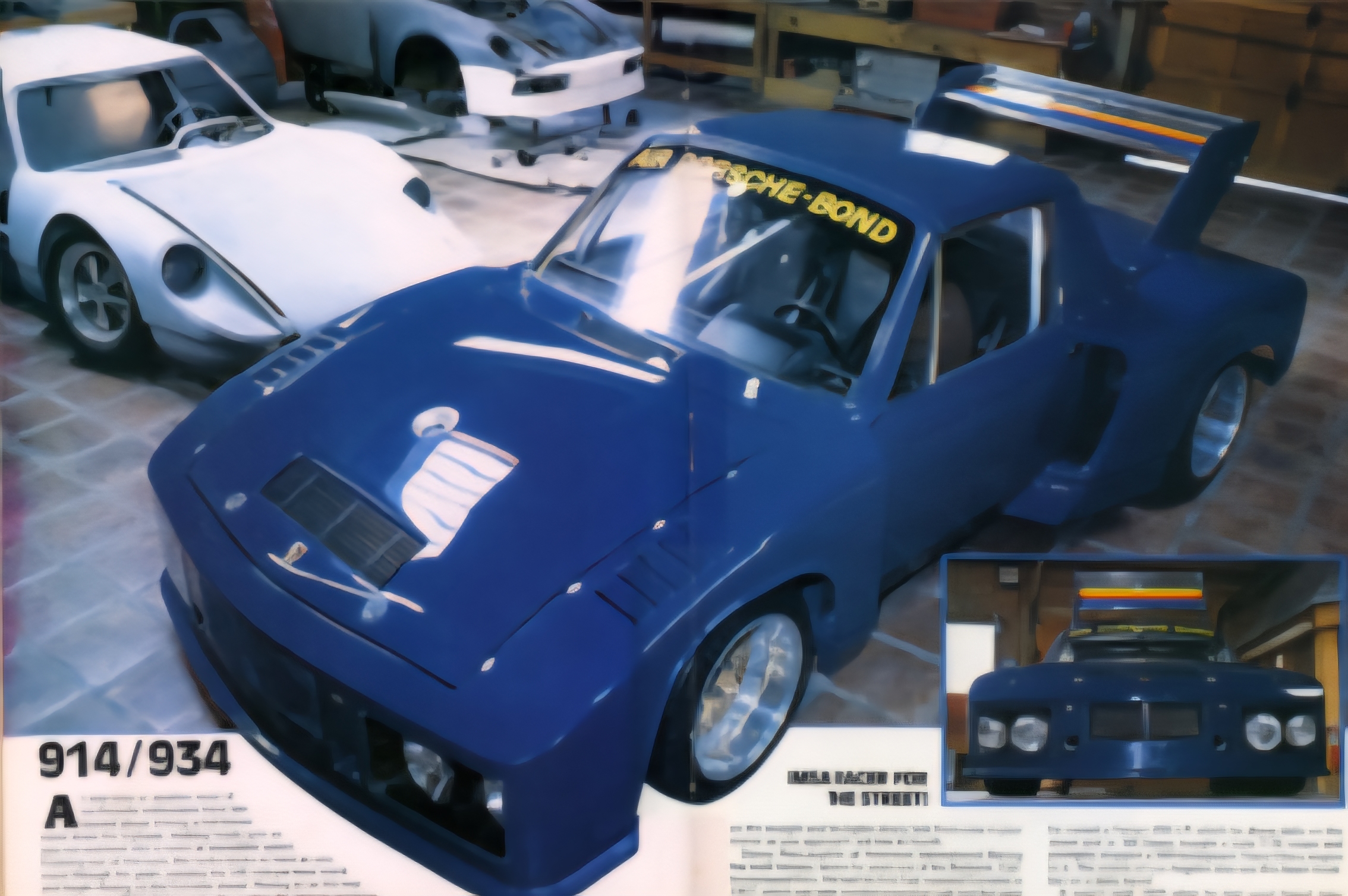

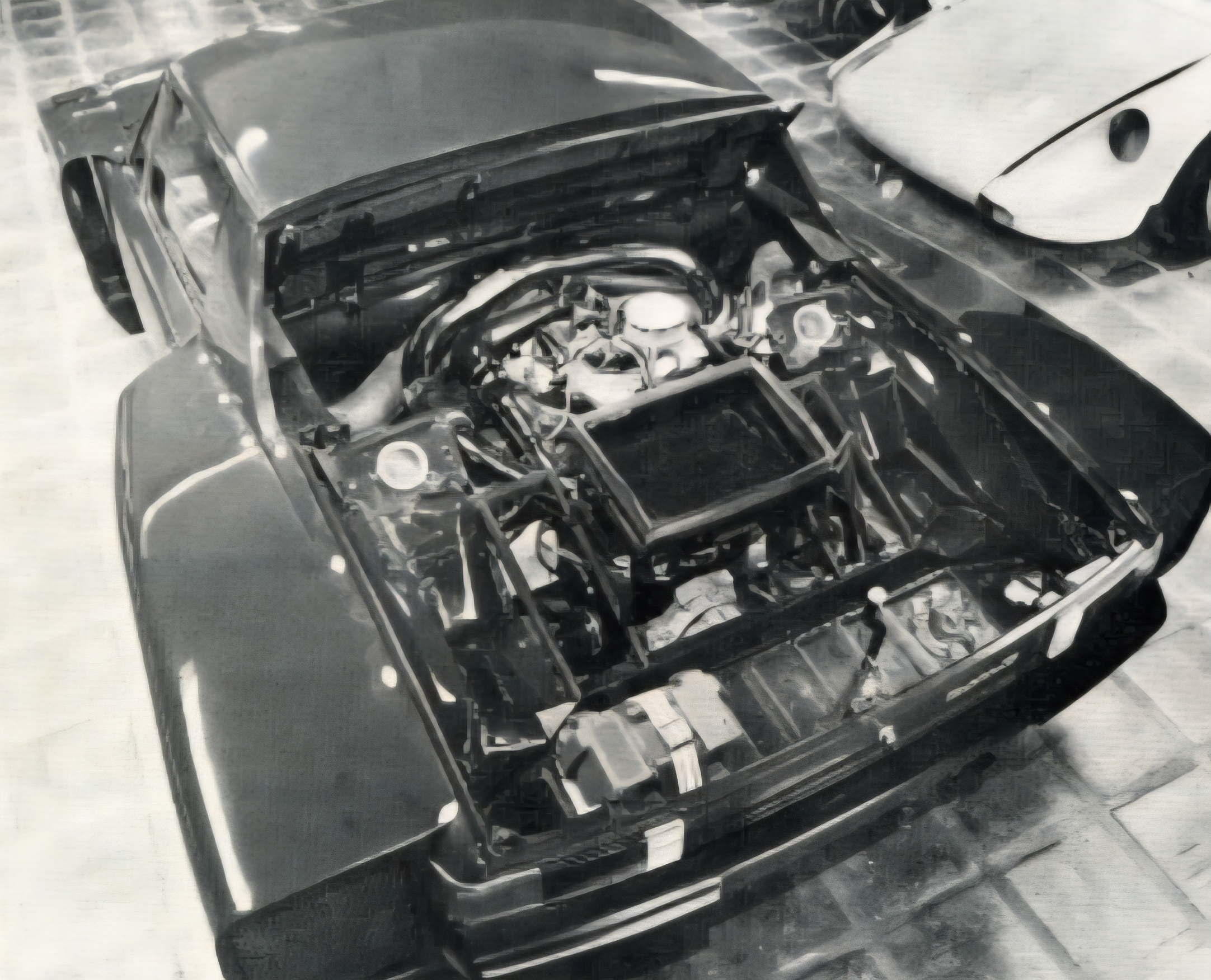

Pic is from the '80s 'VW + Porsche' magazine article; AIR Porsche Bond car. 930 Turbo+trans drive-train.
934 engine would have run with flat fan tho.
(IMG:style_emoticons/default/marty914.jpg)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Aug 31 2025, 03:10 AM
Post #11


914 Guru
*****

Group: Members
Posts: 5,106
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
Clean installation, Dan was a perfectionist. His customer list was like; Steve McQueen, James Garner, Jim Hall, Richey Ginther, Whittington Bros, Paul Newman; from CanAm, RS, RSR , IROC, 935 era body panels. All of my 'glass gt parts (flat-fan car) came from Dan's shop.
(IMG:style_emoticons/default/marty914.jpg)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Aug 31 2025, 03:19 AM
Post #12


914 Guru
*****

Group: Members
Posts: 5,106
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

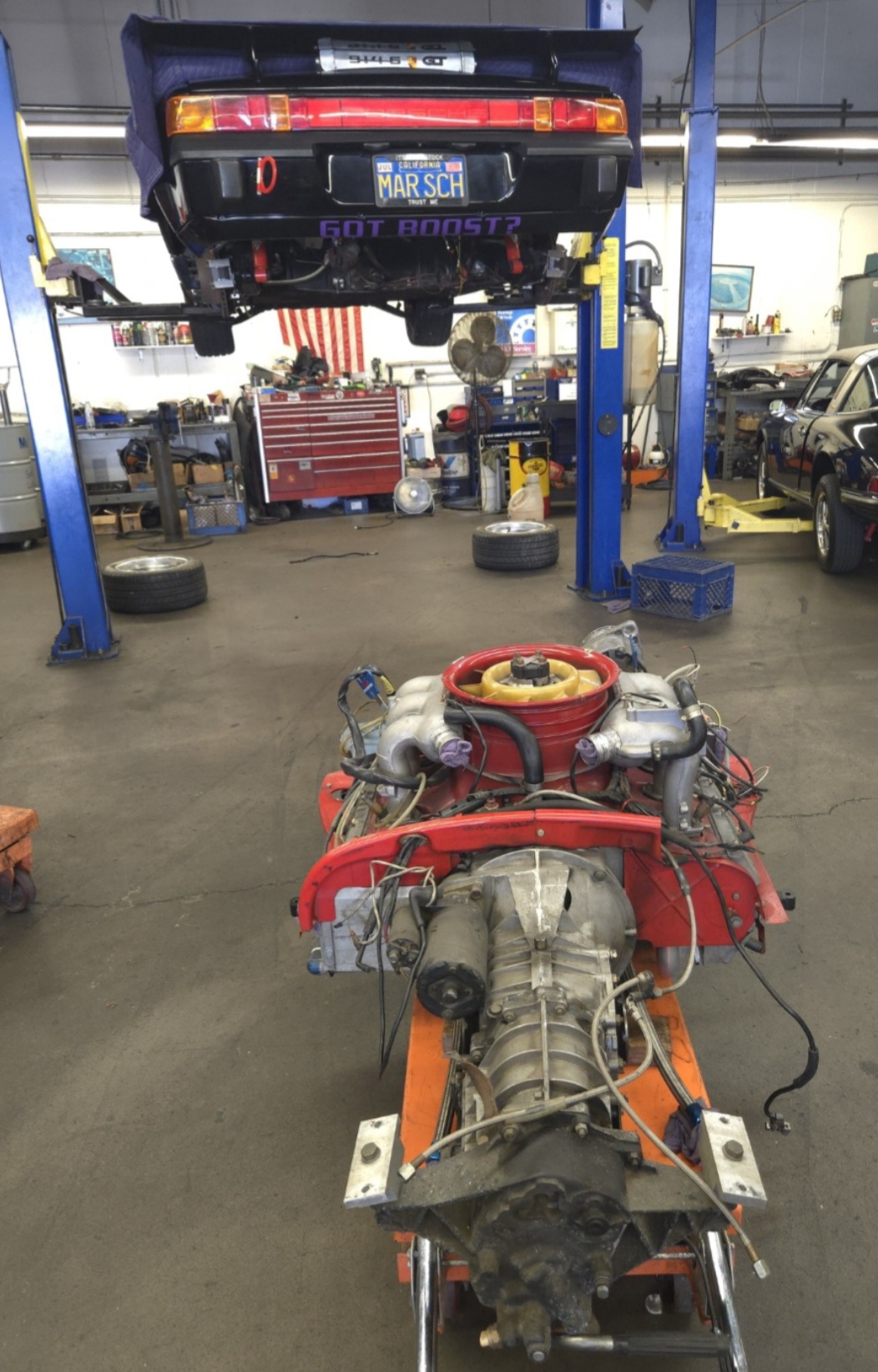

934, 935 style engine will have the horizontal (flat-fan) style air cooling/ 930 engine will run a normal 911 style vertical fan.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Aug 31 2025, 07:18 PM
Post #13


Hey nice rack! -Celette
***************

Group: Members
Posts: 21,075
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE(Maltese Falcon @ Aug 31 2025, 04:19 AM) *

934, 935 style engine will have the horizontal (flat-fan) style air cooling/ 930 engine will run a normal 911 style vertical fan.
Attached Image


Like the solid trans mounts
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Aug 31 2025, 09:42 PM
Post #14


914 Guru
*****

Group: Members
Posts: 5,106
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(rick 918-S @ Aug 31 2025, 06:18 PM) *

QUOTE(Maltese Falcon @ Aug 31 2025, 04:19 AM) *

934, 935 style engine will have the horizontal (flat-fan) style air cooling/ 930 engine will run a normal 911 style vertical fan.
Attached Image


Like the solid trans mounts


Rick, those are simple T6 aluminum blocks, that are machined/ drilled and done.

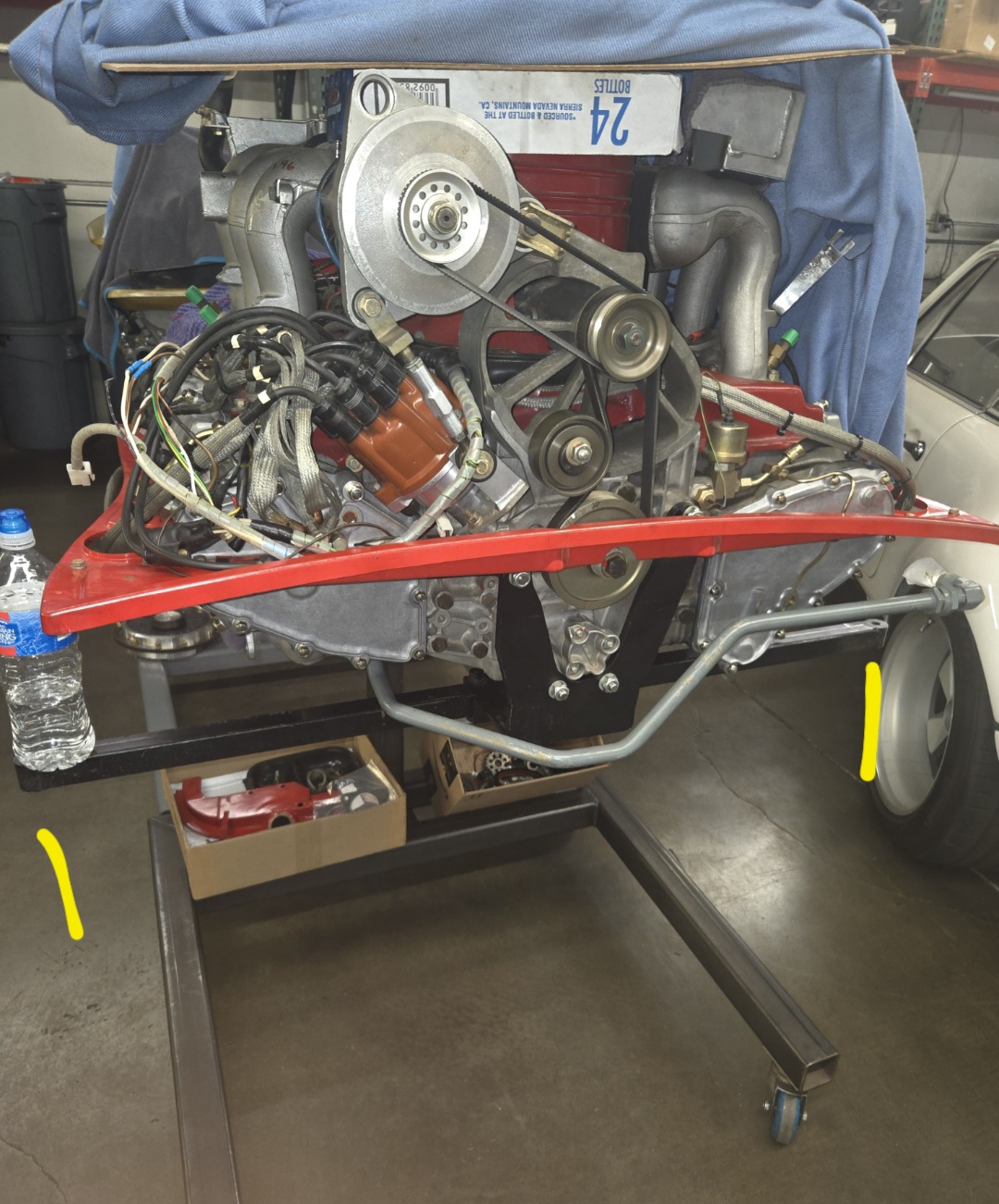

On the outer ends of my QuickSix mount bar (yellow stripes) I use the rear trans mount rubber-pillows from the 9146. This gives the drivetrain decent freedom to move 'Just enough.

Marty
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Sep 1 2025, 05:59 AM
Post #15


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 128,371
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
Loved those VW+Porsche mags. I bought them all.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Sep 1 2025, 08:56 AM
Post #16


914 Guru
*****

Group: Members
Posts: 5,106
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(URY914 @ Sep 1 2025, 04:59 AM) *

Loved those VW+Porsche mags. I bought them all.


...Don't know if you remember one of the editors there>> C.Van Tune; a great car guy who went on to greater TV, online (MotorTrend) automotive adventures. He passed on last year 11.16.24, rest easy Van (IMG:style_emoticons/default/driving.gif)

Editor Greg Brown
Photographers Les Bidrawn , Steve Reyes are all with us (IMG:style_emoticons/default/smile.gif)

Now back to @tygaboy fabulous re-creation of this well loved Grüppe 5 proj ¡

(IMG:style_emoticons/default/marty914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FL000
post Sep 1 2025, 09:06 AM
Post #17


Member
**

Group: Members
Posts: 469
Joined: 31-January 12
From: Lancaster, CA
Member No.: 14,076
Region Association: Southern California
Once you get a design you like in Fusion, how do you plan to turn that into an actual part?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Shivers
post Sep 1 2025, 10:08 AM
Post #18


Senior Member
****

Group: Members
Posts: 3,133
Joined: 19-October 20
From: La Quinta, CA
Member No.: 24,781
Region Association: Southern California
3D print a mold for a composite material?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Sep 1 2025, 11:43 AM
Post #19


914 Guru
*****

Group: Members
Posts: 5,643
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
@FL000 @Shivers Scanning generates what's called a "mesh". To print, I need a solid body. To do that, the mesh gets opened in Fusion and is used as the basis to reverse engineer the shapes and work up the surfaces (or body) that'll be printed, machined, etc.
Depending on the complexity of the shape(s), it can be a ton of work, especially for a newbie like me who's learning as they go.

So don't hold your breath on this. It's probably going to be a little while.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
AZBanks
post Sep 2 2025, 05:08 PM
Post #20


Senior Member
***

Group: Members
Posts: 1,068
Joined: 7-December 05
From: New River, AZ
Member No.: 5,245
Region Association: Southwest Region
I am so glad it ended up in your capable hands. A car like that needs just the right combination of insanity and perfectionism.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
