> Braided Hose, 5mm ID, 7mm OD
jrrobertson
post Dec 10 2025, 02:34 PM
Post #1


Member
**

Group: Members
Posts: 52
Joined: 28-December 16
From: Wolverine Lake , Michigan
Member No.: 20,704
Region Association: Upper MidWest

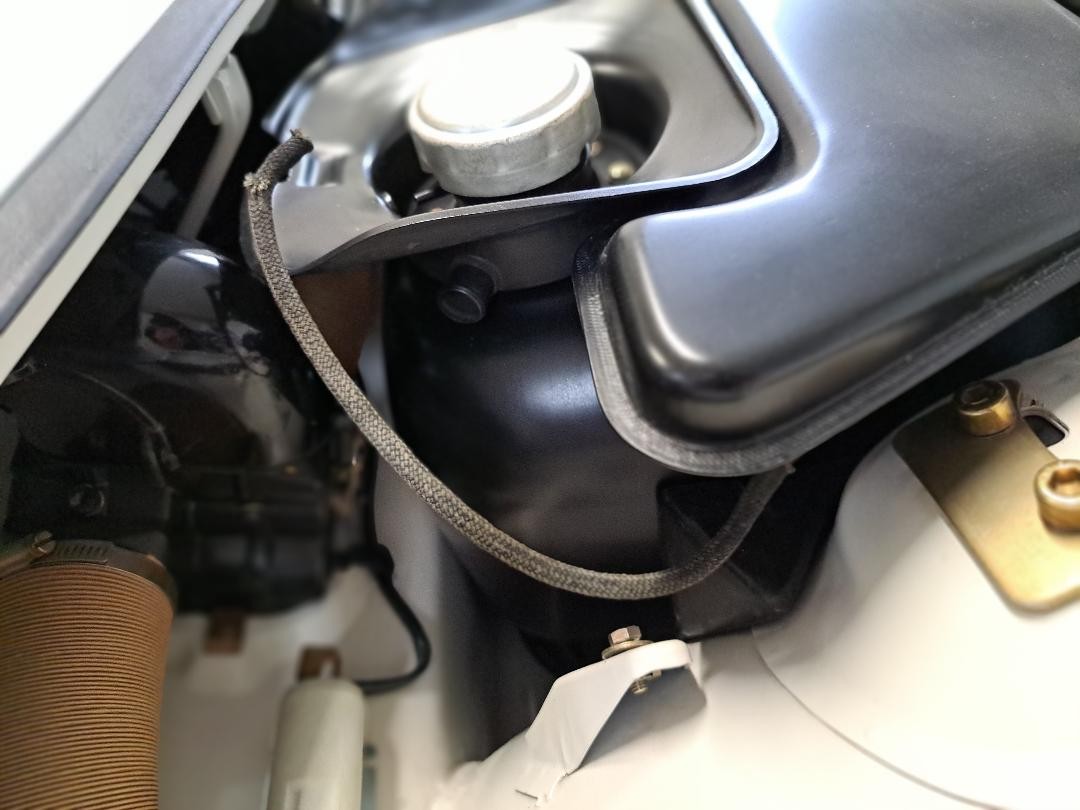

Does anyone know where I can find the hose that goes from the gas filler neck to the overflow tank. It has an ID of 5mm and an OD of 7mm. I need the original hose with the braided covering as I am making the car all original.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dlee6205
post Dec 10 2025, 02:41 PM
Post #2


Member
**

Group: Members
Posts: 86
Joined: 9-December 22
From: Burnsville, NC
Member No.: 27,017
Region Association: South East States
BelMetric is one good source for braided hoses.

https://belmetric.com/continental-braided-hose/?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Garland
post Dec 10 2025, 04:25 PM
Post #3


Restoration Fanatic
***

Group: Members
Posts: 1,428
Joined: 8-January 04
From: ......Michigan......
Member No.: 1,535
Region Association: Upper MidWest

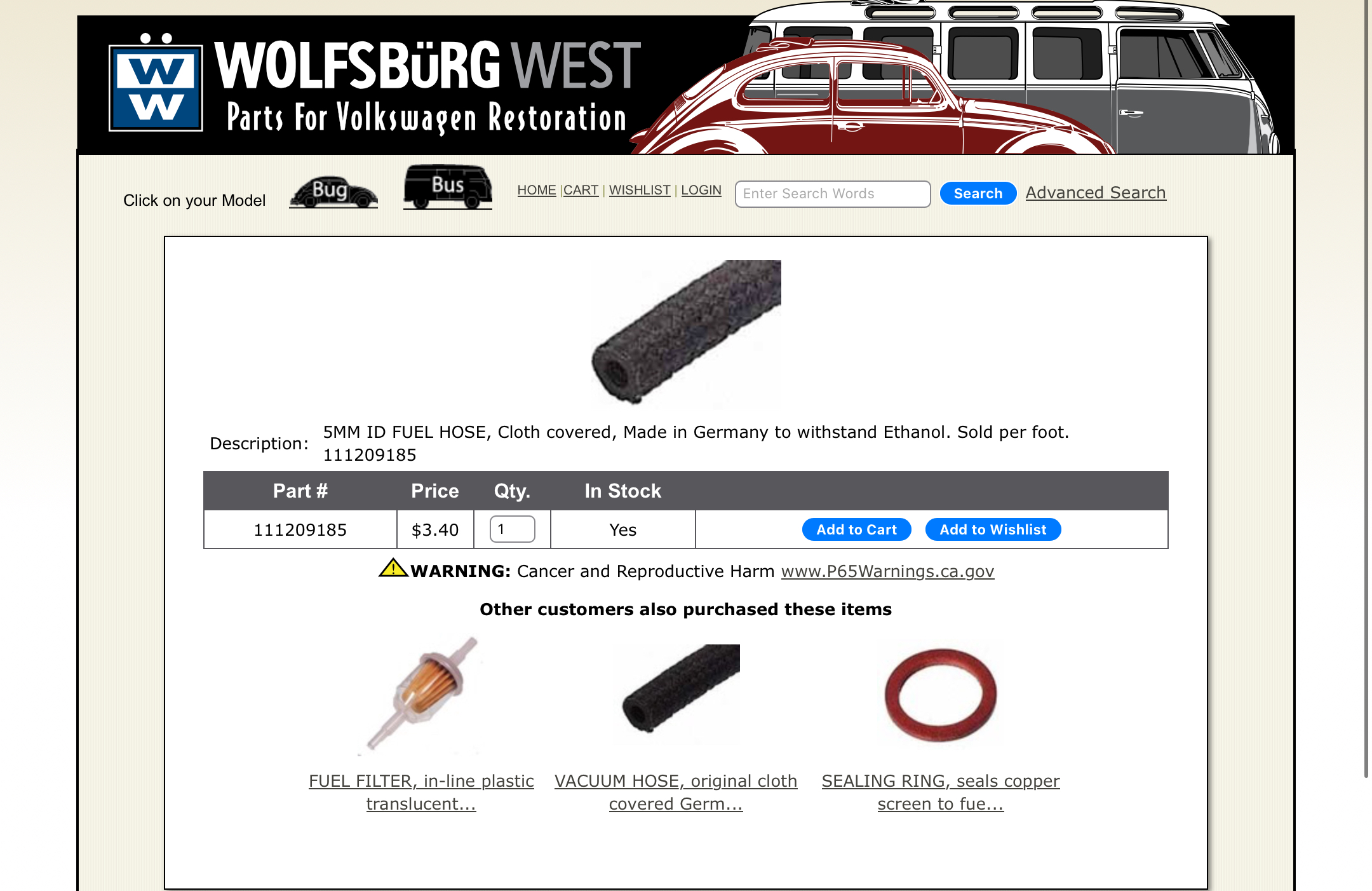

Wolfsburg West Link

Fuel hose 5 mm ID

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rusty
post Dec 11 2025, 12:49 PM
Post #4


914 Guru
*****

Group: Retired Admin
Posts: 7,993
Joined: 24-December 02
From: North Alabama
Member No.: 6
Region Association: South East States
I got it from Autohaus AZ

https://www.autohausaz.com/pn/CT-550623020
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Dec 12 2025, 10:55 AM
Post #5


En Garde!
**********

Group: Admin
Posts: 13,840
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
be aware!
That braided fuel line has to be replaced constantly. It is not compatible with ethanol fuel. And the braid makes it very hard to visually inspect the fuel line for cracks and degradation.

I know some places sell it and claim its ethanol safe. But there are no stampings on the fuel line that I have ever seen - which means that you are trusting a vendor on whether your car will burn to a fuel fire.

I personally refuse to use it. And if you do use it, you will need to replace it every couple of years.

Zach
