Subaru Conversion, CSOB style... Options

[TonyAKAVW]

QUOTE

I'll look into starting up a progress thread. I do enjoy reading other peoples' threads, for fun and to answer specific questions. Maybe some day I'll even remember to bring my camera out when I start a job and keep my hands clean enough to use it. But no fair laughing at my paint !

No problem. I won't dare laugh at your paint. The car I'm soing the conversion on has black hoods, black doors, a primered fender and the body is silver.

-Tony

[BMartin914]

So are you really going to do this Jeff???

It's not for me, but I'd like to see someone local give it a go.

My TIV makes me smile so much, I can't imagine replacing it with anything but a six...but that's just one man's opinion.

[jsteele22]

Well, I've sent the $$ off for the engine, so its starting to llook like its a go. Steve, my machinist friend is sounding really psyched. I think we're gonna go with the adapter plate engine mounting idea and putting a fabricated hub w/ bolt circle on a 914 flywheel.

I do like the TIV with its sounds (and smells), but I'm thinking mine is on its last legs, and this whole project may end up costing less than a decent rebuild. And there's no denying that I want the power; nothing insane, but a good impressive pull up to cruising speed or zipping out of a turn. There's a feeling of luxury when you have your foot partway down on the pedal and know that there's plenty more power right there under your foot.... And I'll be able to run away faster if people start teasing me about the way my car looks (IMG:http://www.914world.com/bbs2/html/emoticons/unsure.gif)

I don't know how fast this thing will procede, though. I've got 2 contracts outside of my day job, and I've fallen a little behind on them. So I'll probably do bits and pieces on this when I can. And I want to keep the car driveable until the last posible moment.

[brant]

Jeff, do keep the car driveable as long as you can.

This is in no way a negative statement about you ...

but it is just a COMMON cycle that I've seen happen OVER and OVER.... People start a new project or conversion with a full head of steam. The car gets torn apart and put on blocks. Life interferes, people have babies, change jobs, divorce, loose a family member. The project turns out to be 3X harder than initially thought, and 5X as expensive. Rust is discovered? The car sits for 5 years, they loose motivation and then its sold in pieces.
(usually all of the above has to be overcome at once)

Don't let this happen to you!
I know you are an honorable man, and I DO want to see this neat project come together..

I'm counting on you man!

brant

[effutuo101]

You should get one of Kevins chop jobs. (IMG:http://www.914world.com/bbs2/html/emoticons/smash.gif) Just get the rear end. Get all of the details sorted out for mounting with a complete mock up. Then over one fine weekend, drop everything into your car and finish up the rest the following weekend.

[jsteele22]

QUOTE (brant @ Oct 7 2005, 09:44 AM)

Jeff, do keep the car driveable as long as you can. This is in no way a negative statement about you ... but it is just a COMMON cycle that I've seen happen OVER and OVER.... People start a new project or conversion with a full head of steam. The car gets torn apart and put on blocks. Life interferes, people have babies, change jobs, divorce, loose a family member. The project turns out to be 3X harder than initially thought, and 5X as expensive. Rust is discovered? The car sits for 5 years, they loose motivation and then its sold in pieces. (usually all of the above has to be overcome at once) Don't let this happen to you! I know you are an honorable man, and I DO want to see this neat project come together.. I'm counting on you man! brant

Good point, Brant. I am gonna keep an eye on that. I went through that cycle a while back on an old Saab 900. Started by fixing the windshield squirters, and before too long I was converting it to a turbo and rebuilding the tranny. The latter is a job I wouldn't recommend to beginners; I botched mine anyway, and the car sat for a couple of years until I moved and had to get rid of it. (But I kept the SDS EFI!) Took a few more years off from working on cars. So now, despite the temptation to launch into a restoration effort, I'm planning to always stay within easy reach of making the car driveable.

[scotty914]

well i kind of like the adapter to engine mount idea but..

there is always a but !

you better make the adapter plate out of steel, i really dont think AL would hold the weight and the torgue. what i mean is if you built tabs off of the plate and then tried to mount to the tabs i would say they might bend or tear. if you made it of stell it might really be the way to go.

[jsteele22]

Yeah, I was thinking that after hearing how thin the KEP plate is. Aluminum would probably hold the load if it were stationary, but with all that vibration I'm certain it would crack. So some kind of steel (I don't know much about different grades, but Steve does) that meets the relevant mating surfaces and has 2 (or 4 ?) ears sticking out. I'm still just picturing this all in my head -haven't seen the engine or tranny split apart - but I'm thinking it might be possible with this setup to remove the engine from the adapter plate and drop it without having to mess w/ the tranny. Maybe pull the engine/radiator as a pair ?

I'm glad to see you join this thread, Scott. Besides following in your footsteps on the Subaru swap, I went to the RRC last month and walked (drove) off with the coveted "Golden Wheelbarrow" award, which I understand was created at WCC for you in honor of your trans-continental jaunt in an unproven "experimental" vehicle. I, OTOH, just drove halfway across Colorado in a beater 914. But I have to agree with the group consensus : of all the cars present, mine had the most "potential" (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)

[lapuwali]

QUOTE (scott thacher @ Oct 7 2005, 12:30 PM)

well i kind of like the adapter to engine mount idea but.. there is always a but ! you better make the adapter plate out of steel, i really dont think AL would hold the weight and the torgue. what i mean is if you built tabs off of the plate and then tried to mount to the tabs i would say they might bend or tear. if you made it of stell it might really be the way to go.

Hm. If the adapter plate is 1/2" thick Al plate (like the KEP plates), that's going to end up being as strong or stronger than the magnesium ears at the end of the transaxle. Mg is 1/3 the strength of Al, and castings are always weaker than billet. I think you're severely underestimating the strength of that Al plate.

You're also still going to want to rubber mount the engine somehow, probably by putting rubber between the trunk floor and the tube that connects to the adapter plate.

[Mueller]

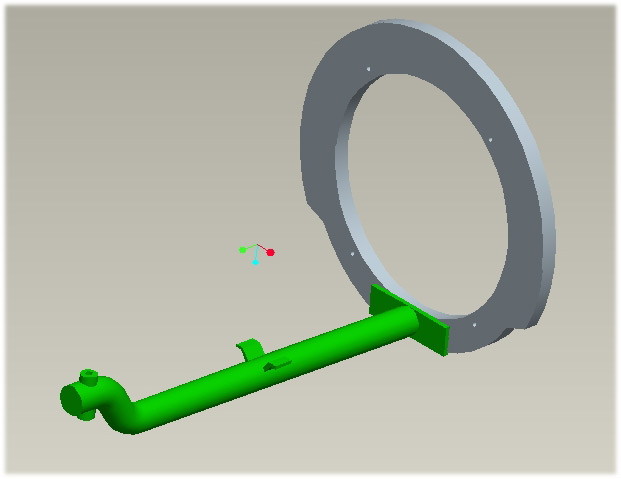

how about something like this for the motor mount?

the bar is bolted to the adapter plate..the little "wings" attach to the engine mounts under the suby motor, and the other end of the bar attaches to a bulk head mount....

the factory 6 uses a single bolt on bulkhead mounts and has been used for bigger/heavier six motors

[jsteele22]

QUOTE (lapuwali @ Oct 7 2005, 03:20 PM)

Hm. If the adapter plate is 1/2" thick Al plate (like the KEP plates), that's going to end up being as strong or stronger than the magnesium ears at the end of the transaxle. Mg is 1/3 the strength of Al, and castings are always weaker than billet. I think you're severely underestimating the strength of that Al plate.

You may be right there, but you have to admit this is one piece that you definitely do NOT want to fail! (IMG:http://www.914world.com/bbs2/html/emoticons/headbang.gif) The transaxle mounting ears were engineered by folks with advanced knowledge and experience in this sort of thing, whereas this is my very first stab at it. I think (don't recall, but I'm pretty sure) that the tranny mounting ears are nicely curved and transition to the casing w/o any stress risers (sharp transitions where tensile forces concentrate and a crack can start). And since it is so far back, compared to the TIV mount, this mount will be carrying way more than 50% of the engine/tranny load. Fortunately, most of the vibration will be in the up/down and left/right directions, with front/back (of which there is less in the first place) being contained more by the tranny mounts.

My main reason to shy away from Al is that if you take a piece of it and bend it, it doesn't take long before you get a crack or tear. Mild steel seems to fare much, much better. Also (again, I still haven't done my homework) I was picturing a much thinner (than 1/2") plate. Given the axial distance from suby crank flange to the rear edge of the ring gear, it seems that the adapter plate should be as thin as possible. And if using steel allows doing away with a full under-the-engine type mounting bar, it could be even be a net weight savings or at least a break-even.

[jsteele22]

QUOTE (Mueller @ Oct 7 2005, 04:01 PM)

how about something like this for the motor mount? the bar is bolted to the adapter plate..the little "wings" attach to the engine mounts under the suby motor, and the other end of the bar attaches to a bulk head mount.... the factory 6 uses a single bolt on bulkhead mounts and has been used for bigger/heavier six motors

Hey, that's a pretty interesting idea; there's a lot that I like about it. Much of the engine weight is supported farther forward (at the stock Suby mount points), and no risk of bent bolts like was feared with the sideways bar strategies (connecting to stock 914 mount points on the chassis.) The force on the engine adapter plate will be much smaller in magnitude, will point straight downwards, and have less vibration to contend with. This would swing my vote back towards an aluminum adapter plate (see previous entry in this thread). I think that the suby engine casing doesn't surround the flywheel 360 degrees, but is open at the bottom; so it would be possible to have a thin adapter plate and still have a meaty section at the bottom for bolting the bar into. Also, the bar doesn't interfere with the shift linkage, another plus. I think (we'll have to see) your idea could be used with a mid-engine radiator setup, which I really want to do.


The main thing I'm concerned about is just how well the bar will prevent up/down motion of the engine. The P6 engines you mentioned mount to the bulkhead over a very short span, whereas this is a pretty long reach. I'm not saying that there is a problem, only that my first hunch is that it looks kinda spongy. OTOH, the stock 914 mounting scheme struck me as very "airy" at first. (I also thought those guys at CERN were blowing a little too much hot air when they called their cute little idea the "world wide web".(IMG:http://www.914world.com/bbs2/html/emoticons/headbang.gif) )

BTW, I think it is so cool that you can just jot down your ideas in a 3-d CAD system. I just use words or wave my hands around.

[TonyAKAVW]

I like the idea Mike, but I see two flaws with it and one spot where it could be improved. First flaw I see is that all of the rotational torque of the engine and transmission are now going to be placed on the transmission mounting ears. The distance between those is substantially less than the distance between the original engine mounting points on the car. Maybe the rotational torque isn't too significant, but it seems like suspending the whole mass from three points might be scary. Even the 911 engine mounts have _some_ spacing...

The second flaw was pointed out already, but could be improved by using both the stock engine mounts (repalced with solid blocks of metal) and the adapter plate as well. That would provide two points of attachment along the axis of the support bar which would stiffen up the structure a lot.

You could then fix the first problem by coming out into a Y shape and maybe even use the stock mounting locations??????

Oh, another thing... All of this would have to sit pretty low, because of the oil pan on the subaru engine... This would bring the center of mass of the engine up higher which kinda sucks.

-Tony

[lapuwali]

QUOTE (TonyAKAVW @ Oct 7 2005, 04:52 PM)

I like the idea Mike, but I see two flaws with it and one spot where it could be improved. First flaw I see is that all of the rotational torque of the engine and transmission are now going to be placed on the transmission mounting ears. The distance between those is substantially less than the distance between the original engine mounting points on the car. Maybe the rotational torque isn't too significant, but it seems like suspending the whole mass from three points might be scary. Even the 911 engine mounts have _some_ spacing... The second flaw was pointed out already, but could be improved by using both the stock engine mounts (repalced with solid blocks of metal) and the adapter plate as well. That would provide two points of attachment along the axis of the support bar which would stiffen up the structure a lot. You could then fix the first problem by coming out into a Y shape and maybe even use the stock mounting locations?????? Oh, another thing... All of this would have to sit pretty low, because of the oil pan on the subaru engine... This would bring the center of mass of the engine up higher which kinda sucks. -Tony

I agree Mike's drawing won't work, but only because of the oil pan issues. Again, like Mike said the ORIGINAL 914/6 mounting system used ONE BOLT at the bulkhead to hang the engine, so 100% of the torque loads were fed through the transmission ears.

The KEP adapter plate is approx. 1/2" thick, and it's Al. They don't seem to have any problems with adding that additional spacing between the transaxle and the engine.

You are not going to bend 1/2" of Al without applying VERY serious loads to it. Just as magnesium is 1/3 the strength of Al, so Al is 1/3 the strength of steel. A 1/2" plate of Al is just as stiff and strong as a 1/8" plate steel, and weighs about the same.

There's no reason the "ears" on the adapter plate couldn't use smooth, wide-radius bends. Indeed, it would be a very good idea to do so. The only stress riser there would be the hole you'd need for the bolt to mate it do the tube you'd hang the whole thing from, and you could radius/chamfer the hole.

If the ears had 1/2" of material to either side of the hole, that would give you one full sq. in of material in each ear. Al has a tensile strength of 20,000psi, so both ears together would be able to hold 40,000lbs, or roughly 150 Type IV engines. I'd say that's a pretty good safety factor, considering the worst loads it would see short of a major crash would be about 2000lbs (engine flopping around from several G of flopping around over bad bumps).

[scotty914]

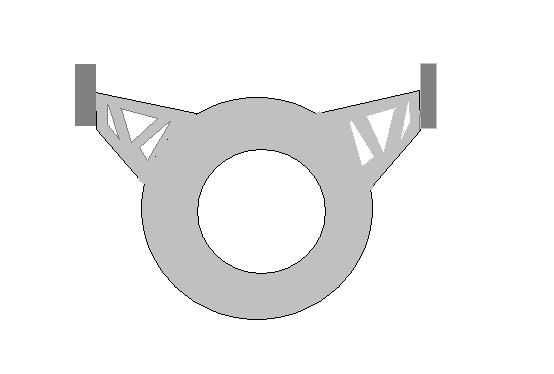

i was thinking of something like this, the ears are welded to some blocks that bolt to so kind of plate on the longs behind the suspension ears like my mount does

[effutuo101]

(IMG:http://www.914world.com/bbs2/html/emoticons/agree.gif) triangulation is the key. you will have to have a mounting system, but if you triangulate it, you will make it stronger.

[jsteele22]

QUOTE (scott thacher @ Oct 7 2005, 07:23 PM)

i was thinking of something like this, the ears are welded to some blocks that bolt to so kind of plate on the longs behind the suspension ears like my mount does

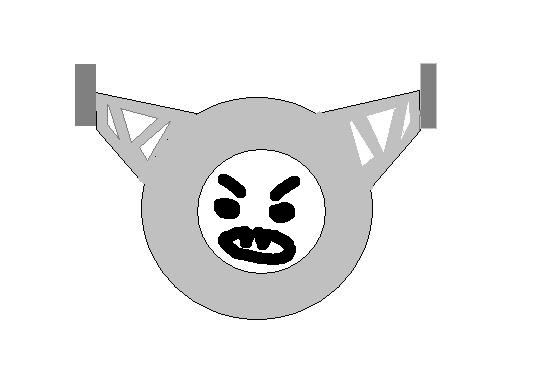

Yeah, I'm thinking along these lines too. Just one small change I might make :

[dimitri]

I have converted my Vanagon Syncro over 4 years ago to a Subaru engine, in
particular an er27 engine, out of a XT6. This is a 2.7 l 6cylinder. After looking at
Kennedy components cost, the decision was made to do it myselfe. Measured engine,
trans, machined adapter. Had no access to large enough lathe. Had a machine shop
turn down the Subaru flywheel to fit Porsche 911 starter ring gear, used on 2.7 up
motors. actually starting with 1970 motor thru sc, the rest was machined to same
dimensions as Vanagon flywheel. Balanced and still running flawless after at least
70k miles. Dimitri

[fiid]

Has anyone experienced problems with harmonics by moving the flywheel out that far?

Yeah - the back of the car kind of oscillates from side to side as it scrabbles for traction. Once the tires warm up a bit tho it goes away and you have to concentrate on shifting and not hitting anything now that you're doing 100mph.

(IMG:style_emoticons/default/biggrin.gif)


On a more serious note - I haven't noticed any vibration back there that's caused me worry. I'm a little concerned about the other end where the EDIS wheel is bolted on the front of the harmonic balancer - but that smoothes out above idle anyways.

[jimkelly]

link to suby conversion thread

http://www.914world.com/bbs2/index.php?showtopic=40733

jim
