> Subaru transmission installation, Now it's a reality!!!
Porcharu
post Oct 25 2007, 11:16 PM
Post #421


Senior Member
***

Group: Members
Posts: 1,314
Joined: 27-January 05
From: Campbell, CA
Member No.: 3,518
Region Association: Northern California
That someone is ME. The actual length of the adapter/axle is not that big of a deal as long as the engine is in the "correct" location - IE centered on the axle centerline. I am still working on getting someone to make these dang parts.
Steve

QUOTE(charliew @ Oct 25 2007, 08:37 PM) *

QUOTE(Scott-thundercat @ Oct 25 2007, 12:54 AM) *

so i called a machine shop near where i work and found that they can do axle resplining or adapter flanges for a good price. they are fairly busy and so werent interested in a huge ammount of orders but said 30 orders over some time they could probably do. anyhow, my two questions for you all are- has anyone measured the subaru CV shaft and seen if it could fit? i wonder because if all we had to do was respline it (assuming it was a bigger spline section than the 914s) is fairly easy and inexpensive. the shop told me that if it was just a matter of heat treating the subie shafts and lathing them then resplining em, about 150 or so per axle, possibly cheaper possibly more.

they actually build complete custom CV's for the military (extreme use for special forces) that run 1100 an axle, but that is so extreme he said it wouldnt be near that to build an axle for moderate power and real world useage.

the other option was to build a CV adapter plate to fit either the 914 CV shaft or the 944 CV shaft, he said no problem, bring in both axles and how long it has to be and he can make em, similar price to the 150 (he said likely cheaper if it's a simple design).

my main thing is- does anyone have exact measurements for the subie output stubs (and inside diameter of the oil seals on em)? and also the lengths between them and the wheel bearing on the 914? I've found some specs on 914 axles, but if anyone has ready facts i'd appreciate it. i'm slowly cobbling together things for this swap and saw that it had kind of stalled on the board....

Scott


Hi Scott, It's nice that you are trying to work this out. The only problem that I can see is that the overall length will be different for each conversion because the motor and tranny can be put in many different positions. The general idea is good but you will need to make your own measurements for your application. Someone has already fabbed up a prototype flange to take the subie axles but the machine shop fizzled. I haven't gotten that far yet to study the possibilities but I'm sure others have.

Charlie
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Porcharu
post Dec 6 2007, 05:22 PM
Post #422


Senior Member
***

Group: Members
Posts: 1,314
Joined: 27-January 05
From: Campbell, CA
Member No.: 3,518
Region Association: Northern California
wahoo, finally!! Must be xmas - Subie/ 914 adaptor!!!!!!

I was checking my email and what do I see? Something from the shop that I had given up on.

"Steve, after many backwards updates from our manufacturer (prototypes they've proven slowest at!, but their knowledge and skill I can't step away from) I'm VERY happy to tell you they're done"

I am supposed to have pictures and prices Friday. I will post them once I have them.
Finally after over a year - the magic part is completed!! I guess I will have to start working on the car again.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Zaney
post Dec 6 2007, 05:39 PM
Post #423


Deuchland en der Haus
**

Group: Members
Posts: 461
Joined: 1-March 04
From: Engine 11 Redmond, WA
Member No.: 1,738
Region Association: Pacific Northwest
QUOTE(Porcharu @ Dec 6 2007, 03:22 PM) *

wahoo, finally!! Must be xmas - Subie/ 914 adaptor!!!!!!

I was checking my email and what do I see? Something from the shop that I had given up on.

"Steve, after many backwards updates from our manufacturer (prototypes they've proven slowest at!, but their knowledge and skill I can't step away from) I'm VERY happy to tell you they're done"

I am supposed to have pictures and prices Friday. I will post them once I have them.
Finally after over a year - the magic part is completed!! I guess I will have to start working on the car again.

(IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/aktion035.gif)
The Golden goose has laid the golden egg!!!

I will be a supporter and a customer when the time comes!

Thanks for leading the Charge!

Nate
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
charliew
post Dec 7 2007, 07:32 PM
Post #424


Advanced Member
****

Group: Members
Posts: 2,363
Joined: 31-July 07
From: Crawford, TX.
Member No.: 7,958
QUOTE(Zaney @ Dec 6 2007, 06:39 PM) *

QUOTE(Porcharu @ Dec 6 2007, 03:22 PM) *

wahoo, finally!! Must be xmas - Subie/ 914 adaptor!!!!!!

I was checking my email and what do I see? Something from the shop that I had given up on.

"Steve, after many backwards updates from our manufacturer (prototypes they've proven slowest at!, but their knowledge and skill I can't step away from) I'm VERY happy to tell you they're done"

I am supposed to have pictures and prices Friday. I will post them once I have them.
Finally after over a year - the magic part is completed!! I guess I will have to start working on the car again.

(IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/aktion035.gif)
The Golden goose has laid the golden egg!

I will be a supporter and a customer when the time comes!

Thanks for leading the Charge!

Nate


Me too probably.

Charlie
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
atsealevel914
post Dec 9 2007, 07:58 PM
Post #425


Member
**

Group: Members
Posts: 103
Joined: 31-January 04
From: Miami,FL
Member No.: 1,618
This is awesome news. Ive been following this effort since the begining. I need a set of these adaptors as soon as they are available. Thank you sir.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
d914
post Dec 9 2007, 08:44 PM
Post #426


Advanced Member
****

Group: Members
Posts: 2,343
Joined: 12-July 03
From: Atlanta, ga
Member No.: 904
Region Association: South East States
where is the pics??? you know I'll be in.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Porcharu
post Dec 9 2007, 11:30 PM
Post #427


Senior Member
***

Group: Members
Posts: 1,314
Joined: 27-January 05
From: Campbell, CA
Member No.: 3,518
Region Association: Northern California
Nothing yet - he didn't say Friday December the 7th 2007. (IMG:style_emoticons/default/dry.gif) Hope I hear something in the morning.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
atsealevel914
post Dec 10 2007, 06:38 PM
Post #428


Member
**

Group: Members
Posts: 103
Joined: 31-January 04
From: Miami,FL
Member No.: 1,618
Steve, will you be selling the axle assemblies too?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
toon1
post Dec 10 2007, 09:39 PM
Post #429


Senior Member
***

Group: Members
Posts: 1,849
Joined: 29-October 05
From: tracy,ca
Member No.: 5,022
What are the gear ratio's of the subie tranny? I would suspect they are taller that the 914.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Porcharu
post Dec 11 2007, 02:22 AM
Post #430


Senior Member
***

Group: Members
Posts: 1,314
Joined: 27-January 05
From: Campbell, CA
Member No.: 3,518
Region Association: Northern California
QUOTE(atsealevel914 @ Dec 10 2007, 04:38 PM) *

Steve, will you be selling the axle assemblies too?

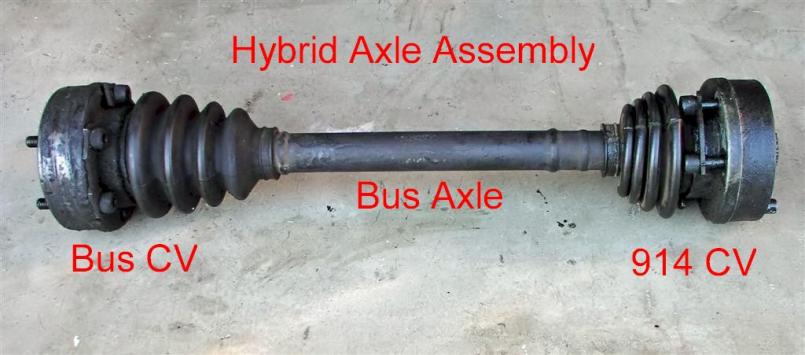

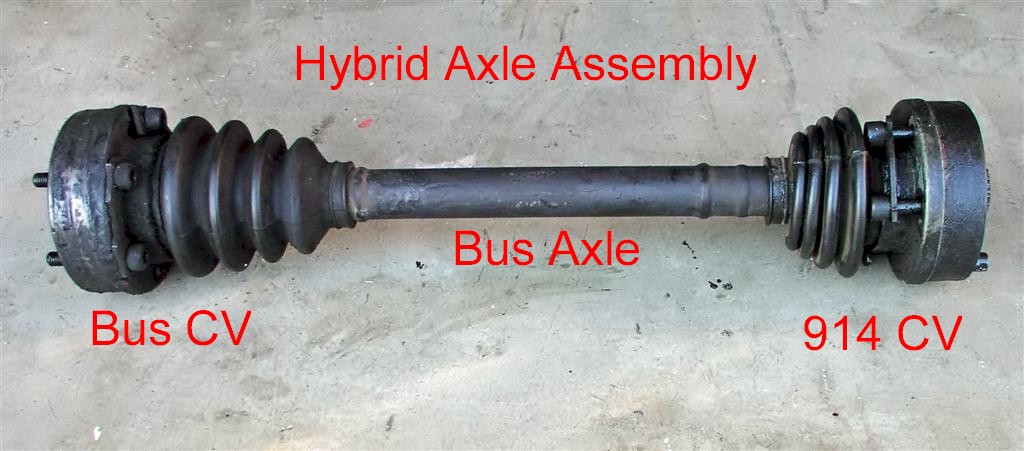

The axle assemblies are just stock VW Bus axles. Custom axles were one of the things I wanted to avoid at almost any cost. If you use the 944 stub axles the bus axles assemblies will just bolt in. If you want to retain the stock 914 stubs (or reuse your redrilled stuff) all you need to do is pop off the outer CV add a small ring spacer (I will make these for a few $) and slip it onto the bus axle.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Porcharu
post Dec 12 2007, 12:00 PM
Post #431


Senior Member
***

Group: Members
Posts: 1,314
Joined: 27-January 05
From: Campbell, CA
Member No.: 3,518
Region Association: Northern California

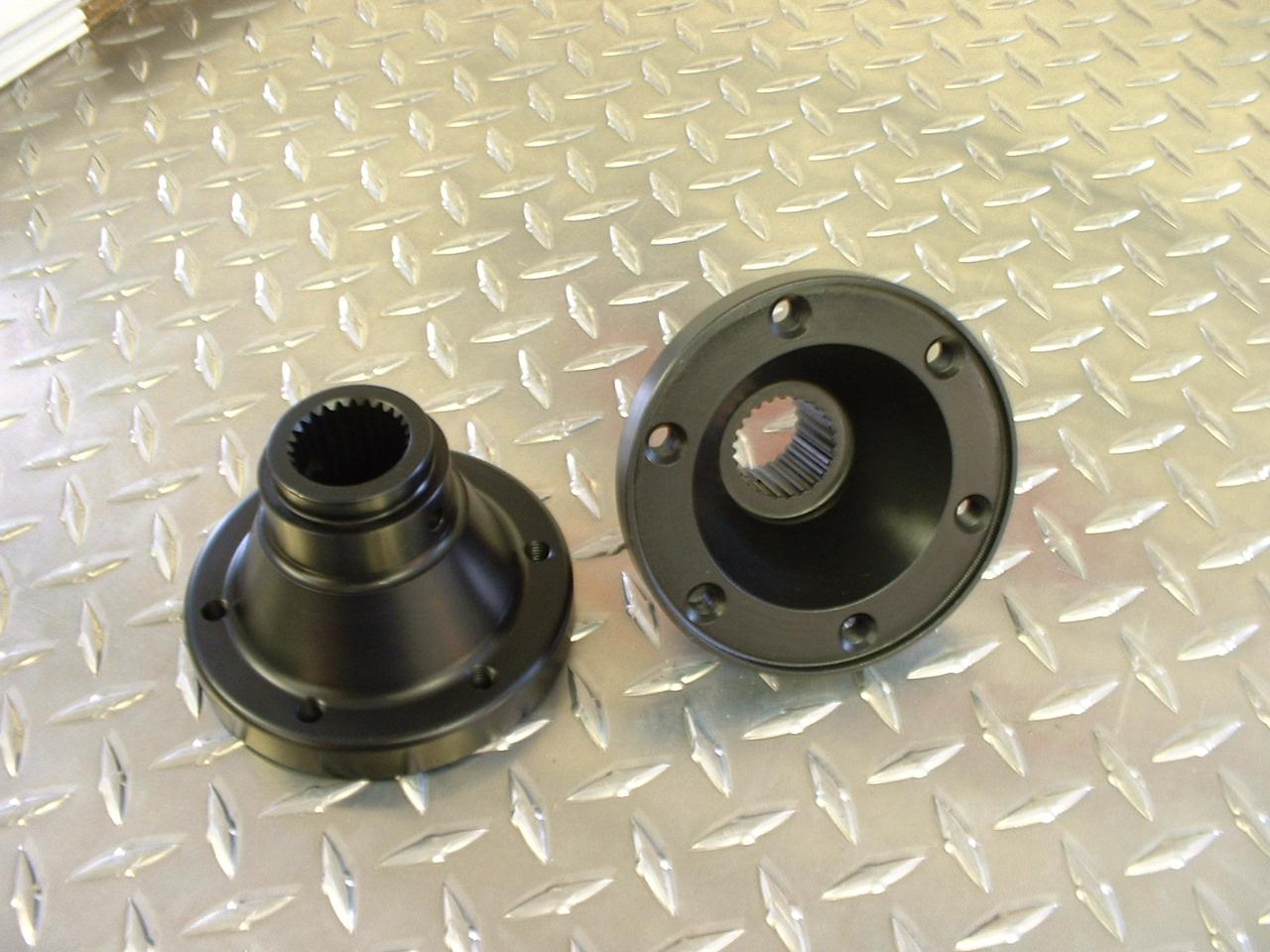

Here they are!!! (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/piratenanner.gif)

No pricing yet, but I can guess they will not be cheap.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Porcharu
post Dec 12 2007, 02:32 PM
Post #432


Senior Member
***

Group: Members
Posts: 1,314
Joined: 27-January 05
From: Campbell, CA
Member No.: 3,518
Region Association: Northern California
QUOTE(toon1 @ Dec 10 2007, 07:39 PM) *

What are the gear ratio's of the subie tranny? I would suspect they are taller that the 914.


Look here for Subi gear ration stuff. Subi Gears

And here for Porsche ratiosPorsche gears

I posted this a while ago.

Here are the "way to tall gears"
US WRX (stock tire 205/55-16) Tire circumference is calculated
Gear Ratio Final drive Total ratio Tire Circ. Rev./Mile
1st 3.454 3.9 13.4706 78.15639 10920.38
2nd 1.947 3.9 7.5933 78.15639 6155.753
3rd 1.366 3.9 5.3274 78.15639 4318.828
4th 0.972 3.9 3.7908 78.15639 3073.134
5th 0.738 3.9 2.8782 78.15639 2333.306

I don't have the 901 ratios handy but I remember they were pretty close if you have the 4.11 or 4.44 final drive in the Suby. I think many of the Legacy FWD had taller gears (3.7 final drive)
The NA small engine (like 1.8l) transmissions had the "better" gear ratios (closer and lower final drive)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
charliew
post Dec 12 2007, 02:47 PM
Post #433


Advanced Member
****

Group: Members
Posts: 2,363
Joined: 31-July 07
From: Crawford, TX.
Member No.: 7,958
QUOTE(Porcharu @ Dec 12 2007, 01:00 PM) *

Here they are!!! (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/piratenanner.gif)

No pricing yet, but I can guess they will not be cheap.


Steve what is the black coating? They really look nice. When will they be available as just a set? I will need to find longer axles to go with them but don't have the length figgured yet.

Charliew
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Porcharu
post Dec 12 2007, 03:01 PM
Post #434


Senior Member
***

Group: Members
Posts: 1,314
Joined: 27-January 05
From: Campbell, CA
Member No.: 3,518
Region Association: Northern California
QUOTE(charliew @ Dec 12 2007, 12:47 PM) *

QUOTE(Porcharu @ Dec 12 2007, 01:00 PM) *

Here they are!!! (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/piratenanner.gif)

No pricing yet, but I can guess they will not be cheap.


Steve what is the black coating? They really look nice. When will they be available as just a set? I will need to find longer axles to go with them but don't have the length figgured yet.

Charliew



I don't kwow what the black coating is, probably a rust inhibitor or that gunmetal bluing stuff. That is a picture that the shop emailed me, I havn't seen the parts myself.
Why do you need longer axles?

Steve
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GS Guy
post Dec 12 2007, 04:06 PM
Post #435


Member
**

Group: Members
Posts: 243
Joined: 8-July 04
From: Columbia, MD
Member No.: 2,325
Region Association: North East States
The black coating is probably a black oxide treatment.
The flanges look Great!

What holds them onto the splined inner stub? Circlip?

Jeff
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Porcharu
post Dec 12 2007, 04:53 PM
Post #436


Senior Member
***

Group: Members
Posts: 1,314
Joined: 27-January 05
From: Campbell, CA
Member No.: 3,518
Region Association: Northern California
QUOTE(GS Guy @ Dec 12 2007, 02:06 PM) *

The black coating is probably a black oxide treatment.
The flanges look Great!

What holds them onto the splined inner stub? Circlip?

Jeff



I think you are right, couldn't think of that term before posting. The flanges are held on with a roll pin (a big one) driven thru the flange and the stub axle.
Steve
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Porcharu
post Dec 12 2007, 06:42 PM
Post #437


Senior Member
***

Group: Members
Posts: 1,314
Joined: 27-January 05
From: Campbell, CA
Member No.: 3,518
Region Association: Northern California
I got the pricing from the shop. I am paying $575 for the first pair. If I can get buyers for 5 sets the price will be $495 including shipping within the US. Delivery will be 3-4 weeks but I would plan on twice that much time.
Steve
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
atsealevel914
post Dec 12 2007, 10:53 PM
Post #438


Member
**

Group: Members
Posts: 103
Joined: 31-January 04
From: Miami,FL
Member No.: 1,618
QUOTE(Porcharu @ Dec 12 2007, 04:42 PM) *

I got the pricing from the shop. I am paying $575 for the first pair. If I can get buyers for 5 sets the price will be $495 including shipping within the US. Delivery will be 3-4 weeks but I would plan on twice that much time.
Steve

Im definately in, when can i send you the money?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
d914
post Dec 13 2007, 08:16 AM
Post #439


Advanced Member
****

Group: Members
Posts: 2,343
Joined: 12-July 03
From: Atlanta, ga
Member No.: 904
Region Association: South East States
I'm in.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Porcharu
post Dec 13 2007, 03:40 PM
Post #440


Senior Member
***

Group: Members
Posts: 1,314
Joined: 27-January 05
From: Campbell, CA
Member No.: 3,518
Region Association: Northern California
Some details on the flanges.
"Turned from aircraft quality chromoly billet (4340) then vacuum heat treated and
chryogenically treated to -300F for maximum strength and toughness"
(IMG:style_emoticons/default/piratenanner.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


36 Pages V « < 20 21 22 23 24 > »
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 23rd November 2024 - 06:34 PM
Invision Power Board v9.1.4 © 2024  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
