> There sure are a lot of parts in a 901 box, Now I'm going to try to put them back in
DNHunt
post Nov 6 2005, 05:47 PM
Post #101


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

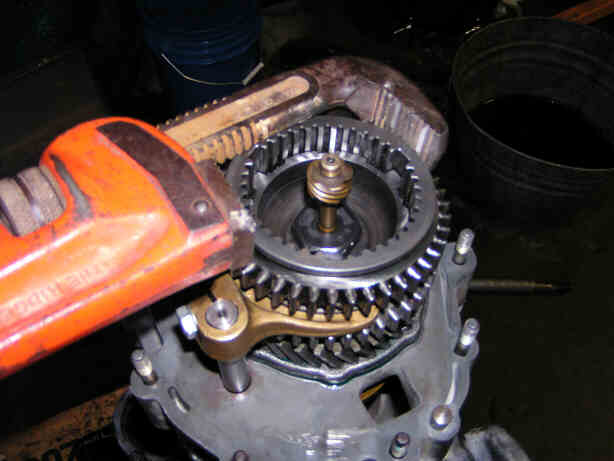

I installed the 2 paper gaskets and installed the gear tack in the case. I used an old slider and my biggest pipe wrench to hold the pinion shaft so I could torque 1st gear. I know that looks gruesome but, it worked well.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 05:49 PM
Post #102


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

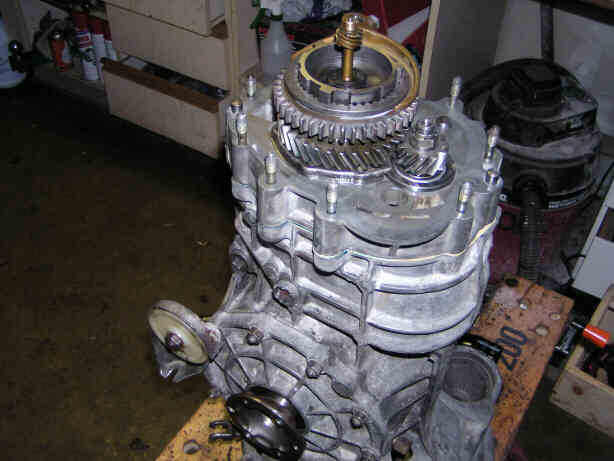

Gear stack done and intermediate plate installed


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 05:51 PM
Post #103


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Time for reverse. It starts with a roller bearing. The thrust washer remained on the shaft.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 05:52 PM
Post #104


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

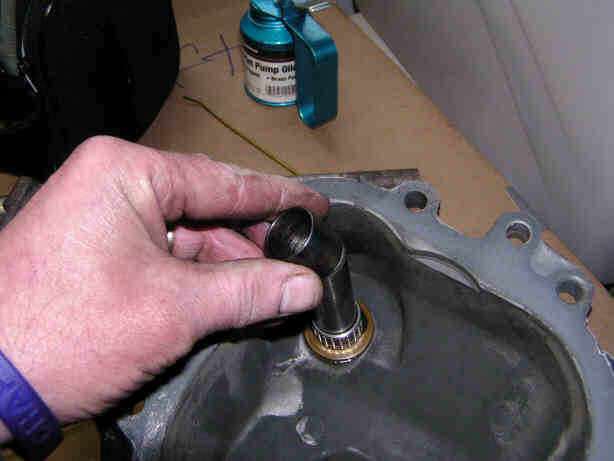

Then a spacer


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 05:53 PM
Post #105


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

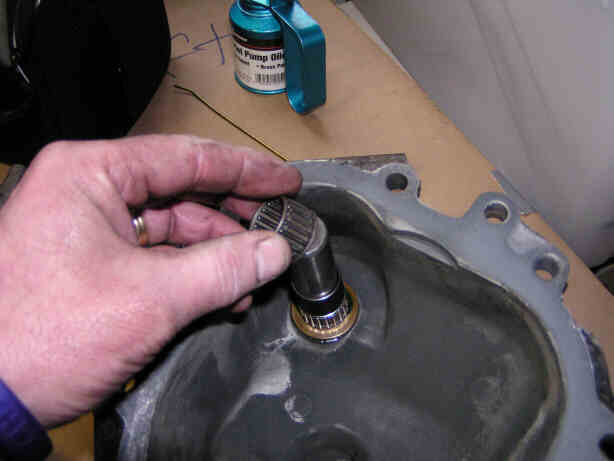

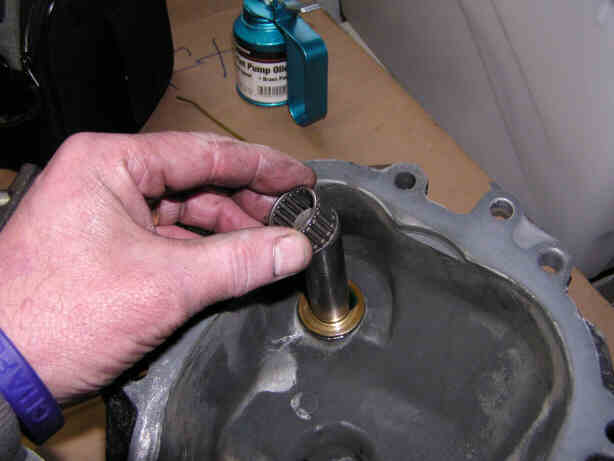

Then a second roller bearing


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 05:55 PM
Post #106


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

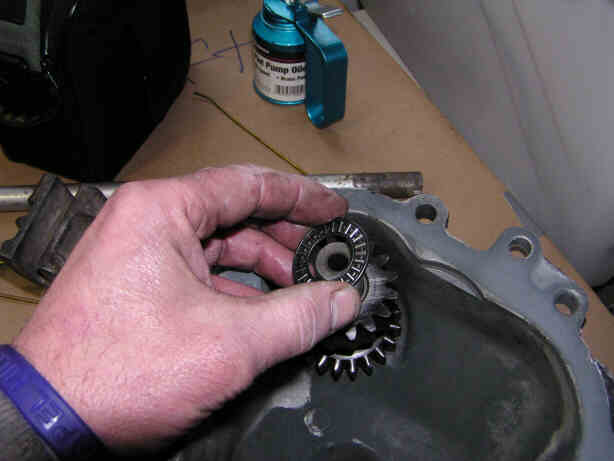

Reverse gear slips over the roller bearings and spacer. The staight cut gears go toward the case


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 05:56 PM
Post #107


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

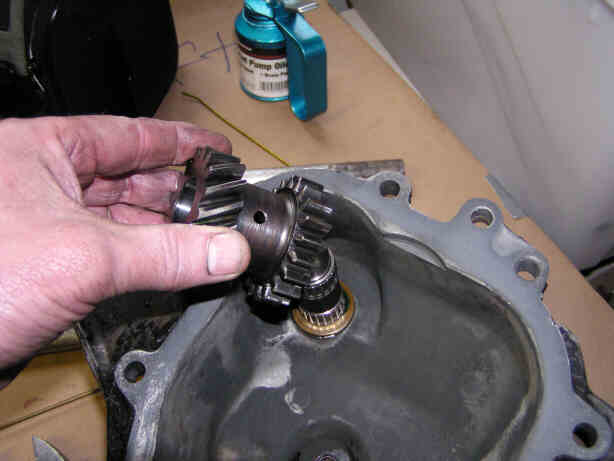

Another bearing


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 05:59 PM
Post #108


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

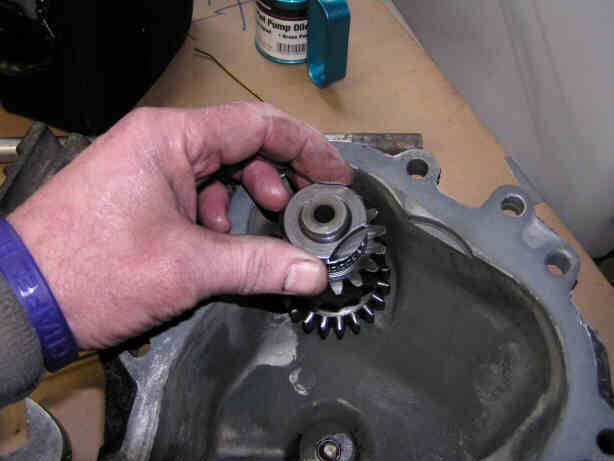

Another thrust washer. This has a cut out machined into it that will overlap par of the race for the drive shaft in the intermediate plate. It's a bitch to keep on and oriented right. I used some grease to keep it in place.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:01 PM
Post #109


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

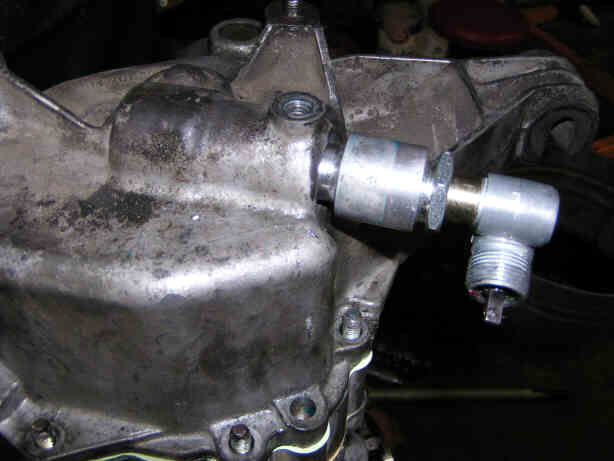

I removed the bolt from the speedo drive and pulled the drive part way out. It makes it easier to seat the rear cover.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:04 PM
Post #110


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Torqued down the cover nuts and replaced the speedo and speedo bolt . Everything seems to turn really well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:06 PM
Post #111


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

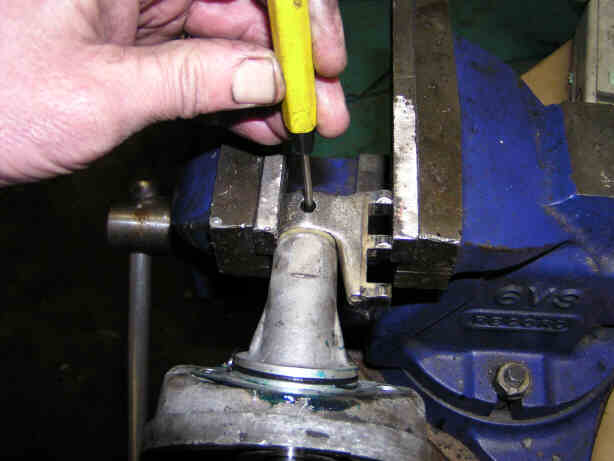

Reconditioning the shift console starts with removing the roll pin holding the fork.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:08 PM
Post #112


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

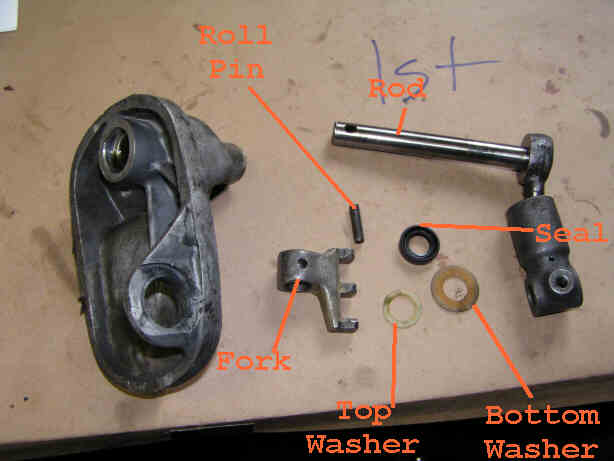

Take it apart and this is what you have. Getting the small seal in the console out is a little tough without a seal puller.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:09 PM
Post #113


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Here is the seal for the rod


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:10 PM
Post #114


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

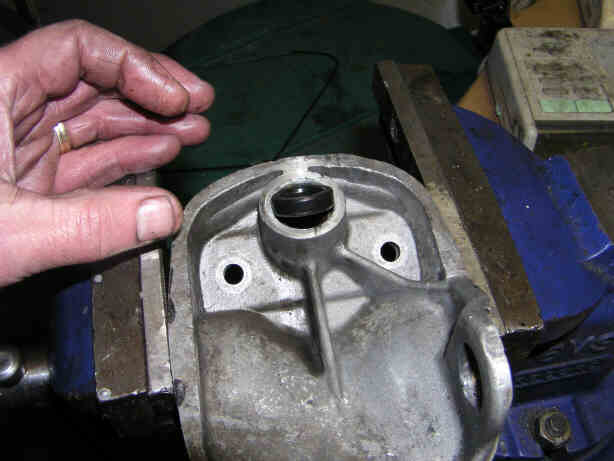

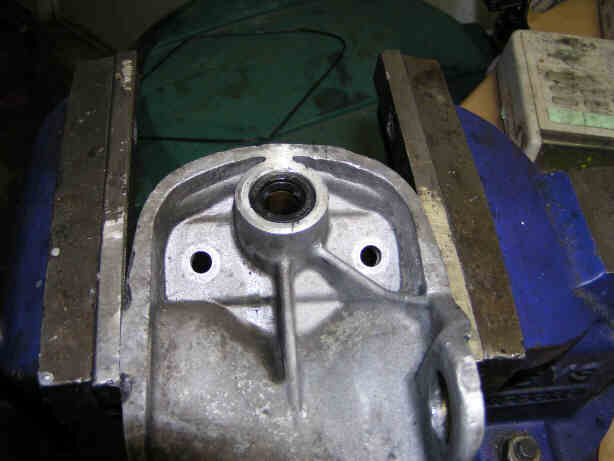

The seal installed


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:12 PM
Post #115


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

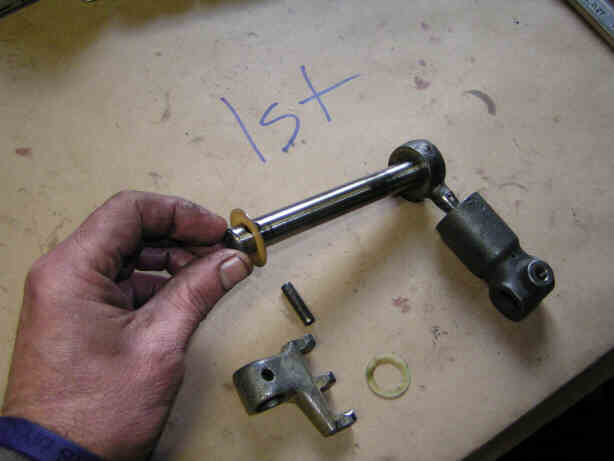

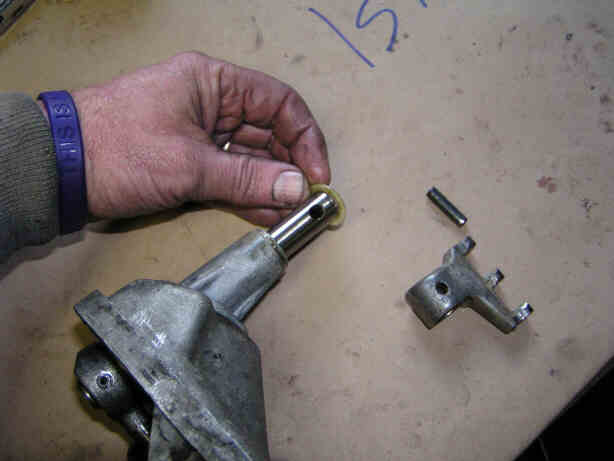

The larger plastic washer goes on the shaft before reinserting it.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:13 PM
Post #116


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

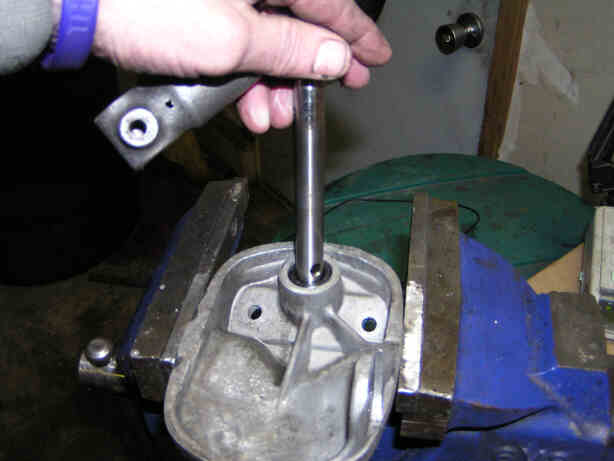

Inserting the rod in the console


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:13 PM
Post #117


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
The top washer is the smaller plastic one.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:14 PM
Post #118


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
The fork goes on the shaft. The long leg goes toward the bottom and the 3 lugs point the same direction as the lever on the rod
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:17 PM
Post #119


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

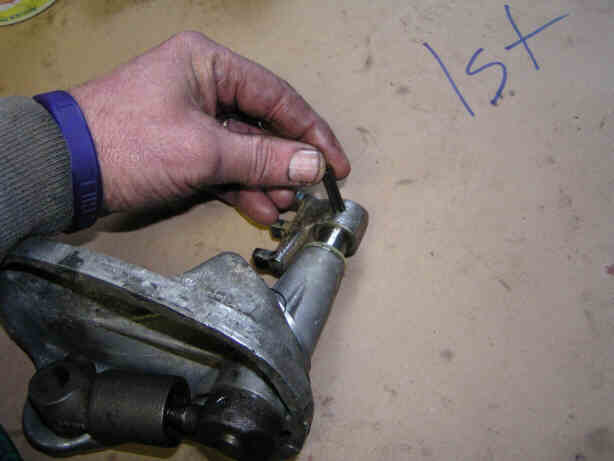

Tap in the roll pin


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:18 PM
Post #120


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

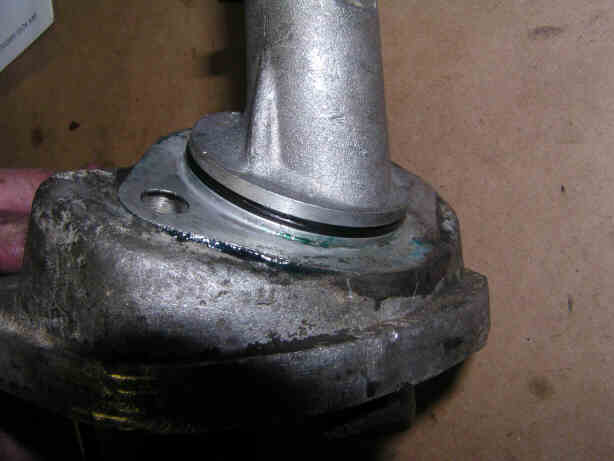

Change the O-ring and istall the gasket and put it in. [Edit by McMark: No gasket. The gasket that looks like it goes here is for the tailshifter transmissions.]


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
