> There sure are a lot of parts in a 901 box, Now I'm going to try to put them back in
DNHunt
post Nov 5 2005, 09:40 PM
Post #41


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

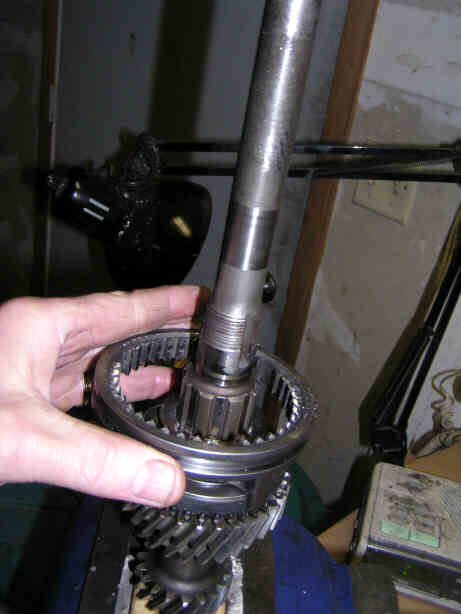

The finished pinion shaft assembly


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Nov 5 2005, 09:52 PM
Post #42


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
wow. so 2nd and 3rd are the only gears with a slider...?

1st and reverse is on the other side of the intermediate plate right?

b
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:12 AM
Post #43


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598

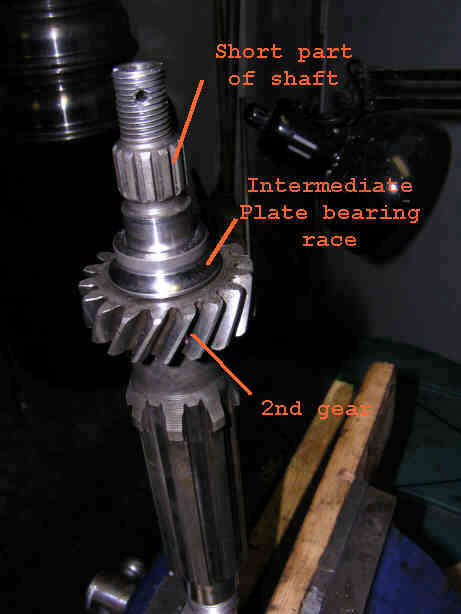

Time to assemble the drive shaft. 2nd gear on the usual box is ground as part of the drive shaft so, so I got a freebie cause there is no way to screw it up. The first thing I put on was the race for the double ball bearing in the intermediate plate. It goes on the side of 2nd gear with the short part of the shaft.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:14 AM
Post #44


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Now I turned the shaft over so i was putting parts on the long end of the drive shaft. 3rd gear next


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:15 AM
Post #45


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Next goes a flat washer


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:20 AM
Post #46


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Here's the beginning of the one mistake I made (the one I caught at least). Next goes the 4th gear assembly. It goes on over a race and roller bearing just like 2nd and 3rd assemblies on the pinion shaft. Always, dogteeth toward the slider


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:23 AM
Post #47


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
4th, 5th slider hub. There is no right or wrong side, just slide it on.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:31 AM
Post #48


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
4th, 5th slider. I swapped this slider with the 2nd, 3rd slider because the 2nd, 3rd slider had a touch of wear and 4th and 5th don't get used as much as 2nd and 3rd.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:33 AM
Post #49


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
I'm still continuing in my ignorance. 5th gear assembly goes on with the dogteeth down toward the slider.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:34 AM
Post #50


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Cone washer


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:37 AM
Post #51


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Next goes the smaller roller bearing and a locking plate. The tab goes in the slot pointed down to go under the bearing.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 06:40 AM
Post #52


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Tighten the nut down to 80 lbs and bend up 1 edge of the locking plate and the drive shaft is ready. I still haven't caught my mistake. Anyone that has been in one of these boxes should see it now.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sj914
post Nov 6 2005, 06:46 AM
Post #53


Senior Member
***

Group: Members
Posts: 805
Joined: 20-August 03
From: San Jose, CA
Member No.: 1,053
4th and 5th gear are in the wrong order?
How did you torque that nut to 80ft/lbs.?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 07:01 AM
Post #54


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
You are RiIGHT. It won't go in the intermediate plate like that. I guessed. I did mark the shaft and nut so I got them to the same spot.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 07:03 AM
Post #55


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Ah, the intermediate plate. I installed the bearing races (the whole bearing for the pinion shaft).


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 07:05 AM
Post #56


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Next comes the spacer that goes under the bearing retainer plate.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 07:06 AM
Post #57


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
The bearing retainer plate


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 07:07 AM
Post #58


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Here is another use for the CV joint tool. 8mm 12point.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 07:08 AM
Post #59


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Torqued to 15-17 lb ft. I had a heck of a time figuring out how to steady the intermediate plate while I torqued it. I finally put a couple of 8mm bolts in my vice and put the plate over them.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Nov 6 2005, 07:15 AM
Post #60


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
I'm ready to drive the race down the pinion shaft


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
